DWL-3200AP Install GuideInstalling the Hardware
DWL-3200AP Install Guide
D-Link Air Premier™DWL-3200AP
Managed Wireless Access Point
Using a power adapter with a different
voltage rating will damage and void the
warranty of this product.
Power Cord
Ethernet Cable
Mounting Plate
System Requirements
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based
operating systems
• Installed Ethernet Adapter Internet Explorer version 6.0 or
Netscape Navigator™version 7.0 and above

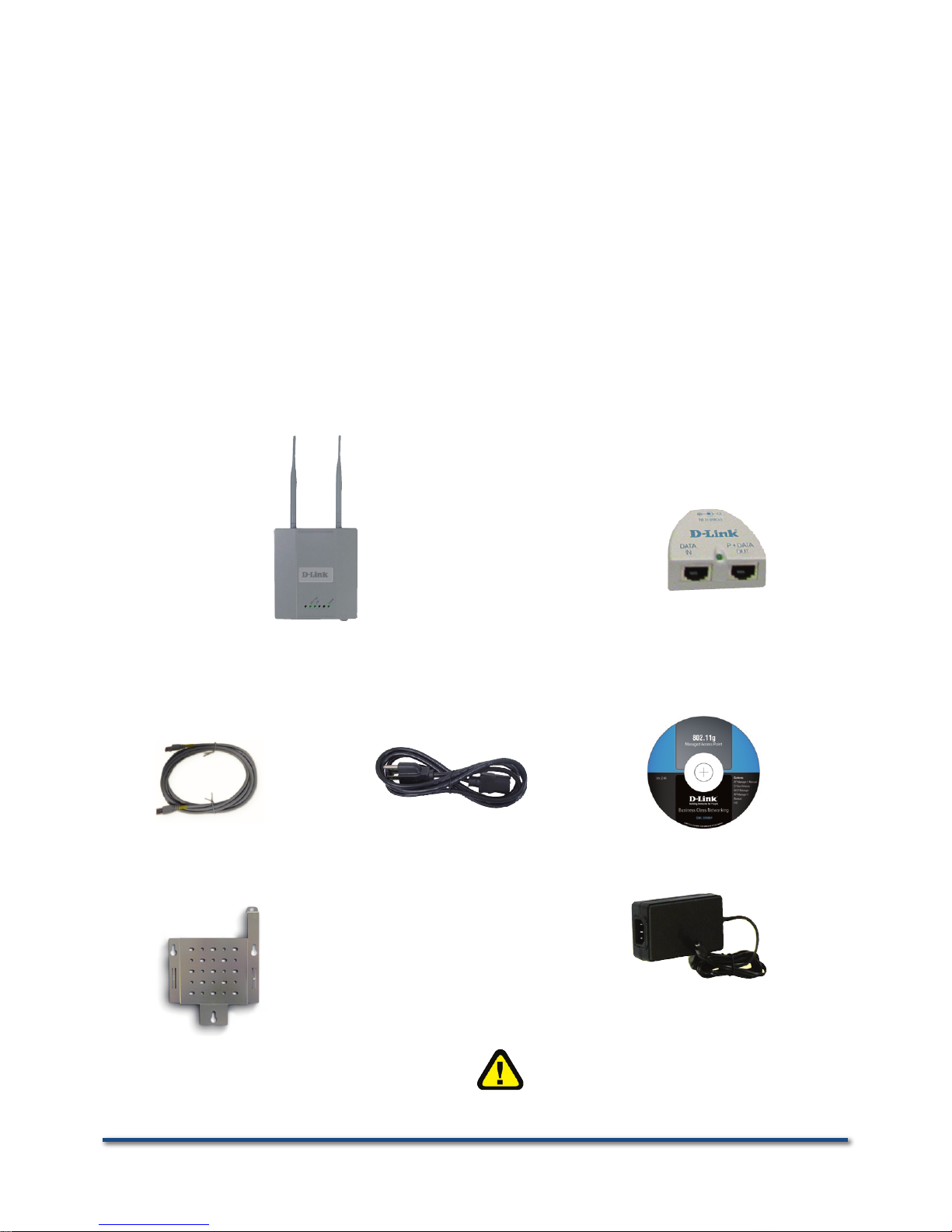

Package Contents
Power over Ethernet
base unit
CD-ROM with Manual
Power Adapter-DC 48V, 0.4A

3
DWL-3200AP Install Guide
Installing the Hardware
Step 1
Step 2

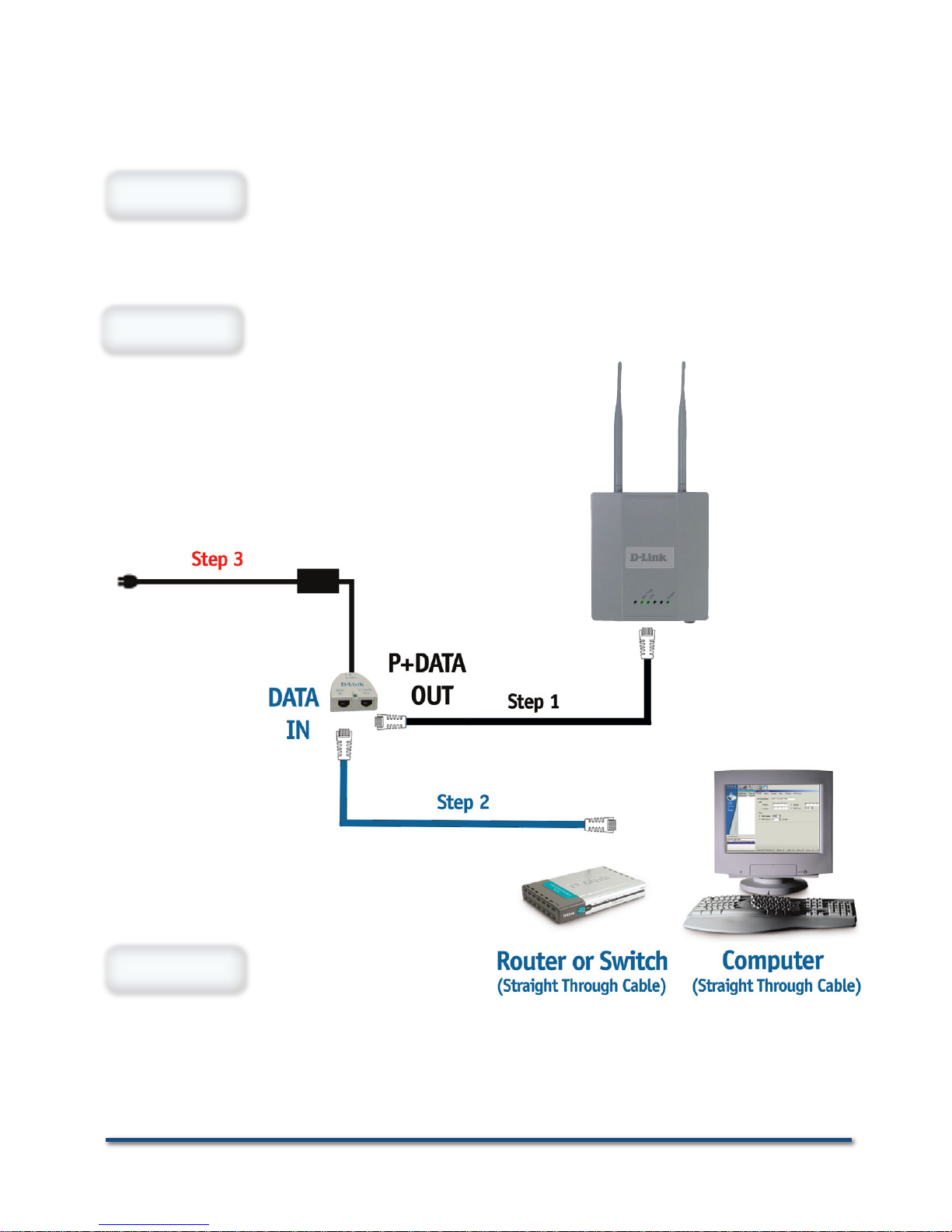

Connect one end of an Etherne cable (included with your
package) to the LAN port on the DWL-3200AP and the other
end of the Ethernet cable to the port labeled P+DATA OUT on
the PoE base unit.
Connect another Ethernet cable from the DATA IN
port on the PoE base unit to your router/switch or
to a PC.
Attach the power adapter to the connector labeled POWER IN on the PoE base unit.
Attach the power cord to the power adapter and into an electrical outlet.
Step 3

4
DWL-3200AP Install GuideInstalling the Hardware
DWL-3200AP Install Guide

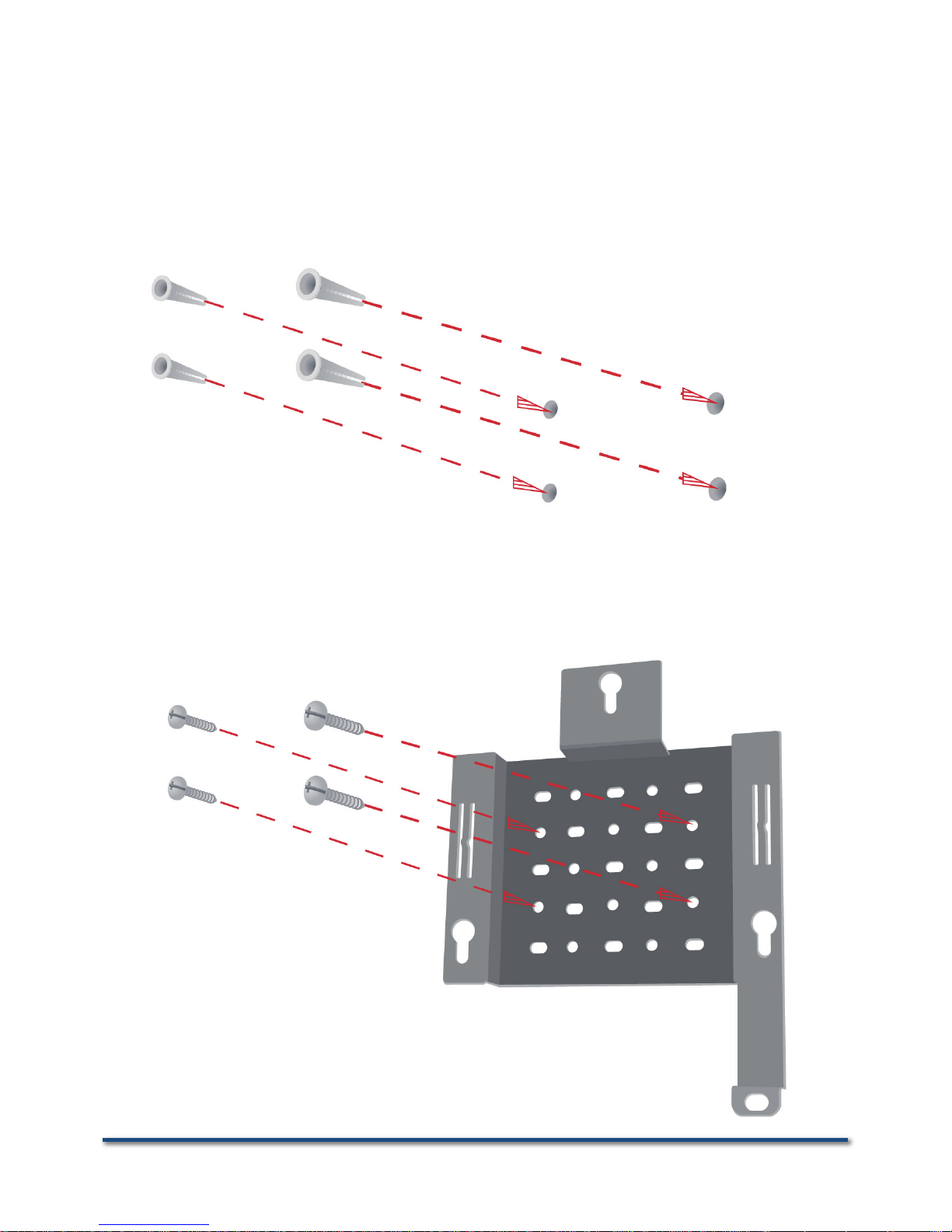

Step 1: Insert provided wall anchors in the wall where the mounting plate will be at-
tached.
Mounting Plate Assembly
Step 2: Use the provided screws to secure the mounting plate on the wall.

5
DWL-3200AP Install Guide

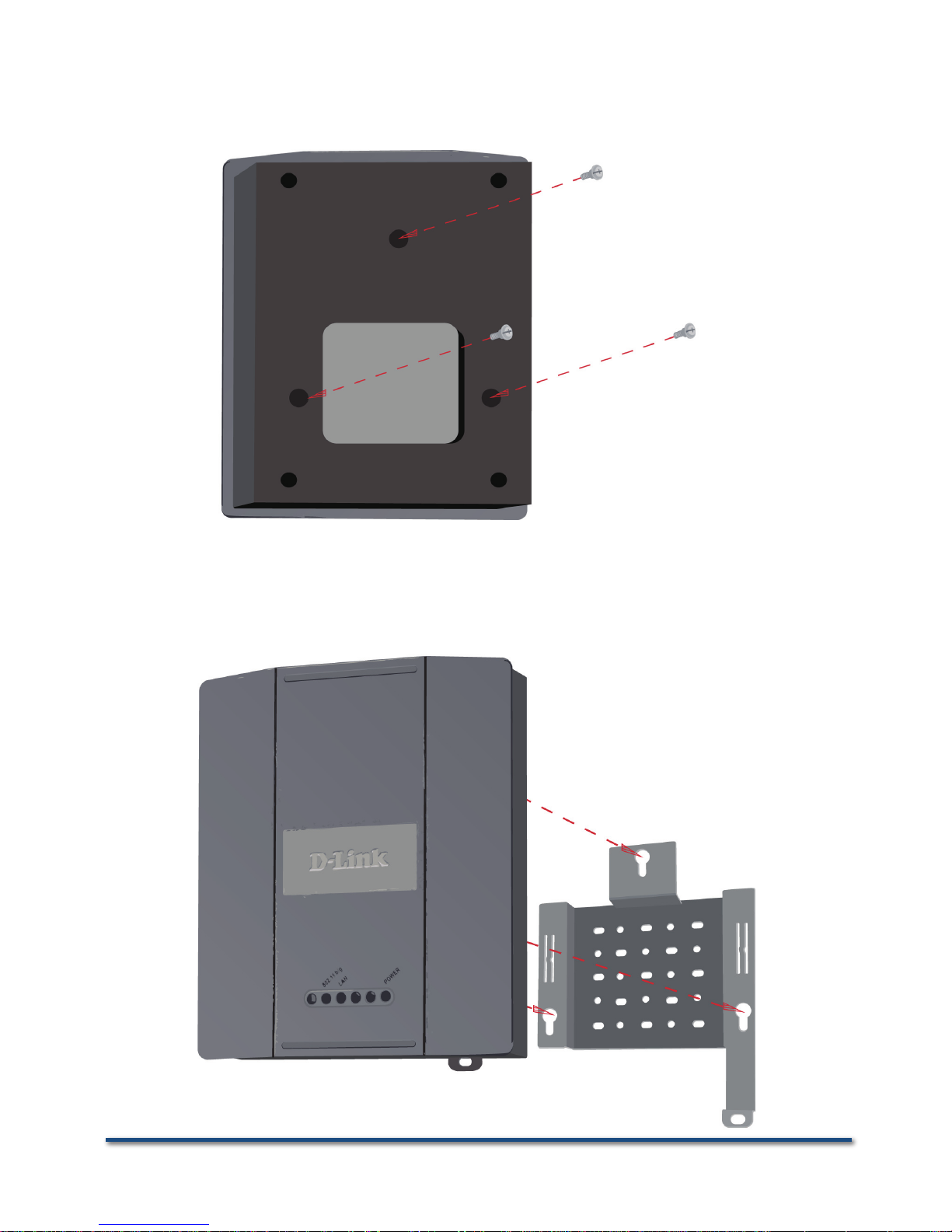

Step 3: Attach the remaining screws securely to the back of the
DWL-3200AP.
Step 4: Attach the DWL-3200AP to the mounting plate.

6
DWL-3200AP Install GuideInstalling the Hardware
DWL-3200AP Install Guide

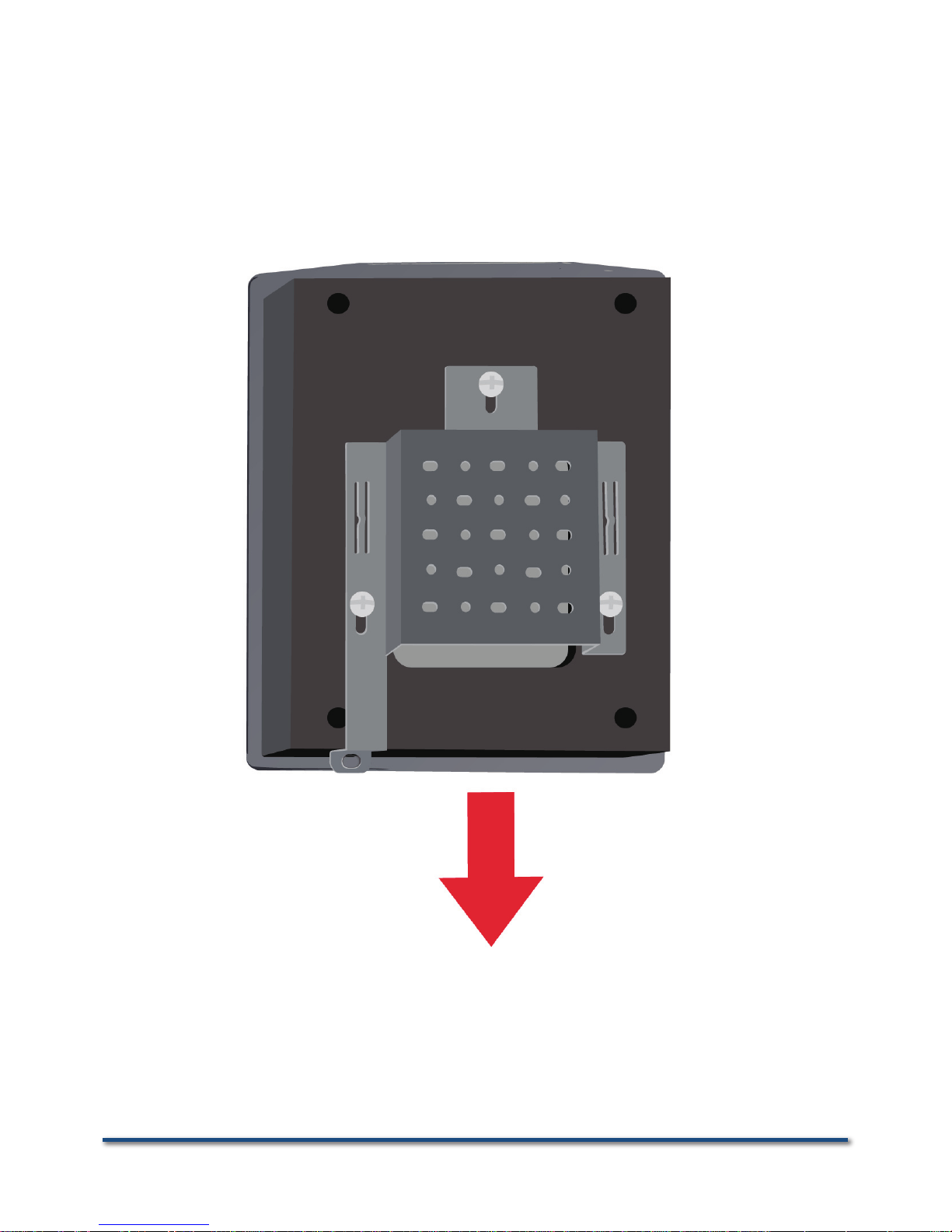

Step 5: Slide the DWL-3200AP down into the grooves on the mounting plate to secure it
to the plate.

7
DWL-3200AP Install Guide

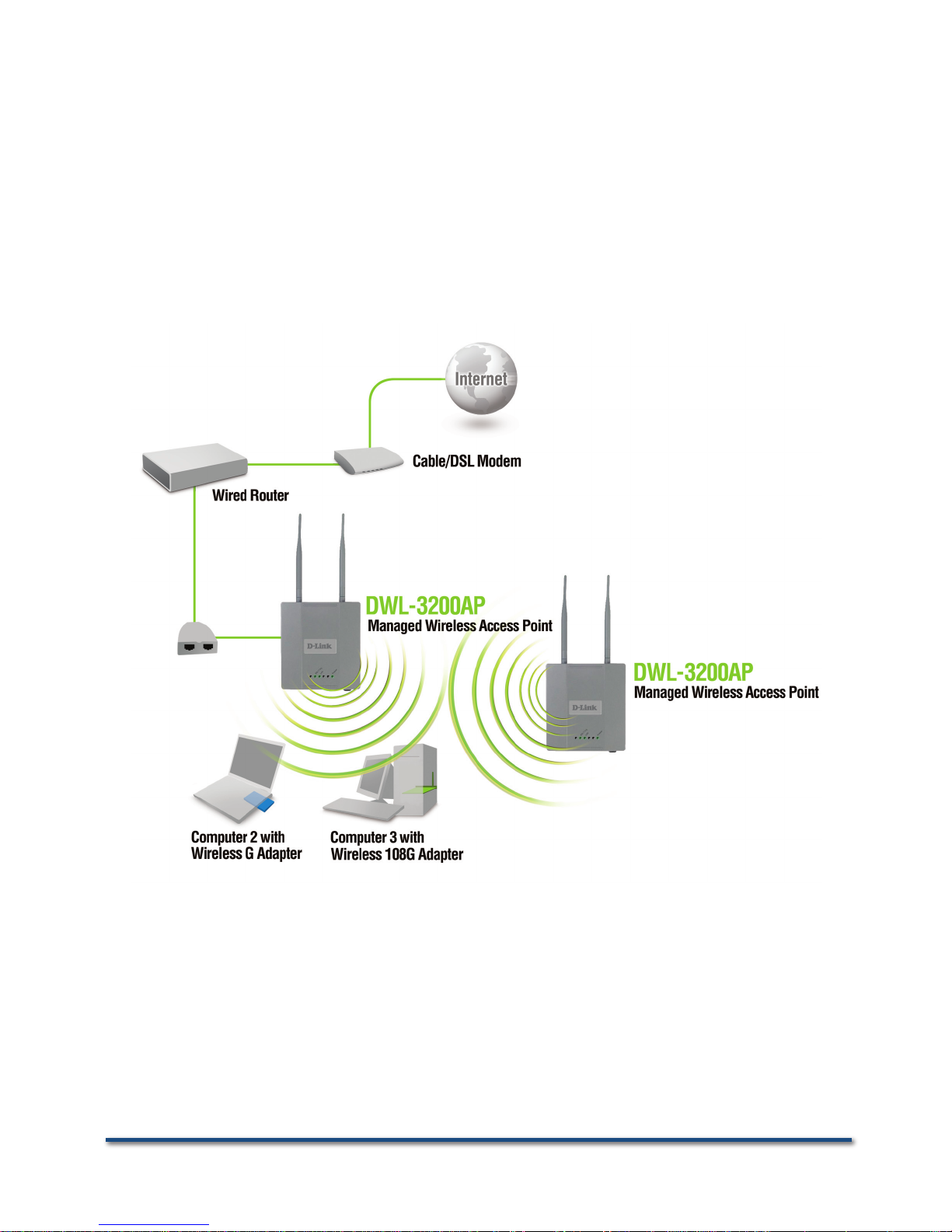

When you have completed the steps in this Installation Guide and configured your
DWL-3200AP for your network, your network should look similar to this:
Your Setup is Complete

Technical Support
D-Link’s website contains the latest user documentation and software updates for D-Link
products.
U.S. and Canadian customers can contact D-Link Technical Support through our website
or by phone.
United States
Telephone
[phone]
World Wide Web
http://support.dlink.com
Canada
Telephone
[phone]
World Wide Web
http://support.dlink.com
Version 2.40
August 22, 2007
6DWL3200Q.06G
