INSTRUCTION BOOK FOR
ViewShare Advantage Electrol Retroit

2
Tools Required for Installation
Important Safety Instructions
When using your video equipment, basic safety precautions
should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating at
least equal to that of the appliance should be used. Cords rated
for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric shock
when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by the
manufacturer may cause a risk of ire, electric shock, or injury to
persons.
Pre-Installation
Prior to Retroit installation, you will need to run a CAT5 or
CAT5e network cable from the motor end of your screen to
the area in which your computer will be located. THE CAT5
CABLE IS NOT PROVIDED. The length of the CAT5 cable cannot
exceed 200 feet. See Pre-Installation of ViewShare Screen and
Roller Assembly and Camera and Speakerphone Installation
sections for additional details on CAT5 cable connections.
NOTE: It requires at least two people to install a ViewShare
Retroit.
⁄“ Socket Driver
with 6" Extension
⅛” Hex Key
(included)
#2 Phillips Screwdriver

3
Removal of Old Screen and Roller Assembly
1. Run the screen to the up position.
2. Remove the access door by removing the screws from each end
(Figure 1). Be sure to support the door during this step to avoid
injury. Lift the door slightly and pull away from the edge of the
case.
3. Unplug 3 or 4 wire motor connector and RJ22/45 cable (if
applicable) from the junction box. See Appendix A for motor type
details.
4. Remove retainer clip from the motor (Figure 2).
NOTE: Save retainer clip for use in the installation of the
ViewShare screen and roller assembly.
5. Loosen (but do not remove) four ¼ – 20 nuts securing pin end
bracket (opposite end from the junction box) to the case housing.
While supporting the screen and roller, slide the pin end bracket
towards the end of the case and remove the existing screen and
roller assembly (Figure 3).
NOTE: Some units may only have two nuts per bracket.
¼ 20 Nuts
Pin End
Bracket
¼ 20 Nuts
Figure 1
Figure 2 – Motor End
Figure 3
Access Door Screws
Retainer Clip

4
Pre-Installation of ViewShare Screen and Roller Assembly
1. Remove existing motor and pin end roller assembly brackets
from inside the case.
NOTE: At this point the inside of case will be empty except for
the junction box connections on the motor end.
2. Remove a single circular knockout from motor end of case for
CAT5 cable needed in the Installation of ViewShare Screen and
Roller Assembly (Figure 4).
NOTE: The CAT5 cable should be run from the Local CAT5 to
USB Extender in Camera and Speakerphone Installation to this
location. Final connection of this CAT5 cable running through the
knockout will occur in Step 10 of Installation of ViewShare Screen
and Roller Assembly.
3. Place the two spacing gaskets (shown in Figure 5) on the bracket
bolts with ¼” – ½” of the bolts showing through the bottom
(Figure 6).
4. Slide the motor end spacing gasket until it makes contact with
the end of the case (Figure 7).
5. Slide the pin end spacing gasket until it is approximately 1 ½
inches from the end of the case (Figure 8).
6. Carefully unpack the new ViewShare screen and roller assembly
and set aside. Be sure to leave the packing paper on the roller.
NOTE: If your screen and roller assembly was ordered with a
new motor, please proceed to “Installation of ViewShare Screen
and Roller Assembly”. If you are utilizing your existing motor,
please continue to “Transfer of Existing Motor”.
Figure 4
Figure 5 – Spacing Gaskets
Figure 6 Figure 7 Figure 8
Circular
Knockouts
for CAT5
Cable
Spacing
Gasket
1/4" to 1/2" of
bolt showing
Motor End
Gasket
Motor End
Spacing
Gasket
Pin End
Spacing
Gasket
1 ½ in.
Pin End
Gasket

5
Transfer of Existing Motor
1. Remove motor from the old screen and roller assembly and set
aside (Figure 9).
NOTE: Try to avoid turning the rubber collar on the motor as you
are pulling the motor out of the roller as this will change the limit
switch settings.
2. Remove the black L-bracket from pin end of roller (Figure 11).
3. Unscrew shipping brackets from slat and gently lay slat behind
roller (Figure 10).
Figure 9
Motor
Roller
Assembly
Figure 10
Black
LBracket
Shipping
Bracket

6
Transfer of Existing Motor (continued)
Figure 11
4. Completely remove both shipping brackets from the board.
5. Remove the three Phillips head screws from motor end bracket
and remove wooden block (Figure 11).
6. On the ViewShare screen and roller assembly, loosen (but do not
remove) the nut on the motor end arm bracket (Figure 12).
7. Remove the two end bracket bolts securing the motor end bracket
to the shipping board. Slide the bracket away from the end while
supporting the roller (Figure 12).
Phillips
Head
Screws
Figure 12
Motor
End Arm
Bracket
Nut
End Bracket Bolts

7
Transfer of Existing Motor (continued)
Figure 13
Figure 14
Retainer
Clip
Motor
Plug
Wood
Block
8. Carefully lift the roller above the mounting bracket and remove the
wood block and plug from the end of the
roller (Figure 13).
9. Insert previously set aside motor into the ViewShare fabric
and roller assembly.
NOTE: When transferring the existing motor into the roller,
be careful to avoid unintentional damage to the screen and
arm assemblies.
10. Lower the roller, slide the bracket onto the motor end of roller
and insert retainer clip (Figure 14).
11. Align the motor end bracket using the mounting holes as
a guide and tighten the motor end arm bracket nut (Figure 12).
12. Re-attach the black L-bracket on the pin end of the roller (Figure 10).

8
Installation of ViewShare Screen and Roller Assembly
NOTE: The ViewShare screen and roller assembly, which
includes brackets and arms, must be installed as a complete unit.
Do not attempt to disassemble these components during
installation.
1. Remove two ¼ – 20 nuts from pin end and motor end mounting
brackets on the ViewShare screen and roller assembly shipping
board (Figure 15).
NOTE: If you transferred you existing motor, the motor end nuts
have already been removed.
2. Remove screws from both L-brackets that hold the slat in place
and carefully allow the slat to rest behind the ViewShare screen
and roller assembly (Figure 15).
NOTE: If you transferred your existing motor, the L-brackets have
already been removed.
3. Install ViewShare screen and roller assembly by placing the unit
inside of case and secure motor end bracket by aligning bracket
holes with bolts. Secure with two ¼ – 20 nuts (Figure 16).
4. After the motor end is completed in Step 3, secure pin end by
aligning bracket holes with bolts. Secure with two ¼ – 20 nuts
(Figure 16).
5. Once both ends are secured, ensure that the mounting brackets
are parallel with both ends of the case (Figure 16).
NOTE: Brackets must be parallel with the case to ensure proper
alignment of arms. Misalignment may cause damage to screen
surface and arm assemblies.
Figure 16
Figure 15
Bracket Parallel
to End
Bracket Parallel
to End
Motor End
¼ – 20 Nuts
¼ – 20 Nuts
Pin End
¼ – 20 Nuts
Shipping
LBracket

9
Installation of ViewShare Screen and Roller Assembly (continued)
Figure 17
Figure 18
Black LBracket
Electrical
Connection
6. Remove black L-bracket on pin end of roller (Figure 17).
NOTE: If you transferred your existing motor, this bracket was
removed in the previous section.
7. Complete electrical hook-up by plugging in 3 or 4 wire motor
connector and RJ22/45 cable (if applicable) to the junction box.
See Appendix A for motor type details. (Figure 18).
8. Carefully remove paper and tape from roller assembly. DO NOT
use knife or sharp object to cut tape or you will damage the
screen.
9. Test installation by running screen up and down a few times. Be
prepared to stop screen should any objects obstruct the
movement of the screen. To prevent damage to the motor, the
standard duty cycle is 1 minute on and 3 minutes of.
NOTE: The up and down limits were pre-set by Da-Lite, but might
have shifted during installation. If your screen and roller assembly
needs adjustment, please see Appendix A for your motor type.

10
Installation of ViewShare Screen and Roller Assembly (continued)
10. Remove the USB to CAT5 extender labeled “Remote” from the
shipping carton. At the motor end of the case, attach the USB
cable coming from the ViewShare screen and roller assembly. On
the other end of the USB to CAT5 extender, attach the CAT5
cable that was run through the circular knockout. Remove the
non-adhesive side of the tape and carefully allow the USB to
CAT5 extender to hang freely (Figure 19).
NOTE: The USB to CAT5 connection will allow the integrated
ViewShare camera to interface with the other ViewShare
hardware components installed in the Camera and
Speakerphone Installation section.
11. Re-install the access door. Before inserting completely, adhere the
USB to CAT5 Extender to the inside of the access door out of
view of the audience. Complete installation by sliding the access
door into place and insert the screws into each end (Figure 20).
Figure 19
Figure 20
USB to CAT5 Extender
CAT5 Cable
USB Cable
Access Door Screws

11
Camera and Speakerphone Installation
The following components are necessary and included for
camera and speakerphone installation.
• Local CAT5 to USB Extender with Power Supply
• 6’ USB Cable
• USB Speakerphone
• Powered USB Hub with 3' USB Cable
NOTE: A CAT5 cable is also required for installation. THE CAT5
CABLE IS NOT PROVIDED. The length of the CAT5 cable cannot
exceed 200 feet.
For computer system requirements, speciications and
troubleshooting, see the separate camera instruction located in
the installation kit and the speakerphone instruction located
inside the speakerphone box. Additionally, links to online
assistance for each device are located in the Troubleshooting
section of this instruction book.
Connections (see wiring diagram below)
1. Connect your CAT5 cable to the local CAT5 to USB extender,
which should be located near your computer. Connect the local
CAT5 to USB extender power supply at this time.
NOTE: The CAT5 cable should only be connected between the
ViewShare Advantage and the local CAT5 to USB extender. Do
not connect to a server or network.
2. Lower the ViewShare Advantage screen.
3. Use the 6’ USB cable to connect the local CAT5 to USB extender
to the USB Hub.
4. Connect the speakerphone to the powered USB hub.
5. Connect the USB hub to your computer. Connect the USB hub
power supply at this time.
NOTE: The computer may recognize the USB hub as a new
component but it does not require any additional drivers. The
USB hub does not need to be used if your computer has two
open USB ports.
CAT5 Connection
To Screen
120 Volt Power
Video Cable
to Projector
120 Volt Power
Local CAT5 to
USB Extender
6' USB Cable
USB Cable
3' USB Cable
Powered
USB Hub
Laptop
USB Speakerphone

12
Camera and Speakerphone Installation (continued)
Camera and Speakerphone Setup
You are now ready to run the initial camera setup. The computer
will recognize the camera as a new component and load the
appropriate drivers. This can take up to several minutes and you
may need to follow on-screen instructions. If the computer is
using Windows 7 or later version, the computer will automatically
detect the camera, choose the proper drivers, and install the
drivers without your input. Once the green LED on the local
CAT5 to USB extender is illuminated and the drivers are installed,
you are ready to use the camera.
If the LED does not turn green after install, your computer may
need to be restarted before the camera can be used. This could
be a result of the type of operating system and other hardware/
software installed, and is not necessarily a faulty device.
Selection the Camera and Speakerphone
1. Open Lync, Skype or other compatible video calling software.
2. Go to the options menu and select “C930e” under the video
devices.
NOTE: The Da-Lite bowtie around the camera will glow when the
camera is selected. If the window says "No camera detected", go
back to the Connections section and check each step.
3. In your software’s options menu, select “Speakerphone 410”
under the audio devices.
Installation is now complete and you are now ready to use your
compatible video calling software.

13
Troubleshooting
Visit www.da-lite.com/products/product_videos.php to ind
installation and troubleshooting tutorials. You will also ind a link
to Live Chat for interactive support.
You can contact us by email at inf[email protected] or by phone at
800.622.3737 or 574.267.8101 with any additional troubleshooting
questions.
Symptom Cause Solution
Screen will not operate
and motor does not hum.
Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage, rewire
incoming electric line.
Blown fuse. Replace fuse.
Tripped circuit breaker. Reset circuit breaker.
No power to operating switch
or junction.
Check above. Tighten all loose wire connections. Correct any
improper connections.
Down Position
Check for power across black and white leads.
Up Position
Check for power across red and white leads.
Screen will not operate
and motor does not hum.
Power at junction box.
Thermal overload tripped. Let motor cool down for 15 minutes. Try again.
Broken wire in the “down” or “up” position. Check for continuity. Cut o old splice and reconnect.
Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.
Capacitor burned out. Replace motor assembly.
Screen does not stop
at correct position. Limit switch out of adjustment. See Screen Adjustment section.
Noise.
NOTE: Screen will operate
with a low pitched hum.
Squeaking, rubber end plug rubbing on motor. Center roller in case.
Grinding. Foreign object in screen rubbing on roller
or fabric. Remove.
Gear noise. Replace motor assembly.
Coasting. Defective brake. Replace motor assembly.
Fabric hangs crooked.
Screen not installed properly. Check for level and plumb.
Fabric has backed up inside case. Adjust “down” limit switch slowly until roller is exposed and
wrinkle comes out, then readjust for proper drop.
Fabric is damaged. Replace fabric.
Metallic noise when screen
finishes retracting.
Up limit is set too high. Solution: See Appendix A
for limit switch adjustment.
Arms are not aligned properly. Solution: See Appendix B for
arm adjustment.
Camera Support: http://www.logitech.com/en-us/support/webcam-c930e-business?crid=405&osid=14&bit=64
Speakerphone Support: http://www.jabra.com/support/Jabra-SPEAK410MS_7410109

14
Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly
adjusted at Da-Lite. Should it be necessary to adjust for more or less drop of screen, proceed in the following manner:
Remove two screws to remove access door.
NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments.
Down Limit Adjustment – More Screen Drop
1. Place operating switch in “down” position.
2. When the screen stops, turn the “down” limit knob (Figure 22)
one turn counterclockwise. Test by raising screen surface
approximately two feet, then lower again. Repeat until desired
screen surface position is attained.
CAUTION: Do not adjust for more drop than what was
ordered. At least 11/2 wraps of fabric must remain on the
roller. This screen comes standard with 0" or 2" black at the
top. See the speciication data sheet for details.
Down Limit Adjustment – Less Screen Drop
1. Raise screen surface approximately two feet above desired level.
2. Place operating switch in “of” position.
3. Turn the “down” limit knob (Figure 21) one turn clockwise. Test by
raising screen surface approximately two feet, then lower again.
Repeat until desired screen surface position is attained.
Up Limit Adjustment – Too Far Out of Case
1. Place operating switch in “up” position.
2. When the screen stops, turn the “up” limit knob (Figure 21) one
turn counterclockwise. Test by lowering screen surface
approximately two feet, then raise again. Repeat until slat bar is
just in case.
Up Limit Adjustment – Too Far Into Case
1. Lower screen surface approximately two feet below screen case
opening.
2. Place operating switch in “of” position.
3. Turn the “up” limit knob (Figure 21) one turn clockwise. Test by
lowering screen surface approximately two feet, then raise again.
Repeat until slat bar is just in case.

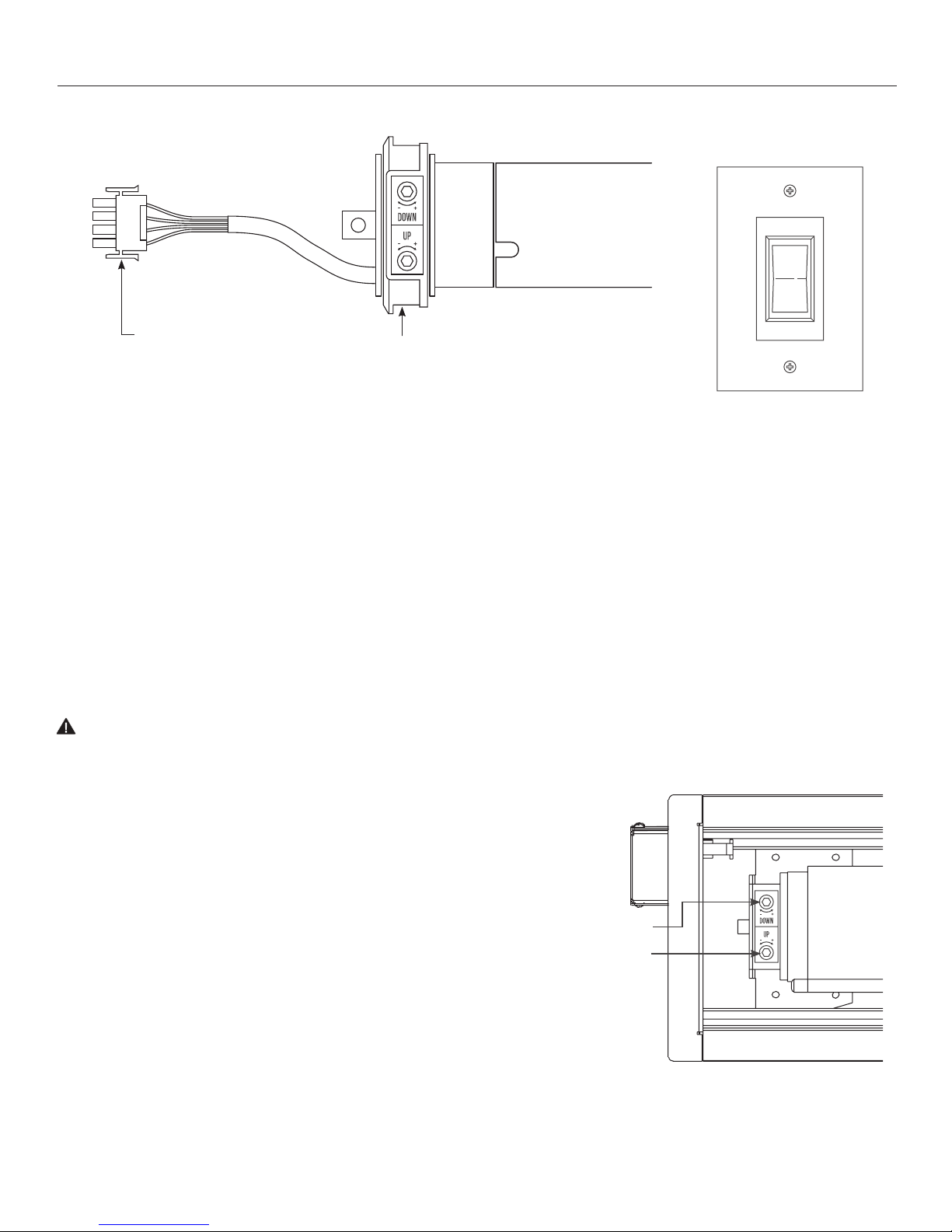

Appendix A: Screen Adjustment for Type 1 Motor (HV suix in Part Number)
TYPE 1 MOTOR
Has manual limit
adjustments
on end of motor
4-wire connection
TYPE 1 WALL SWITCH
Adjustment Knob “Down”
Adjustment Knob “Up”
Figure 21

15
Appendix A: Screen Adjustment for Type 2 Motor (LT suix in Part Number)
No manual limit adjustments
on end of motor
RJ22 cable
3-wire connection
TYPE 2 MOTOR TYPE 2 WALL SWITCH
1. Remove the cover plate from the 3-button wall switch and
remove the switch from the junction box.
2. Locate small 3-position switch on back of wall switch.
3. To adjust the down limit switch, slide the 3-position switch to the
down position. Press and hold the down button to run the screen
down to the desired stop position. Release the button to stop the
screen. DO NOT PUSH THE STOP BUTTON.
CAUTION: Do not adjust for more drop than what was
ordered. At least 11/2 wraps of fabric must remain on the
roller. This screen comes standard with 0" or 2" black at the
top. See the speciication data sheet for details.
4. When the screen is in the desired down position, slide the
3-position switch to the of (center) position. The down limit
switch is now set.
5. To adjust the up limit switch, slide the 3-position switch to the up
position. Press and hold the up button to run the screen up to
the desired stop position. Release the button to stop the screen.
DO NOT PUSH THE STOP BUTTON.
6. When the screen is in the desired up position, slide the 3-position
switch to the of (center) position. The up limit switch is now set.
7. To test limit switch setting, make sure the 3-position switch is in
the of (center) position. Press and release the up or down button
on the wall switch to operate the screen.
8. Replace switch and cover plate on the wall.
NOTE: If stop button is pressed, the wall switch will reverse
direction. To correct this, press the stop button again. This will
reset the switch. You will have to reset both the up and the down
limit settings.
IMPORTANT NOTE: The wall switch is REQUIRED to make any
limit switch adjustments, even if a third party control system is
used. Therefore, it is advised to wire the switch or provide a
4-conductor connection that is accessible.
RJ22
3Position
Switch
DN GND +5VUP
Back of Wall Switch

16
1. Locate the wall switch and remove the cover plate from the wall
switch and remove the switch from the junction box.
2. Locate the two tactile buttons on the back of the switch. They
are black round buttons on silver plates.
3. To adjust the down limit switch, press and hold the down tactile
button until the LED on the back of the switch turns solid red. This
will put the motor in limit set mode. Turn the wall switch over and
use the down button on the front of the switch. Press and hold
the down button until the desired down position is reached. If you
travel too far down, press the up button to move the screen
upward. If you press and let go of either the up or down buttons,
the motor will do a small jog in that direction for ine adjustment
of the screen. Once the desired position is reached, turn the
switch over; press and hold the down tactile button until the LED
on back of switch blinks red twice. The down limit is now set.
CAUTION: Do not adjust for more drop than what was
ordered. At least 11/2 wraps of fabric must remain on the
roller. This screen comes standard with 0" or 2" black at the
top. See the speciication data sheet for details.
NOTE: If the screen is in limit set mode and no buttons are
pushed for 20 seconds, the LED on the back of the wall switch
will turn of, the motor will return to run mode and no changes
will be saved. If this occurs, return to step 3 for down limit
adjustment or step 4 for up limit adjustment.
4. To adjust the up limit switch, press and hold the up tactile button
until the LED on the back of the switch turns solid green. This will
put the motor in limit set mode. Turn the wall switch over and
use the up button on the front of the switch. Press and hold the
up button until the desired up position is reached. If you travel
too far up, press the down button to move the screen downward.
If you press and let go of either the up or down buttons, the
motor will do a small jog in that direction for ine adjustment of
the screen. Once the desired position is reached, turn the switch
over; press and hold the up tactile button until the LED on back
of switch blinks green twice. The up limit is now set.
5. To test the limit switch settings, press and release the up or down
buttons on the switch to operate the screen.
6. Replace the switch and cover plate on the wall.
IMPORTANT NOTE: The wall switch is REQUIRED to make any
limit switch adjustments, even if a third party control system is
used. Therefore, it is advised to wire the switch or provide a
3-conductor connection that is accessible.
Appendix A: Screen Adjustment for Type 3 Motor (LS suix in Part Number)
TYPE 3 MOTOR
No manual limit adjustments
on end of motor
RJ45 cable
3-wire connection
TYPE 3 WALL SWITCH
Bus
Down Limit
Tactile Button
Up Limit
Tactile Button
Back of Wall Switch
5V COM BUS

17
Appendix B: Arm Adjustment
1. When screen is lowered approximately six inches below the case,
the elbows of the arms should be horizontally aligned with each
other (Figure 22)
2. If the arms are not horizontally aligned loosen (but do not
remove) the adjustment nut found inside the case behind the
screen and roller assembly (Figure 23).
3. With the adjustment nut loosened the arms can be adjusted
inward and outward until horizontal alignment is correct.
4. After arms have been properly aligned, secure the adjustment
nut to complete arm adjustment.
Figure 22
Figure 23
Arm Elbows
Horizontally
Aligned
Adjustment Nut

18

19

LIMITED WARRANTY – VIEWSHARE PRODUCTS
Milestone AV Technologies LLC warrants its Da-Lite branded ViewShare products to the original purchaser only, to be free from defects
in materials and workmanship in accordance with the following warranty term:
A period of ive (5) years for the Advantage screen and related components; and
A period of three (3) years for the ViewShare camera and related components.
The foregoing warranty will commence upon the date of purchase by the original purchaser and is expressly contingent upon the
products being properly operated according to Da-Lite’s instructions and not damaged due to improper handling or treatment after
shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered
with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.
Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,
transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment. To
protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,
or merchantability, that may be mandated by statute or rule of law are limited to the above warranty period. This warranty gives you
speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION OF
EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,
Warsaw, IN 465810137, (574) 2678101, (800) 6223737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS
WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
25713
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: inf[email protected]
www.da-lite.com
DL–0205 12.13
© 2013 Milestone AV Technologies LLC. Printed in U.S.A.
