Dacor DTG30M954F User manual

Installation Instructions
Modernist Gas Cooktop
DTG30M954F*/DTG36M955F*
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 1 6/19/2018 6:49:09 PM

English2
Contents
Contents
Before you begin 5
About this manual 5
Important note to the installer 5
Important note to the consumer 5
Important note to the servicer 5
Customer-service information 6
If You Need Help... 6
Rating Label 6
Important safety instructions 7
Read all instructions before using this appliance 7
Symbols used in this manual 7
Commonwealth of Massachusetts 7
Safety and warning information 8
General safety 8
Fire safety 9
Gas safety 10
Electrical and grounding safety 11
Installation safety 12
Location safety 13
Cooktop safety 14
Gas cooktop components 16
What’s in the box 16
Installation requirements 18
Pre-installation checklist 18
Location requirements 18
Gas supply requirements 22
Special gas requirements (gas models sold in Massachusetts) 23
Electrical requirements 24
Installation instructions 26
Installing your gas cooktop 26
LP (Propane) conversion instruction 37
Supplied parts 38
Converting the pressure regulator 41
Converting the cooktop burners 42
Adjusting low flame setting on cooktop burners 43
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 2 6/19/2018 6:49:09 PM

English 3
To Our Valued Customer:
Congratulations on your purchase of the very latest in Dacor® products! Our unique
combination of features, style and performance make us The Life of the Kitchen™, and a
great addition to your home.
In order to familiarize yourself with the controls, functions and full potential of your new
Dacor Appliance, read this use and care manual thoroughly, beginning with the Before you
begin section.
All Dacor appliances are designed and manufactured with quality and pride, while working
within the framework of our company value. Should you ever experience a problem with
your product, please first check the Troubleshooting section of this manual for guidance. It
provides useful suggestions and remedies prior to calling for service.
Valuable customer input helps us to continuously improve our products and services, so
please feel free to contact our Customer Service Team for assistance with any of your
product support needs.
Dacor Customer Service Team
14425 Clark Avenue
City of Industry, CA 91745
Telephone: [phone]
Fax: [phone]
Hours of Operation: Monday through Friday 6:00 A.M. to 5:00 P.M. Pacific Time
Website: www.Dacor.com
Thank you for choosing Dacor for your home. We are a company built by families for
families, and we are dedicated to serving yours. We are confident that your new Dacor
product will deliver a high level of performance and enjoyment for many years to come.
Sincerely,
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 3 6/19/2018 6:49:10 PM

English4
WARNING: Failure to follow the instructions in this manual exactly
may cause a fire or explosion, and, consequently, property damage,
personal injury, or death.
• DO NOT keep or use gasoline or other flammable products near
this appliance.
• IF YOU SMELL GAS:
- DO NOT light any appliances.
- DO NOT touch any electrical switches.
- DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone,
and follow the supplier's instructions. (If you cannot reach
your gas supplier, call the fire department.)
• Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 4 6/19/2018 6:49:10 PM

English 5
Before you begin
Before you begin
About this manual
READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
Important note to the installer
• Read all instructions contained in these installation instructions before installing the
cooktop.
• Remove all packing materials from the cooktop compartments before connecting the
electric and gas supply to the cooktop.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
• Installation of this appliance requires basic mechanical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
Important note to the consumer
Keep these instructions with your user manual for future reference.
• As when using any appliance generating heat, there are certain safety precautions you
should follow.
• Be sure your cooktop is installed and grounded properly by a qualified installer or
service technician.
• Make sure the wall coverings around the cooktop can withstand the heat generated by
the cooktop.
• Cabinet storage space above the cooktop burners should be a minimum of 30 in
(76.2 cm).
Important note to the servicer
The electrical diagram is attached inside the burner box.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 5 6/19/2018 6:49:10 PM

English6
Customer-service information
Customer-service information
If You Need Help...
If you have questions or problems with installation, contact your Dacor dealer or the
Dacor Customer Service Team. Whenever you call, have the model and serial number of
the appliance ready. The model and serial number are printed on the rating label.
Dacor Customer Service
Phone: [phone] ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Web site: www.dacor.com
Rating Label
The rating label is attached on the front side of burner box exterior.
The label contains:
• The model number and serial number
• The rating specification of the product
Rating Label
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 6 6/19/2018 6:49:10 PM

English 7
Important safety instructions
Important safety instructions
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
• Electrical and gas equipment with moving parts can be dangerous. The important
safety instructions in this manual are intended to minimize the risk of property
damage, personal injury, and death. Be sure to read them.
• Keep this manual in a handy place so you can refer to it as needed.
Symbols used in this manual
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in electric shock, personal injury, or property
damage.
NOTE
Useful tips and instructions.
These warning icons and symbols are intended to prevent property damage and personal
injury. Follow them explicitly.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Commonwealth of Massachusetts
This product must be installed by a licensed plumber or gas fitter qualified or licensed by
the State of Massachusetts. When using ball-type gas shut-off valves, you must use the
T-handle type. Multiple flexible gas lines must not be connected in series.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 7 6/19/2018 6:49:10 PM

English8
Safety and warning information
Safety and warning information
General safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
• Do not touch any surface, component,
or mechanism of the cooktop during or
immediately after cooking.
• Learn where and how to shut off the
valve that feeds gas to the cooktop.
• Make sure the cooktop's hold-down brackets are properly installed. (See the Installation
Instructions for details.)
• Do not let children sit/stand on the cooktop or play with any of its parts. Do not leave
children unattended in the kitchen when the cooktop is in use.
• Remove all packaging before operating the cooktop to keep this material from catching
fire. Keep all packaging away from children. Properly dispose of packaging as soon as
the cooktop is unpacked.
• Do not keep objects of interest to children on or around the cooktop.
• Do not operate the cooktop if it is damaged in any way, if it malfunctions, or is missing
parts.
• Do not use the cooktop as a space heater. This cooktop is to be used for cooking
purposes only.
• Use only dry pot holders.
• Do not use the cooktop to heat sealed food containers.
• Unplug the cooktop before service/maintenance.
• An air curtain or other overhead range hood, which operates by blowing a downward
airflow onto a range, shall not be used in conjunction with a gas range unless the
hood and range have been designed and tested in accordance with the Standard
for Domestic Gas Ranges, ANSI Z21.1 • CSA1.1, and listed by an independent testing
laboratory for combination use.
WARNING
NEVER use this appliance as a space heater to heat or warm the room. Doing so may
result in carbon monoxide poisoning and overheating of the oven.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 8 6/19/2018 6:49:11 PM

English 9
Safety and warning information
Fire safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:

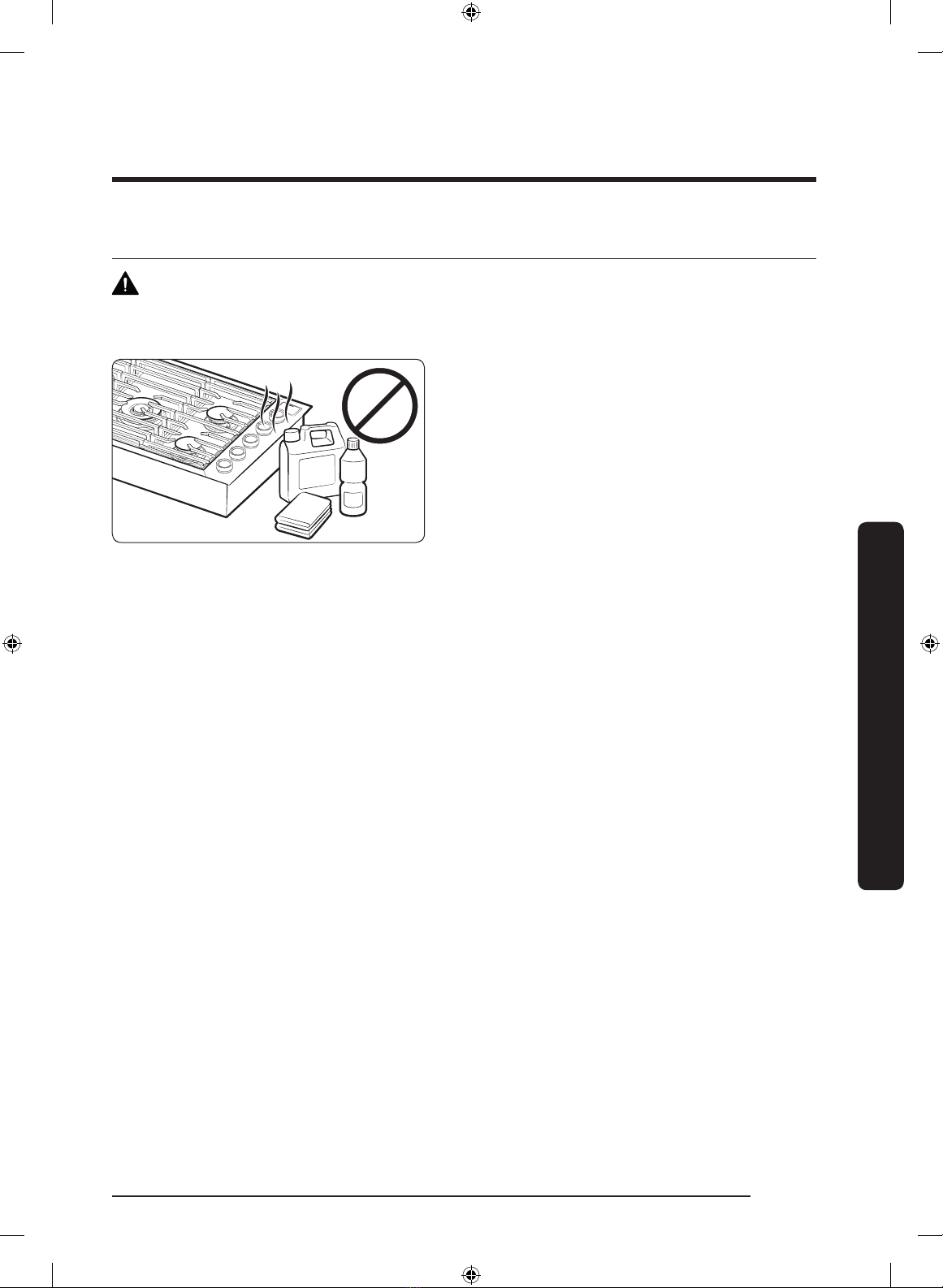

• Do not store/place/use combustible
materials (e.g., paper, plastic, pot
holders, linens, gasoline, alcohol) near
the cooktop.
• Do not wear loose fitting or hanging
garments while using the cooktop.
• To avoid grease buildup, regularly clean the vents.
• Do not let pot holders or other flammable material touch a heating element. Do not use
a towel or other bulky cloth item as a pot holder.
• Do not douse a grease fire with water. Instead, turn off the heat source, and smother
the fire with a tight-fitting lid, or use a multi-purpose, dry-chemical or foam
extinguisher.
• Do not heat unopened food containers - buildup of pressure may cause container to
burst and result in injury.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 9 6/19/2018 6:49:11 PM

English10
Safety and warning information
Safety and warning information
Gas safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
If you smell gas:
• Close the valve and do not use the cooktop.
• Do not light a match, candle, or cigarette.
• Do not turn on any gas or electric appliances.
• Do not touch an electrical switch or
plug in a power cord.
• Do not use any phone in your building.
• Evacuate everyone from the building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
Checking for gas leaks
• Leak-testing the appliance must be done according to the manufacturer’s instructions.
Do not use a flame to check for gas leaks. Use a brush to spread a soap-and-water
solution around the area you are checking. If there is a gas leak, small bubbles will
appear in the solution.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 10 6/19/2018 6:49:11 PM

English 11
Safety and warning information
Electrical and grounding safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
• Plug into a grounded 3-prong outlet.
• Do not remove the ground prong.
• Do not use an adapter or an extension
cord.
• Do not use a damaged power plug,
power cord, or loose power outlet.
• Do not modify the power plug, cord, or
outlet.
• Do not put a fuse in a neutral or ground circuit.
• Use a dedicated 120-volt, 60-Hz, 15-amp, AC, fused electrical circuit for this cooktop.
A time-delay fuse or circuit breaker is recommended. Do not plug more than one
appliance into this circuit.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
• This cooktop must be grounded. If the cooktop malfunctions or breaks down, grounding
reduces the risk of electric shock by providing a safe path for the current. This
cooktop's power cord has a grounding plug, which must be firmly plugged into an
outlet that is properly installed and grounded according to local regulations. If you
are not sure your electrical outlet is properly grounded, have it checked by a licensed
electrician.
• If codes allow for a separate ground wire, you should have a qualified electrician
determine this wire's proper path.
• Electrical service to the cooktop must conform to local codes, or in the absence of local
codes, to the National Electrical code/NFPA No. 70 – Latest Revision (for the U.S.) or the
Canadian Electrical Code CSA C22.1 or Latest Revisions.
• The cooktop owner shall ensure that the proper electrical service is provided for the
cooktop.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 11 6/19/2018 6:49:11 PM

English12
Safety and warning information
Safety and warning information
Installation safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
• The cooktop should be installed and properly grounded by a qualified installer, as
specified in the Installation Instructions. Adjustments and service should be performed
only by qualified gas cooktop installer or service technician.
• Do not try to service/modify/replace the cooktop or any part of it unless specifically
recommended in this manual. All other service should be performed by a qualified
technician.
• Use only new, flexible connectors when installing the cooktop.
• Make sure the cooktop's hold-down brackets are properly installed. (See the Installation
Instructions for details.)
• Remove all tape and packaging materials.
• After unpacking the cooktop, remove all accessories from inside and around it.
(Cautiously handle the heavy grates.)
• Make sure no parts came loose during shipping.
• Make sure the cooktop is correctly installed/adjusted by a qualified service technician
or installer for the type of gas (natural or LP) you will use. For the cooktop to use
LP gas, the installer must replace every surface burner orifices with the provided
LP orifice set, and reverse the GPR adapter. These adjustments must be made by a
qualified technician according to manufacturer instructions and local regulations. The
qualified agency performing this work shall be responsible for the gas conversion.
• Installation of this cooktop must conform with local codes or, in the absence of local
codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In Canada,
installation must conform with the current Natural Gas and Propane Installation Code,
CAN/CGA-B149.1, or the current Propane Installation Code, CAN/CGA-B149.2, and with
local codes where applicable. This cooktop has been design-certified by ETL according
to ANSI Z21.1, latest edition, and Canadian Gas Association according to CAN/CGA-1.1,
latest edition.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 12 6/19/2018 6:49:12 PM

English 13
Safety and warning information
Location safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
• This cooktop is for indoor household
use only. Do not install the cooktop
outdoors or anywhere that it will be
exposed to weather/water or wind/
strong drafts.
• The cooktop must be installed within easy reach of a grounded, 3-prong outlet.
• Do not hang paper blinds on a window near the cooktop; do not hand long curtains that
could be blown over/onto the cooktop.
• For proper ventilation, the cooktop needs sufficient space below and all around the
chassis. Vents in the chassis exhaust heat and fumes so the cooktop can operate
properly.
• Make sure the wall coverings around the cooktop can withstand heat up to 194 °F
(90 °C) generated by the cooktop.
• Do not store items above the cooktop. If cabinet storage above the cooktop is
necessary, allow a minimum clearance of 30 in. (76.2 cm) between the cooking surface
and the bottom of the cabinets.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 13 6/19/2018 6:49:12 PM

English14
Safety and warning information
Safety and warning information
Cooktop safety
WARNING
To reduce the risk of fire, electric shock, personal injury, or death, observe these
precautions:
• Make sure all burners are off when not
in use.
• Do not use aluminium foil to line the
grates or any part of the cooktop.
• Do not leave burners unattended on
medium or high heat settings.
• Before igniting, make sure all burner
caps are properly in place and all
burners are level.
• Always use the LITE position to ignite a burner, then make sure the burner has ignited.
If ignition fails, turn the knob to OFF, and wait a few minutes for the gas to dissipate.
• When you set a burner to simmer, do not turn the knob quickly. Make sure the flame
stays on.
• Do not place any objects other than cookware on the cooktop.
• Before removing or changing cookware, turn off the burners.
• Remove food and cookware immediately after cooking.
• Make sure all cooktop burners are off and all surfaces have completely cooled before
removing the grates and disassembling the burners.
• After cleaning the burner head, make sure it is completely dry before reassembling it.
• To avoid carbon monoxide poisoning, do not pour water or other liquids into the
cooktop during cleaning.
• Select cookware that is designed for cooktops and that is large enough to cover the
grates. Burner flames should not extend beyond the bottom of the cookware.
• To avoid cookware discoloration, deformity, and/or carbon monoxide poisoning, do not
use cookware that is exceedingly larger than the grate.
• Turn cookware handles to the side or rear of the cooktop and not over active burners
or the front edge of the cooktop.
• Stand at a safe distance while frying to avoid hot spatter.
• When frying, always heat the oil slowly, and monitor the oil as it heats. When frying
foods at high heat, monitor the oil throughout the cooking process. If combining fats or
oils for frying, mix them together before heating.
• Use a deep-fry thermometer when possible to avoid heating the oil beyond its smoke
point. (Know the smoke point of the oil you are using.)
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 14 6/19/2018 6:49:12 PM

English 15
Safety and warning information
• Always use a minimum amount of oil for any type of frying. Always thaw food before
frying, and do not frying food that is overly cold or that has clumps of ice attached to it.
• Always let the oil/fat in the cookware to cool to room temperature before moving the
cookware.
• To avoid delayed-eruptive boiling, let hot oil/fat stand at least 20 seconds after turning
off the burner so the temperature can stabilize. In the event of scalding, follow these
first-aid instructions:
1. Immerse the scaled area in cool or lukewarm water for at least 10 minutes.
2. Do not apply any creams, oils, or lotions.
3. Cover the scalded area with a clean, dry cloth.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 15 6/19/2018 6:49:12 PM

English16
Gas cooktop components
Gas cooktop components
What’s in the box
Parts supplied
Common
Manual Screw (6)
(M4 L10 2 ea, M4 L16 2 ea,
243/16 UNC L145 nut toggle 2 ea)
Regulator (1) *
Hold down brackets (2) *
30” : DTG30M954F*
Cooktop burner grates (2) Surface burners and brass
caps (4)
Porcelain caps (4)
36” : DTG36M955F*
Cooktop burner grates (3) Surface burners and brass
caps (5)
Porcelain caps (5)
NOTE
• Make sure you have received all of the supplied parts shown above.
• If your cooktop was damaged during shipping or some specified parts are missing,
contact your local retailer. Do not install a damaged or incomplete cooktop.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 16 6/19/2018 6:49:13 PM

English 17
Gas cooktop components
• If you need an accessory marked with an asterisk (*), contact the DACOR Call Center
using the phone number on the last page of this manual, or visit our online parts
website: www.dacor.com.
Parts needed
Gas line shut-off
valve
Flexible metal
appliance connector
½ in (ID) x 5 ft
Flare union adapter ¾
in or ½ in (NPT) x ½
in (ID)
Flare union adapter ½
in (NPT) x ½ in (ID)
135-degree elbow
(optional)
90-degree elbow
(optional)
Tools needed
Flat-blade
screwdriver
Phillips screwdriver Open-end or
adjustable wrench
Pipe wrench (2)
¼" Nut driver Pencil and ruler Level Pipe joint compound
Utility knife Soapy water solution Pliers Saber saw
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 17 6/19/2018 6:49:15 PM

English18
Installation requirements
Installation requirements
Pre-installation checklist
1. Before preparing the opening in the countertop, verify that there will be no conflict
between the cooktop chassis and anything in the cabinet below.
2. Remove packing materials, grate boxes, regulator with literature, and literature
package from the cooktop, verify that all items are present before beginning the
installation.
Location requirements
BEFORE YOU BEGIN installing the cooktop, see the information, dimensions, and
clearances below. These dimensions must be met for safe cooktop operation. The location
of the electrical outlet and gas piping may be adjusted to meet the specified parameters.
CAUTION
This cooktop complies with the maximum allowable wood-cabinet temperature of 194 °F
(90 °C). Make sure the wall covering, countertops, and surrounding cabinets can also
withstand this temperature. If not, discoloration, delamination, or melting may occur.
Maintain the following minimum clearance dimensions
30” MIN.
(762 mm)
12” MIN.
(304.8 mm)
12” MIN.
(304.8 mm)
18” MIN.
(457 mm)
27/8” MIN.
(72.0 mm)
13” MAX.
(330 mm)
NOTE
All horizontal clearances must be maintained for a minimum of 18” (457 mm) above the
cooking surface.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 18 6/19/2018 6:49:15 PM

English 19
Installation requirements

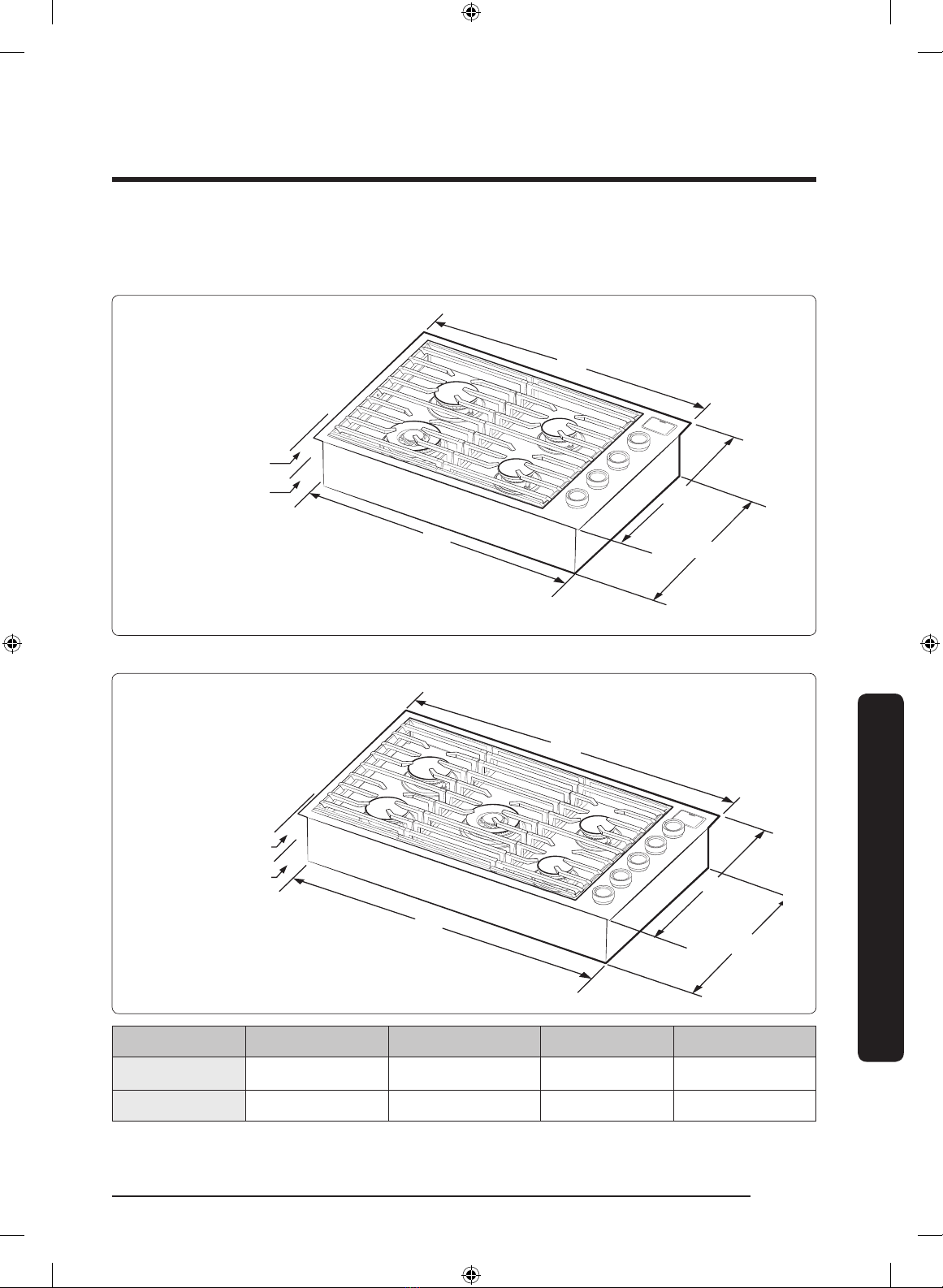

Overall cooktop dimensions
DTG30M954F*
⅓" (8 mm)
countertop to grate
surface
6" (152.4 mm)
chassis Height
A
BD
C
DTG36M955F*
⅓" (8 mm)
countertop to grate
surface
6" (152.4 mm)
chassis Height
A
B
D
C
Model A B C D
DTG30M954F* 30” (762 mm) 28½” (723 mm) 21” (533 mm) 19½” (495 mm)
DTG36M955F* 36” (914.4 mm) 34½” (875.4 mm) 21” (533 mm) 19½” (495 mm)
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 19 6/19/2018 6:49:16 PM

Installation requirements
English20
Installation requirements
Cutout dimensions of countertop
Vertical
combustible
surface
EG
H
H
F
Rear wall
Minimum distance to combustible side
wall above countertop (both sides)
Model (E) Min. (F) Min. (G) Min. (H) Min.
DTG30M954F* with no
downdraft
2⅞”
(7.2 cm)
19¾”
(50.1 cm)
2811/16”
(72.7 cm)
12”
(30.4 cm)
DTG30M954F* with ERV30 or
PRV30
⅜”
(0.9 cm)
22½”
(57.1 cm) 7½”
(19.0 cm)
DTG30M954F* with RV30 ⅝"
(1.5 cm)
22¼”
(56.4 cm)
DTG36M955F* with no
downdraft
2⅞”
(7.2 cm)
19¾”
(50.1 cm)
3411/16”
(87.9 cm)
12”
(30.4 cm)
DTG36M955F* with ERV3615 or
PRV36
⅜”
(0.9 cm)
22½”
(57.1 cm) 7½”
(19.0 cm)
DTG36M955F* with RV36 ⅝"
(1.5 cm)
22¼”
(56.4 cm)
CAUTION
Cut out dimension should be observed for installation. Enlargement in cut out dimension
may cause hazard.
Install_NA9300K_MOD_DTG30M954FS_DG68-00926A-01_EN+MES+CFR.indb 20 6/19/2018 6:49:16 PM
