Daihan Scientific Eva-05 User manual

Man. 330 (17 Oct. 2019)
Rotary Vacuum Evaporator
Certifications by ---
ISO 9001 Certified.
PL Insurance (Product Liability Insurance)
User Manual
(Version 1.0.2)
Written for
Eva-05 Models
Rotary Vacuum Evaporator, Vertical-type
"Eva-05"
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
Sales & Basic
Customer Service
:

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 2/31
CONTENTS
Page
1. General Information
1.1 Attention before Use.................................................................................... 3
1.2 Product Overview.............................................................................................. 4
2. Installation Information
2.1 Product Installation and Assembly ................................................................................. 5
2.2 Product Components .............................................................................................. 7
2.3 How to Assemble ............................................................................................. 9
2.4 Connection with External Equipment............................................................................... 11
2.5 Product Specification ............................................................................................ 12
3. How to Use
3.1 Attention in Use .................................................................................. 13
3.2 The Name of Each Part ......................................................................................... 15
3.3 Before Use ........................................................................................ 18
3.4 How to Use the Main Body .......................................................................................... 18
3.5 How to Use Bath ............................................................................................ 22
3.6 Table of Reference Materials ............................................................................................ 25
4. Product Maintenance
4.1 Maintenance & Management ......................................................................................... 28
4.2 Accessories ............................................................................................. 29
4.2 Troubleshooting ................................................................................. 30
5. Product Warranty
5.1 Warranty............................................................................................ 31

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 3/31
1. General Information
1.1 Attention before Use
Thank you for your purchase of Rotary Vacuum Evaporator.
This manual describes the performance of the purchased product, how to use the product,
and precautions in handling. Please make sure to read this product manual carefully before
use.
The matters that require user attention have warning signs as shown below. Therefore,
please understand each warning sign and its meaning to use the product safely.
Warning
A user can be damaged without following instructions.
Attention
A product can be damaged unless a user follows instructions.
No Access
User access is limited while the product is in use.
Notice
Functionally important attention; users should neither disassemble nor transform
the product at their discretion.
Caution of High Temperature
A hot heater is used, and therefore there is the risk of a burn.
Danger of Explosion
If a volatile or explosive chemical is used, there is a danger of explosion.
For electric shock prevention, grounding is required.
This sign means that ON/OFF power switch is turned OFF.
This sign means that ON/OFF power switch is turned ON.
This signs represents the connection point of the neutral wire in the installation
part.
This sign represents AC voltage.
1
I
N

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 4/31
1. General Information
1.2 Product Overview
This product is a rotary vacuum evaporator for solvent separation or evaporation, featuring easy
operation and convenient use. It is designed in consideration of user safety, convenience, and
excellent product performance and has the features as follows:
1. It has the specialized designed gasket that supports the structure of air tightness and long lifespan.
2. It has the motor-driven lifting function that makes it possible to control height safely with the use of Up &
Down button.
3. It has excellent endurance and chemical resistance. It can be used long at a high speed.
4. The vacuuming effect based on its excellent air tightness supports stable collection.
5. If power failure occurs while the product is in use, it automatically stops rotating. The flask of the product
goes up to protect a user and a test sample.
6. It is possible to adjust the rotation axis’ angle (10steps) in order for various tests.
7. Main Body can be separated from Heating Bath. Therefore, a tester can use the product in diverse ways.
8. Controller can be separated from Bath so that it is easy to supply water or oil.
9. It is possible to set the temperature of Bath up to 200℃. The temperature can be different depending on a
test purpose.
10. It is possible to adjust a rotation speed between 10rpm~300rpm. Depending on a use purpose, it is
possible to speed up or down.
11. For rotation, it is possible to select either clockwise direction or counterclockwise direction. The product
has the auto direction reverse programming function built in.
12. It provides test scalability with the use of 5.5 Liter Optional Heating Bath.
13. A customer can be compensated for unexpected accidents according to PL Insurance (Product Liability
Insurance of this product. (100 million KRW for each liability for personal injury and property damage)

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 5/31
2. Installation Information
2.1 Product Installation and Assembly
-Attention in Installation
1. DO NOT lay the product on the floor or impose a shock on it. Otherwise, the product can get
internal damage.
2. Install the product on the firm and flat floor and make sure to use it in a stable place.
3. DO NOT install in a place with direct sunlight or a in a dangerous place.
4. If water or organic solvent flows in the controller or main body of the product, a short circuit
may occur. Therefore, DO NOT install in a place with such flow-in risk.
5. This product is designed to be operated well at rated voltage. Therefore, check the voltage
before installing the product.
6. Make sure to use the POWER CORD offered together with the product in order to install and
use the product.
7. DO NOT install the product in a place that has the possible leak of flammable gas and the
possible explosion by organic evaporation gas.
8. DO NOT get the product exposed to any direct heat source.
9. The product can have residual heat while it is in operation or after it is powered off. Be careful
for the residual heat.
10. Any glass component damaged while the product is in use is not applied to warranty service.
¨Product Liability (PL) Insurance
DAIHAN Scientific Co., Ltd . bought Product Liability (PL) Insurance in order to prepare for
the accidents that may occur in the way of using the product and to give reliability to customers.
The PL insurance is described as follows:
[Contents] ………………………………………………………………………………………
Insurance name: Products Liability Insurance
Limit of liability: 100 million KRW for each liability for personal injury and property damage
Covered areas: The whole world (North America excluded)
Contact Info.: DAIHAN Scientific Co., Ltd . (TEL : [phone], FAX : [phone])
2

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 6/31
Front side of exploded view
Back side of exploded view
⑧
○
23
○
18
○
19
○
20
○
24
②
○
21
⑪
⑦
①
⑨
⑫
⑮
○
16
○
17
③
⑥
⑤
④
⑬
⑩
⑭
○
25
○
26

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 7/31

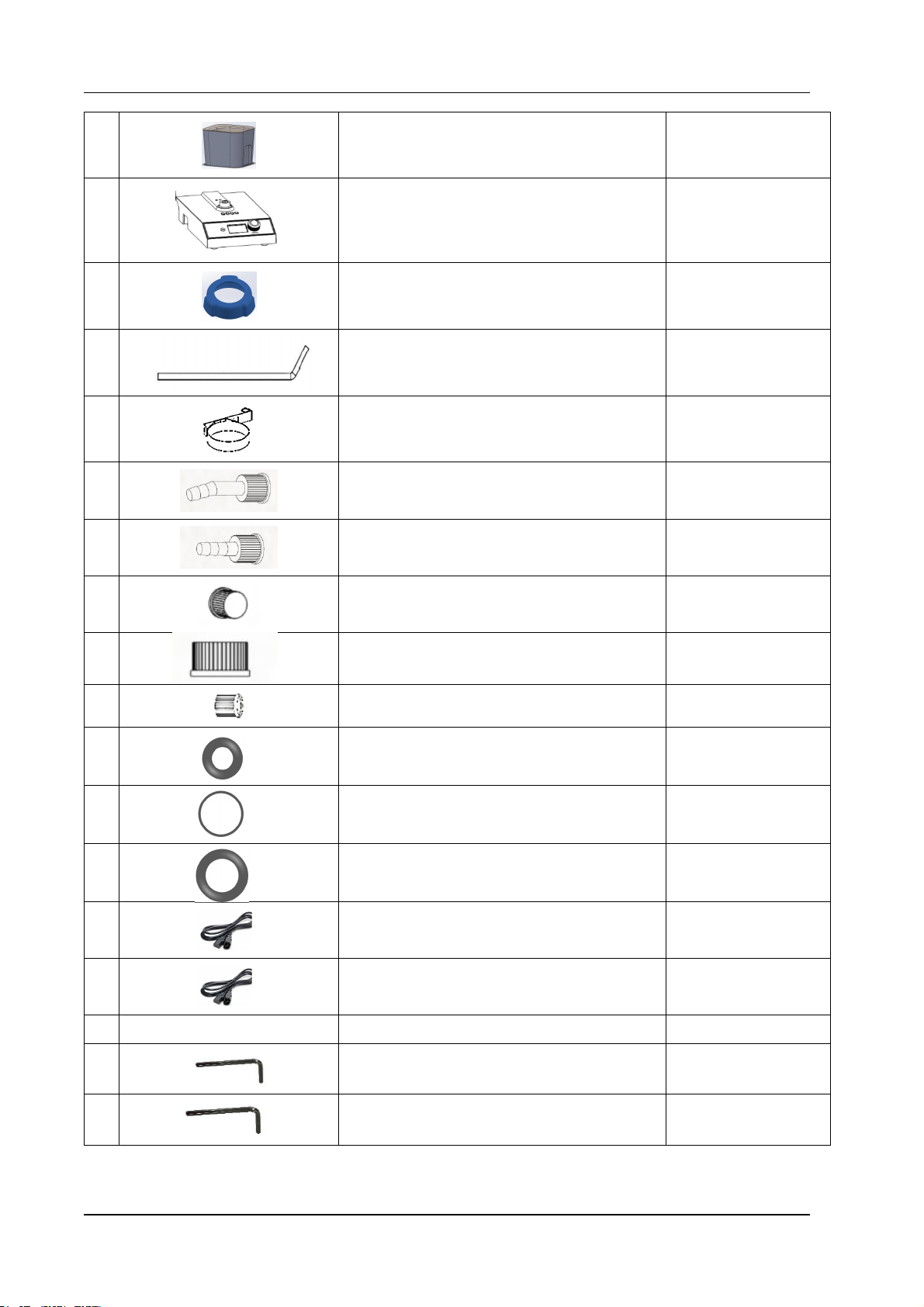

2.2 Product Components
- The product components are enclosed in the packing box when the product is shipped out.
Picture Name EA
1 Eva-05 Main body 1 unit
2 Rotary Evaporator Glass Condenser 1ea
3 Vapor duct 24/40 1ea
4 DURAN® Flask, evaporating, 1000ml, 24/40 1ea
5 DURAN® Flask, receiving, 1000ml, 35/20 1ea
6 Ball joint clamp 1ea
7 Capillary Valve 1ea
8Capillary Valve Connecting Tube
(Ø5, 350mm) 1ea
9 Feeding port tube(Ø2.5, 400mm) 1ea
10 DURAN® Clamps for -tapper Joints
Clamp POM, for Taper Joint 24 green 1ea
11 Vacuum_seal
Od. 50mm NBR + coated tefron 1ea
12 Condenser Spring 1ea

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 8/31
13 2.5L Heating Bath 1ea
14 Digital Temperature Controller
for Heating Bath 1ea
15 Condenser Lock nut 1ea
16 Condenser support bar 1ea
17 Condenser holder 1ea
18 Coolant nozzle cap 2ea
19 Vacuum nozzle cap 1ea
20 Cap screw(GL14) 1ea
21 Cap screw(GL18 or GL25) 1ea
23 Cap screw(GL10) 1ea
24 Viton O ring (inner diameter Ø2.8) 1ea
25 Tefron O-ring(Inner diameter Ø26.5mm) 1ea
26 Viton O ring (Inner diameter Ø26.5mm)
Power cable (250V~, 1SQ) 2ea
Two-way Power cable (250V~, 1SQ) 1ea
Vacuum silicon hose (inner diameter Ø8) 2M
Allen wrench 2mm 1ea
Allen wrench 2.5mm 1ea
-This product requires assembly.

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 9/31
-One copy of Operation Manual is included.
2.3 How to Assemble
* Attention in Assembly
-When the product is unpacked, check that it has all of the components listed above before assembly.
-Assembly directions are described in the sequence of the numbers in the above table of product
components.
-Carefully open and assemble glass components which have the risk of damage.
-Carefully manage the components after packing. The components may be lost.
* To assemble the product, follow the instructions described below.
(1) Separate Condenser Lock nut from Main Body.
(2) Apply vacuum grease on the joint unit of Vapor duct 24/40, and then make connection from down to up.
At this time, when Vapor duct is pulled back, it should not be back out.
(3) Apply vacuum grease on the bottom of Vapor duct and then connect Evaporating Flask. Fix them with
24/40 clamp.
(4) Put Lock nut in Condenser and connect condenser spring
to the condenser. Evenly apply vacuum grease on Vacuum_seal.
Connect Tefron O-ring, Viton O-ring and Vacuum_seal to the rotary-
joint-unit of the main body.
(5) Apply vaccum grease on the joint unit of Receiving Flask.
Make connection with Ball joint clamp. Fasten the screw
on the back of Ball joint clamp for complete fixture.
(6) Connect valve connecting tube
(inner diameter Ø5) to Capillary valve.
Apply vacuum
grease
(3)
Apply vacuum
grease
(5)
Apply vacuum
grease
(4)
Apply vacuum
grease
(2)
(6)
(7)
(7)
Apply vacuum
grease

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 10/31
(7) Connect the Capillary valve with tube and the joint unit of condenser valve. At this time, make the
tube reach to the neck of Evaporating Flask.
(8) Connect GL18 screw cap to washing hole on the top of Condenser.
(9) Connect GL14 screw cap to Temp.sensor hole.
(10) Connect Vacuum nozzle cap to Vacuum hole on
Temp.sensor hole
(11) Connect Coolant nozzle cap on the two holes on Vacuum hole.
(12) Put GL10 open top screw cap and Viton O-ring
in Capillary feed tube. Joint them with Feeding port.
(13) Put Condenser support bar in the position
shown in the figure. Fix M5 set screw.
(14) Put together Condenser holder
with support bar. Fix M4 set screw.
(15) Place the Heating Bath controller with
power cable in the right side of the main body.
Position Bath over Bath controller.
Joint M5 set screw.
(13)
(15)
Joint M4 set screw.
(14)
※16 page “condenser
See the name of each part.
(11)
(10)
(9)
(8)
(12)

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 11/31
2.4 Connection with External Equipment
Evaporator Structure
※How to use the Capillary valve
[Coolant discharge]
Internal diameter Ø8
Silicone hose
[Coolant input]
Internal diameter Ø8
Silicone hose [Vacuum pump connection]
Internal diameter Ø8
Silicone hose
[Eva
-
05]
Condenser
[Chiller]
[Vacuum Pump]
<In>
<Out>
<Out>
<In>
<Vacuum>
<Out>
<In>
1) When evaporating at vacuum 2) Concentrated liquid input.
(Can be injected at vacuum state)
3) When releasing a vacuum
Inlet
location
Inlet
location Liquid input direction
Valve handle shape
Valve
handle
shape
Valve handle shape
Air input direction

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 12/31
2. Installation Information
2.5 Product Specification
Models
Spec.
Eva-05
0.1~5Lit Flask
Condenser Type Vertical-type
Flask
Capacity
Evaporating 0.1~5Lit, Included 1Lit Evaporating Flask
Receiving 0.1~3Lit, Included 1Lit Receiving Flask
Controller & Display PID Controller, Digital Display
Rotation Speed 10~300rpm
Evaporating Capability(Water) Max. 23ml/min
Cooling Surface 1,600cm2
Heating Bath
Capacity &
Temp. Range
Standard
(Included)
2.5Lit Oil Bath, Up to 200℃, for 0.1~2Lit Evaporating Flasks
External(215×205×h179mm), Internal(197×187×h117mm)
Optional 5.5Lit Oil Bath, Up to 200℃, for Max 5Lit Evaporating Flasks
External(324×269×h209mm), Internal(305×250×h118mm)
Lifting Type Adjustable Automatic Electric Lifting : up to 195mm
Programmable Prefer Height and Digital Display Height
Immersion Angle Adjustable 10-step Angle 1º ~ 50º
Vacuum Seal Double Sealing Rings made of Teflon + Viton Material
Power Consumption Rotation Motor(100W), Heating Bath : Included 2.5Lit Bath(1,200W/220V,
1,100W/110V), Optional 5.5Lit Bath(1,500W/220V, 1,100W/110V)
Material Housing Aluminum Die Casting
Heating Bath External(PBT), Internal(Ceramic-coated SUS304)
Dimension & Net Weight 510×438×h519(Max. 714)mm, 16kg
Electrical Reqts. AC220V, 50/60Hz or AC110V, 60Hz
※An amount of evaporation can be different depending on a vacuum level, a temperature of bath, and a
temperature of coolant.

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 13/31
3. How to Use
3.1 Attention in Use
Make sure to read this user manual fully and the manual of a laboratory before
using this product. This product should be used only by permitted persons.
DO NOT make this product tilt or lay it on the side. Otherwise, it is possible to lower the
functions of the installed devices related to cooling and to cause a problem.
Install the product on the firm and flat floor. Otherwise, an accident may occur
through carelessness.
Make sure to use a proper power type (AC 120, 60Hz or AC 230V, 50/60Hz, Single
phase).
Make sure to use this product at less than an available load.
lWarnings
- Make sure to follow the instructions.
Make sure to operate the product indoor at 5℃-40℃. Using the product long at more than
the available temperature range may cause a failure
DO NOT damage, process, bend by force, pull, or bind up the power cord. In addition,
DO NOT put something heavy on the cord. Otherwise, the damage to the power cord
may cause a fire or an electric shock.
DO NOT spray water the product directly or wash it with water. Otherwise, a short
circuit or an electric shock may occur.
DO NOT touch the power plug and other electric parts with your wet hands. Otherwise,
an electric shock may occur.
To operate or stop running the product, DO NOT plug or unplug the power cord.
Otherwise, a short circuit or an electric shock may occur.
While the product is in operation, DO NOT adjust a gradient of a glass product like
Condenser or Bottle.
DO NOT put any explosive or inflammable chemicals (alcohol, benzene, and other
inflammable solvents) in Bath.
Any glass components damaged in use is not applied to warrant service.
While the product is in continuous operation, a part of it can be hot. Be careful for a burn
and wear gloves when handling a specimen.
3

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 14/31
DO NOT use in a place with constant sunlight and a place exposed to rain. Otherwise, the
product may get overheat or an electric defect.
(DO NOT use it outdoor.)
DO NOT put the product close to flammable spray lacquer and paint, volatile and
flammable chemicals. A spark of a switch may cause ignition.
DO NOT let an unpermitted person to disassemble or transform the product. Otherwise, a
severe electric trouble may occur, and no warranty service is provided by DAIHAN
Scientific Co., Ltd.
Make sure to connect the power cable to a grounded socket on wall.
Regularly check that the power plug has dust. Connect the plug completely. If the plug
has dust or is not connected completely, an electric shock or a fire may occur.
If the product is not used long, unplug it for safety. Otherwise, dust may cause ignition
and heating.
To separate the power plug, make sure to hold the plug. If you hold the power cord only
to separate the plug, some internal wires of the cord may have disconnection which
causes ignition.
If abnormal noise or abnormal operation symptom is found in use, immediately power off
the product, unplug, and contact the product supplier or the Technical Support Team of
DAIHAN Scientific Co., Ltd.
To move the product, unplug the product and be careful not to get the power cord and the
product damaged. The damage to the cord may cause an electric shock or ignition.
Check if the product has any impurities before use. If so, remove impurities by cleaning
the product lightly with a neutral detergent and a dry cloth.
DO NOT put any explosive or inflammable in Bath. There is the danger of fire.
DO NOT install the product at the altitude of more than 2,000 meter (6,562 feet)
The maximum relative humidity is 80% at 31℃, and 50% at 40℃.
DO NOT install the product in a wet and dusty place.
Otherwise, overheat or a short circuit may occur. (Pollution Grade 2)
※All circuits, and electric & mechanical parts and components used for this product are
technological assets of DAIHAN Scientific Co., Ltd. The product should be repaired only by the
technician(s) in the Technical Support Team of DAIHAN Scientific Co., Ltd. or by the
technician(s) approved through the education of DAIHAN Scientific Co., Ltd.

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 15/31
3. How to Use
3.2 The Name of Each Part
lThe external front side
NO Name Description
①
Control Unit Rotation speed control & timer setting
②
Angle Control Knob Knob for adjusting a flask angle
③Evaporating Flask Flask for evaporation
④Heating Bath Reactant heating
⑤Digital Bath Controller Bath temperature control
⑥Glass Condenser Condenser
⑦Capillary valve Valve for solution injection and vacuum relief
⑧Receiving Bottle Flask for receiving extract
⑨Electric Lifting controller Flask height control

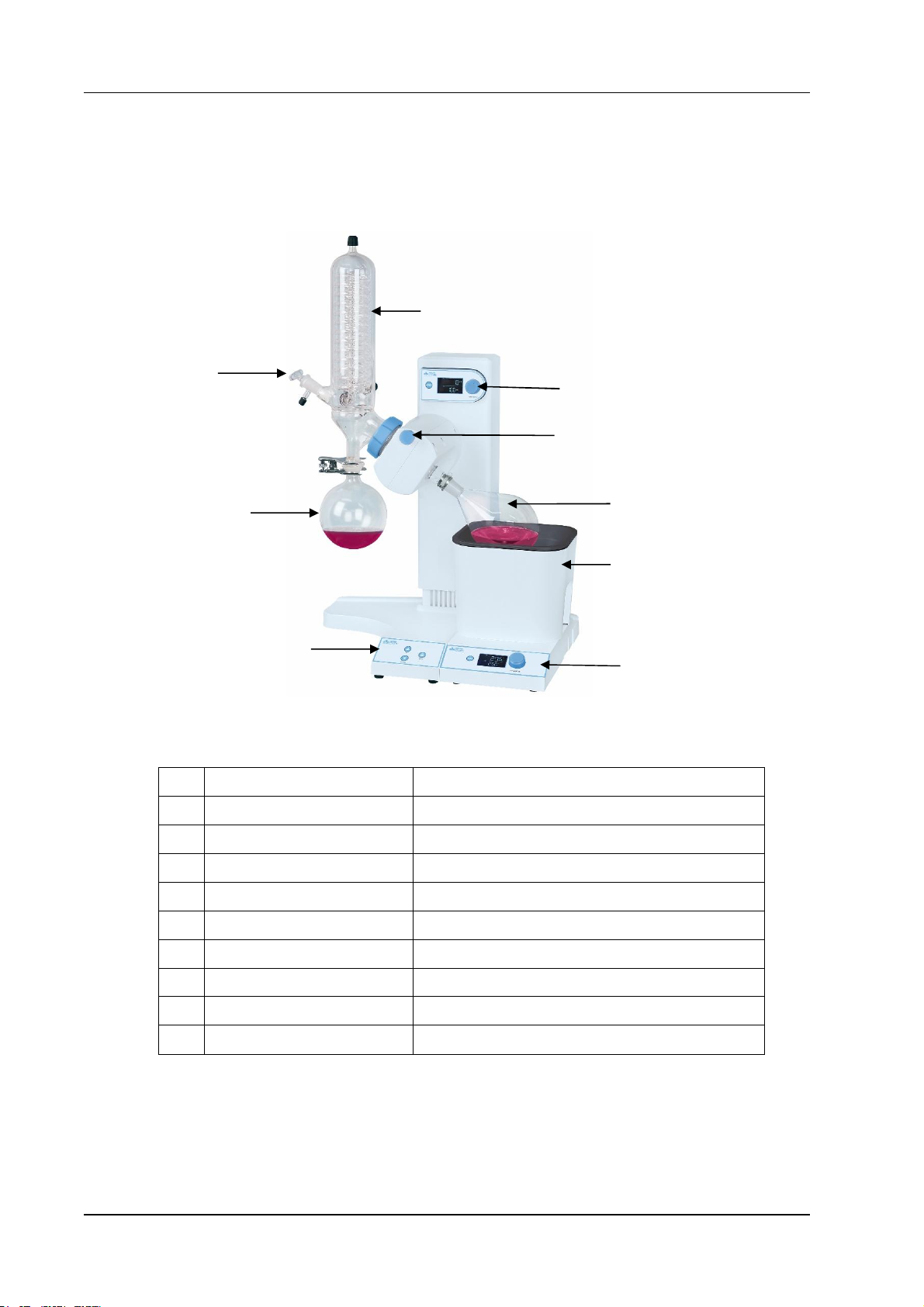

< Figure 3.2.1> The appearance of Eva-05 Model
<Table.3.2.1> The name & description of each part
⑧③
④
⑤
⑥
①
②
⑦
⑨

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 16/31
lThe external back side
lController
NO Name Description
①AC Inlet Power input
②Fuse Holder T5AL250V~ overcurrent protector
③
AC Outlet Vacuum pump power output
(Use only for vacuum pump.)
④Heating Bath Fuse T10AL250V~ overcurrent protector
⑤Heating Bath Inlet Bath power input
①
④
⑤
72 ℃
PV
: 20
<Figure.3.2.1> Rotary controller <Figure.3.2.2> Lift controller
<Figure.3.2.2> Bath controller
⑦
④
⑤
⑥
⑧
⑨
50 RPM
PV
RPM
30
SV
mm
m
①
②
③
②
③

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 17/31
lCondenser
NO Name Function & Feature
①Rotary Control Mode Button Change the set rotation mode
②Rotary Control Jog dial knob 1) Rotate: change a speed or set a timer
2) Click: Start or Stop rotation
③Rotary Control LCD Display rotation state
④Lift Control UP Button Go up the position of Flask.
⑤Lift Control DOWN Button Go down the position of Flask.
⑥Lift Control LOCK Button Fix the position of Flask.
⑦Heating Bath Control Mode
Button Change the Set Temperature Mode of Bath
⑧Heating Bath Control
Jog dial knob
1) Rotate: change a heating temperature or set a timer
2) Click: Start or Stop heating
⑨Bath Control LCD Display the heating statue of Bath
NO Name Function & Feature
①Washing hole Hole for washing the inside of Condenser
②
Capillary
valve
Inlet hole
Capillary valve joint
③Cooling outlet Coolant outlet
④Cooling inlet Coolant inlet
⑤Feeding port Sample feeding inlet
⑥Vacuum hole Vacuum pump connection
⑦Temp.sensor
hole
Separate temperature sensor connection
⑧Flange hole Main body connection
①
⑤
②
⑥
④
③
⑧
⑦
⑧

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 18/31
3. How to Use
3.3 Before use
-Connect the power cable on the bottom of the main body and turn ON the power switch on
the left bottom of the front side of the product.
-The main body is packed with the maximum height. If the product is powered on without
the maximum height, it goes up to the maximum height automatically.
-When the product is powered off, it automatically goes up to the maximum height to protect
a specimen.
-After putting together the flask and accessories, pull the angle control knob and then adjust
the flask at a proper angle. After that, release the knob and check its fixture.
-Make sure to stop rotating the flask before adjusting its angle.
-Adjust the flask’s height with Lift Height Control Button on the bottom of the product.
※See “②Lift Height Pre-Limit Mode” to set the maximum height to prevent glass
components from being damaged.
-Make sure to put the flask in fluid of Bath and then rotate it. Otherwise, the flask’s weight
can give a burden to the neck of the flask and thereby is likely to damage the flask.
-To a large evaporating flask with 3 liter and more, make sure to separate the flask after using
the product. The neck’s load can damage glass.
-Fill the evaporating flask less than 50% with solution. Otherwise, the solution can overflow.
-Select the position and size of Bath properly
in line with the evaporating flask’s size.
-The glass component damaged in use is not applied
to warranty service.
3.4 How to use the main body
①How to adjust the flask’s angle
1) Pull the flask angle control knob and set a proper angle.
After that, release the knob.
(10 steps available)
2) At this time, place the flask angle control knob
in its right position in order to fix the angle.
Check the knob’s position to the end.
3) The weight of the assembled glass parts makes it possible
to move suddenly when the knob is pulled out.
Pull

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 19/31
②Lift Height Pre-Limit Mode
1) When the main body is powered on first, “FREE” is displayed on the top LCD. It is possible to
go to Height Pre-Limit Mode of Lift. This mode is used to prevent the flask and vapor duct
from being damaged by poor operation of the product.
The minimum height to prevent the evaporating flask and vapor duct from being damaged is
set already in line with Heating Bath’s size. Therefore, they do not go down to the height lower
than the set height.
2) If the knob is turned clockwise when FREE is displayed, the display value is changed in the
order of 3bL -> 5bL -> FREE. If turned counterclockwise, the display value is changed in the
reverse order. If Jog-Dial knob is pushed long at a proper display value, the value flickers and
is saved. After the product is turned off and then on, the set value is set the saved one.
(1) ‘FREE’ mode: Adjustable in the range of 0~200mm without height limit
(2) ‘3bL’ mode: based on the basic components ’2.5Lit Heating bath and 2Lit flask’
-. Pre-limit height: 45mm
(3) ‘5bL’ mode: based on the basic components ’5.5Lit Heating bath and 5Lit flask’
-. Pre-limit height: 60mm
③User Height Pre-limit Mode
1) Aside from the default set ‘Free’, ‘3bL’, or ‘5bL’ mode, a user is able to set up the minimum
height limit.
2) By pushing and releasing mode button and Jog-Dial knob at the same time, it is possible to go
to Save Flask Height Mode.
However, in Locking mode, Jog-Dial knob does not work. Therefore, it is impossible to go to
Save Flask Height Mode.
FREE
3 bL 5 bL
(1) (2) (3)
PV 172
45
SV
mm
mm
Set Height
Current Height

DAIHAN-Sci.com or ALL forLAB.com Shopping Mall
DAIHAN Scientific, Rotary Vacuum Evaporator 20/31
3) Set a proper height with the use of Jog-Dial knob and then push long Jog-Dial knob. The set
value flickers and the height is saved. In this case, the height is not set to the one lower than
the value set in Height Pre-limit Mode. If you want to set a height lower than the set value,
change the mode to ‘FREE’ to set the value again.
4) After the setting is complete, push the mode button once. Now, you can escape from Save
Height Mode.

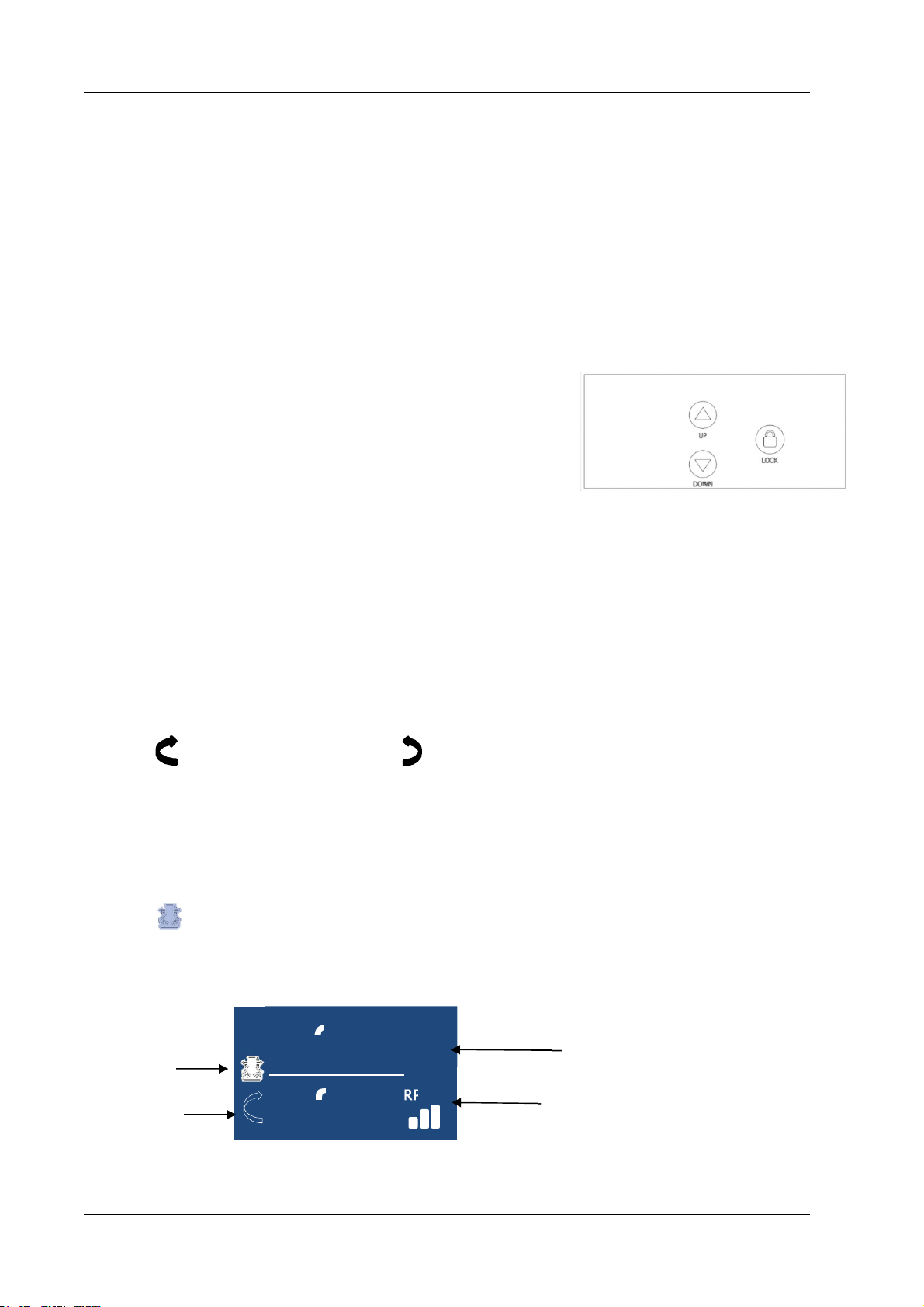

④Lift Height Control
1) It is possible to adjust Lift’s height
with the use of UP & DOWN buttons on the bottom.
2) Push long Lock button. The button’s red light is on.
Now, Height Lock mode is set up.
In this mode, the current height is fixed.
Arrow UP & DOWN buttons do not work.
3) Push long Lock button again. The button’s Red light is off. Height Lock mode is released.
⑤Rotary Speed Setting
1) In Set Lift Height Limit Mode, push the mode button once. It is possible to go to Set Rotary
Speed Mode.
2) If the arrow on the left bottom of LCD flickers, turn Jog-Dial knob to set a rotation direction.
means clockwise turn, and means counterclockwise turn.
3) After rotation direction is set up, push the mode button to set a RPM value.
If a SV(Set Value) value on the bottom of LCD flickers, turn Jog-Dial knob to set a RPM
value.
It is possible to set it up to 300RPM.
4) After the setting is complete, push Jog-Dial knob once. The flask starts to rotate and
Icon is displayed on LCD. The current RPM value is displayed on the top `PV(Present
Value)’.
5) If Jog-Dial knob is pushed once in rotation, the rotation process stops.
285 RPM
RPM
300
PV
SV
Set
RPM
Current RPM
Rotation status
display
Rotation
direction
