Daihan Scientific MSH-20D User manual

Man246 (29 Jun. 2016)
Digital Hotplates & Stirrers
MSH-20D/30D, HP-20D/30D, MS-20D
.
Certifications by - - -
ISO 9001 Certified.
CE Certified
PL Insurance.
Patented(No. 10-0554098) Jog Dial Control System.
User Manual
(Version2.2.1)
written for
MSH-20D/30D, HP-20D/30D, MS-20D Models
"MSH-30D”
Digital Hotplate Stirrer
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
Sales & Basic A/S :
By the Nearest Official Distributors.
²English Page : P. 11 ~ 22
²Korean Page : P. 23 ~ 44

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 2/44
European Declaration of Conformity
We, DAIHAN Scientific Co., Ltd.,
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]
declare under our sole responsibility that the product
Hotplate Stirrer
MSH-20D, HP-20D, MS-20D
to which this declaration relates is in conformity
with the following standard or other normative document
EN 61326-1 : 2006
EN 61010-1 : 2001(2nd Edition)
EN 61010-2-010 : 2003
EN 61010-2-051 : 2003
following the provisions of the directives:
Low-Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
From “DT&C Co., Ltd.”,
Signed: ____________________________ (Chong ku Shu)
Date: 18, April 2016
Authority: President / CEO
For
DAIHAN Scientific Co., Ltd.,
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]
DH-DC08007-R03

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 3/44
European Declaration of Conformity
We, DAIHAN Scientific Co., Ltd.,
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]
declare under our sole responsibility that the product
Hotplate Stirrer
MSH-30D, HP-30D
to which this declaration relates is in conformity
with the following standard or other normative document
EN 61326-1 : 2006
EN 61010-1 : 2001(2nd Edition)
EN 61010-2-010 : 2003
EN 61010-2-051 : 2003
following the provisions of the directives:
Low-Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
From “DT&C Co., Ltd.”
Signed: ____________________________ (Chong ku Shu)
Date: 18, April 2016
Authority: President / CEO
For
DAIHAN Scientific Co., Ltd.
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 4/44
Table of Contents
Page
1. General
1.1 Precautions Before Use ............................................................................ 5
1.2 Product Introduction ................................................................................ 6
1.3 Product Configuration .............................................................................. 7
2. Installation
2.1 Product Installation .................................................................................. 8
2.2 Product Specifications .............................................................................. 9
3. Product Usage
3.1 Product Usage ........................................................................................ 11
3.2 Names of Each Part ................................................................................ 14
3.3 Usage Instructions .................................................................................. 16
4. Products Management Methods

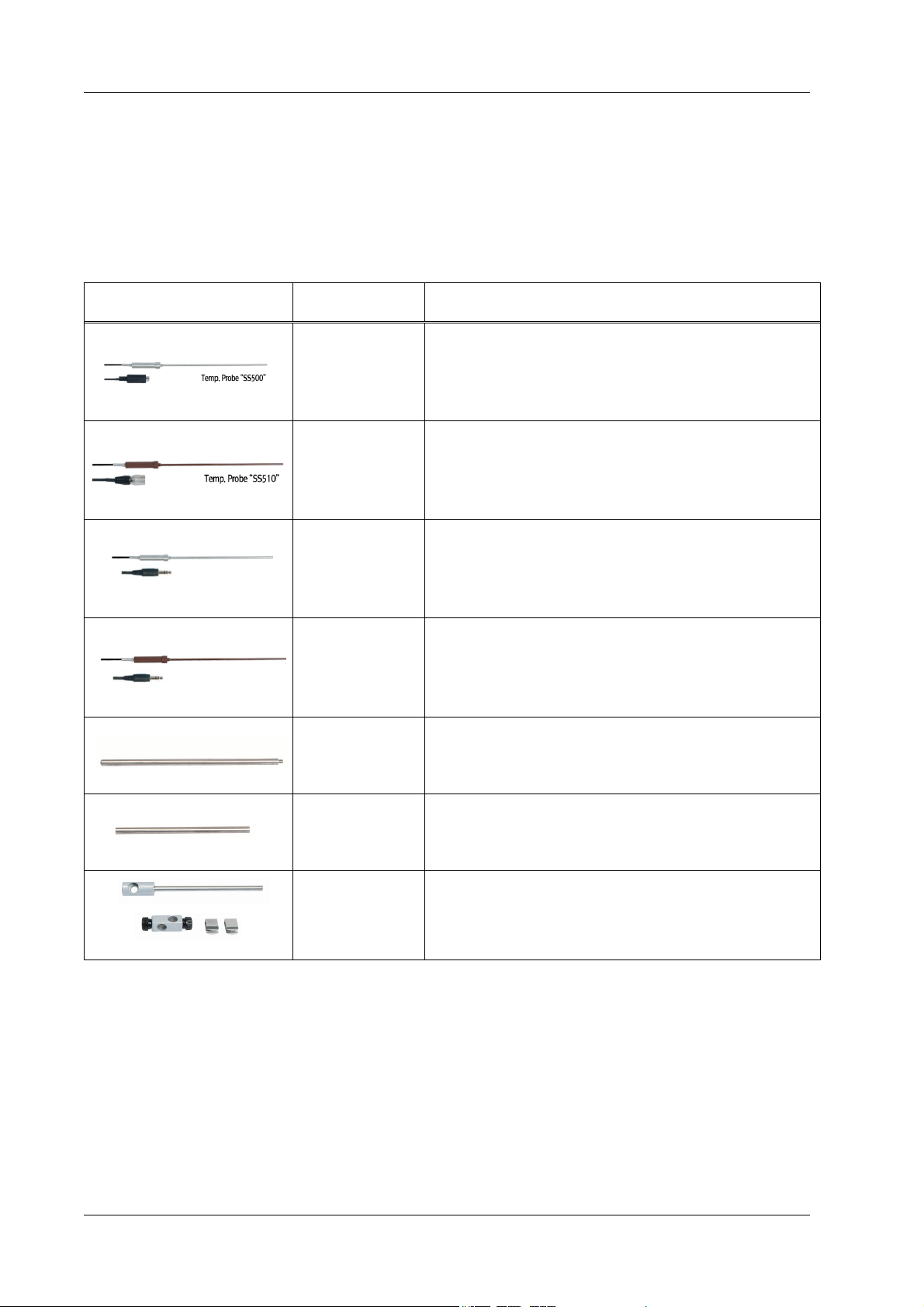

4.1 Accessories ............................................................................................ 20
4.2 Maintenance and Management ................................................................ 21
4.3 Troubleshooting ...................................................................................... 21
5. Product Assurance
5.1 Quality Assurance ................................................................................... 22

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 5/44
1. General
1.1 Precautions Before Use
Thank you for purchasing the Digital Hotplates & Stirrers.
This manual describes the performance and usage instructions of the product, and the precautions
in the handling. Please carefully read this manual, before using the product. The following
warnings should be strictly adhered to: (The following warning sign is marked in the part that is
required user attention, so please safely use the product after being well-acquainted with the
meaning.)
Warning
Failure to follow the instructions may result in injury.
Caution
Failure to follow the instructions may result in product failure.
Proximity Caution
Keep clear of the product during use.
Notification
Do not disassemble or modify the product or use it for purpose other than its
intended function.
Caution: High Temperature
High-temperature heating, pose a risk of burns.
Danger of Explosion
If volatile, explosive chemicals are used, there is a danger of explosion.
This symbol indicates Protective earth (ground).
This symbol indicates power “OFF” on the power on/off switch.
This symbol indicates power “ON” on the power on/off switch.
This symbol indicates the connection point of the neutral conductor on the
installed unit.
This symbol indicates alternating current Voltage.
1
1
I
N

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 6/44
1. General
1.2 Product introduction
This product can heat a sample at high temperature and support the strong magnetic
stirring ability. In addition, because this product has high thermal conductivity and excellent
chemical resistance, it is convenient to use in various experimental conditions.
This product was developed and manufactured considering the best possible ease for use
and safety, and has the following features.
1. Superior Temperature Uniformity: less than 3% on the plate at current temperature.
2. Because the motor with the powerful turning force, excellent control property and durability is
mounted in this product, it can rightly take pride about excellent performance, the lowest noise
and its long-life.
3. Since the precise control of turning rate has been implemented, the consistent stirring is
provided also at any rate.
4. Because white ceramic top plate has excellent chemical resistance and is strongly made, the
color of reactant can be safely identified during the experiments.
5. Because Jog Dial Knob and Push Button which are rigid and have excellent operability are
mounted, this product has high operating sensitivity and excellent accuracy.
6. The Digital LCD screen with advanced specification is built in and it displays the status of this
product.
7. Because the timer function that can be set up to 99 hours and 59 minutes (99:59) is built-in, it
provides various experimental environments to user.
8. The safety device for overheating prevention, and over current and short circuit prevention
circuitry that preferentially consider the user’s safety are mounted.
9. CE Certified Products.
10. PL(Product Liability) Insurance

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 7/44
1. General
1.3 Product Configuration
Component Photo Component Name No. of Configuration
MSH-20D 1 unit
MSH-30D 1 unit
HP-20D 1 unit
HP-30D 1 unit
MS-20D 1 unit
Stirring Bar 3cm
(Usable : up to 5cm bar)
1ea
(Only MSH/MS Model)
- Including a copy of the Operation Manual
¨Product Liability (PL) Insurance Admission
DAIHAN Scientific (Co., Ltd.) is a member of Product Liability Insurance (PL Insurance),
so that its customers can trust our products, (believe and use its products,) by
preparing against the accident which can be occurred during using the products by self-
production.
[Contents] ………………………………………………………………………………………
Insurance Type: Product Liability Insurance
Publishing Office: Machinery Insurance Cooperative
Limit of Indemnity: 100 million won for Persons and Objects
Secured Area: Worldwide (excluding North America)
Emergency Contact: DAIHAN Scientific (Co., Ltd.) (TEL: [phone], FAX: [phone])
(TEL: [phone], FAX: [phone])

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 8/44
2. Installation
2.1 Product Installation
* Caution of Installation
1. Please do not lay the product on the floor or subject it to shock. It can cause damage inside the
product.
2. Please install the product in a hard, flat, and stable place.
3. Please do not install the product in a place where it is exposed to direct sunlight, or in the
dangerous places.
4. Please do not install this product the place where there is high humidity or the risk of leakage.
5. This product was manufactured for normal operation at a rated voltage, so please check the
voltage status before installing the product.
6. When installing and using the product, please certainly use the power cord provided with the
products.
7. Please do not install this product in the environment that there is the possibility of flammable
gas leakage.
8. Please do not place the magnet or the tool which generates the magnetic field, nearby the
equipment. If this equipment is used at nearby position to the powerful source of
electromagnetic field, errors due to the magnetic field may be occurred.
9. Do not allow moisture, organic solvents, dust, or corrosive gases to enter the product.
10. Please be careful for burns because the residual heat may be remained even if this product is
operating or the power was disconnected.
11. Please do not install this product around the product having strong magnetic force.
12. Please do not use this product in conjunction with a metal container.
* Installation Process
1. Check the unit for any transport damages. If any such damages are found, please contact the
deliverer of the product.
2. The product should be positioned in a location where it has enough space for ventilation and
prevention from fire. The recommended distance of each side is minimum 20cm from the back
wall, 100cm from the side walls and ceiling respectively.
3. Place the device on a level, horizontal surface to support the capacity of the device without
vibration.
4. Connect the power cord to the wall socket.
5. When installing the device, insure the wall socket is easily accessible.
6. Do not earth to gas pipe, plastic tap water pipe or phone line. It may cause an electrical shock,
a fire, breakdown or explosion of the unit.

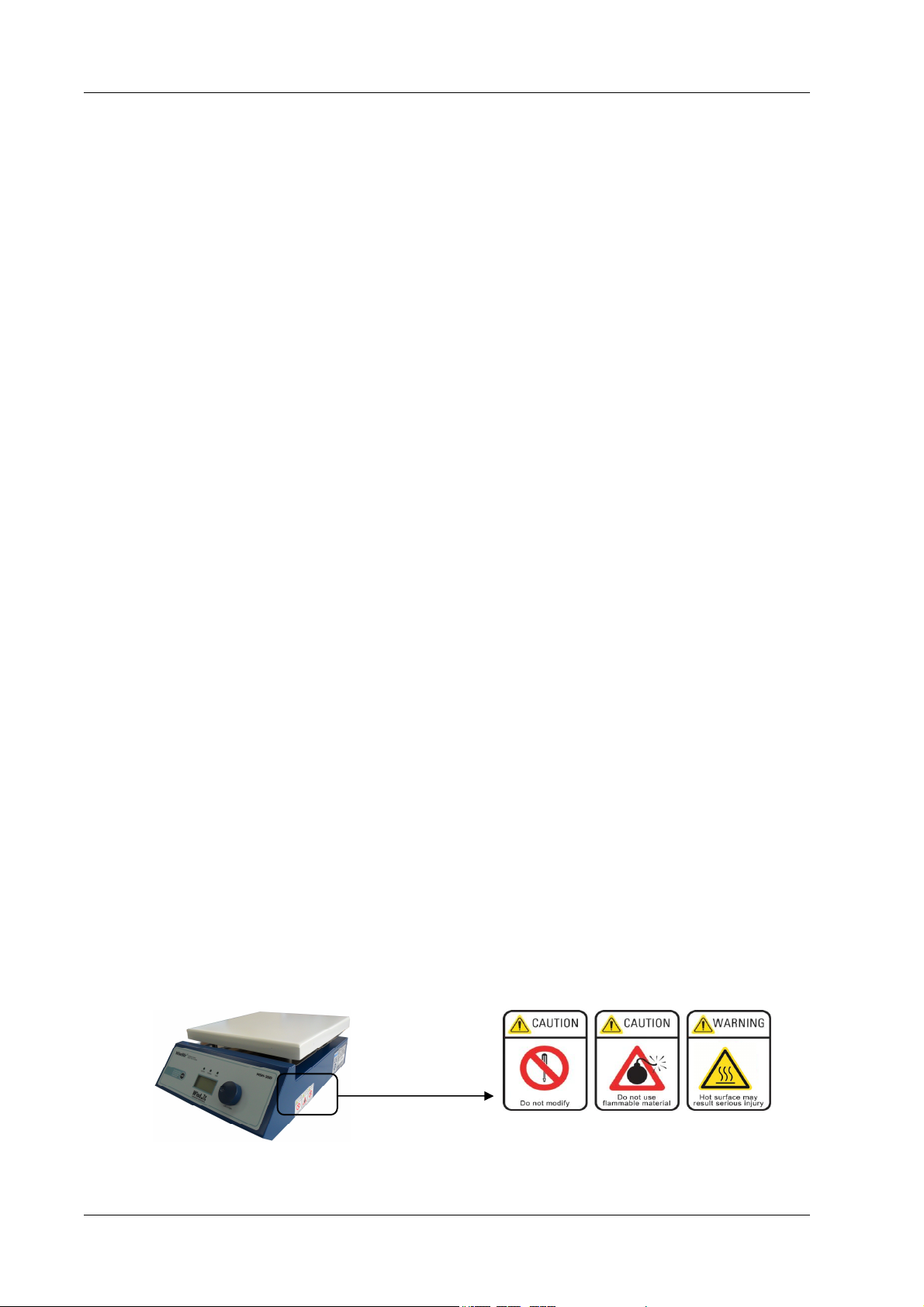

* Safety Symbols on a product
-Safety symbols stickers Attached to side of product. For meaning of each symbol, please refer
to Precautions Before Use, Safety Instructions.
Safety symbols on units, for further
description of each symbol, please refer
to 3.1 Precautions for Use.
2

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 9/44
2. Installation
2.2 Product Specifications
* Other Specifications are available upon Customer's Request.
Model MSH-20D MSH-30D
Plate
-
Type (Size)
180 X 180mm
260 X 260mm
Material
Body Powder Coated Aluminum Powder Coated steel
Plate
Ceramic Coate
d Aluminum
(Chemical / Acid Resistance, Easy to Clean)
Stirring Capa. &
Motor Rating Max. 20 Lit., 9 /4 W
Speed
& Control
Resolution 80 ~ 1,500 rpm, 5rpm
Temp. Range & Accuracy Max. 380 ℃, ±0.3℃at Set Temperature
Temp. Resolution 0.1℃- Display, 0.5℃- Control
Temp. Uniformity
Specially Designed Heating Module : Temp. Difference 10% less
Heating Power/
Consumption 600 W 1.2 kW
Timer & Alarm
99hr 59min (with Continuous run.), Error status & Timer
-
end
Display
Digital LCD with Back
-
Light Function
Controller
Digital Feedback Controller with Jog Dial Knob (Turn+Push)
Stirring Bar
3cm bar
-
included, Usable : up to 5cm bar
Safety Circuit
Over Temp. Protection
Permissible Temp. & RH% Ambient +5 ~ 50℃, 85% RH
Dimension
206 X 307 X h99mm
286
X 387 X h9
9mm
Weight
3.3
kg
3.5
kg
Packing Size
400 X 280 X h200mm
430 X 320 X h200mm
Gross Weight
5 kg
Power Supply &
Cord/Plug* 1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 10/44
Model HP-20D HP-30D
Pla
te
-
Type (Size)
180 X 180mm
260 X 260mm
Material
Body Powder Coated Aluminum Powder Coated steel
Plate
Ceramic Coated Aluminum (Chemical /
Acid Resistance, Easy to Clean)
Temp. Range & Accuracy Max. 380 ℃, ±0.3℃at Set Temperature
Temp. Resolution 0.1℃- Display, 0.5℃- Control
Temp. Uniformity
Specially Designed Heating Module : Temp. Difference 10% less
Heating Power/
Consumption 600 W 1.2 kW
Timer & Alarm
99hr 59min (with Continuous run.), Error s
tatus & Timer
-
end
Display
Digital LCD with Back
-
Light Function
Controller
Digital Feedback Controller with Jog
-
Dial Knob (Turn + Push)
Safety Circuit
Over Temp. Protection
Permissible Temp. & RH% Ambient +5 ~ 50℃, 85% RH
Dimension
206 X 307 X h99mm
28
6 X 387 X h99mm
Weight
2.8 kg
3.3 kg
Packing Size
400 X 280 X h200mm
430 X 320 X h200mm
Gross Weight
5 kg
Power Supply &
Cord/Plug* 1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz
Model MS-20D
Plate
-
Type (Size)
180 X 180mm
Stirring Capacity (H
2
0)
Max.
20Lit.
Speed Range
Max. 1,500 rpm
Motor Rating
9 / 4 W
Speed Accuracy (%)
±5
Speed Control Resolution
5 rpm
Timer & Alarm
99hr 59min (with Continuous run.), Error status &
Timer-end
Display
Digital LCD with Back
-
Light Function
Controller
Digital Fe
edback Controller with Jog
-
Dial Knob (Turn +
Push)
Stirring Bar
3cm bar
-
included, Usable : up to 5cm bar
Permissible Ambient Temperature Ambient +5 ~ 50℃
Permissible Relative Moisture
85%
Material
Body
Powder Coated Aluminum
Plate
Ceramic Coated Alu
minum (Chemical /
Acid Resistance, Easy to Clean)
Dimension
206 X 307 X h99mm
Weight
3.1 kg
Packing Size
400 X 280 X h200mm
Gross Weight
5 kg
Power Consumption
10 W
Power Supply &
Cord/Plug* Free Voltage (1 Phase, AC 80~ AC 240V, 50/60Hz

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 11/44
3
3. Product Usage
3.1 Precautions for Use
Please be familiar with the user manual before using this product, and operation
should be performed only by qualified personnel
This product should be connected to a appropriate power source that it is
generally used. Please use a lower power source than the regulation load
permitted.
lWarnings
-Please observe the following precautions.
This product should be operated in a room with temperature maintain between
5℃and 40℃. Long-term use in an environment that exceeds the allowable range
may cause a malfunction.
Please do not damage or distress the power cord. (Please do not hurt on the
power cord, or process it, or force bend it, or pull it, and tie it.) Also, if heavy
objects are placed over the power cord, or the power cord is inserted in between
objects, the power cord can be damaged and may cause fire or electric shock.
Please do not directly spray water on the product or wash it with water, to avoid
short circuits or electric shock.
Please do not touch or manipulate the electrical parts such as the power plug with
wet hands electric shock.
Please do not operate the product by manipulation of the plug to avoid electric
shock or short circuits
Do not install the product where it can get damp or in a dusty environment. It
may cause overheating or short circuit. – Pollution Degree 2
Do not install the product in a location at an altitude of over 2,000 meters (6,562
feet).
Please keep a human body away from this product when this product is operating
at high temperature.
Please use this product after wearing the protective equipment at high
temperature.
Please move this product after that the power cord is disconnected and then this
product is sufficiently cooled when this product should be moved during
operating.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 12/44
Please wear the protective equipment because the heating temperature can be
overheated above the setting temperature.
Do not operate this product near a heater or an air-conditioner.
Only operate unit after checking the safety of the unit.
If unexpected sound, smell or smog is generated, pull the main plug out from the
wall socket and contact the technical assets of DAIHAN Scientific.
Do not use outdoors avoid overheating or electrical faults. The use in the place
where the sun continuously shines and can get rained on it is prohibited. It may
cause overheating or electrical fault of the product.
Please do not use flammable or volatile products in the vicinity of the product to
minimize the risk of firer. Please do not use the flammable spray such as lacquers
and paint, or volatile, flammable chemicals and its similar product, in the
proximity of the product. They may cause the ignition due to the spark of switch.
Please avoid the disassembly or modification of this product by a non-authorized
person to avoid serious electrical problems and to retain the warranty service of
DAIHAN Scientific Co., Ltd.
This product must be connected to a properly grounded power supply.
Please regularly check whether dust or dirt are on the power plug and completely
connect the plug. If the plug is covered with dust, or the connection is not
complete, it will cause an electrical shock or fire.
Please separate the power plug from the outlet for safety when the product is
unused for long periods of time to avoid overheating or ignition due to dust.
When disconnecting the power plug, it must be grasped by the hands and then
pulled. Grasping only the cord and then disconnecting it may cause overheating or
ignition because of internal lines being disconnected.
Insert the plug securely into an appropriate wall socket.
Loose connections result in excessive heat generation to the device and may
cause arcing to occur at the connection.
If unusual noise or signs of abnormal behavior are found during use of this
product, please immediately contact the supplier or DAIHAN Scientific (Co., Ltd.)
after turning off the power supply and disconnecting the power line.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 13/44
When moving the product, please move it so that the power cord and the product
are not damaged after disconnecting the power plug from the electrical outlet, in
order to avoid the electrical shock or the ignition due to the damage to the cord.
The fluctuation of main power voltage should be lower than +/-10% of the
nominal voltage..
The maximum relative humidity is 80% at 31°C and 50% at 40°C .
If a product was transported or stored in high humidity condition, please check
packaging condition before use. If the carton or wooden box is waterlogged,
please contact the deliverer or our technical service engineer. Do not operate the
unit before checking with an engineer, otherwise it may cause an electrical shock
or a fire.
The Sound Level of the buzzer is maximum 60dB in 1 meter distance when an
error is detected.
Please maintain the clean condition of this product by removing the foreign
matter while gently wiping with the neutral detergent and a dry cloth after
checking whether the foreign matter present or not, before and after using this
product.
Please always use the safety equipment (working clothes, gloves and safety
glasses) when using this product.
Please never cover with aluminum foil, etc. over the plate during the heating
operation.
It can result in the serious damage of the equipment due to overheating.
This Symbol indicates that this product is to be collected separately.
The following apply only to users in European countries:
lThis product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
This product is required to comply with the European Union’s Waste Electrical &
Electronic Equipment(WEEE) Directive 2002/96/EC
※All of the circuits, electrical or mechanical parts and configurations used in this
product are the technical assets of DAIHAN Scientific (Co., Ltd.). Only technicians of the
technical support team at DAIHAN Scientific (Co., Ltd.) or technicians approved through
the education from DAIHAN Scientific should be allowed to repair this product.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 14/44
3. Product Usage
3.2 Names of Each Part
lOutside
NO Name Description
①Power connections Connection piece of Power cord
②Power switch Equipment power ON/OFF
③External sensor connector Connection piece of External sensor
④Ceramic coating top plate Heating, Stirring operation
⑤Controller Controlling and checking the operation of this Product
<Fig.3.2.2> Back of "MSH-20D"
②
③
④
<Fig.3.2.4> Back of "MSH-30D"
<Fig.3.2.1> Digital Hotplate Stirrer "MSH-20D"
<Fig.3.2.3> Digital Hotplate Stirrer "MSH-30D"
①
⑤
①
②
③
④
⑤
<Table.3.2.1> Names of each part and description

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 15/44
<Table 3.2.2> Controller for " MSH-20D/30D "
lController
NO Name Description
①MODE Button Switch to Stirring, Heating, Temperature compensation, Timer, and
Locking Mode.
②LCD Display Input and operation information are displayed.
③Heating Lamp Lights up when the heating operation
④Stirring Lamp Lights up when the stirring operation
⑤Timer Lamp Lights up when the timer operation
⑥Jog Dial Knob Turning this knob, the control of Increase and Decrease of Operation
value and Start/Stop operation of this product are possible.
<Figure 3.2.5> Digital Hotplate Stirrer " MSH-20D"
<Figure 3.2.6> Digital Hotplate Stirrer " MSH-30D"
①
③
④
⑤
⑥
②
①
③
④
⑥
⑤
②

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 16/44
3. Product Usage
3.3 Usage Instructions
①MODE - Set Stirring Mode (MSH / MS Model)
-When the power is turned ON, the initial screen is the setting mode of the stirring speed.
-If the power is turned on, LED of STIRRING is flashed, and the screen of LCD Display indicates
the stirring speed to “0 RPM”, and the screen which can set up the speed is appeared.
-The range of the stirring speed is 80 ~ 1,500 RPM.
-If turning Jog-Dial Knob to clockwise, the setting value of LCD Display becomes larger
according to the control of the Knob by starting at minimum 80 RPM, and at the same time, the
stirring operation is started.
-If the set stirring speed is 0 RPM, Start operation is applied through the Turning of the Jog-Dial
Knob, and if the setting value of the stirring speed is above 80 RPM, the value is changed by
Turning of the Jog-Dial Knob and the START operation is performed by the Push button.
-If turning the Jog-Dial Knob to counter-clockwise during the stirring operation, the operation
can be stopped by reducing the speed value or by setting it to 0 RPM, or the Stop operation can
be carried out by the Push button of the Jog Dial Knob.
-If the PUSH button of the Jog Dial Knob is pressed and held for 2-3 seconds, the setting value
is saved and this saved value is maintained even when the power is turned on again.
-The STIRRING LED is flashed when entering into the Main mode, and the LED is always lit
when entering into other mode during the stirring operation.
-The STIRRING indication of LCD Display is always displayed during the stirring operation, and if
< Fig 3.3.1> Set Stirring Mode
STIRRING LED (Green)
HEATING STIRRING TIMER
STIRRING 80 RPM
80 RPM
POWER
Set RPM
Present RPM
Indicate operation
Indicate Power

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 17/44
Indicate Heating
Operation
the setting value of stirring speed is entered to above 80 RPM in the situation that the agitation
is stopped, it displays the standby state while flashing the STIRRING indication.
-The POWER rod bar of the Display represents the stirring power, and it is displayed at all times
during the stirring operation. The stirring power is automatically controlled to match the setting
RPM according to the viscosity of the sample.
②MODE - Set Heating Mode (MSH / MP Model)
-If pressing once the MODE button in the Set Stirring Mode, it is switched to the temperature
setting mode.
-The setting temperature is entered by turning the Jog-Dial Knob to clockwise or counter-
clockwise. If the setting value is entered to above 0 , the operation standby state is ℃
displayed while blinking the HEATING indication of LCD Display.
-The maximum heating temperature is 380℃. The Start/Stop of the operation is performed by
the Push button of Jog-Dial Knob.
-The HEATING indication of LCD Display is always displayed during the operation of HEATING,
and if the setting value is entered to above 0 in the condition that the heating is stopped, the ℃
HEATING indication indicates the standby status while blinking in long interval.
-In the case of HEATING LED, while the temperature rises by the operation of Heater, the LED
blinks, and when the setting temperature and actual temperature are the same, the Heater
maintains the temperature and the LED is turned off.
-If the PUSH button of Jog Dial Knob is pressed and held for 2-3 seconds, the setting value is
saved and this saved value is maintained even when the power is turned on again.
* SUB - Set offset value
Temperature compensation is the function that can add or reduce the constant value by setting the
< Fig 3.3.2 > Set Heating Mode
HEATING
150.5
℃
100.10℃
HEATING LED (Red)
HEATING
ST
I
RRING
TIMER
Set Temp.
Present Temp.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 18/44
< Fig 3.3.4> Set Timer Mode
compensation value in the case that user must experiment by matching the thermometer which
he/she is using as the experimental standard and the thermometer indicated in this regulator.
-If pressing at the same time the MODE button and the Push button of Jog-Dial Knob in the SET
Heating Mode, it is entered into the temperature compensation mode.
-The scope of the compensative value is -20.0℃~ +20.0 , and it is po℃ssible to adjust at 0.1℃
unit.
-After setting the compensation value, the indication of the current temperature is displayed as
the temperature including the compensation value.
-When entering into the compensation value setting mode during the Heating operation, the
Heating operation that is operating is stopped. After setting the compensation value, the
Heating operation is re-conducted in the Set Heating Mode.
-If the PUSH button of Jog Dial Knob is pressed and held for 2-3 seconds, the setting value is
saved and this saved value is maintained even when the power is turned on again.
-If pressing Mode button, it is switched to the Set Heating Mode.
③MODE - Set Timer Mode
-If pressing once the MODE button in the Set Heating Mode, it is switched to the timer setting
mode.
-The setting timer is entered by turning the Jog-Dial Knob.
< Fig 3.3.3> Set offset value
HEATING
25
.5
℃
15.0℃
HEATING STIRRING TIMER
Present Temp.
Offset value
Heating Status
10:10
10:00
HEATING
ST
I
RRING
TIMER
TIMER LED (Green)
Set Timer
Remain Time

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 19/44
HEATING 150.5
℃
STIRRING
80 RPM
POWER
Set Temp.
Present RPM
Indicate Operation
Indicate Power
-clockwise or counter-clockwise. The Start/Stop of the operation is performed by the Push
button of Jog-Dial Knob.
-The range of the setting timer is 00:00~99:59, and it is adjusted at one minute unit. If setting
the timer to "00:00", the setting values that is operating is continuously operated.
-TIMER LED blinks if the timer is operating or it is completed, and displays the standby state
during the operation of the timer. Heating and Stirring that are operating are stopped while
occurring the beep if the operation is completed.
-If the PUSH button of Jog Dial Knob is pressed and held for 2-3 seconds, the setting value is
saved and this saved value is maintained even when the power is turned on again.
④MODE - Locking Mode
-If pressing once the MODE button in the Set Timer Mode, it is switched to the Safety Lock
Mode.
-In the Locking Mode, the Turning by the Jog-Dial Knob or Push button do not applied, and LCD
Display and LED lamp indicate the status that is currently operating.
-If pressing once the MODE button, it is entered into the Set Stirring Mode.
* ERROR Message
-If Error situations are occurred, the Error warning is displayed on the idle screen.
ERROR
Message Cause Remedy
Error 1
Informs the time to be displayed the
temperature of abnormal value due to
the abnormality of Temperature Sensor.
Please check the temperature of
the heated top plate.
Error 2 Informs the abnormality of the stirring
operation.
Please check the appropriate
range.
<Table 3.3.1> Error Message
< Fig 3.3.5> Locking Mode
HEATING STIRRING TIMER
Indicate Operate Status

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Digital Hotplates & Stirrers 20/44
4. Products Management
4.1 Accessories
* Ordering Information
Ordering
Number Information
DH.WHP503020
External / Direct Contact Temp. Probe, "SS100"
"PT 100", for "MSH-30D
Probe Φ4 X L250mm, Cable L190mm
DH.WHP503021
External / Direct Contact Temp. Probe, "SS110"
"PT 100", Teflon Coated, for "MSH-30D
Probe Φ4 X L250mm, Cable L190mm
DH.WHP503030
External / Direct Contact Temp. Probe, "SS200"
"PT 100", for "MSH-20D
Probe Φ4 X L250mm, Cable L190mm
DH.WHP503031
External / Direct Contact Temp. Probe, "SS210"
"PT 100", Teflon Coated, for "MSH-20D
Probe Φ4 X L250mm, Cable L190mm
DH.WHP503011 Stand Rod, "RD100", Stainless steel, Φ12.7 x L450mm
For "MSH-30D, Non-screw
DH.WHP503036 Stand Rod, "RD200", Stainless steel, Φ12 x L450mm
For "MSH-20D, "SMHS" screw
DH.WHP503012 Holder / Clamp / Clip, "CL220", for Temp. Probe
4
