Daihan Scientific VM-10 User manual

Man247 (27 Jul. 2015)
VM-10
Multi-purpose Vortex Mixer
Certifications by - - -
ISO 9001 Certified.
PL Insurance.
Operation Manual
(Version 2.1.1)
written for
VM-10 model
“VM-10” Multifunction Vortex Mixer.
Sales & Basic A/S :
By the Nearest Official Distributors .
² English Page : P. 11 ~ 24
² Korean Page : P. 25 ~ 44
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 2/44
European D eclaration of Conformity
We, DAIHAN Scientific Co., Ltd.,
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]
declare under our sole responsibility that the product
Vortex Mixer
VM-10
to which this declaration relates is in conformity
with the following standard or other normative document
EN 61326, EN 61000-3-2, EN 61000-3-3
EN 61010-1, EN 61010-2
following the provisions of the directives:
Low-Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
EC Directive 2006/42/EC
RoHS - Directive 2011/65 EU
Signed: ____________________________ (Chong ku Shu)
Date: 18, April 2016
Authority: President / CEO
For
DAIHAN Scientific Co., Ltd.,
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 3/44
Contents
Page
1. Safety Instructions ..............................................................…….....….. 4
2. Before Use …............................................................................……..... 8
3. Introduction ....................................................................................... 9
4. Package Contents ................................................................................. 9
5. Appearance and Naming ....................................................................... 10
6. Installation ..................……………........................................................ 11
7. Cautions in Use ………………................................................................... 13
8. Controller Details ............................................................................... 15
9. Operation ........................................................................................ 16
10. Specifications …………........................................................................ 21
11. Maintenance ………………….................................................................. 22
12. Troubles & Solutions .......…….............................................................. 23
13. Certificate ........................………......................................................... 24

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 4/44
Safety Instructions 1
Please read this carefully for the safety before using the device. The indicated cautions are
related to the safety and you should observe all safety and warning instructions.
Symbols (Pictograms) and the meaning
This symbol indicates caution
(Including warning). There will
be concrete descriptions.
This symbol indicates inhibition.
There will be concrete
description.
This symbol indicates inhibition
regarding modification.
This symbol indicates caution
regarding heat.
This symbol indicates the risk of
explosion or fire.
This symbol indicates the user
must be kept away while
operation.
This Symbol indicates that this product is to be collected separately.
The following apply only to users in European countries:
l This product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
This product is required to comply with the European Union’s Waste Electrical &
Electronic Equipment(WEEE) Directive 2002/96/EC
Please read following warning for safety and proper use.
WARNING
Do not use a power source other than which the unit is designed to operate on.
Inappropriate power supply may result in damage to the equipment. Adhere to all
electrical codes.
Please do not touch with wet hands. It may be caused an electric shock.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 5/44
Do not handle the power cord harshly. Disconnection or short may cause if you
bend or put a heavy thing on the device.
When you take a plug out in a wall socket, turn the power off and then take the
plug out carefully.
Insert the plug securely into a wall socket.
Loose connections result in excessive heat generation to the device and may cause
arcing to occur at the connection.
Avoid using multi-point extension power cords. It may cause excessive heat
generation and be the cause of a fire.
If you extend the power cord, use the cord to have sufficient electric capacity.
Be sure to operate the device only with the specified power supply.
When you connect the product specified by 100V to 200V, it may be caused to
over-heat, electric shock or a short circuit to each part.
Do not connect wrong electricity since it is the cause of a fire.
Disconnect the power supply plug if the unit is not going to be used for an
extended period of time.
This Symbol indicates that this product is to be collected separately.
The following apply only to users in European countries:
l This product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
This product is required to comply with the European Union’s Waste Electrical &
Electronic Equipment(WEEE) Directive 2002/96/EC
Installing the device (repeated in the Section 6)
WARNING
Place the device on a level, horizontal surface to support the capacity of the device
without vibration. If there is vibration, install the device on a support material with
enough space. Small place may cause the device to drop.
Do not install at a dangerous place.
Do not operate the device where there are flammables. It could be caused serious
accidents like explosion or fire.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 6/44
Do not operate the device outside.
Avoid areas where the sun shines or rain directly on the device. It is very
dangerous as cause over-heat or a short circuit.
Do not install the device where it can get damp or dust.
It may be caused overheating, a short circuit or a fire by damp or dust inside of the
device.
Do not use this device if the ambient temperature is below 5°C or above 40°C.
Do not use the device at a place with high temperature. Do not operate the device
near a heater, blowing an air-conditioner. It may be caused an accident by over-
heating.
The device should be set at a well ventilated place.
Be sure the holes on the side or rear surface of the body are blocked by a wall or
an object. And do not operate the device at a poor ventilated place or use closed.
It may cause a fire or damage of the device as not to release heat or insufficient
ventilation may result.
Set the device a lightening place.
When you set the device at a dark place, it may cause an unexpected accident by
mistake in operation.
Operating the device (repeated in the Section 7)
WARNING
Be careful to operate the device.
You should read this manual carefully before using.
The device should only be operated by laboratory personnel especially trained for
this purpose and familiar with all precautionary measures required for working in a
laboratory.
Operate after check the safety of the device.
If there is generated a slight shock or a poisonous gas from a sample, figure it out
and make sure the safety using dustproof or a gas mask.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 7/44
If unexpected sound, smell or smog is generated, pull out the mains plug and
contact manufacturer or a supplier.
Do not put any objects insides the machine.
When an object that is easy to be combustible is like a stone, a metal or paper goes
insides, it may cause a fire, an electric shock or a break down.
If do, pull out the mains plug from a socket and contact a manufacturer or a
supplier.
Do not disassemble or remodeling by yourself.
It may cause damage to the designed safety.
We do not have any duties for an accident, quality deterioration or a defect caused
by a customer.
All the mechanisms and electric/electronic devices in this machine are designed and
developed by the manufacturer. The devices could be disassembled and serviced
only by the engineers of manufacturer or by engineers approved by manufacturer.
Do not touch the device with wet hand while operation.
CAUTION
This device must be connected to an earthed power supply.
If you use radiation or contaminated samples, the responsibility is to the customer.
Do not use this product to sterilization or disinfection.
Avoid a sample that is poisonous or flammable.
Never use for a explosive sample.
Please avoid ultraviolet lamps.
It could be cracked or faded.
Disconnect the power supply plug if the unit is not going to be used for an extended
period of time.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 8/44
Before Use 2
Thank you very much for purchase of WiseMix
® Multifunction Vortex Mixer.
This operation manual describes performance, usage and cautions and notices for use of the
purchased product. Before use, please confirm this manual and use properly.
Please read carefully and thoroughly all the safety instructions described in the Section 1 again.
And also, please keep this manual.
※ Modification of exterior or specifications could be made without notice to improve the quality
and performance of the product.
¨ PL Insurance Coverage
In preparation for accidents that may develop in the course of using products produced by
DAIHAN Scientific, we subscribed to following PL Insurance coverage to give our customers
a piece of mind when using the product.
[Contents]………………………………………………………………………………………
n Insurance: Products Liability Insurance
n Issuer: Machinery Insurance Cooperative
n Limit of Liability: Bodily Injury/Property Damage, 100 million KRW each
n Territory: Worldwide (U.S Excluded)
n Emergency Contact: DAIHAN Scientific
(TEL: [phone], FAX: [phone])

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 9/44
Introduction 3
Multifunction Vortex Mixer is useful for various kind of laboratory works such like Chemistry, Life
Science, Medical Science, Pharmacology, etc. Convenience and safety in use is considered in
developing and manufacturing this product.
Key features are as follows;
n Ideal for Mixing Solutions in Test tubes or Small flasks with a Circular, Oscillating movement.
n Supplied with Φ76mm (3 inch) Platform (shown) and Pop-Off Cup Head
n Realize High Power, Stable Motion with Low Noise.
n Tough Metal Housing provides a Stable Platform for all types of mixing.
n A 3-position Power Switch operates with “Continuous Action” or "Touch On" control.
n Variable Speed Control allows slow speed shaking action up to high speed vortexing.
n Aluminum Die-casting with Powder Coating
n Various Shapes, Sizes, and Materials allows for mixing of almost all Common Tubes or
Containers
n PL(Product Liability) Insurance
Package Contents 4
VM-10, Multifunction Vortex Mixer ……………..............…………………................................ [ ]
Power Cord ............................................................................................................... [ ]
PM110, Platform, Φ76mm (3 inch) .........................................................................[ ]
PM210, Pop-off cup head ......................................................................................... [ ]
Platform Remove Tool Set ...........................................................................................[ ]
Operation Manual ...................................................................................................... [ ]

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 10/44
Appearance and Naming 5

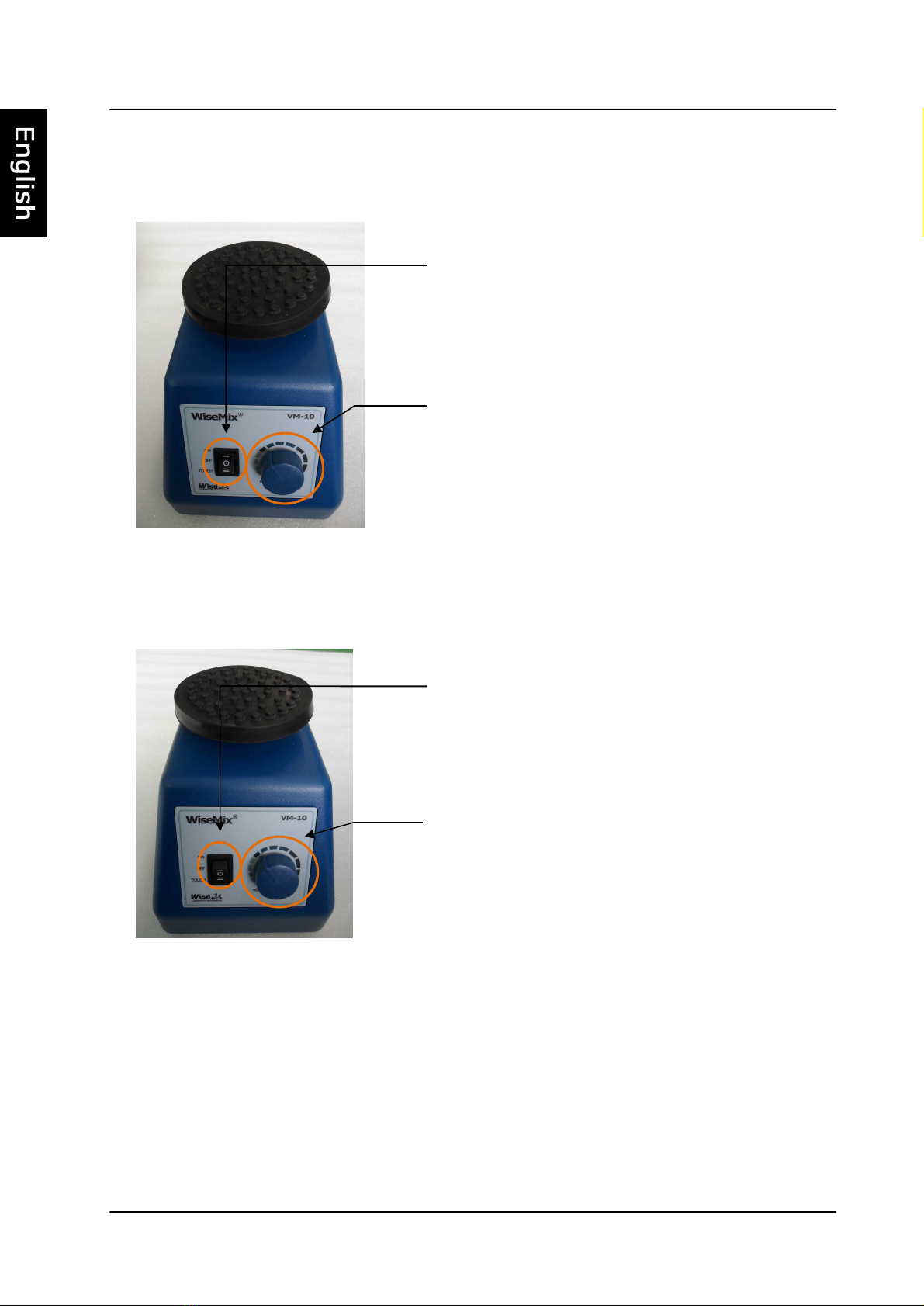

Platform, Φ76mm(3 inch)
Power and Mode Select Switch
- ON : Power on and continuous vortexing
- TOUCH : Power on and when you touch
head, it will start vortexing
Vortex speed adjust knob

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 11/44
Installation 6

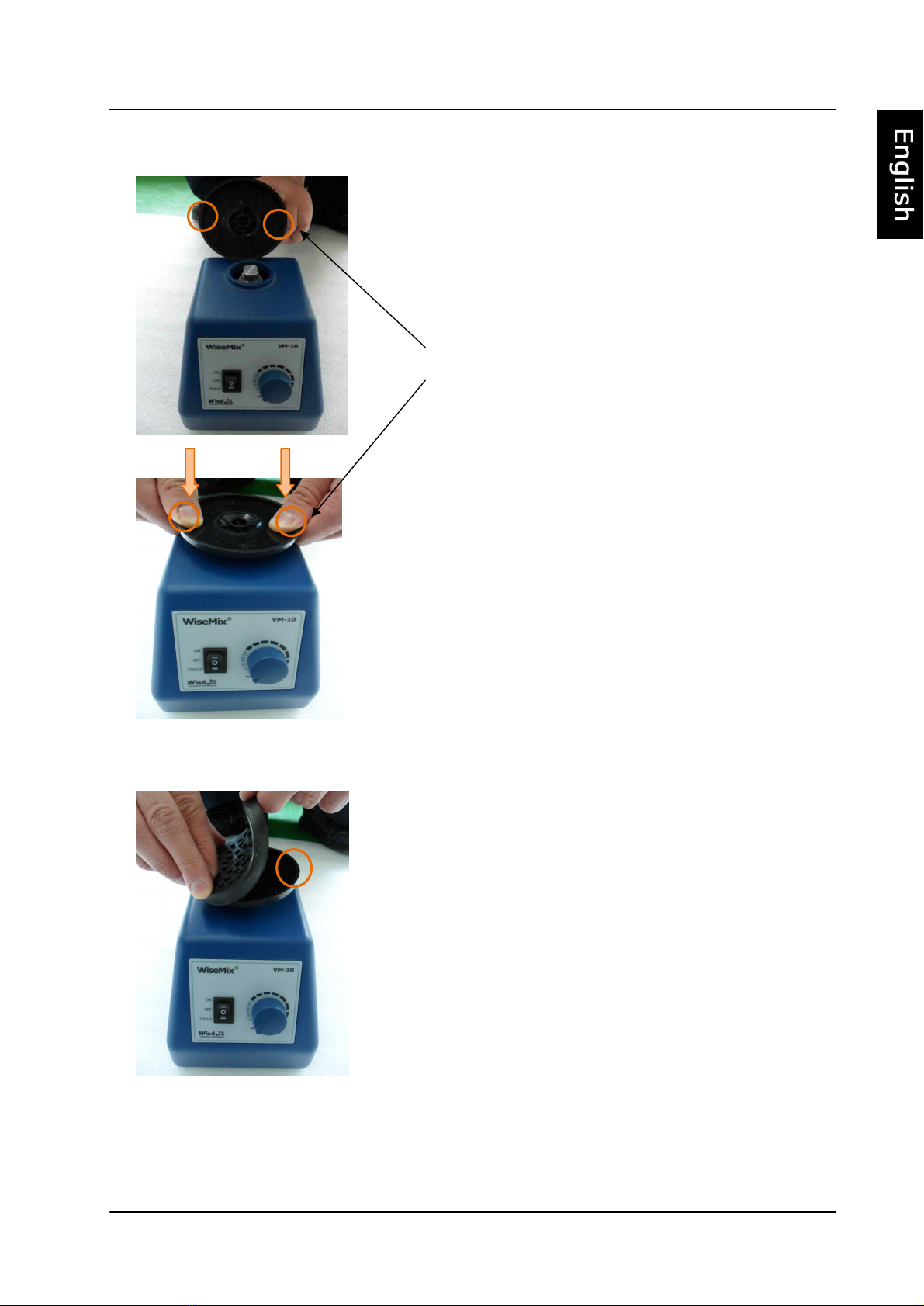

1. After receiving the unit and putting it on the specified place of use remove the wrapping.
2. Check the unit on eventual transport damages. In case there are some transport damages
found please inform the forwarder and your contractor. If there are no damages please go to
point 3.
3. Let the unit stand for a few minutes so that the all the internal parts and components of the
unit can be stabilized.
4. Connect the mains cord to the socket.
WARNING
Place the device on a level, horizontal surface to support the capacity of the device
without vibration. If there is vibration, install the device on a support material with
enough space. Small place may cause the device to drop.
Do not install at a dangerous place.
Do not operate the device where there are flammables. It could be caused serious
accidents like explosion or fire.
Do not operate the device outside.
Avoid areas where the sun shines or rain directly on the device. It is very dangerous
as cause over-heat or a short circuit.
Do not install the device where it can get damp or dust.
It may be caused overheating, a short circuit or a fire by damp or dust inside of the
device.
Do not use this device if the ambient temperature is below 5°C or above 40°C.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 12/44
Do not use the device at a place with high temperature. Do not operate the device
near a heater, blowing an air-conditioner. It may be caused an accident by over-
heating.
The device should be set at a well ventilated place.
Be sure the holes on the side or rear surface of the body are not blocked by a wall or
an object. And do not operate the device at a poor ventilated place or use closed.
It may cause a fire or damage of the device as not to release heat or insufficient
ventilation may result.
Set the device a lightening place.
When you set the device at a dark place, it may cause an unexpected accident by
mistake in operation.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 13/44
Cautions in Use 7
WARNING
Be careful to operate the device.
You should read this manual carefully before using.
The device should only be operated by laboratory personnel especially trained for
this purpose and familiar with all precautionary measures required for working in a
laboratory.
Operate after check the safety of the device.
If there is generated a slight shock or a poisonous gas from a sample, figure it out
and make sure the safety using dustproof or a gas mask.
If unexpected sound, smell or smog is generated, pull out the mains plug and
contact manufacturer or a supplier.
Do not put any objects insides the machine.
When an object that is easy to be combustible is like a stone, a metal or paper goes
insides, it may cause a fire, an electric shock or a break down.
If do, pull out the mains plug from a socket and contact a manufacturer or a
supplier.
Do not disassemble or remodeling by yourself.
It may cause damage to the designed safety.
We do not have any duties for an accident, quality deterioration or a defect caused
by a customer.
All the mechanisms and electric/electronic devices in this machine are designed and
developed by the manufacturer. The devices could be disassembled and serviced
only by the engineers of manufacturer or by engineers approved by manufacturer.
Do not touch the device with wet hand while operation.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 14/44
CAUTION
This device must be connected to an earthed power supply.
If you use radiation or contaminated samples, the responsibility is to the customer.
Do not use this product to sterilization or disinfection.
Avoid a sample that is poisonous or flammable.
Never use for a explosive sample.
Please avoid ultraviolet lamps.
It could be cracked or faded.
Disconnect the power supply plug if the unit is not going to be used for an extended
period of time.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 15/44
Controller Details 8
① Power and Mode Select Switch
- OFF : Stop vortexing and Power off
- ON : Power on and continuous vortexing
- TOUCH : Power on and when you touch head, it will start vortexing
② Vortexing Speed Adjust Knob
①
②

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 16/44
Operation 9
1. Preparation for Use
l Connect the power cord to the proper power socket.
l Set the platform or pop-off cup head for usage
2. Set the Vortexing Accessories
No 1 : Rubber Pad.
No 2 : Φ76mm (3 inch) platform
without rubber.
No 3 : Pop-Off cup head
★Arrow indicator for setting(Circle)
Pop-0ff cup head
1
2
3
1
2
No 1 : Vortex accessory mount.
No 2 : Vortex Mixer without accessory.
Platform Remove Tool.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 17/44
2.1 Set the Φ76mm (3 inch) Platform
.
Check the arrow indicator.
Put platform into mount with regard
arrow indicator as left photo.
Push platform until hear click sounds.
Cover rubber to platform completely.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 18/44
2.2 Set the Pop-off cup head
Check the arrow indicator.
Put Pop-off cup head into mount with regard
arrow indicator as left photo.
Push Pop-off cup head until hear click sounds.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 19/44
2. 3 Remove 3 inch Platform and Pop-off cup head
1. 3 inch Platform
2. Pop-off cup head
1. Insert the Platform Remove Tools
between platform and main body.
2. Push and up Platform Remove
Tools tenderly.( See the arrow)
3. Remove Pop-off cup head.
1. Insert the Platform Remove Tools
between platform and main body.
2. Push and up Platform Remove
Tools tenderly.( See the arrow)
3. Remove 3 inch platform.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, VM Multifunction Vortex Mixer 20/44
3. Operation
3.1 Continuous vortexing
3.2 TOUCH mode vortexing
Push ON(ᅳ) button for continuous running.
Adjust vortexing speed. If you turn adjust
knob to clockwise direction, vortexing speed
will goes increasing and unclockwise
direction, vortexing speed will goes
decreasing.
Push TOUCH(=) button for touch mode
running.
when you touch head by sample, it will start
vortexing
Adjust vortexing speed. If you turn adjust knob
to clockwise direction, vortexing speed will goes
increasing and unclockwise direction, vortexing
