1. General
1.1 Precautions Before Use ............................................................................ 4
1.2 Product Introduction ................................................................................ 5
1.3 Product Configuration .............................................................................. 6
2. Installation
2.1 Product Installation .................................................................................. 7
2.2 Installation of WiReTM App & Web Service ................................................. 10
2.3 Product Specifications ............................................................................ 16
3. Product Usage
3.1 Product Usage ........................................................................................ 17
3.2 Names of Each Part ................................................................................. 20
3.3 Usage Instructions .................................................................................. 25
4. Products Management Methods
4.1 Maintenance and Management................................................................. 39
4.2 Troubleshooting...................................................................................... 41
4.3 Accessories............................................................................................. 42
5. Product Assurance
5.1 Quality Assurance ................................................................................... 43

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 4/67
I
N
1. General
1.1 Precautions Before Use
Thank you for purchasing the Smart Vacuum Oven.
This manual describes the performance and usage instructions of the product, and the
precautions in the handling. Please carefully read this manual, before using the product. The
following warnings should be strictly adhered to: (The following warning sign is marked in the
part that is required user attention, so please safely use the product after being well-acquainted
with the meaning.)
Warning
Failure to follow the instructions may result in injury.
Caution
Failure to follow the instructions may result in product failure.
Proximity Caution
Keep clear of the product during use.
Notification
Do not disassemble or modify the product or use it for purpose other than its
intended function.
Caution: High Temperature
High-temperature heating, pose a risk of burns.
Danger of Explosion
If volatile, explosive chemicals are used, there is a danger of explosion.
This symbol indicates Protective earth (ground).
This symbol indicates power “OFF” on the power on/off switch.
This symbol indicates power “ON” on the power on/off switch.
This symbol indicates the connection point of the neutral conductor on the
installed unit.
This symbol indicates alternating current Voltage.
1
1

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 5/67
1. General
1.2 Product introduction
This product has the optimized structure for the experiment of the high vacuum level and gas
exchange because the Vent (exhaust) pipe and Vacuum (suction air) pipe are separated, and
also the High Heat Conduction Mechanism realizing the vacuum condition that keeps the high
vacuum level and has not the thermal conductivity by air has been applied in this product.
In addition, it remotely controls the experimental equipment by building Smart-LabTM System
through WiReTM App & web Service, and it is implemented so that anytime, anywhere can be
monitored. This product was developed and manufactured considering the best possible ease
for use and safety, and has the following features.
1. Because the Vent (exhaust) pipe and Vacuum (suction air) pipe connected into the inside of
the chamber are separated, respectively and are connected with outside, separately, the
optimized structure for the experiment of gas exchange can be realized.
2. This product can realize high thermal conductivity by adopting the High Heat Conduction
Mechanism which optimizes the thermal conductivity in the vacuum condition without the
thermal conductivity by air.
3. Because the bracket and shelf attached to the inner wall of the chamber are directly
fastened, high thermal conductivity can be reached to the samples on the shelf, and the
fastened shelf can be separated and can support the experiments of the samples with
various sizes.
4. The highest door sealing structure has been realized by adopting high quality Molded gasket.
5. The internal state of this product can be safely checked through the Highly Safety Viewing
Window.
6. Because Jog Dial Knob and Push Button which are rigid and have excellent operability are
mounted, this product has high operating sensitivity and excellent accuracy.
7. Because this product is equipped with a high-quality LCD Display with back-light function, it
is easy to confirm its state.
8. The necessary matters during the experiment can be conveniently used by the support of
SUB MENU.
9. The safety device for overheating prevention, and over current and short circuit prevention
circuitry that preferentially consider the user’s safety are mounted.
10. CE Certified Products.
11. PL(Product Liability) Insurance

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 6/67
1. General
1.3 Product Configuration
Component Photo Component Name No. of Configuration
ThermoStableTM
SOV-20 /-30 /-70 1 unit
Standard Shelf, Aluminum 2 ea
- Including a copy of the Operation Manual
* Model
-ThermoStableTM OV-20: Precise Vacuum Ovens, 18.6Liter.
-ThermoStableTM OV-30 : Precise Vacuum Ovens, 30 Liter.
-ThermoStableTM OV-70 : Precise Vacuum Ovens, 70Liter.
-ThermoStableTM SOV-20: Smart Vacuum Ovens, 18.6Liter.
-ThermoStableTM SOV-30 : Smart Vacuum Ovens, 30 Liter.
-ThermoStableTM SOV-70 : Smart Vacuum Ovens, 70Liter.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 7/67
2. Installation
2.1 Product Installation
* Caution of Installation
1. Please be careful when transporting the product because it is heavy.
2. Please do not lay the product on the floor or subject it to shock. It can cause damage inside
the product.
3. Please install the product in a hard, flat, and stable place.
4. Please do not install the product in a place where it is exposed to direct sunlight, or in the
dangerous places.
5. To minimize the risk of short circuits, do not install the product (in the) places where it will
be subjected to the inflow of moisture or organic solvents on the regulator part or inside of
the body.
6. This product was manufactured for normal operation at a rated voltage, so please check the
voltage status before installing the product.
7. When installing and using the product, please certainly use the power cord provided with
the products.
* Installation Process
1. After receiving the unit and locating it in the specified location, remove the packaging.
2. Check the unit for any transport damages. If any such damages are found, please contact
the deliverer of the product.
3. This Product is not equipped with casters. Units should be moved using a cart. Ensure that
no damage is sustained by the units during transport. It is recommended that units are
moved by at least 2 people and by lifting units up holding the indicated positions in the
figure below.
4. The product should be positioned in a location where it has enough space for ventilation
and prevention from fire. The recommended distance of each side is minimum 20cm from
the back wall, 100cm from the side walls and ceiling respectively.
2

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 8/67
5. Place the device on a level, horizontal surface to support the capacity of the device without
vibration.
6. Once the unit is placed in its installation location, let the unit stand for 15-30 minutes so
that all the internal parts of the unit stabilize.
7. Connect the power cord to the wall socket.
8. When installing the device, insure the wall socket is easily accessible.
9. Do not earth to gas pipe, plastic tap water pipe or phone line. It may cause an electrical
shock, a fire, breakdown or explosion of the unit.
* Safety Symbols on a product

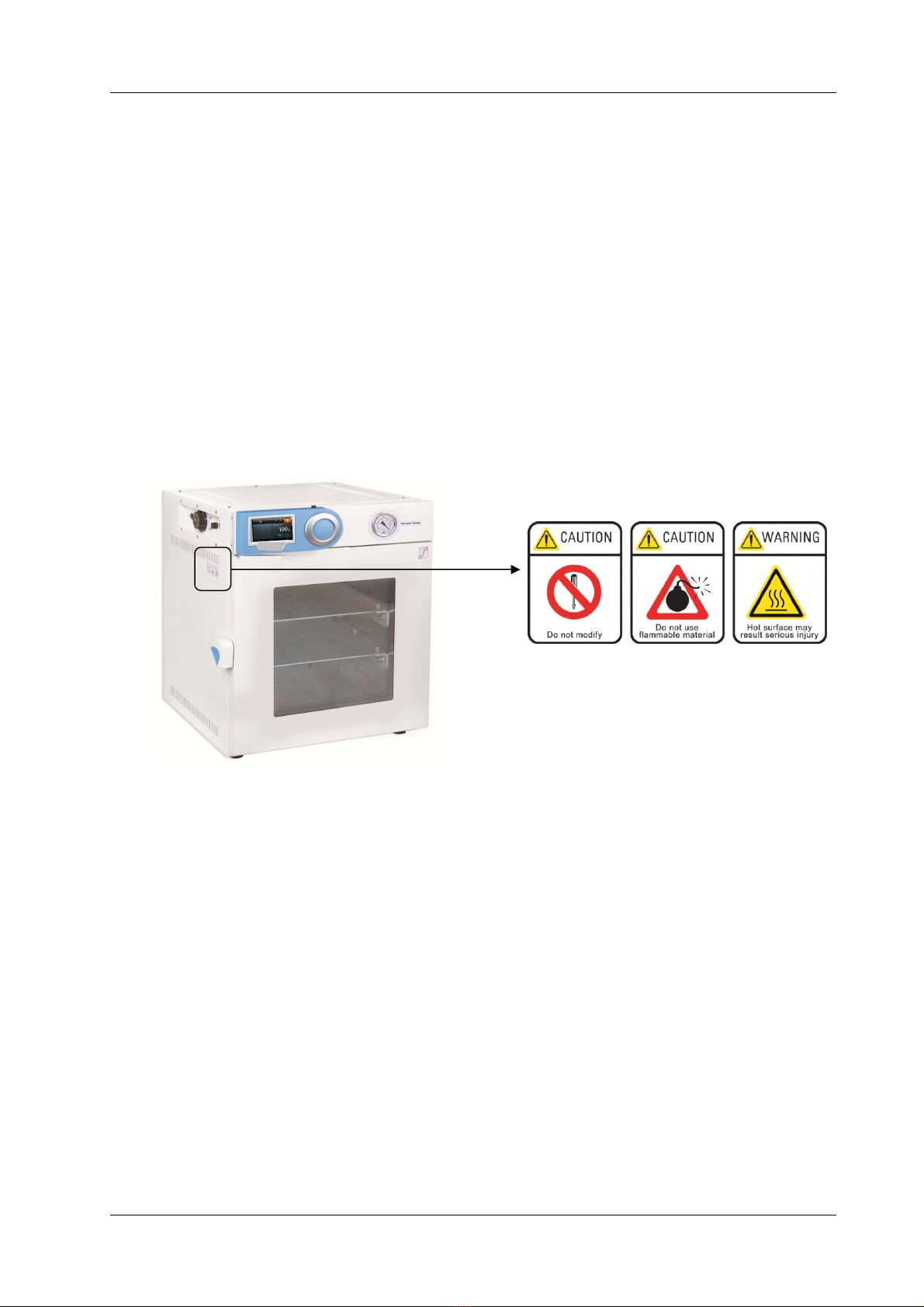

-Safety symbols stickers Attached to side of product. For meaning of each symbol, please
refer to Precautions Before Use, Safety Instructions.
¨Product Liability (PL) Insurance Admission
DAIHAN Scientific (Co., Ltd.) is a member of Product Liability Insurance (PL
Insurance), so that its customers can trust our products, (believe and use its
products,) by preparing against the accident which can be occurred during using the
products by self-production.
[Contents] ………………………………………………………………………………………
Insurance Type: Product Liability Insurance
Publishing Office: Machinery Insurance Cooperative
Limit of Indemnity: 100 million won for Persons and Objects
Secured Area: Worldwide (excluding North America)
Emergency Contact: DAIHAN Scientific (Co., Ltd.) (TEL: [phone], FAX: [phone])
(TEL: [phone], FAX: [phone])
Safety symbols on units, for further
description of each symbol, please
refer to 3.1 Precautions for Use

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 9/67
* Connection of Vacuum Pump, and Connecting Method of Cold
Trap Bath
-The size of the Vacuum Nozzle and Vent Nozzle located on the right side of the Vacuum
Oven are OD Φ10mm, so these nozzles should be connected to the Cold Trap Bath or the
Vacuum Pump by using the hose with ID Φ8~9mm (Recommending to use a silicone-based
hose).
* Connection of Cold Trap Bath
-The Cold Trap Bath can economically and effectively shut off that the harmful gas and the
vapor of organic solvent which has a fetal influence on the vacuum device are flowed into
the mechanism, so it can extend the life of the vacuum pump and enable the recovery of
the organic solvent.
-If the gas removed from the inside of Oven has many heat when setting the vacuum, the
Vacuum oil in the Vacuum Pump can be often scattered together the heat of the de-
saturated gas. For this reason, because the life of Vacuum Pump can be shortened, user
must protect the Vacuum Pump by cooling the de-saturated gas with the Cold trap.
-When air is injected into the Chamber of the vacuum condition at the time of vent setting,
the samples of the vacuum condition should be protected from other components contained
in the air.
* Connection of Vacuum Pump
-The Vacuum Pump makes the inside of chamber of the Vacuum oven to the vacuum state,
and the vacuum pump model can be selected according to the desired exhaust speed
(L/min).
-The vacuum pump should be installed in the place where is easy to install or remove it and
to perform the work, such as checking and cleaning, and please install this device with
attention to the ambient temperature if fixing it. In addition, please install using the
vibration-proof and rubber, etc. so that the vibration is not transferred to the vacuum pump.
Hose
Connection
Vacuum Oven
Cold Trap Bath
Vacuum Pump
Hose
Connection

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 10/67
<Fig.2.2.1> Product adjuster

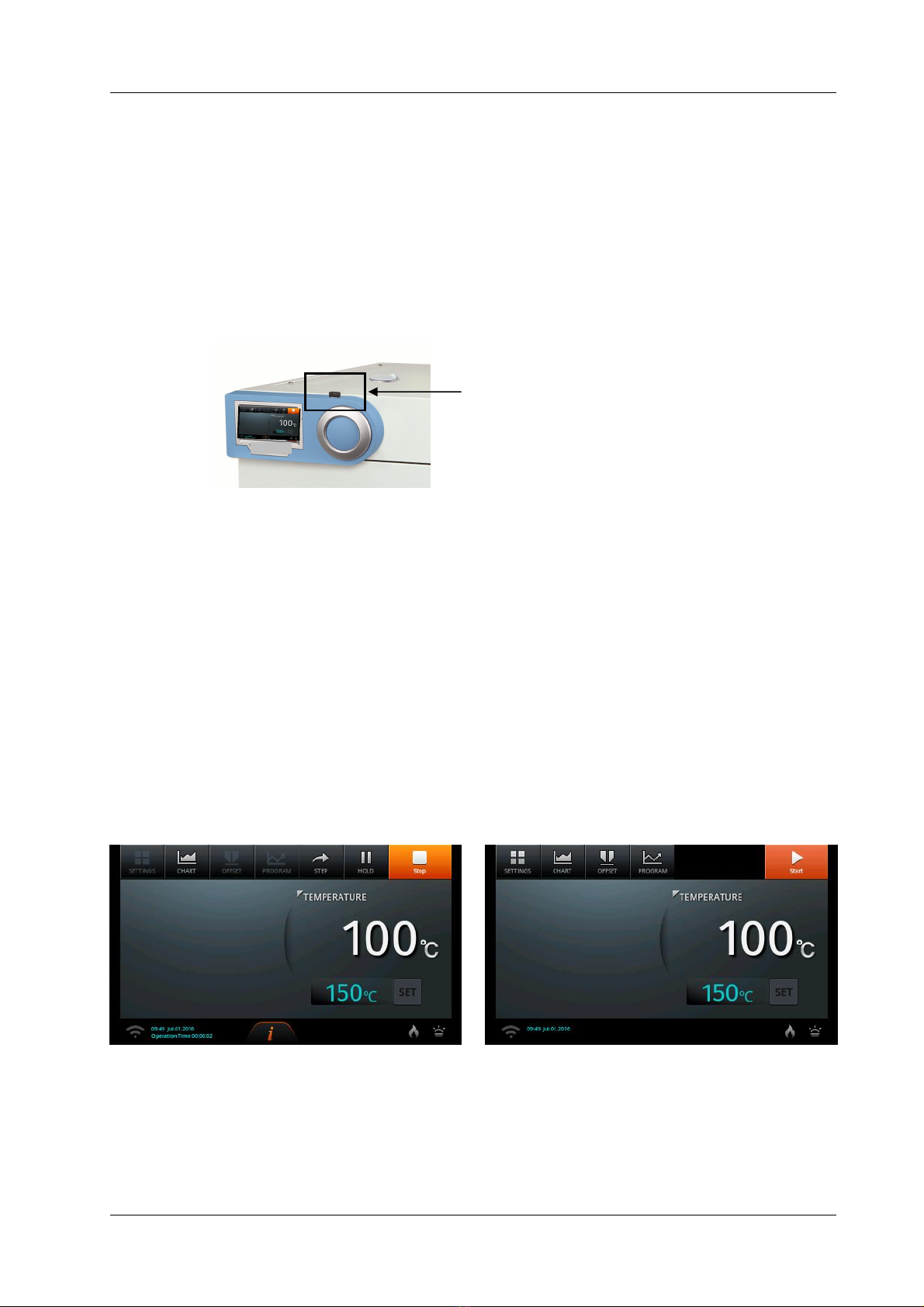

<Fig.2.2.2> Screen in opeation <Fig.2.2.3> Screen when opeation is stopped
2.2 Smart-Lab WiReTM Service installation
-Those who use WiReTM Service, make sure to connect WiReTM Service before using after
installing the product to a static location.
-Proceed with the installation from the Touch Screen in the front.
-Locate a wireless LAN for internet from the factory-shipped unit for it is not installed when
shipped.
-This describes how to install WiReTM Service.
It only describes items that must be installed to use WiReTM Service. Please refer to “How to
use” page for more product operation details.
-It is described the procedure how to set WiReTM Service in order in installation. Please follow
the steps in order as described.
-Proceed to connect WiReTM Service in “SETTING” menu on the top left of main screen.
-“SETTING” menu is disabled during operation. Stop operating it by touching “STOP” button
on the top right and check if the SETTING menu is activated.

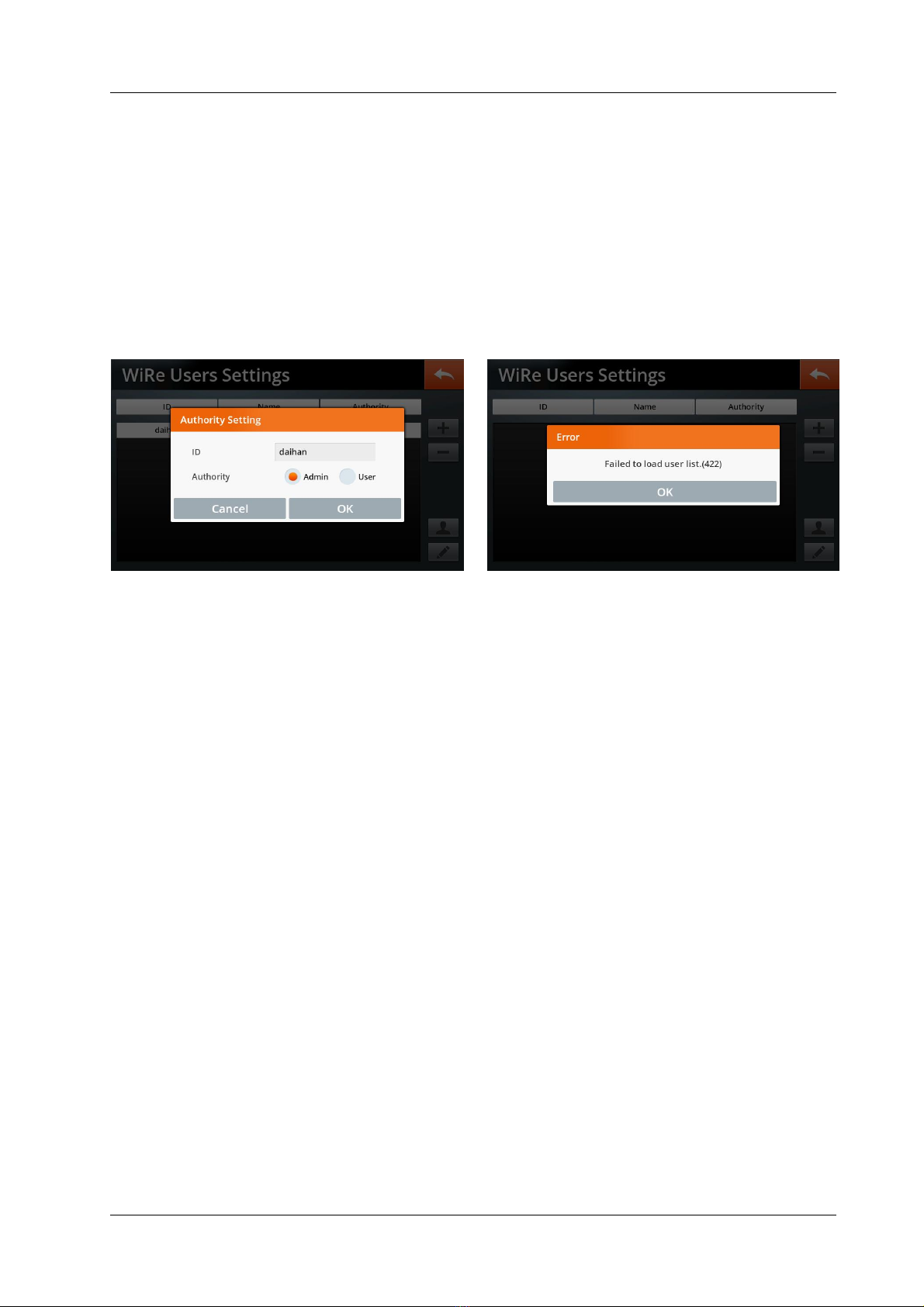

-“System”, “WiRe”, “WiRe Users” are specific menu items to connect WiReTM Service in
“SETTING”. Proceed in order of description numbers as shown below.
-
Install wireless LAN

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 11/67
<Fig.2.2.4> Settings menu details
<Fig.2.2.5> System Settings
-Proceed to set the system after pressing “System”. When you touch the return button on
the top right of screen in all menu screen, it switches to the previous screen.
①System Settings
(1) Current Time Set
-Set the current time to enter the exact time of test by users. Touch the date time box on
the right.
-If you randomly change the current time since supplied from the factory, please be sure to
use after re-applying power to the equipment. If you have changed the time of product
behavior it may also cause problems with some functions. Therefore if the current time
changed be sure to use the device again after turning it off.
-Please use "Automatic" only with the Check Box is unchecked and disabled.
-“Select time zone” synchronizes to the time of a country if WiReTM Service is used as a
Mobile App that is using the device. Make sure to enter the country wherein a device is
being used.
① ② ③
①
②

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 12/67
<Fig.2.2.7> WIFI SET
<Fig.2.2.6> Current Time Setup
-For “Use 24-hour format”, make sure if it is checked as shown on the right for the precise
operation of device and never change it.
-After setting, it switches back to the previous page if the blue return icon on the top right is
clicked.
(2) Wifi Setup Set
-WiReTM Service is possible to use only if connected to internet. Be sure to connect to a
wireless LAN.
-Connect to WiFi by clicking Check Box on Wi-Fi window, and enter password if it requires.
Be sure to check if USB dongle is properly installed if WiFi signal is not available. (check
flashing LED light)
-After connecting to WiFi, it switches back to the previous page if the blue return icon on the
top right is clicked.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 13/67
<Fig.2.2.8> WiRe Settings
<Fig.2.2.9> WiRe Users
<Fig.2.2.10> Existing UserID registration
②WiRe Settings
-If WiRe Mode button is set to the right, WiReTM Service is connected. It is possible only if
WiFi connection is stable.
-WiRe Mode is not possible if WiFi is not connected or network is unstable. Make sure the
network is stable.
-It is possible to check Serial Number, Model, and Organization Name at below after
connecting it.
③WiRe Users
(1) Adding users
-If a user is registered in the existing Smart-Lab device, this device will register the existing
user IDs. In such cases, a single user can check several devices for the list of registered
devices emerges when logged in with a single ID from a mobile App.
②
①
③
④

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 14/67
<Fig.2.2.11> Delete users from the list
<Fig.2.2.12> Enter new usser information <Fig.2.2.13> ID, Password error message
(2) Deleting users
-Users are deleted when the button is touched after selecting users to delete from the user
list.
(3) Registering new users
-First-time users for Smart-Lab and WiRe Service must register user information. Enter ID,
Password and Name.
-ID must be entered in at least more than 6 and less than 20 lowercase alphabetic
characters and digits. In cases of duplicate ID or less than 6 or more than 20 places other
than lowercase, uppercase alphabets or numbers are entered, a pop up message will be
shown alerting the ID setting is not allowed.
-Password must be entered in at least more than 6 and less than 20 capital, lowercase
alphabetic characters, special symbols. If not at least more than 6 and less than 20 capital,
lowercase alphabetic characters, special symbols are entered, a pop up message not
allowing registering will appear.
-ID, Password, Name once entered is not possible to change.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 15/67
<Fig.2.2.14> Setting authority <Fig.2.2.15> communication error
(4) Authority settings
-Set a registered user as an administrator or end user. Admin (administrator) controls
Remote Control System as a single administrator. Up to 100 User (general user) can be
registered and can monitor the status of device. (User can not remotely control)
-After selecting an ID that wants to change authority from the registered user list, set and
select from Admin or User.
-Since only one Admin is allowed, Admin ID other than the latest ID will be changed to User.
-If a message that it cannot load registered user information pops up, check if WiFi
connection is weak and reenter in WiRe Users menu.
-After proceeding to the steps above, WiReTM Service is ready to use for it is connected to a
Mobile App. Please refer user’s manual for setting device functions.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 16/67
2. Installation
2.3 Product Specifications
* Other Specifications are available upon Customer's Request.
Model
ThermoStable
TM
SOV-20
ThermoStable
TM
SOV-30
ThermoStable
TM
SOV-70
Capacity
18.6 Lit
30 Lit
70 Lit
Va
cuum Range
10 ~ 750 mmHg / PT100
Temp.
Range / Sensor Ambient +10 ℃to 200 ℃
Fluctuation ±0.5 ℃at 100℃& 150℃
Variation ±2.0 ℃at 100℃ ±3.0 ℃at 150℃
±2.5 ℃at 100℃
±3.5 ℃at 150℃
Heating Power 600W (170W X 2ea, 130W X 2ea)
1,600W
(350WX2ea, 450WX2ea)
Heat-up Time
60 min to 100℃,
90 min to 150℃
70 min to 100℃,
100 min to 150℃
80 min to 100℃,
100 min to 150℃
Achievable vacuum level
0.63 mbar
Leakage rate
0.39 mbar/hr
Timer & Alarm
99 hr 59min (with delay / Continuous run.), Error status & Time
r
-
end
Display 4" Full Touch Screen TFT LCD (Smart-Lab Controller)
Controller
Smart
-
Lab Controller
Resolution Control : ±1.0℃, Display : ±1.0℃
Shelves 2ea of Aluminum Shelves Included(detachable)
Shelves Size (W x D) 260 X 245mm 290 X 285mm 340 X 390mm
Height between shelves 87mm 98mm 133mm
Safety Circuit
Over Temp. and Over Current Protector,
Sensor Error Detector, Leakage Breaker
Material
Internal : Stainless steel (#304), External : Powder Coated steel,
Window : Tempered Safety Glass 12T, Poly Carbonate 5T for Safety
Insulation : Ceramic Wool
Others
Storage Function ( Temp and Timer)
Locking Mode (jog - Dial Input Disabled)
Dimension
(w X d X h)
Internal(mm)
265 X 290 X 265
300 X 330 X 300
400 X 435 X 400
Exterior(mm)
480 X 475 X 552
515 X 51
5 X 587
618 X 620 X 687
Vacuum Inlet Valve Size
od. 10mm
Net Weight
48 kg
55 kg
85 kg
Packing Size (wXdXh)(mm)
& Gross Weight
585 X 580 X 795
620 X 620 X 830
725 X 720 X 930
59 kg
67 kg
100 kg
Power Consumption
600 W
600 W
1.6 kW
Power Supply & Cord
Plug*
1 Phase, AC 120V, 60Hz or AC 230V, 50/60 Hz

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 17/67
3. Product Usage
3.1 Precautions for Use
Please be familiar with the user manual before using this product, and operation
should be performed only by qualified personnel
This product should be connected to a appropriate power source that it is
generally used. Please use a lower power source than the regulation load
permitted (AC 120, 60Hz or AC 230V, 50/60Hz, Single-phase).
Place the product on a level, horizontal surface to support the weight of the
product without vibration. Install the product in a place where the floor is hard
and flat. Failure to do so can cause accidents. by negligence.
lWarnings
-Please observe the following precautions.
This product should be operated in a room with temperature maintain between
5℃and 40℃. Long-term use in an environment that exceeds the allowable range
may cause a malfunction.
Ple
ase do not damage or distress the power cord. (Please do not hurt on the
power cord, or process it, or force bend it, or pull it, and tie it.) Also, if heavy
objects are placed over the power cord, or the power cord is inserted in between
objects, the power cord can be damaged and may cause fire or electric shock.
Please do not directly spray water on the product or wash it with water, to avoid
short circuits or electric shock.
Please do not touch or manipulate the electrical parts such as the power plug with
wet hands electric shock.
Please do not operate the product by manipulation of the plug to avoid electric
shock or short circuits
Do not install the product where it can get damp or in a dusty environment. It
may cause overheating or short circuit. – Pollution Degree 2
Do not install the product in a location at an altitude of over 2,000 meters (6,562
feet).
Please do not use any kind of plastic container or the goods for dry purpose. The
temperature around the heater mounted on the floor of the chamber is higher
than the operating temperature, and if the internal temperature is rapidly risen
due to the malfunction of user, there may present a fire risk.
3

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 18/67
The internal temperature rises up to 200℃, so please be careful when opening or
closing Air Duct or Door.
The inner chamber is hot during an operation, do not touch the inner chamber
without proper hand protection during operation as burns may occur.
Do not operate this product near a heater or an air-conditioner.
Clean the bottom of inner chamber and install the shelves properly before use.
Do not close your face, hands or body into a chamber. It may cause an injury or
burn by high temperature.
Only operate unit after checking the safety of the unit.
The temperature of the regulator SAFETY should be set up 30 ~ 40°C higher than
the operating temperature.
If the regulator SAFETY is set to 0, the heater does not operate.
If unexpected sound, smell or smog is generated, pull the main plug out from the
wall socket and contact the technical assets of DAIHAN Scientific
If irradiated or contaminated samples are placed in the chamber, the warranty is
voided. Do not use this product to sterilize or disinfect objects or samples.
Do not use outdoors avoid overheating or electrical faults. The use in the place
where the sun continuously shines and can get rained on it is prohibited. It may
cause overheating or electrical fault of the product.
Please do not use flammable or volatile products in the vicinity of the product to
minimize the risk of firer. Please do not use the flammable spray such as lacquers
and paint, or volatile, flammable chemicals and its similar product, in the
proximity of the product. They may cause the ignition due to the spark of switch.
Please avoid the disassembly or modification of this product by a non-authorized
person to avoid serious electrical problems and to retain the warranty service of
DAIHAN Scientific Co., Ltd.
This product must be connected to a properly grounded power supply.
Please regularly check whether dust or dirt are on the power plug and completely
connect the plug. If the plug is covered with dust, or the connection is not
complete, it will cause an electrical shock or fire.
Please separate the power plug from the outlet for safety when the product is
unused for long periods of time to avoid overheating or ignition due to dust.
When disconnecting the power plug, it must be grasped by the hands and then
pulled. Grasping only the cord and then disconnecting it may cause overheating or
ignition because of internal lines being disconnected.
Insert the plug securely into an appropriate wall socket.
Loose connections result in excessive heat generation to the device and may
cause arcing to occur at the connection.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 19/67
If unusual noise or signs of abnormal behavior are found during use of this
product, please immediately contact the supplier or DAIHAN Scientific (Co., Ltd.)
after turning off the power supply and disconnecting the power line.
When moving the product, please move it so that the power cord and the product
are not damaged after disconnecting the power plug from the electrical outlet, in
order to avoid the electrical shock or the ignition due to the damage to the cord.
Please maintain the clean condition of this product
by removing the foreign
matter while gently wiping with the neutral detergent and a dry cloth after
checking whether the foreign matter present or not, before and after using this
product.
The fluctuation of main power voltage should be lower than +/-10% of the
nominal voltage..
The maximum relative humidity is 80% at 31°C and 50% at 40°C .
If a product was transported or stored in high humidity condition, please check
packaging condition before use. If the carton or wooden box is waterlogged,
please contact the deliverer or our technical service engineer. Do not operate the
unit before checking with an engineer, otherwise it may cause an electrical shock
or a fire.
The Sound Level of the buzzer is maximum 60dB in 1 meter distance when an
error is detected.
The device should be set at a well ventilated place. Be sure the holes on the side
or rear surface of the body are blocked by a wall or an object. And do not operate
the device at a poor ventilated place or use closed. It may cause a fire or damage
of the device as not to release heat or insufficient ventilation may result.
Please, do not use the samples with sublimation property. Because the sublimable
sample can block the Vacuum line by sublimating before the boiling point and it
can damage the pump, the use of such samples is forbidden.
If user wants to maintain the vacuum state, the Pump should be stopped after
closing the Vacuum Valve, first. First, If the pump is stopped, the oil of pump can
be flown in the inside of oven due to the vacuum in the oven.
The experimental temperature in the vacuum state should be set up lower than
the experimental temperature at the atmospheric pressure.
This Symbol indicates that this product is to be collected separately.
The following apply only to users in European countries:
lThis product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
This product is required to comply with the European Union’s Waste Electrical &
Electronic Equipment(WEEE) Directive 2002/96/EC
※All of the circuits, electrical or mechanical parts and configurations used in this
product are the technical assets of DAIHAN Scientific (Co., Ltd.). Only technicians of
the technical support team at DAIHAN Scientific (Co., Ltd.) or technicians approved
through the education from DAIHAN Scientific should be allowed to repair this
product.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Smart Vacuum Oven 20/67
3. Product Usage
3.2 Names of Each Part
lOutside
NO Names Description
①Power Connection Power Cord Apply
②Vacuum Gauge If user set up the vacuum, indicate the vacuum level of the inside
while the needle of gauge moves from the right to the left.
③Controller Set and Check operation
④Door Handle Door Open and Locking
<Fig.3.2.3> Back of
" ThermoStableTM SOV-70"
<Fig.3.2.1> Precise Vacuum Oven
"ThermoStableTM SOV-30 "
①
<Fig.3.2.2> Back of
" ThermoStableTM SOV-20/30"
①
②
③
④
<Table 3.2.1>
Names of each part and description
