Daihan Scientific HB-R48 User manual

Man237 (1 Sep. 2015)
HB-D/R
High-Performance Dry Bath Heating & Cooling
Certifications by - - -
CE Marked Products.
ISO 9001 Certified.
PL Insurance.
Patented( No. 10-0554098) Jog Shuttle Control System.
Operation Manual
(Version 2.1.1)
written for
HB-R48,HB-96,HB-96D models
“HB-48” High Performance Dry Bath-Heating.
Sales & Basic A/S :
By the Nearest Official Distributors.
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
²English Page : P. 11 ~ 27
²Korean Page : P. 28 ~ 48

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 2/48
European Declaration of Conformity
We, DAIHAN Scientific Co., Ltd.,
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]
declare under our sole responsibility that the product
Heating Block
HB-96D
to which this declaration relates is in conformity
with the following standard or other normative document
EN 61326 EN 61000-3-2, EN 61000-3-3
EN 61010-1, EN 61010-2
following the provisions of the directives:
Low-Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
EC Directive 2006/42/EC
RoHS - Directive 2011/65 EU
Signed: ____________________________ (Chong ku Shu)
Date: 18, April 2016
Authority: President / CEO
For
DAIHAN Scientific Co., Ltd.
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 3/48
European Declaration of Conformity
We, DAIHAN Scientific Co., Ltd.,
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]
declare under our sole responsibility that the product
Dry Bath - Heating & Cooling
HB-R48
to which this declaration relates is in conformity
with the following standard or other normative document
EN 61326 EN 61000-3-2, EN 61000-3-3
EN 61010-1, EN 61010-2
following the provisions of the directives:
Low-Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
EC Directive 2006/42/EC
RoHS - Directive 2011/65 EU
Signed: ____________________________ (Chong ku Shu)
Date: 18, April 2016
Authority: President / CEO
For
DAIHAN Scientific Co., Ltd.,
326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea
Tel: [phone], Fax: [phone]

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 4/48
Contents
Page
1. Safety Instructions ...................................................................…….....….. 5
2. Before Use ….................................................................................….... 9
3. Introduction ....................................................................................... 10
4. Package Contents .................................................................................... 11
5. Appearance and Naming .......................................................................... 12
6. Installation ..................………………........................................................... 13
7. Cautions in Use ………………....................................................................... 15
8. Controller Details ..................................................................................... 17
9. Operation ..................................................................................... 18
10. Accessories ..................................................................................... 23
11. Specifications …………........................................................................ 24
12. Maintenance …………………..................................................................... 26
13. Certificate ........................………............................................................ 27

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 5/48
Safety Instructions 1
Please read this carefully for the safety before using the unit. The indicated cautions are related
to the safety and you should observe all safety and warning instructions.

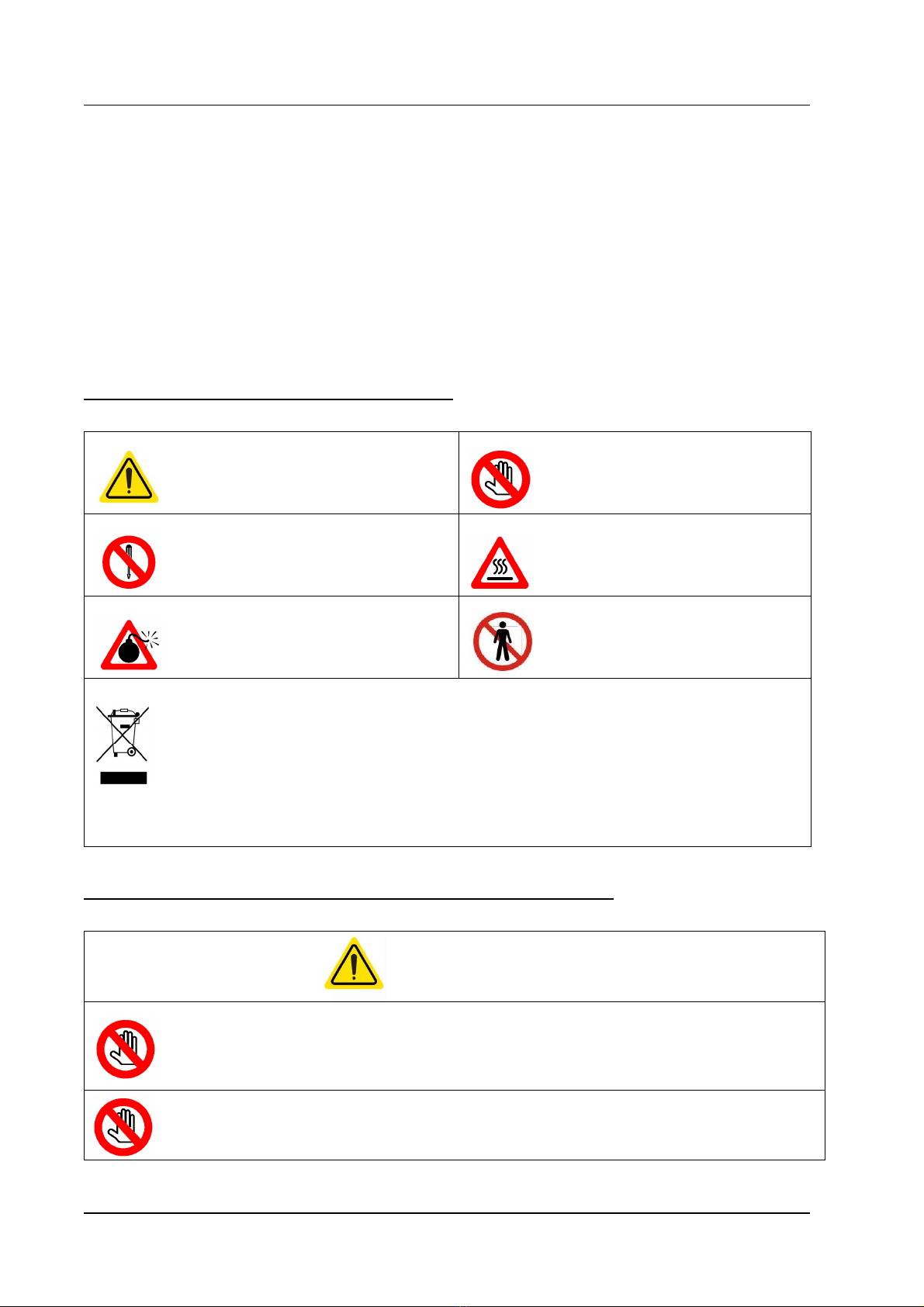

Symbols (Pictograms) and the meaning
This symbol indicates caution
(Including warning). There will
be concrete descriptions.
This symbol indicates inhibition.
There will be concrete
description.
This symbol indicates inhibition
regarding modification.
This symbol indicates caution
regarding heat.
This symbol indicates the risk of
explosion or fire.
This symbol indicates the user
must be kept away while
operation.
This Symbol indicates that this product is to be collected separately.
The following apply only to users in European countries:
lThis product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
This product is required to comply with the European Union’s Waste Electrical &
Electronic Equipment(WEEE) Directive 2002/96/EC
Please read following warning for safety and proper use.
WARNING
Do not use a power source other than which the unit is designed to operate on.
Inappropriate power supply may result in damage to the equipment. Adhere to all
electrical codes.
Please do not touch with wet hands. It may be caused an electric shock.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 6/48

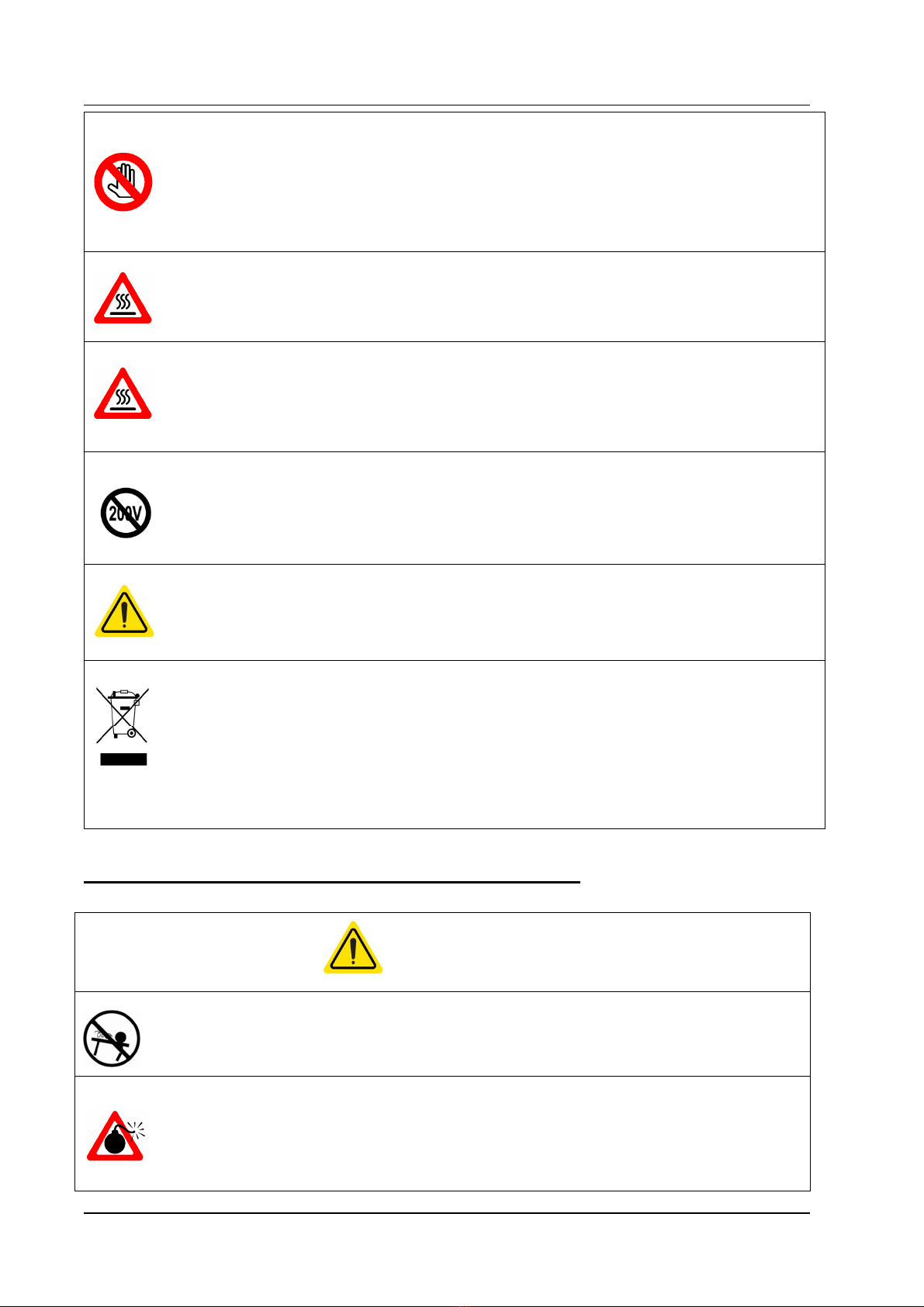

Do not handle the power cord harshly. Disconnection or short may cause if you
bend or put a heavy thing on the unit.
When you take a plug out in a wall socket, turn the power off and then take the
plug out carefully.
Insert the plug securely into a wall socket.
Loose connections result in excessive heat generation to the unit and may cause
arcing to occur at the connection.
Avoid using multi-point extension power cords. It may cause excessive heat
generation and be the cause of a fire.
If you extend the power cord, use the cord to have sufficient electric capacity.
Be sure to operate the unit only with the specified power supply.
When you connect the product specified by 100V to 200V, it may be caused to
over-heat, electric shock or a short circuit to each part.
Do not connect wrong electricity since it is the cause of a fire.
Disconnect the power supply plug if the unit is not going to be used for an
extended period of time.
This Symbol indicates that this product is to be collected separately.
The following apply only to users in European countries:
lThis product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
This product is required to comply with the European Union’s Waste Electrical &
Electronic Equipment(WEEE) Directive 2002/96/EC
Installing the unit (repeated in the Section 6)
WARNING
Place the unit on a level, horizontal surface to support the capacity of the unit
without vibration. If there is vibration, install the unit on a support material with
enough space. Small place may cause the unit to drop.
Do not install at a dangerous place.
Do not operate the unit where there are flammables. It could be caused serious
accidents like explosion or fire.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 7/48
Do not operate the unit outside.
Avoid areas where the sun shines or rain directly on the unit. It is very dangerous
as cause over-heat or a short circuit.
Do not install the unit where it can get damp or dust.
It may be caused overheating, a short circuit or a fire by damp or dust inside of the
unit.
Do not use this unit when temperature fall below 5°C and rise above 40°C.
Do not use the unit at a place with high temperature. Do not operate the unit near
a heater, blowing an air-conditioner. It may be caused an accident by over-heating.
The unit should be set at a well ventilated place.
Be sure the holes on the side or rear surface of the body are not blocked by a wall or
an object. And do not operate the unit at a poor ventilated place or use closed.
It may cause a fire or damage of the unit as not to release heat or insufficient
ventilation may result.
Set the unit a lightening place.
When you set the unit at a dark place, it may cause an unexpected accident by
mistake in operation.
Operating the unit (repeated in the Section 7)
WARNING
Be careful to operate the unit.
You should read this manual carefully before using.
The unit should only be operated by laboratory personnel especially trained for this
purpose and familiar with all precautionary measures required for working in a
laboratory.
Operate after check the safety of the unit.
If there is generated a slight shock or a poisonous gas from a sample, figure it out
and make sure the safety using dustproof or a gas mask.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 8/48
Do not put any objects insides.
When an object that is easy to be combustible like a stone, a metal or paper goes
inside, it may cause a fire, an electric shock or a break down.
If do, pull out the mains plug from a socket and contact a manufacturer or a supplier.
Do not disassemble or remodeling by yourself.
It may cause damage to the designed safety.
We do not have any duties for an accident, quality deterioration or a defect caused
by a customer.
If unexpected sound, smell or smog is generated, pull out the main plug and contact
manufacturer or a supplier.
CAUTION
This unit must be connected to an earthed power supply.
If you use radiation or contaminated samples, the responsibility is to the customer.
Do not use this product to sterilization or disinfection.
Avoid the use with poisonous or flammable sample.
Never use with an explosive sample.
Please avoid ultraviolet lamps.
It could be cracked or faded.
Disconnect the power supply plug if the unit is not used for an extended period of
time.
This Symbol indicates that this product is to be collected separately.
The following apply only to users in European countries:
lThis product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
This product is required to comply with the European Union’s Waste Electrical &
Electronic Equipment(WEEE) Directive 2002/96/EC

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 9/48
Before Use 2
Thank you very much for purchase of HB-R48/96D High Performance Dry bath Heating and/or High
Performance Dry Bath Heating & cooling.
This operation manual describes performance, usage, cautions and notices for use of the purchased
product. Before use, please confirm this manual and use properly.
Please read carefully and thoroughly all the safety instructions described in the Section 1 again.
And also, please keep this manual.
※Modification of exterior or specifications could be made without notice to improve the quality and
performance of the product.
¨Product Liability (PL) Insurance Admission
DAIHAN Scientific (Co., Ltd.) is a member of Product Liability Insurance (PL Insurance),
so that its customers can trust our products, (believe and use its products,) by
preparing against the accident which can be occurred during using the products by self-
production.
[Contents] ………………………………………………………………………………………
Insurance Type: Product Liability Insurance
Publishing Office: Machinery Insurance Cooperative
Limit of Indemnity: 100 million won for Persons and Objects
Secured Area: Worldwide (excluding North America)
Emergency Contact: DAIHAN Scientific (Co., Ltd.) (TEL: [phone], FAX: [phone])
(TEL: [phone], FAX: [phone])

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 10/48
Introduction 3
Thank you for purchase of HB-R48/96D High Performance Dry bath Heating and/or High
Performance Dry Bath Heating & cooling.
HB-R48/96D High Performance Dry bath Heating and/or High Performance Dry Bath Heating &
cooling has many superior features as follows;
Key features are as follows;
● Designed for Multi Function Dry bath-Heating
● Designed for Multi Function Dry bath-Heating & Cooling.(HB-R48)
● Modular Block.
● Ideal for Enzyme Reactions, Inactivation of Sera, Incubator and Other Laboratory Procedures.
● Precise Temperature Control : ±0.1℃at 37℃, ±0.2℃at 90℃, ±0.4℃at 135℃.(HB-96D)
● Precise Temperature Control : -5℃~ 95℃with ±0.15℃Accuracy.(HB-R48)
● User’s Self-Compensation Function for Temperature (±10.0℃).
● Over Temperature & Over Current Protection and Sensor Error Detection.
● Digital Timer Included : Up to 99hr 59min.
● Storage Function for the Set Values of Temperature and Timer.
● Alarm Function : Error Status and Timer-end.
● Various kind of blocks are offered(Optional)
● Locking Mode Supported for Experimental Safety(Input to Jog Shuttle knob can be Disabled)
● The Block Extraction Tongs and Included for Easy Handing.(Packing set)
● Patented Jog Shuttle Control System and Digital LCD Display with Back-light Function.
● CE Certified.
● PL(Product Liability) Insurance.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 11/48
Package Contents 4
HB-96D unit .................................................................................................................. [ ]
HB-R48 unit .................................................................................................................. [ ]
1.5ml Block[48 holes]( HB-R48-Set/ HB-96D-Set) ............................................................ [ ]
Acrylic Lid (HB-R48-Set/ HB-96D-Set) ............................................................................. [ ]
Extraction Tongs[BLE101](HB-R48-Set/96D-Set) .............................................................. [ ]
Power Cord (HB-R48-Set/ HB-96D-Set) ........................................................................... [ ]
Manual ....................................................................................................................... [ ]
Package Set(Unit, 1.5ml block, Acrylic Lid, Extraction Tongs and Power Cord).
(HB-R48-Set /HB-96D-Set)
Single Unit(Unit, Acrylic Lid and Power Cord).(HB-R48/HB-96D)

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 12/48
Appearance and Naming 5
High Performance Dry bath Heating & Cooling include various model for its usage. The appearances
of High Performance Cooling Series are shown in <Figure 1>.
<Figure 2> The appearance of HB-96D-Set
with Block for 1.5ml X 48tubes X 2ea
(Individual chamber)
<Figure 1> The appearance of HB-R48-Set
with Block for 1.5ml X 48tubes
(Heating & Cooling function)
MODE Button
Digital LCD
Jog Shuttle Knob
Block for 1.5ml X 48tubes

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 13/48
Installation 6
1. After receiving the unit and putting it on the specified place of use, remove the wrapping.
2. Check the unit on eventual transport damages. In case there are some transport damages found
please inform the forwarder and your contractor. If there is no damage please go to point 3.
3. Let the unit stand for a few minutes so that the all the internal parts and components of the unit
can be stabilized.
4. Connect the mains cord to the socket.
WARNING
Place the unit on a level, horizontal surface to support the capacity of the unit
without vibration. If there is vibration, install the unit on a support material with
enough space. Small place may cause the unit to drop.
Do not install at a dangerous place.
Do not operate the unit where there are flammables. It could be caused serious
accidents like explosion or fire.
Do not operate the unit outside.
Avoid areas where the sun shines or rain directly on the unit. It is very dangerous
as cause over-heat or a short circuit.
Do not install the unit where it can get damp or dust.
It may be caused overheating, a short circuit or a fire by damp or dust inside of the
unit.
Do not use this unit when temperature fall below 5°C and rise above 40°C.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 14/48
Do not use the unit at a place with high temperature. Do not operate the unit near
a heater, blowing an air-conditioner. It may be caused an accident by over-heating.
The unit should be set at a well ventilated place.
Be sure the holes on the side or rear surface of the body are not blocked by a wall or
an object. And do not operate the unit at a poor ventilated place or use closed.
It may cause a fire or damage of the unit as not to release heat or insufficient
ventilation may result.
Set the unit a lightening place.
When you set the unit at a dark place, it may cause an unexpected accident by
mistake in operation.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 15/48
Cautions in Use 7
WARNING
Be careful to operate the unit.
You should read this manual carefully before using.
The unit should only be operated by laboratory personnel especially trained for this
purpose and familiar with all precautionary measures required for working in a
laboratory.
Operate after check the safety of the unit.
If there is generated a slight shock or a poisonous gas from a sample, figure it out
and make sure the safety using dustproof or a gas mask.
If unexpected sound, smell or smog is generated, pull out the mains plug and
contact manufacturer or a supplier.
Do not put any objects insides.
When an object that is easy to be combustible like a stone, a metal or paper goes
insides, it may cause a fire, an electric shock or break down.
If so, pull out the mains plug from a socket and contact a manufacturer or a
supplier.
Do not disassemble or reassemble by yourself.
It may cause damage to the designed safety.
We do not have any duties for an accident, quality deterioration or a defect caused
by a customer.
All the unit and electric/electronic unit in this unit are designed and developed by
the manufacturer. The unit could be disassembled and serviced only by the
engineers of manufacturer or by engineers approved by manufacturer.
Do not touch the unit with wet hand while operation.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 16/48
Do not turn on and off frequently. It could damage the compressor by overload.
CAUTION
This unit must be connected to an earthed power supply.
If the operating temperature is lower than the ambient temperature, the body could
be hot because of the heat generated by the compressor. It is natural and you don’t
have to be worried.
If you use the unit for the purpose of heating external object by circulation,
circulation distance should be shorter than 7m and extension tube as thick as
possible is recommended.
If you use radiation or contaminated samples, the responsibility is to the customer.
Do not use this product to sterilization or disinfection.
Avoid a sample that is poisonous or flammable.
Never use for an explosive sample.
Please avoid ultrasonic lamps.
It could be cracked or faded.
Disconnect the power supply plug if the unit is not going to be used for an extended
period of time.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 17/48
Controller Details 8

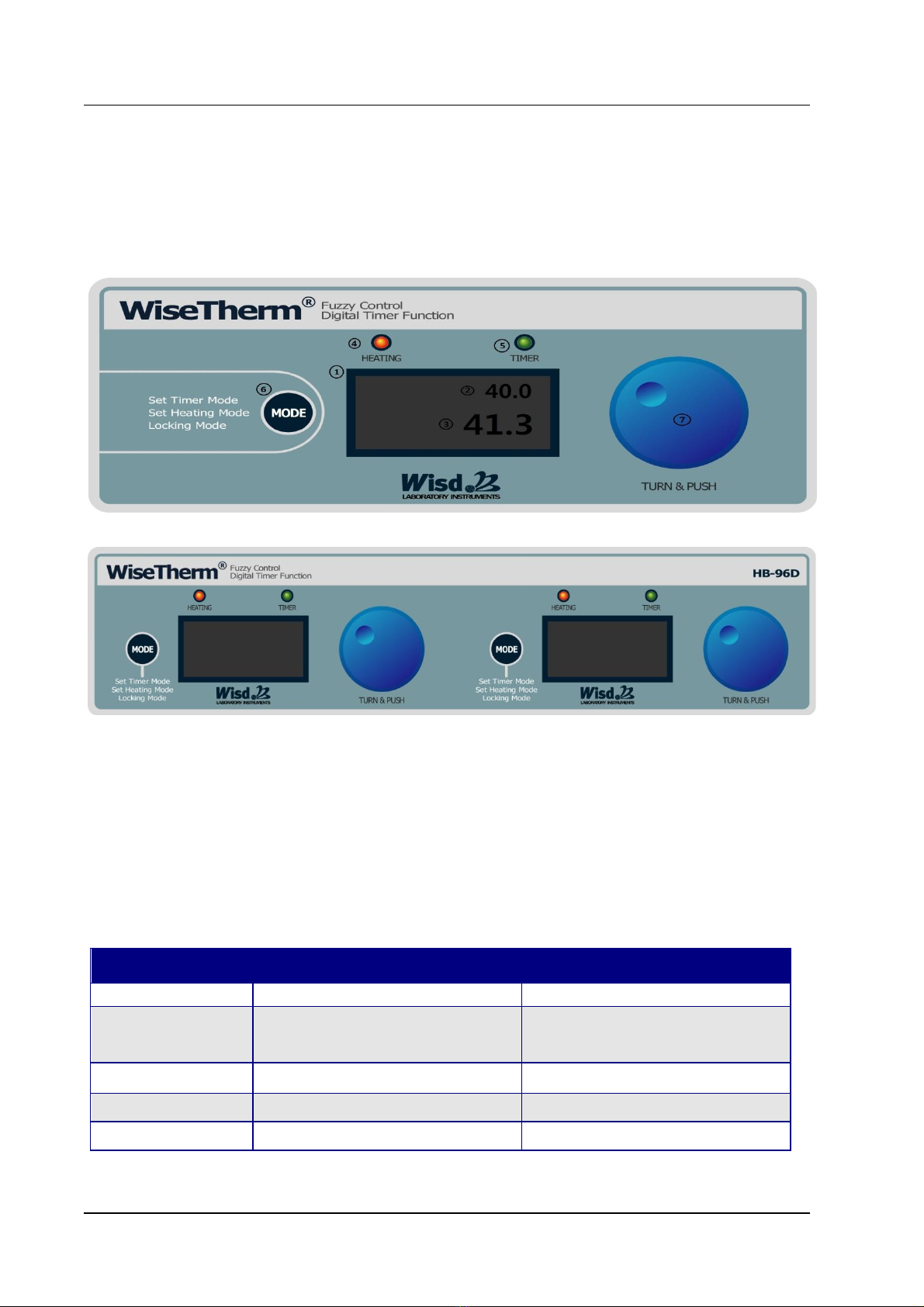

<Figure 3> Controller for HB-R48 model
<Figure 4> Controller for HB-96D Model
①Digital LCD Screen ⑥Mode Switch : Selection of main operation mode.
②Set Value (Refer to Table 1) ⑦Jog shuttle knob : Turn + Push function
③Present Value (Refer to Table 1) ◆Setting the value of Temperature or Timer by Turing.
④Heating Lamp : during heating ◆Start and stop by Pushing
⑤Timer Lamp: Indication of Set Timer
★HB-R48/96D models has same structure

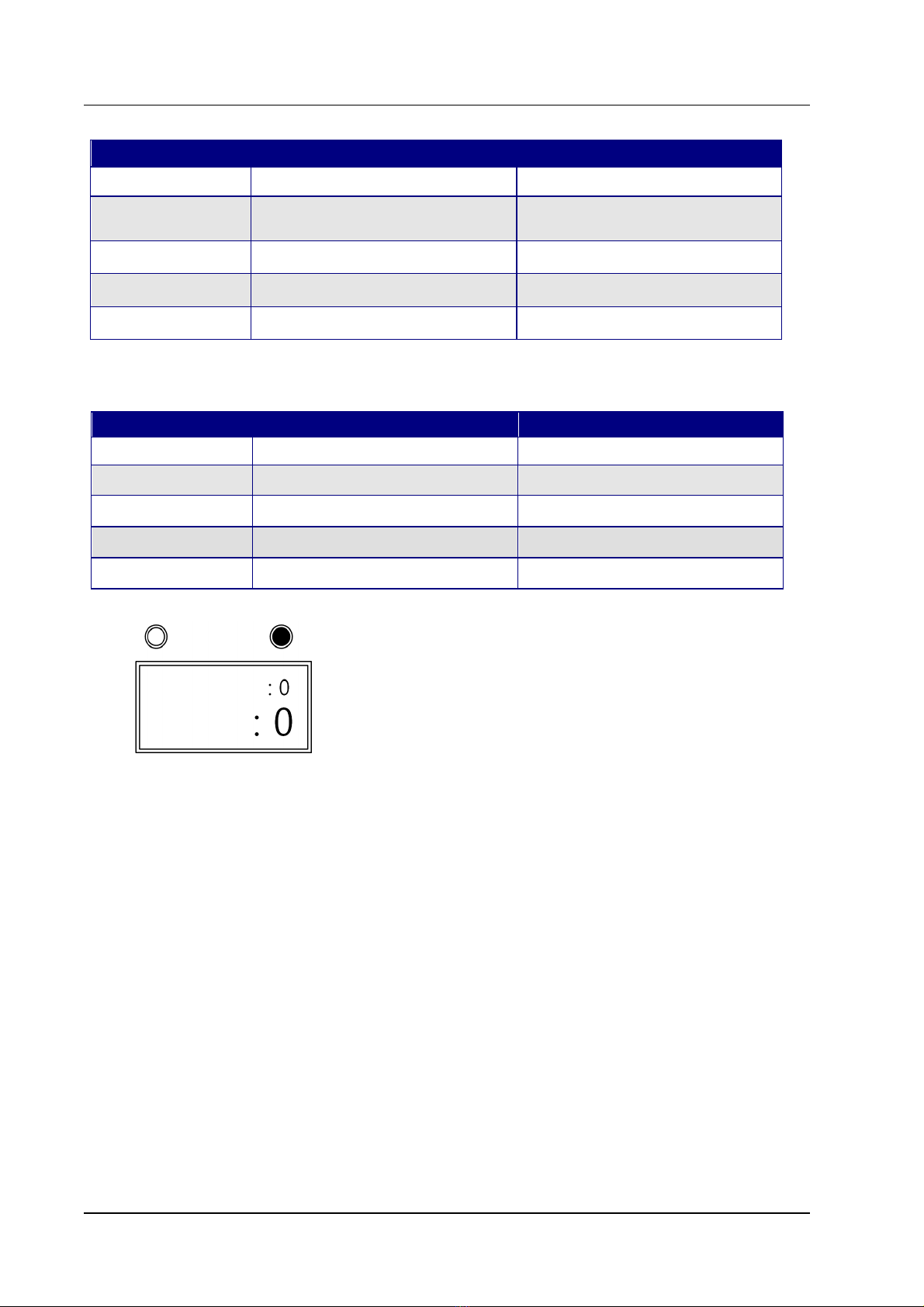

Set Mode Upper Reading Lower Reading
Timer Set Time Rest Time
Delay Timer *d-tr Set Time before Setting
Rest Time after Setting
Temperature Set Value Temperature Present Value Temperature
Offset Compensated Temperature Offset
Locking Present Value Temperature Rest Time
*d-tr(Delay timer mode) : indicate delay timer mode
<Table 1> LCD display for each mode

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 18/48
Operation 9
1. Preparation for Use
lPut tubes on the block and then close the Lid(cover)
lConnect the power cord then the Power Switch on.
2. Select Mode
High Performance Dry Bath Heating & Cooling Block may be set to 3 individual modes by
pushing MODE button(Refer to Figure 5). The three modes are (1) Timer Mode(Set Operation
Time mode), (2) Temperature Mode(Set Temperature mode),
(3) Safety Mode(locking Mode) and the sub modes are Delay Mode(Set Delay Time Mode) and
Offset Mode(Set Offset Temp Mode). The initial mode is (1) Timer Mode(Set Operation Time
mode).

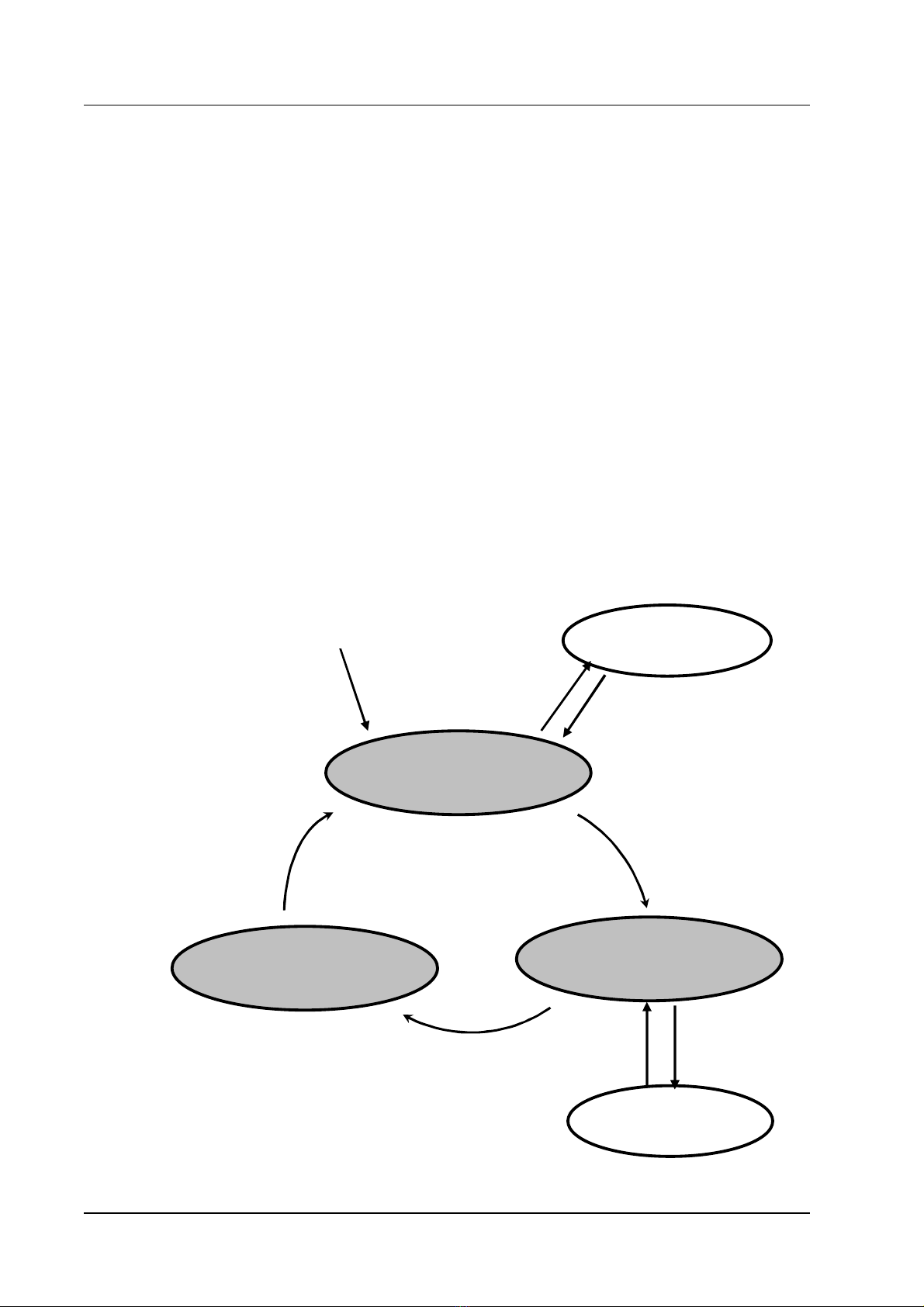

<Figure 5> Select Mode
(1)Set Operation Time
(2)Set Temperature
(3)Safety Locking
Set Delay Time
Set Offset Temp.
Power On
MODE
button
MODE
button
MODE
button
MODE
button
MODE
button
MODE
button
+
Jog
shuttle knob
MODE
button
+
Jog
shuttle knob

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 19/48
Set Mode Upper Reading Lower Reading
Timer Set Time Rest Time
Delay Timer *d-tr Set Time before Setting
Rest Time after Setting
Temperature Set Temperature Current(Present Value) Temperature
Offset Compensated Temperature Offset
Locking Current(Present Value) Temperature Rest Time
*d-tr(Delay timer mode) : indicate delay timer mode
<Table 2> LCD display for each mode
<Tabl
e 3>
LED
displa
y for
each
mode
3. Timer Mode.
●LCD display indicate Timer Mode and Timer LED(Green) is blinking at the same time.
●SV, the value of first line (smaller-sized digits) on LCD display, indicates set value of operation
timer and PV, the value of second line (bigger-sized digits) indicates present value of the timer.
●Initial SV of the timer is 00:00, which means infinite time and the unit will operate
(heating or cooling) continuously once the operation start.
●Turn the Jug Shuttle Knob such to clockwise or counterclockwise then SV and PV change
together. SV can be set in 1 minute, and the Maximum Value is 99:59(99hr 59mins).
●After set timer SV, push Jog Shuttle knob 1 time shortly, the timer will be running.
●When you set SV, push Jog Shuttle Knob about in 2~3 seconds, Will be save the Set Value.
and push Jog shuttle knob 1 time again, timer will be running.
●When the unit has finished running time, the heater will be stop and a buzzer will go off.
●If you want to go to next mode(Temperature Setting Mode), push MODE button 1 time.
Set Mode Heating LED Timer LED
Timer Heating Output Blinking
Delay Timer Heating Output Blinking
Temperature Heating Output ON(Running)/OFF(Stop)
Offset OFF ON(Running)/OFF(Stop)
Locking Heating Output ON(Running)/OFF(Stop)

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
High Performance Dry Bath Heating & Cooling 20/48

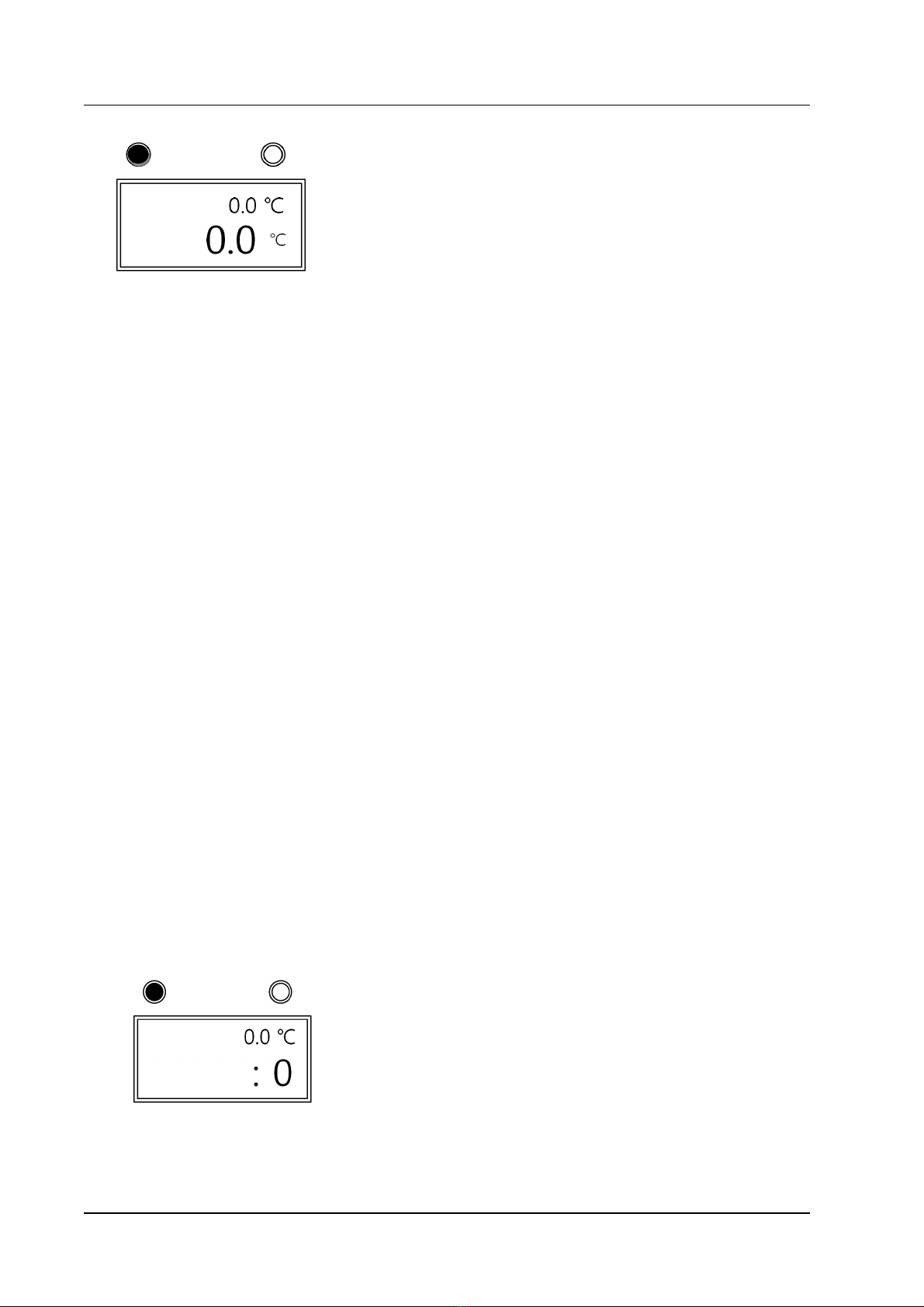

4. Temperature Setting Mode.
●SV, the value of first line (smaller-sized digits) on LCD display, indicates set value of operation
Temperature and PV, the value of second line (bigger-sized digits) indicates present value
of the Temperature.
●Turn the Jug shuttle Knob such as clockwise or counterclockwise then SV and PV change
together. SV can be set in 0.1 ℃.
●Temperature Range : HB-48 / HB-96 / HB-96D →Ambient +5℃~ 150℃
HB-R48 →-5℃~ 95℃
●When you finish Set Value, push Jog shuttle Knob 1 time shortly, the unit will be running
and Heating LED(Red) will be turn on after 2~4 seconds.
●When you finish Set Value, push Jog shuttle Knob About in 2~3 seconds, will be save the
Set Value of Temperature.
●After that, push the Jog shuttle Knob 1time shortly, the heater will be running. After 2~4
seconds, you will see “Heating” message on the LCD display.
●it cannot re-set the Set Value of Temperature when the heater is running, if you want to re-
set the Set Value of Temperature, push the Jog shuttle Knob 1 time shortly (Pause mode) and
set to re-set the Set Value of Temperature.
●after re-set the set value of Temperature, push the Jog shuttle Knob in 2~3 seconds or
push the Jog Shuttle Knob 1 time shortly.
●If you want to go to next mode(Safety Mode), push MODE button 1 time.
5. Safety Mode(Locking Mode).
●In this mode, turning or pushing Jog shuttle knob doesn’t work for any set value.
So, you could prevent any changes of set values by mistake.
