DAIHAN Scientific, Premium Overhead Stirrer 2/23
Table of Contents
Page
1. General
1.1 Precautions prior to Use............................................................................ 3
1.2 About Product.......................................................................................... 4
1.3 Product Composition................................................................................. 5
2. Installation
2.1 Product Installation................................................................................... 6
2.2 Product Specification................................................................................. 8
3. How to Use
3.1 Precautions during Use............................................................................. 9
3.2 Components….......................................................................................... 10
3.3 How to Use.............................................................................................. 13
4. How to Control
4.1 Accessories ............................................................................................. 18
4.2 Maintenance & Control.............................................................................. 20
4.3 Troubleshooting………................................................................................ 22
5. Product Warranty
5.1 Quality Assurance..................................................................................... 23

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 3/23
1
I
N
1. General
1.1 Precautions prior to Use
Thank you for purchasing our High efficiency Digital Overhead Stirrer.
This manual specifies the performance of this product, the method of use, and handling-
related precautions. Make sure to thoroughly read this manual prior to using this product.
The matters that require you to proceed with caution contain one of the following warning
signs. Make sure to be aware of the meaning of the following warning signs prior to using
this product in order to use this product safely.

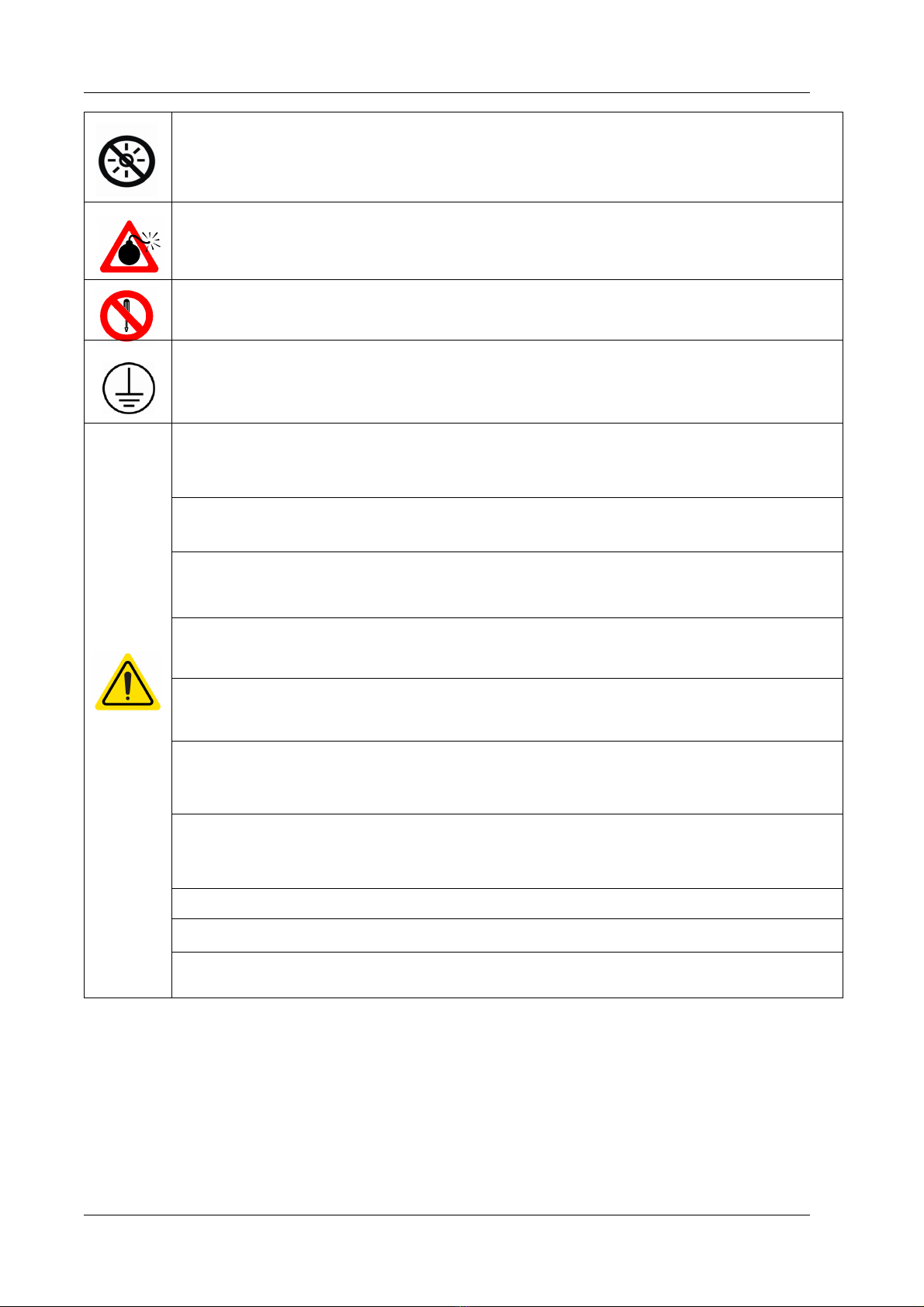

Warning
In the case where the instructions are now followed, there is a risk that the user
may be injured.
Caution
In the case where the instructions are now followed, there is a risk that this
product may not function properly.
Do Not Approach
Do not approach this product while it is in use.
Notice
This is a functionally important matter, and, therefore, the user may not
disassemble or remodel this product at one’s own discretion.
Explosive
In the case where a volatile, explosive substance is used, there is a risk of
explosion.
This displays the part grounded for electric shock prevention.
The ON/OFF power switch is set to OFF.
The ON/OFF power switch is set to ON.
This displays the access point of the installation part’s neutral conductor.
This displays the alternating current voltage.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 4/23
1. General
1.2 About Product
This product is a multi-functional high-end digital-control product and is suitable for the
following fields: life science involving precision and reproducibility, diagnosis, medicine,
chemistry, pharmaceutics, and industrial use.
User convenience and safety were taken into utmost consideration in the process of
developing and manufacturing this product, and this product boasts its characteristics as
follows.
1. This product is a medium-/high-viscosity multi-functional experimental stirrer.
2. The equipped high-end BLDC motor helps this product demonstrate its high-efficiency stirring
performance and precise rotation control.
3. The torque of the impeller shaft and the viscosity of the sample displayed on a real-time basis
allow the viscosity of the sample to be confirmed intuitively.
4. The implementation of feedback control(constant-speed control) consistently maintains the set
rotation speed even when the viscosity of the sample is changed.
5. Precise speed control is realized, and a consistent stirring ability is provided at all speed.
6. The built-in high-end digital LCD screen displays the product status.
7. The built-in multi-functional jog-dial knob makes the control process convenient.
8. The built-in protective device protects the equipment from various risks such as motor overload
and overheating.
9. The employed through-type bearing makes it possible to freely adjust the impeller height.
10. The column and rotation count fluctuation are delicately designed to prevent the solution
spillover and equipment damage resulting from a sudden stirring.
11. To protect this product, this product is equipped with the following functions: overheating
prevention, overcurrent prevention, and error-detecting sensors.
12. By connecting a K-type external sensor(optional), the sample’s temperature can be confirmed on
a real-time basis.
13. In the case where this product is involved in an unexpected incident, the involved compensation
can be received in accordance with the product liability insurance. (100 million won for bodily
injury and for property damage)

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 5/23
1. General
1.3 Product Composition

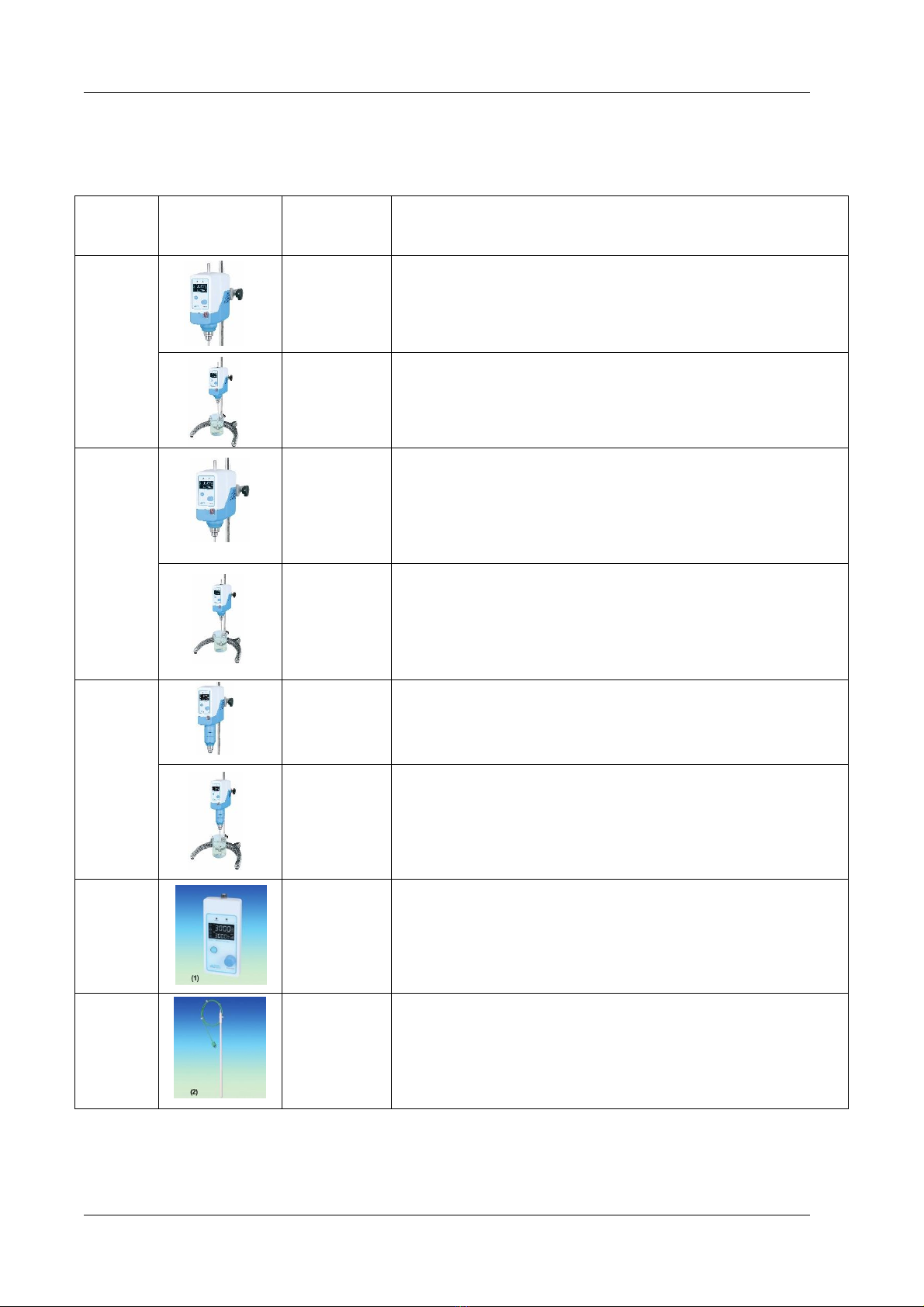

Model Product
Ordering
Information Product Composition
Ovs-
S05
Unit
1. Stirrer Unit 1ea
2. Power cord 1ea
3. Fixing rod 1ea
4. 4 L-wrench 1ea
5. M5*12 Wrench bolt 1ea
Package-set
1 “OVS-S05” Stirrer Unit
2 “S723” Stainless-steel Impeller (Rod Φ8×L650mm, 3-Blade Φ80mm)
3 “CL200” Clamp
4 “KA1177” Safety Stand (Rod Φ23×L800mm, Base 34×29cm)
Ovs-
T16
Unit
1. Stirrer Unit 1ea
2. Power cord 1ea
3. Fixing rod 1ea
4. 4 L-wrench 1ea
5. M5*12 Wrench bolt 1ea
Package-set
1 “OVS-S05” Stirrer Unit
2 “S723” Stainless-steel Impeller (Rod Φ8×L650mm, 3-Blade Φ80mm)
3 “CL200” Clamp
4 “KA1177” Safety Stand (Rod Φ23×L800mm, Base 34×29cm)
Ovs-
G30
Unit
1.
Stirrer Unit
1
ea
2. Power cord 1ea
3. Fixing rod 1ea
4. 4 L-wrench 1ea
5. M5*12 Wrench bolt 1ea
Package-set
1 “OVS-G30” Stirrer Unit
2 “S732” Stainless-steel Impeller (Rod Φ8×L500mm, 4-Blade Φ70mm)
3 “CL200” Clamp
4 “KA1177” Safety Stand (Rod Φ23×L800mm, Base 34×29cm)
Remote
controller
Unit
(Optional)
1. Wire digital remote controller
2. Cable of remote controller (2M)
External
Temp.
sensor
Unit
(Optional) 1. K-type PTFE Encapsulated Stainless-steel Thermocouple Probes
- Including 1 Copy of Operation Manual

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 6/23
2. Installation
2.1 Product Installation
* Precautions during Installation
1. To not lay down this product or apply any impact to this product. Doing so may internally
damage this product.
2. Install this product in a place where the floor is rigid and flat. Make sure to use this product in a
stable place.
3. Do not install this product in a place exposed to direct lights or in a dangerous place.
4. In the case where the controller or main body of this product makes contact with moisture or
organic solvents, there is a risk of short circuit. Avoid installing this product in a place exposed
to moisture or organic solvents.
5. This product is manufactured to properly function at the rated voltage. Make sure to confirm
the voltage status prior to installing this product.
6. Make sure to use the power cord(power line) provided with this product while installing and
using this product.
7. Do not install this product in an environment where there is a risk of inflammable gas leakage
or a risk of explosion resulting from an organic evaporation gas.
8. Proceed with caution to prevent any moisture, organic solvent, dust or corrosive gas from
entering this product.
9. Do not expose this product to a place packed with direct heat sources.
* Installation Procedures
10. Confirm whether or not this product is damaged during delivery. In the case where any damage
is found, contact DAIHAN Scientific’s call center.
1. This product must be arranged in a way securing sufficient surrounding space for ventilation
and fire prevention. The distance from the rear wall must be at least 20cm, and the distance
from the side wall and from the ceiling must be at least 10cm.
2. Install this product on a horizontal-surface device capable of bearing the weight of this product
without vibrating.
3. Never ground this product to a gas pipe, a plastic tap water pipe or a telephone circuit. There is
a risk of electric shock, fire, failure or device explosion.
¨Application of Product Liability Insurance(PL Insurance)
In preparation for any accident that may occur while using this product produced by DAIHAN
Scientific, DAIHAN Scientific took out a product liability insurance as specified below to allow
our customers rely on and use this product.
2

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 7/23
[Contents] ………………………………………………………………………………………
Insurance : Products Liability Insurance
Limit of Indemnity : 100 Million Won for Bodily Injury and for Property Damage
Coverage Territory : The Whole World(Except for North America)
Emergency Contact Info. : DAIHAN Scientific (TEL : [phone], FAX : [phone]-
7575)
* How to Assemble
1. Place the stand in the place where this product is to be installed, and connect the rod to the
stand. Then, rotate the clamp clockwise to connect it to the connected rod.
2. Insert the support rod into the rear side of the stirrer, and use the L-wrench to fasten. Connect
the support rod to the clamp and rotate the clamp clockwise to connect it to the support rod.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 8/23
2. Installation
2.2 Product Specification
Model Ovs-S05 Ovs-T16 Ovs-G30
Stirring Capacity Max. 100 Lit(H2O)
Maximum Viscosity
/ Torque
50,000mPas /
200Ncm
200,000 mPas /
700 Ncm
350,000 mPas /
800 Ncm
Speed
Range
Gear 1
200~3000 RPM
50~300RPM 10~100RPM
Gear 2 305~2,000RPM 100~530RPM
Motor High Performance Brushless DC-motor
Gear
ratio
Gear 1 Max 2:1 14:1 60:1
Gear 2 2.6:1 11:1
Motor Rating
(Input / Output) 200W/180W
Controller Digital PID Control
Safety Device Over Heat & Current Protector for Motor
Chuck Grip Capa. Φmm dia Φ3~10mm Shafts
“Push-Through” Shafts dia Φ10mm or Less
Temp.Range & Accuracy 0℃to 1000℃, ±4 ℃
Permissible Temp. &
Humidity 0 ~ 40℃, 80%
Dimension & Weight &
Material
84×205×h275mm, 4.2kg,
Aluminum Die Casting
84×205×h355mm,
5.6kg, Aluminum Die
Casting
Power Consumption 250W
Power Supply & Cord
Plug 1 Phase, AC 120V, 60 Hz or AC 230 V, 50 / 60 Hz
※Each model’s maximum working viscosity was calculated by setting 1.5 liters
of viscosity standard oil as the standard and by setting each model operating
at the minimum rpm as the standard.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 9/23
3. How to Use
3.1 Precautions during Use
lPrior to Use
Make sure to thoroughly read the user manual prior to using this product. Make sure
to thoroughly read the manual placed in the lab and prohibit unauthorized personnel
from using this product.
This product must be operated using the generally used power(AC 120V, 60Hz or AC
230V, 50/60Hz, Single phase). Make sure to use this product under the permitted
specified load.
Do not tilt or lay down this product during transport.
Make sure to install this product in a place where the floor is rigid and flat. There is a
risk of negligence-based accident.
lWarning
- Make sure to follow the instructions below.
Make sure to operate this product indoors, and the indoor temperature shall be
maintained at 0℃~ 40℃. Using this product for a long time in an environment
exceeding the allowable range may cause this product to not function properly.
Do not damage, process, forcibly bend, pull or tie the power cord. In addition, placing
a heavy object on top of the power cord or inserting the power cord between two
heavy objects may damage the power cord which may result in fire or electric shock.
Do not directly apply water to this product or use water to wash this product.
T
here is
a risk of short or electric shock.
Do not use wet hands to touch any electrical components such as the power plug or
control the switch. There is risk of electric shock.
Do not turn on or off this product through connecting or disconnecting the power
plug. There is a risk of electric shock or short.
Do not install this product in a place packed with moisture and dust.
There is a risk of overheating or short circuit. (Pollution Degree 2)
Do not install this product in a place with an altitude above 2,000 meters(6,562 feet).
Make sure to operate this product after confirming the safety device of this product.
In the case where unexpected noise, odor or smog is generated, separate the main
plug from the wall outlet and contact DAIHAN Scientific’s call center.
3

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 10/23
Do not use this product in a place exposed to continuous sunlight or rain. There is a
risk of product overheating or electrical defect.
(Using this product outdoors is prohibited.)
Do not use any inflammable spray products(lacquer, paint, etc.) or
volatile/inflammable chemical products near this product. The sparks resulting from
the switch may cause ignition.
Do not have unauthorized personnel disassemble or remodel this product. There is a
risk of critical electrical problem which is not covered by the warranty service provided
by DAIHAN Scientific.
Make sure to use a grounded outlet.
Do not ground this product to a gas pipe, a plastic tap water pipe or a telephone
circuit. There is a risk of electric shock, fire, failure or device explosion.
Periodically confirm whether or not the power plug is covered in dust, and make sure
that the plug is perfectly connected. In the case where the power plug is covered in
dust or not perfectly connected, there is a risk of electric shock or fire.
In the case where this product is not used for a long time, disconnect the power plug
from the outlet for safety. Dust may cause a risk of heat generation or fire.
Make sure to grab the plug while disconnecting the power plug. In the case where the
power plug is connected by grabbing the cord line, the internal cord line may be
partially disconnected which may cause a risk of heat generation or fire.
Completely insert the plug into a compatible outlet
.
In the case where the connection is loose, there is a risk of overheating which may
cause an arc.
In the case where any abnormal noise or symptom is found while using this product,
turn off this product immediately, disconnect the power line, and contact the place of
purchase or DAIHAN Scientific’s technical assistance team.
In the case where it is necessary to move this product, disconnect the power plug
from the outlet and proceed with caution to cause no damage to the power cord and
this product. The damaged cord may cause a risk of electric shock or ignition.
Confirm whether or not there are any foreign substances before/after using this
product. Maintain sure to keep this product clean at all times through using a neutral
detergent and a dry cloth to delicately remove any foreign substances.
The main source voltage fluctuation must be the nominal voltage +/-10%.
The maximum relative humidity must be 80% at 31℃and 50% at 40℃.
In the case where an error occurs, the buzzer sound level must be up to 60dB from a
1m distance.
※All the circuits and electrical/mechanical components/configurations applied to this
product are the technical assets owned by DAIHAN Scientific. Your request for repair
must be made to a technician from the technical assistance team run by DAIHAN
Scientific or to a technician acknowledged through the training run by DAIHAN
Scientific.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 11/23
<Table.3.2.1> Component Name & Description
3. How to Use
3.2 Components
lExterior
No. Name Description
①Stirrer Unit It serves as the overhead stirrer’s main body.
②Clamp It is used to adjust the height of the overhead stirrer’s
main body
③Power Switch It serves as the power switch.
④Drill Chuck It is used to fix the impeller rod.
⑤Impeller It is used to mix the liquid.
⑥Stand It serves as this product’s fixed board
⑦Planetary gear It serves as the planetary gear unit

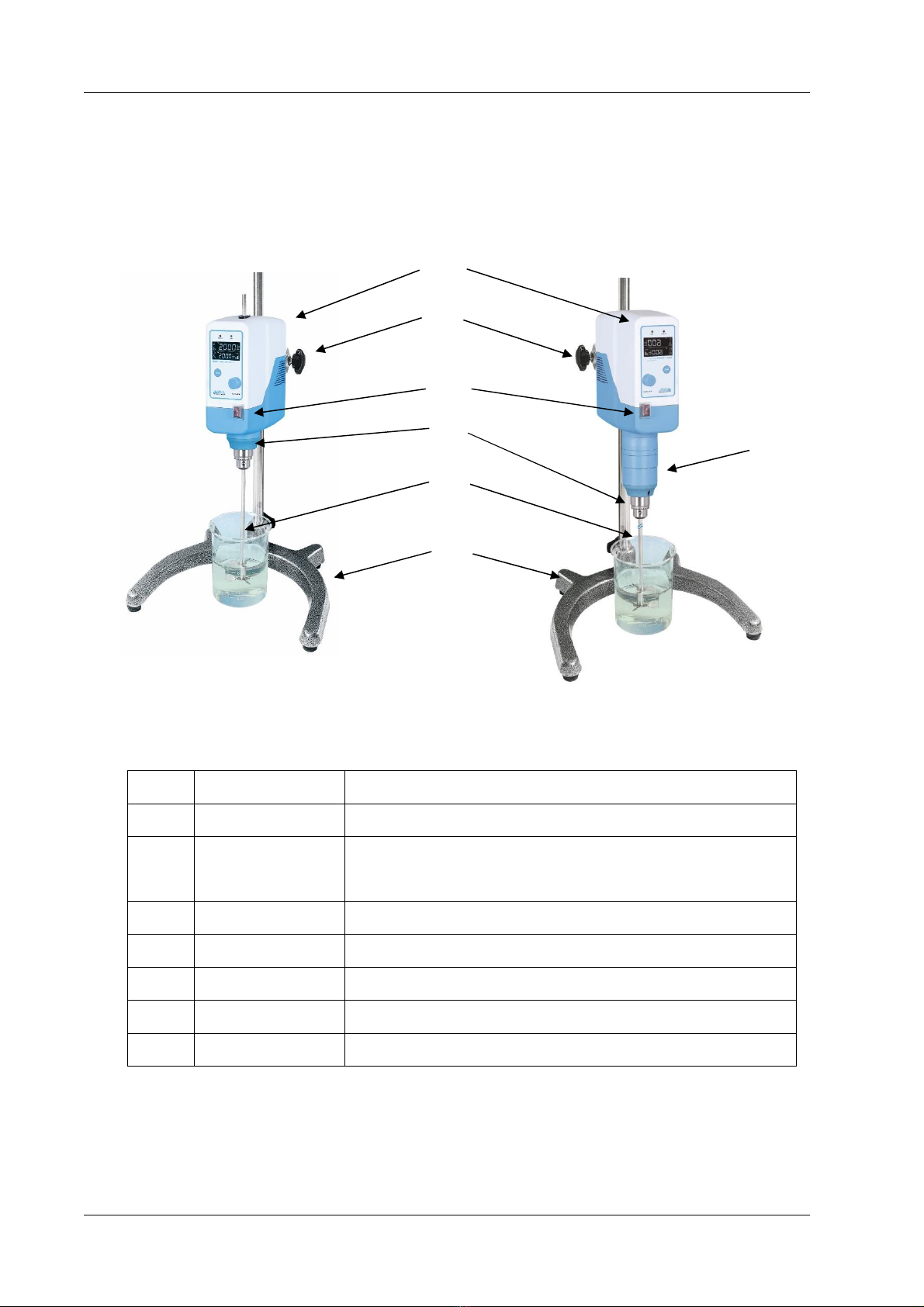

< Figure 3.2.1> The appearance of
"Ovs-S05” & “Ovs-T16"
< Figure 3.2.2> The appearance of
"
Ovs
-
G
30"
①
②
③
④
⑤
⑥
⑦

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 12/23
<Table.3.2.3> Component Name & Description
<Table.3.2.4> Component Name & Description
lController NO Name Description
①Mode
Button
It is used to convert among
the stirring mode, timer
mode and locking mode.
②Operation
LED
It activates the LED when
the involved operation is in
process.
③LCD
Display
It displays the input
information as well as the
information in progress.
④Jog-Dial
Knob
It increases/decreases the
operating value and
activates the start/stop
functions.
NO Name Description
①
External
Temp. sensor
Jack
It is used to convert among the
stirring mode, timer mode and
locking mode.
②
Remote
Controller
Connector
It is a connector connected to
the remote controller
③
Fixed rod
connecting
portion
It serves as the fixed rod
connecting portion.
④AC Inlet It serves as the AC inlet.
①
②
③
④
< Figure 3.2.5> Controller for Ovs –S05, -T16, -G30 and Remote controller
< Figure 3.2.6> Ther rear part of the unit
①②
③
④

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 13/23
3. How to Use
3.3 How to Use
-Connect the power cord on the rear side of this product and turn on the power switch on the
front side of this product.
①MODE - Set Stirring Mode
-When the power is turned on, the initial screen will read Set Stirring Mode.
-Once the power is turned on, the stirring LED will flicker, the LCD display screen will read “0
RPM” as the stirring speed, and a screen for setting the speed will appear.
-Stirring Speed Range: Ovs-S05 Model →200 ~ 3,000 RPM.
Ovs-T16 Model → G1: 50~300 / G2: 305~2,000 RPM
Ovs-G30 Model → G1: 10~100 / G2: 101~530 RPM
-As the jog-dial knob is rotated clockwise, the set value that the LCD display reads will increase
from the minimum value as the knob is adjusted, and the stirring process will be initiated as the
knob is pressed.
-During the stirring process, rotate the jog-dial knob counter-clockwise to decrease the speed
value.
During the stirring process, press the jog dial knob’s push button to stop the process.
-Press and hold the jog dial knob’s push button for 2~3 seconds to save the set value, and such
set value will be maintained the next time the power is turned on.
-The stirring LED will flicker when this mode is activated, and the LED will be turned on when
the stirring process is initiated.

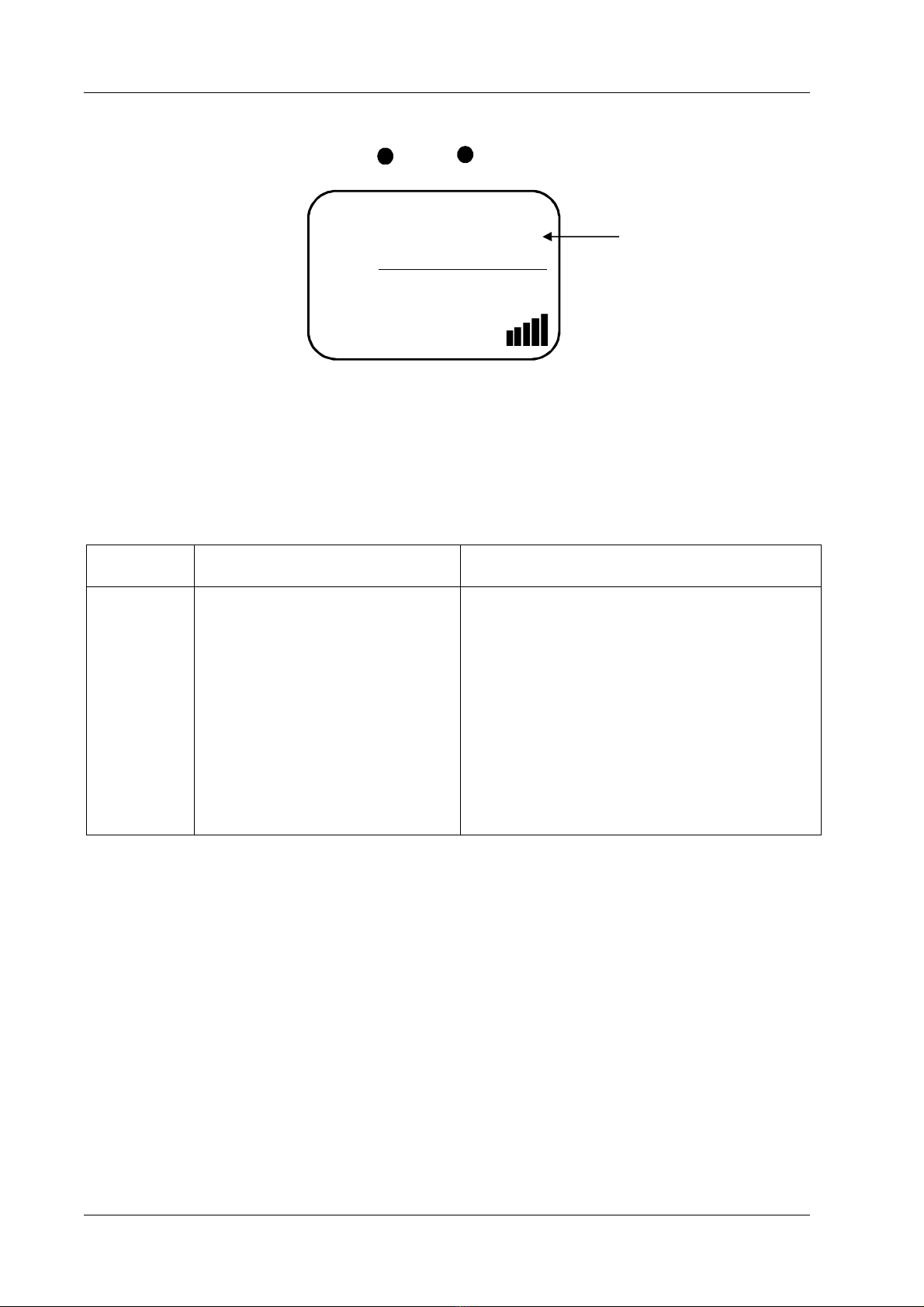

Fig 3.3.1. Set Stirring Mode Screen
ST
I
RRING
TIMER
STIRRING LED (Red)
PV
200 RPM
SV
200 RPM Set Stirring Speed
Current Stirring Speed
Stirring Operation Display
Stirring Power Display
Current Gear Display
*PV: Present Value
*
SV: Set Value

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 14/23
-The LCD display will always read the stirring display throughout the stirring process, and the
stirring display will disappear when the stirring process stops.
-The display’s power bar represents the stirring power and will always be displayed throughout
the stirring process. The stirring power will be automatically adjusted according to the sample’s
viscosity in order to satisfy the set rpm.
-Gear Shift Function
1) The Ovs T16, -G30 model uses 2 different types of gears depending on the rpm.
G1 represents the first gear and is in charge of the low-speed high-torque domain, and G2
represents the second gear and is in charge of the high-speed low-torque domain.
2) In the case where the stirring speed is set while the operation is stopped, automatic changes
will be made between G1 and G2, and such change will appear as an icon in the upper left
section of the LCD. It will not be possible to change gears while this product is in operation.
Make sure to stop this product prior to changing gears.
②MODE - Set Timer Mode
-In the Set Stirring Mode, press the mode button once to switch to the Set Timer Mode.
Once the Set Timer Mode is activated, the green timer LED located in the top section will flicker.
-Rotate the job-dial knob clockwise or counter-clockwise to set the timer.
When the stirring process is activated with the timer set, the timer will be initiated.
-The set timer range is 00:00~99:59 and can be adjusted at intervals of 1 minute. Set the timer
to "00:00" for consecutive operations.
-The timer LED will always be turned on as long as the timer is in operation, and will be turned
off when the timer is complete. Once the operation is complete, a buzzer sound will be
generated and this product’s impeller rotation will be stopped.

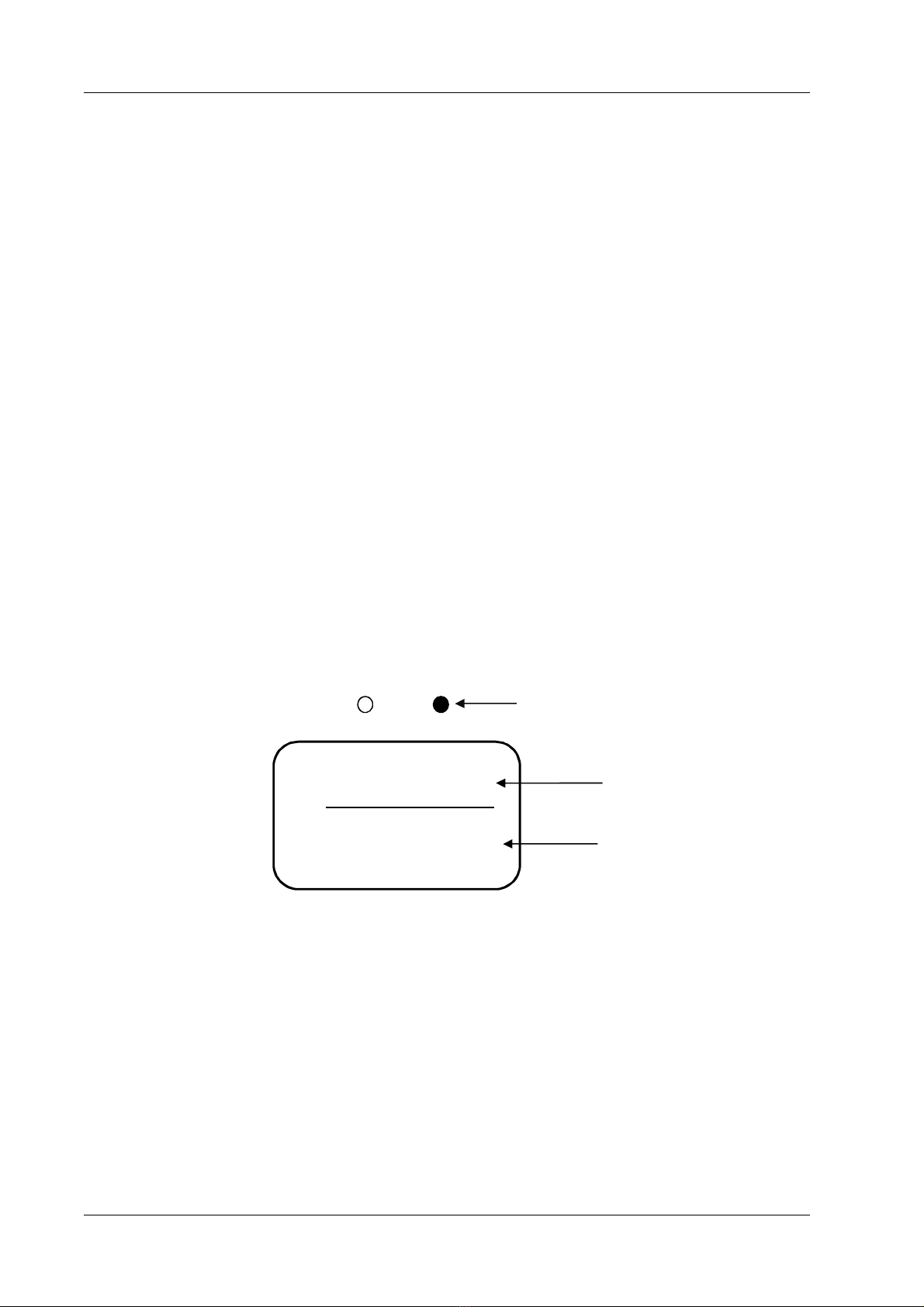

Fig 3.3.2. Set Timer Mode Screen
ST
I
RRING
TIMER
TIMER LED (Green)
Set Timer
Remaining Time
PV
: 0
SV
: 0

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 15/23
-Press and hold the jog dial knob’s push button for 2~3 seconds to save the set value, and such
set value will be maintained the next time the power is turned on.
*Functions and Actions to Be Aware of
1. Overload Detection(Error1)
: In the case where the stirrer’s motor is overloaded due to the viscosity, operating time and rpm
of the target fluid exceeding the capacity of the stirrer, this function detects such overload and
puts a stop to the stirrer’s operation.
-In the case where the operation is stopped due to an overload, stop the stirrer, sufficiently cool
down the stirrer, and then re-activate the stirrer.
2. Error Detection(Error1)
: In the case where the rotation of the stirrer’s impeller is interrupted by a suspended object or
where a fluid having a viscosity exceeding the stirrer’s rotation torque is stirred, this function
detects such error and puts a stop to the stirrer’s operation to protect the stirrer.
-In the case where the operation is stopped due to an error, remove the object interrupting the
impeller.
-In the case where the operation is stopped due to a high viscosity, it is recommended to
replace the stirrer with a stirrer having a larger capacity or to replace the impeller with a more
suitable impeller.
-In order to maintain this product’s durability, once this product is stopped and the power switch
is turned off, it is recommended to wait at least 30 seconds before re-activating this product.
③MODE - Locking Mode
-In the Set Timer Mode, press the mode button once to switch to the Locking Mode.
Fig 3.3.3. Locking Mode Screen [Timer Display]
ST
I
RRING
TIMER
Operating Status Display
Current Stirring Speed
Remaining Time
: 0
200 RPM
Stirring Power Display
Stirring Operation Display

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 16/23
-Since the jog-dial knob’s push button cannot be used in the locking mode, the stirring operation
and timer operation cannot be controlled. In addition, the LCD display and LED lamp will
indicate the current operating status.
-In the locking mode, the current stirring speed information will be displayed in the bottom
section, and the 4 different types of current status information will be displayed in the top
section. Rotate the jog-dial knob clockwise to confirm the status information in the following
order: temperature →timer →torque →viscosity.
1) Temperature Display: In the case where the K-type external temperature sensor is connected, it
displays the temperature value detected by the temperature sensor.
※Temperature measure values might not accurate because of the
characteristic of the K-type sensor.It is recommended to use this function
as a reference value. Please use a calibrated thermometer for experiments
that require accurate temperatures.
2) Timer Display: In the case where the timer is set, it displays the current remaining time.
3) Torque Display: It displays the torque value(in the unit of N·cm) applied to the shaft during the
stirring process.
4) Viscosity Display: It displays the fluid’s viscosity value(in the unit of mPas) calculated based on
the torque value applied to the shaft. In the case where the number of digits
representing the viscosity value exceeds 5, the display will read ‘000 –‘. For example,
a display reading ‘256 –‘ means that the viscosity value is 256,000mPas and a
display reading ‘2560’ means that the viscosity value is 2,560mPas.
※The viscosity display was calculated based on the experimental value
gained through using 1 liter of viscosity standard oil, a 9mm anchor blade
and a 10 liter tall beaker. The actual viscosity and displayed viscosity may
vary depending on diverse experimental conditions. It is recommended to
use this function as a reference value.
Fig 3.3.4. Locking Mode Screen [Viscosity Display 1]
ST
I
RRING
TIMER
256 - mPas
200 RPM
Current Viscosity
(256,000mPas)

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 17/23
-In the Locking Mode, press the mode button once to switch to the Set Stirring Mode.
* ERROR Message
-In the case where any error occurs, an error message will appear in the standby screen.
ERROR
Message Reason Action
Error 1 The stirring process is abnormal.
1.
Confirm whether or not the viscosity range
is adequate, and make sure to use this
product within the adequate viscosity range.
2. Turn off this product, and cool it down for
at least 30 seconds prior to re-activating it.
3. Confirm whether or not there is any
foreign substance interrupting the fluid
stirring process.
<Table 3.
3.1
>
Error Message
Fig 3.3.5. Locking Mode Screen [Viscosity Display 2]
ST
I
RRING
TIMER
2560 mPas
200 RPM
Current Viscosity
(2,560mPas)

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 18/23
4. How to Control

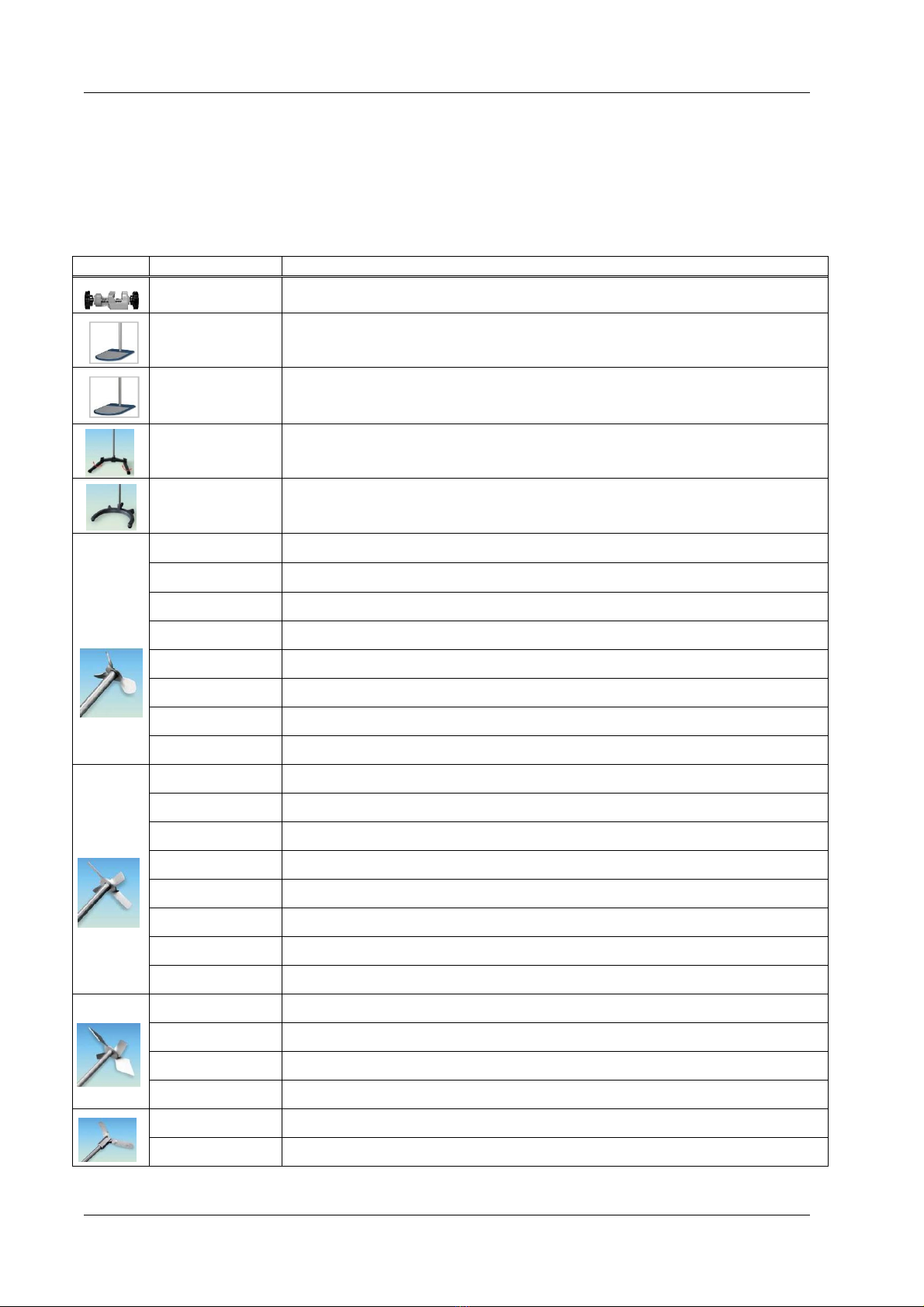

4.1 Accessories
* Ordering Information
Orderin
g N
o.
Information
SL.Cla8011 Clamp Holder, "CL200" Cast Aluminum, Grip Capacity, ø 23mm for Stand/Rod
DH.WOS501510
Standard Plate Stand, "ST110", for Stirrer and Homogenizer
ø16 X h800mm/1.5P
Screw Rod, "RD 511", 20X 35 cm Plate, with Silicon Pad
DH.WOS501515
Wide Plate Stand, "ST120", for Stirrer and Homogenizer ø23 X h1,000mm/1.5P
Screw Rod, "RD 522", 30X 40 cm Plate, with Silicon Pad
DH.WOS501520
Deluxe Safety Stand, “ST200”, H-type, Φ23×h1200 mm Rod, 39×up to 75cm
Stand Base
DH.WOS1177 Safety Stand, “KA1177”, U-type, Φ23×h800 mm Rod, 34×29 cm Stand Base
SL.StiS721 Stir-Shaft, S721 #304, Rod Φ8 × L500, Rotor Φ50×h15mm
SL.StiS722 Stir-Shaft, S722 #304, Rod Φ8 × L500, Rotor Φ60×h15mm
SL.StiS723 Stir-Shaft, S723 #304, Rod Φ8 × L650, Rotor Φ80×h20mm
SL.StiS724 Stir-Shaft, S724 #304, Rod Φ8 × L650, Rotor Φ100×h24mm
SL.StiS726 Stir-Shaft, S726 #304, Rod Φ10 × L500, Rotor Φ60×h15mm
SL.StiS727 Stir-Shaft, S727 #304, Rod Φ10 × L650, Rotor Φ80×h20mm
SL.StiS728 Stir-Shaft, S728 #304, Rod Φ10 × L800, Rotor Φ100×h24mm
SL.StiS729 Stir-Shaft, S729 #304, Rod Φ12 × L1000, Rotor Φ140×h30mm
SL.StiS731 Stir-Shaft, S731 #304, Rod Φ8 × L500, Rotor Φ50×h20mm
SL.StiS732 Stir-Shaft, S732 #304, Rod Φ8 × L500, Rotor Φ70×h25mm
SL.StiS733 Stir-Shaft, S733 #304, Rod Φ8 × L650, Rotor Φ80×h35mm
SL.StiS734 Stir-Shaft, S734 #304, Rod Φ8 × L650, Rotor Φ90×h35mm
SL.StiS736 Stir-Shaft, S736 #304, Rod Φ10 × L650, Rotor Φ110×h35mm
SL.StiS737 Stir-Shaft, S737 #304, Rod Φ10 × L800, Rotor Φ90×h35mm
SL.StiS738 Stir-Shaft, S738 #304, Rod Φ10 × L1000, Rotor Φ110×h40mm
SL.StiS739 Stir-Shaft, S739 #304, Rod Φ12 × L1000, Rotor Φ140×h40mm
SL.StiS741 Stir-Shaft, S741 #304, Rod Φ8 × L500, Rotor Φ70×h20mm
SL.StiS742 Stir-Shaft, S742 #304, Rod Φ8 × L500, Rotor Φ90×h25mm
SL.StiS743 Stir-Shaft, S743 #304, Rod Φ8 × L650, Rotor Φ110×h25mm
SL.StiS744 Stir-Shaft, S744 #304, Rod Φ10 × L650, Rotor Φ110×h25mm
SL.StiS711 Stir-Shaft, S711 #304, Rod Φ8 × L500, Swingrotor Φ50×h14mm
SL.StiS712 Stir-Shaft, S712 #304, Rod Φ8 × L500, Swingrotor Φ70×h17mm
4

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 19/23

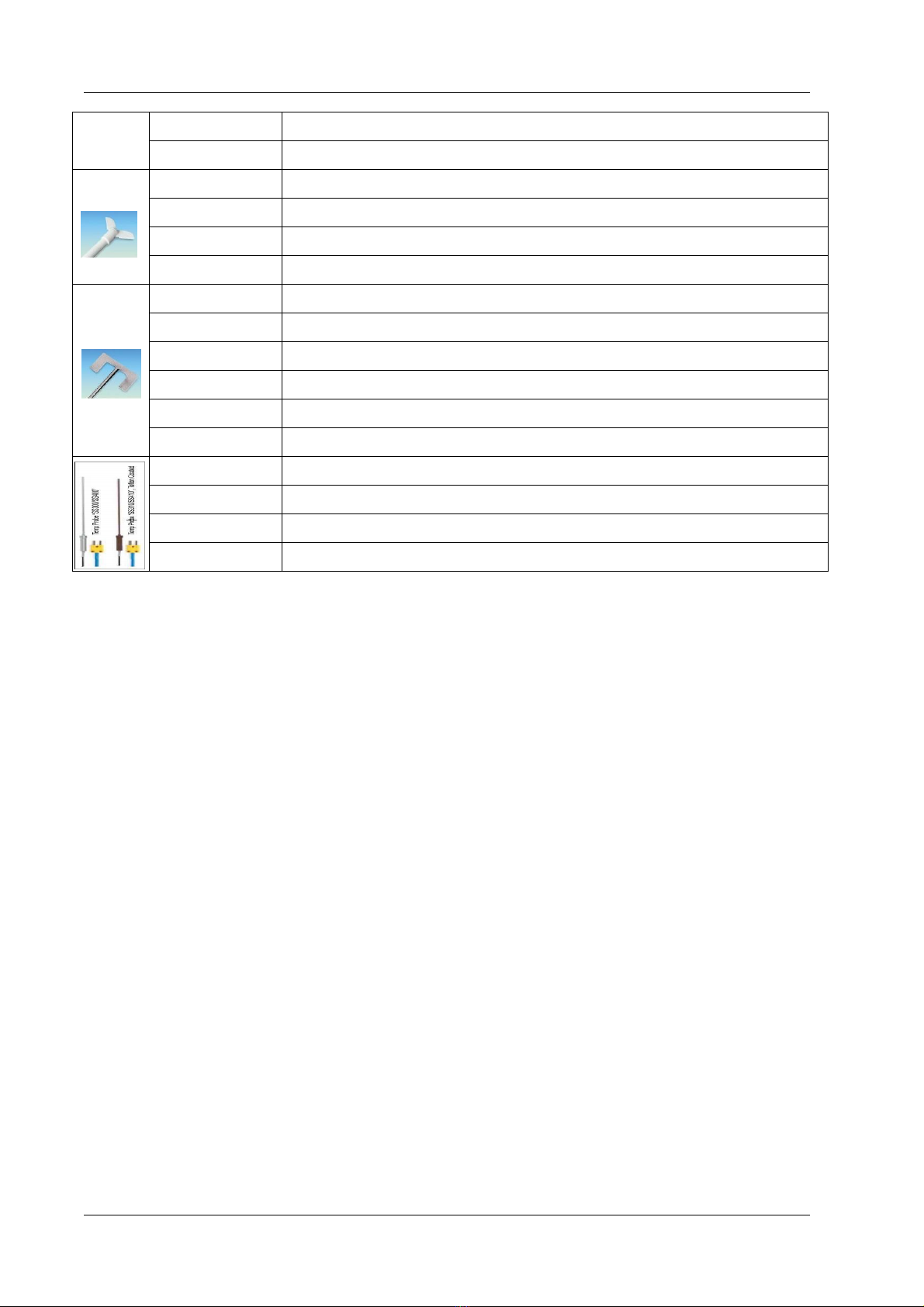

SL.StiS713 Stir-Shaft, S713 #304, Rod Φ8 × L650, Swingrotor Φ100×h24mm
SL.StiS716 Stir-Shaft, S716 #304, Rod Φ10 × L650, Swingrotor Φ100×h24mm
SL.StiS403 Stir-Shaft, PTFE, Rod Φ8/6 × L500, Swingrotor Φ50×h14mm
SL.StiS404 Stir-Shaft, PTFE, Rod Φ8/6 × L500, Swingrotor Φ70×h17mm
SL.StiS405 Stir-Shaft, PTFE, Rod Φ8/6 × L650, Swingrotor Φ100×h24mm
SL.StiS406 Stir-Shaft, PTFE, Rod Φ10/8 × L650, Swingrotor Φ100×h24mm
SL.StiS751 Stir-Shaft, S751 #304, Rod Φ8 × L500, Rotor Φ70×h14mm
SL.StiS752 Stir-Shaft, S752 #304, Rod Φ8 × L650, Rotor Φ90×h16mm
SL.StiS753 Stir-Shaft, S753 #304, Rod Φ10 × L650, Rotor Φ90×h16mm
SL.StiS754 Stir-Shaft, S754 #304, Rod Φ10 × L800, Rotor Φ140×h25mm
SL.StiS755 Stir-Shaft, S755 #304, Rod Φ10 × L1000, Rotor Φ160×h30mm
SL.StiS757 Stir-Shaft, S757 #304, Rod Φ12 × L1000, Rotor Φ180×h30mm
DH.WHP503040 Temp Probe, K-type, “SS300”, L250×Φ 4.8 mm
DH.WHP503050 Temp Probe, K-type SS400”, L380×Φ 4.8 mm
DH.WHP503041 Temp Probe, K-type, “SS310”, Teflon Coated, L250×Φ5 mm
DH.WHP503051 Temp Probe, K-type, “SS410”, Teflon Coated, L380×Φ5 mm

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Premium Overhead Stirrer 20/23
4. How to Control
4.2 Maintenance & Control
Digital Overhead Stirrer is manufactured by taking into consideration diverse situations that may
occur during operation. However, in order to maintain the stable performance of this product for a
long time, make sure to follow the instructions below.
1. Make sure to use the rated power(AC 120V, 60Hz or AC 230V, 50/60Hz, Single phase).
2. Make sure to use this product indoors in a place having a low humidity level, and make sure to
maintain the indoor temperature at 0°C ~ 40°C.
3. In the case where this product is not used for a long time, disconnect the power plug and
thoroughly dry this product prior to packaging and storing it.
4. In the case where it is necessary to replace a component due to a failure caused during
operation, it is a must to use the original components provided by this company.
5. In the case where a failure is caused by any use exceeding the normal limit, no maintenance
will be provided.
6. Make sure to use the specified power.
7. Do not use wet hands to touch the power plug and electrical components.
8. To clean this product, disconnect the power plug, use a delicate washcloth to gently clean this
product, and apply a bit of solvent having a low freezing point to a washcloth to spot-clean any
remaining stains.
9. In the case where this product is contaminated by a toxic chemical or gas, wear gloves and a
mask made of chemical-resistant materials and use a dry cloth to slowly clean and remove the
contaminated spots.
10. Soak the accessories in a neutral detergent, cleanly rinse them with distilled water and
thoroughly dry them prior to use.
11. When cleaning this product, do not directly pour water or place a liquid on top of the controller
or this product. There is a risk of fire.
12. Make sure that a fluid suitable for the use of this product is used. In the case where a high-
speed stirrer is used to stir a high-viscosity fluid for a long time, there is a risk that the
equipment may be damaged.
13. Proceed with caution to prevent any corrosive chemicals from making directly contact with the
surface of this product.
14. Do not directly touch the impeller while the stirrer is in operation.
