Wireless LAN Connecting Adapter
<BRP069A41> Installation Manual
4P359542-1S

English 1
Wireless LAN Connecting Adapter
<BRP069A41> Installation Manual
Accessories
Check if the following accessories are included in your package.
Homepage: http://www.onlinecontroller.daikineurope.com
 For details on specifications, setting methods, FAQ,
copy of the original declaration of conformity and the
latest version of this manual, see the above homepage.
 Hereby, Daikin Industries Czech Republic s.r.o. declares that the
radio equipment type BRP069A41 is in compliance with Directive
2014/53/EU.
Model BRP069A41 ※1Affix to the seal attachment on the back face of this sheet and store in a safe place.
(A) Wireless LAN
connecting adapter
(B) Serial number seal
(1 sheet) ※1
(C) Installation manual
(1pc)

English 2
Safety precautions
 The following describes the meanings of pictorial symbols used in this
documentation.
Give this installation manual to the customer when installation is
completed.
 To conduct a test run of the air conditioner, follow the installation
manual for the air conditioner unit.
The protection of appliances marked with this symbol is
ensured by double insulation and does not require a safety
connection to electrical earth (ground).
Warning Situations which could result in
death or serious injury.
Prohibited Follow directions
When installing:
Request installation by your dealer or a technician.
(Can cause electric shock or fire.)
Always use the accessories and specified parts for
installation. Be sure to follow the directions in this
installation manual.
(Can cause the unit to fall, electric shock or fire.)
Electrical work should be carried out in accordance with the
installation manual and the national electrical wiring rules or
code of practice.
Always turn off the power supply when installing.
(Touching the electrical parts can cause an electric shock.)
The main switch of the installation is at the outdoor unit.
Please switch off this main switch to turn off the power
supply.

English 3
Safety precautions
Warning Situations which could result in
death or serious injury.
When using:
Do not disassemble, modify, or repair.
(Can cause fire, electric shock or injury.)
Do not handle this product with wet hands.
(Can cause electric shock or fire.)
Do not allow this product to get wet or use it when bathing
or doing similar activities with water.
(Can cause electric shock or fire.)
Do not use this product near medical equipment or persons
using cardiac pacemakers or defibrillators. This product may
cause life-threatening electromagnetic interference.
Do not use this product near auto-control equipment such as
automatic doors or fire alarm equipment.
(Can cause accidents due to erroneous equipment behavior.)
Immediately disconnect the air conditioner power plug if
there is abnormal odor or sound, when it is overheating,
or smoking.
(Can cause fire or malfunction.)
 Request an inspection by your dealer.
Disconnect the air conditioner power plug if the product
was dropped or the case is damaged.
(Can cause fire or electric shock)
 Request an inspection by your dealer.

English 4
Safety precautions
Caution Situations which could result in
damage or physical injury.
 Do not use this product near a microwave oven.
(This can affect Wireless LAN communications.)
When installing:
Do not install where flammable gas leaks can occur.
(Can cause fire.)
Grip the connector when disconnecting the connecting
cord.
(Otherwise fire or electric shock can occur.)
When using:
Do not use where small children can get access.
(Can cause injuries.)

English 5
Wireless LAN connecting adapter
Disposal requirements
Your product is marked with this symbol. This symbol
means that electrical and electronic products shall not be
mixed with unsorted household waste.
Do not try to dismantle the system yourself: the dismantling
of the product and of other parts must be done by a
qualified installer in accordance with relevant local and
national legislation.
Product and waste must be treated at a specialized trea-
tment facility for re-use, recycling and recovery.
By ensuring correct disposal, you will help to prevent
potential negative consequences for the environment and
human health. Please contact the installer or local authority
for more information.
Main components
POWER lamp
(green) lights when
running.
RUN lamp (orange)
lights when
connecting to
a router (Wireless
LAN access point).
AP lamp (yellow)
lights when
connected directly to
a smart phone.
SETUP button
Use when
connecting to a
router (Wireless
LAN access point).
MODE button
switches modes
(RUN/AP) when
held down.

English 6
Main components
Basic parameters:
Frequency range: 2400 MHz–2483.5 MHz
Radio protocol: IEEE 802.11b/g/n
RF channel: 1–13
Output power: 0 dBm~18 dBm
ERP: 17 dBm (11b) / 13 dBm (11g) / 12 dBm (11n)
Power supply: DC 14 V / 100 mA
RF channel: Radio frequency channel
ERP: Effective radiated power

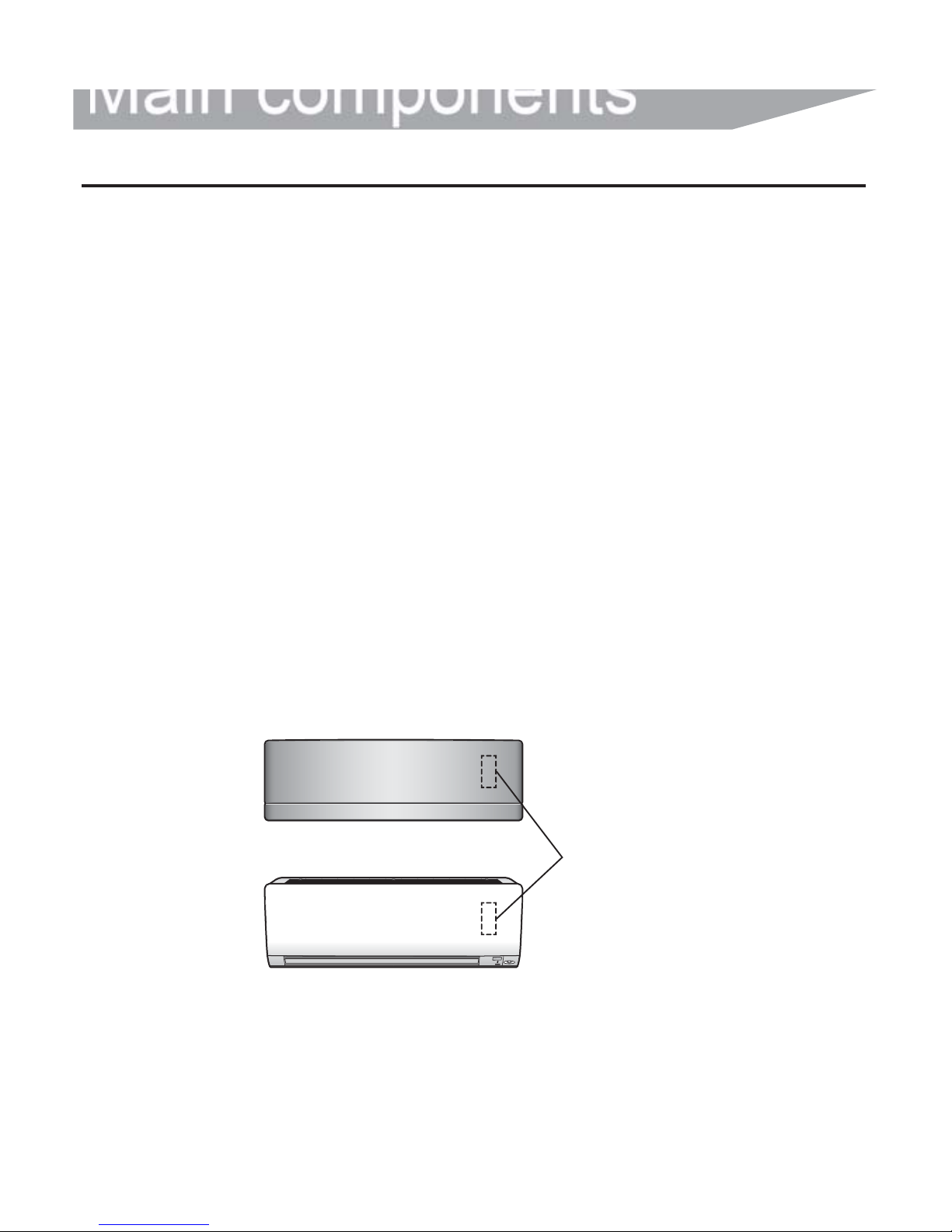

Applicable indoor unit
CTXG50J
FTXG20-50J
FTXG20-50L
FTXJ20-50L
FTXJ20-50M
<TYPE A>
Wireless LAN connection
adapter (the product is inside
the indoor unit)
<TYPE B>
CTXM15M
FTXM20-71M
ATXM20-50M
If your indoor unit is not mentioned in the list above,
refer to http://www.onlinecontroller.daikineurope.com
for the latest applicable indoor units.

English 7
Installation
1 Attach the Wireless LAN connection adapter to
indoor unit.
■BRP069A41
TYPE A
Remove the upper front panel from the indoor unit and open the door,
grab the connecting cord with your fingers and pull it out, then remove the
tie-wrap and pull the insulation tube off the connecting cord.
 Refer to your air conditioner‘s installation manual for details on removing
the upper front panel.
Always turn off the power supply when installing.
(Touching the electrical parts can cause
an electric shock.) The main switch of the
installation is at the outdoor unit.
Danger
Open the door Grab the
connecting cord
Tie wrap Insulation tube
Connector
(white)
Installation
Work

English 8
Installation
TYPE B
Remove the front panel from the indoor unit and remove tape, grab the
connecting cord with your fingers, then remove the tie-wrap and pull the
insulation tube off the connecting cord.
 Refer to your air conditioner‘s installation manual for details on removing
the front panel.
Installation
Work
Tie wrap
Connector
(white)
Insulation tube
Remove tape

English 9
Installation
2 Remove the adapter case (upper).
■BRP069A41
Press a regular screwdriver into the dent between the upper and lower
cases to remove. (Be careful not to damage the case.)
Regular screwdriver
Adapter
case (upper)
Adapter
case (lower)
Wireless LAN
connecting adapter
printed circuit board
Installation
Work

English 10
Installation

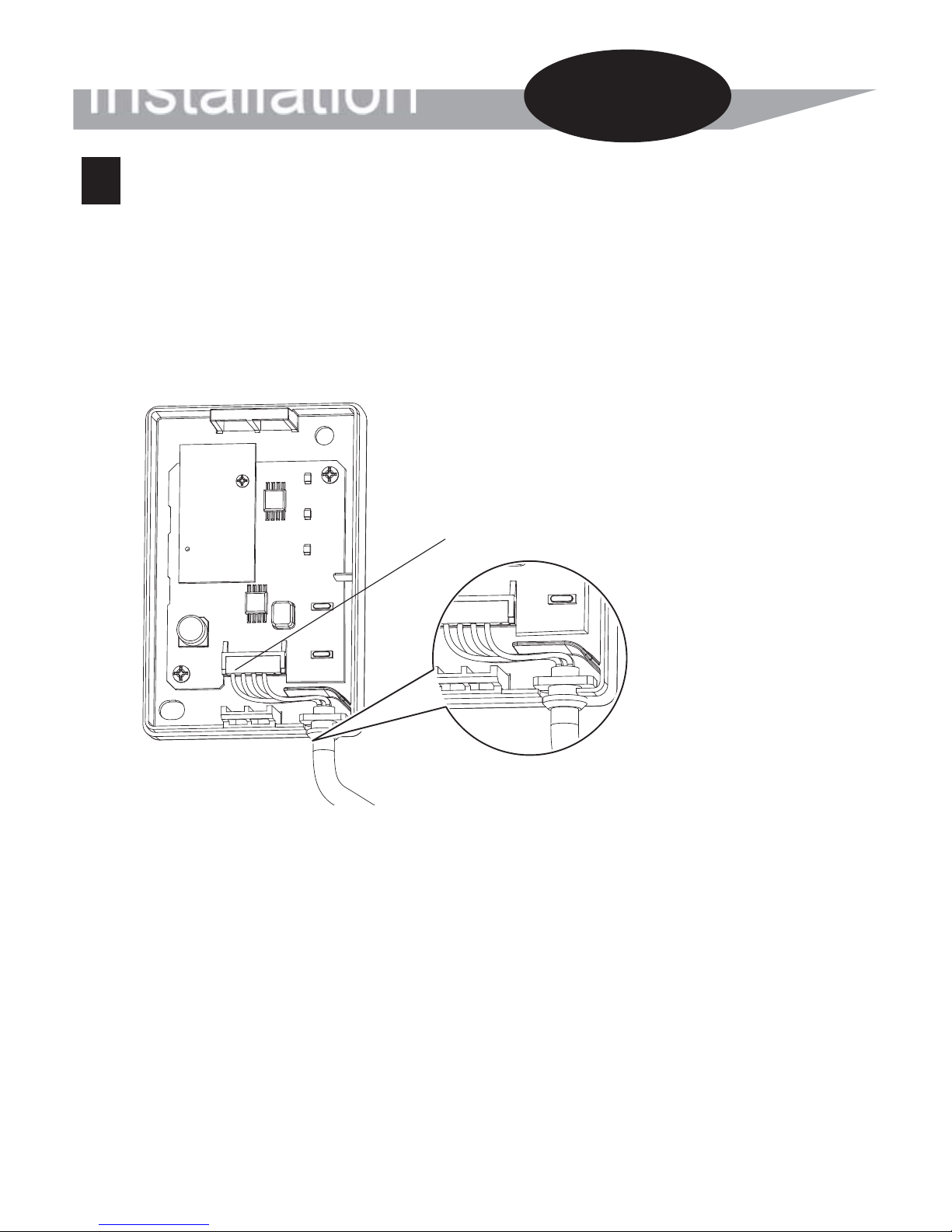

3 Attach connecting cord to the product.
■BRP069A41
Attach the connecting cord connector (white).
 Fasten the connecting cord to the notch in the adapter case (lower).
Connector (white)
Connect the connector to the same color.
Fasten the connecting cord and ensure
that external force is not transmitted.
Installation
Work

English 11
Installation
4 Return the adapter case to its original state.
■BRP069A41
Snap the top of the upper case
unto the clip at the top of the
lower case and press to close
the box.
5 Inserting Wireless LAN connection adapter to
indoor unit.
■BRP069A41
Grab the adapter case with your fingers, insert it back into the indoor
unit and close the door. (See picture on the next page)
Adapter case
(lower) top
portion clip
Adapter case
(upper) top
portion clip
Check that the
connecting cord is
securely fastened.
Push until you
hear a click.
Installation
Work

English 12

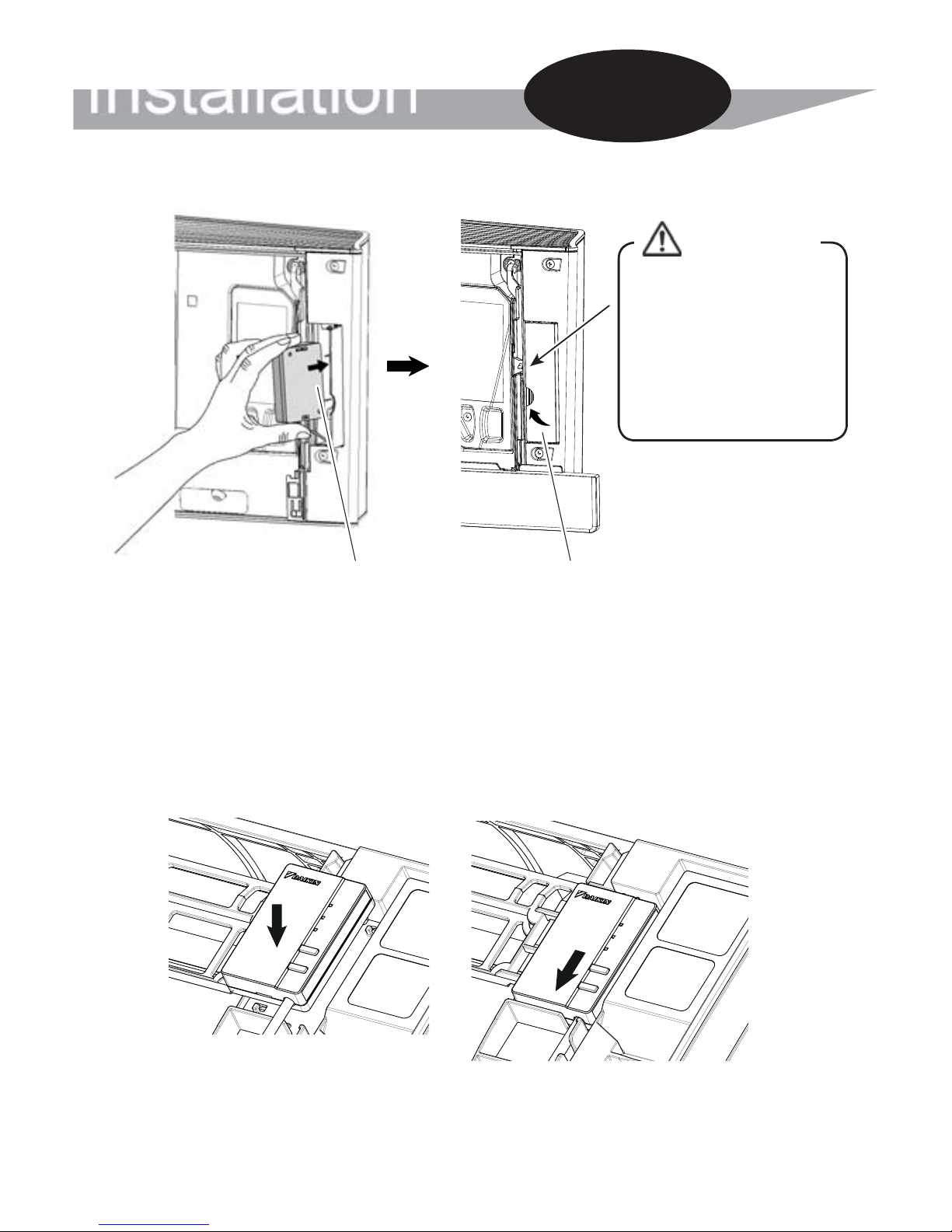

Installation
TYPE A
TYPE B (Class 15-42)
• Place the wireless adapter against the hooks (1).
• Lock the adapter by pressing it down (2).
(1) (2)
Installation
Work
Close this door before
operating the unit. When
turning the power supply
to the unit panels will
open. If the door is not
closed, panel will hit the
door and damage can
occur.
CAUTION
Adapter case Close

English 13
Installation
TYPE B (Class 50-71)
• Place the wireless adapter into the holder (1).
• Fix the adapter in the holder by pressing down on it (2).
(1) (2)
6 Functionality Check
■BRP069A41
TYPE A
Turn on the power supply, wait until the initialization is completed (the lower
panel is in the CLOSED position). Open the door, remove the WLAN
adapter and check that the [POWER] lamp for the product lights. After
checking, return the WLAN adapter into the unit and close the door.
TYPE B
Turn on the power supply and check that the [POWER] lamp for the product
lights.
 When turning on the
power, always attach
the adapter case (top).
Installation
Work

English 14
Configuration
The customer is responsible for providing the following.
□Smartphone or tablet PC
(Supported OS: Android 2.3.3 or later; iOS 5.0 or later.)
□Internet line and communicating device
(Modem/router or similar device)
□Wireless LAN access point
□[Daikin online controller] (No cost)
Installation method of Daikin online controller
For Android Phones
(1) Open the [Google Play].
(2) Search for [Daikin online
controller].
(3) Follow the directions on the
screen to install.
For iPhones
(1) Open the [App Store].
(2) Search for [Daikin online
controller].
(3) Follow the directions on the
screen to install.
Connection
Settings
Section
Refer to
http://www.onlinecontroller.daikineurope.com
for detailed installation instructions.

English 15
Troubleshooting
The following table provides brief descriptions of how to handle trouble or
uncertainties when you install the product or make connection settings.
Refer to the FAQ on the homepage for more details.
When this happens Explanation and where to check
None of the LEDs light →Try to operate the unit with the
infrared remote controller.
→Turn off the air conditioner
and restart it.
→Make sure the LEDs are not
disabled in the application.
→Check the installation
The WLAN adapter
is not visible on the
unit overview screen
("Home" screen) after
the WLAN adapter has
been configured.
→Check that the power is on.
→Check that the RUN LED is lit.
→If the AP LED is lit, press the MODE
button for two seconds to switch to
RUN mode.
→If the RUN LED is blinking, retry to
connect the WLAN adapter to the
wireless network.
Make sure the WLAN adapter is
close enough to the router (wireless
LAN access point).
→If the RUN LED is lit, make sure
that the smartphone or tablet is
connected to the same wireless LAN
network as the WLAN adapter.

English 16
When this happens Explanation and where to check
When trying to make
a direct connection to
the adapter (AP mode)
the WLAN adapter is not
visible in the available
Wi-Fi networks list of
the phone/tablet
→If the AP LED is not lit, press the
"Mode" button for 2 seconds to
switch to AP mode.
→If the AP LED is blinking, please wait
until the AP LED is lit (approximately
1 minute). The WLAN adapter is still
starting up.
→If the AP LED is lit, switch to RUN
mode by pressing the MODE button
for two seconds. Now switch back
to AP mode by pressing the MODE
button again for two seconds. This
changes the wireless channel
on which the WLAN adapter
is operating.
Repeat if necessary.
None of the above work →Refer to the FAQ on:
http://www.onlinecontroller.
daikineurope.com
Troubleshooting

4P359542-1S 2017.05
