Daikin BRP084C42 User manual

Wireless LAN Connecting Adapter
[BRP084C42] Installation Manual
English
ภาษาไทย
Tiếng Việt
[Sticker attachment area]
Attach the SSID&KEY sticker of wireless LAN connecting
adapter to the sticker attachment area and keep safe.

1
Contents
Safety precautions 2
Accessories 5
Main components 6
Installation 7
Configuration 9
Troubleshooting 14
Website: http://www.daikinthai.com/product/dmobile
• For details on specifications, setting methods, FAQ, and the latest
version of this manual, see our website.

2
The protection of appliances marked with this symbol is ensured by double
insulation and does not require a safety connection to electrical earth (ground).
When installing:
Situations which could result in death
or serious injury.
WARNING
•The following describes the meanings of pictorial symbols used in this installation manual.
•To conduct a test run of the air conditioner, complete according to the installation manual for
the air conditioner unit.
Give this installation manual to the customer when installation is completed.
Prohibited Follow directions
Safety precautions
Safety precautions
 Request installation by your dealer or a technician.
(Could cause electric shock or fire.)
 Always use the accessories and specified parts for installation. Be sure to follow
the directions in this installation manual.
(Could cause the unit to fall, electric shock or fire.)
 Electrical work must be performed in accordance with relevant local and national
regulations and with the instructions in this installation manual.
Always use a dedicated circuit.
(Could cause electric shock or fire.)
 Always turn off the power supply when installing.
(Touching the electrical parts could causeelectric shock.)
Please switch off the main switch to turn off the power supply.

3
Situations which could result in death or
serious injury.
WARNING
When using:
 Do not disassemble, modify, or repair.
(Could cause fire, electric shock or injury.)
 Do not handle the wireless LAN connecting adapter with wet hands.
(Could cause electric shock or fire.)
 Do not allow the wireless LAN connecting adapter to get wet or use it when
bathing or similar activities using water.
(Could cause electric shock or fire.)
 Do not use the wireless LAN connecting adapter near medical equipment or
persons using cardiac pacemakers or defibrillators. The wireless LAN connecting
adapter may cause life-threatening electromagnetic interference.
 Do not use the wireless LAN connecting adapter near auto-control equipment
such as automatic doors or fire alarm equipment.
(Could cause accidents due to erroneous equipment behavior.)
 Immediately turn off the circuit breaker if there is abnormal odor or sound,
when it is overheating, or smoking.
(Could cause fire or malfunction.)
• Request an inspection by your dealer.
 Turn off the circuit breaker if the wireless LAN connecting adapter was dropped
or the case is damaged.
(Could cause fire or electric shock.)
• Request an inspection by your dealer.
Safety precautions
Safety precautions

4
Situations which could result in damage or
physical injury.
CAUTION
When installing:
 Do not install where flammable gas leaks can occur.
(Could cause fire.)
 Grip the connector when disconnecting the wire harness assembly from the outlet.
(Otherwise fire or electric shock can occur.)
 Do not use where small children can get access.
(Could cause injuries.)
When using:
 Do not use this product near a microwave oven.
(This can affect wireless LAN communications.)
Safety precautions
Safety precautions

5
[Sticker attachment area]
Attachthe SSID&KEY sticker of wireless LAN connecting
adapterto the sticker attachment area and keep safe.
C
[Stickerattachment area]
Attachthe SSID&KEY sticker of wireless LAN connecting
adapterto the sticker attachment area and keep safe.
CC

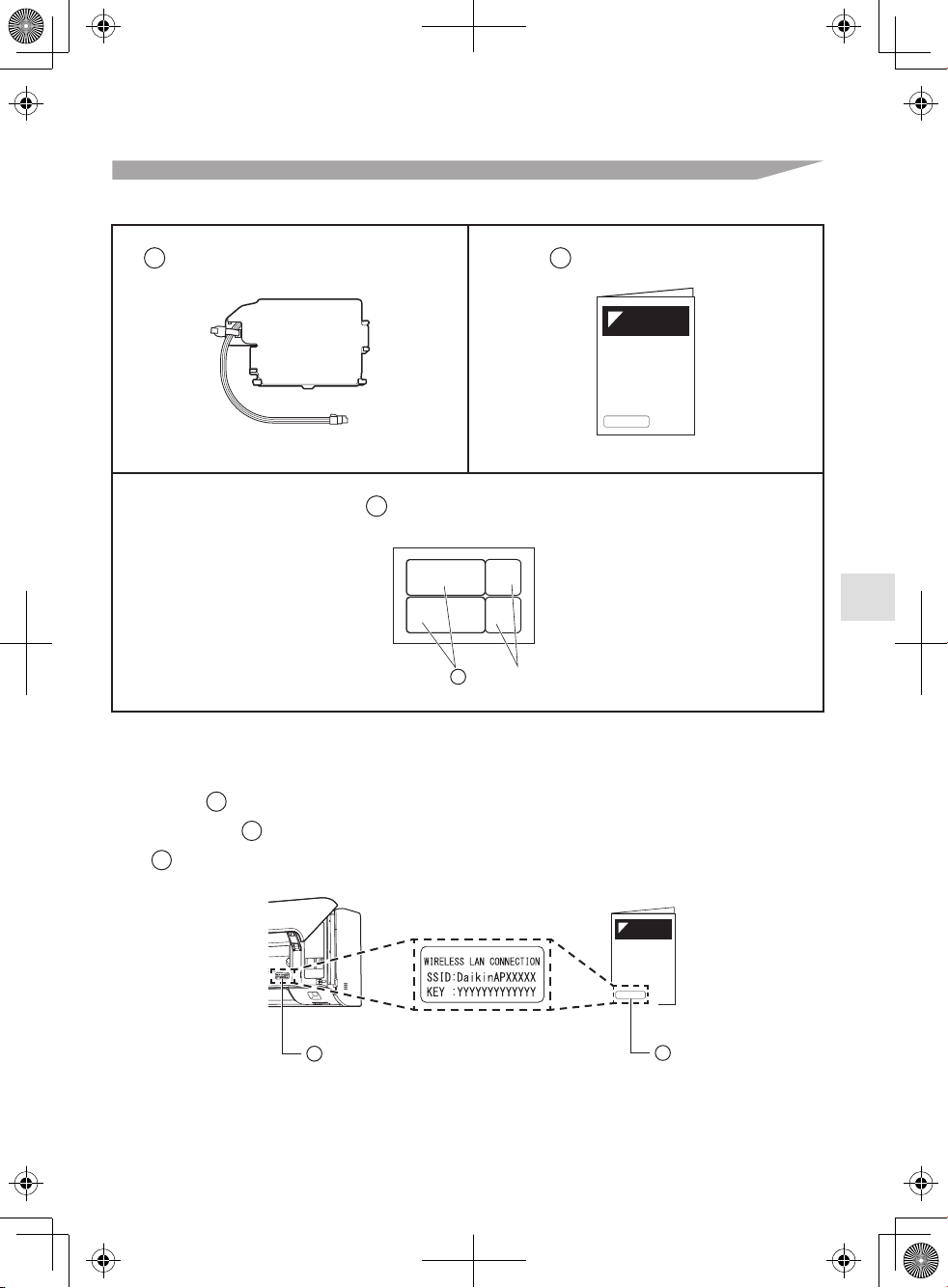

Check if the following accessories are included in your package.
Installation manual: 1 pc.
SSID & KEY sticker: 2 pcs.
Accessories
Accessories
Wireless LAN connecting adapter: 1 pc.A B
C
*1 The QR codes are not necessary for wireless connection settings.
The [SSID] and [KEY] shown on the SSID & KEY sticker are necessary when connecting the
air conditioner to a smartphone via wireless LAN.
• Attach one SSID & KEY sticker to the right of the front grille. (refer to Fig. 1)
• Attach the other SSID & KEY sticker to the sticker attachment area on the cover page of
the installation manual. (refer to Fig. 2)
C
C
B
Fig. 1 Fig. 2
*1

6
Main components
Main components
Wireless LAN connecting adapter
Basic parameters:
Frequency range:
Radio protocol:
RF channel:
Power supply:
2412 MHz–2462 MHz
IEEE 802.11b/g/n (2.4GHz)
1–13
DC 14 V / 70 mA
RF channel: Radio frequency channel
Applicable indoor units
For the latest details about installation of wireless LAN connecting adapter
and applicable units, visit
Wireless LAN connecting adapter
(the product is inside the indoor unit)
A
Wireless LAN print circuit board box
Wireless LAN connecting adapter
printed circuit board
Wireless LAN print circuit board
cover
Wire harness
(Supplied with the wireless LAN connecting adapter)
A
Installation type
http://www.daikinthai.com/product/dmobile

7

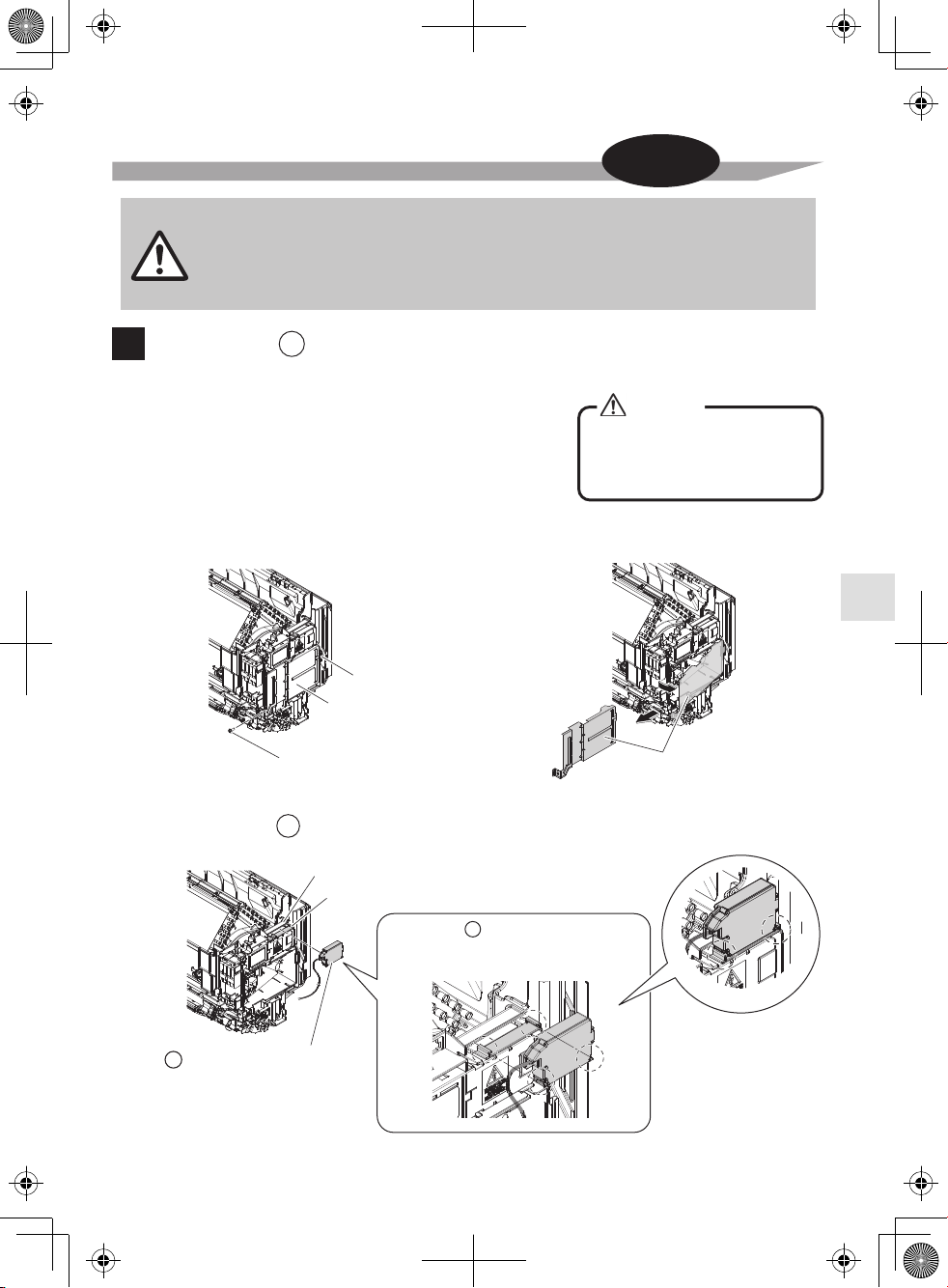

Installation
Work
Installation
Installation
Attach the wireless LAN connecting adapter to indoor unit.
Always turn off the power supply when installing.
(Touching the electrical parts could cause an electric shock.)
WARNING
1
Always turn off the power supply
when installing.
(Touching the electrical parts could
cause an electric shock.)
DANGER
• For instructions on how to remove the front grille,
see the installation manual of the particular
air conditioner.
1. Remove the front grille of the indoor unit.
2. Remove electrical wiring cover.
A
3. Install the wireless LAN connecting adapter inside of the indoor unit.
A
Attach the wireless LAN
connecting adapter to the hook lock of
the electrical wiring box. (refer Fig. 3)
A
Fig. 3
Hook
Hook lock
Electrical wiring cover
Electrical wiring box
Electrical wiring cover fixing screw Electrical wiring cover
Wireless LAN connecting
adapter
A

8
Installation
Installation
Installation
Work
Connect the end of
the connector without
the wire harness anchor.
Connector

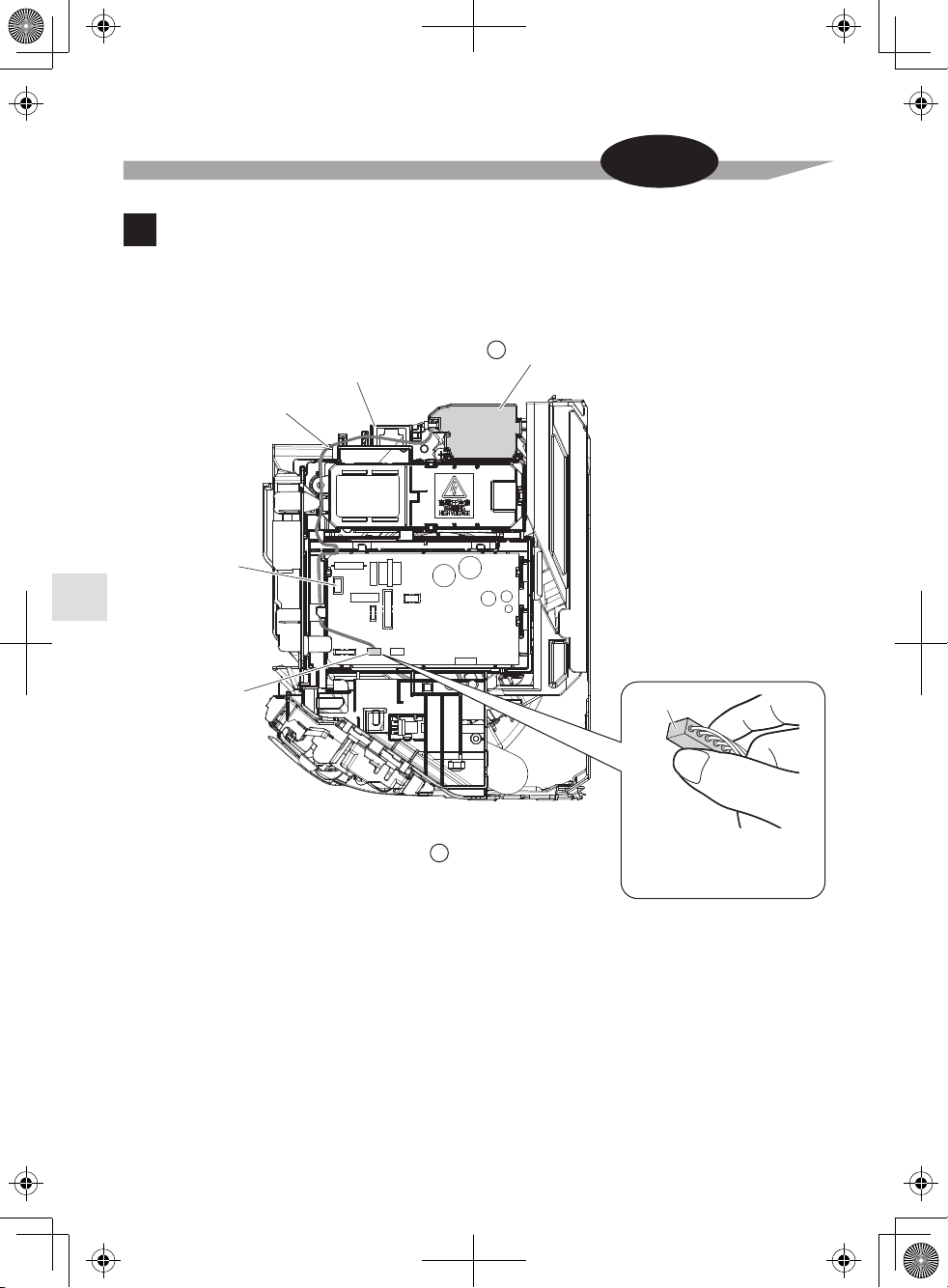

How to perform wiring on the electrical wiring board. 2
Electrical wiring
Electrical wiring box
Electrical wiring
board
Connector “S430”
Wireless LAN connecting adapter
• For instructions on how to install the electrical wiring box cover and front grille,
see the installation manual of the particular air conditioner.
1. Secure and guide the wiring in the electrical wiring box as shown in the figure.
2. Install the electrical wiring box cover and front grille in their original positions.
*An electrical wiring is supplied with the wireless LAN
connecting adapter.
A
A

9
 Smartphone or tablet (Supported OS versions: Android 4.1.2 or higher; iOS 10.0 or higher.
For the latest compatibility information, refer to the web site at
)
 Internet line and communicating device (Modem/router or similar device)
 Wireless LAN access point
 Application name: [DAIKIN Mobile Controller] (free)
(application version 4.0 or higher is needed to control this product)
For details on the installation method for the DAIKIN Mobile Controller application,
please see below.
 Remote Controller
Configuration
Configuration
Wireless Connection
Setting Section
• The user is responsible for providing the following items before using this product:
Installation method for the DAIKIN Mobile Controller application
For Android Phones
(1) Open the [Google Play].
(2) Search using the application name:
[DAIKIN Mobile Controller].
(3) Follow the directions on the screen to install.
For iPhones
(1) Open the [App Store].
(2) Search using the application name:
[DAIKIN Mobile Controller].
(3) Follow the directions on the screen to install.
http://www.daikinthai.com/product/dmobile/compatible

10
• The wireless LAN connecting adapter is ready
to connect.
• The wireless LAN connecting adapter is disabled.
• Malfunction in communication between the indoor
unit and the wireless LAN connecting adapter.
Please refer to the troubleshooting guide or
contact the store where you bought
the air conditioner to request a repair service.
• The wireless LAN connecting adapter is
connected to a modem/router.
Wireless LAN connecting adapter lamp
Blinks for one second
No blinking/no light
Lamp stays lit
Status
Configuration
Configuration
Wireless Connection
Setting Section
• Turn off the air conditioner before setting up wireless connection.
Turn on the main power supply
Prior to setting up, please make sure your device is ready to connect. You may refer to the indoor unit
LED table for guidance.
Check the indoor unit LED.
Functionality Check
While operation is stopped, press the POWERFUL button
and hold the button for 5 seconds.
Press the TEMP button and select SP menu .
Press the POWERFUL button to confirm the selected setting.
• The wireless LAN connecting adapter lamp (orange) blinks for one second.
Press the CANCEL button to return to the default screen.
1
2
3
4

11
WPS SETUP
Wi-Fi PROTECTED
Configuration
Configuration
Wireless Connection
Setting Section
Setting
Enabling/disabling the wireless LAN connecting adapter
Turn off the air conditioner before setting up wireless connection.
While operation is stopped, press the POWERFUL button and
hold the button for 5 seconds.
Press the TEMP button and select SP menu .
Press the POWERFUL button to confirm the selected setting.
• The wireless LAN connecting adapter lamp (orange) blinks for one second.
Press the CANCEL button to return to the default screen.
Turn off the air conditioner before setting up wireless connection.
While operation is stopped, press the POWERFUL button and
hold the button for 5 seconds.
Press the TEMP button and select SP menu .
Press and hold the POWERFUL button for 2 seconds to
confirm the selected setting.
• The wireless LAN connecting adapter lamp (orange) goes off.
Press the CANCEL button to return to the default screen.
• The wireless LAN connecting adapter will communicate with
the smart devices in your home network via a modem, router,
or a similar device.
There are two options for connecting the wireless LAN connecting adapter
to your smart phone or tablet:
http://www.daikinthai.com/product/dmobile
For more information and Frequently Asked Questions, please refer to:
1) Simple connection (WPS connection), if there is a WPS button
on the router, .
2) Access point connection (AP connection), if there is no WPS button
on the router, .
Page 12
Page 13
Connect the wireless LAN connecting adapter to your home network.


To enable

To disable
1
2
3
4
5
1
2
3
4
5

12
Turn off the air conditioner before setting up wireless connection.
While operation is stopped, press the POWERFUL button
and hold the button for 5 seconds.
Press the TEMP button and select SP menu .
Press the POWERFUL button to confirm the selected setting.
• The wireless LAN connecting adapter lamp (orange) blinks more quickly.
Press the WPS button on your communication device
(e.g. router) within approximately one minute. Please refer to
the manual of your communication device.
• The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.
Press the CANCEL button to return to the default screen.
Connect your smart phone to your home network.
Open the Home screen of the DAIKIN Mobile Controller
application. The air conditioner will be listed there (Fig. 4).
To connect the wireless LAN connecting adapter to your home network
Configuration
Configuration
Wireless Connection
Setting Section
Fig. 4
NOTE
The wireless LAN connecting adapter can be connected to your home network by means of:
• Simple connection (WPS connection), if there is a WPS button on the router.
• Access point connection (AP connection), if there is no WPS button on the router.
If there is a WPS button on your Wi-Fi router, please follow the below steps.
Simple connection (WPS connection)
Note on simple connection (WPS connection)
• If you fail to connect (the wireless LAN connecting adapter lamp continues to blink), repeat steps 1-6.
Alternatively, try connecting via your device directly. Please refer to “Access point connection (AP connection)”.
Page 13
1
2
3
4
5
6
7
8

13
Configuration
Configuration
Wireless Connection
Setting Section
1
1
2
2
3
3
4
4
Connect the wireless LAN connecting adapter to a smart phone or tablet.
View available Wi-Fi networks on your smart phone or tablet and connect to the SSID (DaikinAP*****) printed
out on the sticker. The SSID & KEY stickers are included in your package, as shown in the image below.
Open the DAIKIN Mobile Controller application and select
“Configure the wireless connection” (Fig. 5) and connect to
your home network as per the on-screen instructions.
• The wireless LAN connecting adapter lamp (orange) stays lit.
If you fail to connect, refer to NOTE.
Connect your smart phone to your home network.
Open the Home screen of the DAIKIN
Mobile Controller application.
The air conditioner will be listed there.
Reset connection setting to factory defaults.
When the device is reset, out-of-home user account and wireless LAN connection setting will be changed back to the factory defaults.
Fig. 5
SSID & KEY sticker
Please note
If your home Wi-Fi router does not have a WPS button, you can connect your smart phone directly to the
wireless LAN connecting adapter in order to set up a connection to your home network by following these steps.
− This step requires the SSID & KEY stickers (included in your package).
Access point connection (AP connection).
Note on access point connection (AP connection)
• If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-2.
While operation is stopped, press the POWERFUL button
and hold the button for 5 seconds.
Press the TEMP button and select SP menu .
Press and hold the POWERFUL button for 2 seconds to confirm the selected setting.
• The wireless LAN connecting adapter lamp (orange) blinks for one second.
Press the CANCEL button to return to the default screen.

To reset
NOTE
C
C

14
Troubleshooting
Troubleshooting
The following table provides brief descriptions of how to handle trouble or uncertainties
when you install the wireless LAN connecting adapter or make connection settings.
Refer to the FAQ on our website for more details.
Wireless LAN connection
When this happens
The device (air conditioner)
cannot be found on the device
list screen.
Even if the wireless LAN
connecting adapter lamp is lit,
operation from outside the home
is not possible.
The wireless LAN connecting
adapter lamp does not blink
or light.
None of the above work.
Explanation and where to check
• Carry out connection setting again.
• Move the router (wireless LAN access point) close
to the indoor unit.
• There is a possibility that you are using an
unsupported smart phone or router
(wireless LAN access point).
For details, refer to the web site.
• Communication between the router and the internet
connection may not be working.
Please confirm.
• The wireless LAN connecting adapter is disabled.
• Malfunction in communication between the indoor
unit and the wireless LAN connecting adapter.
• There may be a problem with your device.
Please contact the store where you bought
the air conditioner to request a repair service.
• Refer to the FAQ on:
http://www.daikinthai.com/product/dmobile
For instructions about how to operate the DAIKIN
Mobile Controller application, please refer to
the operation manual at
http://www.daikinthai.com/product/dmobile

1
สารบัญ
ขอควรระวังเพื่อความปลอดภัย 2
อุปกรณ 5
สวนประกอบหลัก 6
การติดตั้ง 7
การกำหนดคา 9
การแกไขปญหาเบื้องตน 14
เว็บไซต: http://www.daikinthai.com/product/dmobile
• สำหรับรายละเอียดเกี่ยวกับขอมูลจำเพาะ วิธีการตั้งคา คำถามที่พบบอย และเวอรชันลาสุด
ของคูมือฉบับนี้ ใหดูที่หนาเว็บไซตของเรา

2
การปองกันอุปกรณเครื่องใชที่มีเครื่องหมายสัญลักษณนี้กำกับไวจะมีการรับรองดวยฉนวนสองชั้น
และไมตองมีการเชื่อมตอสายดิน (กราวด) เพื่อความปลอดภัย
เมื่อทำการติดตั้ง:
เหตุการณที่อาจกอใหเกิดการเสียชีวิตหรือการบาดเจ็บสาหัส
คำเตือน
• ดานลางนี้อธิบายถึงความหมายของสัญลักษณภาพที่ใชในคูมือการติดตั้งฉบับนี้
• ในการทดสอบการใชงานเครื่องปรับอากาศนั้น จะตองปฏิบัติตามคูมือการติดตั้งเครื่องปรับอากาศ
เมื่อทำการติดตั้งเสร็จแลว ใหลูกคาเก็บคูมือการติดตั้งฉบับนี้ไว
หามทำ ปฏิบัติตามคำแนะนำ
ขอควรระวังเพื่อความปลอดภัย
ขอควรระวังเพื่อความปลอดภัย
 แจงผูจัดจำหนายหรือเจาหนาที่เทคนิคใหทำการติดตั้ง
(อาจกอใหเกิดไฟฟาช็อตหรืออัคคีภัยได)
 ใชอุปกรณและชิ้นสวนที่กำหนดใหสำหรับการติดตั้งเสมอ ปฏิบัติตามคำแนะนำในคูมือการติดตั้ง
ฉบับนี้อยางเครงครัด
(อาจทำใหตัวเครื่องตกหลน เกิดไฟฟาช็อตหรืออัคคีภัยได)
 งานไฟฟาตองดำเนินการใหสอดคลองกับกฎระเบียบขอบังคับระดับทองถิ่นและ
ระดับประเทศที่เกี่ยวของ รวมทั้งคำแนะนำในคูมือการติดตั้งฉบับนี้
ตองแนใจวาใชวงจรจายไฟโดยเฉพาะเทานั้น
(อาจกอใหเกิดไฟฟาช็อตหรืออัคคีภัยได)
 ปดแหลงจายไฟเสมอเมื่อทำการติดตั้ง
(การสัมผัสกับชิ้นสวนอุปกรณไฟฟาอาจทำใหเกิดไฟฟาช็อตได)
โปรดปดสวิตชตัวหลักเพื่อปดแหลงจายไฟ

3
เหตุการณที่อาจกอใหเกิดการเสียชีวิตหรือการบาดเจ็บสาหัส
คำเตือน
เมื่อใชงาน:
 หามแกะ ดัดแปลง หรือซอมแซมชิ้นสวน
(อาจกอใหเกิดอัคคีภัย ไฟฟาช็อต หรือการบาดเจ็บได)
 หามจับผลิตภัณฑนี้ขณะมือเปยก
(อาจกอใหเกิดไฟฟาช็อตหรืออัคคีภัยได)
 หามใหผลิตภัณฑนี้โดนน้ำ หรือใชงานระหวางการอาบน้ำ หรือระหวางทำกิจกรรมที่ตองใชน้ำ
(อาจกอใหเกิดไฟฟาช็อตหรืออัคคีภัยได)
 หามใชผลิตภัณฑนี้ใกลกับอุปกรณทางการแพทยหรือใกลกับบุคคลที่ใสเครื่องกระตุนการเตนของหัวใจ
หรือเครื่องกระตุกหัวใจ ผลิตภัณฑนี้อาจกอใหเกิดการรบกวนทางแมเหล็กไฟฟาที่เปนอันตรายตอชีวิตได
 หามใชผลิตภัณฑนี้ใกลกับอุปกรณที่มีการควบคุมโดยอัตโนมัติ เชน ประตูอัตโนมัติ
หรืออุปกรณเตือนอัคคีภัย
(อาจกอใหเกิดอุบัติเหตุเนื่องจากลักษณะการทำงานของอุปกรณที่ผิดพลาด)
 ปดเซอรกิตเบรกเกอรทันทีหากมีกลิ่นหรือเสียงที่ผิดปกติ เมื่อเครื่องทำงานรอนเกินไป หรือมีควันขึ้น
(อาจกอใหเกิดอัคคีภัยหรือการทำงานที่ผิดปกติได)
• แจงผูจัดจำหนายของคุณใหมาทำการตรวจสอบ
 ปดเซอรกิตเบรกเกอรหากผลิตภัณฑนี้ตก หรือกลองไดรับความเสียหาย
(อาจกอใหเกิดอัคคีภัยหรือไฟฟาช็อตได)
• แจงผูจัดจำหนายของคุณใหมาทำการตรวจสอบ
ขอควรระวังเพื่อความปลอดภัย
ขอควรระวังเพื่อความปลอดภัย

4
เมื่อทำการติดตั้ง:
 หามติดตั้งในสถานที่ที่อาจมีการรั่วไหลของกาซไวไฟ
(อาจกอใหเกิดอัคคีภัยได)
 จับที่ตัวเชื่อมตอใหแนนเมื่อทำการถอดชุดสายไฟออกจากเตารับ
(มิฉะนั้นอาจเกิดอัคคีภัยหรือไฟฟาช็อตได)
 หามใชงานในสถานที่ที่เด็กเล็กสามารถเขาถึงได
(อาจกอใหเกิดการบาดเจ็บได)
เมื่อใชงาน:
 หามใชผลิตภัณฑนี้ใกลเตาไมโครเวฟ
(อาจสงผลกระทบตอการเชื่อมตอระบบ LAN ไรสายได)
ขอควรระวังเพื่อความปลอดภัย
ขอควรระวังเพื่อความปลอดภัย
เหตุการณที่อาจกอใหเกิดความเสียหายหรือการบาดเจ็บทางรางกาย
ขอควรระวัง
