Daikin BRP069C41 User manual

Installation manual
Wireless LAN connecting adapter BRP069C41 English
Installation manual
Wireless LAN connecting
adapter BRP069C41
BRP069C51
BRP069C81
BRP069C82
BRP069C41

Table of contents
Installation manual
2
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
Table of contents
1 About this document 3
2 Specific installer safety instructions 4
3 About the adapter 6
3.1 Components....................................................................................... 6
3.2 Basic parameters ............................................................................... 6
3.3 Compatibility ...................................................................................... 7
4 About the box 7
4.1 To unpack the adapter ....................................................................... 7
5 Installation 8
5.1 Precautions when installing the adapter ............................................ 8
5.2 Preparing the installation site............................................................. 8
5.2.1 Installation site requirements .................................................. 8
5.3 Connecting the electrical wiring ......................................................... 8
5.3.1 Overview of electrical connections.......................................... 9
5.3.2 To connect the adapter with the unit....................................... 10
5.4 Closing the adapter............................................................................ 11
5.4.1 To close the adapter ............................................................... 11
5.5 Mounting the adapter ......................................................................... 12
5.5.1 To mount the adapter.............................................................. 12
6 Starting up the system 13
7 Configuration 14
7.1 To install the ONECTA app................................................................ 14
7.2 To configure the adapter.................................................................... 14
8 Hand-over to the user 14

1 About this document
Installation manual
3
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
1 About this document
Target audience
Authorised installers
Documentation set
This document is part of a documentation set. The complete set
consists of:
▪General safety precautions:
▪ Safety instructions that you must read before installing
▪ Format: Paper (in the box of the indoor unit)
▪Installation manual:
▪ Installation instructions
▪ Format: Paper (supplied in the kit)
▪Installer reference guide:
▪ Installation instructions, configuration, application guidelines,…
▪ Format: Digital files on https://www.daikin.eu. Use the search
function to find your model.
▪Declaration of conformity:
INFORMATION: Declaration of conformity
Hereby, Daikin Industries Czech Republic s.r.o. declares that
the radio equipment type BRP069C41 is in compliance with
the Directive 2014/53/EU and S.I. 2017/1206: Radio
Equipment Regulations 2017. The original declaration of
conformity is available on https://www.daikin.eu. Use the
search function to find the declaration of conformity of your
unit.

2 Specific installer safety instructions
Installation manual
4
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
INFORMATION
For details on specifications, setting methods, FAQ,
troubleshooting tips and the latest version of this manual, visit
app.daikineurope.com.
Latest revisions of the supplied documentation may be available on the
regional Daikin website or via your dealer.
The original documentation is written in English. All other languages are
translations.
2 Specific installer safety
instructions
Always observe the following safety instructions and regulations.
Installation (see "5 Installation" [4 8])
DANGER: RISK OF ELECTROCUTION
▪ Turn off the power supply before installing the adapter.
▪ Do NOT handle the adapter with wet hands.
▪ Do NOT let the adapter get wet.
▪ Do NOT disassemble, modify or repair the adapter.
▪ Grip the connector when disconnecting the connection
cable.
▪ Turn OFF the power supply in case the adapter gets
damaged.
DANGER: RISK OF ELECTROCUTION
Do NOT turn on the power supply before you have connected
the electrical wiring, closed the adapter, and mounted it to the
indoor unit.

2 Specific installer safety instructions
Installation manual
5
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
Hand over to the user (see "8 Hand-over to the user" [4 14])
DANGER
▪ Do NOT disassemble, modify, or repair the adapter. This
can cause fire, electrical shock, or injury.
▪ Do NOT allow the adapter to get wet or use it when bathing
or doing similar activities with water. This can cause
electrical shock or fire.
▪ Do NOT use the adapter near medical equipment, or
persons using cardiac pacemakers or defibrillators. This
can cause life-threatening electromagnetic interference.
▪ Do NOT use the adapter near auto-control equipment such
as automatic doors or fire alarm equipment. This can cause
accidents due to erroneous equipment behaviour.
▪ In case of abnormal odour or sound, overheating, or smoke
coming out of the adapter, immediately disconnect the
indoor unit from its power supply. Otherwise, this can lead
to fire or malfunction. If this happens, consult your dealer.
▪ In case you drop or damage the adapter, disconnect the
indoor unit from its power supply. Otherwise, this can lead
to fire or malfunction. If this happens, consult your dealer.

3 About the adapter
Installation manual
6
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
3 About the adapter
Wireless LAN adapter to connect the heat pump system to the Daikin
Cloud via the internet, allowing for control of the heat pump system with
the ONECTA app.
INFORMATION
For option model names BRP069C51, BRP069C81 and
BRP069C82, wireless LAN adapter inside is BRP069C41.
3.1 Components
a
b
c
d
e
aRUN lamp (orange). Lights when connecting to a router (wireless LAN
access point).
bAP lamp
cSETUP button. Use when connecting to a router (wireless LAN access
point).
dMODE button
ePOWER button. Turns the WLAN adapter ON/OFF when pressed.
3.2 Basic parameters
Parameter Value
Frequency range 2400MHz~2483.5MHz
Radio protocol IEEE 802.11b/g/n
Radio frequency channel 13ch
Output power 13dBm
Effective radiated power 15dBm (11b) / 14dBm (11g) /
14dBm (11n)
Power supply DC 14V/ 16V / 100mA

4 About the box
Installation manual
7
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
3.3 Compatibility
Make sure the indoor unit is compatible for use with the adapter. For the
latest details about installation of the adapter and applicable units, visit
app.daikineurope.com.
4 About the box
4.1 To unpack the adapter
1Open the box.
2Take out the adapter BRP069C41 from the option kit box
(BRP069C51, BRP069C81 or BRP069C82).
BRP069C51
BRP069C81
BRP069C82
BRP069C41 BRP069C41 BRP069C41
3Separate the accessories.
ca d b i1e f g h i2 i3
aAdapter BRP069C41
bScrews (M3×8) for the adapter
cAdapter holder with double face tape
dInstallation manual
eSerial number sticker (SSID, KEY, MAC)
fMounting screws for the holder (M3×16)
gCable tie holder
hCable tie
i1 For BRP069C51: connection cable to X801A
i2 For BRP069C81: connection cable to X35A + X50A (type 1)
i3 For BRP069C82: connection cable to X35A + X50A (type 2)

5 Installation
Installation manual
8
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
5 Installation
5.1 Precautions when installing the
adapter
DANGER: RISK OF ELECTROCUTION
▪ Turn off the power supply before installing the adapter.
▪ Do NOT handle the adapter with wet hands.
▪ Do NOT let the adapter get wet.
▪ Do NOT disassemble, modify or repair the adapter.
▪ Grip the connector when disconnecting the connection
cable.
▪ Turn OFF the power supply in case the adapter gets
damaged.
5.2 Preparing the installation site
5.2.1 Installation site requirements
The adapter is designed to be mounted to the indoor unit, in dry, indoor
locations only.
5.3 Connecting the electrical wiring
DANGER: RISK OF ELECTROCUTION
Do NOT turn on the power supply before you have connected
the electrical wiring, closed the adapter, and mounted it to the
indoor unit.

5 Installation
Installation manual
9
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
5.3.1 Overview of electrical connections
X801A
h
g
c
b1 b2
b3
a
X50A
X35A
h
g
e
d
a
BRP069C51 BRP069C81
X50A
X35A
h
g
e
f
a
BRP069C82
aWireless LAN adapter BRP069C41
b1 BRP069C51 connection cable
b2 BRP069C81 connection cable
b3 BRP069C82 connection cable
cPCB port X801A
dPCB port X50A (type 1)
ePCB port X35A
fPCB port X50A (type 2)
gIndoor unit PCB
hIndoor unit

5 Installation
Installation manual
10
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
5.3.2 To connect the adapter with the unit
1Separate the upper casing from the lower casing.
a
c
b
aUpper casing
bAdapter PCB
cLower casing
2Connect the indoor unit side connector to the indoor unit PCB port.
▪ BRP069C51: PCB port X801A
▪ BRP069C81 and BRP069C82: X35A and X50A
3Connect the adapter side connector to the adapter.
Connection cable for BRP069C51:
ab
aIndoor unit side connector X801A
bAdapter side connector
Connection cable for BRP069C81:
a
b
c
aIndoor unit side connector X35A
bIndoor unit side connector X50A (type 1)
cAdapter side connector
Connection cable for BRP069C82:
a
b
c
aIndoor unit side connector X35A
bIndoor unit side connector X50A (type 2)
cAdapter side connector

5 Installation
Installation manual
11
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
4Fasten the cable and ensure strain relief.
a
aConnector
NOTICE
ALWAYS connect a wired or wireless remote controller
(Example: BRC1H, BRC7), otherwise the online controller will
NOT operate.
INFORMATION
Provide strain relief at indoor unit side by using the cable tie
and cable tie mounting that are included as accessory.
5.4 Closing the adapter
5.4.1 To close the adapter
1Hook the front casing into the rear casing.
2Insert the two screws from the accessory bag.
2×

5 Installation
Installation manual
12
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04

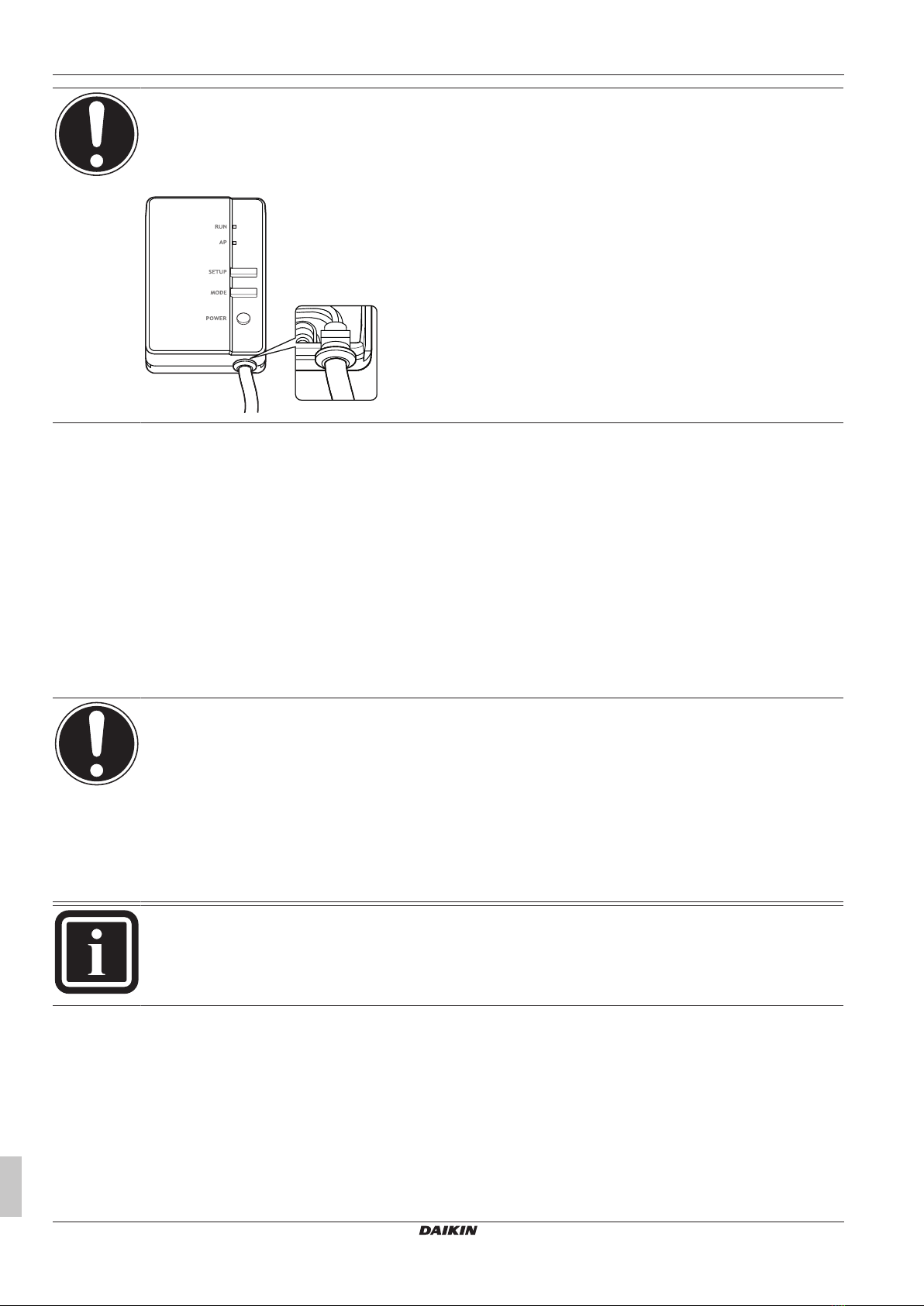

NOTICE
After closing the adapter, check that the connection cable is
securely fastened.
5.5 Mounting the adapter
Use the adapter holder (accessory) to mount the adapter. There are 2
ways of mounting the adapter holder:
▪ Fixing the adapter holder to the surface using screws.
▪ Fixing the adapter holder to the surface using double face tape.

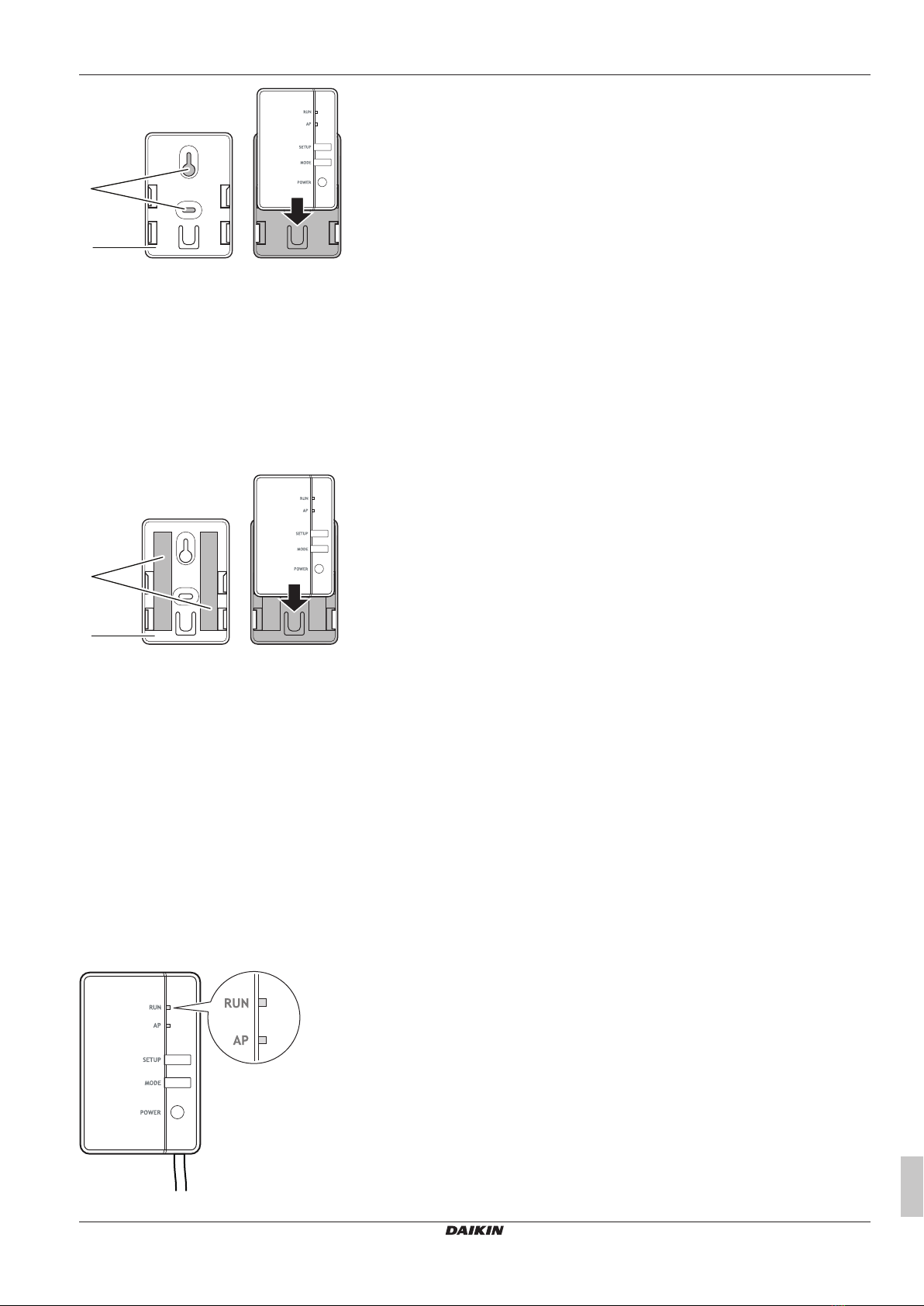

5.5.1 To mount the adapter
NOTICE
▪ If using double face tape for mounting, make sure that the
part of the surface to which you mount the holder is clean
and degreased.
▪ Make sure to mount the holder to the surface firmly, so that
it can bear the weight of the adapter.
INFORMATION
The exact location of the holder depends on the type of indoor
unit. For more information, visit app.daikineurope.com.
When using screws
1Fix the adapter holder on the wall/surface with 2 screws M3×16
(accessory).
2Slide the adapter into the holder.

6 Starting up the system
Installation manual
13
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
a
b
aScrew locations
bAdapter holder
When using double side tape
3Attach the double-sided tape to the adapter holder.
4With the tape, mount the holder to the surface.
5Slide the adapter into the holder.
a
b
aTape
bAdapter holder
6 Starting up the system
The adapter gets its power from the indoor unit. For the adapter to
function, make sure it is connected to the indoor unit, and the indoor
unit is powered on.
Turn on the power supply and check that the RUN lamp of the product
blinks.

7 Configuration
Installation manual
14
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
7 Configuration
The customer is responsible for providing:
▪ Smartphone or tablet with minimum supported version of Android or
iOS, specified on app.daikineurope.com.
▪ Internet line and communication device, such as a modem, router,
etc.
▪ Wireless LAN access point
▪ Installed free ONECTA application.
7.1 To install the ONECTA app
1Open:
▪ Google Play for appliances using Android.
▪ App Store for appliances using iOS.
2Search for “ONECTA”.
3Follow the directions on the screen to install.
7.2 To configure the adapter
Open the ONECTA application on your smartphone or tablet PC and
follow the in-app instructions.
For this Wireless LAN adapter, WPS configurator is available, follow the
in-app instructions.
app.daikineurope.com
8 Hand-over to the user
After having installed and configured the adapter, hand over this
installation manual to the user and make him/her aware of the following
safety precautions.

8 Hand-over to the user
Installation manual
15
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04
DANGER
▪ Do NOT disassemble, modify, or repair the adapter. This
can cause fire, electrical shock, or injury.
▪ Do NOT allow the adapter to get wet or use it when bathing
or doing similar activities with water. This can cause
electrical shock or fire.
▪ Do NOT use the adapter near medical equipment, or
persons using cardiac pacemakers or defibrillators. This
can cause life-threatening electromagnetic interference.
▪ Do NOT use the adapter near auto-control equipment such
as automatic doors or fire alarm equipment. This can cause
accidents due to erroneous equipment behaviour.
▪ In case of abnormal odour or sound, overheating, or smoke
coming out of the adapter, immediately disconnect the
indoor unit from its power supply. Otherwise, this can lead
to fire or malfunction. If this happens, consult your dealer.
▪ In case you drop or damage the adapter, disconnect the
indoor unit from its power supply. Otherwise, this can lead
to fire or malfunction. If this happens, consult your dealer.
NOTICE
Do not use the adapter near microwave ovens. This can affect
wireless LAN communications.

4P567679-2H 2022.04
Copyright 2020 Daikin
Verantwortung für Energie und Umwelt
