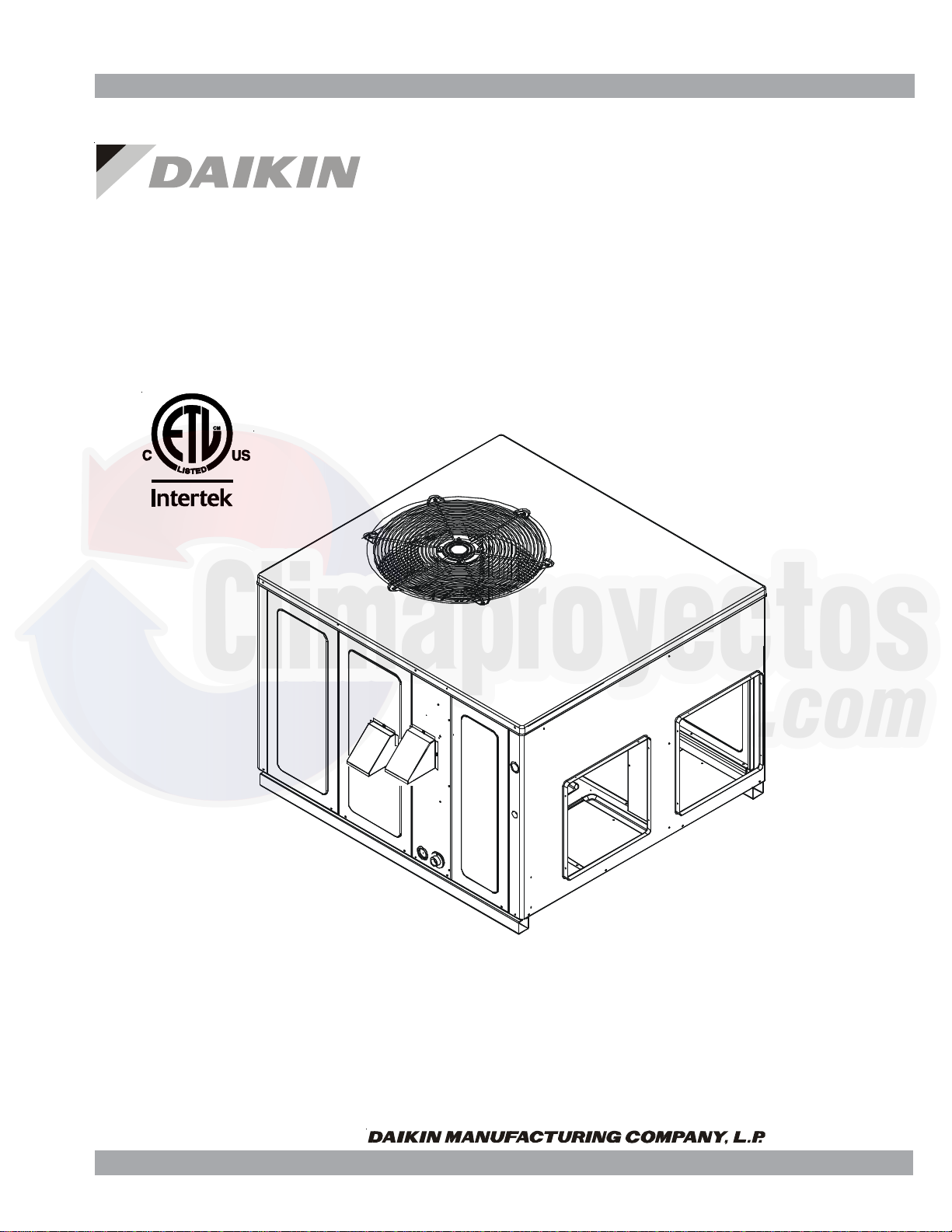

Daikin DP 14 Operating instructions

RSD6300012r5
July 2017
This Forced Air Central Unit Design
Complies with Requirements
Embodied in The American National
Standard / National Standard of Canada
shown here.
ANSI Z21.47•CSA-2.3 Central
Furnaces
Service Instructions
DP 14 SEER
Gas Electric Package Units
with R-410A Refrigerant
& Accessories
This manual is to be used by qualified, professionally trained HVAC technicians only. Daikin does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.
Copyright © 2014-2017

CONSUMERINFORMATION LINE - DAIKIN BRANDPRODUCTS
TOLLFREE 1-855-770-5678 (U.S. only)
emailus at:[email protected]
faxus at: [phone]
(Not a technical assistance line for dealers.)
Outside the U.S., call 1-713-861-2500
(Not a technical assistance line for dealers.)
Your telephone company will bill you for the call.
IMPORTANT INFORMATION
Prideandworkmanshipgointoeveryproducttoprovide our customerswithqualityproducts. Itispossible,however,
thatduringitslifetimeaproductmayrequireservice. Productsshouldbeservicedonlybyaqualifiedservicetechnician
whoisfamiliarwiththesafetyproceduresrequiredintherepairandwhoisequippedwiththeproper tools,parts,testing
instruments and the appropriate service manual. REVIEW ALL SERVICE INFORMATION IN THE APPROPRIATE
SERVICEMANUALBEFOREBEGINNINGREPAIRS.
IMPORTANT NOTICES FOR CONSUMERS AND SERVICERS
RECOGNIZESAFETYSYMBOLS,WORDSANDLABELS
TABLE OF CONTENTS
2
WARNING
Do not store combustible materials or use gasoline
or other flammable liquids or vapors in the vicinity
of this appliance as property damage or personal
injury could occur. Have your contractor point out
and identify the various cut-off devices, switches,
etc., that serves your comfort equipment.
HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power sources
may be present. Failure to do so may cause property damage, personal injury or death.
IMPORTANTINFORMATION .........................2 - 3
PRODUCTIONIDENTIFICATION ..................4 - 5
ACCESSORIES...........................................6 - 14
PRODUCT DESIGN ..................................15 - 20
SYSTEMOPERATION ..............................21 - 28
SCHEDULEDMAINTENANCE ..................29 - 31
TROUBLESHOOTING CHARTS ...............32 - 33
SERVICING TABLE OF CONTENTS ............... 34
SERVICING ................................................35 - 60
ACCESSORIESWIRINGDIAGRAM................. 61
WIRINGDIAGRAMS ..................................62 - 72
To locate an authorized servicer, please consult your telephone book or the dealer from whom you purchased this
product. For further assistance, please contact:
O
NLY PERSONNEL THAT HAVE BEEN TRAINED TO INSTALL
,
ADJUST
,
SERVICE OR
REPAIR
(
HEREINAFTER
, “
SERVICE
”)
THE EQUIPMENT SPECIFIED IN THIS
MANUAL SHOULD SERVICE THE EQUIPMENT
. T
HE MANUFACTURER WILL NOT
BE RESPONSIBLE FOR ANY INJURY OR PROPERTY DAMAGE ARISING FROM
IMPROPER SERVICE OR SERVICE PROCEDURES
. I
F YOU SERVICE THIS UNIT
,
YOU
ASSUME RESPONSIBILITY FOR ANY INJURY OR PROPERTY DAMAGE WHICH MAY
RESULT
. I
N ADDITION
,
IN JURISDICTIONS THAT REQUIRE ONE OR MORE
LICENSES TO SERVICE THE EQUIPMENT SPECIFIED IN THIS MANUAL
,
ONLY
LICENSED PERSONNEL SHOULD SERVICE THE EQUIPMENT
. I
MPROPER
INSTALLATION
,
ADJUSTMENT
,
SERVICING OR REPAIR OF THE EQUIPMENT
SPECIFIED IN THIS MANUAL
,
OR ATTEMPTING TO INSTALL
,
ADJUST
,
SERVICE OR
REPAIR THE EQUIPMENT SPECIFIED IN THIS MANUAL WITHOUT PROPER
TRAINING MAY RESULT IN PRODUCT DAMAGE
,
PROPERTY DAMAGE
,
PERSONAL
INJURY OR DEATH
.

3
Thesuccessfuldevelopmentofhermeticallysealedrefrigera-
tion compressors has completely sealed the compressor's
moving parts and electric motor inside a common housing,
minimizing refrigerant leaks and the hazards sometimes
associated with moving belts, pulleys or couplings.
Fundamental to the design of hermetic compressors is a
method whereby electrical current is transmitted to the
compressormotorthroughterminalconductorswhichpass
through the compressor housing wall. These terminals are
sealedinadielectricmaterialwhichinsulatesthemfromthe
housing and maintains the pressure tight integrity of the
hermetic compressor. The terminals and their dielectric
embedmentare strongly constructed, but arevulnerable to
carelesscompressorinstallationormaintenanceprocedures
and equally vulnerable to internal electrical short circuits
caused by excessive system contaminants.
WARNING
To avoid possible injury, explosion or death, practice
safe handling of refrigerants.
SAFE REFRIGERANT HANDLING
Whilethese items will not cover every conceivablesituation, they should serve as a useful guide.
To avoid possible explosion:
• Never apply flame or steam to a refrigerant cylinder.
If you must heat a cylinder for faster charging,
partially immerse it in warm water.
• Never fill a cylinder more than 80% full of liquid
refrigerant.
• Never add anything other than R-22 to an R-22 cylinder
or R-410A to an R-410A cylinder. The service equipment
used must be listed or certified for the type of
refrigerant used.
• Store cylinders in a cool, dry place. Never use a
cylinder as a platform or a roller.
WARNING
To avoid possible explosion, use only returnable (not
disposable) service cylinders when removing refrig-
erant from a system.
• Ensure the cylinder is free of damage which could
lead to a leak or explosion.
• Ensure the hydrostatic test date does not exceed
5 years.
• Ensure the pressure rating meets or exceeds 400
lbs.
When in doubt, do not use cylinder.
WARNING
The compressor POE oil for R-410A units is
extremely susceptible to moisture absorption and
could cause compressor failure. Do not leave system
open to atmosphere any longer than necessary
for installation.
WARNING
Ineither of these instances, an electrical short between the
terminaland the compressorhousing may resultin the loss
of integrity between the terminal and its dielectric embed-
ment. This loss may cause the terminals to be expelled,
thereby venting the vaporous and liquid contents of the
compressor housing and system.
Aventingcompressorterminalnormallypresentsnodanger
toanyone,providingtheterminalprotectivecoverisproperly
in place.
If, however, the terminal protective cover is not properly in
place,aventing terminalmay dischargeacombination of
(a) hotlubricatingoilandrefrigerant
(b) flammable mixture (if system is contaminated
withair)
inastreamofspraywhichmaybedangeroustoanyoneinthe
vicinity. Death or serious bodily injury could occur.
Under no circumstances is a hermetic compressor to be
electrically energized and/or operated without having the
terminalprotectivecoverproperlyinplace.
SeeServiceSectionS-17forproperservicing.
IMPORTANT INFORMATION
Refrigerants are heavier than air. They can "push out"
the oxygen in your lungs or in any enclosed space.To
avoid possible difficulty in breathing or death:
• Never purge refrigerant into an enclosed room or
space. By law, all refrigerants must be reclaimed.
• If an indoor leak is suspected, thoroughly ventilate
the area beforebeginning work.
• Liquid refrigerant can be very cold. To avoid possible
frostbite or blindness, avoid contact with refrigerant
and wear gloves and goggles. If liquid refrigerant
does contact your skin or eyes, seek medical help
immediately.
• Always follow EPA regulations. Never burn refrig-
erant, as poisonous gas will be produced.
WARNING
WARNING
System contaminants, improper service procedure
and/or physical abuse affecting hermetic compressor
electrical terminals may cause dangerous system
venting.

PRODUCT IDENTIFICATION
4
Themodelnumberisusedforpositiveidentificationofcomponentpartsusedinmanufacturing. Pleaseusethisnumberwhen
requestingserviceorpartsinformation.
D P 14 G M 24 060 4 1 A A
Brand Engineering
D - Daikin Minor revision
Product Type Engineering
P - Packaged Major revision
SEER Voltage
14 SEER 1 - 208/230 V single phase 60 Hz
2 - 220/240 V single phase 50 Hz
Unit Type 3 - 208/230 V three phase 60 Hz
G - Gas/Electric 4 - 460 V three phase 60 Hz
D - Dual Fuel 5 - 380/415 V three phase 50 Hz
Configuration Refrigerant
M- Multi-position 4 - R-410A
H - Horizontal Nominal Heat Input
Tonnage Nominal 040 40 MBTU/H 100 100 MBTU/H
24 - 2 ton 42 - 3.5 ton 060 60 MBTU/H 120 120 MBTU/H
30 - 2.5 ton 48 - 4.0 ton 080 80 MBTU/H
36 - 3 ton 60/61 - 5 ton

PRODUCT IDENTIFICATION
5
These units have R410A refrigerant
Model # Description
DP14GM[24-60]***41AA Daikin Brand Package Gas Multi-Position 14 Seer R410A gas/electric unit. Initial
release.
DP14GM[24-60]***41AB Daikin Brand Package Gas Multi-Position 14 Seer R410A gas/electric unit.
Release of models with White Rodgers gas valves.
DP14GM61***41AA Daikin Brand Package Gas Multi-Position 14 Seer R410A gas/electric unit.
Release of 5 ton models with a compressor change.
DP14GM[36-60]***43AA Daikin Brand Package Gas Multi-Position 14 Seer R410A gas/electric unit. Initial
release of three phase models.
Single Phase Package Gas Units

ACCESSORIES
6
Part Number Description
0259G00214 Economizer Wiring Harness (2-4 Ton)
0259L00412 Economizer Wiring Harness (5 Ton)
CDK36 3 Ton ConcentricDuctKit
CDK36515 3 Ton Flush MountConcentric DuctKitw/Filter
CDK36530 3 Ton Step Down Concentric DuctKit
CDK36535 3 Ton Step Down Concentric DuctKitw/Filter
CDK4872 4 -6 Ton Concentric DuctKit
CDK4872515 4 - 6 Ton Flush Mount Concentric DuctKit w/Filter
CDK4872530 4 -6 Ton Step Down Concentric DuctKit
CDK4872535 4 -6 Ton Step Down Concentric DuctKitw/Filter
D14CRBPGCHMA 14"Roof Curb M-Series Package Unit
DDN25FDPGCHMM Manual 25% M-Series Fresh Air Damper Downflow Application,Medium Chassis
DDN25FDPGCHML Manual 25% M-Series Fresh Air Damper Downflow Application,Large Chassis
DDN25MFDPGCHMM Motorized 25% M-Series Fresh Air Damper Downflow Application,Medium Chassis
DDN25MFDPGCHML Motorized 25% M-Series Fresh Air Downflow Application,Large Chassis

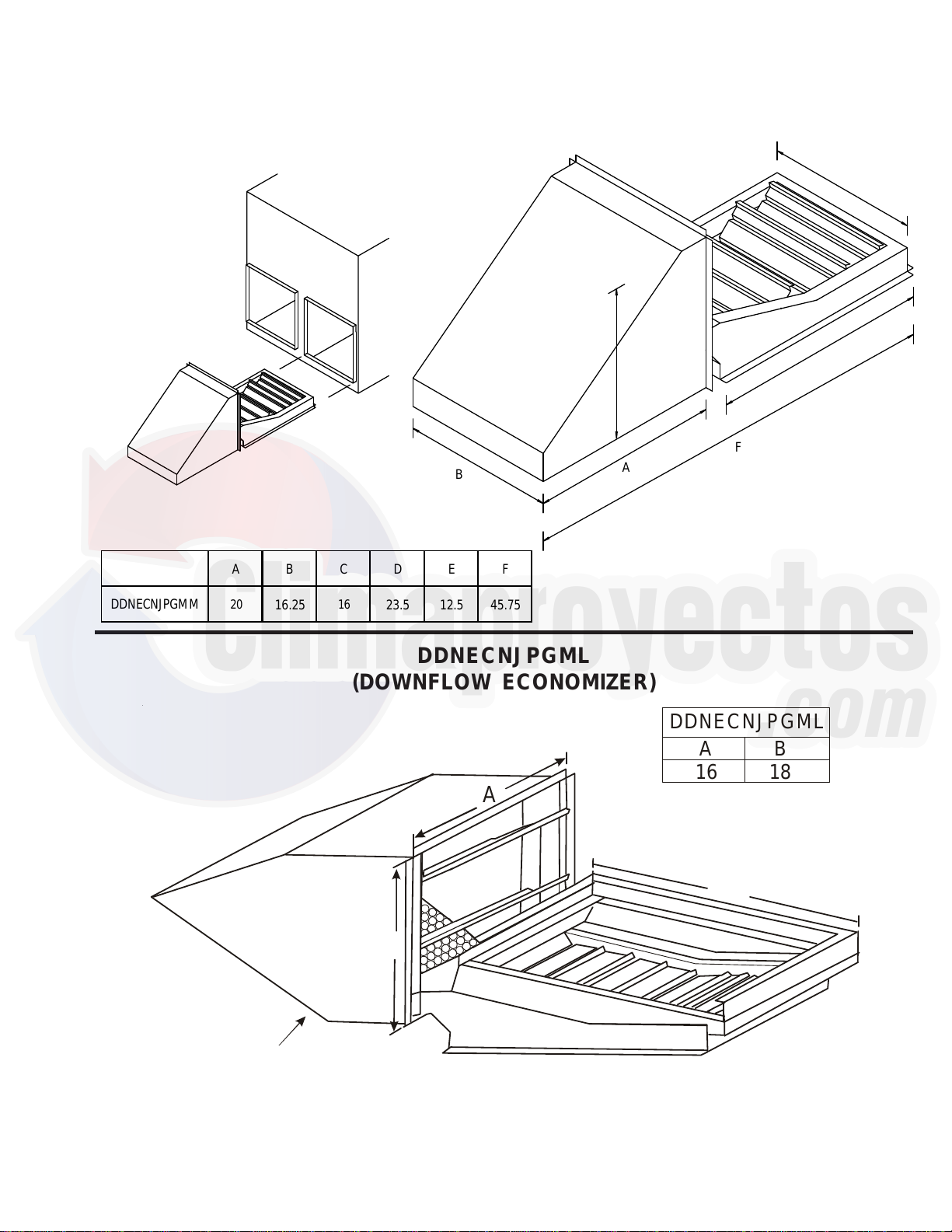

DDNECNJPGMM Downflow Jade Economizer for M-Series Gas Package Unit,Medium Chassis
DDNECNJPGML Downflow Jade Economizer for M-Series Gas Package Unit,Large Chassis
DDNIFRPGMM Downflow Internal Filter Rack for M-Series Gas Package Unit,Medium Chassis (with economizer)
DDNIFRPGML Downflow Internal Filter Rack for M-Series Gas Package Unit,Large Chassis (with economizer)
DDNIFRPGA Downflow Internal Filter Rack for M-Series Gas Package Unit,(no economizer)
DHZ25FDPGCHMM Manual 25% M-Series Fresh Air Damper Horizontal Application, Medium Chassis
DHZ25FDPGCHML Manual 25% M-Series Fresh Air Damper Horizontal Application,Large Chassis
DHZ25MFDPGCHMM Motorized 25% M-Series Fresh Air Damper Horizontal Application, Medium Chassis
DHZ25MFDPGCHML Motorized 25% M-Series Fresh Air Damper Horizontal Application, Large Chassis
DHZECNJPGCHM Horizontal Jade Economizer M-Series Package Unit,Medium Chassis
DHZECNJPGCHL Horizontal Jade Economizer M-Series Package Unit,Large Chassis
DPHFRA External Horizontal Filter RackforM- and H-Series Package Units
HA-03 High Altitude Kit
LPM-07 Propane Conversion Kit(Single Stage Models)
LPM-08 Propane Conversion Kit(Two Stage Models)
SQRPG101/102 Square to Round Adapter w/16"Round Downflow Application,
Medium Chassis
SQRPG103 Square to Round Adapter w/18"Round Downflow Application,
Large Chassis
SQRPGH101/102 Square to Round Adapter w/16"Round Horizontal Application,
Small and Medium Chassis
SQRPGH103 Square to Round Adapter w/18" Round Horizontal Application,
Large Chassis
ACCESSORIES
NOTE: Complete lineup of thermostats can be found in the Thermostat Specification Sheets.

7
LIGHTING INSTRUCTIONS DP14GM[24-48]***4*AA
A. This appliance does not have a pilot. It
is equipped with an ignition device which
try to light the burners by hand.
automatically lights the burners. Do not
the appliance area for gas. Be sure to
smell next to the floor because some gas
is heavier than air and will settle on the
do not use any telephone in your
Do not touch any electric switch;
Do not try to light any appliance.
WHAT TO DO IF YOU SMELL GAS
the gas suppliers instructions.
from a neighbor’s phone. Follow
Immediately call your gas supplier
1. STOP! Read the safety information
2. Set the thermostat to lowest setting.
4. This appliance is equipped with an
automatic ignition system which
3. Turn off all electric power to the
6. Move the gas control switch or knob
5. Remove control access panel.
automatically lights the burners. Do not
try to light the burners by hand.
B. BEFORE OPERATING smell all around
FORYOUR SAFETY READ BEFORE OPERATING
SWITCH SHOWN
IN "ON" POSITION
GAS CONTROL
3. Remove control access panel.
appliance if service is to be performed.
2. Turn off all electric power to the
or any other appliance.
FOR YOUR SAFETY
1. Set the thermostat to its lowest setting.
TO TURN OFF GAS TO APPLIANCE
other flammable vapors and liquids in the vicinity of this
to "OFF".
above on this label.
appliance.
building.
floor.
instructions, this
setting.
Do not store or use gasoline or
4. Move the gas control switch or knob
follow the instructions "To Turn Off Gas
5. Replace control access panel.
To Appliance" and call your service
12. If the appliance will not operate,
to "OFF". Do not force.
technician or gas supplier.
in fuel combustion
you to substances
death or serious
which can cause
illness and which
cause cancer, birth
defects or other
reproductive harm.
are known to the
This product contains
fiberglass insulation.
State of California to
product could expose
California to cause
known by the State of
contains a chemical
Fiberglass insulation
cancer.
0140F01902-A
call a qualified service technician.
will not operate, don’t try to repair it,
gas. Then smell for gas, including near
the floor. If you smell gas, STOP!
8. Move the gas control switch or knob
above on this label. If you don’t smell
Follow "B" in the safety information
7. Wait five (5) minutes to clear out any
the control system and any gas control
the appliance and to replace any part of
a qualified service technician to inspect
has been under water. Immediately call
D. Do not use this appliance if any part
tools. If the gas control switch or knob
control switch or knob. Never use
C. Use only your hand to move the gas
which has been under water.
If you do not follow these instructions exactly,
a fire or explosion may result causing property
If you cannot reach your gas supplier,
damage, personal injury or loss of life.
Force or attempted repair may result in
10. Turn on all electric power to the
11. Set the thermostat to the desired
9. Replace control access panel.
a fire or explosion.
to "ON".
OPERATINGINSTRUCTIONS
gas, go to the next step.
appliance.
call the fire department.
or additional information
consult a qualified
or the gas supplier.
WARNING:
and maintained in
manufacturer’s
installed, operated
accordance with the
of local codes, follow
codes. In the absence
with the manufacturers
instructions and local
This furnace must be
installed in accordance
Code, ANSI Z223.1.
the National Fuel Gas
installer, service agency
If not
WARNING:
cause injury or
Refer to the user’s
information manual
provided with this
property damage.
maintenance can
furnace. For assistance
alteration, service or
installation, adjustment,
Improper

8
LIGHTING INSTRUCTIONS DP14GM60***4*AA
3. Push the gas control lever to Position.
risque de déclencher un incendie ou une explosion
because some gas is heavier than air and will
DU GAZ
ARRIVEE
INLET
GAS
position.
gaz. Renier tout autour de l'appareil, y compris prés du
"OFF/ ARRET"
"ON/MARCHE"
ARRÊTEZ
.
IN "ON" POS
LEVER SHOWN
MANUAL GAS
"ON/MARCHE"
MANUEL, EN POS
ROBINET A GAZ
plancher, pour déceler une odeur de gaz. Si c'est le cas,
STOP.
faut procéder à des operations d'entretien.
DE GAZ DE L'APPAREIL
POUR COUPER L'ADMISSION
ARRÊTEZ.
Ne pas tenter d'allumer d'appareils.
S'il n'y a pas d'odeur de gaz, passer à l'etàpe suivante.
sur la portion superieure de cette etiquette.
Passer à l'etape B des instructions de securite
position.
6. Attendre cinq (5) minutes pour laisser echapper tout le
STOP. "B"
gas, go to next step.
on this label if you don't smell
in the safety. information above
then smell gas, Follow
smell for gas, including near the oor. If you
6. Wait ve (5) minutes to clear out any gas. Then
10. Set thermostat to desired setting.
Immediately call your gas supplier from a neighbor's
to light the burner by hand.
qualié ou le fournisseur de gaz.
de gaz de l'appareil et appeler un technicien
instructions intitulées Comment couper l'admission
loss of life.
explosion may result causing propertyexactly,a re or
0140F00000P REV D
Ne pas forcer.
"OFF/ ARRET"
A.
d'allumer le brûleur manuellement.
automatiquement le brûleur. Ne pas tenter
muni d'un dispositif d'allumage qui allume
Cet appareil ne comporte pas de veilleuse. Il est
"ON".
"OFF"
service technician or gas company.
O Gas To Appliance" and call your
follow the instructions "To Turn
11. If the appliance will not operate,
power to the appliance.
9. Turn on all electric
8. Replace access panel.
TO TURN OFF GAS TO APPLIANCE
OPERATING INSTRUCTIONS
READ BEFORE OPERATING
FOR YOUR SAFETY
"OFF"
WHAT TO DO IF YOU SMELL GAS
BEFORE OPERATING
WARNING:
damage, personal injury or
If you do not follow these instructions
4. Replace control access panel.
Do not force.
if service is to be performed.
2. Turn o all electric power to the appliance
1. Set the thermostat to lowest setting.
to
7. Push gas control lever
Do not force.
5. Push the gas control lever to Position.
Do not try to light the burner by hand.
device which automatically lights the burner.
4. This appliance is equipped with an ignition
3. Turn o all electric power to the appliance.
2. Set the thermostat to lowest setting.
this label.
1. Read the safety infrmation above on
system and any gas control which has been underwater.
the appliance and to replace any part of the control
Immediately call a qualied service technician to inspect
D. Do not use this appliance if any part has been underwater.
or explosion.
technician. Force or attempted repair may result in a re
hand, don't try to repair it, call a qualied service
Never use tools. If the lever will not push in or turn by
C. Use only your hand to push in or turn the gas control lever.
call the re department.
If you cannot reach your gas supplier,
phone. Follow the gas supplier's instructions.
do not use any phone in your building.
Do not touch any electric switch;
Do not try to light any appliance.
settle on the oor.
area for gas. Be sure to smell next to the oor
B. smell all around the appliance
the burner. Do not try
with an ignition device which automatically lights
A. This appliance does not have a pilot. It is equipped
11. Si l'appareil ne se met pas en marche, suivre les
10. Régler le thermostat à la température désirée.
9. Mettre l'appareil sous tension.
8. Remettre en place le panneau d'accés.
MISE EN MARCHE
EN MARCHELIRE
LIRE AVANT DE METTRE
QUE FAIRE S'IL Y A UNE ODEUR DE GAZ
B. AVANT DE LE FAIRE FONCTIONNER,
AVERTISSEMENT:
corporelles ou la perte de vies humaines.
entraînant des dommages matériels, des lesions
la lettre les instructions dans le presént manuel
Quiconque ne respecte pas à
4. Remettre en place le panneau d'accés.
position.
3. Pousse le levier du contrôle du gaz à
2. Couper l'alimentation électrique de l'appareil s'il
1. Régler le thermostat à la température la plus bassé.
7. Pousse le levier du contrôle du gaz à
5. Pousse le levier du contrÔle du gaz a
allumer le brûleur manuellement.
d'allumage automatique, ne pas essayer à
4. Cet appareil menager etant dote d'un systeme
3. Couper l'alimentation électrique de l'appareil.
2. Régler le thermostat à la température la plus basse.
section supérieure de cette étiquette.
1. Lisez les instructions de sécurité dans la
plongées dans l'eau.»
systéme de contrôle et toute commande qui ont été
par un technicien qualié et remplacer toutr partie du
l'eau, même partiellement. Faire inspecter l'appareil
D. Ne pas se servir de cet appareil s'il a été plongé dans
provoquer une explosion ou un incendie.»
tente de forcer la manette ou de la réparer peut
réparer; appelez un technicien qualié. Quiconque
Si la manette reste coincée, ne tenter pas de la
qu'à la main. Ne jamais emploer d'outil à cette n.
C. Ne pousser ou tourner la manette d'admission du gaz
appelez le service des incendies.»
Si vous ne pouvez rejoindre le fournisseur de gaz,
un voisin. Suivez les instructions du fournisseur de gaz
Appelez immédiatement votre fournisseur de gaz depuis
des téléphones dans le bâtiment.
Ne toucher à aucun interrupteur; ne pas vous servir
peuvent s'accumuler au niveau du sol.
certains gaz sont plus lourds que l'air et
une odeur de gaz. Renier prés du plancher, car
renier tout autour de l'appariel pour decéler

9
ACCESSORIES
MODEL ABCRETURN SUPPLY
D14CRBPGCHMA 461/4 393/8 14 1/2 121/2 x 23 15 x221/2
ROOF CURBS
Filter Size: 14" x 25" x 2"
Measurement in inches.
26 1/2
14
25
32
1 1/2
DOWNFLOW FILTER RACK
(DDNIFRPGA)
NOTE: DDNIFRPGA cannot be used with downflow economizers.
B
S
RC
1 5/8
14 1/2
1 3/8
A

10
DPHFRA
(EXTERNAL HORIZONTAL FILTER RACK)
16” x 25" x 2" FILTER

11
ACCESSORIES
25
A
B
16 X 20 x 2”
FILTER
+
16 X 20
MIST ELIMINATOR
14 X 25 FILTER ATTACHMENT
A B
16 18
DDNECNJPGML
DDNECNJPGML
(DOWNFLOW ECONOMIZER)
DDNECNJPGMM
(DOWNFLOW ECONOMIZER)
PGED101/102
ABCDEF
20 16.25 16 23.5 12.5 45.75
BAF
D
E
C
ABCDEF
20 16.25 16 23.5 12.5 45.75
DDNECNJPGMM

ACCESSORIES
12
MODEL A B
DHZ25FDPGCHMS 26 1/2 293/4
DHZ25FDPGCHMM 31 1/2 29 3/4
DHZ25FDPGCHML 30 293/4
MODEL A B
DHZ25MFDPGCHMS 26 1/2 293/4
DHZ25MFDPGCHMM 31 1/2 29 3/4
DHZ25MFDPGCHML 30 293/4
MANUAL
MOTORIZED
A
A
B
7 5/8
5 3/4
11 7/8
MOTORIZED/MANUAL FRESH AIR DAMPERS -
(HORIZONTAL APPLICATIONS)
MODEL A B C D E FILTER
DHZECNJPGCHM 25 1/4 18 1/8 18 13 3/4 16 1/8 16 x 25 x 1
DHZECNJPGCHL 35 1/4 18 1/8 18 18 1/4 16 1/8 16 x 25 x 1
ECONOMIZER
(HORIZONTAL APPLICATIONS)
Measurement in inches.
D
E
C
A
B
18
16 1/8
AB
31 1/2 29 3/4
30 29 3/4
AB
31 1/2 29 3/4
30 29 3/4DHZ25MFDPGCHML
MOTORIZED
MANUAL
DHZ25FDPGCHMM
DHZ25FDPGCHML
MODEL
MODEL
DHZ25MFDPGCHMM

13
ACCESSORIES
10
12 1/8
1
10
12 1/8
1
DDN25FDPG
C
DDN25FDP
G
SQUARE TO ROUND CONVERTER
(DOWNFLOW APPLICATIONS)
A
B
R
S
C
D16 ø16 ø
18 ø18 ø
22 3/4 22 1/4
12 1/4 14 3/4
12 1/4 14 3/4
22 3/4 22 1/4
MODEL A B C D RETURN SUPPLY
SQRPG101/102 22 3/4 12 1/4 22 1/4 14 3/4 16 16
SQRPG103 22 3/4 12 1/4 22 1/4 14 3/4 18 18
MODEL A B
DDN25FDPGCHMM 16 16
DDN25FDPGCHML 18 16
MODEL A B
DDN25MFDPGCHMM 16 16
DDN25MFDPGCHML 18 16
MANUAL
MOTORIZED
MOTORIZED/MANUAL FRESH AIR DAMPERS
(DOWNFLOW APPLICATIONS)
10
12 1/8 6
1
10
12 1/8 6
1
5 3/4
5 3/4
BOTTOM VIEW
BOTTOM VIEW
DDN25FDPGCHML
DDN25FDPGCHMM
11 7/8
11 7/8

ACCESSORIES
14
A
C
B
SQUARE TO ROUND CONVERTER
(HORIZONTAL APPLICATIONS)
Measurements are in inches.
MODEL ABC
SQRPGH101/102 16 16 1/2 16 1/2
SQRPGH103 18 18 1/2 18 1/2

PRODUCT DESIGN
15
Locations and Clearances
NOTE:Toensurepropercondensatedrainage,unitmustbe
installed in a level position.
Ininstallationswheretheunitisinstalledabovegroundlevel
and not serviceable from the ground (Example: Roof Top
installations)theinstallermustprovideaserviceplatformfor
theservicepersonwithrailsorguardsinaccordancewithlocal
codesorordinancesorintheirabsencewiththelatestedition
oftheNationalFuelGasCodeANSI Z223.1.
NOTE:Roofoverhangshouldbenomorethan36".
Minimum clearances are required to avoid air recirculation
and keep the unit operating at peak efficiency. A minimum
12 inch clearance is required to the condenser coil.
NOTE:Theflueoutlethoodispackagedseparatelyinside
the unit and must be installed prior to operation.
WARNING
TO PREVENT POSSIBLE DAMAGE, THE UNIT SHOULD
REMAIN IN AN UPRIGHT POSITION DURING ALL
RIGGING ANDMOVING OPERATIONS. TO FACILITATE
LIFTING AND MOVING IF A CRANE IS USED, PLACE
THE UNIT IN AN ADEQUATE CABLE SLIDE. NOTE: Aroofcurb canbe usedtoutilize bottomdischarge.
DPGMPackageUnitsaredesignedforoutdoorinstallations
only in either residential or light commercial applications.
NOTE: To ensure proper condensate drainage, unit
must be installed in a level position.
The connecting ductwork (Supply and Return) can be con-
nectedforeitherhorizontalordowndischargeairflow.Inthe
downdischargeapplicationsamatchingRoofCurbisrecom-
mended.
A return air filter must be installed behind the return air
grille(s)orprovisionmustbemadeforafilterinanaccessible
location within the return air duct. The minimum filter area
shouldnotbelessthanthosesizeslistedintheSpecification
Section. Under no circumstances should the unit be oper-
atedwithout return airfilters.
IMPORTANTNOTE:Ifusingbottomdischargewithroofcurb,
ductworkshouldbeattachedtothecurbpriortoinstallingthe
unit.
Refer to Roof curb Installation Instructions for proper curb
installation.Curbingmustbeinstalledincompliancewiththe
NationalRoofingContractorsAssociationManual.
Lower unit carefully onto roof mounting curb. While rigging
unit, center of gravity will cause condenser end to be lower
than supply air end.

PRODUCT DESIGN
16
A 3/4" - 14 NPT drain connector is provided for removal of
condensate water from the indoor coil. In order to provide
proper condensate flow, do not reduce the drain line size.
NOTE:Tightendrain toamaximum torqueof 10 in-lbs.
Refrigerant flow control is achieved by use of thermostatic
expansionvalves(TXV)orflowrator.
The single phase models use permanent split capacitors
(PSC)designcompressors. Startingcomponentsarethere-
fore not required. A low MFD run capacitor assists the
compressortostartandremains inthecircuitduringopera-
tion.
DPGM three phase units use three phase compressors.
Starting components and run capacitors are therefore not
required.
DPGMPackageGasUnitsaredesignedforoutdoorinstalla-
tions only in either residential or light commercial applica-
tionsandareavailablein2,2.5,3,3.5,4&5tonsizes.They
are designed for 208/230 volt single phase applications or
208/230volt3phaseapplications.
The connecting ductwork (Supply and Return) can be con-
nectedforeither horizontalorvertical airflow.Inthe vertical
application,amatchingRoofCurbisrecommended.
Areturnairfiltermustbeinstalledbehindthereturnairgrille(s)
orprovisionmustbemadeforafilterinanaccessiblelocation
within the return air duct (3 phase models have an internal
downflowfilterrack).The minimum filterareashouldnot be
less than those sizes listed in the Specification Section.
Undernocircumstancesshouldtheunitbeoperatedwithout
returnairfilters.
DP14GM model units use EEM type indoor blower motors.
EEMmotorsareconstanttorquemotorswithverylowpower
consumption and are energized by a 24V signal from the
ignitioncontrolboard.TheEEMmotors featureanintegrated
controlmodule.
Air for condensing (cooling cycle) is drawn through the
outdoorcoilbyapropellerfan,andisdischargedverticallyout
thetop of the unit.The outdoor coil is designed for .0 static.
Noadditionalrestriction(ductwork)shallbeapplied.
Conditionedair isdrawn throughthe filter(s),field installed,
across the coil and back into the conditioned space by the
indoorblower.
Most DPGM series package units use the Compliant Scroll
compressor; there are a number of design characteristics
whicharedifferentfromthetraditionalreciprocatingcompres-
sor.
- Due to their design Scroll compressors are inherently
moretolerantofliquidrefrigerant.NOTE:Eventhoughthe
compressor section of a Scroll compressor is more
tolerant of liquid refrigerant, continued flood back or
flooded start conditions may wash oil from the bearing
surfacescausingprematurebearingfailure.
- These Scroll compressors use "POE" or polyolester oil
which is NOT compatible with mineral oilbased lubri-
cants like 3GS. "POE" oil must be used if additional oil
isrequired.
- Compliantscrollcompressorsperform“quiet”shutdowns
thatallowthecompressortorestartimmediatelywithout
the need for a time delay. This compressor will restart
even if the system has not equalized.
- Operating pressures and amp draws may differ from
standard reciprocating compressors. This information
maybefoundinthe“CoolingPerformanceData”section.

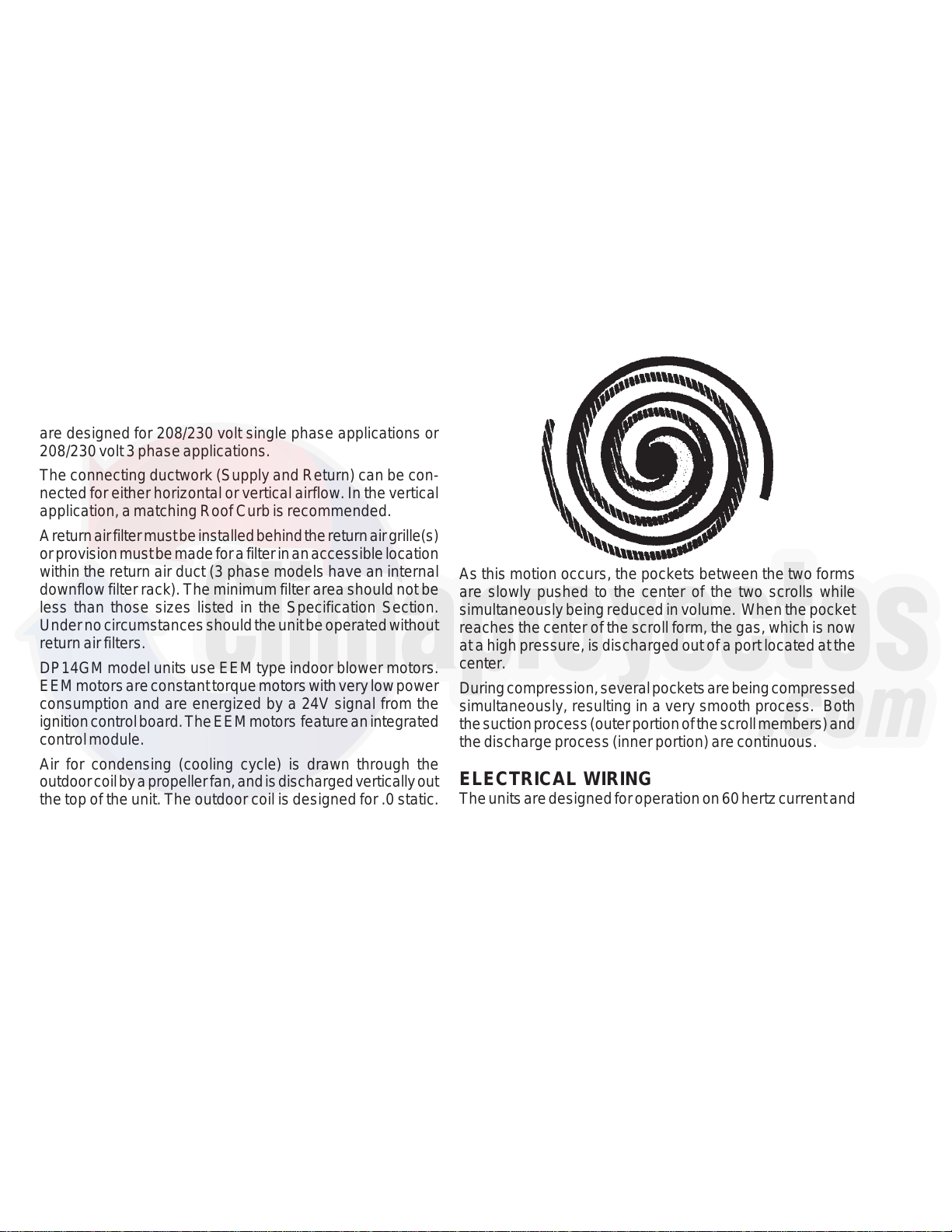

A scroll is an involute spiral which, when matched with a
matingscrollformasshown,generatesaseriesofcrescent
shaped gas pockets between the two members.
During compression, one scroll remains stationary (fixed
scroll)whiletheotherform(orbitingscroll)isallowedtoorbit
(butnotrotate)around thefirstform.
As this motion occurs, the pockets between the two forms
are slowly pushed to the center of the two scrolls while
simultaneouslybeingreducedinvolume. Whenthepocket
reachesthe center ofthe scroll form,the gas, which is now
atahighpressure,isdischargedoutofaportlocatedatthe
center.
Duringcompression,severalpocketsarebeingcompressed
simultaneously, resulting in a very smooth process. Both
thesuctionprocess(outerportionofthescrollmembers)and
thedischargeprocess(innerportion)arecontinuous.
ELECTRICAL WIRING
Theunitsaredesignedforoperationon60hertzcurrentand
atvoltages as shownon the rating plate. Allinternal wiring
is complete. Ensure the power supply to the compressor
contactorisbroughttotheunitasshownonthesuppliedunit
wiringdiagram. The24Vwiringmustbeconnectedbetween
the unit control panel and the room thermostat.
LINE VOLTAGE WIRING
Powersupply to the unitmust be N.E.C. Class1, and must
comply with all applicable codes. The unit must be electri-
callygroundedinaccordancewiththelocalcodesor,intheir
absence, with the latest edition of the National Electrical
Code,ANSI/NFPANo.70,orinCanada,CanadianElectrical
Code,C22.1,Part1. Afuseddisconnectedmustbeprovided
and sized in accordance with the unit minimum circuit
ampacity.
The best protection for the wiring is the smallest fuse or
breakerwhichwillholdtheequipmentonlineduringnormal
operationwithoutnuisancetrips. Suchadevicewillprovide
maximum circuit protection.

PRODUCT DESIGN
17
WARNING
DONOTEXCEEDTHEMAXIMUMOVERCURRENT
DEVICESIZESHOWNONTHEUNITDATAPLATE.
Alllinevoltageconnectionsmustbemadethroughweather
proof fittings. All exterior power supply and ground wiring
must be in approved weather proof conduit. Low voltage
wiringfromthe unitcontrol paneltothe thermostatrequires
codedcable. Seethe followingfigures for groundlevel and
rooftopwiring.
JUNCTION BOX
Theunittransformerisconnectedfor230Voperation. Ifthe
unitistooperateon208V,reconnectthetransformerprimary
leadandtheinduceddraftblowerleadsasshownontheunit
wiringdiagram.
WARNING
TO AVOID THE RISK OF PROPERTY DAMAGE,
PERSONAL INJURY OR FIRE, USE ONLY COPPER
CONDUCTORS.
If it is necessary for the installer to supply additional line
voltage wiring to the inside of the package unit, the wiring
must comply with all local codes. This wiring must have a
minimum temperature rating of 105°C and must be routed
awayfromtheburner compartment. Alllinevoltagesplices
must be made inside the unit control box.
GAS SUPPLY AND PIPING
CAUTION
THIS PACKAGE GAS UNIT IS FACTORY SET TO
OPERATE ON NATURAL GAS AT THE ALTITUDES
SHOWN ON THE RATING PLATE. IF OPERATION
ON PROPANE IS REQUIRED, OBTAIN AND INSTALL
THE PROPER CONVERSION KIT(S) BEFORE
OPERATING THIS UNIT. FAILURE TO DO SO
MAY RESULT IN UNSATISFACTORY OPERATION
AND/OR EQUIPMENT DAMAGE.
The rating plate is stamped with the model number, type of
gas,andgasinputrating. Makesuretheunitisequippedto
operateonthetypeofgasavailable.
Inlet Gas Pressure
Natural Min. 5.0" W.C., Max. 10.0" W.C.
Propane Min. 11.0" W.C., Max. 13.0" W.C.
Inlet Gas Pressure Must Not Exceed the Maximum Value
Showninthetableabove.
Theminimumsupplypressuremustnotbevarieddownward
becausethiscouldleadtounreliableignition. Inaddition,gas
input to the burners must not exceed the rated input shown
on the rating plate. Overfiring of the unit could result in
prematureheatexchangerfailure.
GASPIPING
CAUTION
TO AVOID POSSIBLE UNSATISFACTORY OPERATION
OR EQUIPMENT DAMAGE DUE TO UNDERFIRING OF
EQUIPMENT, DO NOT UNDERSIZE THE NATURAL
GAS/PROPANE PIPING FROM THE METER/TANK TO
THE FURNACE. WHEN SIZING A TRUNK LINE PER
THE TABLES, INCLUDE ALL APPLIANCESON THAT
LINE THAT COULD BE OPERATED SIMULTANEOUSLY.

PRODUCT DESIGN
18
Thegaspipesupplyingtheunitmustbeproperlysizedbased
onthecubicfeetperhourofgasflowrequired,specificgravity
ofthegasandlengthoftherun. Thegaslineinstallationmust
comply with local codes, or in the absence of local codes,
with the latest edition of the National Fuel Gas Code ANSI
Z223.1.
NATURALGAS CAPACITYOF PIPEIN CUBIC FEET OF
GASPER HOUR(CFH)
LENGTH OF
PIPE IN FEET NOMINAL BLACK PIPE SIZE
1/2" 3/4" 1" 1 1/4" 1 1/2"
10 132 278 520 1050 1600
20 92 190 350 730 1100
30 73 152 285 590 980
40 63 130 245 500 760
50 56 115 215 440 670
60 50 105 195 400 610
70 46 96 180 370 560
80 43 90 170 350 530
90 40 84 160 320 490
100 38 79 150 305 460
BTUH FURNACE INPUT
CALORIFIC VALUE OF GAS
CFH =
CONNECTINGTHE GAS PIPING- NATURAL GAS
1. Use black iron or steel pipe and fittings for the building
piping.
2. Usepipejointcompoundonmalethreadsonly. Pipejoint
compoundmustberesistanttotheactionofthefuelused.
3. Usegroundjointunions.
4. Installadriplegtotrapdirtandmoisturebeforeitcanenter
the gas valve. The drip leg must be a minimum of three
inches long.
5. Use two pipe wrenches when making connection to the
gasvalvetokeep itfromturning.
6. Installamanualshutoffvalve. Thisshutoffvalveshould
beconvenientlylocatedwithinsix(6)feetoftheunit,and
betweenthe meter andunit.
7. Tighten all joints securely.
8. Connect the unit to the building piping by one of the
followingmethods.
a. Rigid metallic pipe and fittings.
b. Semi-rigid metallic tubing and metallic fittings.
Aluminumalloytubingshallnotbeusedinexterior
locations.
c. Listed gas appliance connectors used in accor-
dance with the terms of their listing that are
completely in the same room as the equipment.
NOTE: In "b" and "c", the connector or tubing must be
installed so as to be protected against physical and thermal
damage. Aluminum-alloy tubing and connectors must be
coatedtoprotectagainstexternalcorrosionwheretheyarein
contactwith masonry,plaster, orinsulation orare subjectto
repeated wettings by such liquids as water (except rain
water),detergents,orsewage.
DRIP LEG
MANUAL
SHUT-OFF
VALVE
GROUND JOINT UNION
(INSTALLED AHEAD OF GAS VALVE)
GROMMET
NOTE: The unit gas supply entrance is factory sealed with
plugs. Keep plugs in place until gas supply is ready to be
installed. Once ready, replace the plugs with the supplied
grommets and install gas supply line.
CHECKINGTHEGASPIPING
CAUTION
TO AVOID THE POSSIBILITY OF PROPERTY DAMAGE,
PERSONAL INJURY OR FIRE, THE FOLLOWING
INSTRUCTIONS MUST BE PERFORMED REGARDING
GAS CONNECTIONS AND PRESSURE TESTING.
Theunitanditsgasconnectionsmustbeleaktestedbefore
placinginoperation. Becauseofthedangerofexplosionor
fire,neveruseamatchoropenflametotestforleaks. Never
exceedspecifiedpressurefortesting. Higherpressuremay
damagethegasvalveandcauseoverfiringwhichmayresult
inheatexchangerfailure.
This unit must be isolated from the gas supply system by
closingitsindividualmanualshutoffvalveduringanypressure
testing of the gas supply piping system at test pressures
equal to or less than 1/2 PSIG (3.48 kPa).
TANKSANDPIPING-PROPANEUNITS
WARNING
PERSONAL INJURY HAZARD
IRON OXIDE (RUST) CAN REDUCE THE LEVEL OF
ODORANT IN PROPANE GAS. A GAS DETECTING
DEVICE IS THE ONLY RELIABLE METHOD TO DETECT
A PROPANE GAS LEAK. CONTACT YOUR LOCAL
PROPANE SUPPLIER ABOUT INSTALLING A GAS
DETECTING WARNING DEVICE TO ALERT YOU IN
THE EVENT THAT A GAS LEAK SHOULD DEVELOP.
FAILURE TO DETECT A PROPANE GAS LEAK COULD
RESULT IN AN EXPLOSION OR FIRE WHICH COULD
CAUSE SERIOUS PERSONAL INJURY OR DEATH.

PRODUCT DESIGN
19
All propane gas equipment must conform to the safety
standards of the National Board of Fire Underwriters (See
NBFUManual58)or NaturalStandardsofCanada B149.2,
Installation Code for Propane Gas Burning Appliances and
Equipment.
Forsatisfactoryoperation,propanegaspressuremustbe10
inch W.C. at the unit manifold with all gas appliances in
operation.Maintainingpropergaspressuredependsonthree
mainfactors.
1. Vaporizationrate,whichdependson(a) temperatureof
theliquid,and(b)"wettedsurface"areaofthecontainer
orcontainers.
2. Properpressureregulation.(Two-stageregulationisrec-
ommended from the standpoint of both cost and effi-
ciency.)
3. Pressuredropinlinesbetweenregulators,andbetween
second stage regulator and the appliance. Pipe size
requiredwilldependonlengthofpiperunandtotalloadof
allappliances.
Completeinformationregardingtanksizingforvaporization,
recommendedregulatorsettings,andpipesizingisavailable
frommostregulatormanufacturersandpropanegassuppli-
ers.
Propaneisanexcellentsolvent,andspecialpipedopemust
beusedwhenassemblingpipingforthisgasasitwillquickly
dissolve white lead or most standard commercial com-
pounds. Shellacbasecompoundsresistanttotheactionsof
liquefied petroleum gases such as Gasolac®, Stalactic®,
Clyde'sorJohnCranearesatisfactory.
TYPICALPROPANEPIPING
200 PSIG
Maximum
5 to 15 PSIG
(20 PSIG Max.) Continuous
11" W.C.
Second Stage
Regulator
First Stage
Regulator
WARNING
PROPANE TANK SIZING (MINIMUM)
TANK SIZE REQUIRED IF LOWEST OUTDOOR
MAXIMUM GAS TEMPERATURE (AVG. FOR 24 HOURS) REACHES
NEEDED TO
VAPORIZE* 32°F 20°F 10°F 0°F -10°F -20°F -30°F
125K BTU/HR
(50 CFH) 115 GAL 115 GAL 115 GAL 250 GAL 250 GAL 400 GAL 600 GAL
250K BTU/HR
(100 CFH) 250 GAL 250 GAL 250 GAL 400 GAL 500 GAL 1000 GAL 1500 GAL
375K BTU/HR
(150 CFH) 300 GAL 400 GAL 500 GAL 500 GAL 1000 GAL 1500 GAL 2500 GAL
500K BTU/HR
(200 CFH) 400 GAL 500 GAL 750 GAL 1000 GAL 1500 GAL 2000 GAL 3500 GAL
750K BTU/HR
(300 CFH) 750 GAL 1000 GAL 1500 GAL 2000 GAL 2500 GAL 4000 GAL 5000 GAL
* AVERAGE RATE/HOUR WITHDRAWL IN 8 HOUR PERIOD
PROPANE GAS PIPING CHARTS
Sizing Between First and Second Stage Regulator
Maximum Propane Capacities listed are based on 1 PSIG Pressure Drop at 10
PSIG Setting. Capacities in 1,000 BTU/HR
3/8" 1/2" 5/8" 3/4" 7/8" 1/2" 3/4"
30 309 700 1,303 2,205 3,394 1,843 3,854
40 265 599 1,115 1,887 2,904 1,577 3,298
50 235 531 988 1,672 2,574 1,398 2,923
60 213 481 896 1,515 2,332 1,267 2,649
70 196 446 824 1,394 2,146 1,165 2,437
80 182 412 767 1,297 1,996 1,084 2,267
90 171 386 719 1,217 1,873 1,017 2,127
100 161 365 679 1,149 1,769 961 2,009
150 130 293 546 923 1,421 772 1,613
200 111 251 467 790 1,216 660 1,381
250 90 222 414 700 1,078 585 1,224
300 89 201 378 634 976 530 1,109
350 82 185 345 584 898 488 1,020
400 76 172 321 543 836 454 949
To convert to Capacities at 15 PSIG Settings -- Multiply by 1.130
To convert to Capacities at 5 PSIG Settings -- Multiply by 0.879
PIPE OR
TUBING
LENGTH,
FEET
NOMINAL PIPE SIZE,
SCHEDULE 40
TUBING SIZE, O.D., TYPE L

PRODUCT DESIGN
20
Sizing Between Single or Second Stage Regulator and Appliance*
Maximum Propane Capacities Listed are Based on 1/2" W.C. Pressure Drop at
11" W.C. Setting. Capacities in 1,000 BTU/HR
3/8" 1/2" 5/8" 3/4" 7/8" 1/2" 3/4" 1" 1-1/4" 1-1/2"
10 49 110 206 348 539 291 608 1,146 2,353 3,525
20 34 76 141 239 368 200 418 788 1,617 2,423
30 27 61 114 192 296 161 336 632 1,299 1,946
40 23 52 97 164 253 137 284 541 1,111 1,665
50 20 46 86 146 224 122 255 480 985 1,476
60 19 42 78 132 203 110 231 436 892 1,337
80 16 36 67 113 174 94 198 372 764 1,144
100 14 32 59 100 154 84 175 330 677 1,014
125 12 28 52 89 137 74 155 292 600 899
150 11 26 48 80 124 67 141 265 544 815
200 10 22 41 69 106 58 120 227 465 697
250 9 19 36 61 94 51 107 201 412 618
300 8 18 33 55 85 46 97 182 374 560
350 7 16 30 51 78 43 89 167 344 515
400 7 15 28 47 73 40 83 156 320 479
*DATA IN ACCORDANCE WITH NFPA PAMPHLET NO. 54
NOMINAL PIPE SIZE,
SCHEDULE 40
TUBING SIZE, O.D., TYPE L
PIPE OR
TUBING
LENGTH,
FEET
COOLING
The refrigerant used in the system is R-410A. It is a clear,
colorless, non-toxic and non-irritating liquid. R-410A is a
50:50 blend of R-32 and R-125. The boiling point at atmo-
sphericpressure is -62.9°F.
Afewoftheimportant principles thatmaketherefrigeration
cycle possible are: heat always flows from a warmer to a
coolerbody.Underlowerpressure,arefrigerantwillabsorb
heatandvaporizeatalowtemperature. Thevaporsmaybe
drawnoffandcondensedatahigherpressureandtempera-
ture to be used again.
Theindoorevaporatorcoilfunctionstocoolanddehumidify
theairconditionedspacesthroughtheevaporativeprocess
taking place within the coil tubes.
NOTE:Thepressuresandtemperaturesshownintherefrig-
erantcycle illustrations onthe following pagesare for dem-
onstration purposes only. Actual temperatures and pres-
sures are to be obtained from the "Expanded Performance
Chart".
Liquidrefrigerantatcondensingpressureandtemperatures,
(270 PSIG and 122°F), leaves the outdoor condensing coil
throughthedrierandismeteredintothe indoor coilthrough
the metering device. As the cool, low pressure, saturated
refrigerantentersthetubesoftheindoorcoil,aportionofthe
liquidimmediatelyvaporizes.Itcontinuestosoakupheatand
vaporizesasitproceedsthroughthecoil,coolingtheindoor
coil down to about 48°F.
Heatiscontinuallybeingtransferredtothecoolfinsandtubes
of the indoor evaporator coil by the warm system air. This
warming process causes the refrigerant to boil. The heat
removedfromtheairiscarriedoffbythevapor.
As the vapor passes through the last tubes of the coil, it
becomessuperheated.Thatis,itabsorbsmoreheatthanis
necessarytovaporizeit.Thisisassurancethatonlydrygas
will reach the compressor. Liquid reaching the compressor
canweakenorbreakcompressorvalves.
The compressor increases the pressure of the gas, thus
addingmoreheat,anddischargeshot,highpressuresuper-
heated gas into the outdoor condenser coil.
Inthecondensercoil,the hotrefrigerantgas,beingwarmer
than the outdoor air, first loses its superheat by heat trans-
ferredfromthegasthroughthetubesandfinsofthecoil.The
refrigerantnowbecomessaturated,partliquid,partvaporand
then continues to give up heat until it condenses to a liquid
alone.Oncethevaporisfullyliquefied,itcontinuestogiveup
heat which subcools the liquid, and it is ready to repeat the
cycle.
HEATING
Theheatingcycleisaccomplishedbyusingauniquetubular
designheatexchangerwhichprovidesefficientgasheating
oneithernaturalgasorpropanegasfuels.Theheatexchang-
ers compact tubular construction provides excellent heat
transferformaximumoperatingefficiency.
Inshottypegasburnerswithintegralcrosslightersareused
eliminating the need for adjustable air shutters. The same
burner is designed for use on either natural or propane gas
fuels.
Theinduceddraftblowerdrawsfuelandcombustionairinto
the burners and heat exchanger for proper combustion. A
pressure switch is used in conjunction with the I. D. blower
to detect a blocked flue condition.
Bloweroperationiscontrolledbytheignitioncontrolmodule.
Themoduleallowsforfieldadjustmentoftheblowerdelayat
the end of the heating cycle. The range of adjustment is for
90,120,150or180seconds.Thefactorydelaysettingis30
seconds delay on 150 seconds delay off.
Direct Spark Ignition (DSI) Systems
DPGMunitsareequippedwithadirectsparkignitionsystem.
Ignitionis provided by22,000 volt electronicspark. A flame
sensorthenmonitorsforthepresenceofflameandclosesthe
gas valve if flame is lost.
