Dalton SEGAEGO SC-S2454 User manual

Dalton Medical Corp. www.daltonmedical.com
SC-S2454
DEALER: This manual MUST be given to the user of the power mobility device.
USER: BEFORE using the power mobility device, read this Owner’s Manual and save for future
reference.
SEGAEGO 4D SCOOTER
OWNER’S MANUAL

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
1
1.
PREFACE AND INTRODUCTION ……..……………………………………
2
2.
SAFETY INSTRUCTIONS ……………………………………………………
2.1 Practice Before operating the scooter
2.2 While operating the scooter
2.3 Labeling
2.4 EMI
3
3.
IDENTIFICATION OF PARTS ………………..………………………………
Parts description
10
4.
OPERATION…………………………………………………………………....
4.1 Control panel
4.2 How to operate your scooter
4.3 Assembling and disassembling
4.4 Changing color panels
11
5.
BATTERY CHARGINGAND CARE……………………………………….....
5.1 Charging the battery
5.2 Battery
19
6.
INSPECTION AND MAINTENANCE……………………………………..…
6.1 Inspection
6.2 Regular checking record
6.3 Battery, fuse and tire
6.4 Storage
6.5 Moving about
22
7.
TROUBLE SHOOTINGAND SPECIFICATIONS………….……………….
25
8.
LIMITED WARRANTY ……………………………………………….............
26
TABLE OF CONTENTS

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
2
1 . P R E FA C E A N D I N T R O D U C T I O N
Please carefully read this owner’s manual before operating your scooter. Improper use of the scooter could
result in harm, injury or traffic accidents.
This owner’s manual includes operation instructions and assembly instructions.
The symbols used throughout this manual are explained below.
Read carefully and fully understand the notes marked with these symbols:
Warning
Improper use could result in serious injury or death, hazardous
conditions, or product malfunction.
Attention
Improper use could lead to injury and/or damage to your scooter.
Suggestion
Follow these instructions to keep your scooter in a good operating order.
This Owner’s Manual includes a copy of repair and maintenance record chart and warranty. Please
keep it in a safe place or with the scooter.
DO NOT let someone else use your scooter before obtaining the approval of their personal physician.
As designs change some illustrations and pictures in this Owner’s Manual may not correspond to the
scooter that you purchased.
This scooter has been designed to provide a comfortable and secure solution for users who are capable of
operating a scooter. Please consult your physician before using your scooter.
Suggestion
To maximize your batteries efficiency and service life, please
fully recharge your new battery before its first time use.

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
3
2.1 PRACTICE BEFORE OPERATING THE SCOOTER
Warning: Failure to follow these instructions may result in damage to the scooter or serious
injury. Practice before operating your scooter. It is very important that you completely read
and follow the information in the owner’s manual. Fully charge the batteries prior to using
the scooter. Find an open, safe area and have an assistant to help you practice until you have
confidence operating your scooter. Make sure that the power is off before getting into
or out of the seat. Set the speed control knob according to your driving ability. We
recommend that you keep the speed control at the slowly position until you are familiar
with the driving characteristics of this scooter.
This scooter is suitable for indoor use only
Consult your doctor if there is any doubt about your ability to use this scooter safety.
Drive on the pavement, single carriage roads, or pedestrian areas only.
DO NOT drive on public roadways, streets or highways. This scooter is suitable for indoor use only.
DO NOT drive the scooter off-road or on any uneven surfaced roads.
DO NOT drive the scooter over soft, uneven or unprotected surface such as grass, gravel and decks.
DO NOT drive the scooter beside a river, port or lake without a fence or railing.
DO NOT make sudden stops, weave erratically, or make sharp turns.
DO NOT drive the scooter when it is raining, snowing, icy, misty or windy.
Keep your arms on or inside the armrests and feet on the footrest at all times during operating.
DO NOT attempt to climb curbs greater than 1.4”.
DO NOT attempt to cross over a gap greater than 3”.
DO NOT attempt to climb to cross a hill greater than 6 °.
DO NOT put the scooter in freewheel when on an incline or decline.
DO NOT get on and off on a hill. Always stop on the level surface to get in and get out of the scooter.
DO NOT reverse the scooter while driving up a hill, forward only. If you reverse while moving up a
hill, it may cause the scooter to tip over.
Use low speed while driving down hill. Breaking while moving downhill, the scooter will take longer
to come to a complete stop.
DO NOT drive the scooter at night.
DO NOT carry any passengers (including children). DO NOT carry or haul goods.
DO NOT use this scooter to carry or haul goods.
DO NOT drive your scooter after consuming alcohol or when you are tired.
Always climb or descend gradients perpendicular to the slope or ramp.
Be extremely cautious when driving the scooter in shopping malls.
2 . S A F E T Y I N S T R U C T I O N S

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
4
If you will be seated in the scooter for an extended period of time, power off the scooter. This will
prevent inadvertent movement from unexpected throttle contact.
Avoid unnecessary movement of the scooter.
Always wear the seat belt (OPTIONAL) with the scooter when operating.
Disassembling the controller, motor or charger by any end user is prohibited and Dalton will void any
applicable warranty.
DO NOT reach, lean or bend when driving the scooter.
DO NOT stand on the foot board.
Always switch off the scooter and remove the ignition key before using a mobile phone.
DO NOT use a mobile phone or other wireless communication devices while driving the scooter.
DO NOT charge mobile phone or any electrical devices from the scooter’ batteries.
This scooter is NOT approved as a seat in a motor vehicle.
DO NOT modify your scooter in any way; doing so will void the warranty.
2 . S A F E T Y I N S T R U C T I O N S

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
5
2.2 WHILE USING THE SCOOTER
Please carry out “REGULAR CHECKING”refer to the section 6.2.
Do not move your body out of the scooter while moving
Such action may cause of injury and loss of balance.
Pay attention to avoid your clothes being tangled into the wheels.
Do not use your scooter under the circumstances below.
On roads with heavy traffic or roads that are muddy, gravelly, bumpy, narrow, snowed over, icy, or
canal towpaths not guarded by any fence or hedge. Keep away from places where you might get
the wheels stuck.
Do not drive at night or when it is raining, snowing, icy, misty, or windy.
Do not drive your scooter in an “S”pattern or make erratic turnings.
Do not take the scooter onto escalators.
Under no circumstances should the scooter be used as a seat in a motor vehicle
(e.g. cars, buses, trains, etc.).
About Mobile Phones and other electrical equipment
Do not use a wireless communications device or hand-held mobile telephone while driving.
Before sitting in or exiting the scooter always switch off the scooter and REMOVE the ignition key.
Do not charge the mobile phone or any other electrical devices from your scooter’s battery.
Automatic Power Shut Down
In order to avoid accidental battery run down, your scooter is equipped with an automatic power shut
down facility. If the scooter is switched on, after remaining undisturbed for a period of thirty minutes
it will automatically turn off. Should this occur, simply switch your scooter off and back on and it will
be ready to use once again.
Ramps, inclines and drops
Do not drive onto steep ramps greater than the specified gradient. Refer to the section entitled
“CLIMBING ANGLE”in “7. SPECIFICATION”
Always use a low speed setting when ascending or descending a gradient.
Do not drive on road surface such as large drops or potholes. This can cause the scooter to lose
control and get into an accident.
Please lower the speed on the scooter when driving on roads with inclines.
Do not make sudden turns when driving on gravel roads or ramps.
Always keeps the scooter moving forward when climbing a steep gradient.
2 . S A F E T Y I N S T R U C T I O N S

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
6
■Starting and operating
1. Read and follow the instruction in the Owner’s Manual.
2. Fully charge the battery prior to using the scooter.
3. Make sure the seat is installed properly.
4. Always wear the seat belt included with this scooter when operating.
5. Make sure the tiller has been secured properly.
6. Fold down the armrests so you can rest your arms on them.
7. Turn the power switch to “ON”.
8. Check battery indicator to see whether there is enough power for your journey. If you have any
doubt about the remaining power, please recharge the batteries before departure.
9. Set the speed dial to a position you feel safe and comfortable.
10. Check the forward/reverse speed lever works correctly.
11. Make sure the electromagnetic brake works correctly.
12. Make sure it is safe around you before you drive on the street.
13. Always make sure the power is turned off when getting in and out of the scooter.
WARNING!
Do not put the scooter in freewheel mode when driving on an incline or decline.
Always re-engage the anti-freewheel device before use. Fail to do so may result in injury.
To protect your safety, the power will automatically cut off and electromagnetic brake system
will activate while you are driving down a steep gradient. This will limit the speed to a safe level.
Turn the power on again to re-start your scooter.
Maximum User Weight Limit
Refer to section entitled “MAX. USER WEIGHT”in “8. SPECIFICATION “. Overloading past
the weight limit may lead to damage of your scooteror cause it to malfunction and will endanger
your safety. The warranty doesn’t cover incidental damage.
2 . S A F E T Y I N S T R U C T I O N S

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
7
Attention
1. Do not push both RH & LH sides of the speed control lever simultaneously. This might leave
you unable to control your scooter.
2. Do not turn the power switch to OFF while driving this may cause unstable conditions and
injury.
3. Do not set to the highest speeds while driving indoors.
4. Do not adjust the speed dial while driving, a sudden change in speed may cause danger to
you and others, and may cause damage to your scooter.
5. Do not place magnetic devices near the area of the operation handle as this could affect the
safe operation of your scooter.
6. Avoid driving in heavy traffic or crowded areas.
7. While reversing the scooter, beware of people or objects behind you.
▓Stopping
1. Release the speed control lever completely. The scooter will naturally brake and stop.
2. Turn the power switch to (OFF). Then pull out the key.
3. Quickly moving the throttle in the opposite direction of travel will cause the scooter to come to an
abrupt stop, and if held continuously in the opposite direction may cause erratic movement if you
are unfamiliar with the controls.
2 . S A F E T Y I N S T R U C T I O N S

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
8
2.3 LABELING
Please carefully read all labels on the scooter before driving it. For your future reference, do not remove all
labels.
1. CE LABEL …………………………………………………………
2. WARNING EMI LABEL…………………………………………
3. FREEWHEEL LABEL…………………………………….………..
2 . S A F E T Y I N S T R U C T I O N S

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
9
2.4 EMI (ELECTROMAGNETIC INTERFERENCE)
This portion of the content will provide the user with basic information that describes the problems with
EMI, known sources of EMI, protective measures either to lessen the possibility or exposure or to
minimize the degree of exposure, and suggested action should unexpected or erratic movement occur.
Caution: It is very important that you read this information regarding the possible effects
of Electromagnetic Interference on your electric scooter.
■ELECTROMAGNETIC INTERFERENCE (EMI) FROM RADIO WAVE SOURCES
Powered scooter may be susceptible to electromagnetic interference (EMI), which is interfering
electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio
(HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources)
can cause the powered scooter to release its brakes, move by itself, or move in unintended directions. It
can also permanently damage the motorized scooter control system. The intensity of the interfering EM
energy can be measured in volts per meter (V/m). Each motorized scooter can resist EMI up to certain
intensity. This is called its “immunity level”. The higher the immunity levels of the greater the
protection. At this time, current technology is capable of achieving at least a 20 V/m immunity level,
which would provide useful protection from the more common sources of radiated EMI. This immunity
level of this motorized scooter model as shipped, with no further modification, has an immunity level of
20 V/m without any accessories.
There are a number of sources of relatively intense electromagnetic fields in the everyday environment.
Some of these sources are obvious and easy to avoid. Others are not apparent and exposure is
unavoidable. However, we believe that by following the warning listed below, your risk to EMI will be
minimized.
The sources of radiated EMI can be broadly classified into three types:
1. Hand-held portable transceivers (transmitter-receivers) with the antenna mounted directly on the
transmitting unit. Examples include: citizens band (CB) radios, “walkie talkie”, security, fire, and
police transceivers, cellular telephones and other personal communication devices.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances and
taxis. These usually have the antenna mounted on the outside of the Vehicle.
3. Long-range transmitters and transceivers, such as commercial broadcast transmitter (radio and TV
broadcast antenna towers) and amateur (HAM) radios;
2 . S A F E T Y I N S T R U C T I O N S

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
10
3 . I D E N T I F I C AT I O N O F PA R T S
3.1 PARTS DESCRIPTION
1. Power switch 2. Charger Socket Cover 3. Basket Bracket
4. Tiller Adjust Lever 5. Wheel lock knob 6. Seat Rotate Lever (optional)
7. Armrests 8. Width Adjustable Armrests Knob
9. Circuit Breaker 10. Freewheel Lever
11. Anti-tip Wheels 12. Connecting device
.
1
2
3
4
5
6
8
7
9
10
11
12

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
11
4 . O P E R AT I O N

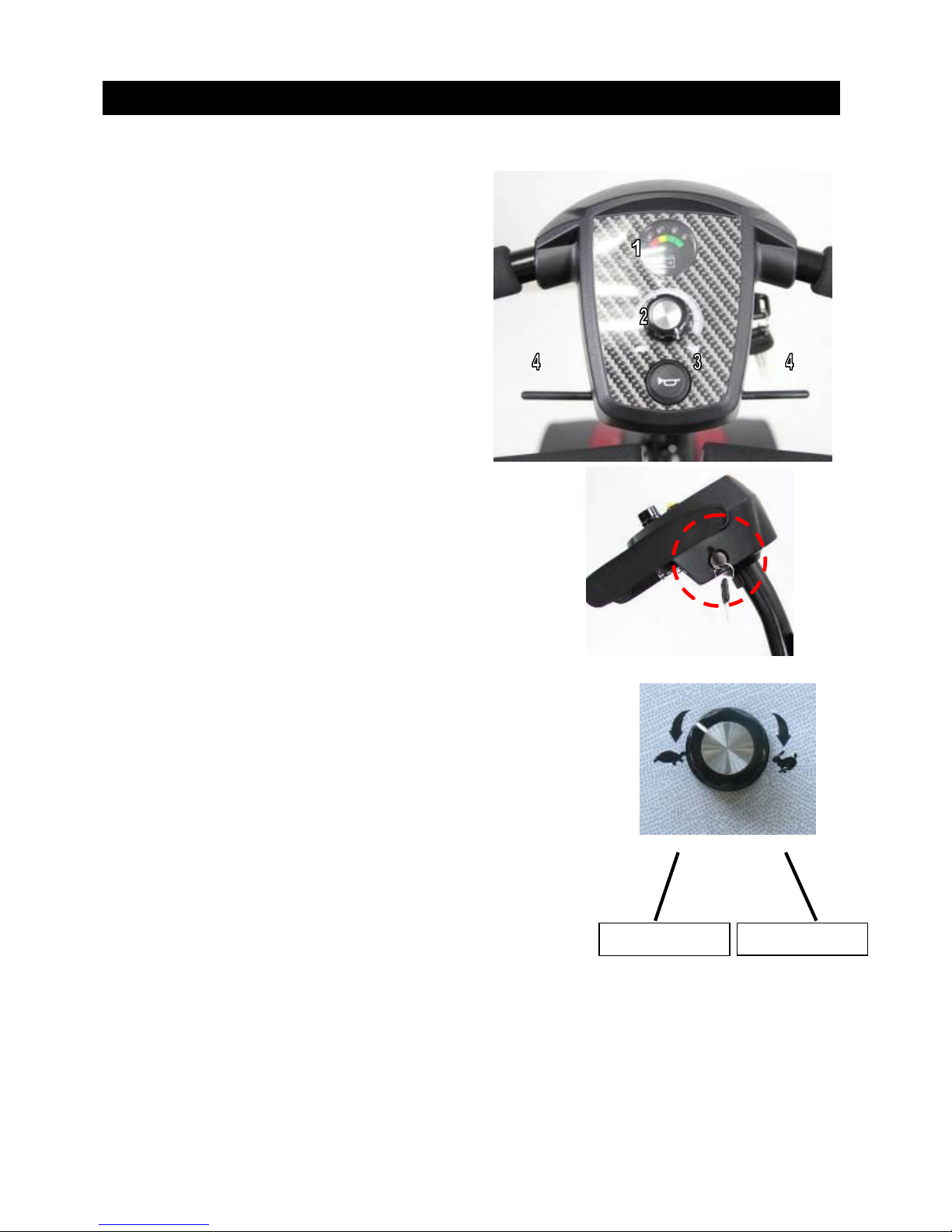

4.1 CONTROL PANEL
1. Battery Indicator
2. Speed Dial
3. Horn Button
4. Wigwag Paddle
4.2 HOW TO OPERATE YOUR SCOOTER
■Key switch
Turn the key to power ON or OFF
(ON) : Power is turned on
(OFF) : Power is turned off
■Speed Dial
Press the slowest or fastest setting to determine the
maximum speed of the scooter.
The image of rabbit means fast or high speed. The image
of turtle means slow of low speed. By turning this knob
towards chosen image you can control overall speed of the
scooter.
■Forward, Reverse, and Braking
Pull the speed control lever backwards with your right fingers and the vehicle will move forward.
Pull the speed control lever backwards with your left fingers and the vehicle will move backward.
The horn will beep when the vehicle is in reverse.
Slowest setting
Fastest setting

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
12
Release the speed control lever freely while either going forward or reverse, and the
electromagnetic brake in the motor will be activated and the scooter will stop.
■Horn Button
Press the horn button to sound the horn. Release the button to stop the horn.
■How To Set Freewheel Mode
The motor on the scooter can be disengaged, releases the locking mechanism on the gearbox allowing
the scooter to roll freely with or without power.
Drive Mode
*To put the scooter into “drive” mode, pushing freewheel lever up completely.
Freewheel Mode
*To put the scooter in to “freewheel mode”, pushing the freewheel lever down completely and the
scooter can be moved manually.
Please note that this will put the scooter in to freewheel mode, so scooter’s motor and brake will be
disengaged
■Battery Indicator
The battery indicator on the tiller console uses
a color code to indicate the approximate power remaining in
batteries. Green indicates (40～100%) capacity, yellow a
draining charge (10～30%), and red indicates that an
immediate recharge is necessary.
4 . O P E R AT I O N
DRIVE
NEUTRAL
RED
YELLOW
GREEN

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
13
The remaining power suggested by the battery indicator will vary by the actual driving time incurred
and how you drive. Repeated starting, stopping, climbing will consume the power more quickly.
▓Braking4 . O P E R AT I O N 4 . O P E R AT I O N 4 . O P E R AT I O N
Electro-magnetic brake:
Release the speed control lever completely, and the electromagnetic brake will be activated
automatically, and the scooter will stop.
Manual hand brake :
Emergency braking is possible using the manual hard brake. Squeeze hand brake and use the button
to lock it (use it for parking).
Squeeze hand brake again to release the button.
■Parking
After stopping, tune the main key to OFF and remove the key. The lights will turn OFF. The
electromagnetic brake is engaged (locked).
The hand brake lever can be locked by pushing button while squeezing hand brake lever. To
release the hand brake –squeeze lever gently.
■How to adjust the armrest width
Loosen the knobs at the back of the seat frame firstly, and then adjust the armrest width by sliding the
armrest. Once satisfied with the width, tighten the knob.
■Seat (Seat Swivel Base Assembly is Optional)
The seat can be turned to 45 degrees or 90 degrees.
Pull the seat adjustment lever forward and swivel seat.
Release the lever, and then continue swiveling the seat until it locks in position.
4 . O P E R AT I O N
Warning
When on a gradient NEVER switch the scooter to the freewheel mode. The electromagnetic
brakes will not be applied. This may result in injury.

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
14
Attention
Return the seat to the forward position before driving the scooter.
Ensure the limit switch is set to the slowest setting when operating the scooter on the
pavement. It is an offence to travel when driving faster than 4mph on the pavement.
Position yourself as far back possible before transferring, and never place your weight
or downward force on adjustable parts.
■How to re-position the seat (Seat Swivel Base Assembly is Optional)
The seat can be slide backward and forward for a comfortable driving position. To slide the seat,
pull the lever at the front the seat and reposition as required.
DO NOT sit in your scooter while in a moving vehicle.
■TillerAdjustment
The tiller can be adjusted in to many different positions to suit each driver.
1. Loosen the lever to adjust the tiller to positions you want.
2. Once decide the position, tighten the lever to secure the tiller.
■Main Circuit Breaker (Reset Button)
When the voltage in your scooter’s batteries becomes low or the scooter is heavily strained because of
excessive loads or steep inclines, the main circuit breaker may tip to protect the motor and electronics
from damage.
4 . O P E R AT I O N

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
15
4.3 ASSEMBLINGAND DISASSEMBLING
The scooter can be disassembled into five sections without tools: the seat, basket, battery pack, front
and rear section. Please be sure to follow these steps to properly assemble and disassemble your
scooter.
■Assembling The Scooter (Seat Swivel Base Assembly is Optional)
No tools are required to disassemble or assemble your scooter.
1. Place the freewheel mode lever in the drive position.
2. Set the rear section in the up position and make sure the hook for the front section is
connected to the axle of the rear section.
3. Put down the front and rear sections until the scooter is in locked.
4. Set down the battery pack on the scooter, and make sure it is in the correct position.
5. Set down the seat on the seat post until the swivel lock engages and you hear a click.
6. Turn key switch to “ON”. Make sure battery gauge indicates sufficient power.
■Disassembling The Scooter
The SC-S2454 can be disassembled in to five pieces, the seat (7.21 kg / 15.9 lbs), basket, the front
section (15.74 kg / 34.7 lbs), the rear section (10.69 kg / 23.5 lbs) and battery pack (9.18 kg / 20.2 lbs).
Please follow the steps. (Seat Swivel Base Assembly is Optional)
1. Make sure the tiller is raised before reassembling the scooter.
2. Turn key switch to “OFF”.
3. Place the free wheel mode lever in the drive position.
4. Take off the basket.
5. Push the Seat Rotate Lever while pulling up on the seat to remove.
4 . O P E R AT I O N
Warning
To avoid personal injury, ask for
assistance when necessary while
disassembling or assembling your scooter.

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
16
6. Unlock the battery lock part and rotate the battery lock part.
7. Pick up the battery pack and remove it from the scooter.
8. Loosen the tiller adjustment knob and fold down the tiller and retighten knob.
9. Lock the front wheel and tiller by turn and pull the wheel lock catch down.
10. Pull the connecting device upward to the rear section and stand upright.
11. Take off the front section with both hands and lower the shaft.
5.Push the Seat Rotate Lever while pulling up on the seat to remove.
(Seat Swivel Base Assembly is Optional)
6.Unlock the battery lock part and rotate the battery lock part.
7.Pick up the battery pack and remove it from the scooter.
4 . O P E R AT I O N

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
17
8.Loosen the tiller adjustment knob and fold down the tiller and retighten knob.
9.Lock the front wheel and tiller by turn and pull the wheel lock catch down.
10. Pull the connecting device upward to the rear section and stand upright.
4 . O P E R AT I O N

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
18
4.4 CHANGING COLOR PANEL
Your scooter features interchangeable panels which
allow you to change the color of your scooter.
These instructions will guide you through the process
of changing the panels. The panels that can be
changed are indicated in the illustration at the right.
■To replace the tiller color panel
No tools are required to replace the tiller color panel.
Using your thumbs, gently grip the end of the panel
and lift upward until the panel lifts off the tiller.
■Replacing the front and rear shroud color panel
Please disassembling the scooter before replace the front and rear shroud color panel.
Removing the color panel by snapping off from underneath the shroud. Screwdriver is required.
4 . O P E R AT I O N

Owner’s Manual
Dalton Medical Corp. www.daltonmedical.com
19
5. B AT T E RY C H A R G I N G A N D C A R E
5.1 CHARGING THE BATTERY
Follow the procedures below step by step:
1. Turn the power switch to (OFF)
2. Connect the charger’s power cord into the power outlet.
3. Open the charging socket cap on the battery pack and connect the
charger’s round plug to the charging socket.
4. Turn on the switch on the charger.
5. Both the charger’s red and orange LEDs will be lit when beginning
charging. The charging duration is about 6 hours. To ensure
optimum performance a 10-hour charge is recommended. But we do
not recommend a charging more than 24 consecutive hours.
6. Both the charger’s LEDs will be lit during the charging process. The
orange LED will turn green when charging is complete.
7. Turn off the charger; disconnect the power cord and the round plug from charger socket on the
scooter.
Warning
The fan inside the charger will be activated accordingly when you turn on the charger. If the
fan does not work when connected to the charger orthe green light is not showing, DO NOT use
this charger. It may lead to overheating of the charger and cause a fire as a result.
There is a red LED present on the charger to illustrate operation. If this LED does not
illuminate the charger is defective, please contact your dealer.
Attention
While gripping or folding the handle bar, beware of finger or hands caught in the handle area.
While returning the battery pack to the battery pack cavity of shroud, beware of finger or
hands.
Warning
1. Keep away from flammable objects while charging as it may lead to fire orexplosion of battery.
2. Do not smoke while charging as the battery may release hydrogen gas. Always charge your
battery in a well-ventilated space.
3. Never connect or disconnect the plug or cord with wet hands while charging. Do not connect or
disconnect the plug or cord when they are wet, it may lead to electric shock.
NOTE: The immovable function will be activated while your scooter is in charging status, which will
make your scooter not run.
