Deda Elementi ALANERA 2020 User manual

Alanera
ALANERA MANUBRIO INTEGRATO
ALANERA INTEGRATED HANDLEBAR
MOD. 2020 / MY 2020
MANUALE D’USO
E MANUTENZIONE
USER’S MANUAL
Ver. 01 - Dicembre/December 2019 ©Deda Elementi

Congratulazioni per il vostro nuovo manubrio Deda Elementi. Leggere e seguire
attentamente le seguenti istruzioni per un corretto utilizzo. Un errato montaggio
e un incorretta applicazione delle seguenti istruzioni può danneggiare il prodotto
che non sarà più coperto dalla garanzia, danneggiare la bicicletta o causare un
incidente. Per una appropriata installazione del prodotto sono richiesti specifici
attrezzi e una adeguata esperienza, si raccomanda dunque che il prodotto sia
installato dai punti vendita ufficiali Deda Elementi o da personale qualificato nel
montaggio di biciclette.
Congratulations for your new Deda Elementi handlebar. Please read these
instructions carefully and follow them for correct use. An improper installation or
wrong application of the instructions could damage the product, that will be no
more covered under warranty, damage the bicycle or cause an accident resulting
in injury or death. Since specific tools and experience are necessary for proper
installation, it is recommended that the product be installed by an official Deda
Elementi dealer or a qualified bicycle technician.

INDICE
INFORMAZIONI GENERALI DI SICUREZZA _____________________________________ pag. 4
GARANZIA ________________________________________________________________ pag. 5
PACKAGING ______________________________________________________________ pag. 6
PASSAGGIO CAVI __________________________________________________________ pag. 7
ISTRUZIONI DI MONTAGGIO _________________________________________________ pag. 3
MONTAGGIO SUPPORTO GARMIN _____________________________________________ pag. 9
ITA
GENERAL SAFETY INFORMATION ____________________________________________ pag. 14
WARRANTY _______________________________________________________________ pag. 15
PACKAGING ______________________________________________________________ pag. 16
CABLES ROUTING _________________________________________________________ pag. 17
TECHNICAL SPECIFICATIONS ________________________________________________ pag. 21
GARMIN MOUNT INSTALLATION _______________________________________________ pag. 23
ENG
CONTENTS

14
ENG
GENERAL SAFETY INFORMATION
It is under user’s responsibility to examine the product on a regular basis to
determine the need for service or replacement. Handlebar and their components
are products that wear from normal use of the bicycle, for that reason we
recommend cyclists to regularly inspect their bicycle and parts in order to detect
any damage. If any doubts or problems occurr, discontinue riding and have them
inspected by an official Deda Elementi dealer or a qualified bicycle technician.
This handlebar has been designed and intended to be used on normal paved
surfaces. In case of use on not paved surfaces or off-road, the product can
be subjected to damages, loose its functioning and cause serious accidents
and injury for the user.
If any bicycle fall or accident occures, discontinue riding the bicycle and have
it inspected carefully by an official Deda Elementi dealer or a qualified bicycle
technician. The use of any damaged bicycle part can cause serious accidents
and injury for the user.
Read the whole User’s Manual carefully and keep it in a safe place for later
reference.

15
WARRANTY
Deda Elementi warrants that all products are free from defects in materials or
workmanship for a period of two years after original purchase unless otherwise
stated on the Warranty policy.
The Warranty is valid with the purchase of an original Deda Elementi products
only.
2.1 LIMITS OF WARRANTY
In case of sale or product cession, the Warranty will be considered valid for
two years period only from the original purchase.
The Warranty doesn’t cover damages caused by modifications, even
small; any kind of adaptions or alterations; maintenance performed by an
unauthorized people; use of the product outside the normal riding conditions
on paved road surfaces. The Warranty doesn’t cover even damages caused
by impacts, collisions, falls that may occurr for accidental reasons.
The Warranty doesn’t cover aesthetic defects like: matting, chap, fading or
other phenomenons that may occur during the use and after the bicycle
cleaning using water in pressure, solvents or similar products, petrol.
In case of imperfections, defects or damages found on the product, the user
is asked to contact the dealer within 10 (ten) days; after this periond ends the
Warranty and it will be no more considered eligible.
Dedaindustrie S.r.l. reserves the right to modify partially or completly the products,
instructions and warranty without any notice to the customer.

16
ENG
PACKAGING

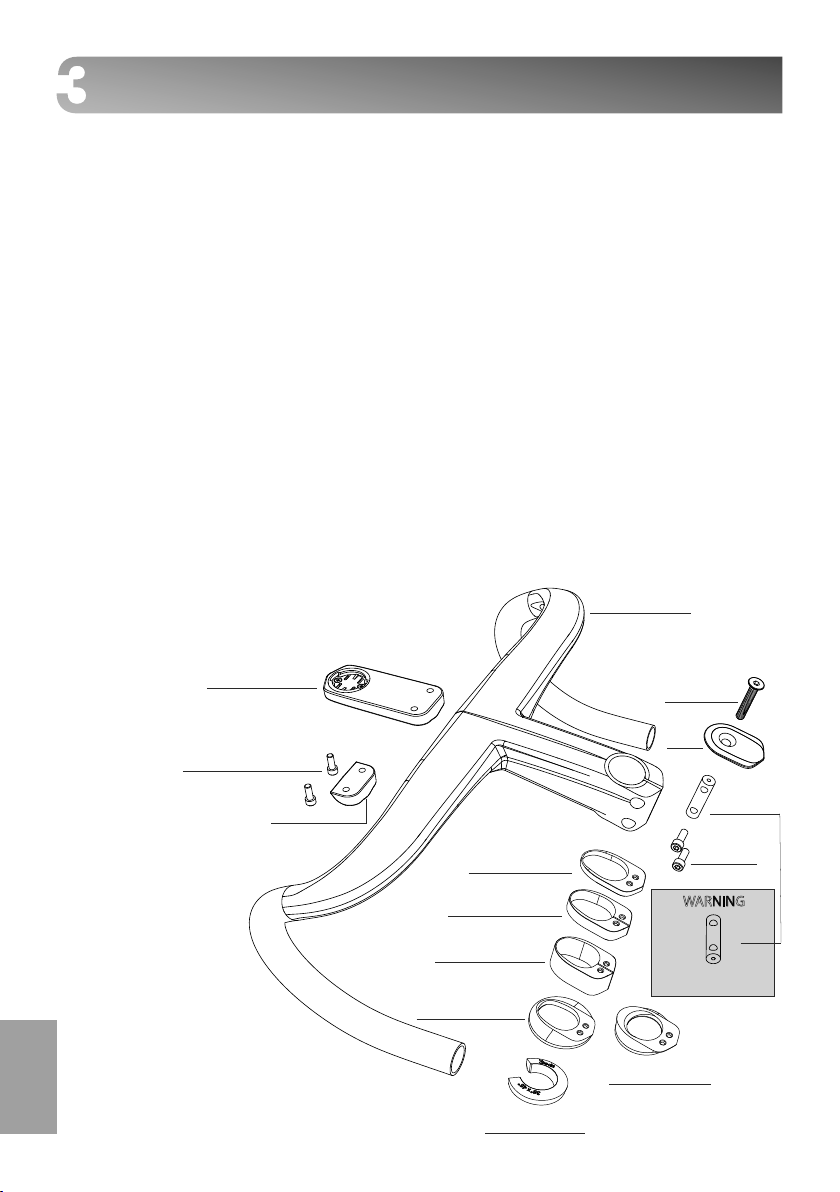

The product package you have just purchased contains the following parts:
(1) Integrated handlebar
(2) Headset compression screw M6x30 mm
(3) Aero Top cap
(4) Barrel-nut
(5) Stem screw M5x22 mm, 2pz
(6) 5 mm Aero spacer (Top spacer)
(7) 10 mm Openable aero spacer
(8) 20 mm Openable aero spacer
(9) Aero headtube cover (Top cover 46 mm, for 1”1/8 bearing)
(10) Aero headtube cover (Top cover 56 mm, for 1.5” bearing)
(11) Compression ring for 1.5” 36°X45°
(12) Integrated Garmin® mount (for 500&800 series)
(13) Deda cover nylon
(14) Cover screw M5x15 mm, 2pz
(1) Integrated handlebar
(2) Compression
screw M6X30mm
(3) Aero
Top cap
(4) Barrel-nut
(5) Stem screw
M5x22mm, 2pc
(6) 5mm Aero spacer
(Top Spacer)
(7) 10mm Openable
aero spacer
(10) Aero headtube cover
(Top Cover 56mm)
(11) Compression ring
for 1.5”36°X45° bearing
(12) Integrated Garmin®
mount (for 500&800 series)
(13) Nylon Deda Cover
(14) Cover screw M5x15mm, 2pc
(8) 20mm Openable
aero spacer
(9) Aero headtube cover
(Top Cover 46mm)
Asymmetric barrel-nut,
upper side identified by hole
WARNING

17
CABLES ROUTING
The Alanera MY 2020 is compatible both for external and full internal cable routing.
TRADITIONAL FRAMESET
In case of assembling on traditional frameset, cables will enter close to the levers and

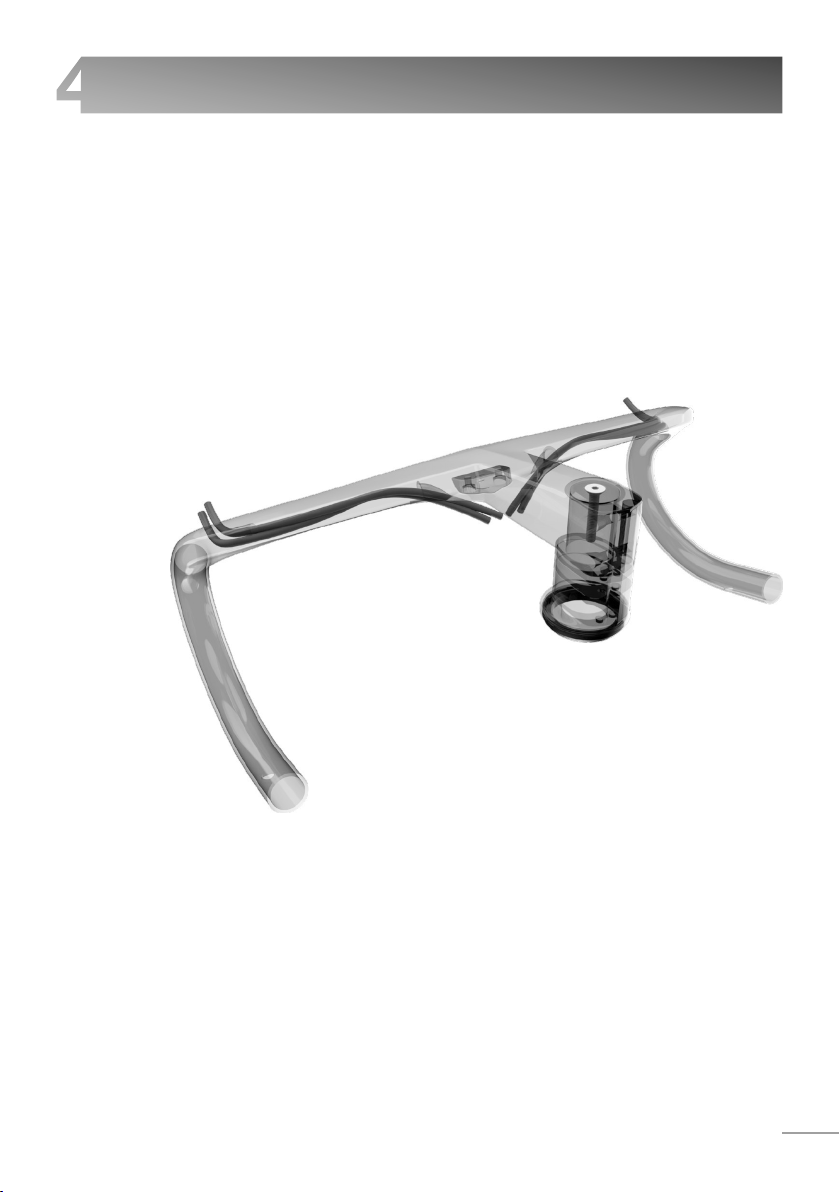

will go out from central holes. Here below a picture showing the cables passages. In
this case the headset top cover of 46 mm could be used (9).

18
ENG
DCR FRAMESET
DCR frameset uses a fork with forktube 1” 1/8 and headset upper bearing of 1,5”.
In this case the headset top cover of 56 mm (10) and compression ring of 1,5”
(11) could be used.
In order to use the complete internal cables routing, the frame and the fork have
to be compatible. Here below the features to be met.
Fork:

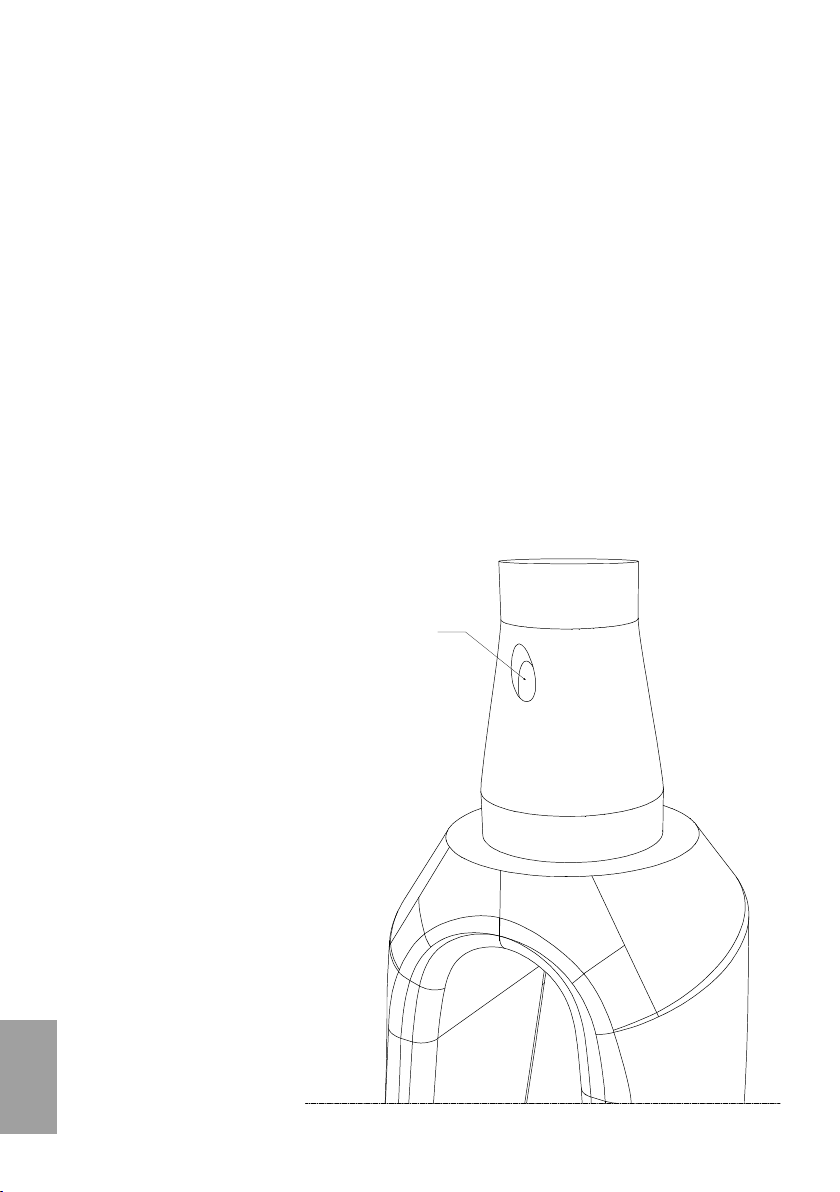

The fork should have an hole for the entrance of the brake front cable in the
forktube in order to allow the cable routing up to the exit on the braking area.
INTERNAL CABLE ROUTING HOLE
FOR THE FRONT BRAKE

19

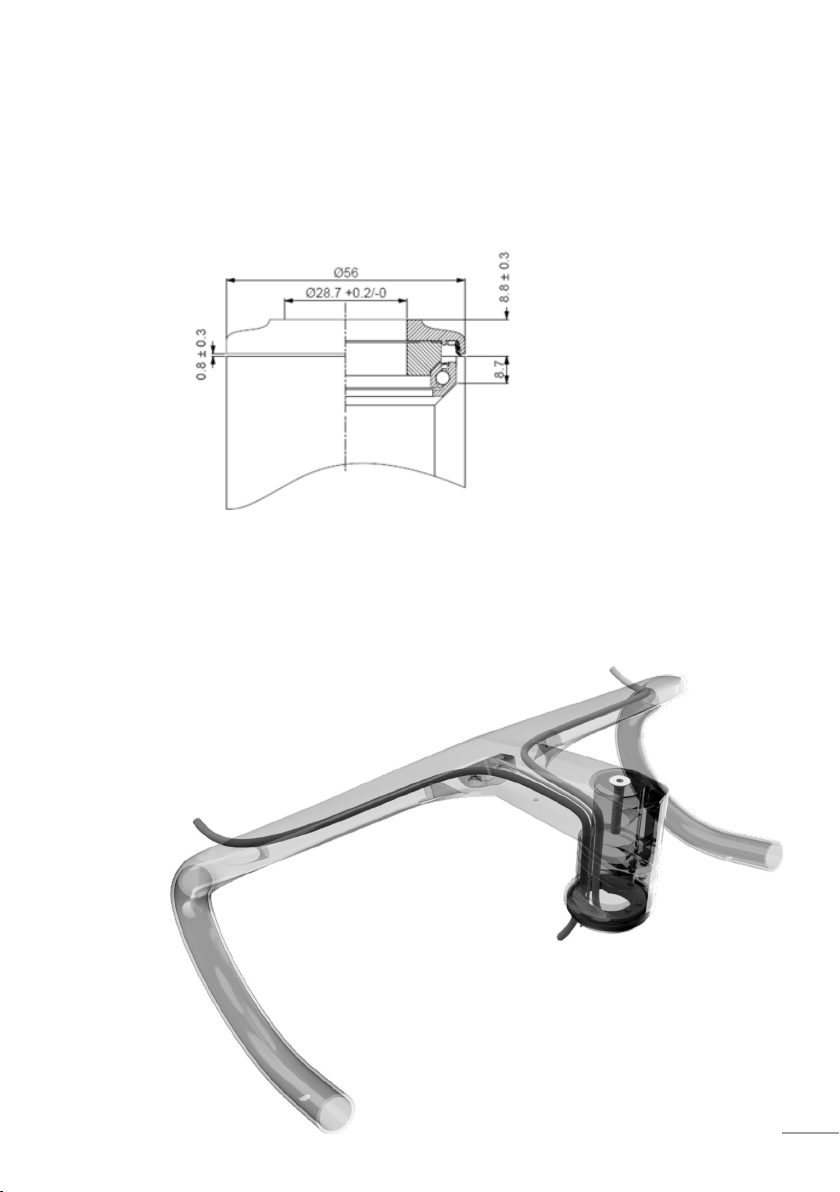

UPPER BEARING POSITION:
Upper bearing position has to observe following dimensions:
In case of assembling on DCR frameset, cables will enter close to the levers and
will go out under the stem, passing across the spacers, top cover of 56 mm (10)
and compression ring (11).
Here below a picture showing the full internal cables routing.

20
ENG
WARNING: with this frameset, Alanera handlebar is compatible for the full internal
cables routing just for electronic groups.
“D-SHAPE” FORK FRAMESET
This frameset has got an upper bearing of 1” 1/8 and a “D-shape” fork of 1” 1/8.
In this case the headset top cover of 46 mm (9) could be used.
In case of assembling on “D-shape” fork, cables will enter close to the levers and
will go out under the stem, passing across the spacers and top cover of 46 mm
(9).

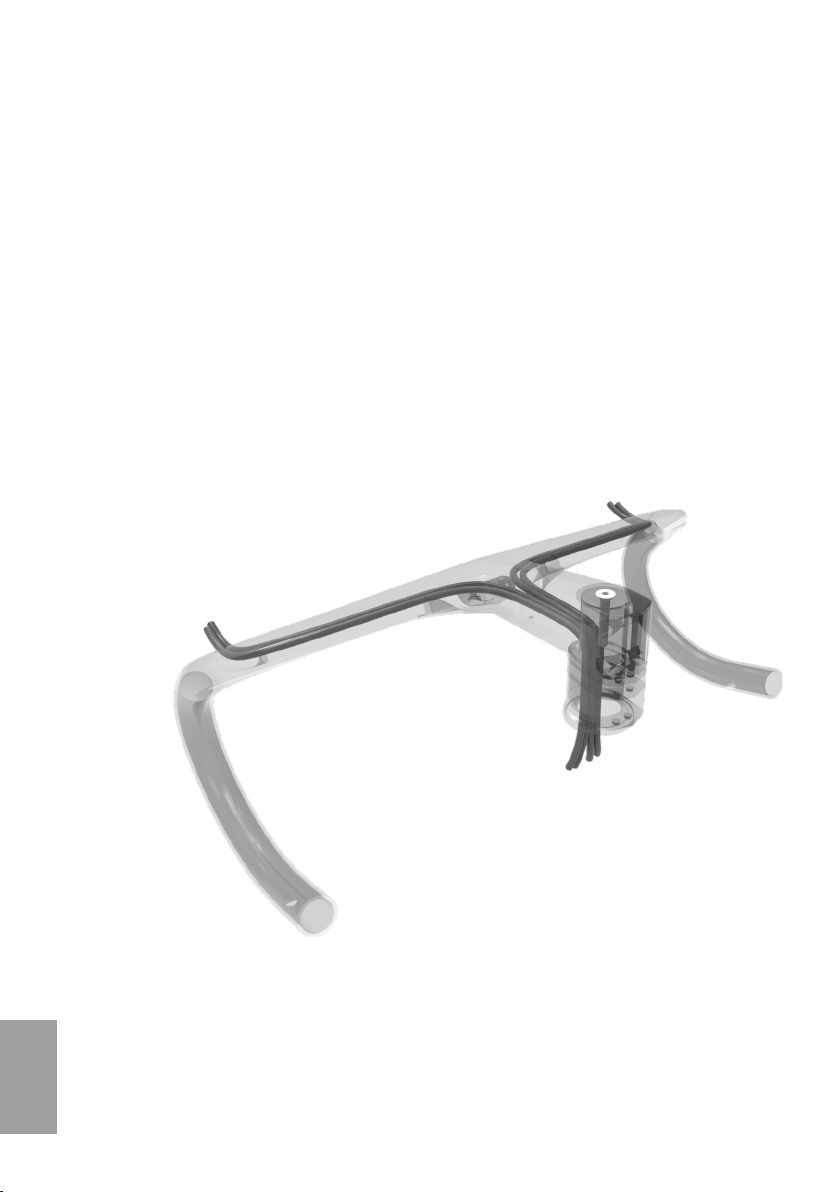

Here below a picture showing the full internal cables routing.
WARNING: with this frameset, Alanera handlebar is compatible also for the full
internal cables routing for electronic groups.

21
TECHNICAL SPECIFICATIONS
HEADSET COMPRESSION SCREW
AERO TOP CAP
EXPANDER EXPANSION BOLT
MAX TORQUE 3 Nm
(internal screw)
STEM SCREW
MAX TORQUE 5 Nm
EXPANDER
MINIMUM GAP 3 mm
MAX GAP 4 mm
FORK STEERER
5 mm AERO SPACER
REQUIRED
10 mm OPENABLE
AERO SPACER
OPTIONAL
20 mm OPENABLE
AERO SPACER
OPTIONAL
AERO HEADTUBE COVER
REQUIRED
1. Replacement of the original headset topcap with the Alanera topcap
(included). Two topcaps are supplied: one compatible with headtubed of 46
mm (9) and one of 56 mm (10). With this last one also the compression ring
has to be replaced with the one supplied (11).
2. Install spacers on the fork steerer above the top cover following below
instructions:
− It is mandatory to use the 5 mm Aero spacer (6) and it must be installed
directly under the handlebar stem.
− 10 and 20 mm Aero spacers are optional. They can be used to adjust the
stack height according to the desired handlebar position.
− The gap between the top of the handlebar stem and the top of the fork steerer
must be within a range of 3 to 4 mm. If necessary, cut fork steerer according
to manufacturer’s instructions.
Ensure there are no sharp burrs on the steerer tube.
WARNING: Do not put spacers above the stem. The lower edge of the stem,
which applies pressure on an area not supported by the expander, will cause
fork steerer ovalization and dangerous cuts and serious risks for your safety.

22
ENG
3. Install the handlebar on the steerer tube. Loosen the rear stem screws so
that the handlebar stem can slide along the fork steerer.
WARNING: In case of full internal cables routing, please carry out the cables
routing before proceeding to the next step.
4. Install the expander (not included) in the fork steerer until it stops, and
tighten the expansion bolt at maximum of 3 Nm.
WARNING: Make sure that the expander has enough length to ensure the
stem rear screws seat on the expander portion of the fork steerer. This will
reduce the risk of fork steerer notching while tightening the stem rear bolts.
5. Install the Aero top cap and tighten the compression bolt to preload the
headset bearings and adjust the headset play.
WARNING: Overtightening can damage the ball bearings that could get
stuck under stress.
Follow carefully the tightening torque recommended for the operation and
maintenance manual of the headset you use.
6. Ensure handlebar is aligned straight in relation to the direction of travel.
Tighten the two rear stem screws into the barrel–nut alternately, turning ½
turn at a time, until a minimum torque of 4Nm is reached. If the handlebar
stem is not tight enough, increase the torque up to a maximum of 5 Nm.
Please check the handlebar stem, which should not rotate on the fork steerer.
WARNING: Always use a calibrated torque wrench to tighten the bolts. Use the
minimum stem bolts tightening torque required to ensure that the handlebar
stem does not rotate on the fork steerer (Max. 5 Nm). An unnecessarily high
torque generates a dangerous state of radial compression on the fork steerer
which can cracks and/or break without notice.

23
1. Remove the nylon Deda Cover (11) for non-Garmin® users unscrewing the
two screws.
2. Insert the Garmin® mount (10) and fix it to the handlebar with the same two
screws.
Tighten the bolts starting with a suggested minimum torque of 3 Nm.
3. Check that the Garmin® mount has been correctly fixed before using your
Garmin® computer. This model is compatible with 500 and 800 series.
GARMIN MOUNT INSTALLATION
CONTACTS
For any question or technical information please contact Deda Elementi by
visiting the website at www.dedaelementi.com and through the email address
[email protected].
Dedaindustrie s.r.l. reserves the right to modify without notice the content of
this manual always guaranteeing the avalaibility of the updated versions on the
website dowanload area.

www.dedaelementi.com
Dedaindustrie S.r.l.
Via Leonardo Da Vinci 19/21/23
26010 Campagnola Cremasca (CR) - Italia
Phone [phone]
Fax [phone]
www.dedaos.com.tw
Deda OS
No.8, Lane 150-30, Sec. 3, Xitun Rd.,
Xitun Dist.
Taichung City 407, Taiwan (R.O.C.)
tel: [phone]
fax: [phone]
#ridededa
ALAIST18
*ALAIST18*
