Deda Elementi SL30DB User manual

SL30DB
SL30DB
CARBONIO COPERTONCINO DISC BRAKE
CARBON CLINCHER DISC BRAKE
MANUALE D’USO
E MANUTENZIONE
USER’S MANUAL
Ver. 0 – Ottobre / October 2017 ©Deda Elementi

Congratulazioni per le vostre nuove ruote Deda Elementi. Leggere e seguire
attentamente le seguenti istruzioni per un corretto utilizzo. Un errato montaggio
e un incorretta applicazione delle seguenti istruzioni può danneggiare il prodotto
che non sarà più coperto dalla garanzia, danneggiare la bicicletta o causare un
incidente. Per una appropriata installazione del prodotto sono richiesti specifici
attrezzi e una adeguata esperienza, si raccomanda dunque che il prodotto sia
installato dai punti vendita ufficiali Deda Elementi o da personale qualificato nel
montaggio di biciclette.
Congratulations on your new Deda Elementi wheels. Please read these instructions
carefully and follow them for correct use. An improper installation or wrong
application of the instructions could damage the product, that will be no more
covered under warranty, damage the bicycle or cause an accident resulting in injury
or death. Since specific tools and experience are necessary for proper installation,
it is recommended that the product be installed by an official Deda Elementi dealer
or a qualified bicycle technician.

INDICE
INFORMAZIONI GENERALI DI SICUREZZA _____________________________________ pag. 4
GARANZIA ________________________________________________________________ pag. 5
PACKAGING ______________________________________________________________ pag. 6
SPECIFICHE TECNICHE _____________________________________________________ pag. 7
PNEUMATICI _______________________________________________________________ pag. 8
CASSETTA PIGNONI________________________________________________________ pag. 9
ROTORE FRENO A DISCO___________________________________________________ pag. 10
MONTAGGIO RUOTE SUL TELAIO ____________________________________________ pag. 11
PULIZIA, MANUTENZIONE E SOSTITUZIONE DI PARTI___________________________ pag. 13
ITA
GENERAL SAFETY INFORMATION ____________________________________________ pag. 14
WARRANTY _______________________________________________________________ pag. 15
PACKAGING ______________________________________________________________ pag. 16
TECHNICAL SPECIFICATIONS ________________________________________________ pag. 17
TIRES _____________________________________________________________________ pag. 18
SPROCKETS INSTALLATION _________________________________________________ pag. 19
DISC BRAKE ROTOR _______________________________________________________ pag. 20
FITTING THE WHEELS ON THE FRAME ________________________________________ pag. 21
CLEANING, MAINTENANCE AND REPLACEMENT PARTS ________________________ pag. 23
ENg
CONTENTS

14
eng
GENERAL SAFETY INFORMATION
It is the user’s responsibility to examine the product on a regular basis to
determine the need for service or replacement. Wheels and their components are
products that wear from normal use of the bicycle, for that reason we recommend
cyclists to regularly inspect their bicycle and parts in order to detect any damage.
If any doubts or problems occurr, discontinue riding the wheels and have them
inspected by an official Deda Elementi dealer or a qualified bicycle technician.
These wheels have been designed and intended to be used on normal paved
surfaces. In case of use on not paved surfaces or off-road, wheels can be
subjected to damages, loose their functioning and cause serious accidents
and injury for the user.
Regularly check the wheels to be certain they are installed correctly to the
bicycle and fastened securely to the frame and fork.
If any bicycle fall or accident occur, discontinue riding the wheels and have
them inspected carefully by an official Deda Elementi dealer or a qualified
bicycle technician.
Frequently check the status of the wheels parts subjected to wear and if
necessary make the maintenance and/or parts replacement through the
official Deda Elementi dealers.
It is recommended to make an inspection after each riding season or every
time in case of bearing problems, wheel out of center or damaged parts are
apparent
Install only bicycle tires compatible with rims technical specifications included
in this user’s manual. The installation of tires not compatible can damage
the rim wheels, invalidate the Deda Elementi Warranty and cause serious
accidents and injury for the user.
Follow the minum inflation pressure recommended by the tire manufacturer.
Never exceed the maximum inflation pressure permitted for this Deda
Elementi carbon rim of 7 bar / 100 psi. The use of inflation pressures out of
this range can damage the carbon rim, invalidate the Deda Elementi Warranty
and cause serious accidents and injury for the user.
Read the whole User’s Manual carefully and keep it in a safe place for later
reference.

15
WARRANTY
Deda Elementi warrants that all Deda Elementi products are free from defects in
materials or workmanship for a period of two years after original purchase unless
otherwise stated on the Warranty policy.
The Warranty is valid for the purchase of an origianl Deda Elementi product only.
2.1 LIMITS OF WARRANTY
In case of sale or product cession, the Warranty will be considered valid for a two
yeras period only from the original purchace.
The Warranty doesn’t cover damages caused by modifications, even small; any
kind of adaptions or aletration; maintenance performed by an unauthorized
people; use of the product outside the normal riding conditions on paved
road surfaces. The Warranty doesn’t cover even damages caused by impacts,
collisions, falls that may occurr for accidental reasons.
The Warranty doesn’t cover aesthetic defetcs like: matting, chap, fading or other
phenomenons that may occur to the wheels during the use and after the bicycle
cleaning using water in pressure, solvents or similar products, petrol.
In case of imperfections, defetcs or damages found on the product, the user is
asked to entry in contact with the dealer within 10 (ten) days; after this periond
ends the Warranty will be no more considered eligible.
Deda Elementi reserves the right to modify partially or completly the products,
instructions and warranty without any notice to the customer.

16
eng
TECHNICAL SPECIFICATIONS:
* Campagnolo freehub body version
** Tubeless conversion kit not included into the wheels package
*** Disc brake rotors not included into the wheels package
The Wheels package you have just purchased contains the following items:
The wheels
Wheels bag
User’s Manual
Rim Tapes
PACKAGING
Wheels Model SL30DB
Cassetta Compatibility
10v Shimano / Sram
(with 1.80mm spacer)
11v Shimano
*10-11v Campagnolo
Rim
Size 622x19C
Width 25.0mm
Height 30.0mm
Rim Tape 622x18mm
Tire Compatibility Clincher or Tubeless (**)
Recommended Tires Sizes min 700x25 – max 700x40
Hubs Front 100mm
Rear 142mm
Spokes
Front 293mm; flat; straight pull
Rear Non Drive side 293mm; flat; straight pull
Rear Drive side 292mm; flat; straight pull
Nipples 15mm ABS, aluminium
Disc brake rotor compatibility Shimano® center lock (***)
Frame compatibility
thru-axle Front 12x100mm, Rear
12x142mm (standard)
traditional system QR Front 100 mm, Rear 135 mm
(kit available as spare part)
thru-axle 15 mm front Front TA 15 mm (kit available
as spare part)

17
Deda SL30DB wheels are designed to use clincher tires with inner tubes or Tubeless
tire. The Tubeless conversion kit is not included into the wheels box. Check tires and
inner tubes dimensions according to the rim technical specifications included in this
user’s manual.
WARNING: Do not use tubular or tubeless tires with this wheel. The use of non
compatible tires with this wheel can cause sudden and unexpected loss of pressure,
loss of control and tire failure resulting in serious accident and injury for the user.
Before the tire installation check that rim tape is already installed in the right
position inside the rim; if not please install first the rim tape.
Make sure the rim tape cover all the rim bed holes along the entire circumference
of the wheel.

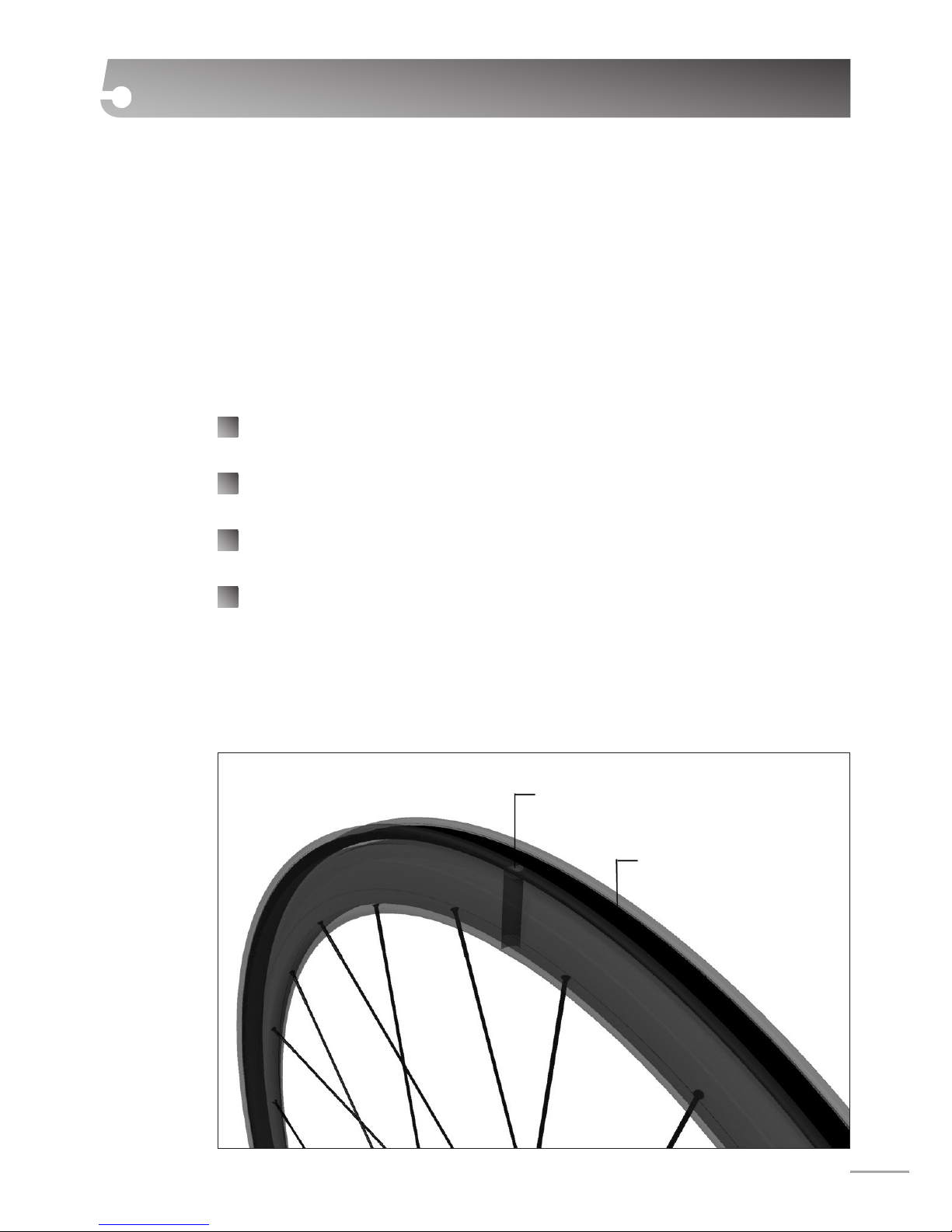

The valve hole on the rim tape has to be placed at the same position of the valve
hole of the rim wheel (Fig. 1).
Install the tire on the wheel and proceede with tire inflation as per tire manufacturer
recommandations. Never exceed the maximum inflation pressure permitted for
this Deda Elementi carbon rim of 7 bar / 110 psi.
TIRES
Fig 1
Valve hole
Rim tape

18
eng
WARNING: for Tubeless tire installation carefully read the instructions of the tire and
tubeless conversion kit Manucaturer.
WARNING: Never exceed the maximum inflation pressure recommended by the
wheels manufacturer as indicated in this user’s manual. Excessive tire pressures
could damage the rim structure resulting in serious accident and injury for the user.
WARNING: Tire installation requires a specific experience of the product, in case
of doubts please contact an official Deda Elementi dealer or a qualified bicycle
technician. During tire installation don’t use tools or tire lever that can fold, damage or
fragilize the rim edge. An incorrect tire installation can cause serious accidents and
injury for the user.
Deda Elementi wheels are available with Shimano® / Sram® 10-11 speed cassette
and Campagnolo® 10-11 speed cassette. Read and carefully follow the installation
instructions of the sprockets.
The rear wheel with Shimano® freehub body is supplied with a 1.80mm aluminum
spacer that is intended to be used with Shimano® /Sram® 10 speed cassette only .
Please don’t use 1.80mm spacer with 11 speed cassette.
SPROCKETS INSTALLATION
Wheel Type Freehub Cassette Compatibility
Shimano/Sram Shimano 11v Shimano 10v +
1.80mm spacer
Sram 11v
Campagnolo Campagnolo 11v Campagnolo 10v Sram 10v + dist.
1.80mm

19
WARNING: Since specific tools and experience are necessary for proper
sprockets installation, in case of doubts it is recommended that the product be
installed by an official Deda Elementi dealer or a qualified bicycle technician. An
incorrect sprockets installation can cause serious accidents and injury for the
user.
WARNING: Please make sure that wheel freehub body be compatible with
your sprockets cassette before proceed with the assembly. Failure to insure
compatibility between wheel and sprockets cassette can cause malfunction of
the bicycle drive train resulting in serious accident and injury for the user.
Deda SL30DB Disc Brake wheels are compatible with Shimano® Center Lock
locking systems.
The disc brake rotors are not included into the wheels box.
For Rotors installation with Shimano® Center Lock locking systems read and
carefully follow the instructions of the disc brake manucaturer.
WARNING: Disc brake rotor installation requires a specific experience of the
product.
In case of doubts please contact an official Deda Elementi dealer or a qualified
bicycle technician.
An incorrect rotor installation can cause serious accidents and injury for the user.
DISC BRAKE ROTOR

20
eng
FITTING THE WHEELS ON THE FRAME
WARNING: Since specific experience is necessary for proper wheels installation, in
case of doubts it is recommended that the product be installed by an official Deda
Elementi dealer or a qualified bicycle technician. An incorrect wheels installation
can cause serious accidents and injury for the user.
Deda SL30DB wheels are pre-assembled from the factory with Thru-axle locking
system (Front 12x100, Rear 12x142). The Thru-axles are not included into the
wheels package.
For thru-axle installation and wheels locking to the frame and fork read and carefully
follow the installation instructions provided by the bicycle and fork manufacturer.
WARNING: An incorrect installation of the through axle can result in the wheel
separation from the fork and cause serious accidents and injury for the user.
Conversion kit for Quick Release (100 mm Front/ 135 mm Rear) and Thru-axle (TA
15 mm Front) are available as spare parts.

21

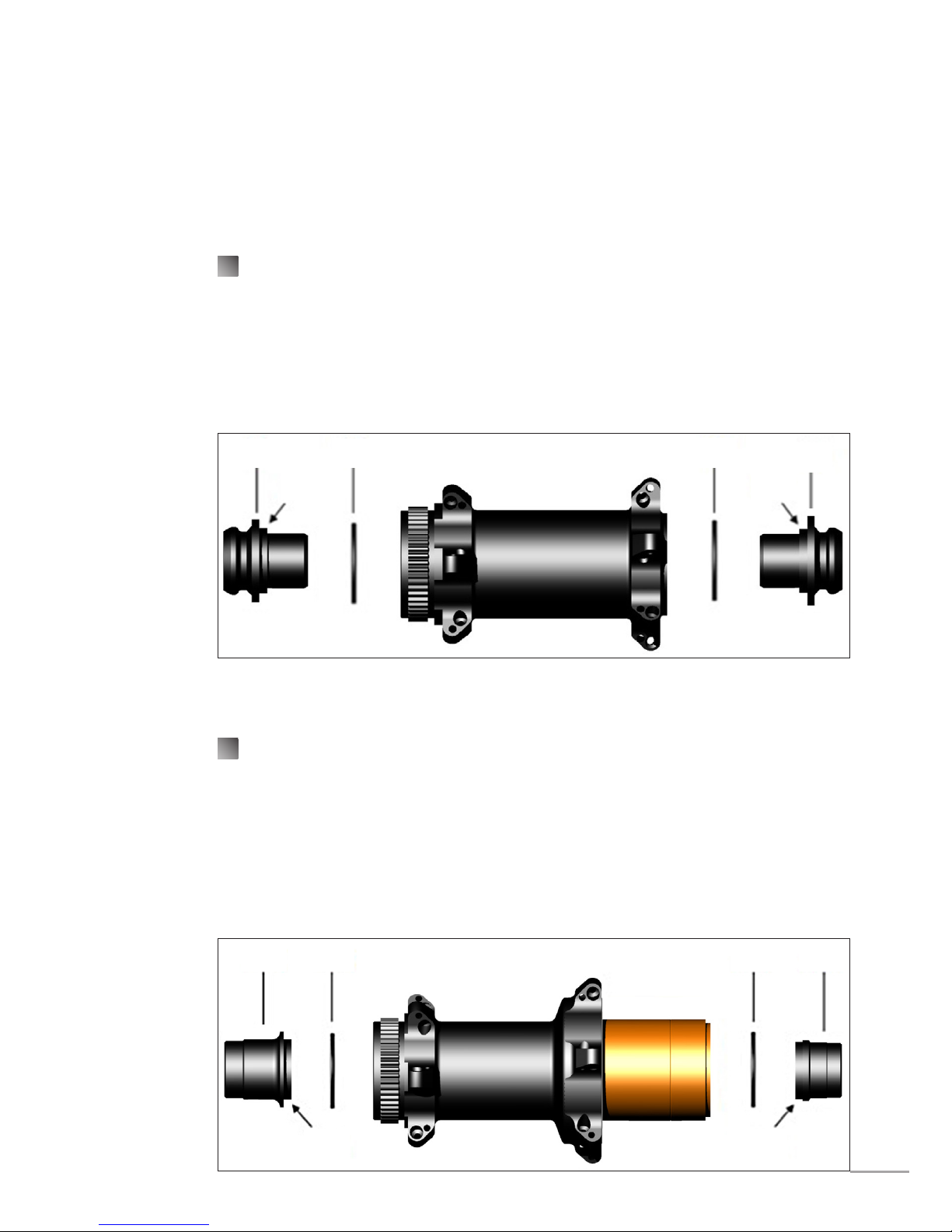

8.1 CONVERSION END CAPS KIT MOUNTING
Front hub
Remove the end-caps installed on the front hub (standard TA 12x100 mm)
and replace them with required ones (QR 100 mm, TA 15 mm).
Install the end-cap with the smaller flange diameter (1) on the disc brake rotor
side and the one with the bigger flange diameter (2) on the opposite side.
Make sure the washer (3) is correctly positioned in the end-cap seat (4) before
inserting caps into the hub.
Rear hub
Unscrew the end-caps fastened to the rear hub axle (standard TA 12x142
mm) with appropriate wrenches and replace them with the required one (QR
135 mm).
Install the longer end-cap (1) on the disc brake rotor side and the shorter one
(2) on the opposite side (drive side).
Make sure the washer (3) is correctly positioned in the end-cap seat (4) before
inserting caps into the hub.
(1) (3) (3) (2)
(4) (4)
(1) (2)(3)(3)
(4) (4)

22
eng
8.2 HUBS SPARE PARTS SPECIFICATIONS

23
The wheels you have just purchased are high technolgy products that require
specific care and maintenance to fully obtain the maximum performance
advantages and to preserve them over time. So we recommend to follow simple
rules of use to avoid any kind of problem.
WARNING: Never clean the wheels and parts using high pressure and high
temperature water. The water pressure can overcome seals and bearings
protections systems causing damages irreparably or malfunfion of internal parts
of the hub. Never use solvents, chemicl products, petrol or similar substances,
over the hubs that can damage seals and rubber gaskets or remove the grease
from the bearings completely.
After the bicycle washing, dry every parts and components avoiding to store
water into the hollow points of the wheel ( for instance inside the rim and hub).
Frequently check the wear status of the wheels parts and if necessary make
the maintenance and/or parts replacement through the official Deda Elementi
dealers.
The recommended service intervals depend on the use and using condition of
the wheels. It is recommended to make an inspection after each riding season
or every time in case of bearing problems, wheel out of center or damaged
parts are apparent. Since specific tools and experience are necessary for hub
maintenance, wheel trueing or parts replacement it is recommended that the
service should be done by official Deda Elementi dealer.
For any service or replacement parts, only orginal Deda Elementi spare parts have
to be used in order to guarantee the product quality and the warranty maintaining.
CONTACTS
For any question or technical information please contact Deda Elementi by
visiting the website at www.dedaelementi.com and through the email address
[email protected].
Deda Elementi s.r.l reserves the right to modify without notice the content of
this manual always guaranteeing the avalaibility of the updated versions on the
website dowanload area.
CLEANING, MAINTENANCE AND REPLACEMENT PARTS

www.dedaelementi.com
DedaElementiS.r.l.
ViaLeonardoDaVinci,21/23
26010CampagnolaCremasca(CR)-Italia
Tel.+390373750129
Fax+390373751105
www.dedaos.com.tw
DedaOS
No.8,Lane150-30,Sec.3,XitunRd.,
XitunDist.
TaichungCity407,Taiwan(R.O.C.)
tel:[phone]
fax:[phone]
DedaElementiUSA
[email protected]
#ridededa
