Dell U3014 User manual

Dell™ U3014 Flat Panel Monitor
User Guide
Setting the display resolution to 2560 x 1600 (maximum)
Information in this document is subject to change without notice.
© 2013 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries, Intel is a
registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY
STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade
names other than its own.
Model U3014t
'FCSVBSZ 2013 Rev. A0

Dell™ U3014 Flat Panel Monitor User's Guide
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury,or death.
Information in this document is subject to change without notice.
© 2013 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other
countries, Intel is a registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc. ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade
names other than its own.
Model U3014t
'FCSVBSZ 2013 Rev. A0

Back to Contents Page
Setting Up Your Monitor
Dell™ U3014 Flat Panel Monitor
Setting the display resolution to 2560 x 1600 (maximum)
For maximum display performance with Microsoft®Windows®operating systems, set the display resolution to 2560 x 1600 pixels by performing the following steps:
In Windows Vista®, Windows®7 or Windows®8:
1. For Windows®8 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen resolution.
3. Click the Dropdown list of the Screen resolution and select 2560 x 1600.
4. Click OK.
If you do not see the recommended resolution as an option, you may need to update your graphics driver. Please choose the scenario below that bestdescribes the computer system you are
using, and follow the given steps.
NOTE: If a tablet or DVD/Blu-Ray player is connected, the maximum output resolution may be limited to 1920 x 1080. In this case, please switch the video setting of the monitor OSD to 1:1
setting if the original tablet resolution is desired (Black bars may be inherent at the sides of the screen in this case).
NOTE: Depending on your graphics card, connections using HDMI may only support up to 2560 x 1600.
1: If you have a Dell™ desktop or a Dell™ portable computer with internet access.
2: If you have a non Dell™ desktop, portable computer, or graphics card.
Back to Contents Page

Back to Contents Page
About Your Monitor
Dell™ U3014 Flat Panel Monitor User's Guide
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Universal Serial Bus (USB) Interface
Card Reader Specifications
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.
NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.
NOTE: To set up with anyother stand, please refer to the respective stand setup guide for setup instructions.
Monitor

Stand
Power Cable (varies by countries)
DisplayPort cable (Mini-DP to DP)
DVI-D Cable (Dual Link)

USB 3.0 upstream cable (enables the USB ports on the monitor)
Velcro cable tie
Drivers and Documentation Media
Quick Setup Guide
Product and Safety Information Guide
Factory Calibration Report
Product Features
The Dell U3014 flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD) and LED backlight. The monitor features include:
■29.77-inch (75.62 cm) diagonal viewable image size. 2560 x 1600 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■Tilt, swivel and vertical extension.
■Removable stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media includes an Information File (INF), Image Color Matching File (ICM), Dell Display Manager software application, Color Calibration Software and product
documentation.
■Security lock slot.
■Asset Management Capability.
■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.

■TCO-Certified Displays.
■Dell Display Manager software included (comes in the CD shipped with the monitor).
■Arsenic-Free glass and Mercury-Free for the panel only.
■High Dynamic Contrast Ratio (2,000,000:1).
■BFR/PVC-reduced.
■Energy Gauge shows the energy level being consumed by the monitor in real time.
■EPEAT Gold Rating.
■Energy Saver feature for Energy Star compliance.
■Compatible with Adobe and sRGB color standards.
■Factory calibrated sRGB and Adobe RGB input source (to a delta E of less than 2) for brand new Dell U3014 monitor. Dedicated Custom Color Mode (6-axis Color-control) for Saturation , Hue, Gain
(RGB) and offset (RGB).
■12-bit internal processing HDMI with deep color (12-bit).
■12-bit internal processing with 14-bit LUT.
■USB 3.0 Card Reader (SD/Mini SD, MS/HSMD/MSPRO, MMC).
■Supports DVI-D, DisplayPort, Mini DisplayPort, HDMI, DP1.1a, DP 1.2 MST (also known as DP Daisy Chain) and HBR2 (Default out of factory setting is DP1.1a. To enable MST and HBR2, refer to
instruction on section "Connecting the Monitor for DP MST Function" ).
■Supports Picture by Picture (PBP) and Picture in Picture (PIP) Select mode.

Identifying Parts and Controls
Front View
Front View Front panel controls
Label Description
1Function buttons (For more information, see Operating the Monitor)
2Power On/Off button (with LED indicator)

Back View
Back view Back view with monitor stand
Label Description Use
1VESA mounting holes (100 mm x 100 mm -
behind attached VESA Cover)Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm) .
2Regulatory label Lists the regulatory approvals.
3Stand release button Release stand from monitor.
4Security lock slot Secures monitor with security cable lock.
5Service tag label Refer to this label if you need to contact Dell for technical support.
6Barcode serial number label To contact Dell for technical support.
7Dell Soundbar mounting brackets Attaches the optional Dell Soundbar.
8Cable management slot For cable management. Route cables through the slot.

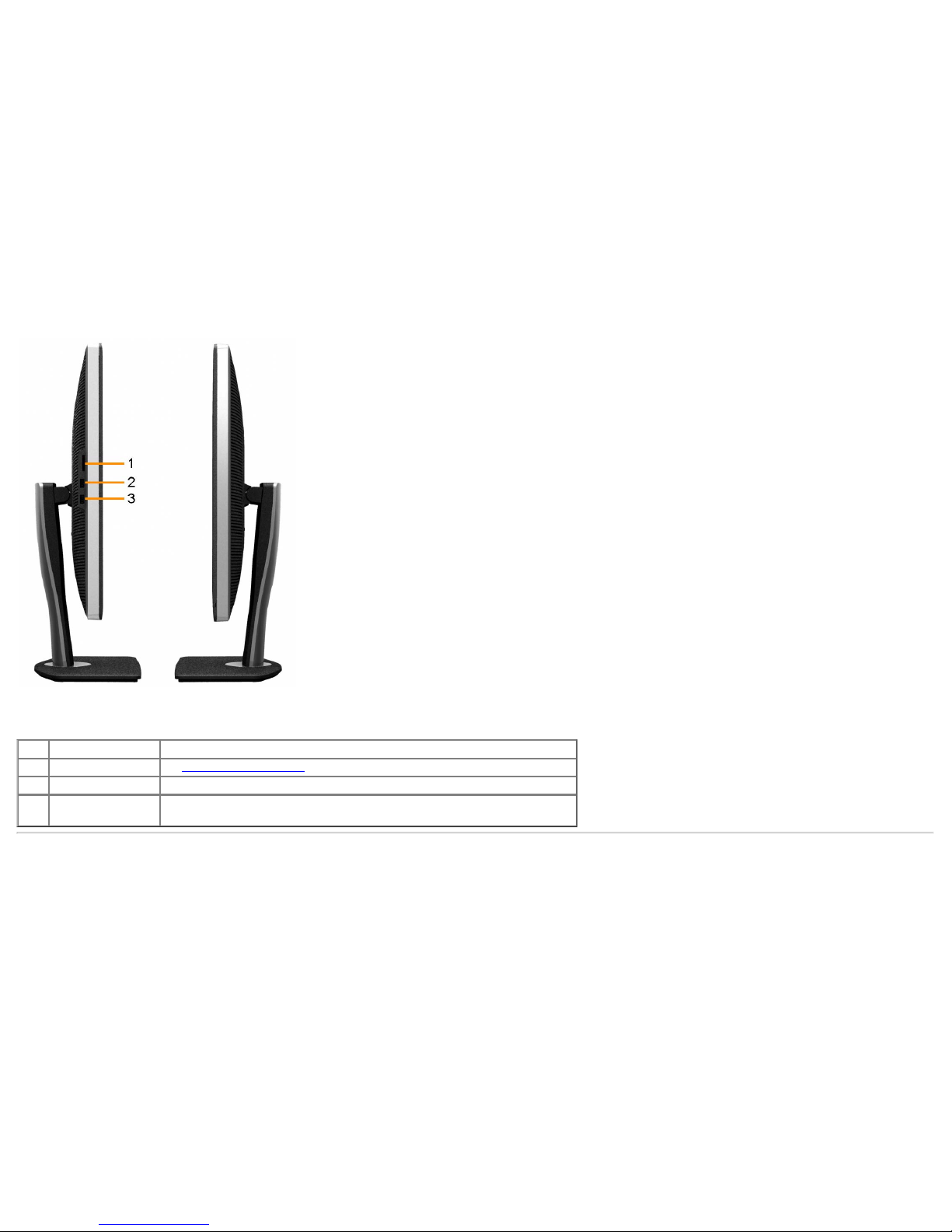

Side View
Left view Right view
Label Description Use
1Card Reader See Card Reader Specifications for more information.
2USB Down Stream Port Connect your USB devices.
3USB Down Stream Port Connect your USB devices.
This USB port supports BC 1.2 compliance charging devices, at 1.5A max for fast charging.

Bottom View
Bottom view
Label Description Use
1DC power connector for
Dell Soundbar
Connect the power cord for the soundbar (optional).
2AC power cord connector Connect the power cable.
3DisplayPort in connector Connect your computer with DP cable.
4Mini DisplayPort in
connector
Connect your computer with Mini DP to DP cable.
5DVI connector Connect your computer DVI (Dual link) cable.
Use only DVI dual-link cable provided in box or other certified dual-link DVI cable for this connection.
6HDMI connector Connect your computer with HDMI cable.
7DisplayPort out (MST)
connector
DisplayPort output for MST (Multi-Stream Transport) capable monitor. DP 1.1 monitor can only be connected as the last monitor in the MST chain. To enable MST,
refer to instruction on section "Connecting the Monitor for DP MST Function".
8Audio connector For HDMI 1.4 audio channel or DisplayPort 1.2 audio channel output.
Connect the audio channel output to the black connector. Support 2.0 channel output only.*
9USB upstream port Connect the USB cable that comes with your monitor to the computer. Once this cable is connected, you can use the USB downstream connectors on the monitor.
10 USB downstream ports Connect your USB device. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on the monitor.
* Headphone usage is not supported for the audio line out connector.

Monitor Specifications
Flat Panel Specifications
Screen type Active matrix - TFT LCD
Panel type AH In-plane switching
Viewable image
dimensions
Diagonal 75.62cm (29.77 inches)
Horizontal 641.28 mm (25.25 inches)
Vertical 400.80mm (15.78inches)
Pixel pitch 0.25 (H) mm x 0.25 (V) mm
Viewing angle
178° (vertical) typical
178° (horizontal) typical
Luminance output 350 cd/m²(typical), 50 cd/m² (minimum)
Contrast ratio 1000 to 1 (typical), 2,000,000 : 1 (typical Dynamic Contrast On)
Faceplate coating Antiglare with hard-coating 3H
Backlight LED edgelight system
Backlight Life 30K hours
Response Time 6 ms gray-to-gray (typical)
Color depth 1.074b colors
Color Gamut 103%* (CIE 1931), 120% (CIE 1976)
*[U3014] sRGB coverage is 100% (based on CIE 1931 and CIE 1976), AdobeRGB coverage is 99%( based on CIE 1931 and CIE 1976) .
Resolution Specifications
Horizontal scan range 30 kHz to 113 kHz (automatic)
Vertical scan range 56 Hz to 86 Hz (automatic)
Maximum preset resolution 2560 x 1600 at 60 Hz
Supported Video Modes
Video display capabilities 480p, 576p, 720p, 1080p, 480i, 576i, 1080i

Preset Display Modes
Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (Horizontal/Vertical)
VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.0 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1280 x 800 49.7 60.0 83.5 +/+
VESA, 1600 x 1200 75.0 60.0 162.0 +/+
VESA, 1920 x 1200 74.0 60.0 154.0 +/+
VESA, 2048 x 1280 - R 78.9 60.0 174.3 +/+
VESA, 2560 x 1600 99.5 60.0 348.5 +/+
Electrical Specifications
Video input signals Digital DVI TMDS, 600mV for each differential line, positive polarity at 50 ohm input impedance
DP1.2/HDMI1.4 signal input support
AC input voltage/frequency/current 100 VAC to 240 VAC / 50 Hz or 60 Hz +3 Hz / 1.8 A (Typical)
Inrush current 120 V : 30 A (Max)
240 V : 60 A (Max)
Physical Characteristics
Connector type DVI-D, white connector
DP, black connector (include DP in and DP out)
Mini DP
HDMI
USB 3.0
Signal cable type DVI-D
Mini DP to DP
HDMI

USB 3.0
Dimensions (with stand)
Height (extended) 572.7 mm (22.55 inches)
Height (compressed) 482.7 mm (19.00 inches)
Width 689.7 mm (27.15 inches)
Depth 201.4 mm (7.93 inches)
Dimensions (without stand)
Height 449.2 mm (17.69 inches)
Width 689.7 mm (27.15 inches)
Depth 61.0 mm (2.40 inches)
Stand dimensions
Height (extended) 414.5 mm (16.32 inches)
Height (compressed) 368.5 mm (14.51 inches)
Width 314.9 mm (12.40 inches)
Depth 201.4 mm (7.93 inches)
Weight
Weight with packaging 13.65 kg (30.09 lb)
Weight with stand assembly and cables 10.84 kg (23.90 lb)
Weight without stand assembly
(For wall mount or VESA mount considerations - no cables)
7.35 kg (16.20 lb)
Weight of stand assembly 2.46 kg (5.42 lb)
Front Frame Gloss Dell Gloss 4+/-1 (Hairline on front external surface.)
Environmentall Characteristics
Temperature
Operating 0 °C to 40 °C
Non-operating Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating 10% to 80% (non-condensing)
Storage: 5% to 90% (non-condensing)

Non-operating Shipping: 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,400 ft) max
Non-operating 10,668 m (35,000 ft) max
Thermal dissipation 409.46 BTU/hour (maximum)
204.73 BTU/hour (typical)
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as Power Save
Mode
*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling
of this automatic power saving feature:
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation Active Active Active White 120 W (maximum) **
60 W (typical)
Active-Off mode Inactive Inactive Blanked White (fade in and fade out) Less than 0.5 W
Switch Off - - - Off Less than 0.5 W
The OSD will only function in the normal operation mode. When any button is pressed in Active-Off mode, one of the following messages will be displayed:
Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR®-compliant.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance, Dell Soundbar, and USB active.
Pin Assignments
DVI Connector 19-pin HDMI Connector
Pin Number 24-pin Side of the monitor connector Pin Number 24-pin Side of the monitor connector
1TMDS RX2- 13 Floating
2TMDS RX2+ 14 +5 V/+3.3 V power
3TMDS Ground 15 Self test
4 Floating 16 Hot Plug Detect
5 Floating 17 TMDS RX0-
6DDC Clock 18 TMDS RX0+
7DDC Data 19 TMDS Ground
8Floating 20 Floating
9TMDS RX1- 21 Floating
10 TMDS RX1+ 22 TMDS Ground
11 TMDS Ground 23 TMDS Clock+
12 Floating 24 TMDS Clock-
Pin
Number
19-pin Side of the monitor
connector (Cable not
included)
Pin
Number
19-pin Side of the monitor
connector (Cable not
included)
1TMDS DATA 2+ 11 TMDS CLOCK SHIELD
2TMDS DATA 2 SHIELD 12 TMDS CLOCK-
3TMDS DATA 2- 13 Floating
4TMDS DATA 1+ 14 Floating
5TMDS DATA 1 SHIELD 15 DDC CLOCK (SDA)
6TMDS DATA 1- 16 DDC DATA (SDA)
7TMDS DATA 0+ 17 GROUND
8TMDS DATA 0 SHIELD 18 +5 V POWER
9TMDS DATA 0- 19 HOT PLUG DETECT
10 TMDS CLOCK

DisplayPort Connector (DP in and DP out) Mini DisplayPort Connector
Pin
Number
20-pin Side of the monitor
connector
Pin
Number
20-pin Side of the monitor
connector
1 ML0(p) 11 GND
2 GND 12 ML3(n)
3 ML0(n) 13 GND
4 ML1(p) 14 GND
5 GND 15 AUX(p)
6 ML1(n) 16 GND
7 ML2(p) 17 AUX(n)
8 GND 18 HPD
9 ML2(n) 19 DP_PWR Return
10 ML3(p) 20 +3.3 V DP_PWR
Pin
Number
20-pin Side of the monitor
connector
Pin
Number
20-pin Side of the monitor
connector
1 GND 11 ML2(p)
2Hot Plug Detect 12 ML0(p)
3 ML3(n) 13 GND
4 GND 14 GND
5 ML3(n) 15 ML1(n)
6 GND 16 AUX(p)
7 GND 17 ML1(p)
8 GND 18 AUX(n)
9 ML2(n) 19 GND
10 ML0(p) 20 +3.3 V DP_PWR
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data
Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different settings if desired. For more
information about changing the monitor settings, see Operating the Monitor.

Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the left side of your monitor.
NOTE: The USB ports on this monitor are USB 3.0 compliant.
Transfer speed Data Rate Power Consumption
SuperSpeed 5 Gbps 4.5 W (Max., each port)
Hi-Speed 480 Mbps 2.5 W (Max., each port)
Full speed 12 Mbps 2.5 W (Max., each port)
NOTE: Up to 1.5A on USB downstream port (port with lightning icon) with BC1.2 compliance devices.
USB Upstream Connector USB Downstream Connector
Pin Number Signal Name
1VBUS
2D-
3D+
4GND
5StdB_SSTX-
6StdB_SSTX+
7GND_DRAIN
8StdB_SSRX-
9StdB_SSRX+
Shell Shield
Pin Number Signal Name
1VBUS
2D-
3D+
4GND
5StdA_SSRX-
6StdA_SSRX+
7GND_DRAIN
8StdA_SSTX-
9StdA_SSTX+
Shell Shield

USB Ports
1 upstream - back
4 downstream - 2 on back; 2 on left side
Power Charging Port- the lower one of two USB ports on left side (port with lightning icon) ; supports fast current charging capability if the device is BC1.2 compatible.
NOTE: USB 3.0 functionality requires a USB 3.0 compatible computer.
NOTE: The monitor's USB interface works only when the monitor is On or in power save mode. If you turn Off the monitor and then turn it On, the attached peripherals may take a few seconds to
resume normal functionality.
Card Reader Specifications
Overview
The Flash Memory Card Reader is a USB storage device that allows users to read and write information from and into the memory card.
The Flash Memory Card Reader is automatically recognized by Microsoft®Windows®Vista, Windows®7 and Windows®8.
Once installed and recognized, memory card(slot) appears drive letter.
All standard file operations (copy, delete, drag-and-drop, etc.) can be performed with this drive.
NOTE: Install the Card Reader driver (provided in the Drivers and Documentation Media CD that comes with the monitor) to ensure memory cards are detected properly when
inserted into the card slot.
Features
The Flash Memory Card Reader has the following features:
Supports Microsoft®Windows®Vista, Windows®7 and Windows®8 operating systems.
Mass Storage Class device (No drivers are required under Microsoft®Windows®Vista, Windows®7 and Windows®8).
Supports various memory card media.
The following table lists the memory cards supported:
Slot Number Flash memory cards type

1
MS Pro HG,
High Speed Memory Stick (HSMS),
Memory Stick PRO (MSPRO), Memory Stick Duo(w Adapter),
MS Duo Secure Digital (Mini-SD), Secure Digital Card, Mini Secure Digital (w Adaptor),
TransFlash (SD, including SDHC),
MultiMediaCard (MMC)
Maximum Card Capacity Supported by the U3014 card reader
Card type Support Specification Support Maximum Capacity by Spec U3014
MS Pro HG Memory Stick Pro-HG Support USB 3.0 speed 32 GB Supported
MS Duo Memory Stick Duo Specification 32 GB Supported
SD SD Memory Card support USB 3.0 speed 1 TB Supported
MMC Multi Media Card System Specification 32 GB Supported
General
Connection type USB 2.0/3.0 High Speed Device (USB High Speed Device compatible)
Supported OS Microsoft®Windows®Vista, Windows®7 and Windows®8
LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or
usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: www.dell.com/support/monitors.
Maintenance Guideliness
Cleaning Your Monitor
WARNING: Read and follow the safety instructions before cleaning the monitor.
WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.
For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
To clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the antistatic coating. Do not use benzene,
thinner, ammonia, abrasive cleaners, or compressed air.
Use a lightly-dampened, warm cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
If you notice white powder when you unpack your monitor, wipe it off with a cloth.
Handle your monitor with care as a darker-colored monitor may scratch and show white scuff marks more than a lighter-colored monitor.
To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.
