Dell P519HL User manual

Dell Advanced Projector P519HL
User’s Guide

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make
better use of your projector
CAUTION: A CAUTION indicates potential damage to hardware or
loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property
damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2018 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission
of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP
and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and
Windows are either trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model: Dell Advanced Projector P519HL
July 2018 Rev. A01

Contents | 3
Contents
1 About Your Dell Projector. . . . . . . . . . . . . . . . . 4
Projector Box Contents . . . . . . . . . . . . . . . . . . . . . 4
Projector Top and Bottom View . . . . . . . . . . . . . . . 5
Projector Connections . . . . . . . . . . . . . . . . . . . . . . 6
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2 Adjusting Projector Image . . . . . . . . . . . . . . . 12
Adjusting Projected Zoom . . . . . . . . . . . . . . . . . . 12
Adjusting Projector Position . . . . . . . . . . . . . . . . . 13

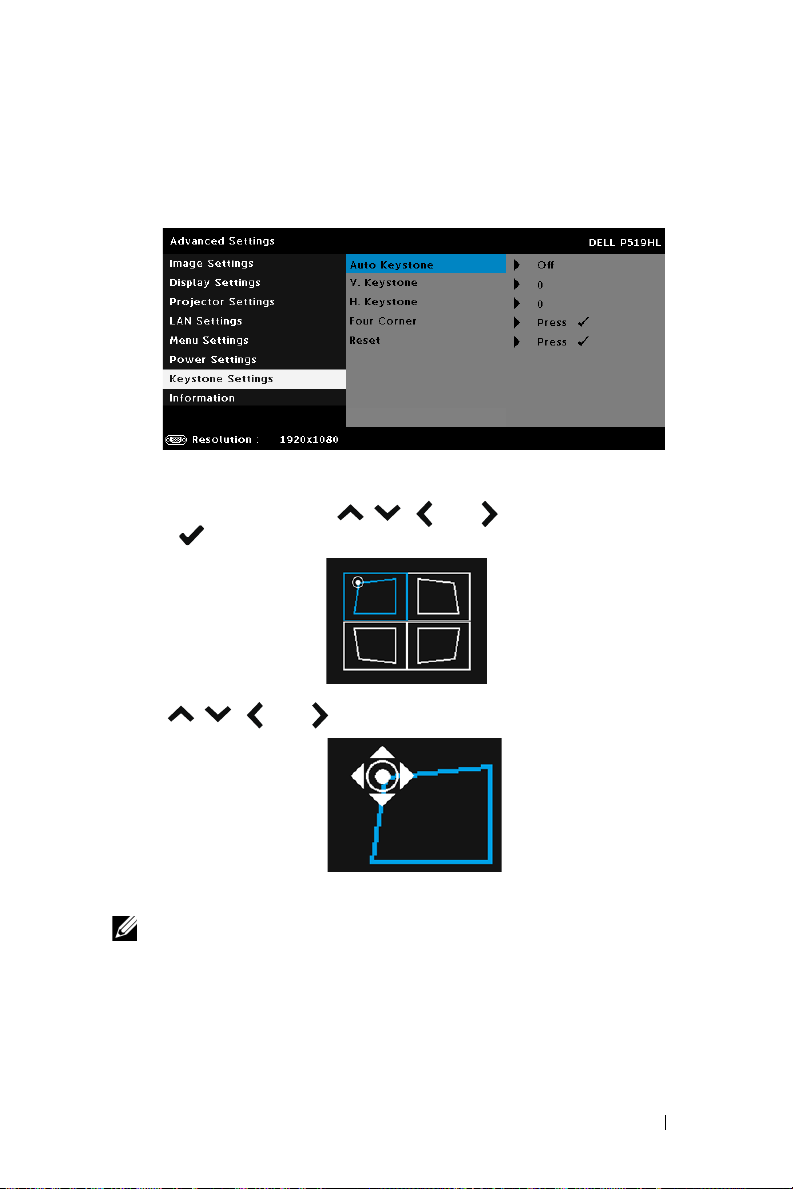

Adjusting Image Corners . . . . . . . . . . . . . . . . . . . 15
Adjusting Image Size . . . . . . . . . . . . . . . . . . . . . 16
3 Using Your Projector. . . . . . . . . . . . . . . . . . . . 18
Using Network Display . . . . . . . . . . . . . . . . . . . . 18
Connecting a Computer Using Optional Wireless
Dongle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using PC-Free Presentation . . . . . . . . . . . . . . . . . 40
4 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . 55
Troubleshooting Tips. . . . . . . . . . . . . . . . . . . . . . 55
Guiding Signals . . . . . . . . . . . . . . . . . . . . . . . . . 58
5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Replacing the Remote Control Battery . . . . . . . . . . 59
6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 60
Compatibility Mode (Digital / Analog) . . . . . . . . . . . 63
7 Additional Information . . . . . . . . . . . . . . . . . . 65
8 Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . 66

4About Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have all
the items, and contact Dell if anything is missing.

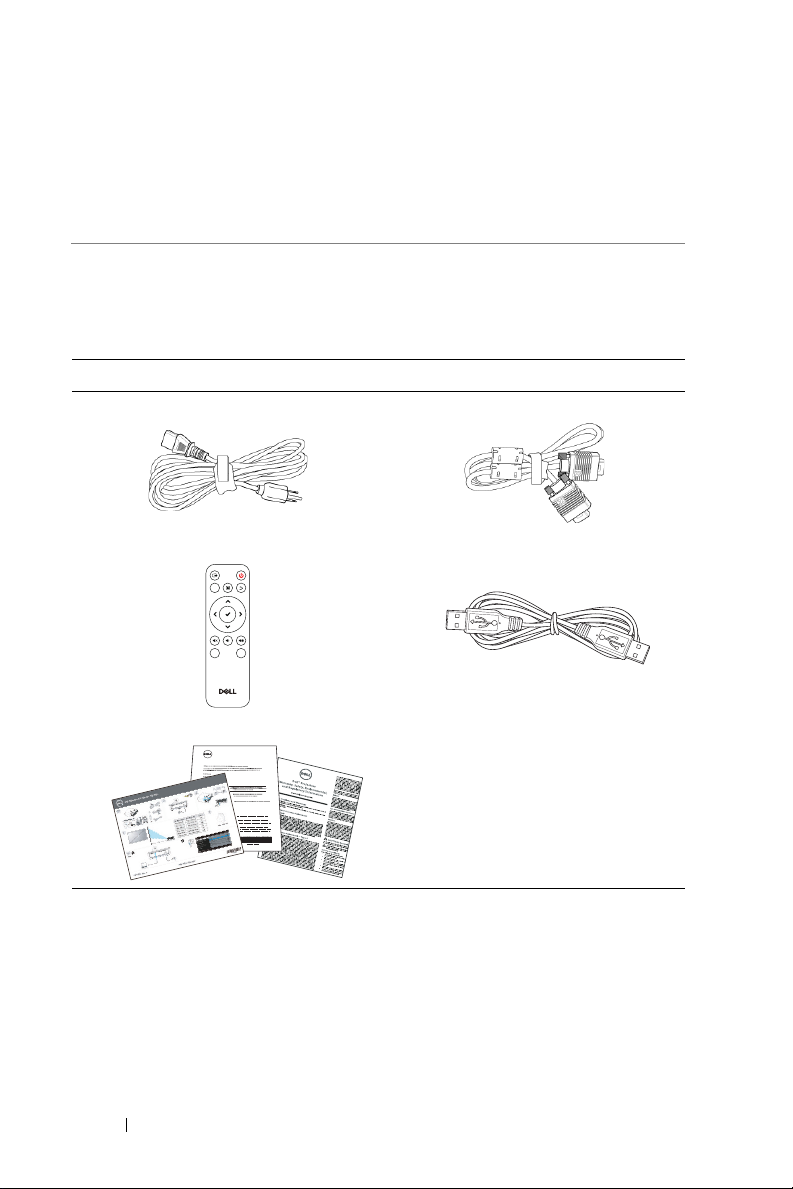

Projector Box Contents
1About Your Dell Projector
Package Contents
Power cable VGA cable (VGA to VGA)
Remote control (CR2032 x 2pcs)
1.2 m USB cable (USB-A to USB-A)
User's Guide and Documentation
Video
Mode
Freeze Blank
Informacion Importante

About Your Dell Projector 5
Projector Top and Bottom View
NOTE: Wall mount screw hole M4 x 8 mm depth.
Wall mount dimensions : 130mm X 88mm M4
Ceiling mount screw hole M3 x 8 mm depth.
Ceiling mount dimensions : 110mm X 82.3mm M3
1 IR receivers
2 Power button
3Zoomtab
4 Focus tab
5 Lens
6 Tilt adjustment wheel
7 Mounting holes for wall mount
8 Mounting holes for ceiling mount
2
5
3
4
1
1
8
67
Top View Bottom View

6About Your Dell Projector
Projector Connections
CAUTION: Before you begin any of the procedures in this
section, follow the Safety Instructions as described on page 7.
1 USB Type A 7 Audio input connector
2 RJ45 connector 8 Audio output connector
3 USB Type A Power (+5V/1.8A)
connector and also for media /
wifi
9 RS232 connector
4 HDMI-1 (1.4) connector 10 Mini USB (mini type B) connector
for firmware upgrade
5 HDMI-2 (1.4) connector 11 Power cord connector
6 VGA input
1 2 3 4 5 6 7 8 9 10
11

About Your Dell Projector 7
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of
dust. The dust may cause the system to fail and the projector will
automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures 5°C to 40°C
(41°F to 104°F).
6 Do not try to touch the ventilation outlet as it can become very hot after the
projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to
your eyes.
8 Do not place any objects near or in front of the projector or cover its lens
while the projector is on as the heat may cause the object to melt or burn.
9 Do not use alcohol to wipe the lens.
NOTE:
• Do not attempt to ceiling mount the projector by yourself. It should be
installed by a qualified technician.
• Recommended Projector Wall Mount Kit. For more information, see the
Dell Support website at dell.com/support .
• For more information, see the Safety Information that shipped with your
projector.
• The P519HL projector can only be used indoors.

8About Your Dell Projector

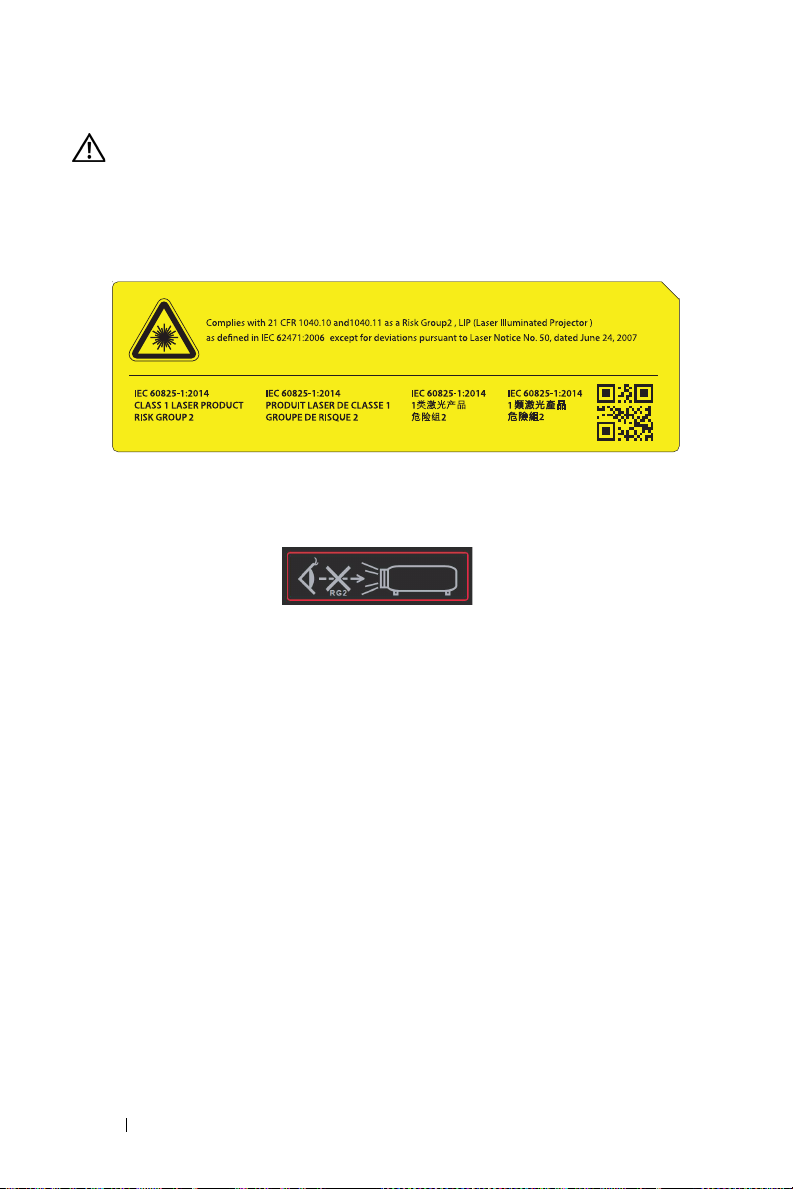

WARNING: Laser Safety Notice
This product is classified as CLASS 1 LASER PRODUCT - RISK
GROUP 1 according to IEC 60825-1 : 2014. Complies with FDA
regulations 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser
Illuminated Projector) as defined in IEC 62471:2006 except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Do not stare into the beam, RG2
• As with any bright source, do not stare into the direct beam,
RG2 IEC 62471-5:2015
• Failure to comply with the following could result in death or serious
injury.
• This projector has a built-in Class 4 laser module. Never attempt to
disassemble or modify the projector.
• Any operation or adjustment not specifically instructed in the User
manual creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage or
exposure to laser radiation.
• Do not stare into beam when the projector is on. The bright light may
result in permanent eye damage.
• When turning on the projector, make sure no one within projection range
is looking into the lens.
• Follow the control, adjustment, or operation procedures to avoid damage
or injury from exposure of laser radiation.
• The instructions for the assembly, operation, and maintenance include
clear warnings concerning precautions to avoid possible exposure to
hazardous laser radiation.

About Your Dell Projector 9
Remote Control
1 Power Turns the projector on or off.
2 Back Returns to the previous screen.
3 Up Press to navigate through the On-Screen
Display (OSD) Menu items.
4 Right Press to navigate through the On-Screen
Display (OSD) Menu items.
5 Down Press to navigate through the On-Screen
Display (OSD) Menu items.
6 Volume down Press to decrease the volume.
Video
Mode
Freeze Blank
1
2
3
4
5
6
7
8
11
12
15
14
13
10
9

10 About Your Dell Projector
7 Volume up Press to increase the volume.
8 Freeze Press to pause the screen image, then press
"Freeze" again to resume normal projection.
9 Video in Press to switch between sources: HDMI 1,
HDMI 2, Wireless/LAN Display, and USB
Viewer.
10 Video mode The projector has preset configurations that
are optimized for displaying data (presentation
slides) or video (movies, games, etc.).
Press the Video Mode button to toggle
between Presentation mode, Bright mode,
Movie mode, sRGB, or Custom mode.
Pressing the Video Mode button once will
show the current display mode. Pressing the
Video Mode button again will switch between
modes.
11 Menu Press to activate the OSD.
12 Enter Press to confirm the selection.
13 Left Press to navigate through the On-Screen
Display (OSD) Menu items.
14 Mute Press to mute or un-mute the projector
speaker.
15 Blank Press to toggle between white/blank/resume
the image.
Blank
