Dell S560P User manual

Dell Interactive Projector
S560P/ S560T
User’s Guide

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make
better use of your projector
CAUTION: A CAUTION indicates potential damage to hardware or
loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2016 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP
and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and
Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model: Dell Projector S560P/S560T
June 2016 Rev. A00

Contents | 3
Contents
1 About Your Dell Projector . . . . . . . . . . . . . . . . . 5
Projector Box Contents . . . . . . . . . . . . . . . . . . . . 5
Projector Top and Bottom View . . . . . . . . . . . . . . . 7
Projector Connections . . . . . . . . . . . . . . . . . . . . . 8
Adjusting Image Size . . . . . . . . . . . . . . . . . . . . . 10
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . 12
2 Using Interactive Pen (Only for S560P) . . . . . 16
System Requirements. . . . . . . . . . . . . . . . . . . . . 16
About Your Interactive Pen . . . . . . . . . . . . . . . . . 17
Replacing the Interactive Pen Tips . . . . . . . . . . . . 18
Replacing the Interactive Pen Batteries . . . . . . . . . 19
Using Interactive Pen with S560P . . . . . . . . . . . . . 20
Touch Area Setting . . . . . . . . . . . . . . . . . . . . . . . 21
Pen Calibration . . . . . . . . . . . . . . . . . . . . . . . . . 23
3 Using Interactive Touch (Only for S560T) . . . 24
System Requirements. . . . . . . . . . . . . . . . . . . . . 24
Setting Up Interactive Touch . . . . . . . . . . . . . . . . 25
Using Interactive Touch with S560T . . . . . . . . . . . 25
Touch Area Setting . . . . . . . . . . . . . . . . . . . . . . . 27
Interactive Touch Calibration . . . . . . . . . . . . . . . . 29
Using S560T and Dry Erase Whiteboard. . . . . . . . . 30
4 Connecting Wireless Display Adapter . . . . . . 31
Installing Wireless Display Adapter . . . . . . . . . . . . 31
Setting up the Wireless Display Adapter . . . . . . . . . 32
5 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . 33
Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . 33
Guiding Signals . . . . . . . . . . . . . . . . . . . . . . . . . 37
6 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing the Lamp . . . . . . . . . . . . . . . . . . . . . . 38
Replacing Remote Control Batteries . . . . . . . . . . . 40

4| Contents
7 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8 Additional Information . . . . . . . . . . . . . . . . . . 45
9 Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . 46

About Your Dell Projector 5
Your projector comes with all the items shown below. Ensure that you have
all the items, and contact Dell if anything is missing.
Projector Box Contents
1About Your Dell Projector
Package Contents
Power cable 5 m VGA cable (VGA to VGA)
Remote control AAA Batteries (2 for S560T; 6 for
S560P)
CD, User’s Guide, and Documentation 5 m Mini cable (USB-A to Mini B)
Calibrate
Touch VGA
Freeze
Blank
Screen
Video
Mode
Info
HDMI
AAA
AAA
Informacion Importante
Dell™ Projector
S560P/T
Contents:
•User's Guide
Documentation
P/N18TWN
Rev. A00
P/N36.76G04G001
June 2016
Madein China
©
2
0
1
6
D
e
l
l
I
n
c
.
A
ll
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
Dell
™
Projector S560P/T
018TWNA00

6About Your Dell Projector
Package Contents (S560P only)
Interactive pen (2 pcs)/
Pen tip cap (4 pcs)
Wrist strap (2pcs)
Package Contents (S560T only)
Touch Unit 2 m DC to DC power cable (for
Touch unit)
Passive Pen (2 pcs)/ Pen Nib(2 pcs) Touch unit Base Plate kit

About Your Dell Projector 7
Projector Top and Bottom View
NOTE: Wall mount screw hole M4 X 4. Recommended torque < 15
kgf-cm.
1 Infrared (IR) receivers
2 Power button
3 Camera
4 Lens
5 Lamp cover
6 Mounting holes for wall mount
A : Dell S560 wall mount
B : Universal wall mount
1
4
2
3 5
6
Top View Bottom View

8About Your Dell Projector
Projector Connections
CAUTION: Before you begin any of the procedures in this section,
follow the Safety Instructions as described on page 9.
1 Mini USB (Mini Type B) 9 Microphone connector
2 VGA Out connector (monitor
loop through)
10 Audio Output connector
3 VGA In connector 11 Power cord connector
4 Composite Video connector 12 USB A connector
5 HDMI 2 connector 13 RJ 45 connector
6 HDMI 1 connector 14 RS232 connector
7 Audio Input connector 15 Touch Unit power
8 Audio RCA connector
1 2 3 4 5 6 7 8 910
11
12131415

About Your Dell Projector 9
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of
dust. The dust may cause the system to fail and the projector will
automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5 °C to 40
°C).
6 Do not try to touch the ventilation outlet as it can become very hot after
the projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to
your eyes.
8 Do not place any objects near or in front of the projector or cover its lens
while the projector is on as the heat may cause the object to melt or burn.
9 Do not use alcohol to wipe the lens.
NOTE:
• Do not attempt to wall mount the projector by yourself. It should be
installed by a qualified technician.
• Recommended Projector Wall Mount Kit. For more information, see
the Dell Support website at
dell.com/support .
• For more information, see the Safety Information that shipped with
your projector.
• The S560P/ S560T projector can only be used indoors.

10 About Your Dell Projector
Adjusting Image Size
0.66' (20cm)
0.73' (22.2 cm)
0.82' (25cm)
0.805' (24.5 cm) 0.913' (27.7 cm)
1.004' (30.6cm)
81" (205.7 cm)
85" (215.9 cm)
90" (228.6 cm)
95" (241.3cm)
89.1" (226.3 cm)
100" (254 cm)
Projector to screen distance

About Your Dell Projector 11
Adjusting Image Shape
Screen Size H1 H2 L1 L2
Diagonal Width Height wide wide
inch mm inch mm inch mm inch mm inch mm inch mm inch mm
81 2057 71 1793 40 1009 6 145 45 1153 8 200 18 452
85 2159 74 1882 42 1059 6 154 48 1212 9 222 19 474
89.1 2263 78 1972 44 1110 6 163 50 1273 10 245 20 497
90 2286 78 1992 44 1121 7 165 51 1286 10 250 20 502
95 2413 83 2103 47 1183 7 177 54 1360 11 278 21 530
100 2540 87 2214 49 1245 7 188 56 1434 12 306 22 558
H1
H2
L1
L2

12 About Your Dell Projector

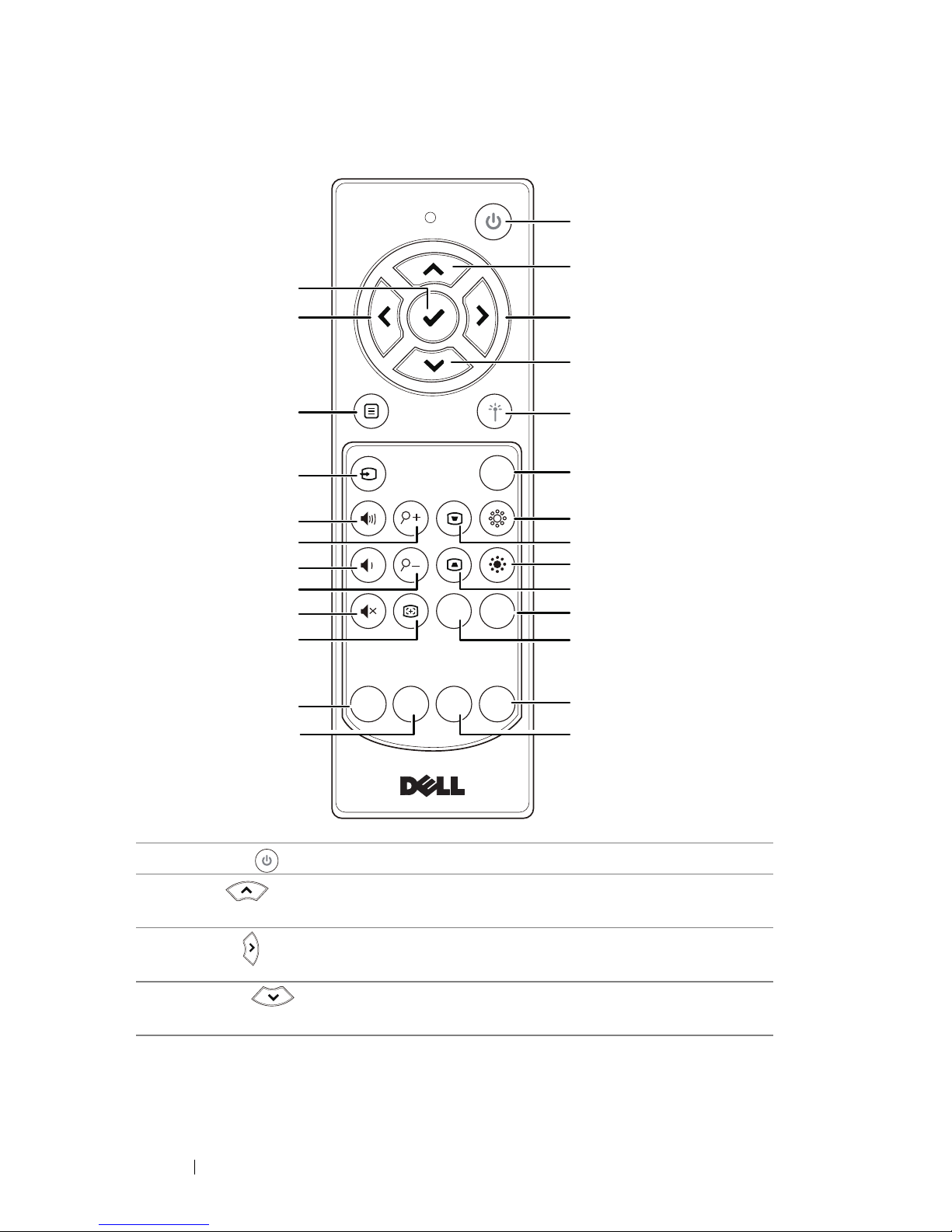

Remote Control
1 Power Turns the projector on or off.
2 Up Press to navigate through the On-Screen
Display (OSD) Menu items.
3 Right Press to navigate through the On-Screen
Display (OSD) Menu items.
4 Down Press to navigate through the On-Screen
Display (OSD) Menu items.
Calibrate
Touch VGA
Freeze
Blank
Screen
Video
Mode
Info
HDMI
1
2
316
20
22
24
26
15
17
18
19
21
23
25
4
5
6
7
9
8
11
10
12
13
14

About Your Dell Projector 13
5 Laser Point the remote control at the screen, press
and hold the laser button to activate the laser
light.
WARNING: Do not look at the laser
point when it is active. Avoid directing
the laser light on your eyes.
6 Freeze Press to pause the screen image, then press
"Freeze" again to unfreeze the image.
7 Brightness + Press to increase the brightness.
8 Keystone adjustment
+
Press to adjust image distortion caused by
tilting the projector (+/-40 degrees).
9 Brightness - Press to decrease the brightness.
10 Keystone adjustment
-
Press to adjust image distortion caused by
tilting the projector (+/-40 degrees).
11 Blank screen Press to toggle among displaying blank white
and black screens and return to presentation.
12 Info Press to display the projector information.
13 Video mode The projector has preset configurations that
are optimized for displaying data
(presentation slides) or video (movies, games,
etc.).
Press the Video Mode button to toggle
between Presentation mode, Bright mode,
Movie mode, sRGB, or Custom mode.
Pressing the Video Mode button once will
show the current display mode. Pressing the
Video Mode button again will switch
between modes.
14 HDMI Press to choose HDMI source.
15 Enter Press to confirm the selection.
16 Left Press to navigate through the On-Screen
Display (OSD) Menu items.
17 Menu Press to activate the OSD.
18 Source Press to switch between VGA, Composite,
HDMI-1, and HDMI-2 source.

14 About Your Dell Projector
19 Volume up Press to increase the volume.
20 Zoom + Press to increase the image.
21 Volume down Press to decrease the volume.
22 Zoom - Press to decrease the image.
23 Mute Press to mute or un-mute the projector
speaker.
24 Auto Adjust Press to auto adjust the displayed image.
25 Calibrate Touch Press to calibrate touch to adjust for better
accuracy.
NOTE: Setup Utility is required.
26 VGA Press to choose VGA source.

About Your Dell Projector 15
Remote Control Operating Range
NOTE: Actual operating range may slightly differ from the diagram.
Weak batteries will also prevent the remote control from properly
operating the projector.
Angle
Distance
Angle
Distance
Calibrate
Touch VGA
Freeze
Blank
Screen
Video
Mode
Info
HDMI
Calibrate
To uchVGA
Freeze
Blank
Screen
Video
Mode
Info
HDMI
Operating range
Angle ±30°
Distance 7 m/22.97 feet

16 Using Interactive Pen (Only for S560P)
The S560P projector projects the connected computer’s desktop image onto
the whiteboard and it acts as input device to the computer. You can navigate,
select, and interact with your computer programs from the whiteboard.
The S560P is a pen-based interactive projector. Download and install
Dell S560x Interactive Utility for first-time setup and interactivity calibration.
System Requirements
NOTE: Your computer must have the following minimum system
requirements:
*1 : Get S560x Interactive Utility from provided CD or download it from Dell
Support
*2 : S560P requires first-time calibration, ensure you calibrate the interactive
pen(s) before use
*3 : .NET Framework 4.0 installation is required
*4 : Mac OS support 1 touch point only
2Using Interactive Pen (Only
for S560P)
Operating
System
Number of touch
points supported
Installation of S560x Interactive Utility*1
For first-time setup For subsequent use
Windows
7/8/10
10 touch points Supported*3 Not required
MAC OS X
(10.7~10.11)
1 touch point*4 Supported Required, please
install the setup
utility on all Mac OS
computers, to use
them with the
S560P
ChromeBook 10 touch points Not supported,
please use a
Windows OS or Mac
OS computer to
complete first-time
setup for the S560P
Not required

Using Interactive Pen (Only for S560P) 17
NOTE: For better accuracy, you should set to "Projector Only"
display mode before calibration. More details about touch function
and calibration in different display modes, please go to "S560T
Touch setup Guide" Troubleshooting Q2.
About Your Interactive Pen
The interactive pen allows user to interact with projected content in the
same fashion as a mouse input.
1 Power switch
2 Power indicator
As you turn on the pen, the power indicator flashes a few seconds
and goes off.
Green: Normal operation
Red: Battery is low
No light: Battery is empty
3 Wrist strap holder
4 Battery compartment access. Turn to open and replace batteries.
5 Pen tip
1
2
4
3
5

18 Using Interactive Pen (Only for S560P)
Replacing the Interactive Pen Tips
NOTE: If the pen tip becomes damaged, or no longer works well,
you should replace them.

Using Interactive Pen (Only for S560P) 19
Replacing the Interactive Pen Batteries
NOTE: If the battery is low, the LED indicator starts flashing red as
you turn on the pen. You should replace with two new AAA batteries.
1 You can access the battery compartment by turning open the pen head.
2 Insert the batteries and align their polarity correctly according to the
marking on the pen head.
NOTE: Avoid mixing different types of batteries or using new and
old batteries together.
3 Place the pen head back, turn until the battery compartment access is fully
closed.

20 Using Interactive Pen (Only for S560P)
Using Interactive Pen with S560P
Step 1: Connect the computer with the projector using HDMI/ VGA cable to
display image. Connect the USB cable for using in interactive mode. If using
Mac OS, run the S560x Interactive utility to setup the pen.
Step 2. Run Dell S560x Interactive Utility, users can select default Interactive
Mode ( ) for multi-point touch. Switch to Active Pen Mode for S560P.
Only single-point touch supported for Mac OSX
NOTE: For Mac OS computer, Dell S560x Interactive Utility must be
executed.
MOLEX
MOLEX
