When using electrical appliances, basic safety precautions should always
be followed, including the following:
-Read all instructions.
-To protect against fire, electrical shock and personal injury, do not
immerse cord, plug or appliance in water or other liquid.
-Close supervision is necessary when any appliance is used by or near
children.
-Do not operate with a damaged cord or plug, or after the appliance mal-
functions, or has been damaged in any manner. Return the appliance to
the nearest authorized service facility for examination, repair or adjust-
ment.
-The use of accessory attachments or spare parts not recommended by
the appliance manufacturer and ??????? may result in fire, electrical
shock or personal injury.
-Do not use outdoors.
-Do not use the appliance for other than the intended use.
-Do not place any strain on the power cord. Avoid twisting and/or tan-
gling.
-Ensure that outlet vent of exhaust hose is kept free of debris and
obstruction.
-Ensure that ventilation holes on the rear of the machine and front louvers
are not blocked.
-The Pinguino should not be installed where the atmosphere could con-
tain combustible gases.
-Avoid using Pinguino in oily or sulphurous atmospheres or near sources
of heat.
-Wait at least 3 minutes before restarting, after the air conditioner has
been switched off or the thermostat setting changed.
-Before moving the air conditioner, empty water from collectiong tray
(see instructions for drainage at page 13).
-Do not place hot or heavy objects on the appliance.
-Clean air filter every week (see instructions at page 13).
-Important: If you need to use an extension cord, please be sure to use
a heavy duty extension cord (minimum 14 gauge).
SAVE THESE INSTRUCTIONS
Important Safeguards
GB 19-05-2003 16:32 Pagina 2

3
Dear user,
We thank you for purchasing the
Pinguino air conditioner and congratu-
late you on your wise choice.
For optimal results please read this
manual carefully before installing or
operating.
We know that the Pinguino will maintain
pleasingly comfortable environment at
all times.
With best wishes,
De Longhi S.p.A.
If you have any questions about the operation or
service of your Pinguino, please call our toll-free
service number 1-800-322-3848.
or visit our internet site:
www.delonghiusa.com
for general overlook of De’Longhi group visit:
www.delonghi.com
GB 19-05-2003 16:32 Pagina 3

4
OPTIMUM OPERATING RANGE
ROOM TEMPERATURE 70°F - 90°F
ROOM HUMIDITY FACTOR
FREQUENCY
VOLTAGE
50% - 80% RH
POWER
SUPPLY
60 HZ
115V
see rating label
Dehumidification quotient (*)
Power supply voltage V see rating label
60
see rating label
2
97 (44)
221/31 (560)
30 (735)
159/16 (390)
Frequency Hz
Cooling capacity: (*)
Dimensions: width in. (mm)
height in. (mm)
depth in. (mm)
Net weight lb. (kg)
Fan speeds
A HE (High efficiency) system with low energy consumption has been installed on this appliance.
This system needs about 4 minutes, once the appliance has been started, to produce cold air.
*Data according to pending standard testing procedures subject to review by the U.S. Dept. of Energy.
Specifications
GB 19-05-2003 16:32 Pagina 4

5
Air outlet grid
Air filter
Air intake grid
Exaust hose
Power cord comp.
Reset button
Castor
Castor stops
Water collecting tray
Timer cover
(to adjust the timer slide cover side-
ways)
Drainage tube
Illustrated main features list
GB 19-05-2003 16:32 Pagina 5

6
DESCRIPTION SUPPLIED
Exhaust hose 1
Stopper + flange 1
Caster stop 2
Window nozzle 1
Adjustable window and door
bracket 1
Suction disc 2
ACCESSORY CHECK
Check that all parts listed in table are included.
Accessories
GB 19-05-2003 16:32 Pagina 6

7

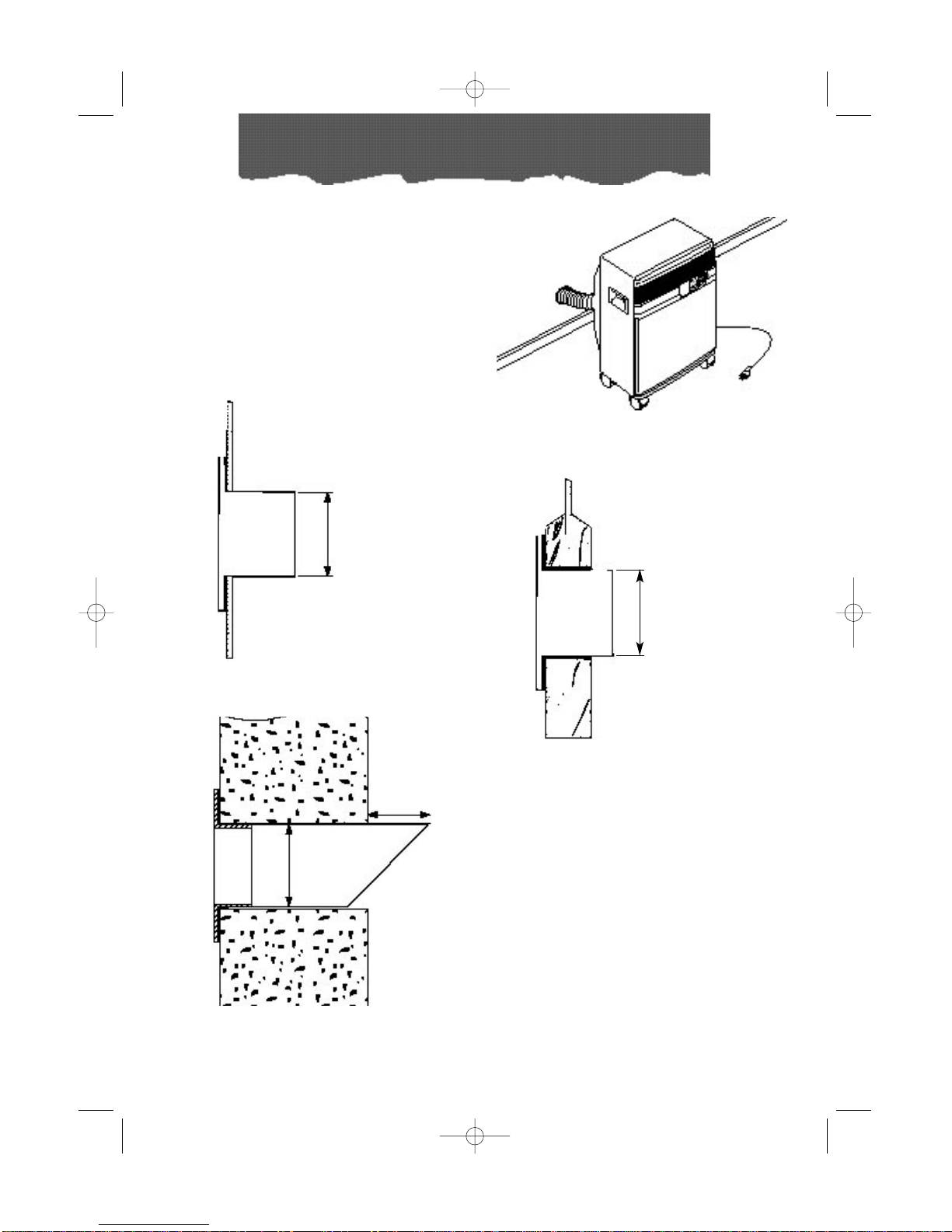

PERMANENT INSTALLATION
The Pinguino accessories include two sets of
flanges and stoppers, to be mountedl in different
locations (two different rooms). Once installed,
these vents (flanges) are the only items needed
for using Pinguino.
Permanent installation outlet holes must be in
an exterior wall and opening diameter should not
exceed 3”1/2.
INSIDE OUTSIDE
3”1/2
A1
in a window pane
INSIDE OUTSIDE
3”1/2
A2
through the wooden base-sec-
tion of a door or window
INSIDE OUTSIDE
A3
through the wall
3”1/2
1”
fig. 1
fig. 2
fig. 3
fig. 4
In case of fixed installation, air discharged from
rear hose has been extracted from the room
where the appliance is installed.
Check that the room (especially if small) is not
“air-tight”; a drop in pressure would cause irreg-
ular functioning, which could consequently acti-
vate reset switch. Air entering through door and
window cracks is normally sufficient. If deemed,
necessary leave a door ajar (approx. 1 cm is
enough).
Setting up
GB 19-05-2003 16:32 Pagina 7

8

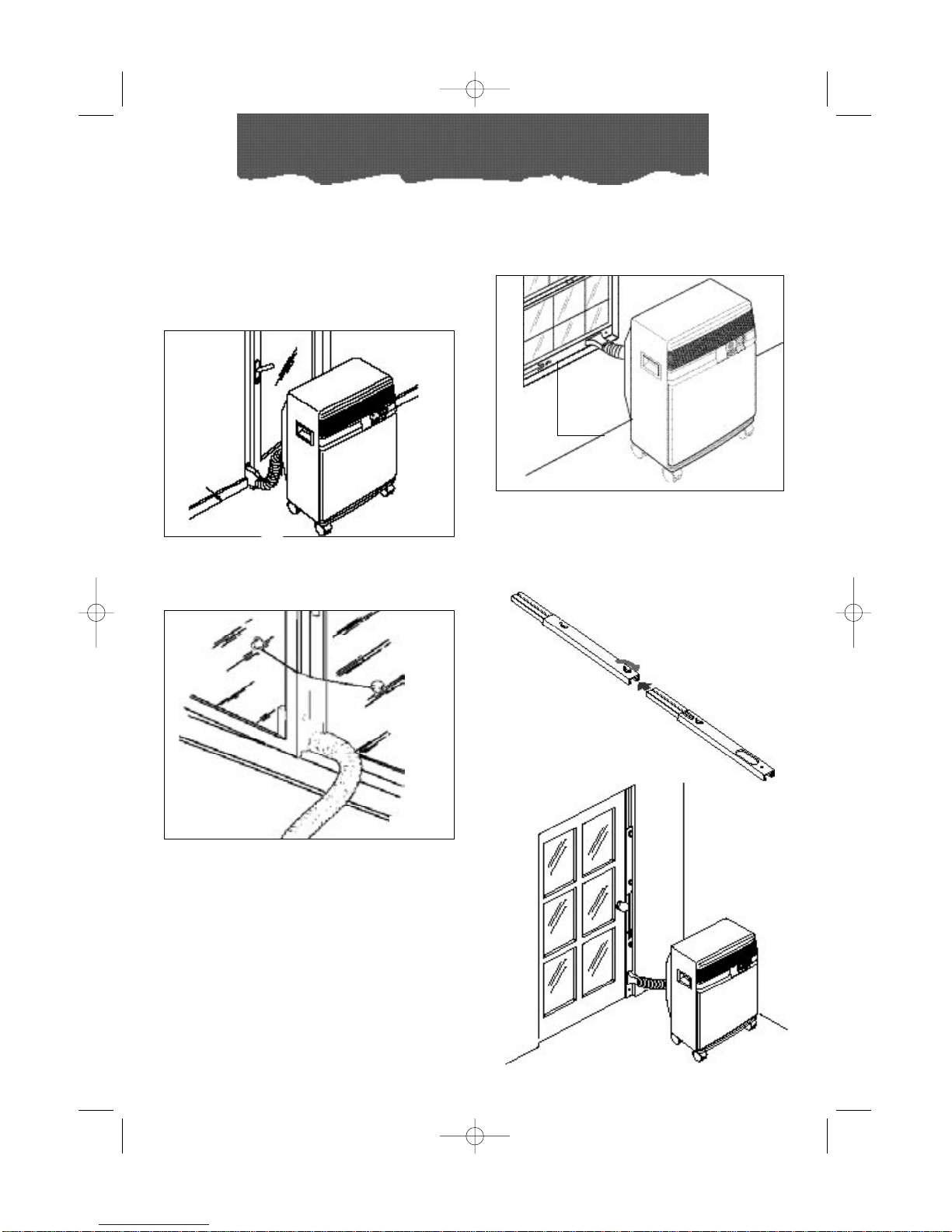

TEMPORARY INSTALLATION
Note: In both cases (permanent and temporary installations) make sure that the Pinguino is positioned
on level ground. If necessary use the two caster stops for the front casters
This installation makes it easy to use Pinguino in
any room, provided there is a window or a door:
it allows you to use the Pinguino immediately.
Suction discs may be used to keep window or
door closed.
fig. 5
fig. 6
fig. 7
window
bracket
Setting up
Pinguino is equipped with an adjustable window
bracket. If you have a sash window, place the
bracket on the window sill, extend the bracket
fully within the window frame and lower the win-
dow onto the bracket. Insert the nozzle of the
exhaust hose into the slot, then connect the
hose to the air conditioner (fig.7). Thanks to the
wing nut, it’s possible to use the window bracket
also for sliding windows. Position the hole of the
bracket so to allow a correct installation of the
exhaust hose.
If you have a sash door, use the additional set
provided in order to extend the accessory to the
desired length; joining the two parts (fig. 8),
adjust the total lenghth according to your needs
then, fix the bracket with the relevant nuts, close
the door and connect the hose (fig. 9).
fig. 8
fig. 9
GB 19-05-2003 16:32 Pagina 8

9

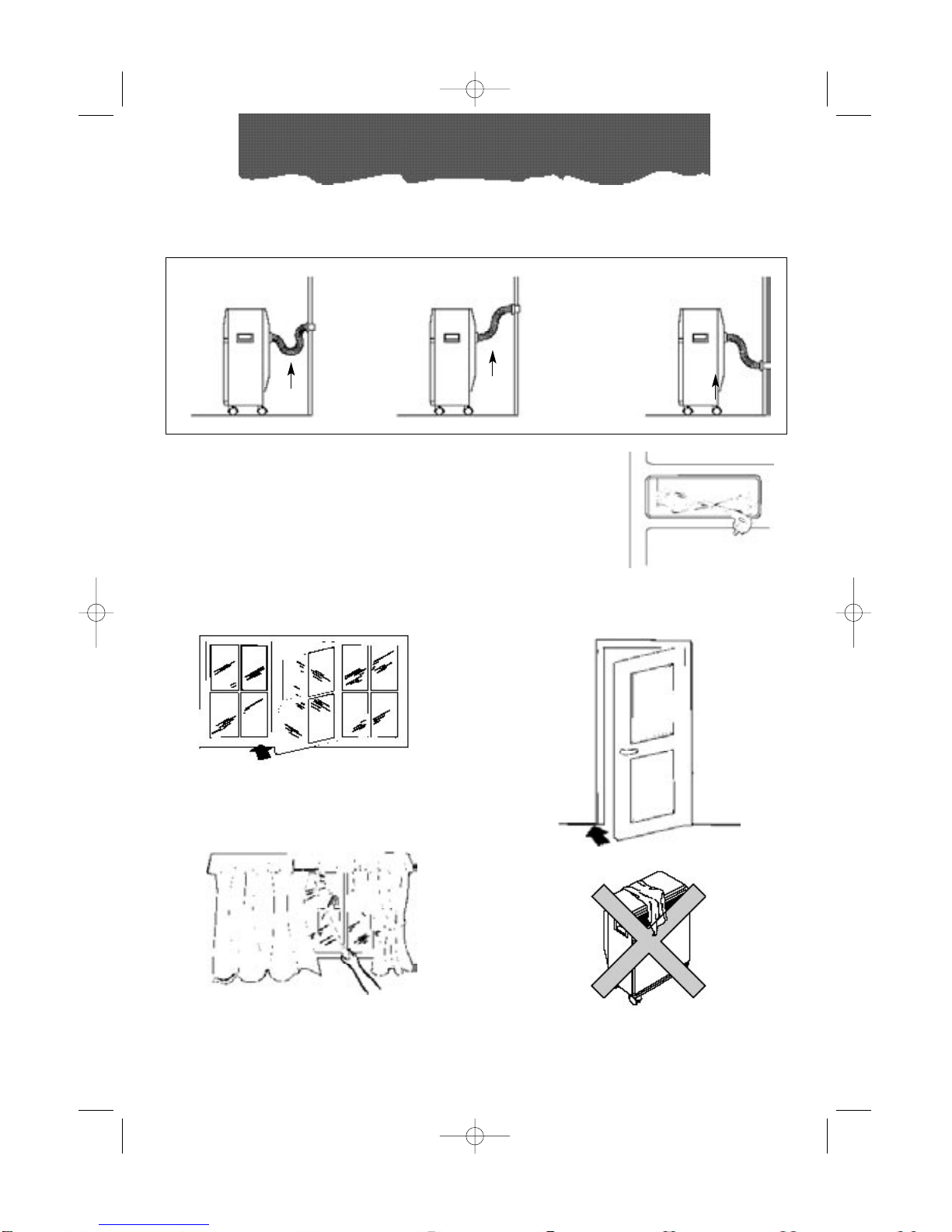

-Doors and windows of room to be air-condi-
tioned are closed (with the exception of tem-
porary installation where a partially opened
window is necessary).
-Shade the room as far as possible from
direct sunlight by drawing curtains and/or
lowering blinds or shutters, for economical
and efficient air-cooling.
-Ensure that intake and outlet vents (fig. 2 and
3) are not blocked.
-Make sure there are no sources of heat in the
room.
FINAL CHECK
In order to obtain the maximum performance from your air-conditioner make sure that:
1) Water collects at this point 2) Bend this section 3) Bend this section
NO YES YES
ELECTRICAL CONNECTION
Check that the power supply voltage is 115 V ~ 60 Hz.
Important: if you need to use and extension cord, please be sure to use
a heavy duty extension cord (minimum 14 gauge).
Before connecting the Pinguino to power supply, make sure that all
switches on the front control panel are in the OFF position.
Connect power cord found in storage compartment at rear of the
Pinguino.
fig. 10
fig. 11
fig. 12
fig. 13
fig. 14 fig. 15
-Close the door.
Setting up and recommendations
SET UP INSTRUCTION
For permanent installation place the Pinguino near the outlet opening in wall or window (where it is meant
to be used). The diagram below shows the correct way to installl the exhaust hose.
GB 19-05-2003 16:32 Pagina 9

10
ON/OFF button
ON/OFF pilot light
“Alarm” pilot light
Timer ON/OFF
pilot light
Selecting fan
speed button
Timer ON/OFF
buttonThermostatTimer notches
SETTING THE TIMER
The programmer/timer, like all clocks, must be
set to the exact time. If for example it is 4.00
p.m., turn the dial in a clockwise direction (fol-
lowing the direction of the arrow) until the num-
ber 4 is lined up with the arrow pointer (the
arrows indicates 4:00 p.m. approximately).
Note:Never turn the dial in an anti-clockwise
direction!
The timer is in effect, an electric clock and works
only if the plug is connected to the power sup-
ply. Whenever the plug is disconnected or there
is a power failure, the programmer stops (the
clock is then “slow”) and must be re-set.
The unit can be used in either programmed or
non-programmed mode.
PROGRAMMED MODE
1) Release B timer button
2) Set the operating times by pushing out the
notches on the dial corresponding to the
period required (each notch represents 15
mins.).
3) Check that the timer indicates the correct
time (see instructions on setting).
4) Select the desired function as shown in the
chart overleaf.
The unit will now switch on and off each day
at the selected times.
Note: To override the programmed operating
times, simply press the ON/OFF key.
NON-PROGRAMMED MODE
1) B TIMER button must be pressed
2) Select the desired function as shown in the
chart on the following page.
arrow pointer
Operating time
Note: For technical reasons, the temperature is not expressed in degrees but by a line increasing in
thickness. We therefore recommend that when starting up the appliance, the thermostat be
turned to maximum (thick green line = maximum cold). When the desired temperature has
been reached, turn the thermostat slowly away from the maximum cooling position until the
appliance switches off. Leave the thermostat in this position. The air-conditioner is now pro-
grammed to maintain the exact temperature at all times.
After switching the appliance off, wait at least 3 min. before switching on again.
eg. from 9 to 11 a.m.
Control panel
GB 19-05-2003 16:32 Pagina 10

11
Plug the appliance into the mains.
Select the “programmed” or “non pro-
grammed” mode (see previous page)
Select the fan speed required pressing
“Fan speed” key C.
Key A ON/OFF
(conditioning) must
be released
Turn the thermostat
to Max. Cold.
Press key A
(ON/OFF).
ON/OFF signal lamp
(conditioning) will
come on.
The appliance comes on.
If not, refer to pag. 14.
To switch off the appliance, press key A
(ON/OFF main switch).
AIR CONDITIONING
How to start up the conditioner
GB 19-05-2003 16:32 Pagina 11

12
PRECAUTIONS
During cleaning and normal maintenance operations
remember to disconnect plug. Under no circumstances should appliance be
washed with runing water. Damage could be
caused to the electrical circuit.
CLEANING OF EXTERNAL HOUSING
Clean with a damp cloth and dry thoroughly with
a clean dry cloth.
Use only mild soap and water.
Do not use chemical cleaners.
CONTROLS AT THE BEGINNING OF THE SEASON
Carefully follow installation
procedure. Check for any defects in
power cord and plug.
fig. 14 fig. 15
fig. 16
fig. 17
fig. 18

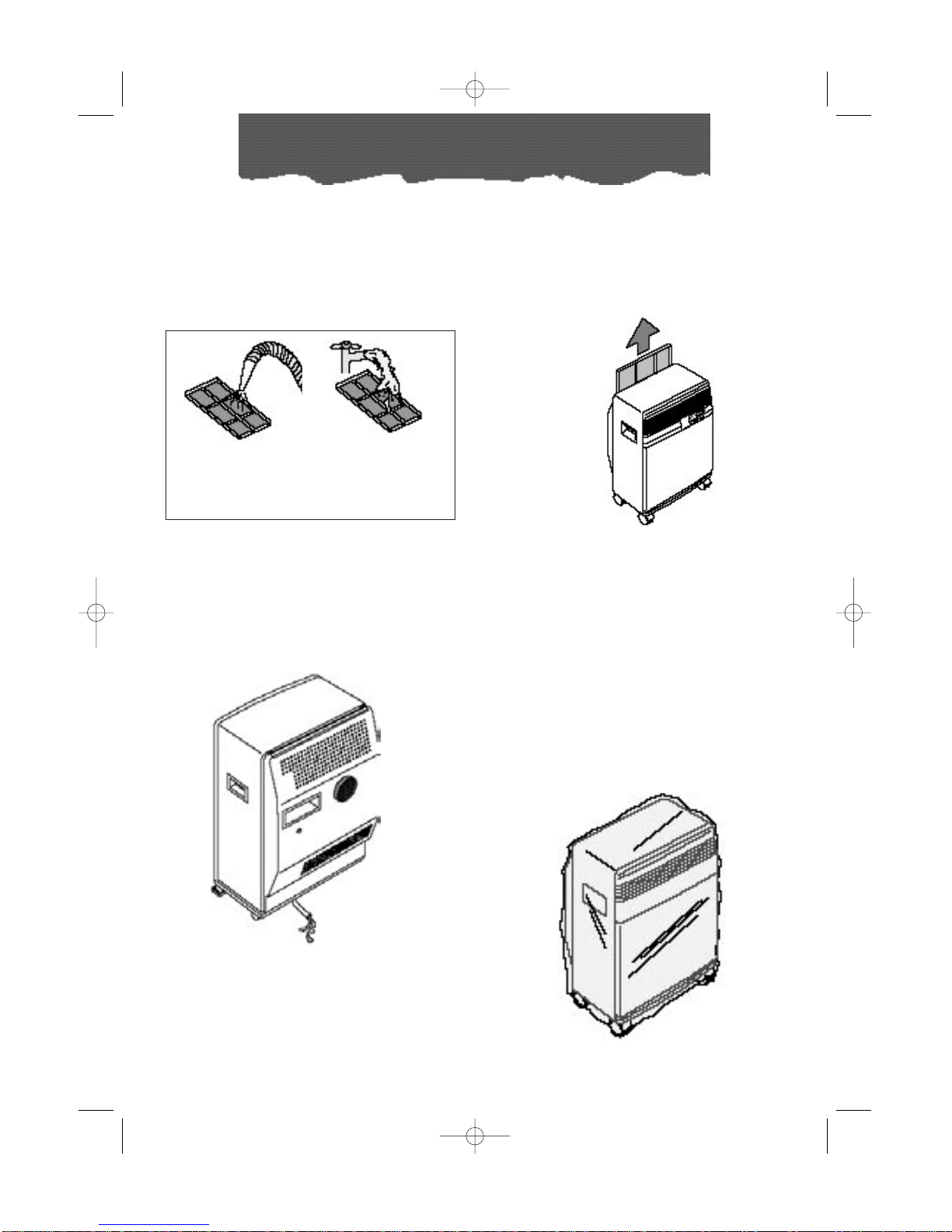

Cleaning and maintenance
GB 19-05-2003 16:32 Pagina 12

13
AIR FILTER CLEANING
Maintenance of air filter
A clogged air filter reduces the quantity of circu-
lating air and the efficiency of the appliance.
Clean filter every week using a vacuum cleaner.
Removal and replacement of air filter
Gently pull filter upwards.
Push down to replace.
Cleaning procedure
To remove dust deposited on filter, use a vacuum cleaner. If it is very dirty, soak in lukewarm water and
rinse thouroghly. The temperature of the water must be kept below 104°F. After washing, leave filter to
dry before replacing.
END OF SEASON OPERATIONS
1) Disconnect plug.
2) Remove plug from drainage tube to empty
water collecting tray.
3) Remove exhaust hose.
4) Clean filter and dry well before replacing.
5) Cover appliance with a polyethylene bag to
prevent dust from entering.
You can use the polyethylene bag included
into the packaging.
fig. 19
Remove dust with a
vacuum cleaner Rinse with running
water
fig. 20
fig. 21
fig. 22
fig. 23
Cleaning and maintenance
GB 19-05-2003 16:32 Pagina 13

14
SYMPTOMS
The Pinguino does not
function:
The Pinguino does not
function
-function fault warning
light is on (pag. 10 -
“Alarm” light)
After correcting problem,
press reset button (see
pag. 5)
The Pinguino produces
cold air but room does
not maintain comfortable
temperature:
CAUSE SOLUTION
-power failure
-plug is disconnected
-ON/OFF switch is off
-Timer key is in STOP position
-insert plug
-switch on
-release the TIMER key
-exhaust hose blocked
-exhaust hose twisted or bent
-ventilation holes on the rear of
the machine or front louvers
blocked
-Check for obstruction of air
outlet vent
-eliminate irregularities
-remove obstacles to allow
proper airflow
-window open
-air exhaust hose has become
disconnected
-thermostat set too low
-air filter blocked
-close window
-re-insert exhaust hose
-set thermostat to higher num-
ber
-clean filter
SERVICING
In case of malfunction turn off and disconnect the Pinguino from power outlet and contact our Service
Centre for qualified assistance, toll-free number 1-800-322-3848.
Troubleshooting
GB 19-05-2003 16:32 Pagina 14

15
LIMITED WARRANTY
We warrant each DE’LONGHI AIR-CONDITIONER to be free from defects in material and work-
manship. Our obligation under this warranty is to provide one year parts and labor free from
purchase date, with an additional four (4) years on any part of the sealed system consisting of
the compressor, evaporator, condenser and factory connected refrigerant tubing. This war-
ranty shall apply only if the AIR-CONDITIONER is used in accordance with the factory directions
which accompany it, and on Alternatign Current (AC) circuit. This warranty is in lieu of all other
warranties and representations, expressed or implied, and all other obligations or liabilities on
our part. We do not authorize any other person or company to assume for us any liability in
connection with the sale or use of our AIR-CONDITIONER. This warranty shall not apply to
assume for us any liability in connection with the sale or use of our AIR-CONDITIONER. This war-
ranty shall not apply to any AIR-CONDITIONER which shall have been repaired or altered out-
side our factory nor shall it apply to any AIR-CONDITIONER which has been subjected to mis-
use, negligence or accidents.
If repairs become necessary or spare parts are needed, plese write to:
De’Longhi America Inc.
Park 80 West Plaza One 4th floor
Saddle Brook, NJ 07663
or call Service Tel. No. 1-800-322-3848
De’ Longhi CANADA
1040 Ronsa Court
MISSISSAUGA, ONTARIO
L4W 3Y4 CANADA
GB 19-05-2003 16:32 Pagina 15

16
GB 19-05-2003 16:32 Pagina 16

17
GB 19-05-2003 16:32 Pagina 17
