DeLonghi Pinguino CF 210 User manual

CF 210
CF 210
• Use and maintenance manual . . . .pag. 4
• Mode d’emploi et d’entretien . . . . .pag. 15
• Instrucciones de uso . . . . . . . . . .pag. 28
• Manual de instruções . . . . . . . . . .pag. 41
• Istruzioni per l’uso . . . . . . . . . . . .pag. 54

2
Important safeguards
•Read all instructions.
•Use this appliance only as described in this instruction manual.
As with any electrical appliance, the instructions aim to cover as many eventualities as possi-
ble. Caution and common sense should be used when operating and installing this air condi-
tioner.
•This appliance has been manufactured to cool and dehumidify domestic environments and
should not be used for other purposes.
•It is dangerous to alter or modify the unit's characteristics in any way.
•The appliance must be installed in line with the relevant national legislation.
•Should repairs be necessary, contact the nearest authorized De’Longhi Repair Service Center.
Unauthorized De’Longhi servicing can be dangerous.
•This appliance is to be used by adults only; keep away from children.
•In the case that the power cord becomes damaged, this must be replaced only by specialized per-
sonnel authorized by the manufacturer.
•To protect against fire, electric shock and personal injury, do not immerse cord, plug and appliance
in water or other liquid.
•Always ensure the appliance is grounded. If you have any doubts check with a qualified elec-
trician.
•Avoid using extension cords with the unit.
•Before cleaning or maintenance operations, always unplug the unit from the outlet.
•Do not pull on or place strain on the power cord when moving the appliance.
•The appliance should not be installed where the atmosphere may contain combustible gases,
oil or sulphur, or near heat sources.
•Do not rest hot or heavy objects on the appliance.
•Do not use outdoors.

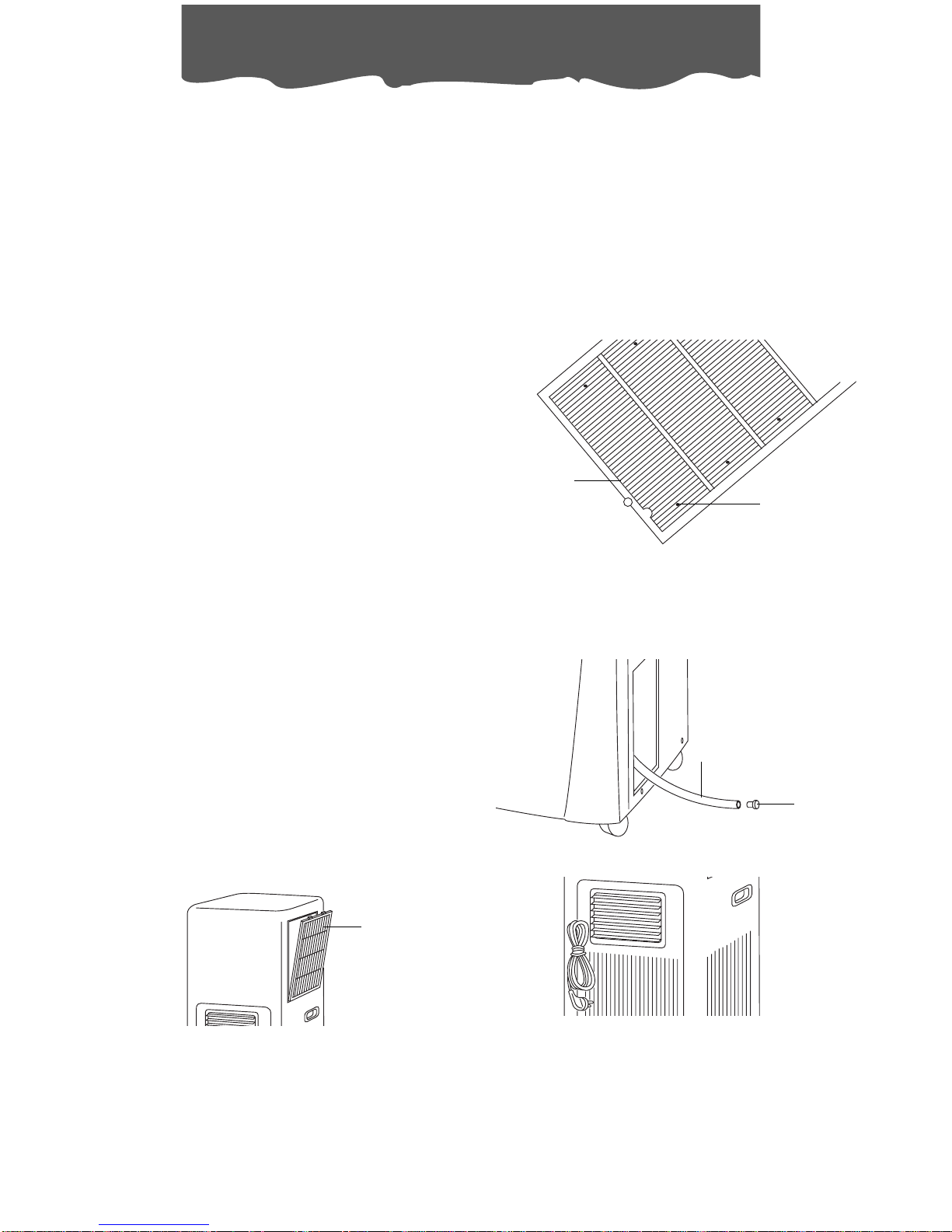

•Clean the filters at least once a week.
•Avoid using heaters near the unit.
•The unit should be transported in a vertical position. If this is not possible secure the unit at
an angle, do not lie it horizontally.
•Before transporting the unit, drain the condensation collecting-tray and tank. After transporta-
tion, wait at least 1 hour before switching on the unit.
•The packaging materials can be recycled. You are therefore recommended to place them in
the special containers for differentiated waste collection.
•This appliance is fitted with a special safety device. When the compressor switches off, this
device prevents it from switching on again for at least 3 minutes.
•WARNING: Handling the cord on this product will expose you to lead, a chemical known to the
State of California to cause [cancer, and] birth defects or other reproductive harm. Wash
hands after handling.
SAVE THESE INSTRUCTIONS
THIS PRODUCT IS FOR HOUSEHOLD ONLY

3
Introduction
The portable air conditioner is a compact unit for regulating air temperature and humidity. Its extremely
flexible characteristics make it easy to use at any time and in any room. It can be operated in multiple
modes including cooling, dehumidifying and ventilating. The appliance has been designed for dome-
stic use and may be used in the home, office, etc.
It must be connected to an outlet with an impedance of less than 0.197 Ohms.
If necessary, consult your electricity supply company for information on impedance values.
TIPS FOR ENERGY SAVING
•Keep blinds and/or curtains and windows closed during the sunniest hours of the day (cooling func-
tion).
•Keep the filter clean. In normal conditions, the filter should be cleaned about every 2 weeks. The fil-
ter eliminates part of the pollutant particles or dust transported in the air. Air quality thus depends on
the frequency with which the filter is cleaned.

4
Description
Control panel
Handle
Air flow direction
fins (right hand – left hand)
Air outlet
Air flow direction fins
(high – low)
Water tank
Castors
Hot air outlet
Bottom air intake grill
Top air intake
grille for cooling,
dehumidifying
and ventilating.
DESCRIPTION OF PARTS
Front
Back

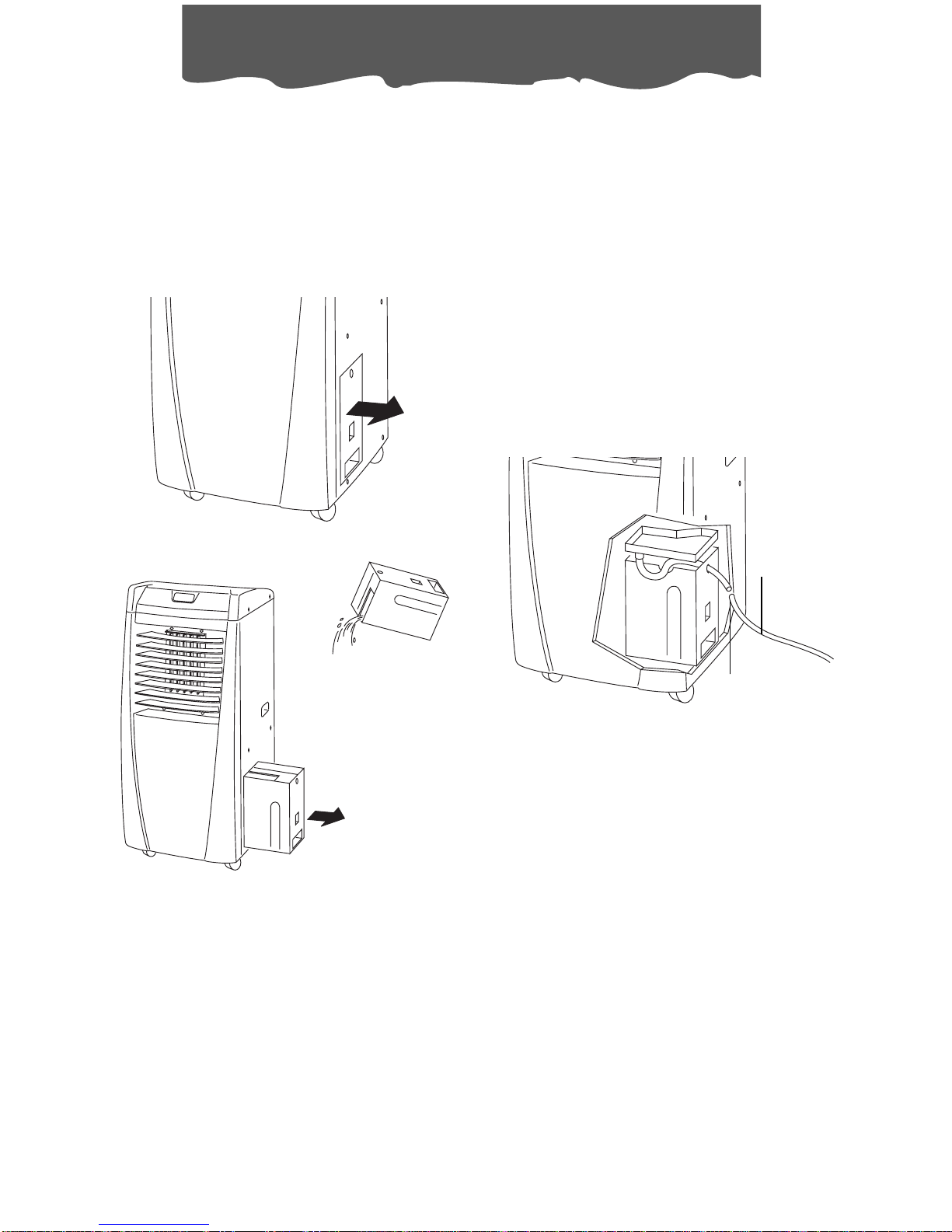

Connector for supplementary water tank

5
Control panel
All functions of the unit can be controlled from the control panel or the remote control unit (certain models only).
TIMER ON/OFF
button
Press this button to
activate the timer
function (turns the
appliance off if
already on and vice
versa).
SET TEMP buttons
These buttons can
be used to set the
required room tem-
perature in a range
between 17°C
(63°F) and 31°C
(88°F). The tempera-
ture set is increased
1°F).
TIMER HOUR button
Press this button to
set the length of
time before the
appliance goes off
(with the
unit on) or comes
on (with the
unit off).
SWING button
Press this button to
distribute the air flow
evenly throughout
the room (swing) or
in a specific direc-
tion (fixed position).
FAN SPEED button
Press this button to
set the speed of the
air flow emitted:
Max (HIGH), Med
(MED), Min (LOW).
MODE KEY
Press this button to
select the various
operating modes:
air conditioning
(COOL), dehumi-
difying (DRY) or ven-
tilating (FAN).
ON/OFF button
Press this button to
turn the air conditio-
ning unit on or off.
F
Standby button
When the indica-
tor light is on, the
appliance is plug-
ged into the outlet.
Tank full
When on, indica-
tes that the tank
needs emptying
displays the opera-
ting mode
COOL/ DRY/ FAN
Air conditioning
Dehumidifying
Ventilating
displays the position
of the air distribution
fins
Indicates that the
keypad is locked
Infrared receiver
Only some models

6
:
°F
+-
ON/OFF button
Press this button to turn the
air conditioning unit on or
off.
MODE key
Press this button to select
the various operating
modes: air conditioning
(COOL), dehumidifying
(DRY) or ventilating (FAN).
SWING button
Pressthisbuttontodistribute
the air flow evenly throu-
ghout the room (swing) or
in a specific direction (fixed
position).
Button
Press this button to lock or
unlock the keypad on the
control panel.
SET TEMP buttons
Use these buttons to set
the required room tempe-
rature between 17°C
(63°F) and 31°C (88° F).
The temperature set is
increased or reduced by
1°C (1° F).
FAN SPEED button
Press this button to set the
speed of the air flow: Max,
Med, Min.
Button
Press this button to activate
the timer function (turns the
appliance off if already on
and vice versa).
HOUR and MIN buttons
Press these buttons to set
the hour and minutes on the
remote control unit or, using
the HOUR button only, to set
the time the air conditioning
unit will come on and go off
using the TIMER function.
Description
Display

7
OPERATING RANGE
The operating range of the air conditioning
unit goes from a minimum of +17°C (63°F) to a
maximum of +35°C (95°F), with a choice of
temperatures in cooling mode of from +17°C
(63°F) to + 31°C (88°F).
In dehumidifying mode, the operating range
goes from +20°C (68°F) to + 31°C (88°F). The
temperature cannot be selected in advance.
POWER SUPPLY
•Plug the air conditioning unit into a suita-
ble outlet. Do not connect to multiple
sockets.
•Once plugged into the outlet, wait about
two seconds until you hear a beep, then
press the " " button to turn the applian-
ce on.
OPERATING IN AIR CONDITIONING MODE
1. Make sure the condensation tank is cor-
rectly in place.
2. Press the "MODE" button repeatedly until
the air conditioning mode is selected.
"COOL" appears on the display.
While the unit is operating in air conditio-
ning mode, always place the exhaust
hose through an open window to eject
the hot air from the room.
3. Press the “SET TEMP” button to set a suita-
ble room temperature between +17°C
(63°F) and +31°C (88°F).
4. Press the FAN SPEED button to select a sui-
table fan speed: Max, Med, Min.
OPERATING IN DEHUMIDIFYING MODE
1. Keep the windows and door closed to
make dehumidification of the room more
efficient.
2. Make sure the condensation tank is cor-
rectly in place.
3. Repeatedly press the "MODE" button to
select the dehumidifying mode. "DRY"
appears on the display.
4. Neither the fan speed nor temperature
can be regulated.
5. Do not use the exhaust hose to expel the
air outside. The hot air given out at the
back of the appliance should not be
expelled from the room.
Operation

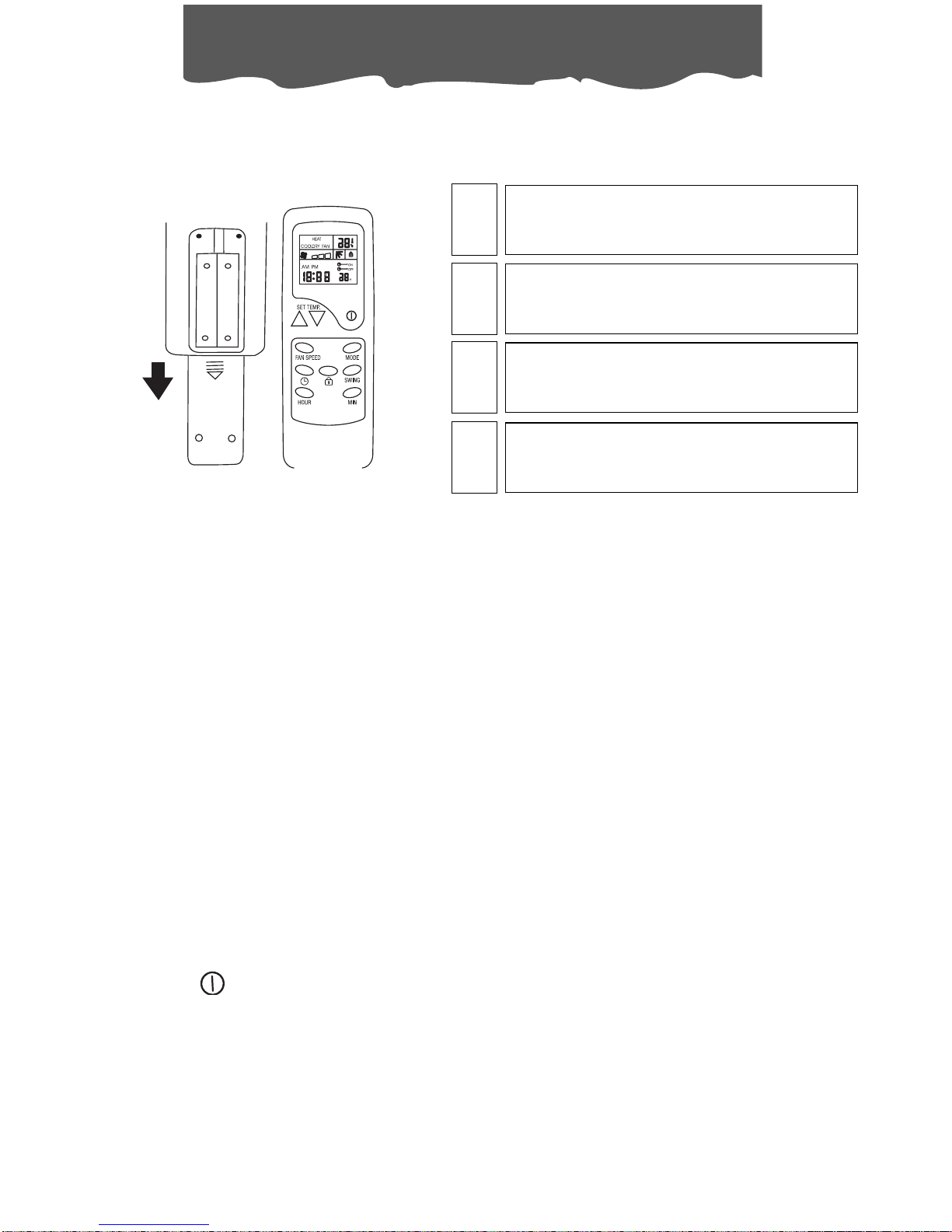

SETTING THE REMOTE CONTROL CLOCK
Remove the cover of the battery compartment on the back of the remote control unit.
After inserting two 1.5 V alkaline batteries in the compartment, the clock is automatically set at 12:00. If you want to
set the time to 10:30, proceed as follows: Press the CLK button (in the battery compart-
ment) with a pointed object such as a pencil.
The time indicator on the display flashes and the
correct time can be set.
1
Press the HOUR button on the remote control unit
to set the hours (set to 10 am).
2
Press the MIN button on the remote control unit
to set the minutes (set to 30).
3
Press the CLK button again to confirm the opera-
tion, then replace the battery compartment
cover.
4
CLK ACL
Note: the RST button (reset) in the battery compartment cancels all the settings on the remote control
unit (once pressed, the current time must be re-set).
Important: make sure you do not reverse the poles of the batteries.
Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-
cadmium )batteries. Do not dispose of batteries in fire. Batteries may explode or leak.

8
TIMER FUNCTION
When the air conditioning unit is off (but plug-
ged into the outlet), to turn it on at the required
time press the "TIMER ON/OFF" button (" "
will appear on the display), then press the "
TIMER HOUR" button until the number of hours to
elapse before the appliance comes on
appears on the display. Vice versa, when the
air conditioning unit is on, to turn it off at the
required time press the "TIMER ON/OFF" button
(" " will appear on the display), then press
the "TIMER HOUR" button until the number of
hours to elapse before the appliance goes off
appears on the display. The timer can be set
from one to 12 hours.
AUTOMATIC SWING FUNCTION
Press the SWING button once. The fins will
swing, distributing the air flow in the room.
Press the button again, the flow will be steady
in one direction.
CHILD SAFETY
Pressing the "+" and "-" buttons on the control
panel together for more than two seconds
locks the keypad.
The " “ symbol appears on the LCD display.
The same keypad lock function can be acti-
vated on the remote control unit by pressing
the “ “ button.
To unlock, repeat the operation.
BEFORE USING THE APPLIANCE
1. If the appliance has been in a horizontal
position during storage or transport, you
are recommended to wait at least three
hours before turning it on.
2. Always position the air conditioning unit on
a stable surface.
3. Attach the air exhaust hose to the air con-
ditioning unit.
4. Plug the air conditioning unit into a suitably
rated outlet.
5. Set the various functions of the air condi-
tioning unit according to your require-
ments.
6. The cooling system will shut down when
room temperature drops below the set
temperature. The fan will, however, conti-
nue to operate at the set speed.
If the room temperature rises above the
temperature set, the cooling system
comes on again automatically.
Operation

CHOOSING THE INSTALLATION SITE
Position the air conditioning unit on a flat sur-
face where the air outlet grilles cannot be
obstructed. Position the appliance at least 50
cm (19.7) away from walls or obstacles.
CABLE WINDER
Before installing the air exhaust hose, mount
the two cable winder brackets using the
screws supplied as shown in the figure.
Tools Required for Assembly:
A screwdriver to install cable winders on unit.
Assembly Time
Approximately 5 minutes
AIR EXHAUST ACCESSORIES
INSTALLING THE AIR EXHAUST HOSE
1. Open out the end of the hose and screw the
two adapters on counterclockwise (see figure).
2. Fitthesquareadapterontheairexhausthose
to the air exhaust outlet on the appliance.
3. Connect the other end (flange) to the neare-
st window.
Important: the air exhaust hose must be
between 500 mm (19.7”) and 2000 mm
(78.7”) long. You are recommended to keep
the air exhaust hose as short as possible.
Duringinstallation, keep the hoseashorizontal
as possible without distorting it. Do not con-
nect the terminal to other exhaust ducts (flue
or chimney) as this could lead to malfunction.
Correct wall installation: the hole must be
at a height of between 40 cm (15.7”) and
130 cm (51.2”) from the floor.
9
Installation
(51.2 in) 130 cm
40 cm
(15.7 in)
hose length
500 mm (19.7”)
2000 mm (78.7”) flange
crosspiece 675 mm
(26.5”) - 1230 mm
(48.4”) (some models
only)
adapter
square adapter
air exhaust
outlet
Flange
adapter
for flange

If the flange hose must be curved to expel the
air, you should follow the measurements given
in the figure:
MOUNTING THE ADJUSTABLE WINDOW CLOSU-
RE CROSSPIECE ( Only for some models )
The appliance is provided with an adjustable
bracket.
If you have a sliding window, position the cros-
spiece in the window frame, extend it comple-
tely then close the window onto the crosspie-
ce. Fit the window flange onto the end of the
air exhaust hose, position it on the hole in the
crosspiece, then fit the other end of the hose
onto the back of the air conditioning unit.
This considerably reduces heat dispersion due
to contact between the room and the outside
environment.
The crosspiece is 40 mm (1.5”) wide and
between 675 mm (26.7”) and 1230 mm (48.4”)
long.
10
Installation
(19.7 in)
50 cm
50 cm
60 cm
(19.7 in)
(23.6 in)
Incorrect installation diagram (the bend in
the hose is excessive and could easily lead to
malfunction)

11
CONDENSATION DRAINAGE
When the air conditioning unit is operating in
air conditioning or dehumidifying mode, the
condensation is collected in a special tank.
When the tank is full, the "tank full" indicator
light on the control panel flashes.
Remove the condensation tank, empty and
replace on the unit as shown in the following
figures.
Attention
1. While the air conditioning unit is operating in
air conditioning or dehumidifying mode, do
not extract the condensation tank before it
is full, otherwise a buzzer will sound indica-
ting that the compressor has stopped. The
unit will switch to FAN mode.
2. To remove the tank before it is completely
full, the unit must be stopped by turning it off
or operating it in FAN mode only, waiting
about three minutes to avoid the conden-
sation dripping outside the tank, then remo-
ving the tank.
3. Do not remove the cap of the tube in the
water tank compartment (present in certain
models only) while the unit is operating with
condensation collecting in the tank as this
could lead to leaks of water.
CONTINUOUS CONDENSATION DRAINAGE
To drain condensation continuously without
the air conditioning unit shutting down, pro-
ceed as follows (models designed for conti-
nuous condensation drainage only):
1. Pass the tube in the tank compartment
through the hole in the tank (see figure).
2. Remove the cap from the tube and con-
nect it to an external pipe (not provided)
able to drain the condensation continuou-
sly.
Installation
Condensation
drainage tube
coupling

12
MAINTENANCE
•Turn the appliance off and unplug from
the outlet before cleaning.
•Make sure the unit is disconnected from all
voltage before proceeding with mainte-
nance. This avoids the risk of electric
shock.
•Never use chemical solvents (such as ben-
zene and alcohol) to clean the surface of
the unit. This could scratch or damage the
surface or even distort the external part.
•Use water with delicate detergents or a
soft cloth only to clean or dry plastic parts.
•To clean the condensation tank, remove
and completely empty it of water. Clean
with neutral detergents, rinse and dry tho-
roughly.
Then replace in the original position.
AIR FILTER
If the air filter is blocked by dirt or dust, the
flow of air diminishes, reducing the perfor-
mance of the appliance and leading to mal-
function. The air filter must be cleaned and/or
washed at least once every two weeks.
1. Open the air filter holder grill by pulling it
towards the outside.
2. Remove the filter from the filter holder gril-
le.
3. Wash the air filter by immersing it delicately
in warm water (no more than 40° C)
(104°F) with neutral detergent, rinse and
dry completely in the shade.
4. Replace the dry filter in the grill, fastening it
with the pins on the inside surface of the
grille.
5. Replace the grille on the unit.
END OF SEASON PROCEDURE
1. Turn the appliance off and disconnect
from the outlet by unplugging from the
outlet.
2. In models with a continuous condensation
drain tube only, before emptying the con-
densation from the tank, remove the cap
from the plastic tube to enable water in the
tube to flow into the tank, then operate the
unit in fan mode for half a day to ensure that
the inside of the unit is completely dry.
3. Empty the condensation water from the
tank, clean and dry
4. Wind the power cable around the cable
winder, then cover the appliance with a
cover or bag and store in a dry place.
Maintenance
grille
Pins
Filter
holder grille
cap
plastic tube

13
Before contacting an authorized technical service center, check the following:
Problem Check Solution
The appliance does not
work.
The appliance does not
cool satisfactorily
•Check it no longer occurs
•Plug into the outlet
•Check the outlet switch or
turn the air conditioning
unit switch on
•Empty the water in the
tank
•Position the condensation
tank correctly
•clean and free from
obstructions
•move the heat source
•clean the air filter
•set the temperature
•set the fan speed correc-
tly
Troubleshooting
There is excessive noise and
vibration •It is caused by the refrige-
rant fluid running through
the tubes
•Is it sloping?
•This is normal
•Place the appliance in a
horizontal position
•If there is a power outage
•If the plug is not correctly
inserted in the outlet
•If the outlet switch or the
switch on the air conditio-
ning unit is off.
•If the condensation tank
indicator light is on.
•If the condensation tank is
positioned correctly
•If the air intake and outlet
grilles are blocked
•If there are other sources
of heat in the room
•If the air filter is very dirty
•If the temperature set (SET
TEMP) is not correct
•If the internal fan speed is
on slow
•Try and keep the air
exhaust hose in as horizon-
tal a position as possible to
facilitate evacuation of
the air.
•Do not use other exhaust
hoses, always use the hose
supplied to expel the air.
The unit shuts down or starts
up frequently •Is the air expelled through
the exhaust hose correctly
or does the hose follow a
correct path?
•Other exhausts have been
connected together on
the same hose

14
De’Longhi is the distributor of Kenwood home appliances.
This warranty applies to all home appliances with De’Longhi or Kenwood brand names.
FOR CONTIGUOUS UNITED STATES ONLY
Limited Warranty
We warrant each De’Longhi AIR CONDITIONER to be free from defects in material and workman-
ship. From the purchase date, our obligation under this warranty is to provide one (1) year free
parts and labor on the entire AIR CONDITIONER, with an additional four (4) years free on any part
of the sealed system consisting of the compressor, evaporator, condenser and factory connected
refrigerant tubing. Labor and all other parts during the additional four (4) year warranty are to be
paid by the owner. All AIR CONDITIONERS in need of repair are to be shipped to an authorized
De’Longhi service center at the owner’s expense, and De’Longhi will then incur the return ship-
ping costs. After the first five (5) years of ownership, all expenses (all parts, labor and shipping) are
to be paid by the owner of the unit. This warranty shall apply only if the AIR CONDITIONER is used
in accordance with the factory directions that accompany it, and on an Alternating Current (AC)
circuit. This warranty is in lieu of all other warranties and representations, expressed or implied, and
all other obligations or liabilities on our part. We do not authorize any other person or company
to assume for us any liability in connection with the sale or use of our AIR CONDITIONER. This war-
ranty shall not apply to any AIR CONDITIONER that has been repaired or altered outside our fac-
tory nor shall it apply to any AIR CONDITIONER that has been subjected to misuse, negligence or
accidents.
If repairs become necessary, see contact information below:
U.S. Residents:
Please contact our toll free hotline at 1-800-322-3848 or log onto our website at
www.delonghi.com.
For all accessories, spare parts or replacement parts, please contact our parts division at 1-800-
865-6330.
CANADA Residents:
Please contact our toll free hotline at 1-888-335-6644 or log onto our website at
www.delonghi.com.
Other countries:
Please visit: www.delonghi.com.
Limited Warranty
