DeLonghi Pinguino C120 User manual

C100/C120
C100/C120
Instructions for use
Keep these instructions
Mode d'emploi
Conservez cette notice
Instrucciones para el uso
Repase y guarde estas instrucciones
Lea cuidadosamente este instructivo antes de usar su aparato
Istruzioni per l’uso
Leggere e conservare queste istruzioni
ELECTRICAL SPECIFICATIONS 115V ~ 60Hz
DONNEES ELECTRIQUES 115V~60Hz
CARACTERISTICAS ELECTRICAS 115V ~ 60Hz
CARATTERISTICHE ELETTRICHE 115V~60Hz
Register this product online and receive a free trial issue of Cook's Illustrated.
Visit www.delonghiregistration.com.
Visit www.delonghiusa.com for a list of service centers near you. (U.S. Only)
Enregistrez ce produit en ligne et recevez un numéro gratuit de Cook's Illustrated.
Visitez www.delonghiregistration.com.
Visitez www.delonghiusa.com pour y voir une liste des centres de réparation proches de chez
vous. (É.-U. uniquement)
Registre este producto en línea y reciba un ejemplar gratis de Cook's Illustrated.
Visite www.delonghiregistration.com.
Visite www.delonghiusa.com para ver la lista de centros de servicios cercanos a usted. (Sola-
mente en los Estados Unidos)
Registra questo prodotto "on-line" per ricevere una copia omaggio della rivista.
Visita www.delonghiregistration.com.
Visita www.delonghiusa.com per una lista dei centri di servizio a te più vicini (solo negli Stati Uniti).
PORTABLE AIR CONDITIONER
CONDITIONNEUR D’AIR PORTATIF
SISTEMA DE AIRE ACONDICIONADO PORTÁTIL
CONDIZIONATORE D’ARIA

INDEX
Important safeguards................................ 4
Setting up your portable air conditioner .5
Semi-permanent installation .....................6
Control panel ..............................................7
Operation ....................................................8
Self-diagnosis...............................................9
Using the remote control unit..................10
Tips ..............................................................13
Cleaning ....................................................14
Troubleshooting.........................................15
Technical specification ............................16
Limited warranty .......................................17
TABLE DES MATIERES
Avertissements...........................................18
Prèparation à l’emploi .............................19
Installation semi-permanente .................20
Tableau de commande ..........................21
Fonctionnement .......................................22
Autodiagnostic..........................................23
Fonctionnement avec télécommande 24
Conseils ......................................................27
Nettoyage .................................................28
Si quelque chose ne marche pas .........29
Caractéristiques techniques ...................30
Garantie limitée ........................................31
ÍNDICE
Precauciones importantes ..........................32
Preparación para el uso..............................33
Instalació provisional ...................................34
Panel de mandos .........................................35
Operación .....................................................36
Autodiagnosis................................................37
Funcionamento con mando a distancia..38
Consejos.........................................................41
Limpieza.........................................................42
Búsqueda de problemas.............................43
Especificaciones técnicas...........................44
Garantía limitada .........................................45
INDICE
Avvertenze.....................................................46
Predisposizione all’uso..................................47
Installazione semi-permanente...................48
Pannello comandi .......................................49
Funzionamento ............................................50
Autodiagnosi .................................................51
Funzionamento con telecomando............52
Consigli...........................................................55
Pulizia..............................................................56
Se qualcosa non funziona...........................57
Caratteristiche tecniche..............................58
Garanzia ........................................................59

DESCRIPTION • DESCRIPTION
DESCRIPTCIÓN • DESCRIZIONE
ACCESSORIES • ACCESSOIRES • ACCESORIOS • ACCESSORI
10 11 12 13
14 15
2
9
1
3
5
46
8
7

4
Important safeguards
DESCRIPTION
1air outlet grille
2control panel
3castor wheels
4 handles
5filter
6 air intake grille
7air exhaust hose housing
8drainage hose
9 power cable
10 wall flange
11 air exhaust hose
12 window outlet
13 castor locks
14 remote control
15 window bracket with locking pins
• Use this appliance only as described in this instruction manual.
As with any electrical appliance, the instructions aim to cover as many situations as possible.
Caution and common sense should be used when operating and installing this air conditioner.
• This appliance has been manufactured to cool and dehumidify domestic environments and
must not be used for other purposes.
• It is dangerous to alter or modify the unit's characteristics in any way.
• The appliance must be installed in accordance with the relevant national legislation.
• Should repairs be necessary, contact the nearest authorized Repair Service Center. Unautho-
rized servicing can be dangerous.
• The appliance is not intended for use by persons (including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• In the case that the power cord becomes damaged, this must be repaired only by specialized per-
sonnel authorized by the manufacturer in order to protect against fire.
• Always ensure the appliance is plugged into a grounded 3-prong outlet. If you have any doubts
check with a qualified electrician.
• We strongly discourage the use of an extension cord due to potential safety hazards. For tem-
porary situations, use only CSA certified and UL listed 3-prong grounded extension cord,
attachment plug and connector, rated 15A, 125V
• Before cleaning or maintenance operations, always unplug the unit from the outlet.
• Do not pull on or place strain on the power cord when moving the appliance.
• The appliance should not be installed where the atmosphere may contain combustible gases,
oil or sulphur, or near heat sources.
• Do not rest hot or heavy objects on the appliance.
• Clean the filters at least once a week.
• Avoid using heaters near the unit.
• The unit should be transported in a vertical position. If this is not possible secure the unit at an
angle, do not lie it horizontally.
• Before transporting the unit, drain the unit. After transportation, wait at least 6 hours before switching the unit on.
• The packaging materials can be recycled. You are therefore recommended to place them in
the special containers for differentiated waste collection.
• This appliance is fitted with a special safety device. When the compressor switches off, this
device prevents it from switching on again for at least 3 minutes.
•WARNING: Changes or modifications not expressly approved by the party responsible for com-
pliance could void the user's authority to operate the equipment.
.
SAVE THESE INSTRUCTIONS
THIS PRODUCT IS FOR HOUSEHOLD ONLY

5
GB
Setting up your portable
air conditioner
TO AVOID DAMAGE TO THE UNIT:
NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE. IF THIS OCCURS, WAIT
6 HOURS BEFORE TURNING THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. After the unit has
been on its side, oil needs to return to the compressor to ensure proper function. Without allow-
ing the unit this time (6-24 hours) the unit may function for only a short time, and then the com-
pressor will break down from lack of oil.
ELECTRICAL CONNECTIONS
Before plugging the appliance into the outlet, check that:
• The outlet’s power supply corresponds to the value indicated on the rating label on the back
of the appliance;
• The outlet and electrical circuit are adequate for the appliance;
• The outlet is a 3-hole grounded outlet . If this is not the case, you must choose another outlet.
Failure to follow these important safety instructions absolves the manufacturer of all liability.
The instructions below will enable you to prepare your air conditioner for operation as efficiently
as possible. Before use, make sure the air intake and outlet grilles are unobstructed.
If it becomes necessary, the power cable must be replaced by a qualified professional only.
Other set-up methods:
• Thanks to the locking pins, it’s possible to
use the window bracket also for sliding
windows. Position the hole of the bracket
so to allow a correct installation of the
exhaust hose (see figure C).
• If you have a casement window (figure D)
follow steps 2 & 3 and place the window
outlet (12) outside the window to exhaust
the hot air.
For help with installation, operation, and
for all accessories and spare/replacement
parts, Please contact our toll free cus-
tomer service call center at:
1-800-322-3848 [US only]
Monday – Friday 8:30am – 5:00pm ET Or
log onto our website at
www.delonghiusa.com.

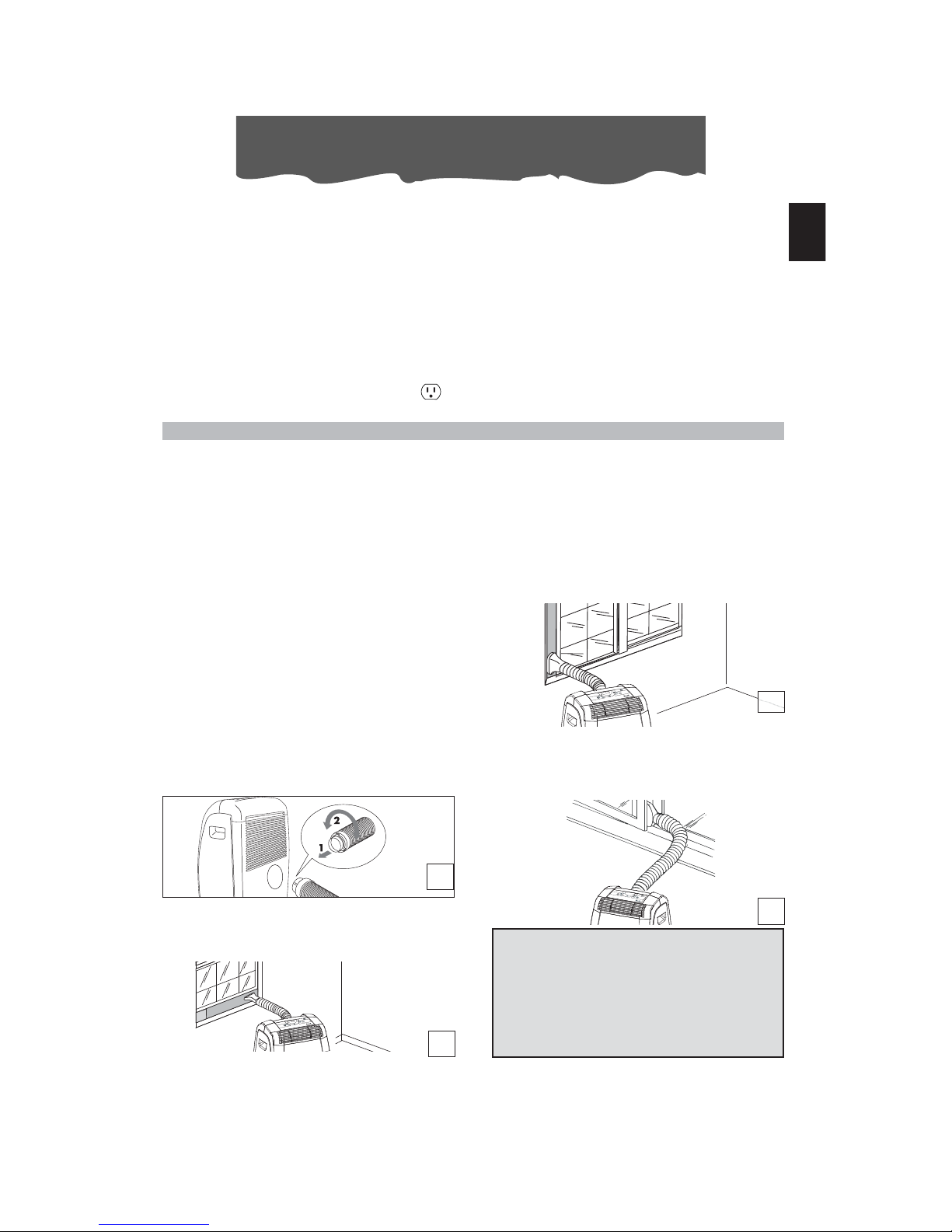

AIR CONDITIONING WITHOUT INSTALLATION
NOTE: Keep the air hoses as short and free of
curves as possible to avoid constrictions.
FOR OPTIMAL RESULTS SET-UP IN A DOU-
BLE-HUNG WINDOW:
1) Place the bracket in the window sill,
extend the bracket fully within the window
frame, fix the bracket by using the pin
then lower the window onto the bracket.
(Should the window bracket be too large
for the window. The plastic can be cut
with a saw by a qualified professional.)
2) Fit the air exhaust hose in the housing at
the back of the appliance. Insert it as
shown in figure A.
3) Connect the window outlet (12) to the
other end of the exhaust hose.
4) Insert the window outlet end of the exhau-
st hose into the slot of the window bracket
(fig. B).
A
B
C
D

in the
window
pane
in the wall:
you are
recommended
to insulate the
section of wall
using suitable
insulation.
in the
wooden
kickboard
of a
French
window
F

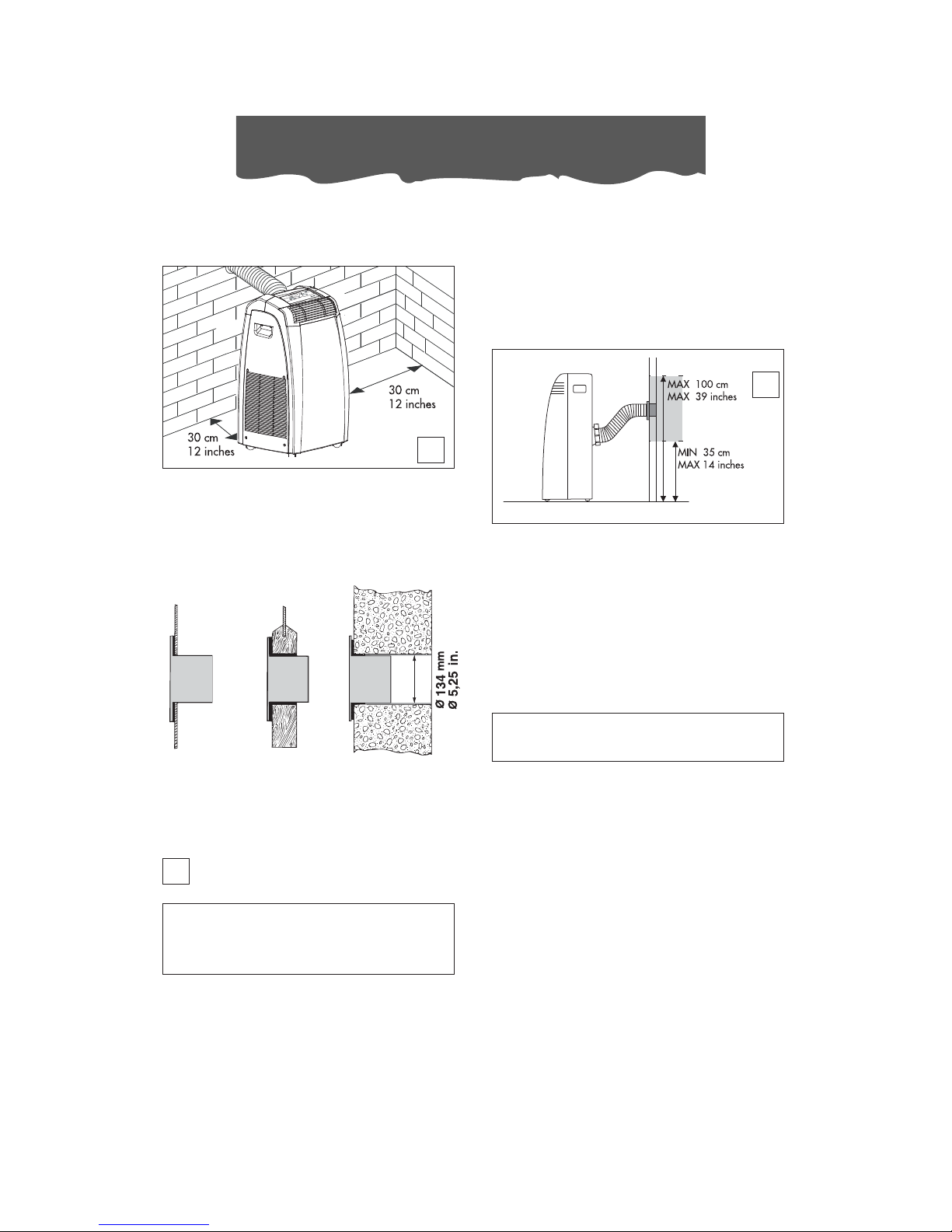

Semi-permanent installation
SEMI-PERMANENT INSTALLATION
If required, your appliance can also be
installed semi-permanently (Fig. E).
Proceed as follows:
• Drill a hole ø 5,25 inches (134 mm) in an
outside wall or through a window pane.
Respect the dimensions and height of the
hole given in figure F and G.
• Fit the wall flange (10) into the hole.
• Fit the air exhaust hose (11) in the rele-
vant housing located on the rear side of
the appliance. (fig. Apage 5).
• Fit the end of the hose (11) to the wall
flange (10) as shown in fig. G.
When the hose (11) is not connected, the dril-
led hole can be closed with the flange cap
(10).
NOTE: When installing the air conditioner
semi-permanently, you should leave a door
slightly open little as 1/2 “ (1 cm) to guar-
antee correct ventilation and room pressure.
6
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
“As special tools are required for installa-
tion, we suggest you have the applian-
ce installed by specialized personnel.”
E
G

7
Control panel
DESCRIPTION OF THE CONTROL PANEL
A ON/STAND-BY button
B MODE selection button:
Air conditioning, dehumidifying, fan.
C Fan speed selection button (HIGH/MED/LOW/AUTO)
D Timer button
E Programmed operation increase temperature/time button
F Programmed operation decrease temperature/time button
G Display Displays the temperature values set and the programmed operating time
H Timer in operation indicator light
I/L/M/N Fan speed lights and AUTO lights
O Fan mode light
P Dehumidifying mode light
Q Air conditioning mode light
R Remote control receiver
THE CONTROL PANEL
GB
Never turn the air conditioner off by unplugging from the outlet. Always press the
button, then wait for a few minutes before unplugging. This allows the appliance to
perform a cycle of checks to verify operation.

Q
A
BEF
N
HRG
C
P
O
D
M
L
I

8

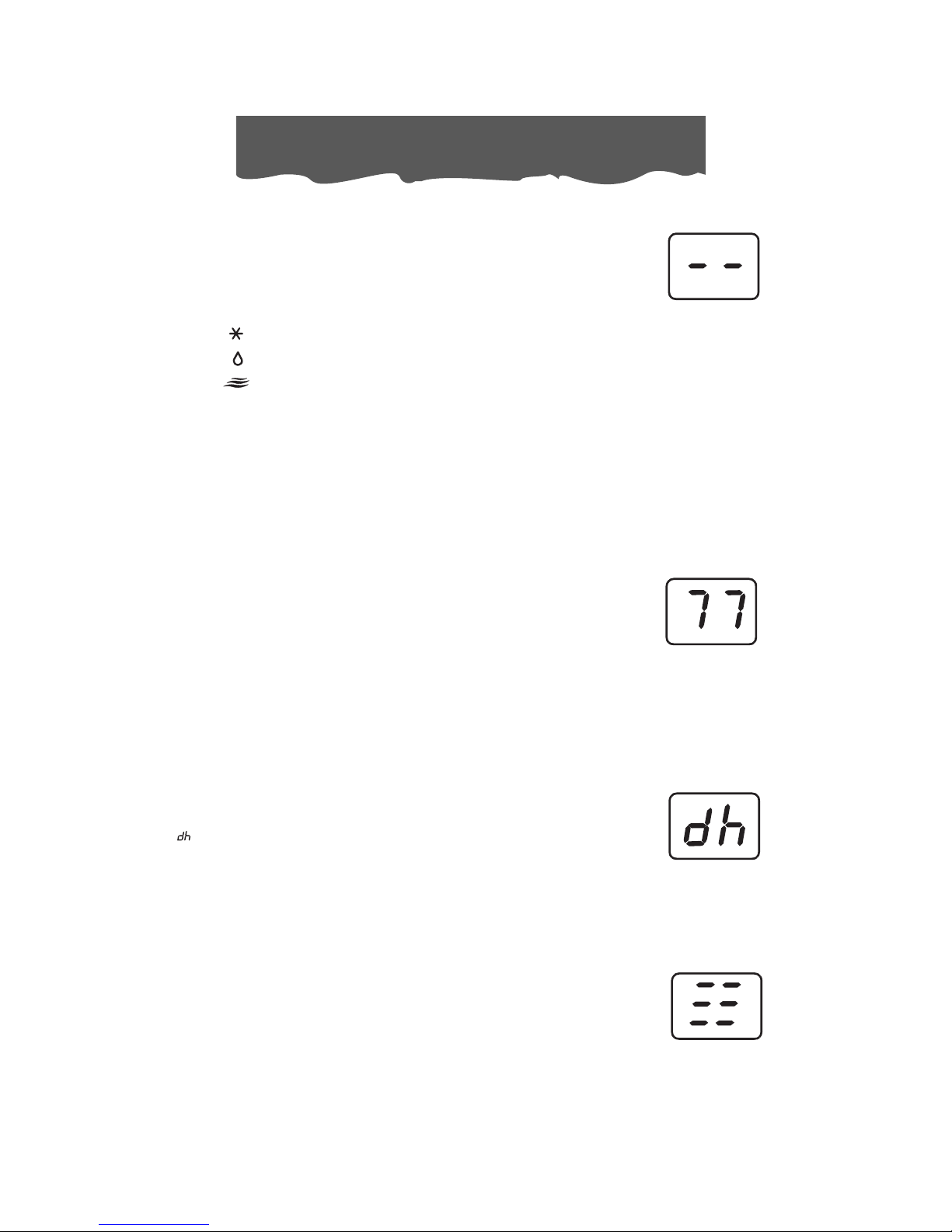

Operation
TURNING THE APPLIANCE ON
Plug into an outlet.
Two lines appear on the display indicating that the appliance is in stand-
by.
Press the ON/STAND-BY button (A). When turned on, the air conditioner
starts operating in the same mode as when it was turned off.
Press the MODE button (B) until the light corresponding to the desired
mode lights up:
Light (Q):AIR-CONDITIONING MODE
Light (P):DEHUMIDIFYING MODE
Light (O):FAN MODE
AIR CONDITIONING MODE
Ideal for hot muggy weather when you need to cool and dehumidify the
room.
To set this mode: press the + (E) or - (F) buttons until the desired tempe-
rature is displayed.
Then select the fan speed by pressing the “FAN” button (C) until the light
corresponding to the required fan speed lights up:
HIGH:MAXIMUM SPEED the air conditioner operates at maximum to
achieve the target temperature as rapidly as possible
MED:MEDIUM SPEED reduces noise levels while maintaining a comfor-
table temperature
LOW:LOW SPEED for silent operation and maximum energy efficiency
AUTO:AUTO: the appliance automatically selects the most suitable
fan speed in relation to the temperature set on the digital display
and current room temperature.
The most suitable temperature for the room during the summer varies from
75°F to 81°F (24 to 27°C). You are recommended, however, not to set a
temperature much below the outdoor temperature
DEHUMIDIFYING MODE
Ideal to reduce room humidity (spring and autumn, damp rooms, rainy
periods, etc). In dehumidifying mode, the appliance MUST be set-up in
the same way as for air conditioning, with the air exhaust hose attached
to enable the moisture to be discharged outside.
When the dehumidifying mode is selected, the light (P) comes on and
“ ” appears on the display.
At the same time, the AUTO fan light (N) comes on.
In this mode, fan speed is selected automatically by the appliance and
cannot be set manually.
FAN MODE
The unit operates without cooling or dehumidifying. This mode provides
ventilation only. When using the appliance in this mode, the air exhaust
hose does not need to be connected. Adjust fan speed by pressing the
“FAN” button (C) as described for the air-conditioning mode.
In this mode, AUTO speed cannot be selected.
The fan speed selected will be displayed.

9
GB
Self-diagnosis
SETTING THE TIMER
The timer can be used to delay appliance start up or shutdown. This avoids wasting electricity by
not operating the appliance when it is not needed.
How to program delayed start up
• Plug the appliance into an outlet and press the ON/STAND-BY button (A), then select the desi-
red operating mode and other settings (temperature, fan speed, etc).
• Press the ON/STAND-BY button (A) again: The appliance switches to stand-by mode (the two
central segments are displayed).
• Press the TIMER button (D). The last timer setting or the preset value 6.0 flashes on the display.
• Use the + (E) or - (F) buttons to set the number of hours delay before the appliance comes on.
During the first ten hours, you can select half hour intervals. For times greater than ten hours,
one hour intervals can be selected. If the + (E) or - (F) buttons are pressed for more than 2
seconds, the time runs rapidly up to a maximum of 24 hours. Press the timer button again within
a few seconds to confirm the setting. If the setting is not confirmed within a few seconds, the
display resets to Stand-by. With the timer activated, the countdown before the programmed
start up time is displayed and the light (H) flashes.
To cancel the timer programming, press the timer button (D) again.
How to program delayed shutdown
• Delayed shutdown can be programmed in any operating mode (air conditioning/dehumi-
difying/fan).
• Press the TIMER button (D). The last timer setting or the preset value 6.0 flashes on the display.
• Use the + (E) or - (F) button to set the number of hours delay before the appliance goes off.
During the first ten hours, you can select half hour intervals. For times greater than ten hours,
one hour intervals can be selected.
If the + (E) or - (F) buttons are pressed for more than 2 seconds, the time runs rapidly up to a
maximum of 24 hours.
Press the timer button again within a few seconds to confirm the setting.
When the timer is set, the light (H) flashes.
At the set time, the air conditioner shuts down and remains in stand-by.
To cancel the timer programming, press the timer button (D) again.
SELF-DIAGNOSIS
The appliance has a self diagnosis system to identify a number of malfunctions.
LOW TEMPERATURE
(frost prevention)
PROBE FAILURE
(sensor damaged)
FULL TANK
The appliance is fitted with a frost protection device to avoid
excessive formation of ice on internal components. The appliance
starts up again automatically when the defrosting process is com-
pleted.
If this is displayed, contact your local authorized service centre.
Empty the internal tank, see page 14 "End of season operations".
IF ... IS DISPLAYED ...WHAT SHOULD YOU DO?

10
Using the remote control unit
MODELS WITH REMOTE CONTROL
• Point the remote control at the receiver on
the air conditioner. The remote control
must be no more than 23 ft (7 metres)
away from the appliance (without obsta-
cles between the remote control and the
receiver)
• The remote control must be handled with
extreme care. Do not drop it or expose it
to direct sunlight or sources of heat.
DESCRIPTION OF THE REMOTE CONTROL
16) Fan button (FAN)
17) ON/STAND-BY button (ON/OFF)
18) Mode button (MODE)
19) Timer button (TIMER)
20) Display
Replacing the batteries
• Remove the cover on the rear of the
remote control;
• Replace the old batteries with two new
R03 “AAA” 1.5V batteries, inserting them
correctly (see the instructions inside the
battery compartment);
• Replace the cover.
If the remote control unit is replaced or discarded, the batteries must be removed and disposed
of in accordance with current legislation as they are harmful to the environment. Do not mix old
and new batteries.
Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. Do not
dispose of batteries in fire. Batteries may explode or leak.
•Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
• This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired opera-
tion.
MAX 23 ft
MAX 7 metres
20
16
17
19
18
