IMPORTANT SAFEGUARDS
• Use this appliance only as described in this instruction manual. As with all electrical equip-
ment, whilst the instructions aim to cover as many eventualities as possible, caution and
common sense should be applied when operating and installing this appliance.
• This appliance is designed to air condition and heat the home and must not be used for
other purposes.
• It is dangerous to modify or alter the characteristics of the appliance in any way.
• The appliance must be installed in conformity with national legislation regulating electrical
equipment and installations.
• If the appliance requires repair, contact a Service Centre authorised by the manufacturer
only. Repairs carried out by unauthorised personnel may be dangerous.
• This appliance must be used exclusively by adults.
• Never allow the appliance to be used by people (including children) with psychological,
physical or sensory impairments or with insufficient experience and knowledge, unless clo-
sely supervised and instructed by someone responsible for their safety. Young children
should be supervised to ensure that they do not play with the appliance.
• The appliance must be connected to an efficient earth system. Have your electrical circuit
checked by a qualified electrician.
• Do not use extension cables.
• Before cleaning or maintenance, always unplug the appliance from the mains socket.
• Never unplug the appliance by pulling on the power cable.
• Do not install the appliance in rooms containing gas, oil or sulphur. Do not install near sour-
ces of heat. .
• Keep the appliance at least 50 cm away from flammable substances (alcohol etc) or pres-
surised containers (eg aerosol cans).
• Do not rest heavy or hot objects on top of the appliance.
• Clean the air filter at least once a week.
• Avoid using heating appliances near the air conditioner.
• Always transport the appliance upright or resting on one side. Before moving the applian-
ce, empty the internal circuit completely of water. After moving the appliance, wait at least
1 hour before starting it
• When putting the appliance away, do not cover with plastic bags.
• The materials used for packaging can be recycled. You are therefore recommended to dis-
pose of them in special differentiated waste collection containers.
• At the end of its working life, consign the appliance to a specialist collection centre.
• If the power cable is damaged, it must be replaced by the manufacturer or an authorised
technical service centre in order to avoid all risk.
• Before transporting the appliance, completely empty the internal circuit of water by pres-
sing the MODE and FAN buttons simultaneously for a few seconds without removing the
tank. Then empty the tank
GB
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
•the mains power supply corresponds to the value indicated on the rating plate on the back
of the appliance;
•the power socket and electrical circuit are adequate for the appliance.
•the mains socket matches the plug. If this is not the case, have the plug replaced;
•the mains socket is adequately earthed.
Failure to follow these important safety instructions absolves the manufacturer of all liability.

3
WHAT IS THE PINGUINO
During the summer, you feel comfortable at a temperature of between 24 and 27° C with
a relative humidity of about 50%.
An air conditioner removes excess moisture and heat from the room where it is located.
Compared with installed models, portable air conditioners have the advantage that they can
be moved from one room to another in the home or be transported from one building to ano-
ther.
Hot air from the room is passed through a coil
cooled by refrigerant gas. Excess heat and
moisture are removed before the air is re-
emitted into the room.
In single unit models, a small part of this
air is used to cool the refrigerant gas
and then, when hot and damp, is dis-
charged outside.
In the spring and autumn, the
appliance can also be used to
heat.
The efficient heat pump system pro-
vides a high heating capacity with
low energy consumption.
All Pinguino models can also be used
in fan-only mode.

4

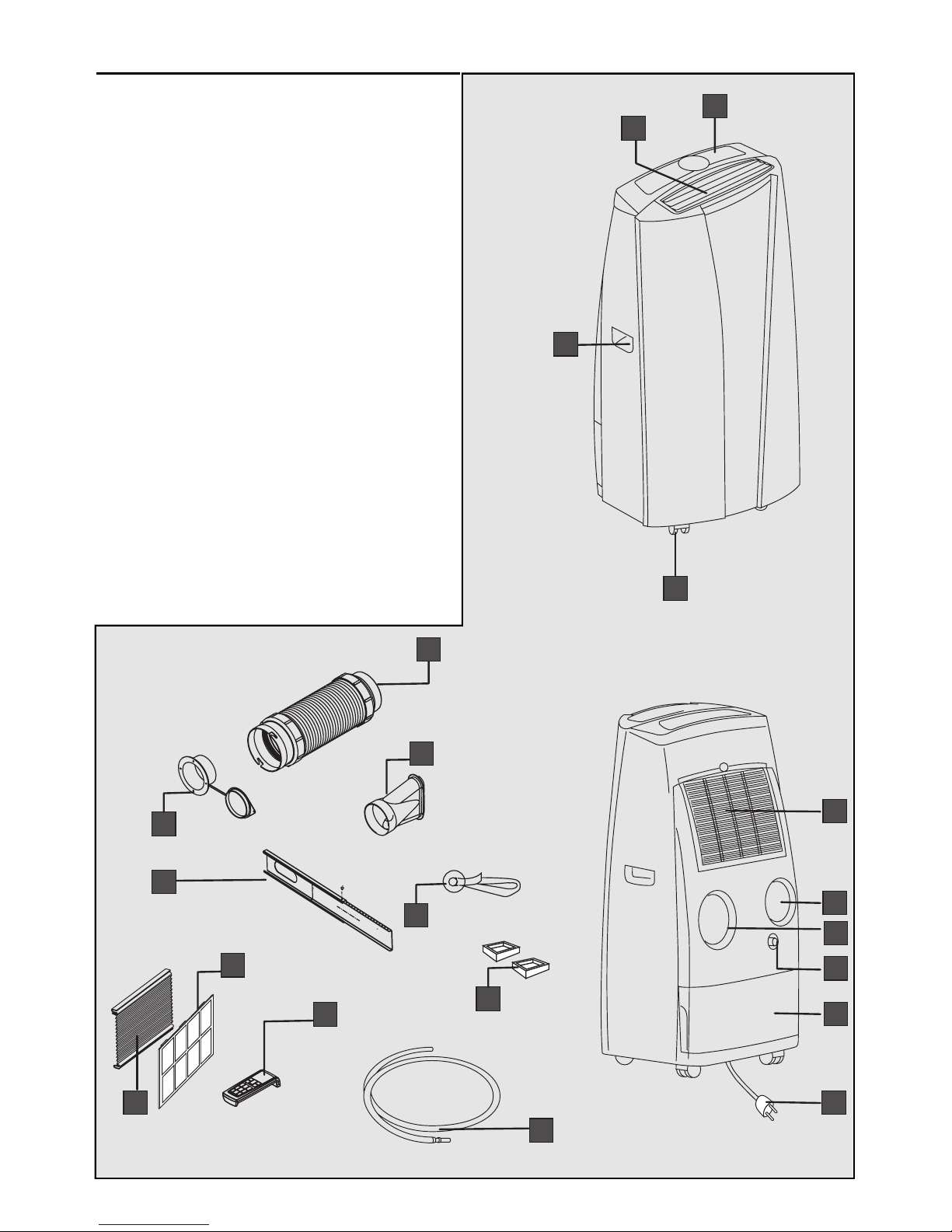

DESCRIPTION
Aair outlet grille
Bcontrol panel
Crcastors
Dhandles
Eair intake grille with dust filter
Fair exhaust hose housing
Gair intake grille
Hcontinuous condensate drain connection
Icondensate tank
J power cable
Kflange cap
Lair exhaust hose
Mwindow outlet
Nsuckers
Ocastor locks
Pcontinuous drain hose with coupling
Q remote control
R3M air purifying filter
O silver ion filter (certain models only)
Tadjustable bar
LL
QQ
MM
SS
RR
NN
OO
KK
TT
AABB
CC
DD
FF
GG
EE
II
HH
JJ
PP

5
PREPARING FOR USE
The instructions below will enable you to prepare your air condi-
tioner for operation as efficiently as possible.
Before use, make sure the air intake and outlet grilles are unob-
structed.
AIR-CONDITIONING WITHOUT INSTALLATION
Just a few simple steps and your comfort is ensured with your
appliance:
• Fit the air exhaust hose in the housing at the back of the
appliance (fig. 1).
• Fit the window outlet to the end of the hose.
• Place the air conditioner near a window or French window.
• Adjust the length of the hose to reach the window.
• Make sure the air exhaust hose is unobstructed.
• Open the window or French window slightly and position the
outlet (fig. 2).
• If you have a double window, use the sucker provided to hold
the two parts of the window together (fig. 3).
You can also use the "adjustable bar" accessory.
-Fit the window outlet in the housing in the bar (fig. 4). Position
the bar on the windowsill and extend it for the complete
width of the window. The required length can be blocked
using the pin provided, then lower the blind or window (fig. 5).
-Fit the air exhaust hose in the housing at the back of the
appliance (fig. 1).
-Place the air conditioner near a window and connect the
end of the hose as shown in figure 6.
Keep the air hose as short and free of curves as possible to avoid
bottlenecks.
1
2
1
2
1
2
3
4
5
1
2
1
2
6

6
AIR-CONDITIONING WITH INSTALLATION
If required, your appliance can also be installed semi-perma-
nently (Fig. 7).
Proceed as follows:
•Drill a 106 mm dia. hole respecting the heights shown in fig. 8.
30 cm
30 cm
7
10
8 9
11
in the window pane
in the wooden kickboard
of a French window
in the wall: you are
recommended to insula-
te the section of wall
using suitable insulation.
•Fit the flange accessory provided in the hole following the
indications in figs. 9, 10 and 11.
•Fit the hose in the housing at the back of the appliance (fig.
1).
•Fit the end of the hose to the flange as shown in fig. 8. When
the hose is not fitted, the hole can be closed with the flange
cap.
Keep the air hose as short and free of curves as possible to avoid
bottlenecks.
When installing the air conditioner semi-permanently, you
should leave a door slightly open (as little as 1 cm) to gua-
rantee correct ventilation.
When using the appliance to heat a room with a high level of
humidity, condensate may appear on the outside of the air
exhaust hose. To avoid this, you can cover the hose with insu-
lation.
✔
✔

7
DESCRIPTION OF CONTROL PANEL
OPERATING FROM THE CONTROL
The control panel enables you to manage all the main functions
of the appliance, but to fully exploit its potential, you must use the
remote control unit.
TURNING THE APPLIANCE ON (1)
•Plug into the mains socket. Two lines appear on the display
indicating that the appliance is in standby (fig. 12).
•Press the button until the appliance comes on. The last
function active when it was turned off will appear. When the
appliance comes on, the last function active when it was tur-
ned off will appear.
12
Never turn the air conditioner off by unplugging from the mains. Always press the but-
ton, then wait for a few minutes before unplugging. This allows the appliance to per-
form a cycle of checks to verify operation.
✔
1ON/Standby button (on/off)
2MODE button (selects the modes): Air
conditioning, dehumidifying, air purif-
ying/fan, heating, Smart.
3Air conditioning symbol
4Dehumidifying symbol
5Air purifying/fan symbol
6Heating symbol
7Smart symbol
8Fan speed button: Low - Med - High -
Auto.
9Speed indicator
10 SLEEP symbol
11 Timer symbol
12 Ioniser symbol (certain models only)
13 Increase button (+)
14 Decrease button (-)
15 SWING button (movement of the grille
flaps)
1
211
12
9
13
10
9
6
7
5
15 4
14
8
3

8
AIR CONDITIONING MODE (FIG. 13)
Ideal for hot muggy weather when you need to cool and dehu-
midify the room.
To set this mode correctly:
•Press the MODE button a number of times until the air-condi-
tioning symbol appears (3).
•Select the target temperature by pressing the + or -button
until the corresponding value is displayed.
•Select the required fan speed by pressing the FAN button.
Four speeds are available:
High speed: to achieve the target temperature
as rapidly as possible
Medium speed: reduces noise levels but still
maintains a good level of comfort
Low speed: for silent operation
AUTOFAN: the appliance automatically selects the
most suitable fan speed in relation to the tempe-
rature set on the digital display.
The most suitable temperature for the room during the summer
varies from 24 to 27°C. You are recommended, however, not to
set a temperature much below the outdoor temperature.
MODALITÀ DEUMIDIFICAZIONE (FIG. 14)
Ideal to reduce room humidity (spring and autumn, damp rooms,
rainy periods, etc).
Place the appliance in the room without fitting the air exhaust
hose.
To set this mode correctly:
•Press the MODE button a number of times until the dehumidif-
ying symbol (4) appears, then press the +or -button until the
required humidity level is displayed.
At the same time, the Auto fan light comes on as the appliance
automatically selects the most appropriate speed.
Water is removed from the air and collected in the tank at the
back of the air conditioner.
When the tank is full, the appliance shuts down and (full tank)
appears on the display. The tank must be extracted and emptied
(fig. 15). When the tank has been emptied, the appliance starts
up again.
The accessory continuous drain hose enables the condensate
produced to be eliminated without requiring the tank to be emp-
tied periodically. Fit the hose with the rapid coupling as shown in
fig. 16.
NB: In order for the continuous drain function to operate cor-
rectly, make sure the accessory is fully connected to the
coupling. To release, press the coupling flange.
13
14
2
1
15
16

9
AIR PURIFYING/FAN MODE (FIG. 17)
When using the appliance in this mode, the air exhaust hose
does not need to be attached.
To set this mode correctly:
•Press the MODE button a number of times until the fan symbol
appears (5).
•Select the required fan speed by pressing the FAN
button.Three speeds are available:
High speed: for maximum fan power
Medium speed: reduces noise levels but still maintains
a good level of comfort
Low speed: for silent operation
In this mode, AUTO speed cannot be selected.
HEATING MODE (FIG. 18)
To set this function correctly:
•Press the MODE button a number of times until the heating
symbol (6) appears.
•Select the required temperature by pressing the + or -button
until the corresponding value is displayed.
•In heating mode, the fan speed is selected automatically by
the appliance.
Water is removed from the air and collected in the tank at the
back of the air conditioner.
When the tank is full, the appliance shuts down and (full tank)
appears on the display. The tank must be extracted and emptied
(fig. 15). When the tank has been emptied, the appliance starts
up again. The continuous drain hose accessory enables the con-
densate produced to be eliminated without requiring the tank to
be emptied periodically. To use the continuous drain function, fit
the hose with the rapid coupling as shown in fig. 16.
N.B.:-When operating in very cold rooms, the appliance defrosts automatically,
momentarily interrupting normal operation. "LT”appears on the display.
During this operation, it is normal for the noise made by the appliance to
change.
- In this mode, the fan may operate for short periods, even though
the set temperature has already been reached.
SMART MODE (FIG. 19)
In this mode, the appliance automatically sets the operating
mode (air conditioning, fan, heating), the most suitable tempe-
rature for optimum well-being and the fan speed.
To set this mode:
•Press the MODE button a number of times until the SMART
symbol appears.
17
19
9
18
SWING BUTTON (15)
Moves the grille flaps to distribute the cool air uniformly in the room.
•When the SWING button is pressed once, the flaps begin moving alternately forwards and
backwards. Press the SWING button again to stop the flaps in their current position. Pressing
the button again will restart the flaps moving forwards and backwards.
•When the appliance is turned off, the flaps will close irrespective of their position.

10
DESCRIPTION OF THE REMOTE CONTROL
1Air conditioning symbol
2Dehumidifying symbol
3Fan symbol
4Heating symbol
5Smart symbol
6Signal transmission
7 Selected temperature scale indica-
tor
8 Relative humidity indicator
9 SLEEP symbol
10 AUTOFAN indicator
11 Fan speed indicator
12 Clock
13 Timer ON symbol
14 Timer OFF symbol
15 MODE button (selects the modes)
16 ON/Stand-by button
17 FAN button
18 Increase (+) and decrease (-) tem-
perature button
19 Reset button (resets the factory
default settings)
20 Timer ON button
21 SET button
22 Timer OFF button
23 SWING button
24 SLEEP button
25 °C or °F selection button
USING THE REMOTE CONTROL
Point the remote control at the receiver on
the appliance. The remote control must be
no more than 7 metres away from the
appliance (without obstacles between the
remote control and the receiver).
The remote control must be handled with
extreme care. Do not drop it or expose it to
direct sunlight or sources of heat.
22
66
99
1010
1515
1919
2020
3344
55 77
1111
1414
1818
2222
2525
2323
1212
11
1313
1717
1616
2121
2424
88
✔
✔
MAX. 7 metres

11
USING THE REMOTE CONTROL UNIT
The ON/Stand-by,MODE,FAN + and - buttons correspond to the
equivalent buttons on the control panel.
ON/STAND-BY BUTTON: Turns the appliance on and off.
MODE BUTTON: Selects modes: AIR CONDITIONING, DEHUMIDIF-
YING, AIR PURIFYING, FAN, HEATING, SMART.
FAN BUTTON: selects fan speed (High, Medium, Low, Auto).
+ and - BUTTON: increase and decrease
To use these buttons see the section "Operating from the control
panel".
The following section describes the additional functions corre-
sponding to the controls on the bottom part of the remote con-
trol.
SELECTING THE TEMPERATURE SCALE (FIG. 21)
Press the button to switch the temperature display from °C
to °F and vice versa.
SETTING THE TIME
After having inserted the batteries, the clock on the display flashes until the time is set.
Proceed as follows.
•Press the +or -button until the correct time is reached. Hold the button down to run rapidly
through first the minutes, then the tens of minutes and then the hours.
•Once the correct time has been reached, press the SET button to confirm.
If you need to change the time later, press the SET button, then set as described above.
To cancel the settings programmed on the remote control and restore the original settings,
press the RESET button lightly with the point of a pencil or pen.
INSERTING OR REPLACING THE BATTERIES
•Remove the cover on the rear of the remote control (fig. 20);
•Insert two R03 “AAA” 1.5V batteries in the correct position (see
instructions inside the battery compartment);
•Replace the cover.
If the remote control unit is replaced or disposed of, the batteries
must be removed and discarded in accordance with current
legislation as they are harmful to the environment.
20
✔
11
21

12
SLEEP FUNCTION (FIG. 22)
This function is useful for the night as it gradually reduces opera-
tion of the appliance.
To set this function correctly:
•Press the button.
The SLEEP function maintains the room at optimum temperature
without excessive fluctuations in either temperature or humidity
and with silent operation.
In air conditioning or dehumidifying, fan speed is always at mini-
mum, while room temperature and humidity vary gradually to
ensure the most comfortable conditions.
During air conditioning, the temperature increases by 1°C after
60 minutes and a further degree after 2 hours.
In dehumidifying mode, the dehumidifying capacity is partially
reduced evry hour, two times.
In heating mode, the temperature drops by 1°C every hour, three
times.
In SMART mode, the temperature varies according to the opera-
ting mode chosen automatically by the appliance from air con-
ditioning, fan and heating.
SWING FUNCTION (FIG. 23)
The SWING function moves the grille flaps to distribute the air uni-
formly in the room.
When the SWING button is pressed and the flaps have begun
moving alternately forwards and backwards, pressing the button
again will lock the flaps in their current position.
Pressing the button again will restart the flaps moving forwards
and backwards.
When the appliance is turned off, the flaps will close irrespective
of their position.
22
23

13
PROGRAMMING THE TIMER
The timer can be programmed to start up and shut down to fit in
with your needs.
Programming start up
•Press the ON button. The start-up time and message "ON
TIMER" flash on the remote control display (fig. 24).
•Press the or buttons to set the time you want the
appliance to start up.
•When that time is reached, press the SET button to confirm
(fig. 25). The message "ON TIMER" appears on the remote con-
trol display and the symbol is displayed on the appliance
to indicate that the timer is active.
Programming shutdown
•Press the OFF button. The shutdown time and the messa-
ge "OFF TIMER" flash on the remote control display (fig. 26).
•Press the or buttons to set the time you want the
appliance to shut down.
•When that time is reached, press the SET button to confirm
(fig. 27). The message "OFF TIMER" appears on the remote
control display and the symbol is displayed on the applian-
ce to indicate that the timer is active.
24
25
26
27
SELF-DIAGNOSIS
The appliance has a self diagnosis system to identify a number of malfunctions.
Error messages are displayed on the appliance display.
IF ... IS DISPLAYED, WHAT
SHOULD I DO?
LOW TEMPERATURE
(frost prevention)
PROBE FAILURE
(sensor damaged)
The appliance is fitted with
a frost protection device to
avoid excessive formation
of ice.
The appliance starts up
again automatically when
the defrosting process is
completed.
If this is displayed, contact
your local authorised servi-
ce centre.
IF ... IS DISPLAYED, WHAT
SHOULD I DO?
FULL TANK
(tanica piena)
FAILURE 1
(pump failure)
Empty the tank on the back of
the appliance and replace it
correctly.
The continuous drain hose is
not connected correctly or is
obstructed and the air condi-
tioner is draining into the tank.
NB: in dehumidifying mode, it is
normal for this message to
appear when the continuous
drain house is not connected.
If this is displayed, contact
your local authorised servi-
ce centre.
To deactivate the timer, press the
relative timer button ( ON or
OFF) twice.

14
TIPS FOR CORRECT USE
To get the best from your air conditioner, follow these recom-
mendations:
•close the windows and doors in the room to be air conditio-
ned (fig. 28). When installing the air conditioner semi-perma-
nently, you should leave a door slightly open (as little as 1 cm)
to guarantee correct ventilation.
•Protect the room from direct exposure to the sun by partially
closing curtains and/or blinds to make the appliance much
more economical to run (fig. 29);
•never rest objects of any kind on the air conditioner;
•do not obstruct the air intake and outlet (fig. 30). Leave the
grilles free;
•In air conditioning mode, make sure there are no heat sour-
ces in the room.
•never use the appliance in very damp rooms (laundries for
example).
•never use the appliance outdoors.
•make sure the air conditioner is standing on a level surface. if
necessary, place the castor locks under the front wheels.
28
29
30
31
close
doors and
windows
close cur-
tains
do not cover
the appliance
AIR PURIFYING FILTERS
The T130ARC model is fitted with a dust filter which retains impu-
rities in the air drawn in from the room and a 3M® electrostatic fil-
ter (fig. 31)
SILVER ION FILTER
The silver ion filter not just retains dust particles, but also has an
efficient antibacterial action. It also greatly reduces concentra-
tions of irritants such as pollen and spores.
The filter is treated with small particles of silver (on the scale of mil-
lionths of a millimetre) which are able to block the multiplication
of and destroy any bacteria or spores they come into contact
with.
3M® ELECTROSTATIC FILTER
The 3M® electrostatic filter retains the finest dust particles, thus
enhancing the filtering capacity of the appliance.
To use the 3M® electrostatic filter:
A) Remove the intake grille
B) Remove the filter from the packaging
C) Use the two plastic edges of the 3M filter to hook it to the spe-
cial attachments on the dust filter already inside the intake
grille.
D) Replace the grille on the appliance.
3M® filter
Silver ion
filter
Intake grille

15
CLEANING
Before cleaning or maintenance, turn the appliance off by pres-
sing the button on the control panel or remote control, wait
for a few seconds then unplug from the mains socket.
CLEANING THE CABINET
You should clean the appliance with a slightly damp cloth then
dry with a dry cloth.
Never wash the air conditioner with water. It could be dangerous.
Never use petrol, alcohol or solvents to clean the appliance.
Never spray insecticide liquids or similar.
CLEANING THE AIR FILTERS
To keep your air conditioner working efficiently, you should:
1. Clean the dust/silver ion filter every week of operation
2. Replace the 3M air purifying filter at the end of each season or
when exhausted (see the instructions near the filter housing on
the appliance). The filters are housed in the intake grille
To clean the filters, proceed as follows
1. Remove the intake grille by rotating outwards (fig. 32).
2. Remove the 3M air purifying filter (white) (if present).
3. Remove the dust/silver ion filter by detaching it from the grille.
-Use a vacuum cleaner to remove dust accumulations from
the dust/silver ion filter. If it is very dirty, immerse in warm water
and rinse a number of times.
The water should never be hotter than 40°C.
-After washing, leave the filter to dry.
-To replace, put the filters back in the intake grille then attach
the intake grille to the appliance.
Never try and wash or clean the 3M filter as this could
reduce its filtering capacity. When the filter is exhausted,
replace it.
START OF SEASON CHECKS
Make sure the power cable and plug are undamaged and the
earth system is efficient. Follow the installation instructions preci-
sely.
END OF SEASON OPERATIONS
Place the appliance in STAND-BY.
To empty the internal circuit completely of water, press the MODE
and FAN buttons simultaneously for a number of seconds without
removing the tank. The water in the internal circuit will drain into
the tank or through the continuous drain hose if connected. Make
sure the other end of the hose is near a suitable drain. When com-
pletely drained, disconnect the continuous drain hose. Clean
and/or wash the filters and dry thoroughly before putting them
back.
32
✔
✔
✔

16
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The air conditioner
does not come on •there is no current
•it is not plugged into the
mains
•the internal safety device has
tripped
•wait
• plug into the mains
•call the Service Centre
The air conditioner
works for a short time
only
•there are bends or kinks in the
air exhaust hose
•something is preventing the
air from being discharged
•position the air exhaust hose
correctly, keeping it as short
and free of curves as possible
to avoid bottlenecks.ando
qualunque strozzatura
•check and remove any
obstacles obstructing air dis-
charge
The air conditioner
works, but does not
cool the room
•windows, doors and/or cur-
tains open
•there are heat sources in the
room (oven, hairdryer, etc)
• the air exhaust hose is deta-
ched from the appliance
•dust or silver ion and 3M® filter
clogged
• the technical specification of
the appliance is not adequa-
te for the room in which it is
located.
•close doors, windows and
curtains, bearing in mind the
"tips for correct use" given
above
•eliminate the heat sources
•fit the air exhaust hose in the
housing at the back of the
appliance (fig. 1).
•clean the filters as described
above.
During operation,
there is an unplea-
sant smell in the
room
•dust or silver ion and 3M® filter
clogged.
•clean the filters as described
above
The air conditioner
does not operate for
about three minutes
after restarting it
•the internal compressor safety
device prevents the applian-
ce from being restarted until
three minutes have elapsed
since it was last turned off.
•wait. This delay is part of nor-
mal operation.
The following message
appears on the display:
LLTT/ PPFF/ FFTT/ FFII
•The appliance has a self dia-
gnosis system to identify a
number of malfunctions.
•See the SELF-DIAGNOSIS
chapter.

17
TECHNICAL SPECIFICATIONS
Mains voltage see rating plate
Maximum absorbed power
in air conditioning “
Maximum absorbed power
in heating “
Refrigerant “
Cooling capacity “
Heating power “
LIMIT CONDITIONS
Temperature of room in air conditioning 21÷35°C
Temperature of room in heating 10÷27°C
SIZE OF APPLIANCE
•width 495 mm
•height 950 mm
•depth 410 mm
•width 34 kg
GUARANTEE
The terms of the guarantee and technical assistance are given in
the documentation accompanying your appliance.
495mm
950mm
410mm
