DeLonghi Split Air Conditioner User manual

Split Air Conditioner
Thank you for choosing DE'LONGHI air conditioner. For correct opertion,
please read this owner’s manual carefully before operating the unit
and keep it carefully for consultation.

CONTENTS
This symbol stands for the items
should be forbidden.
This symbol stands for the items
should be followed
■..................................1
■
■ ................................10
■ ....................................15
■ ..........................20
■ ...................................21
■ ..................................23
■..................24
■...............25
■
■ ................................18
■ ....................................12
Operation and maintenance
Notices for operation
Notices for use ......................................3
Names and functions of each part ......................... 4
■Operation of wireless remote control ........................5
Clean and care
Troubleshooting
Installation service
Notices for installation
Installation dimension diagram
Install indoor unit
Install outdoor unit
Check after installation and test operation
Emergency operation
Installation and Maintenance of Healthy Filter
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
Thank you for choosing De' Longhi air conditioner, please read this owner's manual
carefully before operating the unit and keep it carefully for consulation.
This appliance is not intended for use by persons (including children) with reduced
physiced, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person reponsible for thei safety.
Children should be supervised to ensure that they do not play with the appliance.
is necessary.

★
★
★

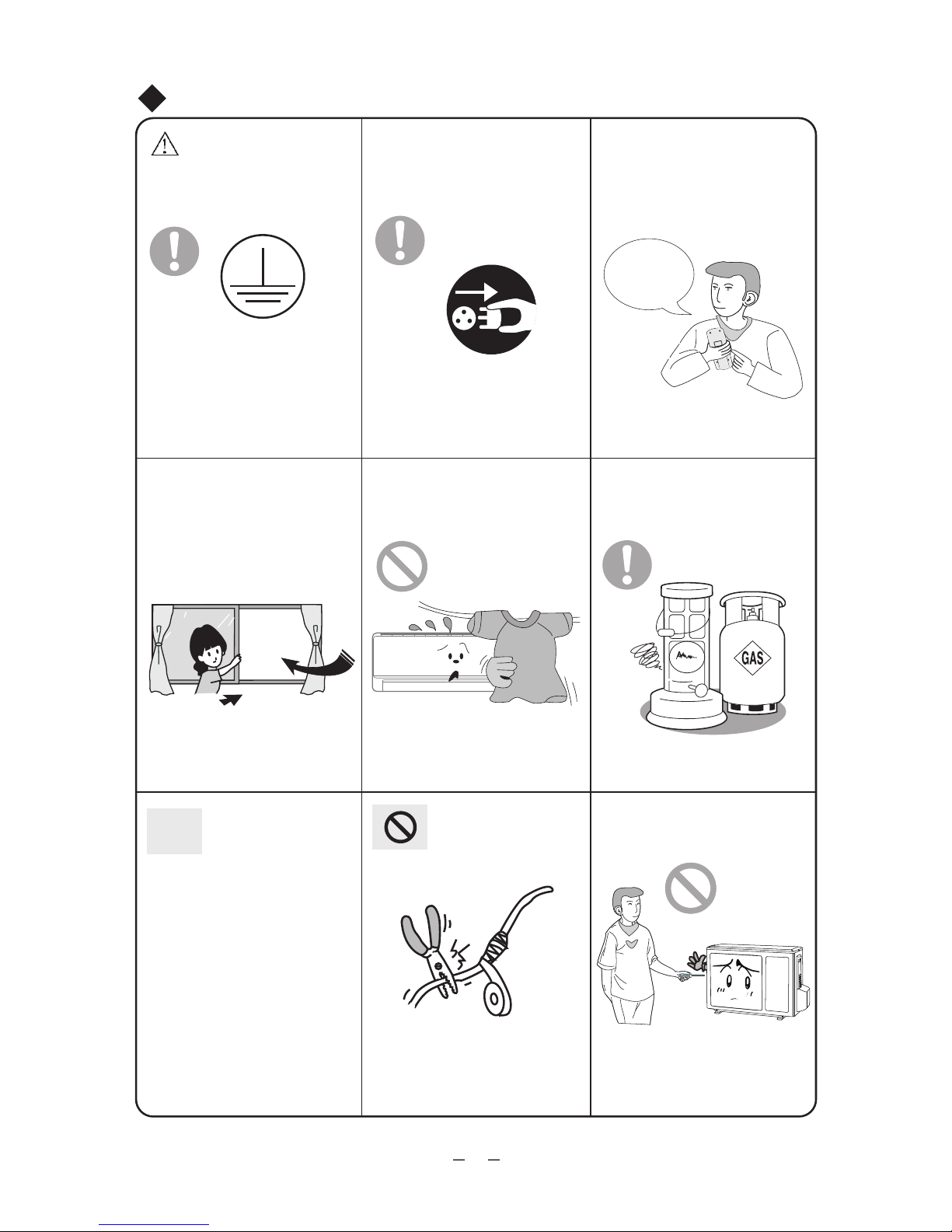

Operation and maintenance-notices for operation
1
★ ★ Be sure to pull out the power
★
★
★
★
Earth: The ground
be connected!
If not, please ask the qualified person-
nel to install. Furthermore, don't conn-
ect each wire to the gas pipe, water
pipe, drainage pipe or any other impr-
oper places.
plug when not using the air co-
nditioner for a long time.
Otherwise, the accumulated dust
may cause fire or electric shock.
Select the most appropriate tem-
perature.
Keep room cool-
er than outside
about 5 degree.
It can preclude the electricity wasted.
Don't leave windows and
doors open for a long time
while operating the air conditioner.
It can decrease the air conditioning
capacity.
Don't block the air intake or outlet
vents of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
Keep combustible spray away
from the units more than 1m.
It can cause afire or explosion.
Don't attempt to repair
the air conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.
Never splice the
power cord or use
an extended cord.
It can cause overheating or fire.
The power supply
must adopt the
special circuit that with air switch
protection and assure it has enough
capacity.
The unit will be turned on or
off
according to your
requirement
automatically, please do not
turn on or turn off the unit
frequently, other wise disadvantage
effect may be caused to the unit.

２
★
★
★
★
★
★
★
★

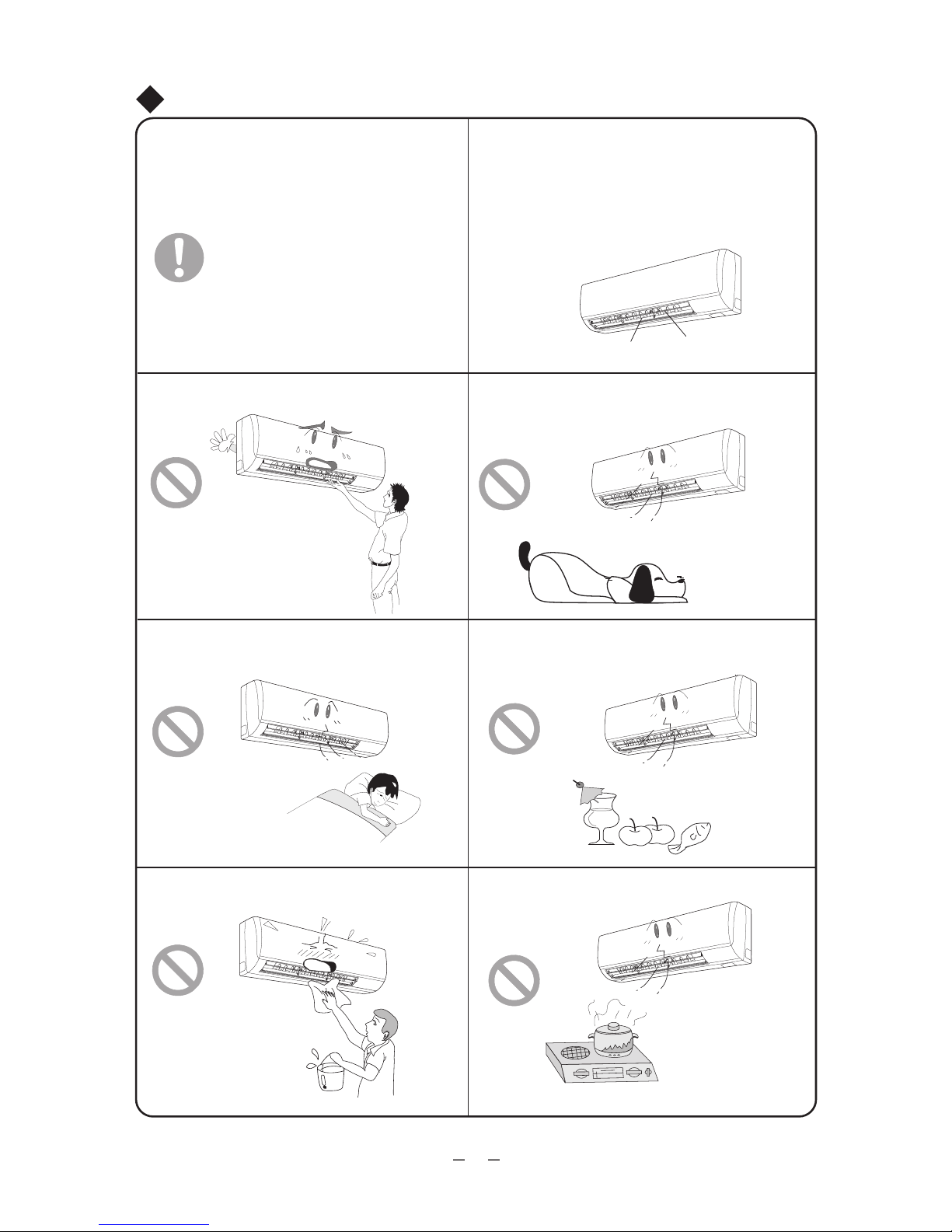

Notices for operation
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
The airflow direction can be adjusted appro-
priately. At operating, adjust the vertical airflow
direction by adjusting the louvers of upward/do-
wnward direction. And then, hold two ends of
left and right louver to adjust the horizontal air-
flow.
Louver of left/right directionLouver of upward/
downward direction.
Don't insert your hands or stick into the air
intake or outlet vents.
Otherwise it will cause accident.
Don't blow the wind to animals and plants
directly. It can cause a bad influence to them.
Don't apply the cold wind to the body for a
long time.
It can cause the health problems.
Don't use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
Splashing water on the air conditioner can
cause an electric shock and malfunction. Don't place a space heater near the air
conditioner.
Or CO toxicosis may occur for imcomplete
burning.

.
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within
3mins):
1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.
Gentle Breeze
In the following situation, the indoor unit may blow gentle breeze, and
the guide louver rotate to a certain position:
1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition
2. In “Heat” mode, the temperature arrive at the setting value and the compressor stop
running about 1min.
*
*
*
*
*
*
Notices for use
Working principle and special functions for cooling
Principle:
Anti-freezing function:
Working principle and special functions for heating
Principle:
Defrosting:
Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that
indoorambient temperature decreased, its cooling capacity will increase or decrease by
outdoor ambient temperature.
If the unit is running in COOL mode and in low termperature, there will be frost formed on
the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the
indoor unit microcomputer will stop compressor running and protect the unit.
℃
Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase
room temperature. This is the heat pump heating principle, its heating capacity will be
reduced due to outdoor temperature decrease.
If outdoor temperature becomes very low, please operate with other heating equipments.
When outdoor temperature is low but high humidity, after a long while running, frost will
form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting
function will act, the heat running will stop for 8-10mins.
During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.
This is due to the defrosting, it isn't malfunction.
After defrosting finished,the heating will recover automatically.
3

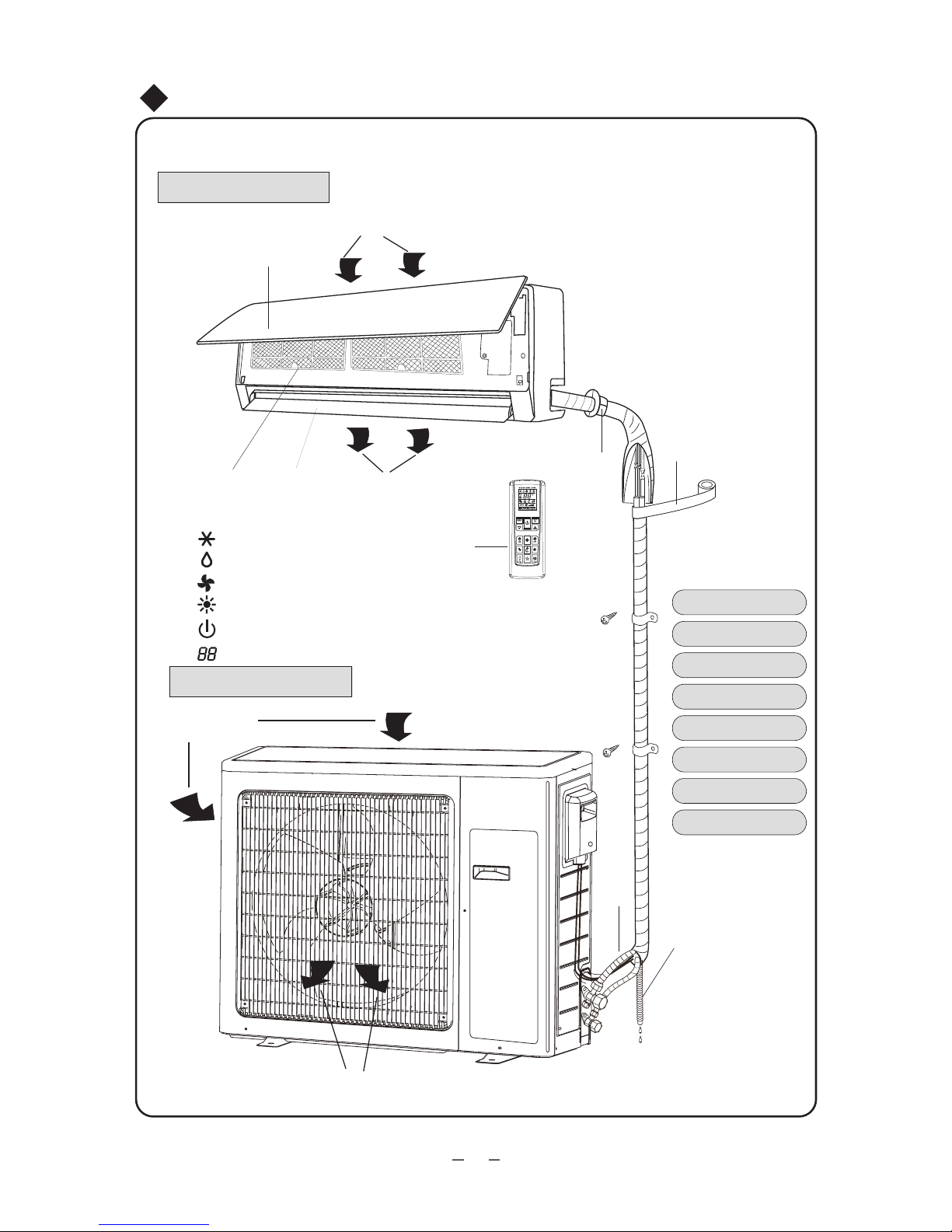

Names and functions of each part
⑸
⑻
⑶
⑴
⑵
⑹
⑸
⑵
⑻
⑷
⑺
⑶
⑴
Indoor unit Air in
Air out
Outdoor unit
Wireless
remote control Remote control
Front panel
Filter
Guide louver
Wall pipe
Bind tape
Connection wire
Drainage pipe
⑷
⑹
⑺
：Cool
：Dry
：Fan
：Heat
：Set temp.
：Run
The pattern in displayer：
Air in
Air out
4

遥控器各按键的名称及作用
５
Names and functions of wireless remote control
●Press this button, the unit will be turned
on, press it once more, the unit will
ON/OFF button
Remote control
Signal transmitter
●Press this button, Sleep On and Sleep
Off can be selected. After powered on,
SLEEP button
Sleep Off is defaulted. After the unit is
turned off, the Sleep function is canceled.
After Sleep function set up, the signal of
Sleep will display. In this mode, the time
of timer can be adjusted. Under Fan and 6
SENSE modes, this function is not available.
LIGHT button
Operation of wireless remote control
（ｏＦ）;Under
82
（ｏＦ）．
77
●Press this button at unit On or Off status,
Light On and Light Off can be set up. After
powered on, Light On is defaulted.
●Press this button, AUTO, Cool,Dry,Fan,
Heat mode can be selected circularly.
MODE button
MODE
AUTO MODE is default while power on.
Under AUTO MODE,the temperature will
not be displayed; Under Heat mode,
the initial value is 28℃
other modes,the initial value is 25℃
th
otherwise is Timer value.
displayed on the screen, that denotes
and signal will be displayed. If the
the current time value is Clock value,
per 0.5second; if you press again when
the time flashing,the flash will stop and it
denotes the setting succeeded. After
powered on, 12:00 is defaulted to display
it denotes the setting succeeded. After
powered on, 12:00 is defaulted to display
●Press to set present time and then
flashes.Press or to adjust the time
CLOCK button
numeral segment within 5 seconds,if you
press this button for more than 2seconds,
the time will increase or decrease 10 mins
Low fan
Middle fan High fan
Auto fan
Don't drop or throw the remote control; Don't let any liquid in the remote control and
Note: Be sure that there are no obstructions between receiver and remote controoler;
be turned off. Sleep function will be
put the remote control directly under the sunlight or any place where is very hot.
canceled, while unit off.
●Press this button, Auto, Low, Middle, High
speed can be circularly selected. After
FAN button
powered on,Auto fan speed is default.
AUTO
COOL
DRY
FAN
HEAT
(only for cooling and heating unit)

●Press this button, can select:setting
temperature ( ), indoor ambient tempe-
TEMP button
rature( ),outdoor ambient temperature
( ).These temperature will show on the
indoor unit display. The temperature on
remote control is always setting temperature.
６
Remote control
buttons of this control which are not available to this unit will not be described below.
This wireless remote control is universal, and it could be used for many units, some
●Under Cool or Heat mode, press this
button can turn on or turn off the TURBO
TURBO button
function.After the TURBO function turned
on, the signal of TURBO will display.
The signal will be automatically cancelled
if changing the mode or fan speed.
●Press this button once, to turn on the I
FEEL function, then the figure of I FEEL
I FEEL button
icon will appear.
After this function started, the remote
control will send temperature to the main
unit in every 10 minutes.When repress this
button, this function will be turned off.
●Presetting temperature can be increased.
Press this button, the temperature can be
+ button
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
（ｏＦ）signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the AUTO mode.Temperature
of Celsius degree setting:16-30 ; for
Names and functions of wireless remote control
Operation of wireless remote control
Note: I FEEL function refers to that
the air conditioner works
according to the ambient
temperature of the remote
controller.
Fahrenheit degree setting: 61-86.
●Presetting temperature can be decreased.
Press this button, the temperature can be
- button
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
（ｏＦ）signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the AUTO mode.
Outdoor ambient temperature is an
optional feature,which is unavaible for
this model.The temperature display
for will keep same as previous
temperature.

Timer On setting: "ON" flashes and
will conceal,numeral segment become
timer-on setting status.Pressing
or could adjust the numeral segment
of time,increase or decrease 1minute per
time within 5 seconds.If you hold pressing
or , the numeral will change
quickly after 2second.The way of the
change is : in the first 2.5 seconds,the
change step is 1 minute.After 2.5seconds,
the change step is 10 minutes.Press this
button within 5 seconds flashing,the
timer setting succeeds. Repress this
button, the timer-on will be canceled.
Before setting the Timer please adjust the
Clock to the current actual time.
７
●Press this button to set swing angle,
which circularly changes as below:
OFF
If guide louver is stopped when it is
swinging up and down,it will remian
its present position.
indicates guide
louver swings back and forth in all the five
places,as shown in the figure .
SWING UP AND DOWN BUTTON
TIMER ON BUTTON
TIMER OFF BUTTON
●One press this key to enter into TIMER
OFF setup, in which case the TIMER OFF
icon will blink.The method of setting is
the same as for TIMER ON.
●
Remote control
buttons of this control which are not available to this unit will not be described below.
This wireless remote control is universal, and it could be used for many units, some
Names and functions of wireless remote control
Operation of wireless remote control

start to blink and enter into clock adjustment status.
Introduction for special function
1. After powered on, press ON/OFF button, the unit will start to run.(Note: When
it is powered on, the guide louver of main unit will close automatically.)
2. Press MODE button, select desired running mode, or press COOL or HEAT
mode to enter into the corresponding operation directly.
3. Pressing+or-button,tosetthedesiredtemperature.
4. Press key to set the fan speed. AUTO, LOW,MEDIUM and HIGH
are available at your selection.
5. Pressing button, to select the swing.
1. Press to set the sleep mode.
2. Press , + and - key to set your expected time for auto start or
3. Press key to turn on or off the air conditioner display.
4. Press key. At one press of this key, the icon will
８
★
When AUTO mode is selected, the setting temperature will not be displayed on the
About AUTO function
LCD, the unit automatically select the suitable running method and to make ambient
comfortable according to the room temp.
Operation of wireless remote control
auto stop.
Guide for operation- General operation
Guide for operation- Optional operation
If start this function, the unit will run at super-high fan speed to cool or heat quickly
so that the ambient temp approachs the preset temp as soon as possible.
★About TURBO Function

４.
２.
３．
★
●
●
●
●
●
Slightly to press the place with , along the arrowhead direction to push the back cover of wireless
remote control. (As show in figure)
Take out the old batteries. (As show in figure)
Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
(As show in figure)
Attach the back cover of wireless remote control. (As show in figure)
When changing the batteries, do not use the old or different batteries,
If the wireless remote control will not be used for a long time, please
otherwise, it can cause the malfunction of the wireless remote control.
take them out, and don't let the leakage liquid damage the wireless
remote control.
The operation should be in its receiving range.
It should be placed at where is 1m away from the TV set or stereo sound sets.
If the wireless remote control can not operate normally, please take them out,
after 30s later and reinsert, if they cannot normally run, please change them.
Sketch map for
changing batteries
NOTE:
1. Press swing button continuously more than 2seconds,the main unit will swing back and
forth from up to down, and then loosen the button, the unit will stop swinging and present
position of guide louver will be kept immediately.
2. Under swing mode, when the status is switched from off to , if press this button again
2seconds later, status will switch to off status directly; if press this button again within
2seconds,the change of swing status will also depend on the circulation sequence stated above.
About switch between Fahrenheit and Centigrade
Under status of unit off, press mode and buttons simultaneously to switch℃ ａｎｄ ．
Press and buttons simultaneously to lock or unlock the keyboard. If the remote
controller is locked, press any button, the remote control can't work, you must unlock the
keyboard.
９
★
★
★About swing
About lock
Operation of wireless remote control
Changing batteries and notices
１．

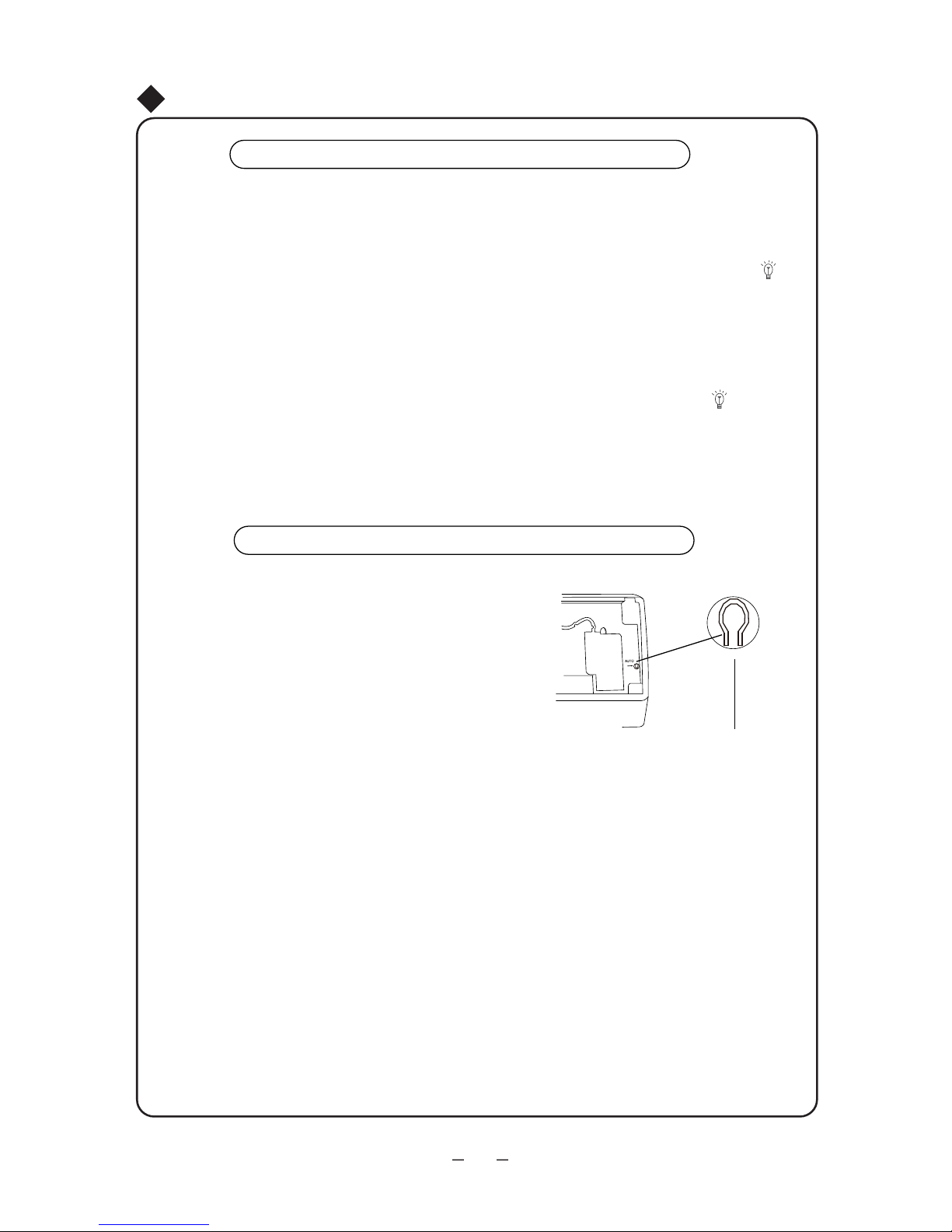

If the wireless remote control is lost
or broken, please use the manual switch
Auto mode, but the temperature and fan
button. At this time, the unit will run at the
To open the panel, the manual switch
is on the displayer box.
It's a special selective buttonfor the users ,who are not accustomed to the
light at sleeping.
Get the displayer indicator light on: When setting the light function,the mark will
pressing this button. In which case,the diss-
player indicator light will be on if the AC receives
Get the displayer indicator light off: If cancel the light function,the mark will disap-
per on the remote controller screen by pressing this
button. In which case, the displayer indicator light will
be off if the AC receives this signal.
Displayer indicator light control of indoor unit
●
●
display on the remote controller screen by
this signal.
Emergency operation (only on some models)
Emergency operation
speed cannot be changed. The operation
was shown as below:
Turn on the unit: At unit turned off, press
the button,the unit will run at Auto mode
immediately.The microcomputer will accord
●
to the indoor temperature to select (Cooling,
Heating, Fan) and obtain the comfortable effect.
Turn off the unit: At unit turned on, press the
button, the unit will stop working.
●
Manual switch
１0

１1
●
●
●
●
Emergency Operation (only on some models)
Emergency Operation
When the wireless remote control is lost or damaged, please use the manual switch, at
this time, it is running in Auto Run mode that will not change the temperature setting
value and fan speed.
The manual switch can be operated as follow:
At operation: When the unit stopped running,
press ON/OFF button, unit will enter into AUTO
RUN mode. The microcomputer will accord to
the room temperature to select the (COOL,
HEAT, FAN) mode automatically, to obtain the
comfortable effect.
At stopping:When the unit is running, press the
ON/OFF button of the manual switch, the unit
will stop work.
The code switch can be operated as follow:
At operation: When the unit is stopped running,
adjust the code switch to AUTO, the unit will
enter into AUTO RUN mode. The microcomputer
will accord to the room temperature to select the
(COOL, HEAT, FAN) mode automatically, to
obtain the comfortable effect.
At stopping: When the unit is running, adjusts
the code switch to STOP position, the unit will
stop work.
Code Switch
Manual Switch
AUTO/STOP

℃
●●
●●
●
℃
②Clean the air filter
③
①
(a)
(b)
Clean and care
Caution
Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric
shock.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an
electric shock.
Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units with a
dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Clean the front panel
Clean the air filter (Recommended once every three months)
NOTE: If dust is much more around the air conditioner, the air filters should be cleaned many times.
After taking off the filter, don't touch the fin of indoor unit, in order to avoid hurt your fingers.
Take down the air filter
At the slot of surface panel to open an angle, pull the air filter
downward and take it out, please see the figures aand b.
To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with warm water
the water with the neutral detergent should below 45
degree) ,and dry it in the shade.
NOTE: Never use water above 45 to clean, or it can
cause deformation or discoloration. Never parch it by
fire, or can cause a fire or deformation.
Insert the air filter
Reinsert the filters along the direction of arrowhead, and
then to cover the cover and clasp it.
When cleaning the front panel, please dip the cloth into the water temperature of 45 below, then to dry
the cloth and wipe the dirty part.
Note: Please do not to immerse the front panel in water, due to there are microcomputer components and
circuit diagrams on the front panel.
１２

① Be sure that nothing obstructs the air outlet and intake vents.
②
③ Check that whether the batteries of air conditioner are
changed or not.
④ Check that whether the installation stand of the outdoor
unit is damaged or not. If damaged, please contact the dealer.
①
②
③
④
⑤
Clean and care
Check before use
Check that whether ground wire is properly connected or not.
Maintain after use
Turn main power off.
Clean the filter and indoor and outdoor units' bodies.
Clear dust and obstructions from the outdoor unit.
Repaint the rubiginous place on the outdoor unit to prevent it from spreading.
Adopt the special shield to cover the outdoor unit, avoid the rain water, dust enter into
the unit and get rust.
１3

Once the air conditioner is stopped, it will
not operate in approximately 3minutes to
protect itself.
●
●
●
●
●
●
Troubleshooting
CAUTION
Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or
fire. Please check the following items before asking for repair, it can save your time and
money.
Phenomenon Troubleshooting
Not operate immediately when the air
conditioner is restarted.
There's unusual smell blowing from the outlet
after operation is started. The unit has no peculiar smell by itself. If has,
that is due to the smell accumulated in the
ambient.
Solution method: Cleaning the filter.
If problem still has, so need to clean air
conditioner. (Please contact with the authorized
maintenance center.)
Sound of water flow can be heard during
the operation. The air conditioner is started, when it is
running the compressor started or stopped
running, or the unit is stopped, sometimes
there is swoosh or gurgle, the sound is due
to refrigerant flowing they are not malfuncti-
ons.
In COOL mode, sometimes the mist emitted
from the air outlet vent. When the indoor temperature and humidity
are very high, this phenomenon would
happen. This is caused by the room air is
swiftly cooled down. After running for a while,
indoor temperature and humidity will fall
down, the mist will die away.
Creaking noise can be heard when start or
stop the unit. This is caused by the deformation of plastic
due to the changes of temperature.
Waiting
１4

●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
The unit can not run.Has the power been shut down?
Is power plug loosed?
Is the circuit protection device tripped off or not?
Is voltage higher or lower?
(Tested by professionals)
Is the TIMER correctly used?
Cooling(Heating) efficiency is not good. Is Temp. setting suitable?
Were inlet and outlet vents obstructed?
Is filter dirty?
Are the windows and doors clothed?
Did Fan speed set at low speed?
Is there any heat sources in the room?
Wireless remote control is not available.The unit is interfered by abnormal or frequent
functions switchover occasionally the controller
cannot operate. At this time, you need to pull out
of the plug, and reinsert it.
Is it in its receiving range? Or obstructed?
To check the voltage in wireless remote control inside
is charged, otherwise to replace the batteries.
Whether the wireless remote control is damaged.
If water leakage in the room. The air humidity is on the high side.
Condensing water over flowed.
The connection position of indoor unit drainage
pipe is loosed.
If water leakage in outdoor unit.When the unit is running in COOL mode, the pipe
and connection of pipe would be condensed due
to the water cooled down.
When the unit is running in Auto Defrosting mode
the ice thawed and flowed out.
When the unit is running in HEAT mode, the water
adhered on heat exchanger dripped off.
Noise from indoor unit emitted. The sound of fan or compressor relay is switching
on or off.
When the defrosting is started or stop running,
it will sound. That is due to the refrigerant flowed
to the reverse direction.
Breaking off
１5

●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
Indoor unit cannot deliver air.
Moisture on air outlet vent.If unit is running under the high humidity for
a long time, the moisture will be condensed
on the air outlet grill and drip off.
Immediately stop all operations and plug out, contact
the dealer in following situations.
There is harsh sound during operation.
The terrible odors emitted during operation.
Water is leaking in the room.
Air switch or protection switch often breaks.
Carelessy splash water or something into unit.
There is an abnormal heat in power supply cord
and power plug.
Stop running and pull out of the plug.
In HEAT mode, when the temperature of indoor
heat exchanger is very low, that will stop deliver
air in order to prevent cool air. (Within 2min)
In HEAT mode, when the outdoor temperature
is low or high humidity, there are much frost be
formed on the outdoor heat exchanger, that the
unit will automatically defrost, indoor unit stop
blowing air for 3-12min.
During the defrosting, there is water flowing out
or vapor be produced.
In dehumidifying mode, sometimes indoor fan will
stop, in order to avoid condensing water be vapo-
rized again, restrain temperature rising.
１6

1.
2.Select a position where the condensing water can be easily drained out, and the place
is easily connected for outdoor unit.
4.Can select the place where is strong enough to withstand the full weight and vibration of
the unit. And will not increase the noise.
5.
6.
7.
8.Make sure that the indoor unit installation should accord with installation dimension
diagram requirements.
3.Select a location where the children can not reach.
●
●
1.The unit installation work must be done by qualified personnel according to the local
rules and this manual.
2.Before installating, please contact with local authorized maintenance center, if unit is
not installed by the authorized maintenance center, the malfunction may not solved,
due to discommodious contacts.
3.W
4 .the appliance must be positioned so that the plug is accessible
5 .After pull out the power plug then make the appliance operation again，to avoid the
icing of outdoor unit damage axial flow fan，should electrify the appliance but not
operation for 4 hours for warm-up purpose (only on some models).
hen removing the unit to the other place, please firstly contact with the authorized
Maintenance Center in the local area.
●
●
●
●
Notices for installation
Important Notices
Basic Requirements For Installation Position
Install in the following place may cause malfunction. If it is unavoidable contact with
service center please:
Place where strong heat sources, vapors, flammable gas or volatile object are emitted.
Place where high-frequency waves are generated by radio equipment, welders and
medical equipment.
Place where a lot of salinities such as coast exists.
Place where the oil (machine oil) is contained in the air.
Place where a sulfured gas such as the hot spring zones is generated.
Other place with special circumstance.
Indoor Unit Installation Position Selection
The air inlet and outlet vent should be far from the obstruction, make sure that the air
can be blown through the whole room.
Be sure to leave enough space to allow access for routine maintenance. The height of the
installed location should be 250cm or more from the floor.
Select a place about 1m or more away from TVset or any other electric appliances.
Select a place where the filter can be easily taken out.
.Do not use the unit in the immediate surroundings of a laundry a bath a shower or a
swimming pool.
9
17
This appliance has been made for air-conditioning domestic
environments and must not be used for any other purpose,
such as for drying clothes, cooling food, etc.

Note:
Make sure that the Live wire or Zero line as well as the earth wire in the family power
socket can not be wrong connected, there should be reliable and no short circuit in the
diagram.
wrong connection may cause fire.
●
●
4. The min. distance from the unit and combustive surface is 1.5m.
1. The power supply should be used the rated voltage and AC exclusive circuit,
the power cable diameter should be satisfied.
2. Don't drag the power cable emphatically.
3.
① ② ③
④
1. Air conditioner is type Ielectric appliance, thus please do conduct reliable earthing
measure.
2. The yellow-green two-color wire in air conditioner is earthing wire and cannot be used
for other propose. It cannot be cut off and be fix it by screw, otherwise it would cause
electric shock.
3. The earth resistance should accord to the National Criterion.
4. The user power must offer the reliable earthing terminal. Please don't connect the
earthing wire with the following place:
Tap water pipe. Gas pipe. Contamination pipe.
Other places that professional personnel consider them unreliable.
5. The appliance shall be installed in accordance with national wiring regulations.
An all-pole disconnection switch having a contact separation of at least 3mm in all poles
should be connected in fixed wiring.
It should be reliably earthed, and it should be connected to the special earth device,
the installation work should be operated by the professional.
The air switch must have the functions of magnetic tripping and heat tripping, in order
to protect the short circuit and overloading.
6.
5. The model and rating values for fuses according the silk print on fuse cover or related
PCB board.
Notices for installation
Safety Requirements For Electric Appliances
Earthing requirements
1.Select a location from which noise and outflow air emitted by unit will not inconvenience
neighbors, animals, plants.
2.Select a location where there should be sufficient ventilation.
3.Select a location where there should be no obstructions cover the inlet and outlet vent.
4.The location should be able to withstand the full weight and vibration of the outdoor unit
and permit safe installation.
5.Select a dry place, but do not expose under the direct sunlight or strong wind.
6.
7.
8.
9.
Outdoor Unit Installation Position Selection
Make sure that the outdoor unit installation dimension should accord with installation
dimension diagram, convenient for maintenance, repair.
The height difference of connecting the tubing within 5m, the length of connecting the
tubing within 10m.
Select a place where it is out of reach for the children.
Select a place where will not block the passage and do not influence the city appearance.
１8
