DeLonghi PACA110-A120E User manual

PACA110-A120E
PACA110-A120E
Instructions for use
Keep these instructions
Mode d'emploi
Conservez cette notice
Instrucciones para el uso
Repase y guarde estas instrucciones
Lea cuidadosamente este instructivo antes de usar su aparato
Istruzioni per l’uso
Leggere e conservare queste istruzioni
ELECTRICAL SPECIFICATIONS 115V ~ 60Hz
DONNEES ELECTRIQUES 115V~60Hz
CARACTERISTICAS ELECTRICAS 115V ~ 60Hz
CARATTERISTICHE ELETTRICHE 115V~60Hz
Register this product on-line and receive a free trial issue of Cook's Illustrated. Visit
www.delonghiregistration.com. Visit www.delonghi.com for a list of service centers near you.
(U.S. Only)
Enregistrez ce produit en ligne et recevez un numéro gratuit de Cook's Illustrated. Visitez
www.delonghiregistration.com.
Visitez www.delonghi.com pour y voir une liste des centres de réparation proches de chez vous.
(É.-U. uniquement)
Registre este producto en línea y reciba un ejemplar gratis de Cook's Illustrated.
Visite www.delonghiregistration.com.
Visite www.delonghi.com para ver la lista de centros de servicios cercanos a usted. (Solamente
en los Estados Unidos)
Registra questo prodotto "on-line" per ricevere una copia omaggio della rivista Cook's Illustrated.
Visita www.delonghiregistration.com.
Visita www.delonghi.com per una lista dei centri di servizio a te più vicini. (Solo negli Stati Uniti)
PORTABLE AIR-CONDITIONER
CLIMATISEUR
CLIMATIZADOR
CONDIZIONATORE

ACCESSORIES • ACCESORIOS • ACCESSOIRES • ACCESSORI
2
10
1
4
6
5
3
7
9
8

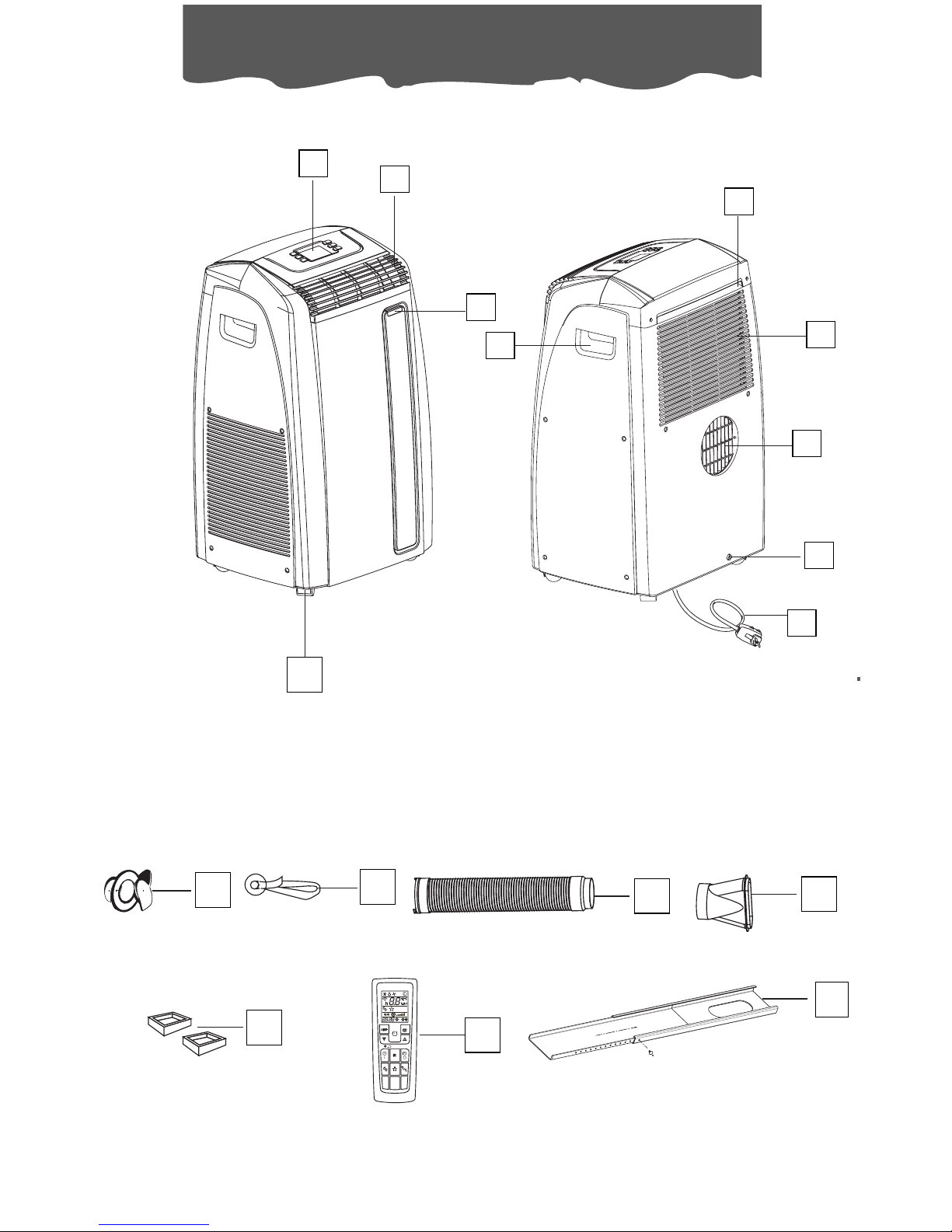

DESCRIPTION - DESCRIPCIÓN - DESCRIZIONE
11 12 13 14
15 16
17

4
IMPORTANT SAFEGUARDS
DESCRIPTION
1air outlet grille
2control panel
3remote control receiver
4castors
5 handles
6filter
7 evaporator air intake grille
8air exhaust hose housing
9drainage hose
10 power cable
11 wall flange
12 sucker
13 air exhaust hose
14 window outlet
15 castor locks
16 remote control unit
17 window bracket with locking pins
•Use this appliance only as described in this instruction manual.
As with any electrical appliance, the instructions aim to cover as many eventualities as possible.
Caution and common sense should be used when operating and installing this air conditioner.
•This appliance has been manufactured to cool and dehumidify domestic environments and
should not be used for other purposes.
•It is dangerous to alter or modify the unit's characteristics in any way.
•The appliance must be installed in line with the relevant national legislation.
•Should repairs be necessary, contact the nearest authorized Repair Service Center. Unautho-
rized servicing can be dangerous.
•The appliance is not intended for use by persons (including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
•In the case that the power cord becomes damaged, this must be substituted only by specialized
personnel authorized by the manufacturer, to protect against fire.
•Always ensure the appliance is grounded. If you have any doubts check with a qualified elec-
trician.
•We strongly discourage the use of an extension cord due to potential safety hazards for tem-
porary situations, use only CSA certified and UL listed 3-wire grounded extension cord, attach-
ment plug and connector, rated 15A, 125V
•Before cleaning or maintenance operations, always unplug the unit from the outlet.
•Do not pull on or place strain on the power cord when moving the appliance.
•The appliance should not be installed where the atmosphere may contain combustible gases,
oil or sulphur, or near heat sources.
•Do not rest hot or heavy objects on the appliance.
•Clean the filters at least once a week.
•Avoid using heaters near the unit.
•The unit should be transported in a vertical position. If this is not possible secure the unit at an
angle, do not lie it horizontally.
•Before transporting the unit, drain the unit. After transportation, wait at least 4 hour before switch-
ing the unit on.
•The packaging materials can be recycled. You are therefore recommended to place them in
the special containers for differentiated waste collection.
•This appliance is fitted with a special safety device. When the compressor switches off, this
device prevents it from switching on again for at least 3 minutes.
SAVE THESE INSTRUCTIONS
THIS PRODUCT IS FOR HOUSEHOLD ONLY

5
The instructions below will enable you to prepare your air conditioner for operation as efficiently
as possible.
Before use, make sure the air intake and outlet grilles are unobstructed.
AIR-CONDITIONING WITHOUT INSTALLATION
Just a few simple steps and your comfort is
ensured with your air conditioner:
•Fit the air exhaust hose in the housing
at the back of the appliance.
Insert it as shown in figure A.
8
13
For optimum results:
•If you have a sash window, place the
bracket on the window sill, extend the
bracket fully within the window frame, fix the
bracket by using the pin then lower the win-
dow onto the bracket. Insert the window
outlet of the exhaust hose into the
slot, then connect the hose to the air condi-
tioner (fig. B ).
13
14
17
INSTALLING YOUR PORTABLE
AIR-CONDITIONER
Keep the air hoses as short and free of
curves as possible to avoid constrictions
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
•The mains power supply corresponds to the value indicated on the rating plate on the back of the appliance;
•The mains socket and electrical circuit are adequate for the appliance;
•The mains socket matches the plug. If this is not the case, have the plug replaced;
•The mains socket is adequately earthed.
Failure to follow these important safety instructions absolves the manufacturer of all liability.
The power cable must be replaced by a qualified professional only.
B
Thanks to the locking pins, it’s possible to
use the window bracket also for sliding
windows. Position the hole of the bracket
so to allow a correct installation of the
exhaust hose (see figure C).
A
1
2
D
C
•If you have a double window, use the
sucker provided to hold the two parts of
the window together (fig. D).

134
5,25 in.
in the window
pane
in the wall: it is rec-
ommended that
you insulate a sec-
tion of the wall
using suitable insu-
lation.
in the wood-
en kickboard
of a French
window
F
Preparing for use
MAX 39 in
MAX100 cm
MIN 14 in
MIN 35 cm
SEMI-PERMANENT INSTALLATION
If required, your appliance can also be
installed semi-permanently (Fig. E).
Proceed as follows:
•Drill a hole ø 5,25 inches (ø 134 mm) in an
outside wall or through a window pane.
Respect the dimensions and height of the
hole given in figure F and G.
•Fit the wall flange into the hole.
•Fit the air exhaust hose in the relevant
hose located on the rear side of the appli-
ance (fig. Apage 5).
•Fit the end of the hose to the wall
flange as shown in fig. G.
11
13
13
11
G
When the hose (9)is not fitted, the drilled hole
can be closed with the flange cap (11).
NOTE: When installing the air conditioner
semi-permanently, you should leave a door
slightly open as little as 1/2 “ (1 cm) to guar-
antee correct ventilation.
6
11,8 in
30 cm
11,8 in
30 cm
E
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
As special tools are required for installa-
tion, we suggest you let install the
appliance by specialized personnel.

7
Control panel
DESCRIPTION OF THE CONTROL PANEL
1Air conditioning symbol
2Dehumidifying symbol
3 Fan symbol
4 SMART symbol
5BOOST symbol
6Temperature indicator
7 Timer symbol
8Alarm symbol
THE CONTROL PANEL
12 1
68
9
25
34
7
11
10
12
13
14
15
16
16
9SLEEP symbol
10 AUTOFAN indicator
11 Speed indicator
12 MODE button (selects the modes)
13 BOOST button
14 FAN button
15 ON/Standby button
16 Increase (+) and decrease (-)
temperature button
OPERATING FROM THE CONTROL PANEL
The control panel enables you to manage all the main functions
of the appliance, but to fully exploit its potential, you must use the
remote control unit.
TURNING THE APPLIANCE ON
•Plug into the mains socket. Two lines appear on the display
indicating that the appliance is in standby mode.
•Press the (15) button until the appliance comes on. The
last function active when it was turned off will appear.
Never turn the air conditioner off by unplugging from the mains. Always press the
button, then wait for a few minutes before unplugging. This allows the appliance to
perform a cycle of checks to verify operation.
✔

8
Operation
AIR CONDITIONING MODE
Ideal for hot muggy weather when you need to cool and dehu-
midify the room.
To set this mode correctly:
•Press the MODE button a number of times until the air-conditio-
ning symbol appears.
•Select the target temperature by pressing the or but-
ton until the corresponding value is displayed.
•Select the required fan speed by pressing the FAN button.
Four speeds are available:
Maximum speed: to achieve the target tempe-
rature as rapidly as possible
Medium speed: reduces noise levels but still
maintains a good level of comfort
Low speed: for silent operation
AUTO: the appliance automatically selects the
most suitable fan speed in relation to the tempe-
rature set on the digital display.
The most suitable temperature for the room during the summer
varies from 75°F to 81°F (24 to 27°C). You are recommended,
however, not to set a temperature much below the outdoor tem-
perature.
DEHUMIDIFYING MODE
Ideal to reduce room humidity (spring and autumn, damp rooms,
rainy periods, etc).
In dehumidifying mode, the appliance should be prepared in the
same way as for air conditioning, with the air exhaust hose atta-
ched to enable the moisture to be discharged outside.
To set this mode correctly:
•Press the MODE button a number of times until the dehumi-
difying symbol appears.
In this mode, fan speed is selected automatically by the applian-
ce and cannot be set manually.

FAN MODE
When using the appliance in this mode, the air hose does not
need to be attached.
To set this mode correctly:
•Press the MODE button a number of times until the fan symbol
appears.
•Select the required fan speed by pressing the FAN button.
Three speeds are available:
Maximum speed: for maximum fan power
Medium speed: reduces noise levels but still
maintains a good level of comfort
Low speed: for silent operation
In this mode, AUTO speed cannot be selected.
SMART MODE
The appliance chooses automatically whether to operate in air
conditioning or fan. Fan speed is also set automatically accor-
ding to the conditions.
To set this mode:
•Press the MODE button a number of times until the SMART sym-
bol appears.

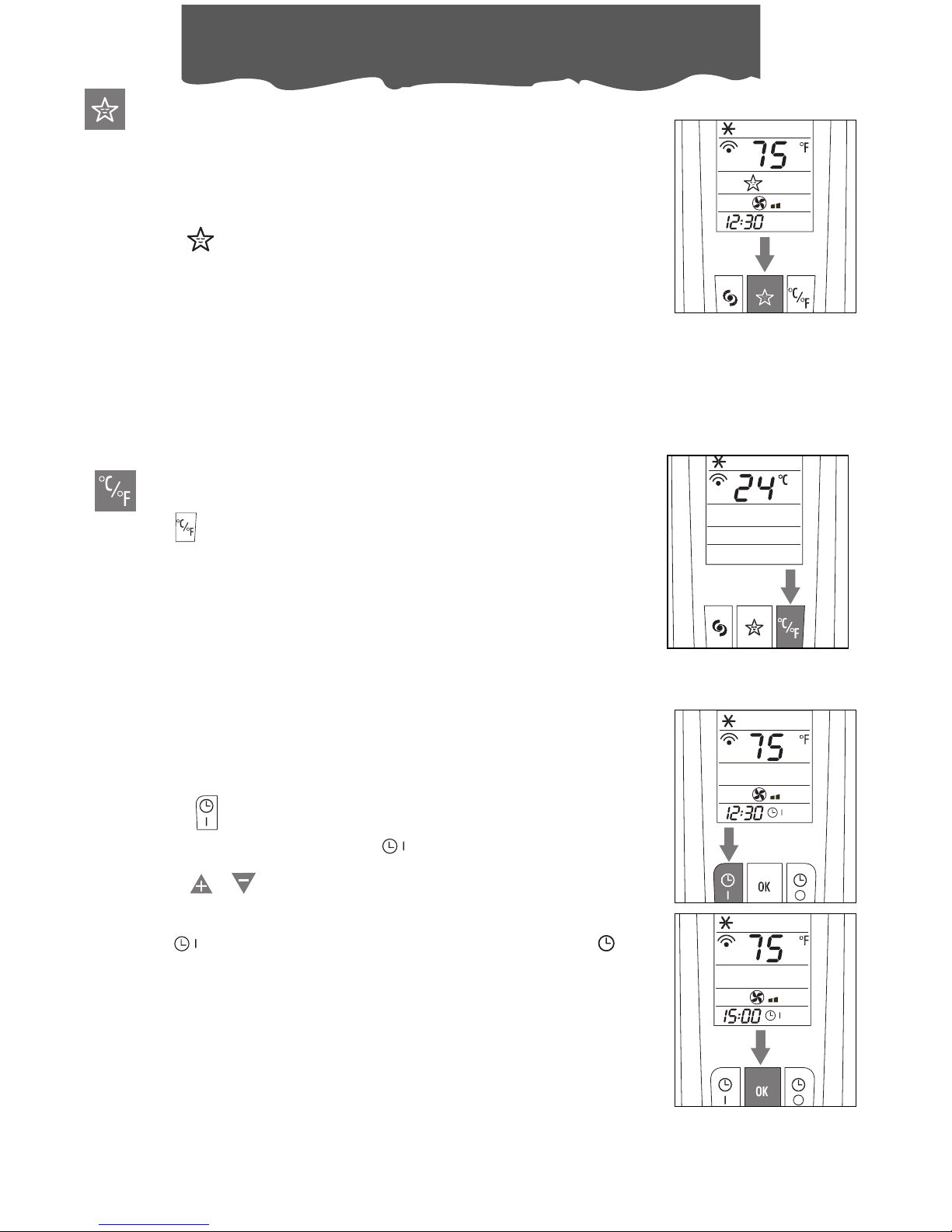

BOOST FUNCTION
Ideal for the summer to cool rooms rapidly.
To set this mode:
•Press the button.
The appliance operates in air conditioning mode at maximum
fan speed. While this function is selected, it is not possible to set
the temperature or change fan speed.
9
Operation

10
Description of the remote control
DESCRIPTION OF THE REMOTE CONTROL
1Air conditioning symbol
2 Dehumidifying symbol
3 Fan symbol
4 Fan speed indicator
5 SMART symbol
6 BOOST symbol
7 SLEEP symbol
8 AUTOFAN indicator
9 MODE button (selects the modes)
10 FAN button
11 Increase (+) and decrease (-) temperatu-
re button
12 ON/Standby button
13 Signal transmission
14 Selected temperature scale indicator
15 Clock
16 Timer ON symbol
17 Timer OFF symbol
18 Reset button (resets the appliance to the
original settings)
19 Timer ON button
20 OK button
21 Timer OFF button
22 SLEEP button
23 °C or °F selection button
24 BOOST button
USING THE REMOTE CONTROL
Point the remote control at the receiver on the
appliance. The remote control must be no
more than 23 ft (7 metres) away from the
appliance (without obstacles between the
remote control and the receiver).
The remote control must be handled with
extreme care. Do not drop it or expose it to
direct sunlight or sources of heat.
✔
✔
MAX 23 ft
MAX 7 metres

INSERTING OR REPLACING THE BATTERIES
•Remove the cover on the rear of the remote control.
•Insert two “AAA” 1.5V batteries, making sure they are in the cor-
rect position (see the instructions inside the battery compart-
ment).
•Replace the cover.
If the remote control unit is replaced or discarded, the batteries
must be removed and disposed of in accordance with current
legislation as they are harmful to the environment.
Warning: do not mix old and new batteries. Do not mix alkaline,
standard (carbon-zinc) or rechargeable (nickel-cadmium) bat-
teries. Do not dispose of batteries in fire. Batteries may explode
or leak.
If the remote control is not be used for a certain length of time,
remove the batteries.
SETTING THE TIME
After having inserted the batteries, the clock on the display flashes
until the time is set.
Proceed as follows:
•Press the or button until the correct time is reached. Hold
the button down to run rapidly through first the minutes, then the
tens of minutes and then the hours.
•Once the correct time has been reached, release the button and
press the OK button to confirm.
•To cancel the settings programmed on the remote control and
restore the original settings, press the reset button lightly with the
point of a pencil or pen.
USING THE REMOTE CONTROL UNIT
The buttons of the first part of
the controls on the remote
control are the same as those
on the control panel of the
appliance. You should therefo-
re refer to the instructions in the
chapter Operating from the
control panel to turn the
appliance on, select the operating mode (AIR CONDITIONING,
DEHUMIDIFYING, FAN, or SMART) and the fan speed.
The following section describes the additional functions correspon-
ding to the controls on the bottom part of the remote control.
BOOST FUNCTION
Ideal for the summer to cool rooms rapidly.
To set this mode:
•Press the button.
The appliance operates in air conditioning mode at maximum fan
speed. While this function is selected, it is not possible to set the tem-
perature or change fan speed.
11
Using the remote control unit
✔
✔

12
SLEEP FUNCTION
This function is ideal for the night as it gradually reduces operation of the
appliance.
To set this function correctly:
•Select the operating mode (air conditioning, dehumidifying or smart)
as described above.
•Press the button. The appliance operates in the previously selected
mode with low fan speed.
The SLEEP function maintains the room at optimum temperature without
excessive fluctuations in either temperature or humidity and with silent
operation. Fan speed is always at minimum, while room temperature
and humidity vary gradually to ensure the most comfortable conditions.
During air conditioning, the temperature increases by 2°F (1°C) after 60
minutes and 4°F (2°C) after 2 hours.
SELECTING THE TEMPERATURE SCALE
Press the button to switch the temperature scale from Centigrade
to Fahrenheit and vice-versa.
PROGRAMMING THE TIMER
The appliance can be programmed to start up and shut down when
required.
Programming start up
•Press the button.
The start-up time and message ( ) flashes on the remote control
display.
•Press the or buttons to set the time you want the appliance to
start up.
•When that time is reached, press the OK button to confirm. The mes-
sage ( ) appears on the remote control display and the sym-
bol is displayed on the appliance to indicate that the timer is active.
Using the remote control unit

13
Self-diagnosis
IF…IS DISPLAYED,WHAT SHOULD I DO?
LOW TEMPERATURE
(frost prevention)
PROBE FAILURE
(sensor damaged)
FULL TANK
(empty the internal tank)
The appliance is fitted with
a frost protection device to
avoid excessive formation
of ice.
The appliance starts up
again automatically when
the defrosting process is
completed.
If this is displayed, contact
your local authorised servi-
ce centre.
See page 15
“END OF SEASON OPERATIONS”
Programming shutdown
•Press the button. The shutdown time and message ( ) flash
on the remote control display.
•Press the or buttons to set the time you want the appliance to
shut down.
•When that time is reached, press the OK button to confirm. The mes-
sage ( ) appears on the remote control display and the sym-
bol is displayed on the appliance to indicate that the timer is active.
SELF-DIAGNOSIS
The appliance has a self diagnosis system to identify a number of malfunctions.
Error messages are displayed on the appliance display.

14

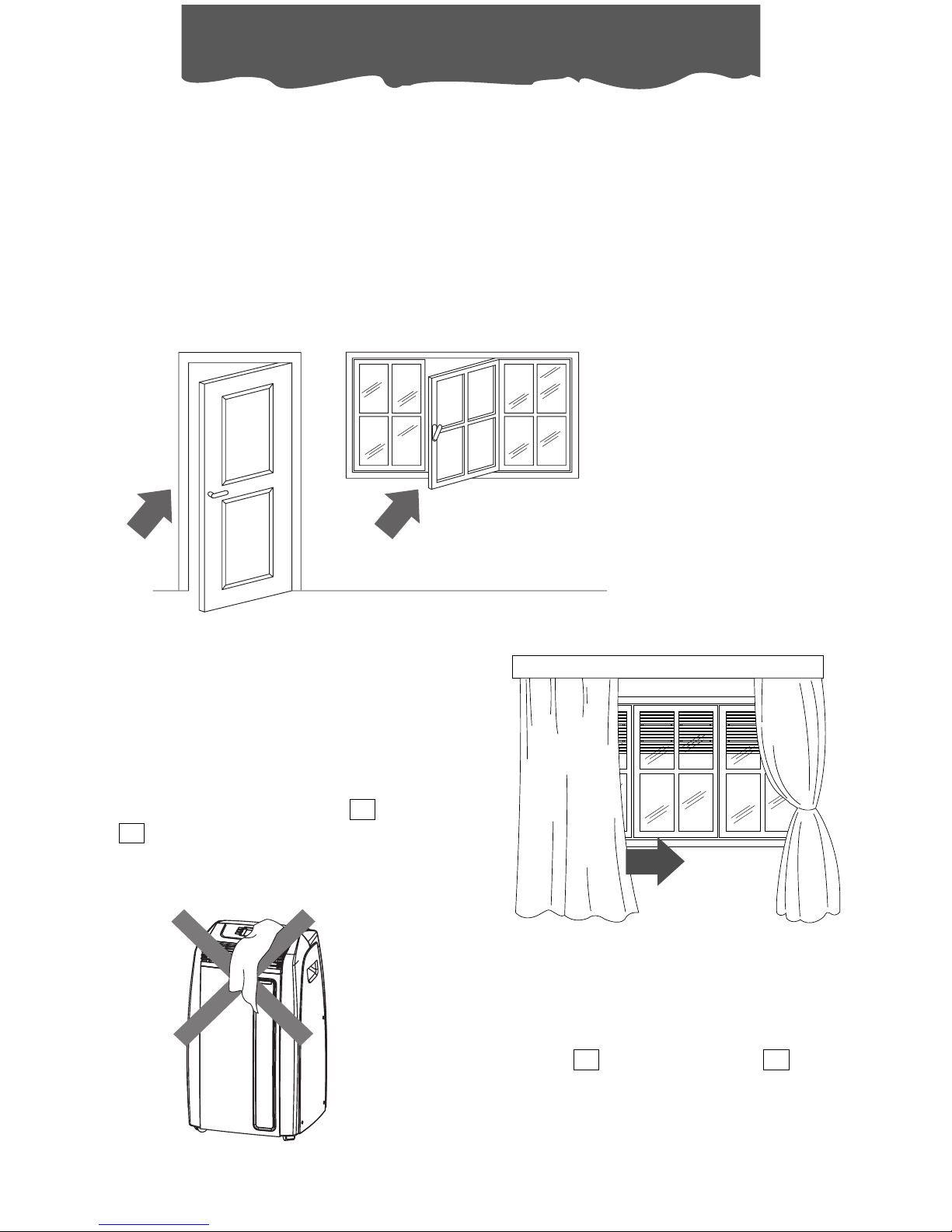

Tips
To get the best performance once from your
air conditioner, follow these recommendations:
•close the windows and doors in the room to
be air conditioned. The only exception is
when the appliance is installed through a
hole in the wall. In this case, you are recom-
mended to leave a slight draught through a
door or window to guarantee correct venti-
lation.
•Protect the room from direct exposure to
the sun by partially closing curtains and/or
blinds to make the appliance much more
economical to run.
•Never rest objects of any kind on the air
conditioner.
•Never obstruct the air intake or outlet
grilles.
•Make sure there are no heat sources in the
room.
1
7
•Never use the appliance in very damp
rooms (laundries for example).
•Never use the appliance outdoors.
close doors and windows
close blinds or curtains
do not cover
the appliance
when in use
•Make sure the air conditioner is on a level
floor. If necessary, place the two castor
locks under the wheels .
415

15
Cleaning
Before cleaning or maintenance, turn the
appliance off by pressing the ON/STAND-BY
button then always unplug the appliance
from the mains socket.
CLEANING THE CABINET
You should clean the appliance with a slight-
ly damp cloth then dry with a dry cloth.
For safety reasons, never wash the air condi-
tioner with water.
Precautions
Never use petrol, alcohol or solvents to clean
the appliance. Never spray insecticide liquids
or similar.
CLEANING THE AIR FILTERS
To keep your air conditioner working efficient-
ly, you should clean the dust filter every week
of operation.
The filter is housed in the intake grille.
To clean the filters, proceed as follows:
1. Remove the dust filter by extracting it
upwards (figure H).
2. Use a vacuum cleaner to remove dust accu-
mulations from the filter. If it is very dirty, immer-
se in warm water and rinse a number of times.
The water should never be hotter than 104°F
(40°C). After washing, leave the filter to
dry, then put it back in place.
START OF SEASON CHECKS
Make sure the power cable and plug are
undamaged and the earth system is efficient.
Follow the installation instructions precisely.
END OF SEASON OPERATIONS
•To empty the internal circuit completely of
water, remove the cap (figure I).
•Run off all water left into a basin. When all
the water has been drained, put the cap
back in place.
•Clean the filter and dry thoroughly before
putting back.
H
I

16
Troubleshooting
PROBLEM CAUSE REMEDY
The air conditioning
unit does not start.
•No electricity.
•It is not plugged into the socket.
•The safety device of the plug has tripped.
•The internal safety device has tripped.
•Restore electricity.
•Plug into the socket.
•Reset the safety plug.
•Wait 30 minutes, if the problem
persists, contact your service
center.
The air conditioning
unit works for a
short time only.
•The air exhaust hose has a constriction.
•The air exhaust hose is blocked.
•There are tight bends in the air exhaust hose.
•Position the exhaust hose cor-
rectly.
•Check there are no obstacles
Obstructing air discharge.
•Eliminate the tight bends.
The air conditioner
works, but does not
cool the room.
•Window open.
•There are heat sources in the room (lamps,
etc.).
•The exhaust hose is detached.
•Air filters clogged.
•Close the window.
•Eliminate the heat source.
•Connect the exhaust hose.
•Clean or replace the filters.
•Clean or replace the filter.
Bad odour in the
room.
•The filter is clogged.
The air conditioner
does not operate
for about 3 minutes
after turning it on.
•The internal compressor safety device pre-
vents the appliance from being restarted
until three minutes have elapsed since it was
last turned off.
•Wait. This delay is part of nor-
mal operation.
//PPFF//appears
on the display. •The appliance has a self diagnosis system to
identify a number of malfunctions. •See the self-diagnosis chapter.

17
Technical specification
LIMIT CONDITIONS
Room temperature for
air conditioning 64 ÷ 95°F (18° ÷ 35°C)
TECHNICAL SPECIFICATION
Power supply voltage see rating plate
Max. absorbed power
during air conditioning “
Refrigerant “
Cooling capacity “
Dimensions of appliance:
•width 18in - 463 mm
•height 30 in - 775 mm
•depth 15 in - 382 mm
•weight 70 lb - 32 kg
SAFETY PLUG
The appliance is fitted with a safety plug to protect the power cable.
If power is cut off, unplug from the mains and make sure the power cable is undamaged.
If the cable is damaged, call the service center immediately.
If power cuts off frequently and the power cable is undamaged, contact a qualified elec-
trician.
OPERATION OF THE SAFETY PLUG
If the safety device incorporated in the plug trips and cuts off the power supply, check
that the power cable and plug are not damaged.
If the power cable is undamaged, to restore operation press the "RESET" button.
To verify correct operation of the plug, press the "TEST" button periodically and make sure
the appliance disconnects. If this is not the case, contact the service center.
To restore operation, press the "RESET" button.
NEVER TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE.
IF THIS OCCURS, WAIT AT LEAST 4 HOURS BEFORE TURNING THE APPLI-
ANCE ON
Transport, filling, cleaning, recovery and dis-
posal of refrigerant should be performed by
a technical service centre appointed by the
manufacturer only.
The appliance should be disposed of by a
specialist centre appointed by the manu-
facturer only.
This appliance is equipped with a 3 prong grounding plug. The plug must be connected into
an outlet that is properly installed and grounded in the accordance with all local codes
and ordinances. Do not modify the plug provided with the appliance. If it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
If the household electrical supply does not meet the above specifications, or if you are not
sure your home has an effective ground, have a qualified electrician or your local electrical
utility company check it and correct any problems.

18
Limited Warranty
De’Longhi is the distributor of Kenwood home appliances.
This warranty applies to all home appliances with De’Longhi or Kenwood brand names.
FOR CONTIGUOUS UNITED STATES ONLY
Limited Warranty
We warrant each De’Longhi AIR CONDITIONER to be free from defects in material and workman-
ship. From the purchase date, our obligation under this warranty is to provide one (1) year free
parts and labor on the entire AIR CONDITIONER, with an additional four (4) years free on any part
of the sealed system consisting of the compressor, evaporator, condenser and factory connect-
ed refrigerant tubing. Labor and all other parts during the additional four (4) year warranty are to
be paid by the owner. All AIR CONDITIONERS in need of repair are to be shipped to an authorized
De’Longhi service center at the owner’s expense, and De’Longhi will then incur the return ship-
ping costs. After the first five (5) years of ownership, all expenses (all parts, labor and shipping) are
to be paid by the owner of the unit. This warranty shall apply only if the AIR CONDITIONER is used
in accordance with the factory directions that accompany it, and on an Alternating Current (AC)
circuit. This warranty is in lieu of all other warranties and representations, expressed or implied, and
all other obligations or liabilities on our part. We do not authorize any other person or company
to assume for us any liability in connection with the sale or use of our AIR CONDITIONER. This war-
ranty shall not apply to any AIR CONDITIONER that has been repaired or altered outside our fac-
tory nor shall it apply to any AIR CONDITIONER that has been subjected to misuse, negligence or
accidents.
If repairs become necessary, see contact information below:
U.S. Residents:
Please contact our toll free hotline at 1-800-322-3848 or log onto our website at
www.delonghi.com.
For all accessories, spare parts or replacement parts, please contact our parts division at
1-800-865-6330.
CANADA Residents:
Please contact our toll free hotline at 1-888-335-6644 or log onto our website at
www.delonghi.com.
Other countries:
Please visit: www.delonghi.com.
