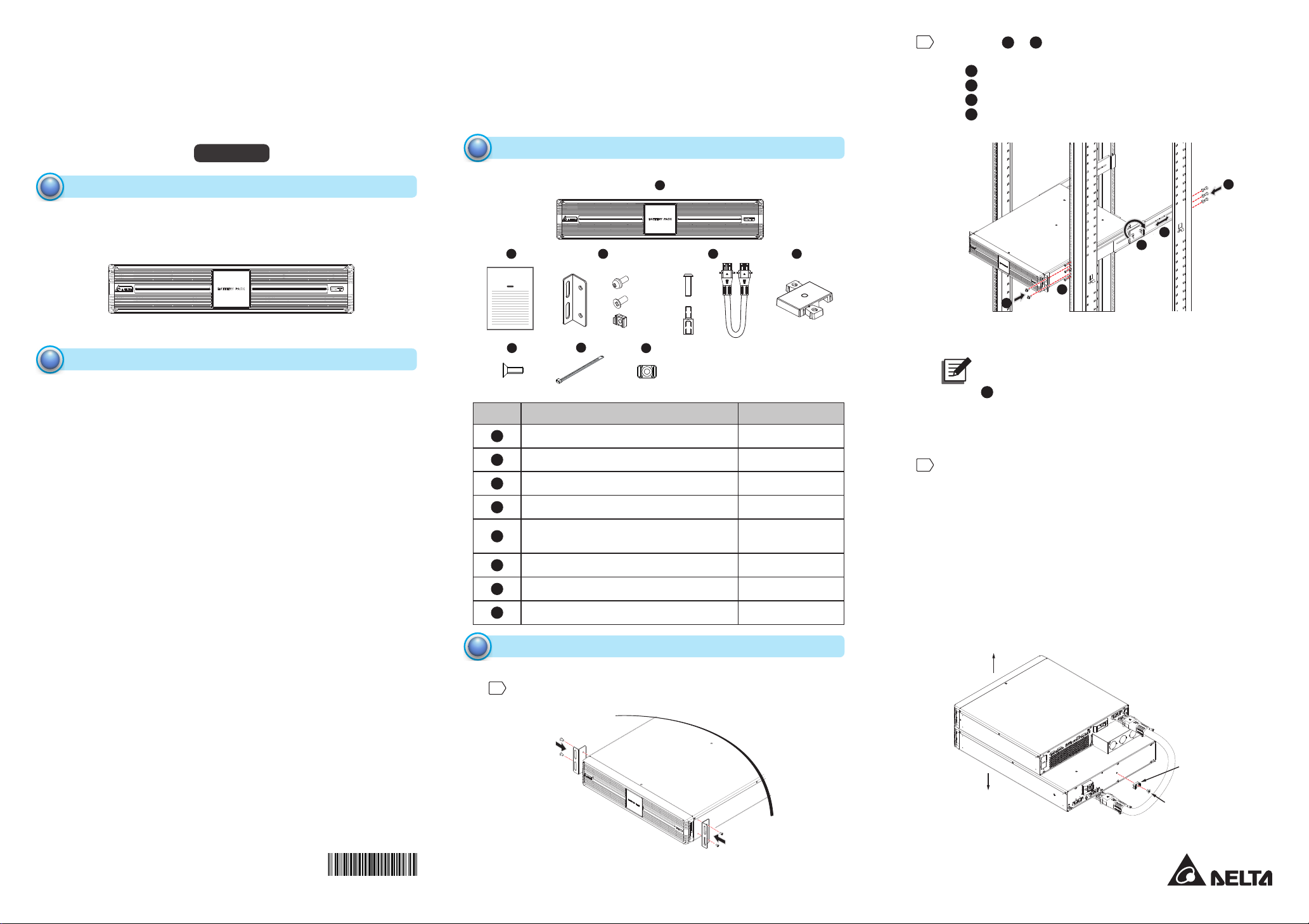

Delta UPS - Amplon Family
Delta External Battery Pack for
Amplon RT 5/ 6/ 8/ 10/ 15/ 20kVA UPS
Installation & Operation Quick Guide
1
Product Introduction
The Delta External Battery Pack is applicable to Delta Amplon RT 5/ 6/ 8/ 10/ 15/
20kVA UPS. When the UPS is operating during a power outage, the battery pack
provides DC power, which maintains inverter operation to supply power to the
critical loads connected to the UPS.
(Figure 1: Delta External Battery Pack Front View)
2
Important Safety Instructions
yServicing of batteries and battery packs must be performed or supervised by
qualied service personnel knowledgeable in batteries, battery packs and the
required precautions. Keep unauthorized personnel away from batteries and
battery packs.
yA battery can present a risk of electric shock and high short-circuit current.
yTo reduce the risk of re or electric shock, install the battery pack in a tempera-
ture and humidity controlled indoor area free of conductive contaminants.
yForbid opening or removing the cover of the battery pack to avoid high voltage
electric shock.
yThe risk of dangerous high voltage is possible when the batteries are still
connected to the UPS even though the UPS is disconnected from the mains.
Do not forget to disconnect the battery cable to completely cut o󰀨 the battery
source.
yOnly qualified service personnel can perform battery replacement. Before
battery replacement, please turn off the battery breaker. If replacing the
batteries without turning o󰀨 the UPS, please make sure the UPS has detected
“Battery Disconnected” before connecting the battery cable or turning on the
battery breaker.
yOnly use the same type of batteries from the same supplier. Never use old,
new and di󰀨erent Ah batteries at the same time.
yThe number of batteries must meet UPS requirements.
yDo not reverse or short circuit the polarity + and – when connecting the batte-
ries because this will destroy the device and constitute a risk of electric shock
or re.
yUse a voltage meter to measure whether the total voltage, after battery pack
connection, is around 12.5Vdc × the total number of batteries.
yThe external slits and openings in the battery pack are provided for ventilation.
To ensure reliable operation of the battery pack and to protect the battery pack
from overheating, these slits and openings must not be blocked or covered. Do
not insert any object into the slits and openings that may hinder ventilation.
yDo not allow liquid or any foreign object to enter the battery pack.
yDo not place beverages or any other liquid-containing vessels on or near the
battery pack.
yDo not dispose of the battery or batteries in a re. The batteries may explode.
yDo not open or mutilate the battery or batteries. The released electrolyte is
harmful to the skin and eyes and may be toxic.
yObserve the following before replacing batteries:
1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on the top of batteries.
5. Disconnect charging source prior to connecting or disconnecting the
batteries’ terminals.
3
Package List
1
23
× 4
× 4
× 4
× 2
Delta UPS - Amplon Family
Delta External Battery Pack for
Amplon RT 5/ 6/ 8/ 10/ 15/ 20kVA UPS
Installation & Operation Quick Guide
ENGLISH
45
× 4
× 4
678
× 3 × 3 × 3
No. Item Q’ty
1Delta External Battery Pack 1 PC
2Installation & Operation Quick Guide 1 PC
3Bracket Ear 1 SET
4Battery Cable 1 SET
5Tower Stand Extender RT-6KB: 4 PCS
RT-10KB: 6 PCS
6M4 Screw 3 PCS
7Cable Tie 3 PCS
8Cable Ties Fixing Holder 3 PCS
4
Installation Procedures
yRack Mounting:
1
Attach the included bracket ears to the lateral mounting holes of the Delta
external battery pack. See Figure 2.
(Figure 2: Mount the Bracket Ears)
2
Follow steps 1to 4to install the Delta external battery pack in Delta’s
rail kit (optional). See Figure 3.
Step 1: Adjust the length of the rails according to your rack.
Step 2: Tighten the rails’ nuts.
Step 3: Fix the rails on your rack.
Step 4: Install the Delta external battery pack on your rack and
tighten the provided screws.
4
3
3
2
1
(Figure 3: Install the Delta External Battery Pack on Your Rack)
NOTE:
1. If you want to use a non-Delta rail kit, please only follow step
4.
2. If you want to use a non-Delta rail kit, the minimum distance
for the Delta external battery pack supported on non-Delta rail kit
is at least 40mm.
3
To eliminate the battery cable bending space, please use the M4
screws, the cable tie and the cable ties fixing holder (provided in the
external battery pack’s package) to x the battery cable, so as to prevent
interference between the battery cable and the panel of the Rack. The
installation steps are as following. The Delta external battery pack has
two models, RT-6KB and RT-10KB. The two models’ xing methods are
similar. Thus, in Figure 4 & Figure 5, only the illustration of model RT-6KB
and 5/ 6kVA UPS is taken for example.
Step 1: Use the M4 screws (provided in the external battery pack’s
package) to x cable ties xing holder (provided in the external
battery pack’s package) on the hole of the rear panel.
See Figure 4.
Delta Amplon RT 5/ 6kVA UPS
Delta External Battery Pack
(RT-6KB Model)
外接电池连接孔
192VDC50A
外接电池连接孔
192VDC50A
断路器
250VDC63A
迷你智能插槽
干接点
P2P3 P4
RS-485 RS-232
接口
P1
远程紧急
关机
外接电池连接孔
192VDC 35A
输入断路器
INPUT
BREAKER
并联接口并联接口
TMOV
OUTPUTINPUT
M4 Screw
Cable Ties
Fixing Holder × 1
× 1
(Figure 4: Fix the Cable Ties Fixing Holder)
ENGLISH
Continue to the Next Page 
5013271102

www.deltapowersolutions.com 2/4
Step 2：After use the battery cable to connect the UPS and the
external battery pack, please use the cable ties to x the
battery cable on the cable ties xing holder. See Figure 5.
Delta Amplon RT 5/ 6kVA UPS
外接电池连接孔
192VDC50A
外接电池连接孔
192VDC50A
断路器
250VDC63A
迷你智能插槽
干接点
P2P3 P4
RS-485 RS-232
接口
P1
远程紧急
关机
外接电池连接孔
192VDC 35A
输入断路器
INPUT
BREAKER
并联接口并联接口
TMOV
OUTPUTINPUT
Delta External Battery Pack
(RT-6KB Model)
Cable Ties × 1
(Figure 5: Fix the Battery Cable)
yTower Mounting:
1
Connect the provided tower stand extenders with the tower stands
provided in the UPS’s carton (please take the UPS and the Delta external
battery pack’s size into consideration). See Figure 6.
Tower Stands
Tower Stand Extender
(Figure 6: Connect the Tower Stand Extenders
with the UPS’s Tower Stands)
2
Pull out the Delta external battery pack’s control panel ( 1& 2), rotate
it 90° clockwise ( 3) and re-insert the control panel ( 4). After that,
rotate the Delta logo nameplate 90° clockwise ( 5). See Figure 7.
(Figure 7: Rotate the Delta External Battery Pack’s
Control Panel & Delta Logo Nameplate)
2
34
5
Rotate 90°
1
3
Carefully lift the Delta external battery pack upright with the Delta logo
and the icon shown on the control panel facing up. A minimum of
two people are required. See Figure 8.
(Figure 8: Place the Delta External Battery Pack Upright)
90°
4
Place the Delta external battery pack and the UPS inside the tower
stands. See Figure 9.
UPS
Delta External Battery Pack
(Figure 9: Place the Delta External Battery Pack and the UPS inside
the Tower Stands)
yConnect the Delta External Battery Pack with the 5/ 6/ 8/ 10kVA UPS
The Delta external battery pack has two models, RT-6KB and RT-10KB. The two
models’ paralleling methods and UPS connection methods are similar. Thus, in
Figure 10, only the illustration of model RT-6KB and 5/ 6kVA UPS is taken for
example.
1
Connect one end of the provided battery cable ( 1) to the external
battery connector ( 4) on the UPS, and connect the other end to the
external battery connector ( 7) on the Delta external battery pack. Use
the provided screws ( 2 ) and stando󰀨s ( 3 ) to x the battery cable
rmly. Make sure that the positive cable (+) connects to the positive pole
(+) and the negative cable (-) connects to the negative pole (-). See
Figure 10.
外接电池连接孔
1
92VDC50A
RS-232
接口
外接电池连接孔
192VDC 35A
输入断路器
INPUT
BREAKER
TMOV
OUTPUTINPUT
外接电池连接孔
192VDC50A
外接电池连接孔
192VDC50A
断路器
250VDC63A
迷你智能插槽
干接点
P2P3P4
RS-485 RS-232
接口
P1
远程紧急
关机
外接电池连接孔
192VDC35A
输入断路器
INPUT
BREAKER
并联接口并联接口
TMOV
OUTPUTINPUT
4
3
2
7
6
5
1
Delta Amplon RT 5/ 6kVA UPS
Delta External Battery Pack
(RT-6KB Model)
8
(Figure 10)
NOTE: There are two identical external battery connectors ( 7& 8
) on the Delta external battery pack, and you may use either of the
battery connectors ( 7& 8) to connect to the UPS.
yConnect the Delta External Battery Pack with the 15/ 20kVA UPS
NOTE: If it is not for common battery application, each 15/ 20kVA UPS
must connect to at least two external battery packs, and the number of
battery packs must be the multiple of two and only two of the battery
packs need to be connected to the 15/ 20kVA UPS. The Delta external
battery pack has two models, RT-6KB and RT-10KB. The two models’
parallel methods and UPS connection methods are similar. Thus, in
the following instructions and Figure 13, only one 15/ 20kVA UPS
connecting to two Delta external battery packs (model RT-10KB) is
taken for example.
1
Remove the two knockout covers from the UPS’s rear panel, and install
two cable glands (user-supplied) on the location where you removed the
knockout covers. See Figure 11.
Cable Glands
Knockout Covers
15/ 20kVA UPS
(Figure 11)
2
Insert the two battery cables (provided in the UPS’s package) into the
two user-supplied cable glands, connect the battery cables to the UPS’s
battery input terminals, and turn the cable glands in a clockwise direction
in order to x the cable glands on the UPS rmly. See Figure 12.
15/ 20kVA UPS
(Figure 12)
Continue to the Next Page 

www.deltapowersolutions.com 3/4

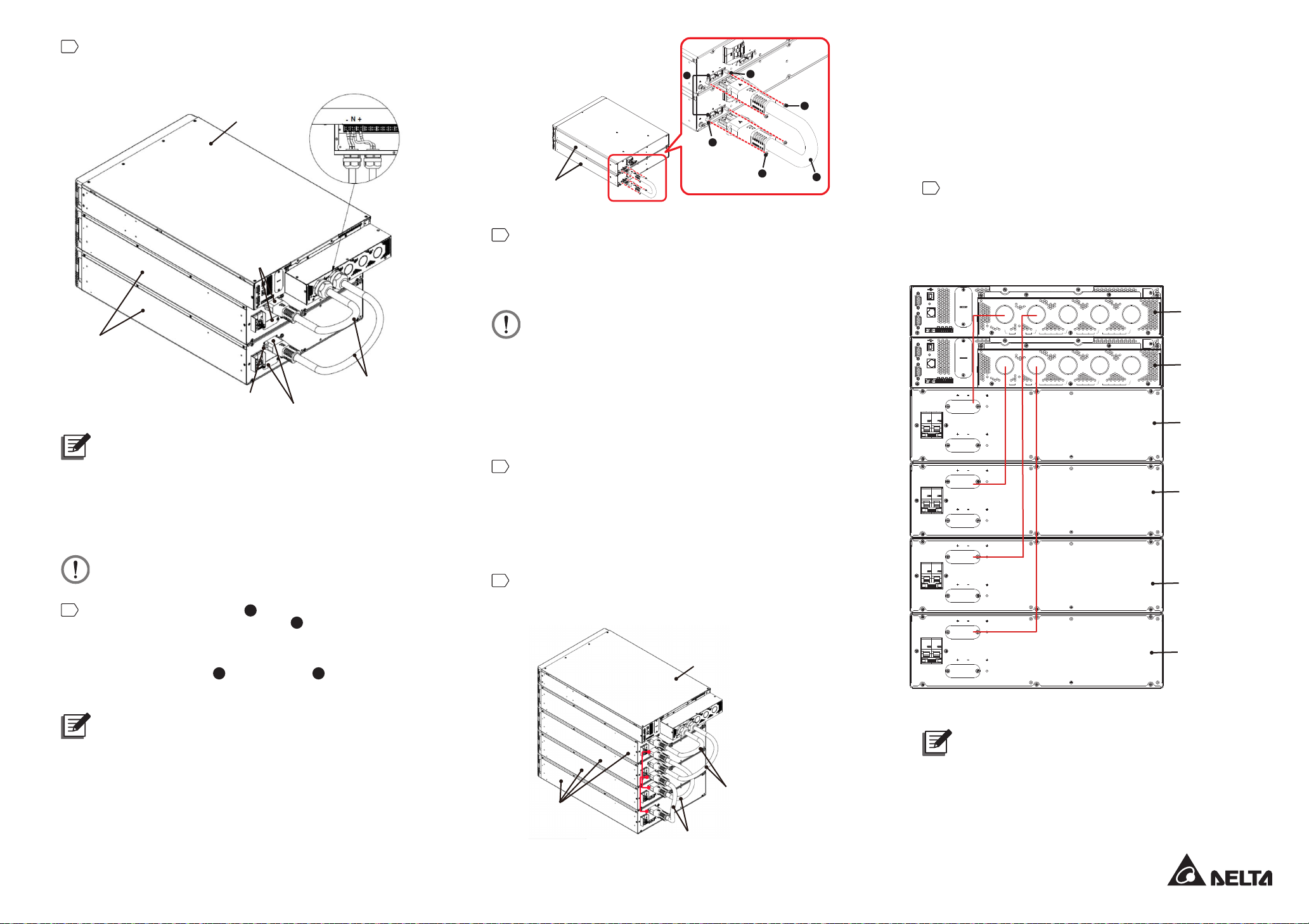

3
Connect the two battery cables to the two battery packs’ connectors
respectively. For each battery cable, use the two screws and two
stando󰀨s (provided in the package with the battery cable) to rmly x the
battery cable on the battery pack. See Figure 13.
Standoffs & Screws
Battery Cables6
15/ 20kVA UPS
Delta External Battery Packs
(RT-10KB Model)
External Battery
Connectors
External Battery Connectors
(Figure 13)
NOTE: There are two identical external battery connectors on the
Delta external battery pack, and you may use either of the battery
connectors to connect to the UPS.
yParallel the Delta External Battery Packs with the 5/ 6/ 8/ 10kVA UPS
To extend the backup time, you may parallel the Delta external battery packs
before connecting them to the UPS. The Delta external battery pack has two
models, RT-6KB and RT-10KB. The two models’ parallel methods are similar.
Thus, in Figure 14, only the illustration of RT-6KB model is taken for example.
WARNING:
For parallel application, only use the same type of Delta external
battery packs (same material No.).
1
Use the provided battery cable ( 1) to connect each parallel Delta
external battery pack’s battery connector ( 4). Each Delta external
battery pack has two identical battery connectors; you can choose either
of them for connection. Make sure that the positive cable (+) connects to
the positive pole (+) and the negative cable (-) connects to the negative
pole (-). Use the screws ( 2) and standoffs ( 3) (provided in the
battery cable’s package) to fix the battery cable firmly on the parallel
Delta external battery packs. Please see Figure 14.
NOTE: If you want to connect more than two Delta external battery
packs, follow the steps mentioned above.
外接电池连接孔
192VDC50A
外接电池连接孔
192VDC50A
断路器
250VDC63A
外接电池连接孔
192VDC50A
断路器
250VDC63A
外接电池连接孔
92VDC50A
外接电池连接孔
192VDC50A
断路器
250VDC63A
外接电池连接孔
192VDC50A
断路器
250VDC63A
1
2
3
4
Delta External Battery
2
3
Packs (RT-6KB Model)
(Figure 14)
2
After paralleling the Delta external battery packs, follow the steps
mentioned in ‘Connect the Delta External Battery Pack with the 5/ 6/
8/ 10kVA UPS’ to complete the connection between the UPS and the
parallel Delta external battery packs.
yConnect the 15/ 20kVA UPS (Single Unit) with the Parallel Delta External
Battery Packs
WARNING:
For parallel application, only use the same type of Delta external
battery packs (same material No.).
If it is not for common battery application, each 15/ 20kVA UPS must connect
to at least two external battery packs, and the number of battery packs must be
the multiple of two and only two of the battery packs need to be connected to
the 15/ 20kVA UPS. The Delta external battery pack has two models, RT-6KB
and RT-10KB. The two models’ parallel methods and UPS connection methods
are similar. Thus, in the following instructions and Figure 15, only one 15/
20kVA UPS connecting to four parallel Delta external battery packs (model RT-
10KB) is taken for example.
1
Each Delta external battery pack has two identical battery connectors;
you can choose either of them for the battery cable connection
mentioned below. Use the battery cable (provided in the Delta external
battery pack) to connect the 1st and 3rd parallel Delta external battery
packs’ battery connectors. Use the battery cable (provided in the Delta
external battery pack) to connect the 2nd and 4th parallel Delta external
battery packs’ battery connectors. Make sure that the positive cable (+)
connects to the positive pole (+) and the negative cable (-) connects to
the negative pole (-). Please see Figure 15.
2
After paralleling the Delta external battery packs, follow the steps
mentioned in ‘Connect the Delta External Battery Pack with the 15/
20kVA UPS’ to complete the connection between the UPS and any two
of the parallel Delta external battery packs. Please see Figure 15.
Battery Cables
Battery Cables
(Provided in the
Package of the UPS)
(Provided in the Package of the
Delta External
Battery Packs
15/ 20kVA UPS
Delta External Battery Packs)
(RT-10KB Model)
(Figure 15)
yConnect the 15/ 20kVA UPSs (Parallel Units) with the Delta External
Battery Packs
If it is not for common battery application, each 15/ 20kVA UPS must connect
to at least two external battery packs, and the number of battery packs must
be the multiple of two and only two of the battery packs need to be connected
to the 15/ 20kVA UPS. The Delta external battery pack has two models, RT-
6KB and RT-10KB. The two models’ parallel methods and UPS connection
methods are similar. Thus, in the following instructions and Figure 16, each
of the two parallel 15/ 20kVA UPSs connecting to two parallel Delta external
battery packs (model RT-10KB) is taken for example.
1
Use the two battery cables (provided in the 1st parallel 15/ 20kVA UPS’s
package) to connect the 1st parallel 15/ 20kVA UPS with its two Delta
external battery packs. Use the two battery cables (provided in the 2nd
parallel 15/ 20kVA UPS’s package) to connect the 2nd parallel 15/ 20kVA
UPS with its two Delta external battery packs. Please see Figure 16 and
cross-refer to ‘Connect the Delta External Battery Pack with the 15/
20kVA UPS’.
BREAKER
250V DC 63A
EXTERNAL BATT. CONNECTOR
240V DC 46A
EXTERNAL BATT. CONNECTOR
240V DC 46A
PARALLEL 2PARALLEL 1
RS-485
P1 P2 P3 P4
DRY CONTACT
REPO
MINI SLOT
- + - + L1 L2 L3 N PE
TUPNISSAPYBTUPNICACDV042±TTABCDV042±TTAB
L1 L2 L3 N PENL3L2L1
AC OUTPUT
PARALLEL 2PARALLEL 1
RS-485
P1 P2 P3 P4
DRY CONTACT
REPO
MINI SLOT
- + - + L1 L2 L3 N PE
TUPNISSAPYBTUPNICACDV042±TTABCDV042±TTAB
L1 L2 L3 N PENL3L2L1
AC OUTPUT
BREAKER
250V DC 63A
EXTERNAL BATT. CONNECTOR
240V DC 46A
EXTERNAL BATT. CONNECTOR
240V DC 46A
BREAKER
250V DC 63A
EXTERNAL BATT. CONNECTOR
240V DC 46A
EXTERNAL BATT. CONNECTOR
240V DC 46A
BREAKER
250V DC 63A
EXTERNAL BATT. CONNECTOR
240V DC 46A
EXTERNAL BATT. CONNECTOR
240V DC 46A
15/ 20kVA UPS
15/ 20kVA UPS
Delta External
Battery Pack
(RT-10KB Model)
Delta External
Battery Pack
(RT-10KB Model)
Delta External
Battery Pack
(RT-10KB Model)
Delta External
Battery Pack
(RT-10KB Model)
(Figure 16)
NOTE: If you want to connect more than two Delta external battery
packs (the number of battery packs must be the multiple of two) to
any parallel 15/ 20kVA UPS, please refer to the steps above.
Continue to the Next Page 

www.deltapowersolutions.com 4/4
yCommon Battery Application (only Applicable to Two Parallel 15/ 20kVA
UPSs)
For common battery application, it is only applicable to two parallel 15/ 20kVA
UPSs. Please note that the number of external battery packs must be the
multiple of two. The Delta external battery pack has two models, RT-6KB and
RT-10KB. The two models’ UPS connection methods are similar. Thus, in the
following instructions and Figure 17, two parallel 15/ 20kVA UPSs connecting
to two Delta external battery packs (model RT-10KB) are taken for example.
1
Use the two battery cables (provided in the 1st parallel 15/ 20kVA UPS’s
package) to connect the 1st and 2nd Delta external battery packs’ battery
connectors. Please see 1and 2shown in Figure 17 and cross-refer
to ‘Connect the Delta External Battery Pack with the 15/ 20kVA
UPS’.
2
Use the two battery cables (provided in the 2nd parallel 15/ 20kVA UPS’s
package) to connect the 1st and 2nd Delta external battery packs’ battery
connectors. Please see 3and 4shown in Figure 17 and cross-refer
to ‘Connect the Delta External Battery Pack with the 15/ 20kVA
UPS’.
BREAKER
250V DC 63A
EXTERNAL BATT. CONNECTOR
240V DC 46A
EXTERNAL BATT. CONNECTOR
240V DC 46A
PARALLEL 2PARALLEL 1
RS-485
P1 P2 P3 P4
DRY CONTACT
REPO
MINI SLOT
- + - + L1 L2 L3 N PE
TUPNISSAPYBTUPNICACDV042±TTABCDV042±TTAB
L1 L2 L3 N PENL3L2L1
AC OUTPUT
PARALLEL 2PARALLEL 1
RS-485
P1 P2 P3 P4
DRY CONTACT
REPO
MINI SLOT
- + - + L1 L2 L3 N PE
TUPNISSAPYBTUPNICACDV042±TTABCDV042±TTAB
L1 L2 L3 N PENL3L2L1
AC OUTPUT
BREAKER
250V DC 63A
EXTERNAL BATT. CONNECTOR
240V DC 46A
EXTERNAL BATT. CONNECTOR
240V DC 46A
15/ 20kVA UPS
Delta External
Battery Pack
Delta External
Battery Pack
15/ 20kVA UPS
(RT-10KB Model)
(RT-10KB Model)
1
2
3
4
(Figure 17)
5
Operation Procedures
1
Follow
Delta Amplon RT Series 5/ 6/ 8/ 10kVA UPS User Manual & Delta
Amplon RT Series 15/ 20kVA UPS User Manual to execute input/ output
connection.
2
Follow
4
Installation Procedures to connect the UPS and the Delta external
battery pack(s).
3
Turn on every Delta external battery pack’s breaker and the UPS’s input
breaker.
4
Follow
Delta Amplon RT Series 5/ 6/ 8/ 10kVA UPS User Manual & Delta
Amplon RT Series 15/ 20kVA UPS User Manual to turn on the UPS. Copyright © 2020 by Delta Electronics Inc. All rights reserved. Changes may
be made periodically to the information in this Quick Guide without obligation to
notify any person of such revision or changes.
No. 501327110202
Version : V 2.2
Release Date : 2020_9_15
6
Optional Accessories
No. Item Function
1Rail Kit Mounts the UPS or the external battery pack to your rack
and allows easy removal and maintenance.
2Tower Stand Mounts the UPS or the external battery pack in an
upright position.
NOTE: If you need any rail kit or tower stand for installation, please
contact your local dealer or customer service.
7
Technical Specications
Delta External Battery Pack RT-6KB RT-10KB
Applicable to Amplon
RT Series UPS 5/6/8/10/15/20kVA*1
Battery
Type VRLA
Q’ty 16 × 12V/7Ah 20 × 12V/9Ah
Dimensions (W × D × H) 440 × 565 × 88 mm
(17.3" × 22.2" × 3.5")
440 × 650 × 130 mm
(17.3" × 25.6" × 5.1")
Weight 39 kg (86 Ib) 67 kg (147.7 Ib)
Environment
Operating
Temperature 0 ~ 40°C (32 ~ 104°F)
Relative
Humidity 5 ~ 95% (non-condensing)
NOTE:
1. *1: RT-6KB is default for RT 5/ 6kVA UPS, and RT-10KB for RT 8/ 10/
15/ 20kVA UPS.
2. Refer to the rating label for the safety rating.
3. All specications are subject to change without prior notication.
Delta Electronics Inc.
39 Section 2, Huandong Road, Shanhua District,
Tainan City 74144, Taiwan
T [phone]
E [e-mail]
Delta Greentech (Brasil) S/A
Rua Itapeva, 26 - 3° andar Edificio Itapeva One - Bela Vista
01332-000 - São Paulo - SP - Brazil
T [phone]
E [e-mail]
South America
The United States
China
Delta GreenTech (China) Co., Ltd.
238 Minxia Road, Pudong, Shanghai, 201209 P.R.C
T [phone]
[phone]
E [e-mail]
Delta Electronics Int’l (Singapore) Pte Ltd.
4 Kaki Bukit Ave 1, #05-04, Singapore 417939
T [phone]
E [e-mail]
Singapore
India
Delta Power Solutions (India) Pvt. Ltd.
Plot No. 43, Sector-35, HSIIDC, Gurgaon-122001, Haryana, India
T [phone]
E [e-mail]
Delta Energy Systems Australia Pty Ltd.
Unit 20-21, 45 Normanby Road, Notting Hill VIC 3168, Australia
T [phone]
E [e-mail]
Delta Electronics (Korea), Inc.
1511, Byucksan Digital Valley 6-cha, Gasan-dong, Geumcheon-gu,
Seoul, Korea, 153-704
T [phone]
E [e-mail]
Australia
Thailand
South Korea
Delta Electronics (Thailand) Public Co.,Ltd.
909 Soi 9, Moo 4, E.P.Z., Bangpoo Industrial Estate, Tambon Prakasa,
Amphur Muang-samutprakarn, Samutprakarn Province 10280, Thailand
T [phone]
E [e-mail]
Delta Electronics (Americas) Ltd.
46101 Fremont Blvd. Fremont, CA 94538
T [phone]
E [e-mail]
- Regional Office
EMEA
- Global Headquarter
Taiwan
Delta Electronics (Netherlands) BV
Zandsteen 15, 2132MZ Hoofddorp, The Netherlands
T [phone]
E [e-mail]
