Warning!
Please read the user manual included in this work as it contains important information related with safety of installation and use of
the device.
Only persons who read the user manual may use the device.
The user manual must be kept because it may be required in the future. The device is to be used exclusively for purposes specified
in this user manual.
The device must be unpacked prior to starting-up. After removing the packaging make sure the device is in working order.
If the product has defects, it should not be used until it is repaired.
The product is intended for use at home and commercial use and may not be used for other than intended use.
The manufacturer is not liable for damages resulting from not adhering to the rules contained in the user manual, therefore, we
recommend to follow the aforementioned safety rules for operation and maintenance of the device. In this way you will ensure
yourself safety and avoid causing damage to the device.
The manufacturer and the supplier are not liable for losses or damages arising out of the product, including financial or intangible
losses, loss of profits, income, data, pleasure from use of the product or other products related with it - indirect, incidental or
consequential loss or damage. The above provisions apply whether the loss or damage concerns:
1. Deterioration of quality or the lack of operation of the products or products related with it due to damage as well as the lack of
access to the product when it is undergoing repair, which results in stoppage the loss of user's time or a break in business activity;
2. Improper results of operation of the product or products related with it;
3. It applies to losses and damages according to any legal category, including negligence and other losses, termination of a
contract, expressed or implied guarantee and strict liability (even if the manufacturer or the supplier was notified about the
possibility of occurrence of such damages).
Safety measures:
Particular attention at designing was directed to quality standards of the device where ensuring safety of operation is the most
important factor.
The device must be secured against contact with caustic, staining and viscous fluids.
The device was designed in such a way that it restarts operation when power supply is restored after a break.
Attention! We recommend using protections to further protect the device from possible overvoltages in installations.
Surge protectors are effective protection against accidental pass to the device voltages higher than the rated. Damages
caused by pass the voltages higher than specified in manual, are not under warranty.
Turn off the device before transporting it.
Prior to connecting the device to a power source check whether the supplied voltage is consistent with rated voltage specified in
the user manual.
Proper product disposal:
A marking of a crossed out waste bin indicates that the product may not be disposed together with other household waste in the
entire EU. To avoid possible damage to the natural environment of health due to uncontrolled waste disposal, therefore, it should be
handed over for recycling, propagating in this way sustainable use of natural resources.
To return a worn-out product, use a collection and disposal system of this type of equipment or contact a seller from whom it was
purchased. He will then be recycled in an environmentally-friendly way.

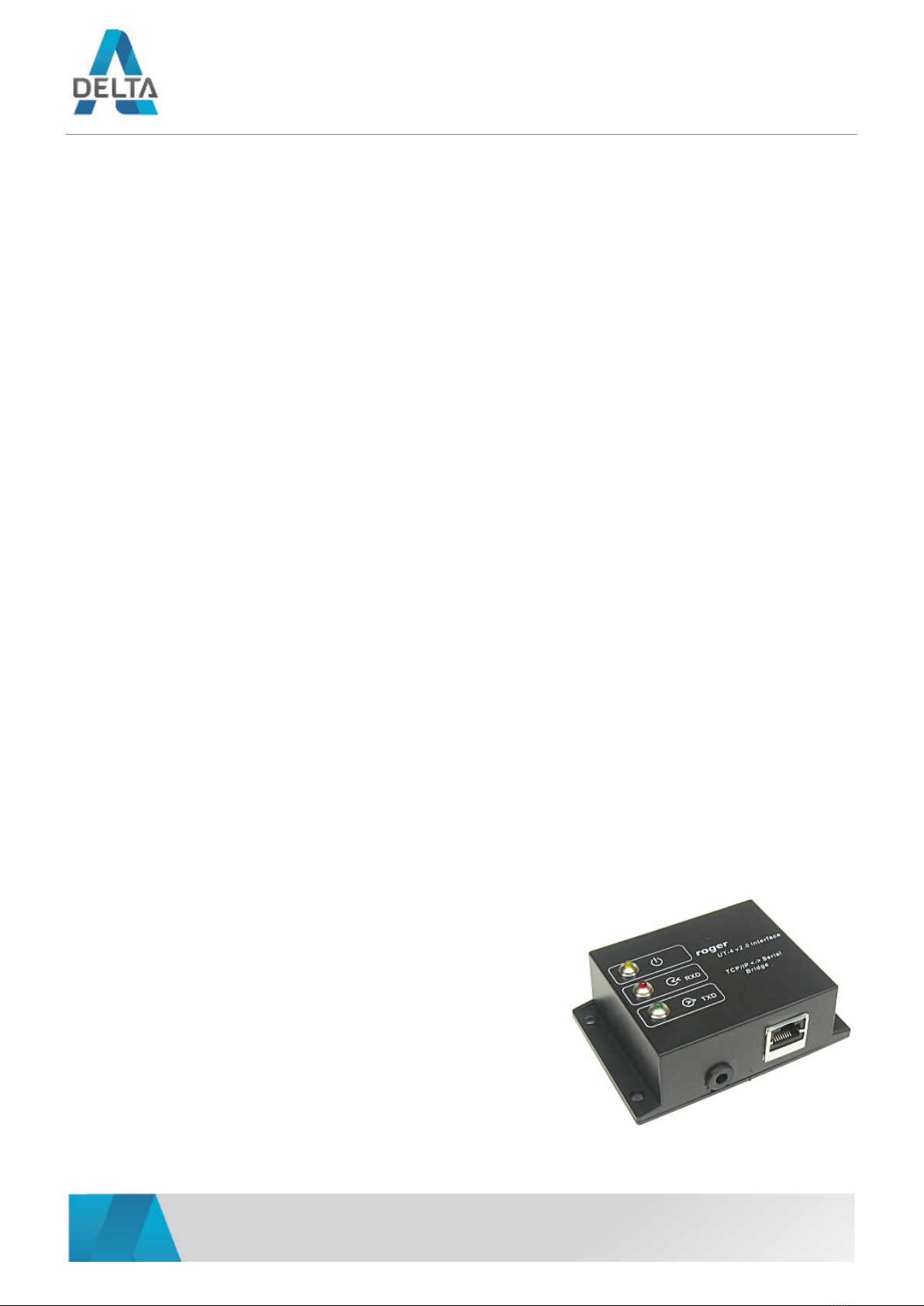

The UT-4 interface enables communication with devices equipped with communication serial port via computer
network. The interface is equipped with a serial port on one side, which can be configured to the RS232/RS422/RS485
standards, and with computer network socket operating in the 100BaseT Ethernet standard on other side. The UT-4
module is identified in computer network by IP address, which is assigned to the device during configuration.
The interface is built based on the Digi Connect ME network module of the Digi company. All software tools dedicated
to this module can be also using to the UT-4 interface.

User Manual
Code: UT-4
COMMUNICATION INTERFACE UT-4 LAN-RS232/422/485
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-03-13 UT-4 2/3
Communication interface:
• RS-232 : RXD, TXD, RTS, CTS, GND
• RS-422 : TXA, TXB; RXA, RXB
• RS-485 : A, B
Ethernet interface: 100 Base-T
Power supply: 10 V ... 15 V DC
Current consumption: max. 150 mA
Operation temp: 0 °C ... 55 °C
Permissible relative humidity: 10 % ... 90 % (non-condensing)
Weight: 0.106 kg
Dimensions: 100 x 68 x 35 mm
Manufacturer / Brand: ROGER
Guarantee: 2 years
Front panel view:
Device connectors:
In the kit:
