Delta Vivitek NovoTouch EK653i User manual

Package Contents
Display Wi-Fi USB Module (with Antennas) Remote Control
Power Cable Wall Mount HDMI Cable
Display Overview (Rear)Display Overview (Front)
1Magnetic Stylus Holders 3IR Sensor (for Remote Control)
2Power Button and Status Indicator LED 4USB 2.0 Port x 2
1Handles 5Power Socket
2Wall Mount Screw Holes 6Speakers
3120-Pin OPS Slot (NovoConnect Module) 7Wi-Fi Module Slot
4Power Switch 880-Pin Standard Intel OPS Slot
Quick Start Guide
(For EK653i / EK753i / EK863i)
USB Cable Audio Cable Stylus x 2
VGA Cable Batteries Quick Start Guide
8
7
2 11
3
4
5
21 1 3 4
Vivitek America
46101 Fremont Blvd, Fremont, CA 94538
U.S.A.
T: [phone]
F: [phone]
Vivitek Asia
7F, No. 186, Ruey Kuang Road, Neihu, Taipei 11491,
Taiwan R.O.C.
T: [phone]
F: [phone]
Vivitek Europe
Zandsteen 15, 2132 MZ Hoofddorp
The Netherlands
T: [phone]
F: [phone]
www.vivitekcorp.com
6

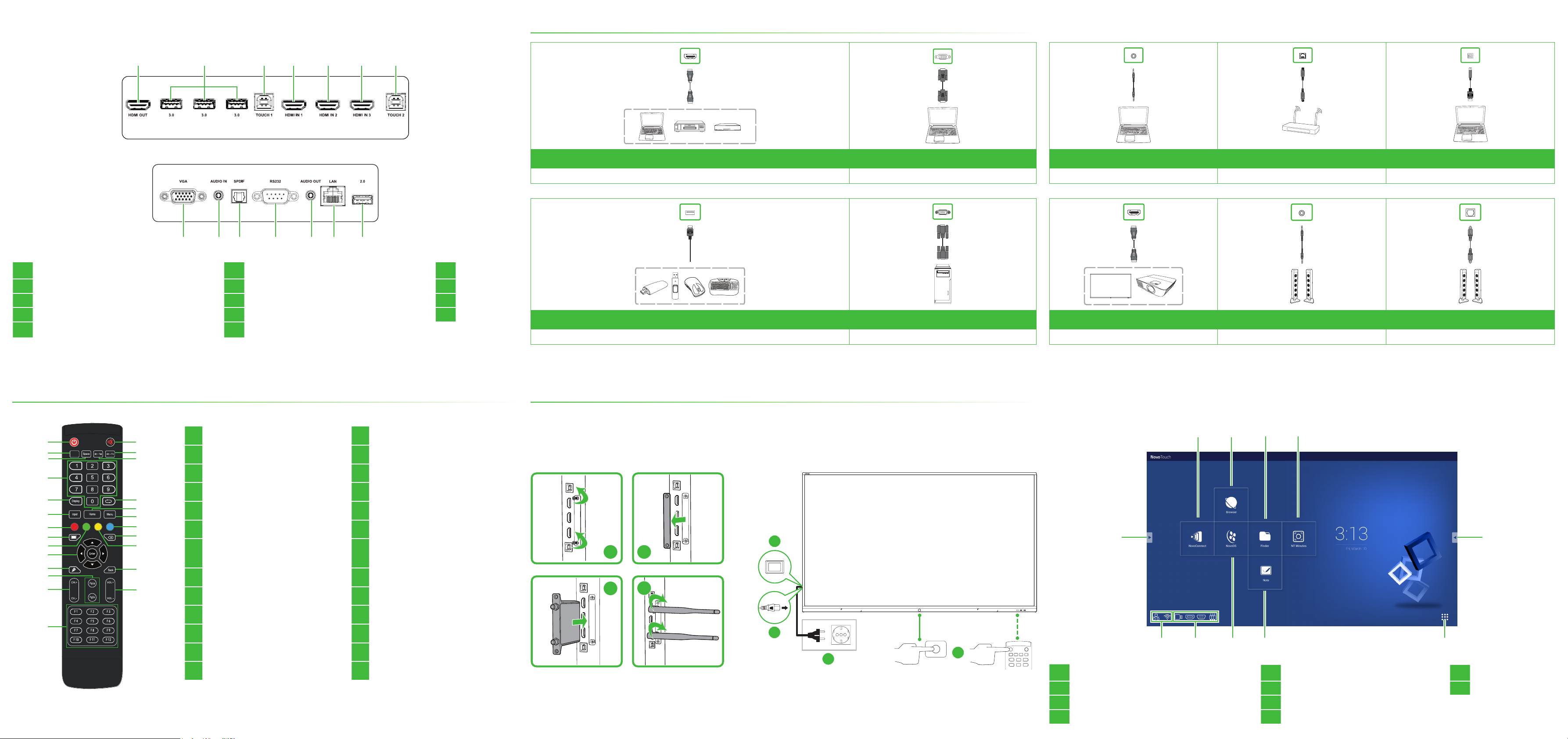

Connections
Getting StartedRemote Control
HDMI IN 1/2 VGA IN
USB (2.0 / 3.0) RS232
AUDIO IN LAN TOUCH 1/2
HDMI Out AUDIO OUT SPDIF
1Power 14 F1 - F12*
2Start* 15 Mute
3Spacebar* 16 Close Window*
4Numeric Keypad 17 Switch Window*
5Display Information Button 18 Function Button
6Input Source 19 Home Screen
7Lock/Unlock Buttons and
Touchscreen 20 Settings Menu
8Blank Screen 21 Freeze Screen
9Lock/Unlock 22 Backspace
10 Navigation Buttons 23 Lock/Unlock Touchscreen
11 Quick Draw 24 Back
12 Page Up/Down* 25 Volume +/-
13 Function Buttons
*Only functional when the optional Windows OPS unit is installed into the display.
Start
1 15
2 16
3 17
18
19
20
21
22
23
24
25
4
5
6
7
8
9
10
11
12
13
14
Remove the Wi-Fi module cover,
install the Wi-Fi module, and then
install the antennas onto the module.
Plug the power cable into the display and a power
source, turn the power switch on, and then press the
power button.
Home Screen
1NovoConnect App 5Tools Menu 9Input Sources
2Web Browser 6All Apps 10 Network Status
3Finder File Management App 7Note Drawing App
4NT Minutes Screen Recording App 8NovoDS Digital Signage App
910
1 2 3 4
5 5
68 7
1 2
34
3
1
24
1HDMI Out Port 6HDMI In Port 3 11 RS-232 In Port
2USB 3.0 Ports x 3 7Touch (USB-B) Port 2 (for use with HDMI 2 Only)12 Audio Out Jack
3Touch (USB-B) Port 1 (for use with HDMI 1 Only)8VGA In Port 13 LAN Port
4HDMI In Port 1 9Audio In Jack 14 USB 2.0 Port
5HDMI In Port 2 10 SPDIF Port
76541 32
Ports and Connectors
Right
Bottom
98 10 11 12 13 14
