Denon ceol RCD-N12DAB User manual

NETWORK CD RECEIVER RCD-N12DAB
Owner’s Manual
.
Contents Connections Playback Settings Tips Appendix
1
Front/Top
panel Rear panel
Remote control
unit
Index

Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Part names and functions 10
Front/Top panel 10
Rear panel 13
Remote control unit 15
Connections
Connecting speakers 20
Connecting the speaker cables 20
Connecting speakers 21
Connecting the subwoofer 21
Connecting powered speakers 22
Connecting a digital device 23
Connecting an analog device 24
Connecting a USB flash drive to the USB port 25
Connecting a DAB/FM antenna 26
Connecting to a home network (LAN) 27
Wired LAN 27
Wireless LAN 28
Connecting the power cord 29
Contents Connections Playback Settings Tips Appendix
2
Front/Top
panel Rear panel
Remote control
unit
Index

Playback
Basic operation 31
Turning the power on 31
Switching the power to standby 31
Selecting the input source 32
Adjusting the volume 32
Turning off the sound temporarily (Muting) 32
Listening to Internet Radio 33
Listening to Internet Radio 34
Playing back files stored on PC or NAS 35
Playing back files stored on PC or NAS 36
Playing a USB flash drive 38
Playing files stored on USB flash drives 39
Listening to music on a Bluetooth device 41
Listening to music on a Bluetooth device 42
Pairing with other Bluetooth devices 43
Reconnecting to this unit from a Bluetooth device 44
Listening to audio on Bluetooth headphones 45
Listening to audio on Bluetooth headphones 46
Reconnecting to a Bluetooth headphones 47
Disconnecting Bluetooth headphones 47
Getting the HEOS app 48
Setting up the HEOS app for the first time with a HEOS built-in
device 49
Adding the registration of HEOS built-in devices in the HEOS app 50
HEOS Account 51
Playing from streaming music services 52
Listening to the same music in multiple rooms 55
Playing CDs 59
Playing CDs 59
Playing tracks in a specific order (Program playback) 61
Playing DATA CDs 62
Playing files 63
Contents Connections Playback Settings Tips Appendix
3
Front/Top
panel Rear panel
Remote control
unit
Index

Listening to DAB/FM broadcasts 65
Listening to DAB/FM broadcasts 65
Changing the FM tuning mode (Tune Mode) 66
Presetting DAB/FM stations 66
Automatically presetting FM stations (Auto Preset) 67
Listening to stations registered in the preset list 67
Deleting a station from the preset list 68
Auto scanning DAB broadcast stations 68
Switching the reception information for the currently tuned in DAB
station 69
RDS search 69
PTY search 70
TP search 71
Radio Text 71
Playing digital input 72
Playing analog input 74
AirPlay function 75
Playing songs from your iPhone, iPod touch, iPad or Mac 76
Playing songs from Windows PC 76
Play a song from your iPhone, iPod touch, iPad or Mac on multiple
synced devices (AirPlay 2) 77
Spotify Connect function 78
Playing Spotify music with this unit 78
Convenience functions 79
Playing back HEOS Favorites 80
Adding to HEOS Favorites 80
Deleting a HEOS Favorites 81
Switching the display’s brightness 81
Using the sleep timer 82
Checking the current time 82
Quick select function 83
Contents Connections Playback Settings Tips Appendix
4
Front/Top
panel Rear panel
Remote control
unit
Index

Settings
Menu map 84
Menu operation 87
Inputting characters 88
Using the number buttons 88
Using the cursor buttons 89
Audio 91
SDB/Tone 91
Volume Limit 91
H/P Amplifier Gain 92
Speaker Optimization 92
TV 93
TV Input 93
HDMI Power Off Control 94
General 95
Alarm 95
Clock 96
Clock Mode 97
IR Control 97
CD Auto Play 98
Language 98
Auto-Standby 98
Information 99
Reset 99
Network 100
Network Information 100
Wi-Fi 100
Bluetooth 101
Network Control 102
AirPlay Setup 102
DAB 103
Tuning Aid 103
Station Order 103
DRC (Dynamic Range Control) 103
DAB Initialize 103
DAB Version 103
Connecting to the network by using the WPS button on the
router 104
Contents Connections Playback Settings Tips Appendix
5
Front/Top
panel Rear panel
Remote control
unit
Index

Tips
Tips 106
Troubleshooting 108
Power does not turn on / Power is turned off 109
Light is flashing 109
Operations cannot be performed through the remote control unit 111
Display on this unit shows nothing 111
No sound comes out 112
Sound is interrupted or noise occurs 113
Desired sound does not come out 115
AirPlay cannot be played back 116
USB flash drives cannot be played back 117
File names on the USB flash drive are not displayed properly 118
Bluetooth cannot be played back 118
The Internet radio cannot be played back 121
Music files on PC or NAS cannot be played back (Music server) 122
Various online services cannot be played 123
Cannot connect to a wireless LAN network 123
Cannot playback Discs 124
Audio from digital devices cannot be played back (HDMI/Optical) 125
The input source switches to “HDMI” or “Optical” 125
The HDMI control function does not work 125
Update/upgrade error messages 126
Resetting network settings 127
Factory Restore 128
Contents Connections Playback Settings Tips Appendix
6
Front/Top
panel Rear panel
Remote control
unit
Index

Appendix
Playing back Discs 129
Files 129
Playback order of music files 130
About discs and files 131
Playing back a USB flash drives 132
Cautions on using media 134
Inserting a disc 134
How to handle media 135
Cleaning discs 135
Digital input 136
Playing back a Bluetooth device 136
Playing back files stored on a PC and NAS 137
Playing back Internet Radio 138
Last function memory 138
About HDMI 139
Explanation of terms 140
Trademark information 144
Specifications 145
Index 151
Contents Connections Playback Settings Tips Appendix
7
Front/Top
panel Rear panel
Remote control
unit
Index

Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are included with the product.
Quick Start Guide Safety Instructions Cautions on Using Batteries Notes on radio
Power cord HDMI cable 2× R03/AAA batteries Remote control unit
(RC-1255)
DAB/FM indoor antenna
Contents Connections Playback Settings Tips Appendix
8
Front/Top
panel Rear panel
Remote control
unit
Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
2Insert two batteries correctly into the battery
compartment as indicated.
Batteries
3Put the rear lid back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
30°
Approx. 7 m
30°
Contents Connections Playback Settings Tips Appendix
9
Front/Top
panel Rear panel
Remote control
unit
Index

Part names and functions
Front/Top panel
iQ0 Q1 uQ2 Q3
y
qwer
o
t
GTop panelH
GFront panelH
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
10
Front/Top
panel Rear panel
Remote control
unit
Index

GTop panelH
GFront panelH
iu
y
qwer
t
AQUICK SELECT keys (1 – 3)
These call up settings registered to each key, such as input source,
volume level and “SDB/Tone” in the setup menu. (v p. 83)
BVOLUME keys (df)
Adjusts the volume.
CInput source switching key (q)
This selects the input source.
DBACK key
Returns to the previous item.
EPlayback/Pause/ENTER key (1/3/ENTER)
Plays back and pauses tracks, and enters the selected content.
FCursor keys (uio p)
These select items.
GUSB port (T)
This is used to connect USB storages (such as USB flash drives).
(v p. 38)
HPower (X) button
This turns the power on/off (standby). (v p. 31)
Power indicator
This is lit as follows according to the power status:
0White: Power on
0Off: Standby
Contents Connections Playback Settings Tips Appendix
11
Front/Top
panel Rear panel
Remote control
unit
Index

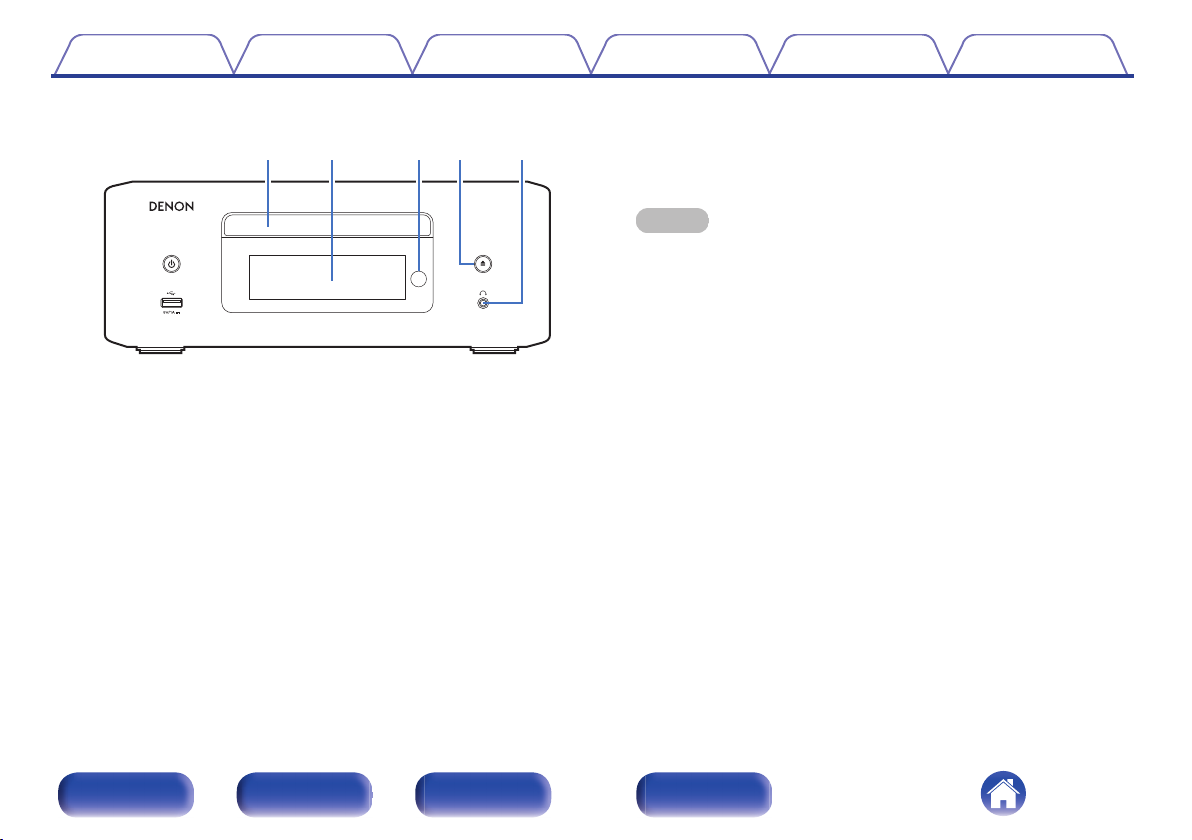

GFront panelH
Q0 Q1 Q2 Q3
o
IDisc tray
Used to insert a disc. (v p. 134)
JDisplay
This displays various pieces of information.
KRemote control sensor
This receives signals from the remote control unit. (v p. 9)
LDisc tray open/close button (5)
Opens and closes the disc tray. (v p. 59)
MHeadphones jack (R)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the speaker terminals and AUDIO OUT connectors
(including the SUBWOOFER connector).
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
12
Front/Top
panel Rear panel
Remote control
unit
Index

Rear panel
o Q
0
qwe ryut i
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
13
Front/Top
panel Rear panel
Remote control
unit
Index

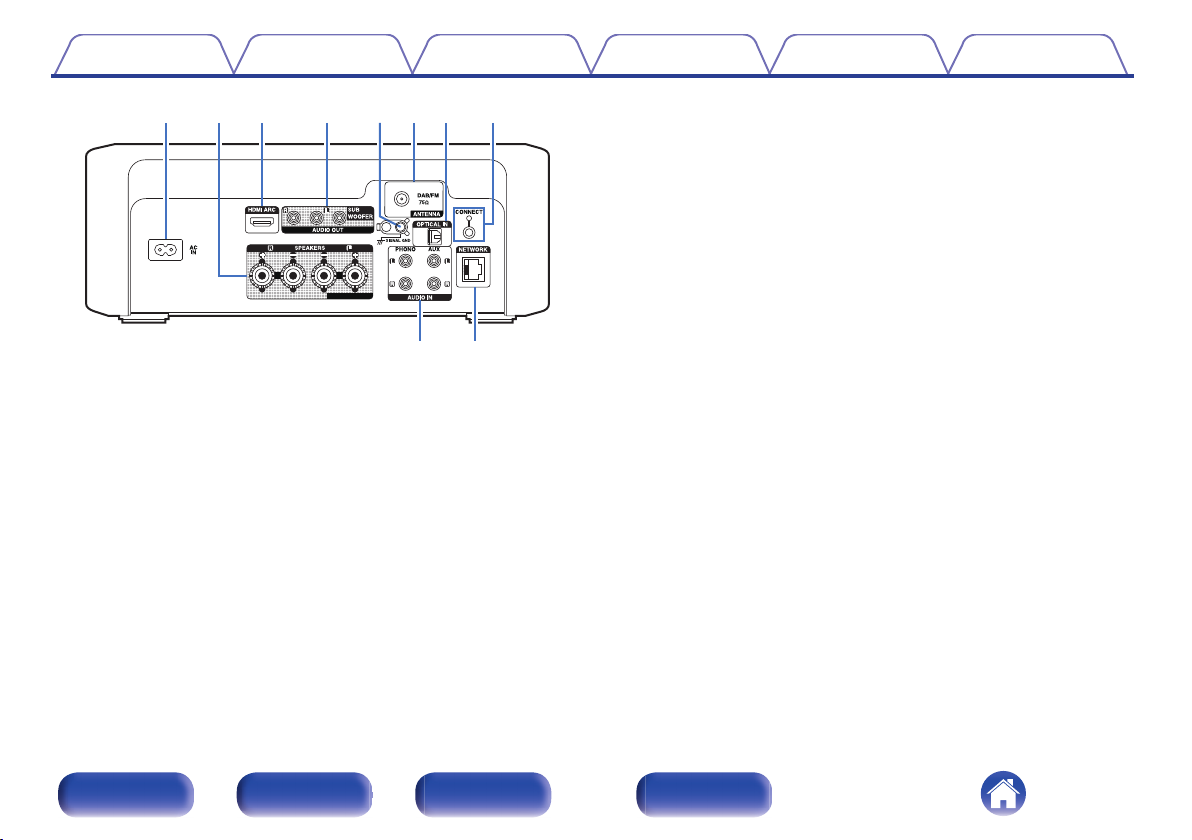

o Q0
qwe r yuti
AAC inlet (AC IN)
Used to connect the power cord. (v p. 29)
BSpeaker terminals (SPEAKERS)
Used to connect speakers. (v p. 20)
CHDMI connector (HDMI ARC)
Used to connect an ARC function-compatible TV. (v p. 23)
DAUDIO OUT connectors
Used to connect a subwoofer or powered speakers.
0“Connecting the subwoofer” (v p. 21)
0“Connecting powered speakers” (v p. 22)
ESIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 24)
FDAB/FM antenna terminal (ANTENNA)
Used to connect a DAB/FM antenna. (v p. 26)
GOPTICAL IN connector
Connecting to a device with optical digital audio output connector.
(v p. 23)
HCONNECT button/light
Used for Wi-Fi setup. (v p. 104)
IAUDIO IN connectors
Connecting to a device with analog audio output connectors.
(v p. 24)
JNETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 27)
Contents Connections Playback Settings Tips Appendix
14
Front/Top
panel Rear panel
Remote control
unit
Index

Remote control unit
w
q
r
e
t
ARemote control signal transmitter
This transmits signals from the remote control unit. (v p. 9)
BSLEEP button
This sets the sleep timer. (v p. 82)
CCLOCK button
The current time appear on the unit. (v p. 82)
DInput source select buttons
These select the input source. (v p. 32)
EQUICK SELECT buttons (1 – 3)
These call up settings registered to each button, such as input source,
volume level and “SDB/Tone” in the setup menu. (v p. 83)
Contents Connections Playback Settings Tips Appendix
15
Front/Top
panel Rear panel
Remote control
unit
Index

u
y
FSystem buttons
These perform playback related operations.
0Play/Pause button (1/3)
Press this button to pause during playback. If pressed while paused
or stopped, resumes playback from the last track played.
0Forward-skip button (9)
Press this button during playback to play the next track.
Press this button during tuner playback to select stations registered
to the preset list. (v p. 67)
0Reverse-skip button (8)
Press this button during playback to restart the current track or play
the previous track.
Press this button during tuner playback to select stations registered
to the preset list. (v p. 67)
0Stop button (2)
Press this button to stop during playback.
0Depending on the input source and online service, the operation cannot be
performed.
GTUNE buttons (df)
These operate the tuner. (v p. 65)
Contents Connections Playback Settings Tips Appendix
16
Front/Top
panel Rear panel
Remote control
unit
Index

Q6
Q1
Q0
Q2
Q3
Q4
o
Q5
i
HQUEUE button
This displays the queue.
0“Listening to Internet Radio” (v p. 33)
0“Playing back files stored on PC or NAS” (v p. 35)
0“Playing a USB flash drive” (v p. 38)
IENTER button
This determines the selection.
JCursor buttons (uio p)
These select items.
KBACK button
Returns to the previous item.
LNumber/letter buttons (0 – 9, +10)
These enter letters or numbers into the unit. (v p. 88)
MRANDOM button
Switches the random playback.
NREPEAT button
Switches the repeat playback.
ODIMMER button
Adjust the display brightness of this unit. (v p. 81)
PPower (POWER X) button
This turns the power on/off (standby). (v p. 31)
Contents Connections Playback Settings Tips Appendix
17
Front/Top
panel Rear panel
Remote control
unit
Index

W1
W2
Q8
Q9
W3
Q7
W0
QVOLUME buttons (df)
Adjusts the volume. (v p. 32)
ROPTION button
This displays the option menu on the display.
0An option menu is not displayed for some input sources.
SMUTE button (:)
This mutes the output audio. (v p. 32)
TSETUP button
The setup menu is displayed on the display. (v p. 87)
UCLEAR button
This cancels the settings.
VInformation button (INFO)
This switches the track information shown in the display during
playback.
WPROGRAM button
0This sets program playback. (v p. 61)
0This switches the playback range on a data CD. (v p. 64)
Contents Connections Playback Settings Tips Appendix
18
Front/Top
panel Rear panel
Remote control
unit
Index

oContents
Connecting speakers 20
Connecting a digital device 23
Connecting an analog device 24
Connecting a USB flash drive to the USB port 25
Connecting a DAB/FM antenna 26
Connecting to a home network (LAN) 27
Connecting the power cord 29
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords with connection cables. Doing so can result in
humming or noise.
oCables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
(not included)
Subwoofer cable
(not included)
HDMI cable
(included)
Optical cable
(not included)
Audio cable
(not included)
R
L
R
L
LAN cable
(not included)
Contents Connections Playback Settings Tips Appendix
19
Front/Top
panel Rear panel
Remote control
unit
Index

Connecting speakers
NOTE
0Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. “Protection circuit” (v p. 143)
0Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0Use speakers with an impedance of 4 – 16 Ω/ohms.

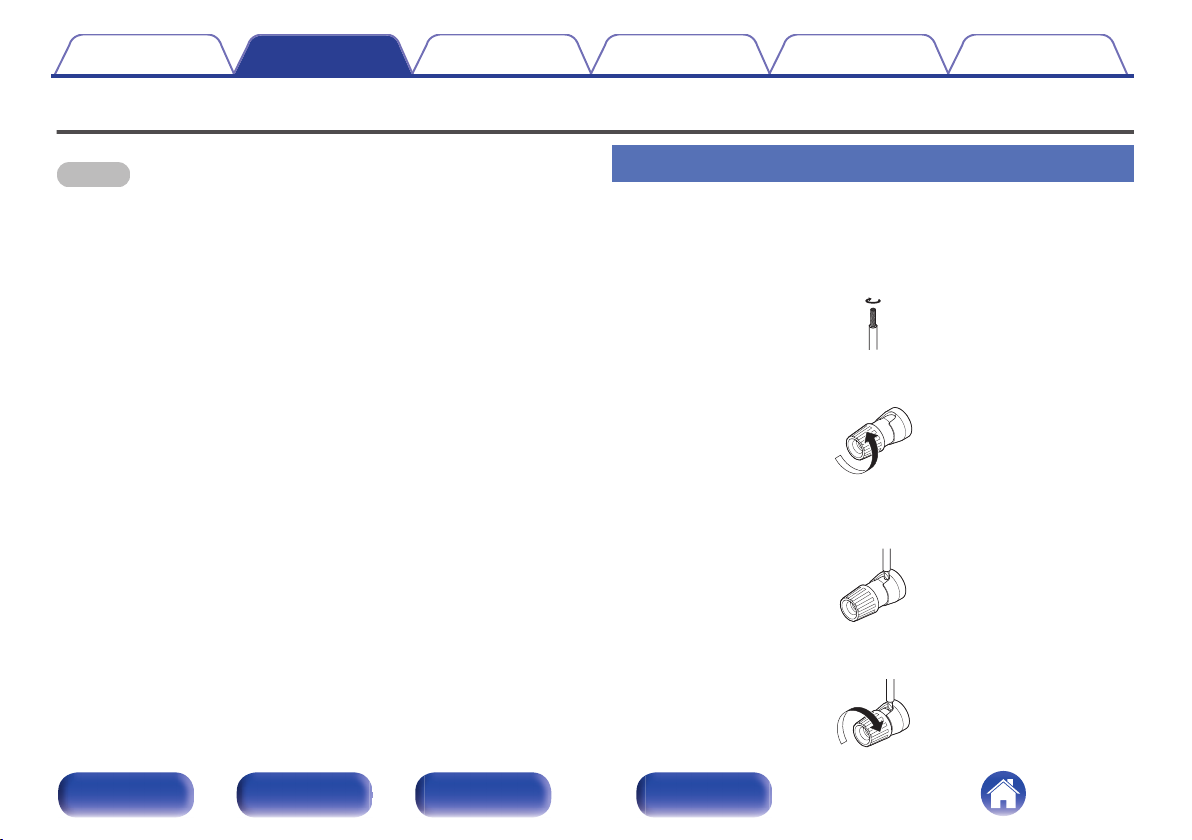

Connecting the speaker cables
Connect the speaker cable with a rubber tube (red) to the + speaker
terminal (red), and the other cable to the - speaker terminal (black).
1
Peel off about 10 mm of sheathing from the tip of the speaker
cable, then either twist the core wire tightly or terminate it.
2
Turn the speaker terminal counterclockwise to loosen it.
3Insert the speaker cable’s core wire to all the way into
the speaker terminal.
4Turn the speaker terminal clockwise to tighten it.
Contents Connections Playback Settings Tips Appendix
20
Front/Top
panel Rear panel
Remote control
unit
Index
