Desa R60 User manual

PORTABLE
FORCED
AIR HEATER
OWNER'S MANUAL
Heater Sizes: 40,000 and 60,000 Btu/Hr
Models: R40, REM40, R60, B60, and REM60
H.S.I. Series
IIMPORTANT: Read and understand this manual before assembling, start- I
I
ing, or servicing heater. Improper use of heater can cause serious injury. I
Keep this manual for future reference.

40,000 And 60,000 Btu/Hr H.S.I. Series
PORTABLE FORCED AIR HEATERS

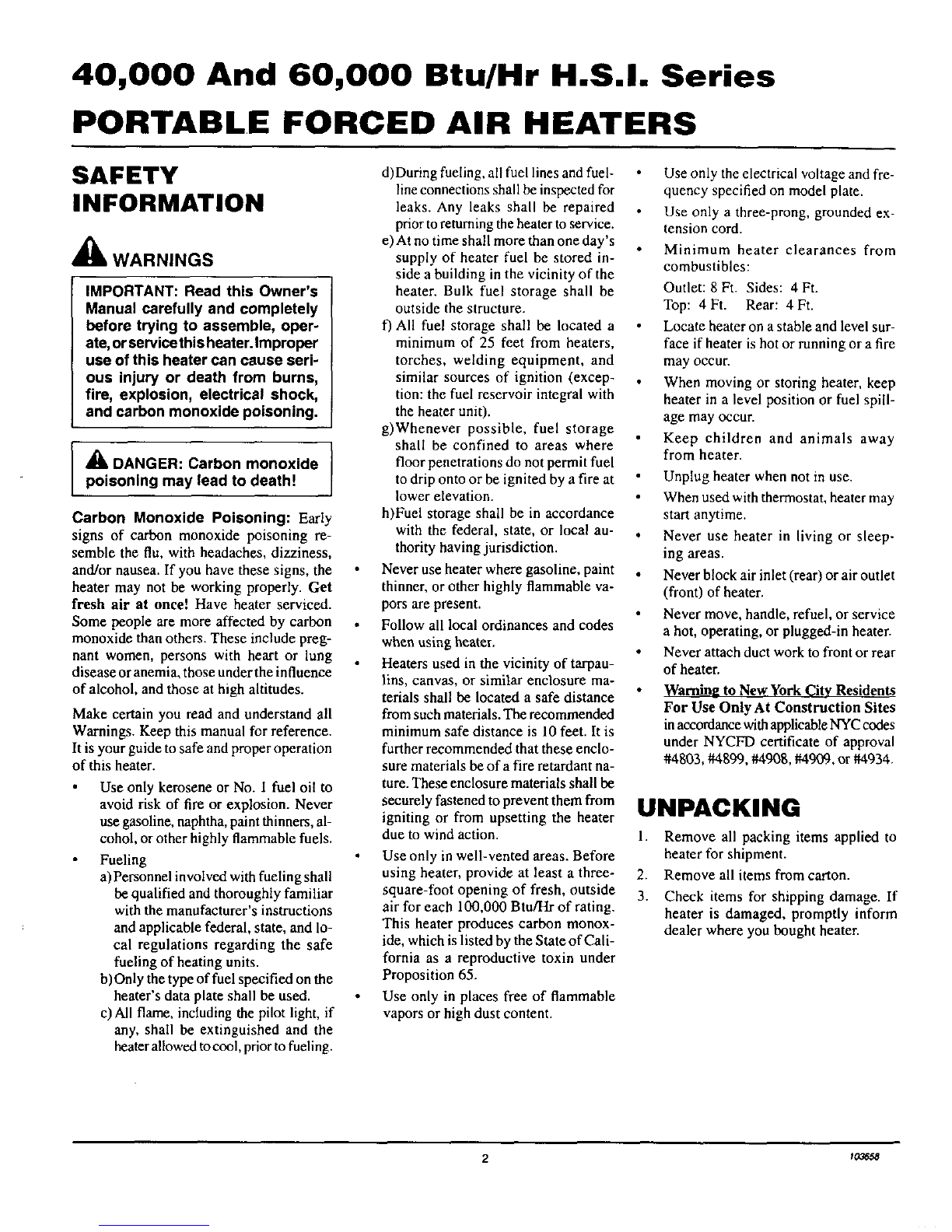

SAFETY
INFORMATION
,_ 1WARNINGS
IMPORTANT: Read this Owner's
Manual carefully and completely
before trying to assemble, oper-
ate,orservice thisheater. Improper
use of this heater can cause seri-
ous injury or death from burns,
fire, explosion, electrical shock,
and carbon monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early
signs of carbon monoxide poisoning re-
semble the flu, with headaches, dizziness,
and/or nausea. If you have these signs, the
heater may not be working properly. Get
fresh air at once! Have heater serviced.
Some people are more affected by carbon
monoxide than others. These include preg-
nant women, persons with heart or lung
disease or anemia, those under the influence
of alcohol, and those at high altitudes.
Make certain you read and understand all
Warnings. Keep this manual for reference.
It is your guide to safe and proper operation
of this heater.
Use only kerosene or No. 1 fuel oil to
avoid risk of fire or explosion. Never
use gasoline, naphtha, paint thinners, al-
cohol, or other highly flammable fuels.
Fueling
a) Personnel involved with fueling shall
be qualified and thoroughly familiar
with the manufacturer's instructions
and applicable federal, state, and lo-
cal regulations regarding the safe
fueling of heating units.
b)Only the type of fuel specified on the
heater's data plate shall be used.
c) All flame, including the pilot light, if
any, shall be extinguished and the
heater allowed to cool, prior to fueling.
d)During fueling, all fuel lines and fuel-
line connections shall be inspected for
leaks. Any leaks shall be repaired
prior to returning the heater to service.
e) At no time shall more than one day's
supply of heater fuel be stored in-
side a building in the vicinity of the
heater. Bulk fuel storage shall be
outside the structure.
f) All fuel storage shall be located a
minimum of 25 feet from heaters,
torches, welding equipment, and
similar sources of ignition (excep-
tion: the fuel reservoir integral with
the heater unit).
g)Whenever possible, fuel storage
shall be confined to areas where
floor penetrations do not permit fuel
to drip onto or be ignited by a fire at
lower elevation.
h)Fuel storage shall be in accordance
with the federal, state, or local au-
thority having jurisdiction.
Never use heater where gasoline, paint
thinner, or other highly flammable va-
pors are present.
Follow all local ordinances and codes
when using heater.
Heaters used in the vicinity of tarpau-
lins, canvas, or similar enclosure ma-
terials shall be located a safe distance
from such materials. The recommended
minimum safe distance is 10 feet. It is
further recommended that these enclo-
sure materials be of a fire retardant na-
ture. These enclosure materials shall be
securely fastened to prevent them from
igniting or from upsetting the heater
due to wind action.
Use only in well-vented areas. Before
using heater, provide at least a three-
square-foot opening of fresh, outside
air for each 100,000 Btu/Hr of rating.
This heater produces carbon monox-
ide, which is listed by the State of Cali-
fornia as a reproductive toxin under
Proposition 65.
Use only in places free of flammable
vapors or high dust content.
Use only the electrical voltage and fre-
quency specified on model plate.
Use only a three-prong, grounded ex-
tension cord.
Minimum heater clearances from
combustibles:
Outlet: 8 Ft. Sides: 4 Ft.
Top: 4Ft. Rear: 4 Ft.
Locate heater on a stable and level sur-
face if heater is hot or running or a fire
may occur.
When moving or storing heater, keep
heater in a level position or fuel spill-
age may occur.
Keep children and animals away
from heater.
Unplug heater when not in use.
When used with thermostat, heater may
start anytime.
Never use heater in living or sleep-
ing areas.
Never block air inlet (rear) or air outlet
(front) of heater.
Never move, handle, refuel, or service
a hot, operating, or plugged-in heater.
Never attach duct work to front or rear
of heater.
Warnin2 to New York City Residents
For Use Only At Construction Sites
in accordance with applicable NYC codes
under NYCFD certificate of approval
#4803, #4899, #4908, €-4909, or #4934.
UNPACKING
I.
2.
3.
Remove all packing items applied to
heater for shipment.
Remove all items from carton.
Check items for shipping damage. If
heater is damaged, promptly inform
dealer where you bought heater.

OWNER'S MANUAL

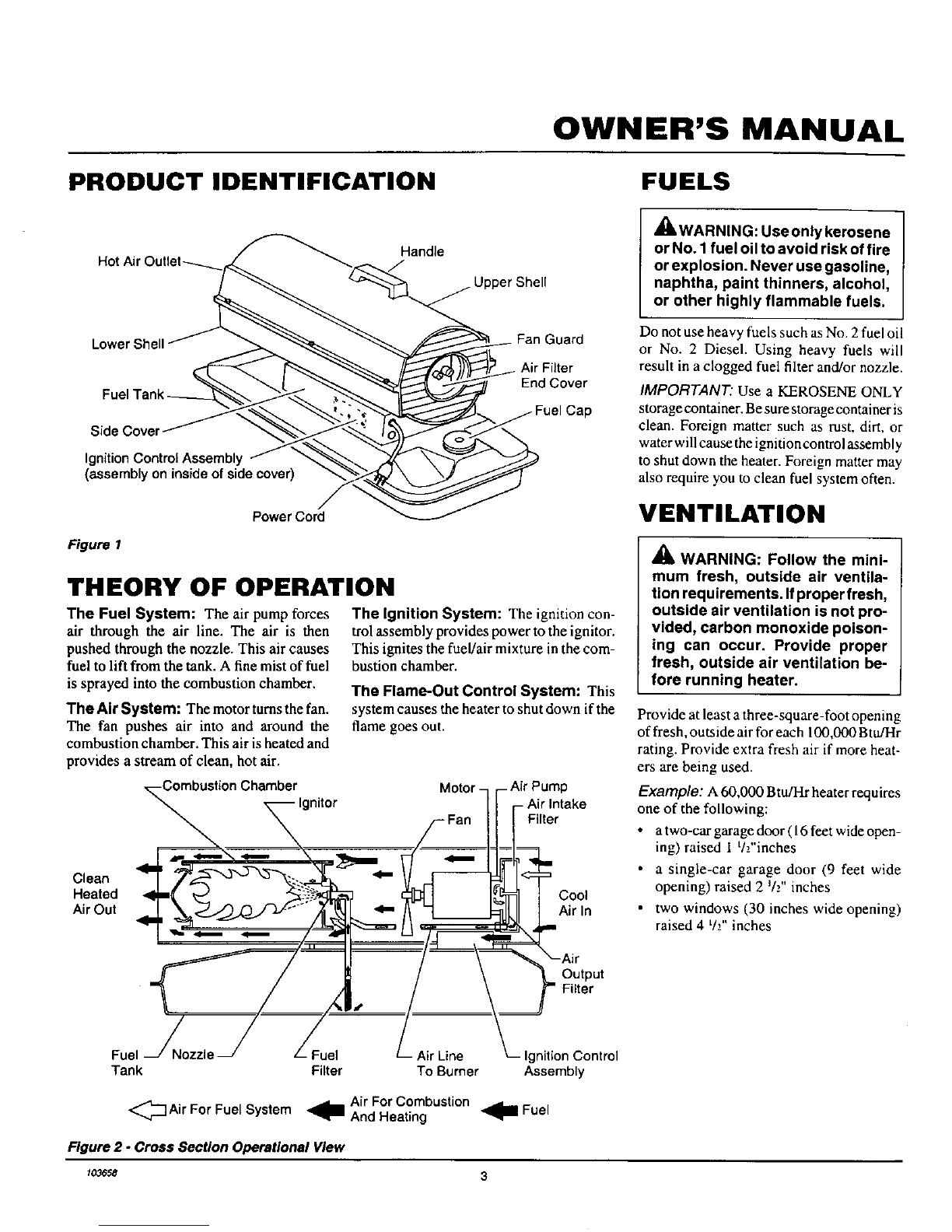

PRODUCT IDENTIFICATION
Handle
Hot Air Outlet_ ""_"_% Uppe r Shell
_ Fan Guard
Lower Shell f _ _ _ F EAirFilterer
Fuel Tank_ _._ ..,_/iuelCap
,g'iidt,eCcVenrtro, Assembly "_
(assembly on inside of side cover) _ _--_
/-.<
Power Cord
Figure 1
THEORY OF OPERATION
The Fuel System: The air pump forces
air through the air line. The air is then
pushed through the nozzle. This aircauses
fuel to lift from the tank.A finemist of fuel
is sprayed into the combustion chamber.
The Air System: The motor tarns thefan.
The fan pushes air into and around the
combustion chamber. This air is heated and
provides a stream of clean, hot air.
The Ignition System: The ignition con-
trol assembly provides power to the ignitor.
This ignites the fuel/air mixture inthe com-
bustion chamber.
The Flame-Out Control System: This
system causes the heater to shut down if the
flame goes out.
Clean
Heated
Air Out
Fuel
Tank
_ Air Pump
- Air Intake
Filter
_A Cool
ir In
-- Ignition Control
Assembly
Air For Combustion
<_Air For FueISystem <_ Fuel
And Heating _,
Figure 2. Cross Section Operational View
10365B 3
FUELS
_WARNING: Use only kerosene
or No. 1 fuel oilto avoid risk offire
or explosion. Never use gasoline,
naphtha, paint thinners, alcohol,
or other highly flammable fuels.
Do not use heavy fuels such as No. 2 fuel oil
or No. 2 Diesel. Using heavy fuels will
result in a clogged fuel filter and/or nozzle.
IMPORTANT: Use a KEROSENE ONLY
storagecontainer. Be sure storagecontainer is
clean. Foreign matter such as rest, dirt, or
water will causethe ignitioncontrol assembly
to shut down the heater. Foreign matter may
also require you to clean fuel system often.
VENTILATION
_[_ WARNING: Follow the mini-
mum fresh, outside air ventila-
tion requirements. Ifproper fresh,
outside air ventilation is not pro-
vided, carbon monoxide poison-
ing can occur. Provide proper
fresh, outside air ventilation be-
fore running heater.
Provide at least a three-square-foot opening
of fresh, outside air for each 100,000 Btu/Hr
rating. Provide extra fresh air if more heat-
ers are being used.
Example: A 60,000 BttffHr heater requires
one of the following:
•atwo-car garage door (16 feet wide open-
ing) raised i th"inches
•a single-car garage door (9 feet wide
opening) raised 2 _/z" inches
•two windows (30 inches wide opening)
raised 4 t/.,- inches

40,000 And 60,000 Btu/Hr H.S.I. Series
PORTABLE FORCED AIR HEATERS
OPERATION
A
41& WARNING: Review and un-
derstand the warnings in the
Safety Information section, page
2. They are needed to safely op-
erate this heater. Follow all local
codes when uslng this heater.
TO START HEATER
1. Follow all ventilation and safety
information.
2. Fill fue! tank with kerosene or No. 1
fuel oil.
3. Attach fuel cap.
4. Plug power cord of heater into three-
prong, grounded extension cord. Exten-
sion cord must be at least six feet long.
5.
Extension Cord Wire Size
Requirements
•6 to 10 feet long, use i8 AWG rated
cord
• 11 to 100 feet long, use 16 AWG
rated cord
• 101 to 200 feet long, use 14 AWG
rated cord
Plug extension cord into standard 120
volt/60 hertz, three-hole, grounded out-
let. Note: Ignitor will preheat for five
seconds then heater will start.
TO STOP HEATER
Unplug extension cord from outlet.
TO RESET HEATER
1. Unplug extension cord fromoutlet and
wait 10 seconds (two minutes if heater
h_t_en running).
2. Plug extension cord into standard 120
volt/60 hertz, three-hole, grounded out-
let. Note: Ignitor will preheat for five
seconds then heater will start.
STORING,
TRANSPORTING,
OR SHIPPING
Note: If shipping, transport companies re-
quire fuel tanks to be empty.
1. Drain fuel tank. Drain fuel through fuel
cap opening. Be sure all fuel is removed.
2. If any debris is noted in old fuel, add 1
or 2 quarts of clean kerosene to tank,
stir, and drain again. This will prevent
excess debris from clogging filters dur-
ing future use.
3. Replace fuel cap. Properly dispose of old
and dirty fuel. Check with local auto-
motive service stations that recycle oil.
4. If storing, store heater in dry place.
Make sure storage place is free of dust
and corrosive fumes.
IMPORTANT: Do not store kerosene over
summer months for use during next heating
season. Using old fuel could damage heater.
PREVENTATIVE MAINTENANCE SCHEDULE
(
_k WARNING: Never service heater while._ is plugged in, operating, or
hot. Severe burns and electrical shock can occur.
Item
Fuel tank
How Often How To
Flush every 150-200 hours of operation or S_eStoriug, Transporting, orShipping, above.
as needed
Air outputand lint filters Replace every 500 hours of operation or SeeAirOutput, Airhztake, aud Lint Filters,
once a year page 6
Air intake filter Wash and dry with soap an water every 500 See Air Output, Air Intake, and Lint Filters,
hours of operation or replace as needed page 6
Fuel filter Clean twice a heating season or replace See Fuel Filter, page 7
as needed
Ignitor
Fan blades
No maintenance required
Clean each season or as needed See Fan, page 6
Motor Not required/permanently lubricated
4103658

OWNER'S MANUAL
TROUBLESHOOTING
Note: For additional help, visit DESA
International's Technical Service web
site at www.desatech.com.
A
Am, WARNING: Never service heater while it is plugged in, operating, or
hot. Severe burns and electrical shock can occur.
FAULT CONDITION POSSIBLE CAUSE REMEDY
Motor does not start five seconds after heater
is plugged in 1. No power to heater
,_ WARNING: High voltage!
2. Bad electrical connection between mo-
tor and ignition control assembly or ig-
nition control assembly and power cord
3. Blown fuse on ignition control assembly
4. Binding pump rotor
5. Defective ignition control assembly
6. Defective motor
1. Check circuit breaker in electrical panel
2. Check all electrical connections. See
Wiring Diagrams, page i0
3. See Ignitor, page 7
4. Iffandoesnotturnfreely, seePumpRo-
tor, page 8
5. Replace ignition control assembly
6. Replace motor
Motor starts and runs but heater does not ignite 1. No fuel in tank
2. Pump pressure incorrect
3. Dirty fuel filter
4. Obstruction in nozzle
5. Water in fuel tank
J_k WARNING: High voltage! I
6. Badelectrical connection between igni-
tor and ignition control assembly
7. Defective ignitor
8. Defective ignition control assembly
1. Fill tank with kerosene
2. See Pump Pressure Adjustment, page 6
3. See Fuel Filter, page 7
4. See Nozzle Assembly, page 8
5. Drain and flush fuel tank with clean
kerosene. See Storing, Transporting, or
Shipping, page 4
6. Check electrical connections. See Wir-
ing Diagrams, page 10.
7. Replace ignitor, see page 7.
8. Replace ignition control assembly.
Heater ignites but ignition control assembly
shuts heater off after a short period of time 1. Pump pressure incorrect
2. Dirty air intake, air output, and/or lint
filter
3. Dirty fuel filter
4. Obstruction in nozzle
5. Photocell assembly not properly in-
stalled (not seeing the flame)
J_WARNING: High voltage, I
6. Dirty photocell lens
7. Bad electrical connection between pho-
tocell and ignition control assembly
8. Defective photocell
9. Defective ignition control assembly
I. See Pump Pressure Adjustment, page 6
2. See Air Output, Air hztake, and Lint Fit-
ters, page 6
3. See Fuel Filter, page 7
4. See Nozzle Assembly, page 8
5. Make sure photocell boot is properly
seated in bracket
6. Clean photocell lens
7. Check electrical connections. See Wir-
ing Diagrams. page l0
8. Replace photocell
9. Replace ignition control assembly0
1086.58
www.desatech.com
5

40,000 And 60,000 Btu/Hr H.S.I. Series
PORTABLE FORCED AIR HEATERS

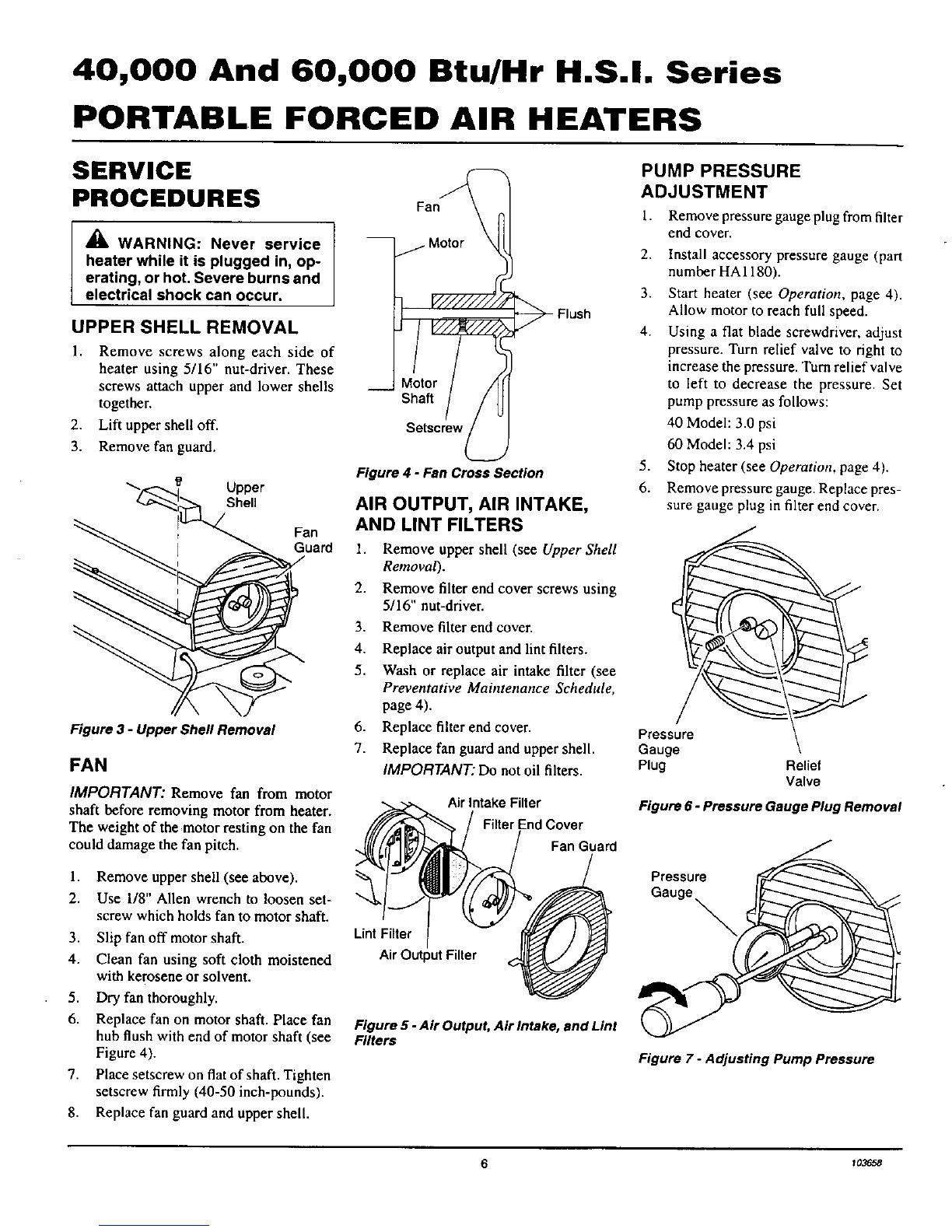

SERVICE
PROCEDURES
_service
I heater while it is plugged in, op-
] erating, or hot. Severe burns and
electrical shock can occur.
UPPER SHELL REMOVAL
1. Remove screws along each side of
heater using 5116 nut-driver. These
screws attach upper and lower shells
together.
2. Lift upper shell off.
3. Remove fan guard. °p°er
ell Fan
Guard
Figure 3 - Upper Shell Removal
FAN
IMPORTANT: Remove fan from motor
shaft before removing motor from heater.
The weight of the motor resting on the fan
could damage the fan pitch.
1. Remove upper shell (see above).
2. Use 1/8" Allen wrench to loosen set-
screw which holds fan to motor shaft.
3. Slip fan off motor shaft.
4. Clean fan using soft cloth moistened
with ket:osene or solvent.
5. Dry fan thoroughly.
6. Replace fan on motor shaft. Place fan
hub flush with end of motor shaft (see
Figure 4).
7. Place setscrew on flat of shaft. Tighten
setscrew firmly (40-50 inch-pounds).
8. Replace fan guard and upper shell.
Setscrew
Figure 4 -Fen Cross Section
AIR OUTPUT, AIR INTAKE,
AND LINT FILTERS
1. Remove upper shell (see Upper Shell
Removal).
2. Remove filter end cover screws using
5/16" nut-driver.
3. Remove filter end cover.
4. Replace air output and lint filters.
5. Wash or replace air intake filter (see
Preventative Maintenance Schedule,
page 4).
6. Replace filter end cover.
7. Replace fan guard and upper shell.
iMPORTANT: Do not oil filters.
Air Intake Filter
Filter End Cover
Fan Guard
Lint Filter
Air Output Filter
Figure 5 -Air Output, Air Intake, end Lint
Filters
PUMP PRESSURE
ADJUSTMENT
!. Remove pressure gaugeplug from filter
end cover.
2. Install accessory pressure gauge (part
number HAl 180).
3. Start heater (see Operation, page 4).
Allow motor to reach full speed.
4. Using a flat blade screwdriver, adjust
pressure. Turn relief valve to right to
increase the pressure. Turn relief valve
to left to decrease the pressure. Set
pump pressure as follows:
40 Model: 3.0 psi
60 Model: 3.4 psi
Stop heater (see Operation, page 4).
Remove pressure gauge. Replace pres-
sure gauge plug in filter end cover.
5.
6.
Pressure
Gauge
Plug Relief
Valve
Figure 6 -Pressure Gauge Plug Removal
Pressure
Figure 7- Adjusting Pump Pressure
6w3_a

OWN ER'S MAN UAL
SERVICE
PROCEDURES
Continued
,_ WARNING: Never service
heater while it is plugged in, op-
erating, or hot. Severe burns and
electrical shock can occur.
FUEL FILTER
1. Remove 4 side cover screws using
5/16" nut-driver.
2. Remove side cover.
3. Pull upper fuel line off fuel filter neck.
4. Carefully pry bushing and fuel filter out
of fuel tank.
5, Wash fuel filter with clean fuel and re-
place in tank.
6. Attach upper fuel line to fuel filter neck.
7. Replace side cover.
IGNITOR
1. Remove upper shell and fan guard (see
Upper Shell Removal, page 6).
2. Remove fan (see Upper Shell Removal,
page 6).
3. Remove 4 side cover screws with a
5/16" nut driver. Remove side cover
(see Figure 8).
4. Disconnect ignitor wires (gray) from
ignition control assembly (see Figure
9). Pull the ignitor wires up through the
hole in the lower shell.
5. Disconnect fuel line hose and air line
hose. Remove photocell from photocell
bracket (see Figure 9).
6. Remove combustion chamber• Stand
combustion chamber on end with
nozzle adapter bracket on top (see Fig-
ure 10).
7. Remove ignitor screw with a 1/4" nut
driver. Carefully remove ignitor from
nozzle adapter bracket.
Fuel Filter Nozzle
Adapter
Combustion _
Chamber _ /uracket
\//. ylgnitor
//// IJ.j,gnitor
Line /// f _ ,>'7Wires
Hose"'_//r,,_f :_'_ ?/,,
•l-J- "";gn.,on
Side Cover Upper Fuel Line Photocell/) _._. Control
Figure 8 - Fuel Filter Removal Bracket %.._ _ Assembly
Photocell
Assembly Side Cover
Figure 9 - Disconnecting Ignitor Wires
from Ignition Control Assembly (see
Wiring Diagrams, Figure 18 or 19
appropriately, page 10)
_CAUTION: Do notbend orstrike ]ignitor element. Handle with care.
8. Carefully remove replacement ignitor
from styrofoam packing•
9. Carefully guide ignitor into opening in
nozzle adapter bracket. Do not strike
ignitor element. Attach ignitor to nozzle
adapter bracket with screw using a i/4"
nut driver (see Figure 10). Torque 8 to
15 in. lbs. Do not over torque•
10. Replace combustion chamber.
i1, Route the ignitor wires back down
through the hole in the lower shell•
Connect wires to the ignition control
assembly•
12. Replace side cover (see Figure 8).
13. Connect and route fuel line hose and
air line hose to nozzle adapter (see Fig-
ure 9).
14. Replace photocell in photocell
bracket, Route wire as shown in Fig-
ure 11, page 8.
15, Replace fan (see page 6).
16. Replace fan guard and upper shell (see
page 6). _ Ignitor
OScrew/
IWasher
A_sembly
gnitor
_,, Element']_ i Nozzle
Photocell I I h, Adapter
Bracket _I Bracket
Nozzle Adapter
Combustion Bracket Opening
Chamber
Figure 10 - Ignitor Replacement
Continued
103658 7

40,000 And 60,000 Btu/Hr H.S.I. Series
PORTABLE FORCED AIR HEATERS
SERVICE
PROCEDURES
Continued
NOZZLE ASSEMBLY
1. Remove upper shell (see page 6).
2. Remove fan (see page 6).
3. Remove fuel and air line hoses from
nozzle assembly (see Figure 11).
4. Turn nozzle assembly 1/4 turn to left
and pull toward motor to remove (see
Figure I2).
5. Place plastic hex-body into vise and
lightly tighten.
6. Carefully remove nozzle from the
nozzle adapter using 5/8" socket
wrench (see Figure 13).
7. Blow compressed air through face of
nozzle, This will free any dirt in
nozzle area.
8. Inspect nozzle seal for damage.
9. Replace nozzle into nozzle adapter un-
til nozzle seats. Tighten 1/3 turn more
using 5/8" socket wrench (40-45 inch-
pounds).
10. Attach nozzle assembly to burner strap.
11. Attach and route fuel and airline hoses
to nozzle assembly as shown (see Fig-
ure 11). Route photo cell wires as
shown in Figure 11.
12. Replace fan (see page 6).
13. Replace fan guard and upper shell.
Combustion
Chamber
Bumer •
Strap Nozzle/
Adapter
Assembly
Photocell
Wires
_eHose
Air Line Hose
Figure 11 - Removing Air and Fuel Line
Hoses
Combustion
Chamber Nozzle/Adapter
\__Assembly
Figure 12 - Removing Nozzle/Adapter
Assembly
PUMP ROTOR
(Procedure if Rotor is Binding)
I. Remove upper shell (see page 6),
2, Remove filter end cover screws using
5/16" nut-driver,
3. Remove filter end cover and air filters.
4. Remove pump plate screws using 5/16"
nut-driver.
5. Remove pump plate.
6. Remove rotor, insert, and blades.
7. Check for debris in pump. If debris is
found, blow out with compressed air.
8. Install insert and rotor•
9. Check gap on rotor. Adjust to .003"/,004"
if needed (see Figure 15).
Note: Rotate rotor one full turn to in-
sure the gap is .003"/.004" at tightest
position. Adjust if needed.
10. Install blades, pump plate, air filters,
and filter end cover.
11.
12.
Replace fan guard and upper shell.
Adjust pump pressure (see Pump Pres-
sure Adjustment, page 6).
Note: If rotor is still binding, proceed
as follows.
13. Perform steps 1 through 6 above.
14. Place fine grade sandpaper (600 grit) on
fiat surface. Sand rotor lightly in "figure
8" motion four times (see Figure 16).
15. Reinstall insert and rotor.
16. Perform steps 10through 12 above.
Nozzle Face
ozzle Seal
N°ZZlNozzle Adaptere _'_'_
Air Line Fitting / /
/
Fuel Line Fitting
Figure 13 -Nozzle and Nozzle Adapter
Blade
Pump Plate
Air Intake Filter
Filter End
Cover
Rotor
Air Output
Filter
Fan Guard
Figure 14 -Rotor Location
i_/___r_ade Gap Adjustiniiii0_e_"
Gap AdjustingScrew
Figure 15 -Gap Adjusting Screw
Locations
Sandpaper
Figure 16 - Sending Rotor
81o3658

OWNER'S MANUAL
SPECIFICATIONS
Output Rating (Btu/Hr) 40,000 60,000
Fuel Use Only Kerosene or No. 1 Fuel Oil
Fuel Tank Capacity (U.S. Gal.) 3.0 5.0
Fuel Consumption (Gal. Per Hr.) .30 .44
Pump Pressure (p.s.i.) 3.0 3.4
Electric Requirements 120 V/60 Hz
Amperage (Normal Run) 2.0 2.0
Hot Air Output (CFM) 170 180
Motor RPM 1725 1725
Motor HP 1/15 1/15
Shipping Weight
(Approximate Pounds) 32 33
Heater Weight without Fuel
(Approximate Pounds) 28 29
TECHNICAL
SERVICE
You may have further questions about in-
stallation, operation, or troubleshooting.
If so, contact DESA International's Techni-
cal Service Department at 1-800-323-5190.
You can also visit DESA International's
Technical Services web site at
www.desalech.com.
REPLACEMENT
PARTS
Note: Use only original replacement pans.
This will protect your warranty coverage for
parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product.
If they can't supply original replacement
part(s), call DESA International's Techni-
cal Service Dept. at 1-800-323-5190.
When calling DESA International, have
ready:
your name
your address
model number of your heater
how heater was malfunctioning
purchase date
Usually, we will ask you to return the defec-
tive part to the factory.
PARTS NOT UNDER
WARRANTY
Contact authorized dealers of this product.
If they can't supply original replacement
part(s), call DESA International's Parts
Department at 1-800-972-7879 for referral
information. Parts Centrals are listed in the
Authorized Service Center booklet supplied
with heater.
When calling DESA International, have
ready:
•model number of your heater
• the replacement part number
1oa_ 9

40,000 And 60,000 Btu/Hr H.S.I. Series
PORTABLE FORCED AIR HEATERS
WIRING DIAGRAMS
Power Plug
120V/60Hz
_Gray
Gray Red
"_ Black
White
Whi_
Photocell(_ BlueBlUe
c_ IGNITOR
c:_ MOTOR MAIN
Ignition Control
Assembly
c_ 120V (L1)
c_ AC NEUTRAL (L2)
_= MOTOR RETURN
IGNITOR
_-q PHOTOCELL o
PHOTOCELL
Figure 17- Wiring Diagram for Heaters Using 104040-02 Ignition Control Assembly
Power Plug
120V/60Hz
Black Grayt
Red
IWhite
Blue
Phot_ell_) Blue
_/hite
,J_ MOTOR MAIN
"--_ IGNITOR
Ignition Control
Assembly
,.L, MOTOR RETURN
tL_ PHOTOCELL
_pPHOTOCELL
C_L2AC NEUTRAL
Figure 18 -Wiring Diagram for Heaters Using 102350-01 Ignition Control Assembly
10 103658

OWNER'S MANUAL

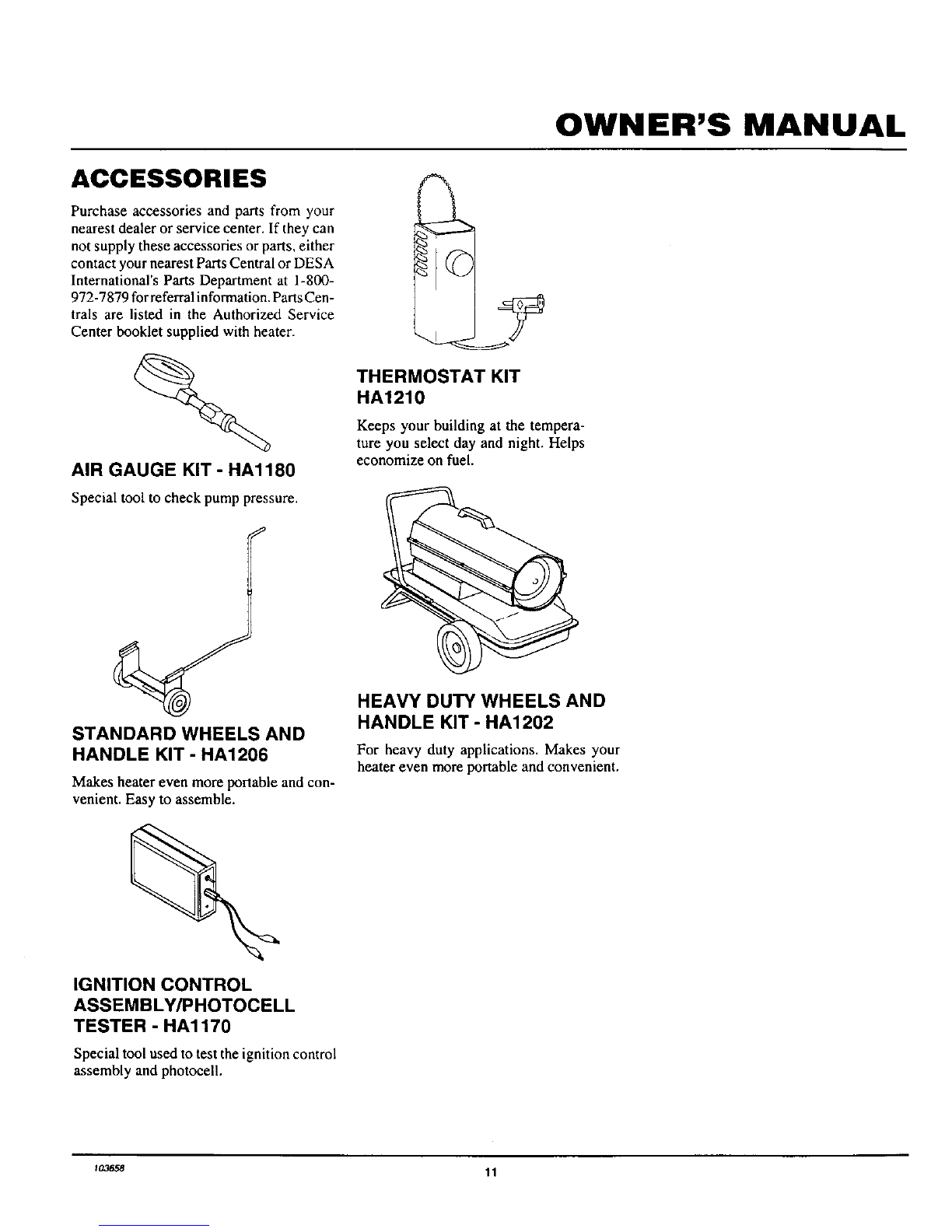

ACCESSORIES
Purchase accessories and parts from your
nearest dealer or service center. If they can
not supply these accessories or parts, either
contact your nearest Parts Central or DESA
International's Parts Department at 1-800-
972-7879 for referralinformation. Parts Cen-
trals are listed in the Authorized Service
Center booklet supplied with heater.
AIR GAUGE KIT - HAl180
Special tool to check pump pressure.
STANDARD WHEELS AND
HANDLE KIT -HA1206
Makes heater even more portable and con-
venient. Easy to assemble.
IGNITION CONTROL
ASSEMBLY/PHOTOCELL
TESTER -HA1170
Special tool used to test the ignition control
assembly and photocell.
THERMOSTAT KIT
HA1210
Keeps your building at the tempera-
ture you select day and night. Helps
economize on fuel.
HEAVY DUTY WHEELS AND
HANDLE KIT - HA1202
For heavy duty applications. Makes your
heater even more portable and convenient.
io36,_ 11

40,000 And 60,000 Btu/Hr H.S.I. Series
PORTABLE FORCED AIR HEATERS
ILLUSTRATED
PARTS
BREAKDOWN
12
13
J
J
J
J
J
J
/28
I
I
I
35
17
12-3 12-4 12-5
14
12-1812-1712-16
12-1
Motor and Pump Assembly 12-13
12-12 12-11
12-9
12-10
12 to3_

OWNER'S MANUAL
PARTS LIST This list contains replaceable parts used in your heater. When ordering parts, be sure to provide the correct
model and serial numbers (from the model plate), then the part number and description of the desired part.
KEY PART
NO. NUMBER
1M51104-01
2 098511-36
098511-54
098511-67
3 M11084-29
4100647-01
5 098512-58
098512-50
6 M10908-2
7 103154-03
8 M16656-23
9A
9-1 HA3006
100735-17
9-2 102548-01
9-3 104056-01
9-4 102336-01
9-5 104023-01
10 Ml1084-26
11 103684-01
12 t_
12-1 102001-01
t2-2 079975-02
079975-03
12-3 M22009"*, ***
12-4 M22456-1 **
M22456-2"**
12-5 M29608
12-6 M29632
12-7 M29633
12-8 M29609
12-9 M12461-31
12-10 M27694
12-11 M10993-1
12-12 M22997 oo
12-13 M8940 =
12-14 M29612-01
12-15 M12461-31
KEY
DESCRIPTION QTY. NO.
Handle 112-15
Upper Shell (White) 112-16
Upper Shell (Yellow) 1 12-17
Upper Shell (Black) 1
Screw, #10-16 x 3/4" 2 12-11
Screw, #10-16 x 1/2" 6
Combustion Chamber (40 Model) 1 13
Combustion Chamber (60 Model) 1 14
Screw, #6-32 x3/8 _ 2 15
PhotocellBracket 116
PhotocellAssembly 117
Burner Head Assembly 1 18
Nozzle Assembly (40 Model) 1 19
Nozzle Assembly (60 Model) 20
Ignitor Kit 1 21
Nozzle Adapter 1 22
Nozzle Adapter Bracket 1 23
Screw/Washar Assembly 1 24
Screw, #10-16 x 3/8" 2 25
Fan 126
Motor and Pump Assembly 1
Motor 1
Pump Body (40 Model) 127
Pump Body (60 Model) 128
Insert 1 29
Rotor (40 Model) 1
Rotor (60 Model) 1 30
Pump End Cover 1 31
Lint Filter 132
Intake Filter 133
Filter End Cover 1 34
Screw, #10-32 x 1" 3 35
AdjustingScrew 1
Pressure Relief Spring 1 36
Plug 1
Steel Ball, 1/4" Diameter 1
Output Filter 1
Screw, #10-32 x 1" (40 Model) 6
PART
NUMBER
M12461-32
103676-01
M8643 o*
M8643-2"*"
FHPF3-5C
FHPF3-6C
M51105-01
098219-31
Ml1143-1
NTC-4C
Ml1084-26
M50631
097461-03AA
101205-01
M30865-02
Ml1271-8
M50104-02
Ml1084-26
M10908-14
098511-18
098511-12
098511-81
M50814-06
079973-01
M50876-04
M50876-05
M10990-3
101695-01
102349-01
104068-03
097702-01
098513-23
098513-62
M51108-01
DESCRIPTION
Screw #10-32 x 1Vs" (60 Model)
Nylon Elbow, 90°
Blade (40 Model)
Blade (60 Model)
Screw, (40 Model)
Screw, (60 Model)
Fan Guard
Power Cord
Strain Relief Bushing
Hex Lock Nut, 1/4-20
Screw, #10-16 x3/8"
Rubber Bumper
Side Cover
Motor Bracket
Bushing
Clip Nut
Bushing
Screw, #10-16 x 3/8"
Screw, #8-32 x 3/8"
Lower Shell (White)
Lower Shell (Yellow)
Lower Shell (Black)
Rubber Airline
Fuel Line
Fuel Filter with bushing (40 Model
Fuel Filter with bushing (60 Model
Rubber Bushing
Button Plug
PCB Support
IgnitionControl Assembly
Fuel Cap (Includes Gasket)
Fuel Tank (40 Model)
Fuel Tank (60 Model)
Shell Heat-Shield
PARTS AVAILABLE -NOT SHOWN
098493-01
103814-01 General InformationDecal Wire Tie
QTY.
6
1
4
4
2
2
1
1
1
2
4
2
1
1
2
6
1
6
1
1
1
1
1
1
1
1
1
1
5
1
1
1
1
1
Z_ Not available as an assembly
** Included in Rotor Kit (Part No. HA3004)
*** Included in Rotor Kit (Part No. HA3005)
Included in Filter Kit (Part No. HA3014)
=o Included in Pump Adjustment Kit (Part No. HA3020)
I03658 13

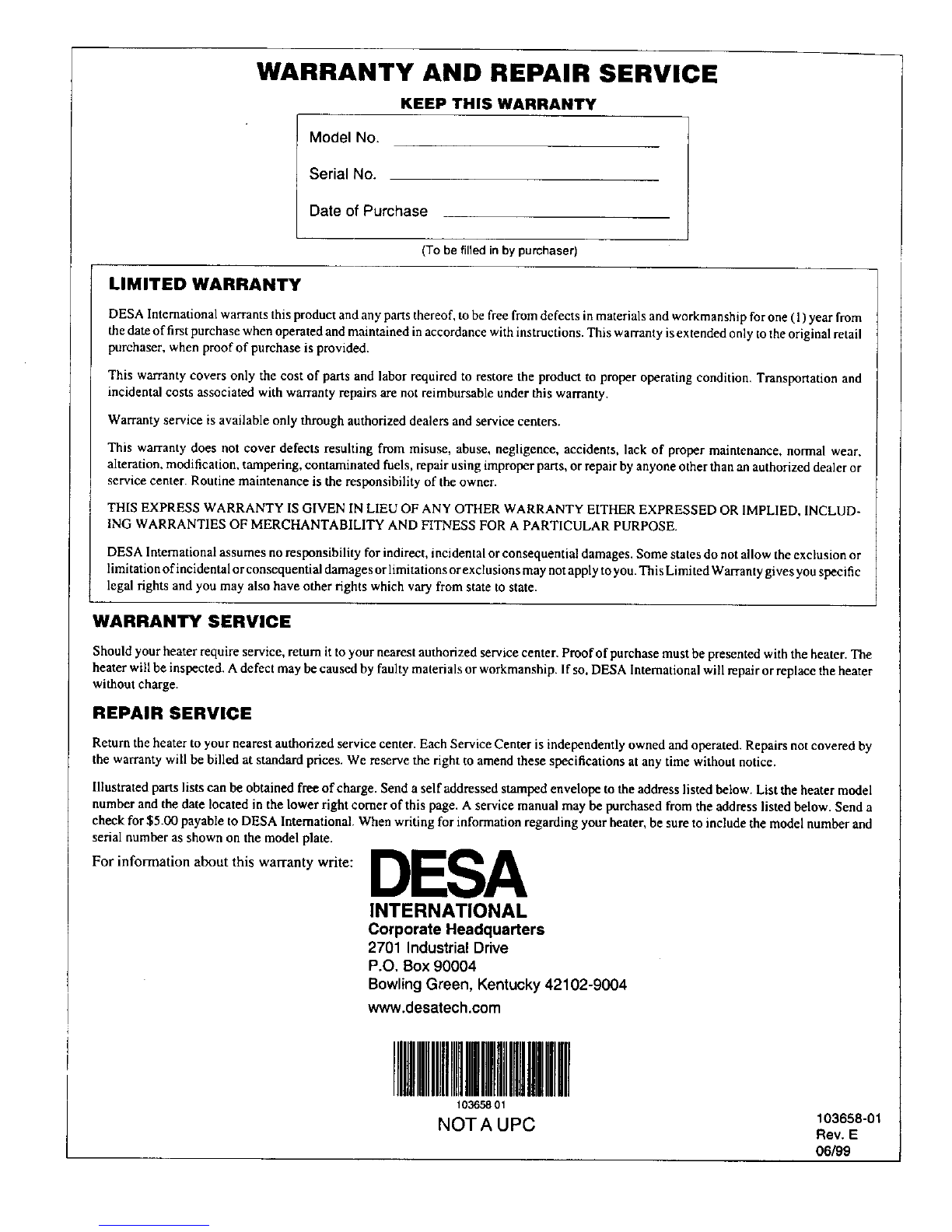

WARRANTY AND REPAIR SERVICE
KEEP THIS WARRANTY
Model No.
Serial No.
Date of Purchase
(To be filled in by purchaser)
LIMITED WARRANTY
DESA International warrants this product and any parts thereof, to be free from defects in materials and workmanship for one (1) year from
the date of first purchase when operated and maintained in accordance with instructions. This warranty is extended only to the original retail
purchaser, when proof of purchase is provided.
This warranty covers only the cost of parts and labor required to restore the product to proper operating condition. Transportation and
incidental costs associated with warranty repairs are not reimbursable under this warranty.
Warranty service is available only through authorized dealers and service centers.
This warranty does not cover defects resulting from misuse, abuse, negligence, accidents, lack of proper maintenance, normal wear.
alteration, modification, tampering, contaminated fuels, repair using improper parts, or repair by anyone other than an authorized dealer or
service center. Routine maintenance is the responsibility of the owner.
THIS EXPRESS WARRANTY IS GIVEN IN LIEU OF ANY OTHER WARRANTY EITHER EXPRESSED OR IMPLIED, INCLUD-
ING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
DESA International assumes no responsibility for indirect, incidental or consequential damages. Some states do not allow the exclusion or
limitation of incidental or consequential damages or limitations or exclusions may not apply to you. This Limited Warranty gives you specific
legal rights and you may also have other rights which vary from state to state.
WARRANTY SERVICE
Should your heater require service, return it to your nearest authorized service center. Proof of purchase must be presented with the heater. The
heater will be inspected. Adefect may be caused by faulty materials or workmanship. If so. DESA International will repair or replace the heater
without charge.
REPAIR SERVICE
Return the heater to your nearest authorized service center. Each Service Center is independently owned and operated. Repairs not covered by
the warranty will be billed at standard prices. We reserve the right to amend these specifications at any time without notice.
Illustrated parts lists can be obtained free of charge. Send a self addressed stamped envelope to the address listed below. List the heater model
number and the date located in the lower right corner of this page. A service manual may be purchased from the address listed below. Send a
check for $5.00 payable to DESA International When writing for information regarding your heater, be sure to include the model number and
serial number as shown on the model plate.
For information about this warranty write: DESA
INTERNATIONAL
Corporate Headquarters
2701 Industria! Drive
P.O. Box 90004
Bowling Green, Kentucky 42102-9004
www.desatech.com
IiIiiiirllllriNilllllllll
103658 01
NOT A UPC 103658-01
Rev. E
06/99
