Desoutter E-LIT Series User manual

www.desouttertools.com
Part no 6159928490
Issue no 01
Date 01/2020
Page 1 / 150
WARNING
WARNING
Read all safety warnings (including the ones of the separately provided safety
instructions n° 6159930690) and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
18
AVERTISSEMENT
Lire l'ensemble des mises en garde de sécurité (y compris celles sur la notice de
sécurité n° 6159930690 fournie à part) ainsi que l'ensemble des consignes. Le non-
respect des mises en garde et des consignes peut entraîner un choc électrique, un
incendie ou des blessures graves.
Conserver l'ensemble des mises en garde et consignes pour pouvoir les consulter
ultérieurement.
23
ADVERTENCIA
Lea todas las advertencias de seguridad (incluyendo las contenidas en las
instrucciones de seguridad n° 6159930690 suministradas por separado) y las
instrucciones. El incumplimiento de las instrucciones y advertencias de seguridad
puede producir descargas eléctricas, incendios y/o lesiones personales graves.
Guarde todas las instrucciones y advertencias para futuras consultas.
29
ELS / ELC - Angle tools - E-LIT series
Model Part number
ELS 7-360-A4S 6151657250
ELS 7-880-A 6151656280
ELS 7-880-A10S 6151658880
ELS 15-480-A 6151656290
ELS 15-480-A4S 6151658390
ELS 30-300-A 6151656300
ELS 45-180-A 6151656310
ELS 60-160-A 6151656320
ELC 7-360-A4S-W 6151661040
ELC 7-880-A-W 6151661050
ELC 15-480-A-W 6151661060
ELC 30-300-A-W 6151661070
ELC 45-180-A-W 6151661080
ELC 60-160-A-W 6151661090
User manual

6159928490_01
2 / 150 01/2020
WARNING
WARNUNG
Alle Sicherheitshinweise (einschließlich der separat bereitgestellten
Sicherheitsvorschriften Nr. 6159930690) und alle Anweisungen lesen. Eine
Nichtbeachtung der Hinweise und Anweisungen kann zu Stromschlägen, Bränden
und/oder schweren Personenschäden führen.
Bewahren Sie alle Warnhinweise und Anweisungen zur künftigen Verwendung auf.
35
AVVERTENZA
Leggere tutti gli avvisi di sicurezza (inclusi quelli indicati sulle istruzioni di sicurezza
n. 6159930690 fornite separatamente) e tutte le indicazioni di sicurezza. Il mancato
rispetto degli avvisi e delle istruzioni può provocare scosse elettriche, incendi e/o
gravi lesioni.
Conservare tutti gli avvisi e le istruzioni per consultazioni future.
41
ALERTA
Leia todas as instruções e avisos de segurança (inclusive as que são fornecidas
separadamente, n° 6159930690). A falha em seguir os avisos e instruções pode
resultar em choque elétrico, incêndio e/ou lesão grave.
Guarde todos os alertas e instruções para referência futura.
47
VAROITUS
Lue kaikki turvallisuusvaroitukset (mukaan lukien erikseen painetut
turvallisuusohjeet tiedotteessa nro 6159930690) ja kaikki ohjeet. Varoitusten
ja ohjeiden noudattamatta jättäminen voi johtaa sähköiskuun, tulipaloon ja/tai
vakavaan loukkaantumiseen.
Säilytä kaikki varoitukset ja ohjeet myöhempää tarvetta varten.
53
VARNING
Läs alla säkerhetsvarningar (inklusive dem i de de separata, medföljande
säkerhetsinstruktionerna nr. 6159930690) och alla instruktioner. Underlåtenhet att
följa alla varningar och instruktioner kan leda till en elektrisk stöt, eldsvåda och/eller
svåra personskador.
Spara alla varningar och instruktioner för framtida bruk.
59
ADVARSEL
Les alle sikkerhetsadvarsler (inkludert de i de separate medfølgende
sikkerhetsanvisningene nr. 6159930690) og alle instruksjoner. Om man ikke følger
advarslene eller anvisningene, kan det føre til elektrisk støt, brann og/eller alvorlige
personskader.
Ta vare på alle advarsler og anvisninger for fremtidig bruk.
65
ADVARSEL
Læs alle sikkerhedsadvarsler (også dem i den separate sikkerhedsanvisning nr.
6159930690) og alle anvisninger. Hvis disse advarsler og anvisninger ikke følges,
kan det medføre elektrisk stød, brand og/eller alvorlig tilskadekomst.
Gem alle advarsler og anvisninger til senere brug.
71
WAARSCHUWING
Lees alle veiligheidswaarschuwingen (inclusief de waarschuwingen die afzonderlijk
worden verstrekt in de veiligheidsinstructies met onderdeelnummer 6159930690)
en alle overige instructies. Indien u de de waarschuwingen en de instructies niet
opvolgt, kan dit leiden tot een elektrische schok, brand en/of ernstig lichamelijk
letsel.
Bewaar alle waarschuwingen en instructies, zodat u ze op en later tijdstip kunt
raadplegen.
77
ΠΡΟΕΙΔΟΠΟΙΗΣΗ
Διαβάστε όλες τις προειδοποιήσεις ασφαλείας (συμπεριλαμβανομένων εκείνων των
ξεχωριστά παρεχόμενων οδηγιών ασφαλείας αρ. 6159930690) και όλες τις οδηγίες.
Σε περίπτωση που δεν ακολουθήσετε τις προειδοποιήσεις και τις οδηγίες ενδέχεται
να προκληθεί ηλεκτροπληξία, πυρκαγιά ή/ και σοβαρός τραυματισμός.
Φυλάξτε όλες τις προειδοποιήσεις και τις οδηγίες για να ανατρέξετε μελλοντικά σε
αυτές.
83

6159928490_01
3 / 15001/2020
WARNING
警告
阅读所有安全警告（包括那些单独提供的安全说明 n° 6159930690）和所有说明。
未能遵守这些警告和说明可能会导致触电、火灾和/或严重伤害。
妥善保存所有警告和说明，以备将来参考。
89
FIGYELEM
Olvassa el az összes biztonsági (beleértve a különálló, n° 6159930690
számú biztonsági útmutató utasításait) és az összes használati utasítást. A
gyelmeztetések és utasítások gyelmen kívül hagyása áramütést, tűzveszélyt és/
vagy súlyos személyi sérülést okozhat.
Olvassa el és őrizze meg az összes gyelmeztetést és utasítást későbbi
hivatkozásra.
95
BRĪDINĀJUMS
Izlasiet visus drošības brīdinājumus (tostarp tos, kas atsevišķi sniegti instrukcijā nr.
6159930690) un visus norādījumus. Neievērojot brīdinājumus un norādījumus, varat
izraisīt strāvas triecienu, ugunsgrēku un/vai smagas traumas.
Saglabājiet visus brīdinājumus un norādījumus, lai varētu tajos ieskatīties arī
turpmāk.
101
OSTRZEŻENIE
Należy przeczytać wszystkie ostrzeżenia dotyczące bezpieczeństwa (łącznie z
odrębnymi instrukcjami bezpieczeństwa nr 6159930690) oraz wszystkie instrukcje.
Nieprzestrzeganie ostrzeżeń i instrukcji może spowodować porażenie prądem
elektrycznym, pożar i/lub poważne obrażenia.
Wszystkie ostrzeżenia i instrukcje należy zachować do przyszłego wykorzystania.
107
VÝSTRAHA
Přečtěte si veškerá bezpečnostní varování (včetně varování uvedených v dodaných
bezpečnostních pokynech č. 6159930690) a veškeré další pokyny. Nedodržení
varování a pokynů může mít za následek úraz elektrickým proudem, požár anebo
vážný úraz.
Uschovejte veškeré texty varování a pokynů i pro budoucí potřebu.
113
VAROVANIE
Prečítajte si všetky bezpečnostné varovania (vrátane varovaní, ktoré sa nachádzajú
samostatne v bezpečnostných pokynoch č. 6159930690) a všetky pokyny.
Nedodržanie varovaní a pokynov môže spôsobiť úder elektrickým prúdom, požiar a/
alebo vážne zranenie.
Všetky varovania a pokyny si odložte pre budúce nahliadnutie.
119
OPOZORILO
Preberite vsa varnostna opozorila (tudi tista v ločenih varnostnih navodilih št:
6159930690) in navodila. Zaradi neupoštevanja opozoril in navodil lahko pride do
električnega udara, požara in/ali hudih poškodb.
Vsa opozorila in navodila shranite za morebitno poznejšo uporabo.
125
ĮSPĖJIMAS
Perskaitykite visus saugos įspėjimus (įskaitant ir pateikiamus atskirose saugos
instrukcijos Nr. 6159930690) bei visas instrukcijas. Jei nesilaikysite įspėjimų ir
instrukcijų, gali kilti elektros smūgis, gaisras ir (arba) galimi rimti sužalojimai.
Išsaugokite visus įspėjimus ir nurodymus, kad prireikus vėliau galėtumėte
pasiskaityti.
131
ПРЕДУПРЕЖДЕНИЕ
Прочитайте все предупреждения о безопасности (включая отдельно
предоставленные указания по безопасности № 6159930690) и все инструкции.
Несоблюдение данных предупреждений и инструкций может привести к
поражению электрическим током, пожару и/или серьезной травме.
Сохраните все предупреждения и инструкции для справки на будущее.
137

6159928490_01
4 / 150 01/2020
Exploded views and spare parts lists are available in "Service Link" at:
Find more information and your Desoutter contacts on:
Software and documentation available at:
www.desouttertools.com
https://www.desouttertools.com/resource-centre
www.desouttertools.com

6159928490_01
5 / 15001/2020
IDENTIFICATION
TECHNICAL DATA
Model Part number
Power
Output
Torque range No-load
speed
Weight (*)
Nm in.lb
W Min Max Min Max rpm kg
E-LIT PREMIUM - Electronic brushless speed setting
ELS 7-360-A4S 6151657250 340 Sq. 1/4'' 1.5 7 13.3 62.0 120-360 1.2
ELS 7-880-A 6151656280 830 Hex 1/4"F 1.5 7 13.3 62.0 400-880 1.2
ELS 7-880-A10S 6151658880 830 Sq. 3/8" 1.5 7 13.3 62.0 400-880 1.2
ELS 15-480-A 6151656290 970 Sq. 3/8" 5 15 44.2 133.0 200-480 1.2
ELS 15-480-A4S 6151658390 970 Sq. 1/4'' 5 15 44.2 133.0 200-480 1.2
ELS 30-300-A 6151656300 1,720 Sq. 3/8" 10 30 88.5 265.0 100-300 1.5
ELS 45-180-A 6151656310 1,490 Sq. 3/8" 20 45 177.0 398.0 50-180 1.5
ELS 60-160-A 6151656320 1,750 Sq. 1/2" 25 60 221.0 531.0 160 2.0
E-LIT WIRELESS Wi-Fi
ELC 7-360-A4S-W 6151661040 340 Sq. 1/4'' 3 7 13.3 62.0 150-360 1.2
ELC 7-880-A-W 6151661050 930 Hex 1/4" 3 7 13.3 62.0 400-880 1.2
ELC 15-480-A-W 6151661060 970 Sq. 3/8" 5 15 44.2 133.0 200-480 1.2
ELC 30-300-A-W 6151661070 1,720 Sq. 3/8" 10 30 88.5 265.0 100-300 1.5
ELC 45-180-A-W 6151661080 1,790 Sq. 3/8" 20 45 177.0 398.0 50-180 1.5
ELC 60-160-A-W 6151661090 1,750 Sq. 1/2" 25 60 221.0 531.0 40-160 2.0
(*) without battery pack
Serial no.
Manufacturing date
SN : YYS00000
MM/YYYY Year
SN : YYS00000

6159928490_01
6 / 150 01/2020
LIST OF COMPATIBLE BATTERY PACKS
Model Part number Compliant with battery packs
V Part number
E-LIT PREMIUM - Electronic brushless speed setting
ELS 7-360-A4S 6151657250 18 6158132660 - 18 V 2.5 Ah
ELS 7-880-A 6151656280 18
ELS 7-880-A10S 6151658880 18
ELS 15-480-A 6151656290 18
ELS 15-480-A4S 6151658390 18
ELS 30-300-A 6151656300 36 6158132670 - 36 V 2.5 Ah
ELS 45-180-A 6151656310 36
ELS 60-160-A 6151656320 36
E-LIT WIRELESS Wi-Fi
ELC 7-360-A4S-W 6151661040 18 6158132660 - 18 V 2.5 Ah
ELC 7-880-A-W 6151661050 18
ELC 15-480-A-W 6151661060 18
ELC 30-300-A-W 6151661070 36 6158132670 - 36 V 2.5 Ah
ELC 45-180-A-W 6151661080 36
ELC 60-160-A-W 6151661090 36

6159928490_01
7 / 15001/2020
Wireless communication specications
E-LIT WIRELESS Wi-Fi only (ELC-*-W)
Band 2400MHz-2483MHz
5150MHz-5350MHz
5470MHz-5725MHz
5725MHz-5875MHz
Type IEEE 802.11a/b/g/n
Maximum radio ouput power 17.6 dBm
RED IEEE 802.11 b/g/n 2400 - 2483.5 MHz 20 dBm (100 mW)
Max RF Output Power (DBm) < 20DBm
Regulatory Domain Band Tx Channels
WORLD 2.4 GHz 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
U-NII-1 36, 40, 44, 48
U-NII-2 52, 56, 60, 64
U-NII-2e 100, 104, 108, 112, 116, 132, 136, 140
U-NII-3 -
ETSI 2.4 GHz 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
U-NII-1 36, 40, 44, 48
U-NII-2 52, 56, 60, 64
U-NII-2e 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
U-NII-3 149, 153, 157, 161, 165
FCC 2.4 GHz 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
U-NII-1 36, 40, 44, 48
U-NII-2 52, 56, 60, 64
U-NII-2e 100, 104, 108, 112, 116, 132, 136, 140
U-NII-3 149, 153, 157, 161, 165

6159928490_01
8 / 150 01/2020

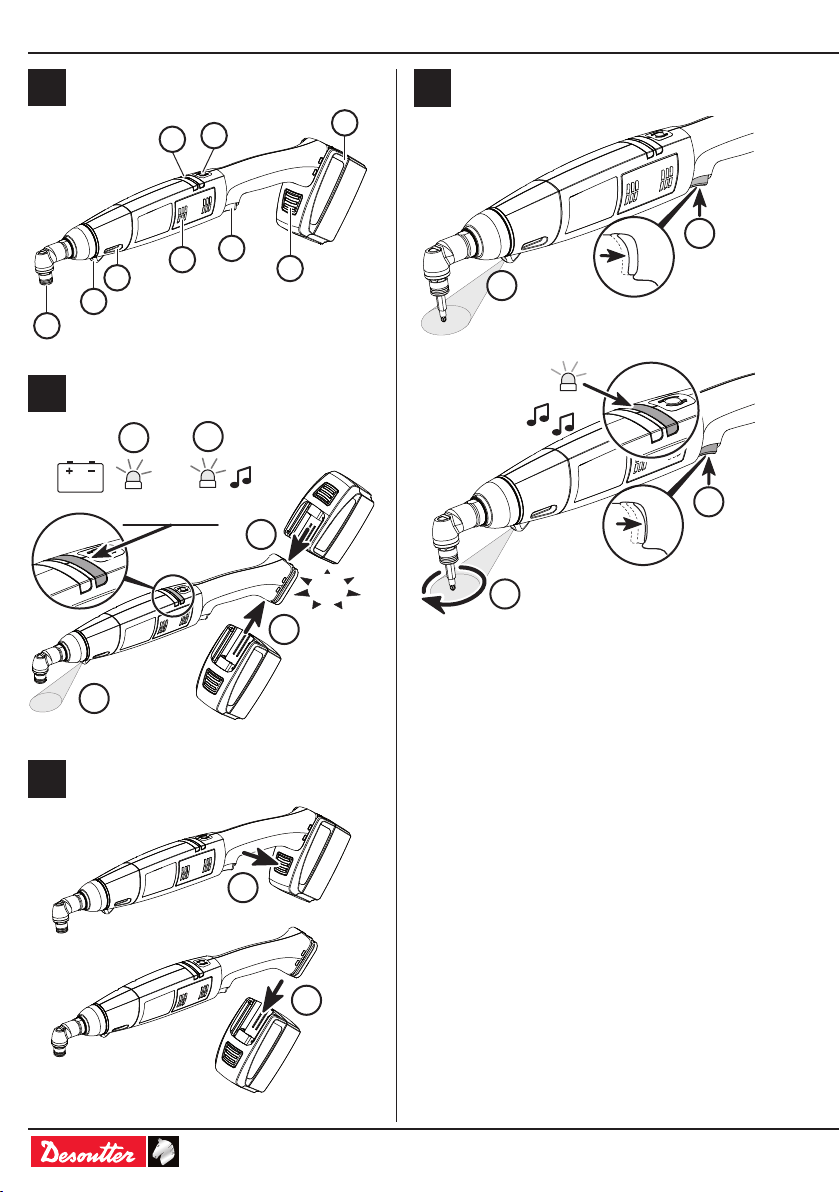

ABrief description
8
9
2
16
7
5
4
3
BInsertion of the battery pack
CRemoving the battery pack
2
1
DHow to start the tool
1/2
2
1
Full
4
3
2
3
2
1
1
OK
Green
(x1)
Red
(x1)
Clac!

6159928490_01
9 / 15001/2020

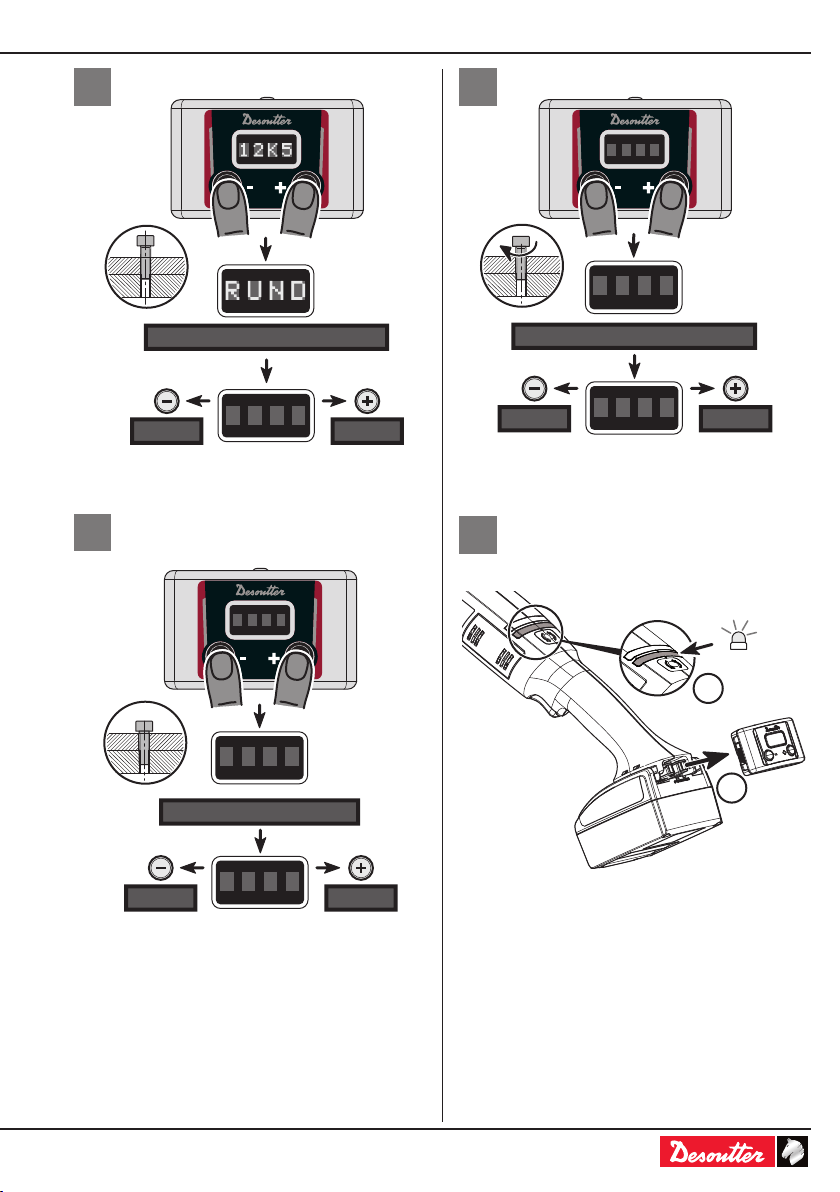

ETorque calibration
1
2
3

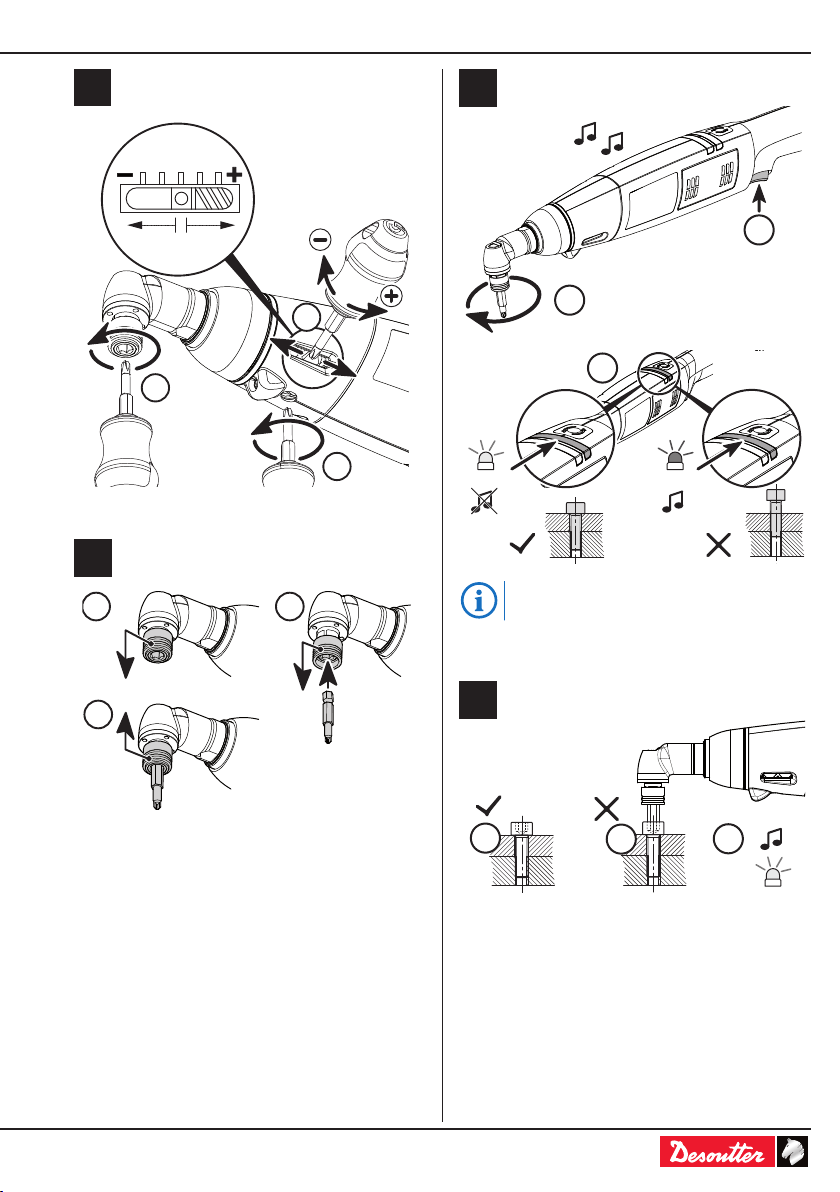

FExchanging screwdriver bits
12
3HRehit protection
Red
2 s
123
OK NOK

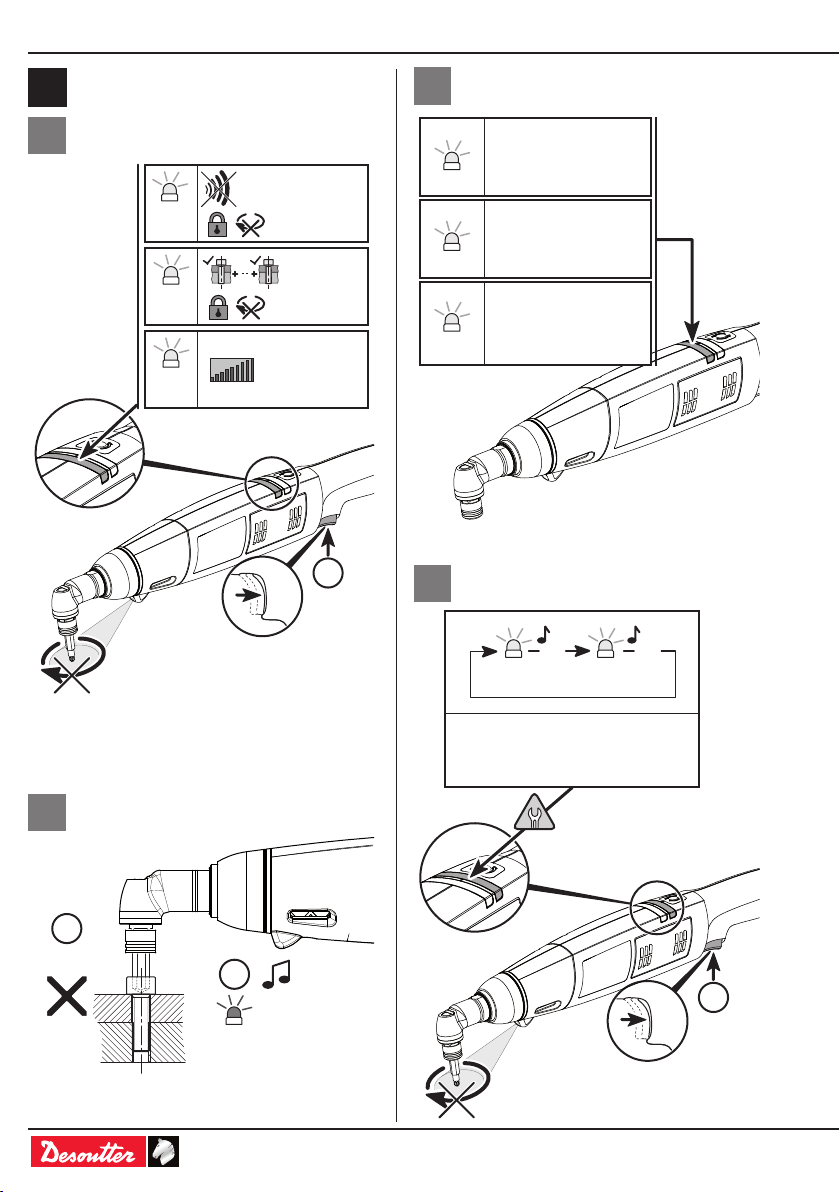

GStart tightening
2
1
Green Red
3
OK NOK
Possibility to change conguration
(result only if OK)

6159928490_01
10 / 150 01/2020
KReverse activation
2
3
Green
x1
Red Green Red 1
IBuzzer / Disable
1/2
1
5s
Orange
x1
1
5s
JBuzzer / Enable
1/2
1
5s
Orange
x1
1
5s
LTwo reverse modes
1
1
Orange
x 1
5s
L1
L2
2
Orange
x 1
5s
2

6159928490_01
11 / 15001/2020
MBattery check
1/2
2
3
5s
1
4
Green
(x4)
100
%
50 30 10 0
Green
(x3)
Green
(x2)
Green
(x1)
NLow battery status after each
tightening
Yellow
5s
5s
Yellow
OSpeed setting module - V2
23
4
1
OK
Green
(x1)
Red
(x1)
Clac!
1
2
E-LIT SSU V2
E - LI
E - LI
Clac!
1
2

6159928490_01
12 / 150 01/2020
3 3.1
TOTAL COUNTER
OK COUNTER
RUNDOWN SPEED
FINAL SPEED
RUNDOWN TURNS
E-LIT SSU V2
3.1
3.2
3.3
3.4
3.5
3.2
Speed
18 V tools
Rundown
speed
Final
speed
Max.
Min.
Number of revolutions
Speed setting
ELS7-360-A4S
ELS7-880-A
ELS7-880-A10S
ELS15-480-A
ELS15-480-A4S
ELC7-360-A4S-W
ELC7-880-A-W
ELC15-480-A-W
Speed setting
ELS30-300-A
ELS45-180-A
ELS60-160-A
ELC30-300-A-W
ELC45-180-A-W
ELC60-160-A-W
Speed
Final
speed
Max.
50%
max.
Min.
Rundown
speed
Number of revolutions
36 V tools
TOTAL COUNTER
K = x1000 (Ex.: 12550 12K5)
M = x1.000.000 (1.857.227 1M85)
OK COUNTER
K = x1000 (Ex.: 12550 12K5)
M = x1.000.000 (1.857.227 1M85)

6159928490_01
13 / 15001/2020
3.3
3.4
3.5
4
RUNDOWN SPEED
470
490
4 8 0
FINAL SPEED
190 210
F I NA
2 0 0
4 8 0
RUNDOWN TURNS
19 21
MAX: 50
R U ND
2 0
2 0 0
1
2
Orange
(x1)

6159928490_01
14 / 150 01/2020
PAngle head adjustment
1
2
3
80Nm
1
2
3
30Nm
80Nm
1
2
3

6159928490_01
15 / 15001/2020
QWi-Fi network connection
(For ELC-W tools)
e-DOCK connection
With Connect Smart Hub:
●Use CVI Monitor
Without Connect Smart Hub:
● Use ELit Cong & Elit Loader
Full
https://www.desouttertools.com/resource-centre
ELIT CONFIG
►Wi-Fi & Advanced configuration settings
►Firmware & Configuration update
4
2
Clac!
3
Green
1

6159928490_01
16 / 150 01/2020
RSpecic communication LED
(For ELC-* tools)
Full
1
5s 5s
● For 18V tools: 500 000 cycles
● For 36V tools: 250 000 cycles
Preventive maintenance
Orange
(x10)
Orange
(x10)
Red
2 s
1
NOK 2
Full
1
Green
(x2)
No communication
Tool locked
Batch
complete
Green
(x3) Tool locked
Green
(x4)
Results
storage full
No communication
established or lost
Blue
OFF
Communication is
established and
E-LIT Wi-Fi results
synchronization is
currently in progress
Blue
Blinks
Communication is
established and
E-LIT Wi-Fi result
synchronization
is done
Blue
Steady
ON
Tool locked
Cross thread detection alarm
1
2
Blue LED behaviour
3
Preventive maintenance
4

6159928490_01
17 / 15001/2020
SELC-W Set up
2
1
2
3
Connect 1
3
Connect-W
Set up on access point by
using default settings with
Desoutter Access Point
1
ELC-W Wi-Fi settings
Parameters by default:
IP address 192.168.5.221
Com. Port 7477
Network name (SSID) Desoutter_1
Security type WPA/WPA2PSK
Encryption type AES/CCMP
Security key mydesoutter_1
Set up on Connect smart hub
by using default settings with
Connect-W embedded access point
ELC-W Wi-Fi settings
Parameters by default:
IP address 192.168.7.221
Com. Port 7477
Network name (SSID) Desoutter_1
Security type WPA/WPA2PSK
Encryption type AES/CCMP
Security key mydesoutter_1

6159928490_01
18 / 150 01/2020
English
Original instructions.
© Copyright 2020, Ets Georges Renault
44818 St Herblain, FR
All rights reserved. Any unauthorized use
or copying of the contents or part thereof
is prohibited. This applies in particular to
trademarks, model denominations, part numbers
and drawings. Use only authorized parts. Any
damage or malfunction caused by the use of
unauthorised parts is not covered by Warranty or
Product Liability.
STATEMENT OF USE
This product is designed for installing and
removing threaded fasteners in wood, metal and
plastic.
No other use permitted.
For professional use only.
Indoor use only.
ADVICE FOR YOUR SAFETY
●Please pay attention to the safety instructions
in the attached leaet!
●Do not dispose of used battery packs in the
household refuse.
●Do not store the battery pack together with
metal objects (risk for short circuit).
●No metal part is to enter the battery section of
the charger (risk for short circuit).
●Never break battery packs and chargers open.
Only store them in dry rooms. Keep dry at all
times.
●Do not let any metal part reach the airing slots
(risk for short circuit).
DATA
See "Technical data", page 5.
Working temperature: 0 / +40°C.
Humidity ratio: 0 / 90%.
Pollution degrees: 2.
Declaration of noise and vibration emission
●See page 144.
- A-weighted sound pressure level of the tool
according to EN 62841.
- Wear ear protectors!
- Hand-arm vibration according to EN 62841.
All values are current as of the date of this
publication. For the latest information please visit
www.desouttertools.com.
These declared values were obtained by
laboratory type testing in accordance with the
stated standards and are suitable for comparison
with the declared values of other tools tested
in accordance with the same standards. These
declared values are not adequate for use in risk
assessments and values measured in individual
work places may be higher.
The actual exposure values and risk of harm
experienced by an individual user are unique
and depend upon the way the user works,
the workpiece and the workstation design, as
well upon the exposure time and the physical
condition of the user.
We, Desoutter, cannot be held liable for the
consequences of using the declared values,
instead of values reecting the actual exposure,
in an individual risk assessment in a work place
situation over which we have no control.
This tool may cause hand-arm vibration
syndrome if its use is not adequately managed.
An EU guide to managing hand-arm vibration
can be found at http://www.pneurop.eu/uploads/
documents/pdf/PN3-02-NV_Declaration_info_
sheet_0111.pdf
We recommend a programme of health
surveillance to detect early symptoms which
may relate to noise or vibration exposure, so that
management procedures can be modied to help
prevent future impairment.
EXPLANATION OF SYMBOLS
●Read the instruction manual before
starting work or before operating
equipment or machinery.
CE mark
● Refer to the "Declaration of
Conformity" at the end of this
manual.
According to Directive 2012/19/
EC concerning Waste Electrical and
Electronic Equipment (WEEE), this
product must be recycled.
●Ensure that the marked item or its
material is part of a recovery or
recycling process.
●Do not dip into liquid.
● Could gas or explode.
●Do not heat up or burn.
●Use only Desoutter recommended
chargers for charging Desoutter
battery packs.
●Do not use battery packs from other
systems.
● Only charge with original charger.
●Do not charge if damaged.

6159928490_01
19 / 15001/2020
English
BRIEF DESCRIPTION
ASee page 8.
Legend
1 Ventilator slots
2 Reporting bar
3 Torque calibration opening
4 Ring
5 High-intensity LED
6 Trigger
7 To remove the battery pack
8 Battery pack
9 Reverse button
INSERTION OF THE BATTERY PACK
BSee page 8.
The battery screwdriver is ready to operate as
soon as a loaded battery is mounted on the tool.
There is no On/O󰀨 switch.
REMOVING THE BATTERY PACK
CSee page 8.
HOW TO START THE TOOL
DSee page 8.
Any time the trigger is pressed, the high-intensity
LED will light.
TORQUE CALIBRATION
ESee page 9.
The tool has a tamper proofed calibration: a
black cover protects the clutch mechanism from
unvolontary action.
For safety reasons, always remove
the battery before proceeding with the
calibration.
1. Turn the bright screw 90° and the black cover
will open and the clutch will be visible.
2. Use the clutch adjustment key to turn the
clutch to the position where the adjustment
hole is visible.
3. Use the clutch adjustment key to increase or
reduce the torque ("+" and "-" appear on the
calibration tool).
4. Close the cover again.
EXCHANGING SCREWDRIVER BITS *
FSee page 9.
* According model.
The new bit is automatically locked when
you release the ring.
NOW THE TOOL IS READY FOR
TIGHTENING
Start tightening
GSee page 9.
After each tightening, the battery screwdriver
displays result information.
IMPORTANT: No result information is
displayed when operating in the reverse
mode.
Possibility to change conguration
(result only if OK)
Rehit protection
HSee page 9.
If the tool should be applied to an already
tightened screw, the clutch immediately operates
and there will be no signicant tightening angle.
BUZZER
Disable
ISee page 10.
Enable
JSee page 10.
REVERSE ACTIVATION
KSee page 10.
TWO REVERSE MODES
LSee page 10.
Legend
L1 Mode 1: one touch reverse (default)
L2 Mode 2: Permanent reverse
BATTERY CHECK
MSee page 11.
LOW BATTERY STATUS AFTER EACH
TIGHTENING
NSee page 11.
SPEED SETTING MODULE - V2
OSee page 11.
ANGLE HEAD ADJUSTMENT
PSee page 14.

6159928490_01
20 / 150 01/2020
English
WI-FI NETWORK CONNECTION
(FOR ELC-W TOOLS)
QSee page 15.
e-DOCK connection
With Connect Smart Hub:
●Use CVI Monitor
Without Connect Smart Hub:
● Use ELit Cong & Elit Loader
SPECIFIC COMMUNICATION LED
(FOR ELC-* TOOLS)
RSee page 16.
1Tool locked
No communication to network.
See "Q" page 15.
Tool locked.
Batch complete.
Preventive maintenance.
Results storage full.
2Cross thread detection alarm
3Blue LED behaviour
Led state Description
OFF No communication established
or lost.
Blinks Communication is established
and E-LIT Wi-Fi results
synchronization is currently in
progress.
Steady ON Communication is established and
E-LIT Wi-Fi result synchronization
is done.
ELC-W SET UP
SSee page 17.
Legend
1 Plant network
2 Ethernet link
3 Battery nutrunner
Check you have the following equipment:
●ELC-W Battery nutrunner.
- Battery.
- Charger.
- e-DOCK device to connect the tool to the PC.
● CONNECT industrial smart hub
(For Connect-X or Connect-W).
- Power cable.
● PC with an Open Protocol interface.
●Desoutter Wi-Fi access point.
(For Connect-W, embedded Access point can
be used).
- Power cord.
●Ethernet network.
●Ethernet cable (not supplied) to connect the
Wi-Fi access point to the Connect smart hub
or PC.
(For Connect-W, embedded Access point can
be used).
●Standard PC connected to the Ethernet
network and equipped with the Desoutter Elit
Suite or CVI3 Suite software to create and
control the tightening processes.
Before starting
CASE: Usage of external Desoutter Wi-Fi
access Point
1Set up on access point by using default
settings with Desoutter Access Point
Before starting the set up, check that you have
the following information on hand:
●Wi-Fi access point
Parameters By default
IP address 192.168.5.201
Mask 255.255.255.0
Network name (SSID) Desoutter_1
Security type WPA/WPA2PSK
Encryption type AES/CCMP
Security key mydesoutter_1
●ELC-W Battery nutrunner
Parameters By default
IP address 192.168.5.221
Communication port 7477
Subnet Mask 255.255.255.0
Network name (SSID) Desoutter_1
Security type WPA/WPA2PSK
Encryption type AES/CCMP
Security key mydesoutter_1
