DeVilbiss®Vacu-Aide®QSU Suction Unit Instruction Guide 7314 Series

RX ONLY

Assembled in the USA

Guía de Instrucciones para la Unidad de Succión de la Serie 7314 de DeVilbiss®

Vacu-Aide®QSU

RX ÚNICAMENTE

Ensamblado en EE. UU.

Manuel utilisateur de l’apirateur de mucosités Vacu-Aide®QSU Série 7314

UNIQUEMENT SUR PRESCRIPTION

Assemblé aux États-Unis

EN - 2 A-7314

EN ENGLISH......................................................................................................................................... EN-2

ES ESPAÑOL ........................................................................................................................................ ES-12

FR FRANÇAIS....................................................................................................................................... FR-22

TABLE OF CONTENTS

IEC Symbols.................................................................................................................................................................................................................................................... EN - 2

Important Safeguards...................................................................................................................................................................................................................................... EN - 2

International Travel.......................................................................................................................................................................................................................................... EN - 3

Introduction...................................................................................................................................................................................................................................................... EN - 3

Accessory/Replacement Items........................................................................................................................................................................................................................ EN - 3

Important Parts of Your 7314 Series DeVilbiss Suction Unit .......................................................................................................................................................................... EN - 4

Set-Up & Operation......................................................................................................................................................................................................................................... EN - 5

Battery Charging & Filter Maintenance .......................................................................................................................................................................................................... EN - 6

Cleaning Instructions....................................................................................................................................................................................................................................... EN - 7

Troubleshooting............................................................................................................................................................................................................................................... EN - 8

Provider’s Notes.............................................................................................................................................................................................................................................. EN - 9

Specifications/Classifications .......................................................................................................................................................................................................................... EN - 9

Guidance and Manufacturer’s Declaration...................................................................................................................................................................................................... EN - 10

SYMBOL DEFINITIONS

Attention, consult instruction guide Center positive polarity indicator Battery charging

It is mandatory to read Operating

Instructions prior to use. Type BF equipment-applied part Low battery

Date of manufacture “On” compressor Keep dry

Manufacturer “Off” compressor (external battery charging) Do not get wet

Direct current External power Federal (U.S.A.) law restricts this device

to sale by or on the order of a physician.

Alternating current Choking Hazard – Small parts not for children under 3 years or any individuals who have a tendency

to place inedible object in their mouths.

IP22 Protected against solid material of ≥ 12.5 mm and vertically falling water drops when enclosure is tilted up to 15˚

This device contains electrical and/or electronic equipment that must be recycled per EU Directive 2012/19/EU- Waste Electrical and Electronic Equipment

(WEEE)

IMPORTANT SAFEGUARDS

When using electrical products, especially when children are present, basic safety precautions should always be followed. Read all instructions before using. Important

information is highlighted by these terms:

DANGER– Urgent safety information for hazards that will cause serious injury or death.

WARNING– Important safety information for hazards that might cause serious injury.

CAUTION– Information for preventing damage to the product.

NOTE– Information to which you should pay special attention.

READ ALL INSTRUCTIONS BEFORE USING THIS DEVICE.

SAVE THESE INSTRUCTIONS.

DANGER

To reduce the risk of electrocution:

1. Do not use while bathing.

2. Do not place or store product where it can fall or be pulled into a tub or sink.

3. Do not place in or drop into water or other liquid.

4. Do not reach for a product that has fallen into water. Unplug immediately.

EN - 3A-7314

WARNING

To reduce the risk of burns, electrocution, re or injury to persons:

1. Close supervision is necessary when this product is used by, on, or near children or physically incapacitated individuals.

2. Use this product only for its intended use as described in this guide.

3. Keep the power cord away from heated surfaces.

4. Never use while drowsy or asleep.

5. Do not cover the unit or the AC to DC adapter while power is applied.

6. Never operate this product if

a. It has a damaged power cord or plug.

b. It is not working properly.

c. It has been dropped or damaged.

d. It has been dropped into water.

Instead return the product to an authorized DeVilbiss Healthcare service center for examination and repair.

7. Check the collection container for cracks before each use. Do not use if cracked.

8. Universal precautions must be observed while providing care or handling equipment for persons with an infectious condition.

9. Do not place the suction unit in a position that would make it difcult to disconnect the AC power cord.

10. When the device is used under extreme operating conditions and in the carrying case, the surface temperature of the device may exceed 73°C.

11. The suction tube shall be kept isolated from other parts of the system to conrm that it does not exceed 43°C prior to patient contact.

INTERNATIONAL TRAVEL

The 7314 series is equipped with an AC to DC adapter allowing operation on any AC voltage (100-240 VAC, 50/60 Hz). However the correct power cord must be used to

connect to adaptable wall power. AC power is removed by disconnecting the power cord from the AC outlet receptacle.

NOTE– Check power cord for adaptability before using.

INTRODUCTION

Your DeVilbiss suction unit is a compact medical suctioning device which has been designed for reliable, portable operation. Following the recommended operating and

maintenance procedures outlined in this instruction guide will maximize the life of this product. This guide provides an overview of the suction unit and operation. Your

equipment provider should give more detailed instructions related to patient care.

Intended Use Statement

The device is to be used to remove uids from the airway or respiratory support system and infectious materials from wounds. The device creates a negative pressure

(vacuum) that draws uids through disposable tubing that is connected to a collection container. The uids are trapped in the collection container for proper disposal. It is for

use on the order of a physician only.

Contraindications (specific situation in which the device shall not be used)

The Vacu-Aide QSU should not be used for:

• thoracic drainage

• nasogastric suction

DANGER

The DeVilbiss Vacu-Aide is a vacuum suction device designed for the collection of nonammable uid materials in medical applications only. Improper use during

medical applications can cause injury or death. For all medical applications:

1. All suctioning should be done in strict accordance with appropriate procedures that have been established by a licensed medical authority.

2. Some attachments or accessories may not t the tubing supplied. All attachments or accessories should be checked prior to use to assure proper t.

ACCESSORY/REPLACEMENT ITEMS

The following items can be purchased separately as accessories or replacement items for your 7314 Series DeVilbiss Suction Unit:

Description Part No. Description Part No.

6’ patient tubing 6305D-611 Splash Guard (12 pack) for Disposable Container with internal

lter cartridge 7305D-641

800 Disposable Container (container and lid only) for use with external bacteria

lter (48 pack) 610-48BP Carrying case 7314D-606

Collection Container Kit (800 ml disposable container, external bacteria lter,

elbow, 10” and 6’tubing package) 22330 12V DC power cord (1 each) 7304D-619

Collection Container Kit (Internal lter cartridge, splash guard, 800 ml

container, 43⁄8”and 6’ tubing package) 7305D-633 AC to DC adapter/charger 7314P-613

800 ml disposable container with internal lter cartridge, splash guard and 43⁄8”

tubing (48 each) 7305D-632 Power cord for US DV51D-606

Filter cartridge (12 pack) (For Disposable Container with internal lter) 7305D-635 Power cord for Continental Europe DV51D-607

Collection Container Kit (1200 ml reusable container, external bacteria lter,

elbow, 43⁄8” tubing) 7314D-603 Power cord for UK DV51D-608

1200 ml reusable container (external bacteria lter, elbow, 43⁄8”tubing) (6 pack) 7314D-604 Power cord for Australia DV51D-609

External bacteria lter (non-sterile) (12 pack) For reusable container and

disposable container with external lter 7305D-608 Power cord for Japan DV51D-613

NOTE– The use of electrical cables and accessories other than those specied in this manual or referenced documents may result in increased electromagnetic emissions

from the product or decreased electromagnetic immunity of the product.

EN - 4 A-7314

IMPORTANT PARTS

Disposable Container with Internal Filter

Cartridge and Splash Guard

1. 43⁄8” connection tubing

2. Filter cartridge (Do not get wet)

3. Lid

4. Jar

5. Splash guard

6. Patient tubing connector

Disposable Container with External Bacteria

Filter

1. 33⁄8” connection tubing

2. Patient tubing connector

3. Lid

4. Jar

5. Connection elbow

6. Bacteria lter

Reusable Container with External Bacteria

Filter

1. 43⁄8” connection tubing

2. Lid with o-ring

3. Overow valve

4. Jar

5. Patient tubing connector

6. Connection elbow

7. Bacteria lter

with Disposable Container and Internal Filter

Cartridge

1. Vacuum gauge

2. Vacuum regulator knob

3. 6’ patient tubing

4. Patient tubing connector

5. Disposable container with lid (oat shut off

incorporated into lid) and lter cartridge

6. Filter cartridge with 43⁄8” tubing

7. DC power input (on side)

8. Power switch

9. LED power lights

AC to DC adapter (not shown)

DC power cord (not shown) optional

Internal rechargeable battery (not shown) 7314P

series only

Carrying case (not shown) 7314P series only

with Disposable Container and External

Bacteria Filter

1. Vacuum gauge

2. Vacuum regulator knob

3. 33⁄8” connection tubing

4. 6’ patient tubing

5. Patient tubing connector

6. Disposable container with lid (oat shut off

incorporated into lid)

7. DC power input (on side)

8. Power switch

9. LED power lights

10. External bacteria lter

AC to DC adapter (not shown)

DC power cord (not shown) optional

Internal rechargeable battery (not shown) 7314P

series only

Carrying case (not shown) 7314P series only

with Reusable Container and External

Bacteria Filter

1. Vacuum gauge

2. Vacuum regulator knob

3. 43⁄8” connection tubing

4. External bacteria lter

5. Patient tubing connector

6. 6’ patient tubing

7. Lid

8. DC power input (on side)

9. Power switch

10. LED power lights

AC to DC adapter (not shown)

DC power cord (not shown) optional

Internal rechargeable battery (not shown) 7314P

series only

Carrying case (not shown) 7314P series only

7314 Series DeVilbiss Vacu-Aide QSU Suction Unit

EN - 5A-7314

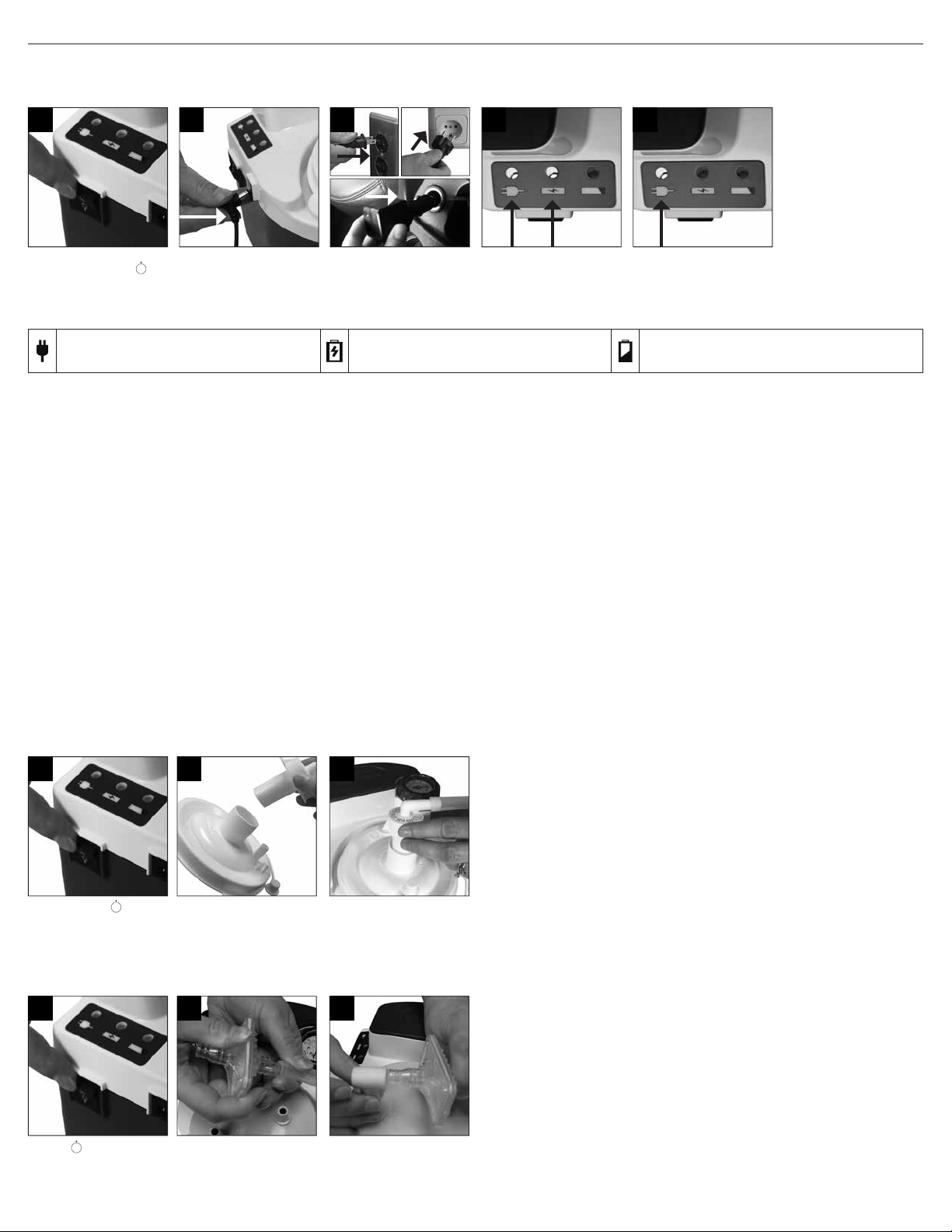

SET-UP & OPERATION

Fully charge battery for 17

HOURS. (7314P series only) Insert container into holder and gently push into place.

NOTE – Do not use excessive force. Pushing container down

too hard could cause potential leak or loss of suction.

Attach 6’ patient tubing to

container lid at outlet labeled

<Patient>.

Turn the unit “on”.

If using AC or DC power, plug

the small connector into the

DC power input on the side of

unit.

Plug the other end into an AC

wall outlet or DC receptacle.

NOTE– The AC adapter may

become warm to the touch

during charging or running of

the unit. This is normal.

Adjust the suction level.

Verify suction level.

NOTE - Always verify suction

level before beginning by

occluding open end of patient

tubing while observing gauge.

Adjust knob to desired level.

WARNING

If the unit is not receiving power from an external source or the battery was not recharged, the low battery indicator light will remain

on and the performance of the unit will drop off rapidly. Switch to another power source immediately after the low battery light appears

to avoid an interrupted suction procedure.

NOTE– Gauge is for reference only. If the unit sustains a severe drop, accuracy of the gauge must be checked.

CAUTION– When automatic oat shut-off is activated, contents of the collection container should be emptied. Further suctioning could cause

damage to the vacuum pump.

CAUTION– Should uid be aspirated back into the unit, equipment provider servicing is necessary as possible vacuum pump damage may

result.

WARNING

This device is rated for intermittent operation use as noted in the specications. Do not operate device with no ow (or suction port

blocked). Continuous operation under this condition may cause the unit to thermal shut off or damage the device.

Ensure power switch is “off”.

Disposable Container w/

internal lter cartridge

Connection: Attach 43⁄8”

tubing from lter cartridge to

tubing connector on unit.

5A 6

7314P - Select desired power

source. (Skip steps 8 if using

internal battery power.)

7A 8 10 11

NOTE–Inspect suction tubing and container for leaks, cracks, etc. and assure that all connections are secure and without leaks before using.

Reusable Container and Disposable Container w/external

Bacteria Filter Connection: Connect either end of the 4-3/8”

(reusable) or 3-3/8” (disposable) tubing to the tubing connector

then connect the other end to the bacteria lter. NOTE: If

connection tubing in the 22330 Kit is longer than specied

measurements, cut tube to 4.5 inches to provide a good t with

the unit. Ensure that the clear side of the bacteria lter is

toward elbow and bottle when installing. Do not reverse

direction of lter. The bacteria lter should then be connected to

the 90˚ elbow connection, and the elbow should be connected

to the top of the container lid where it says <Vacuum>.

NOTE– The 7314D series is not factory equipped with an

internal rechargeable battery. 7314P series is factory equipped

with an internal rechargeable battery and all information

regarding battery operation in this guide is applicable.

7314D series (non-battery

label)

If applicable, ensure splash

guard is securely attached to

inside of lid over lter

cartridge.

Securely attach lid to

container.

EN - 6 A-7314

NOTE – Charge battery for a minimum of 17 hours before rst use.

NOTE – Fully recharge battery after each use. The unit will continue to oat charge the battery after the charge indicator turns off, so leave the unit connected to AC when not in use.

CAUTION– Discharging the battery completely will shorten the life of the battery. Do not operate the unit more than a few minutes if the low battery indicator light is lit. Recharge as

soon as possible.

NOTE – Unit run time will decrease as the battery ages.

NOTE – Unit run time will also be reduced by letting the battery sit at a discharged state for extended periods.

STORAGE NOTE - Battery should be charged for a minimum of 17 hours prior to storage, and at least once every 6 months. Important - If battery recharge is delayed beyond 6 months,

battery may be able to provide full run time after completion of 3 full charge and discharge cycles.

NOTE– A fully charged battery will provide approximately 60 minutes of continuous operation at a zero vacuum level (free ow). Operation time will decrease with higher vacuum levels.

NOTE– When charging the battery, use an external power source and verify that the charge light illuminates when the unit is in the “Off’ position. If the battery does not charge, please

be sure the model you are using has a battery installed prior to contacting your authorized DeVilbiss Healthcare provider.

NOTE– The internal rechargeable battery is sealed lead-acid. Contact your local authorities for instruction on proper disposal.

NOTE– Do not connect the AC adapter to an outlet controlled by a switch to ensure power is supplied to unit at all times.

NOTE– Do not connect the DC power cord to an outlet that is not constantly energized.

BATTERY CHARGING & FILTER MAINTENANCE

Battery Charging (7314P Series Only)

On 7314P series, the units are equipped with a factory-installed rechargeable battery. The unit will have a light for low battery and charge indication.

Ensure power switch is “off”. Plug the small connector of

the AC or DC adapter into the

DC power input.

Plug the other end into an AC

wall outlet or DC receptacle. Battery charging begins; 17

hours for full charge.

1 2 4

Battery charging complete.

Changing Internal Filter Cartridge (single-patient use) Disposable Container

Change lter cartridge if overow occurs or every two months, whichever comes rst.

Turn unit “off”. Remove lter cartridge and

43⁄8”tubing.

Install new cartridge and

attach tubing.

1 2 3

Changing External Bacteria Filter (single-patient use) Reusable Container and/or Disposable Containter

Change bacteria lter if overow occurs or every two months, whichever comes rst.

NOTE– Do not substitute any other material for this

bacteria lter. Substitution may lead to contamination

or poor performance; use only DeVilbiss lters.

NOTE– Bacteria lter must be changed between

patients.

Turn unit “off”. Remove lter by disconnecting

it from suction unit and lid

assembly.

Replace with a clean DeVilbiss

bacteria lter (non-sterile) and

remount to suction unit and lid.

Ensure that the clear side of the

bacteria lter is toward elbow

and bottle when installing. Do

not reverse direction of lter.

Additional lters (7305D-608

12/pack) may be purchased

from your authorized DeVilbiss

Healthcare provider.

1 2 3

NOTE– Do not substitute any other material for this lter cartridge. Substitution may lead

to contamination or poor performance; use only DeVilbiss lter cartridges.

NOTE– The lter cartridge contains a hydrophobic lter. If the lter media becomes wet,

air ow will be stopped. The lter cartridge must then be replaced. Do not remove lter

media from lter cartridge.

NOTE– Filter cartridges are included with each disposable container. They are also

available separately (7305D-635 12/pack).

LED Explanations:

Green– Illuminated when external power is supplied to

unit from an AC or DC power source. Yellow– Battery is being charged. Light will go out

when battery is fully charged. Red– Low battery. Seek another power source and charge

battery as soon as possible when light illuminates.

EN - 7A-7314

Turn unit “off” and allow

vacuum to drop.

Disconnect from power source. Disconnect tubing and remove

container from holder.

1 32

Carefully remove lid and

empty contents. NOTE–

Container should be emptied

and cleaned after each use.

Remove lter cartridge and

43⁄8” tubing and set aside.

4 5A

Filter MUST NOT get wet. The

lter material cannot be

removed from the elbow.

CLEANING INSTRUCTIONS

WARNING

To prevent possible risk of infection from contaminated cleaning/disinfection solutions, always prepare fresh solution for each cleaning cycle and discard solution

after each use.

NOTE– Disinfection information is based on AARC Clinical Practice Guideline Suctioning of the Patient in the Home.

Disposable Collection Container (with Internal Filter Cartridge)

NOTE– The disposable collection container and lid are meant for single-patient use.

WARNING-Do not remove

oat ball from lid. If

removed, oat ball may

pose a choking hazard.

Turn unit “off” and allow

vacuum to drop.

Disconnect from power source. Disconnect tubing and remove

container from holder.

1 3

Carefully remove lid and

empty contents. NOTE–

Container should be emptied

and cleaned after each use.

Remove bacteria lter, elbow,

and 33⁄8” tubing and set aside.

Soak in 1 part vinegar (>=5%

acetic acid concentration) to 3

parts water (131˚F-149ºF/55˚C-

65˚C) solution for 60 minutes.

Rinse with clean, warm water

and air dry.

Wash container, lid and splash

guard in warm water/

dishwashing solution. Rinse

with clean, warm water.

NOTE– The disassembled container may also be washed in a dishwasher, top shelf only, using a cycle with a water temperature between 131ºF-149ºF/55ºC-65ºC.

Disposable Collection Container (with External Bacteria Filter)

NOTE– The disposable collection container and lid are meant for single-patient use.

NOTE– The disassembled container may also be washed in a dishwasher, top shelf only, using a cycle with a water temperature between 131ºF-149ºF/55ºC-65ºC.

Reusable Collection Container (with External Bacteria Filter)

Turn unit “off” and allow

vacuum to drop.

Disconnect from power source. Disconnect tubing and remove

container from holder.

1 3

Carefully remove lid and

empty contents. NOTE–

Container should be emptied

and cleaned after each use.

Remove bacteria lter, elbow,

and 43⁄8” tubing and set aside. Wash jar, lid, o-ring, and

overow valve in a solution of

warm water with a mild, liquid

detergent (e.g. Dawn or

Palmolive) and rinse with

clean, warm tap water. Then

disinfect using one of the

following methods.

4 5 62

Wash container and lid in

warm water/dishwashing

solution. Rinse with clean,

warm water.

EN - 8 A-7314

Suction Unit (multi-patient use)

Device Cleaning and Disinfection When There is a Patient Change

When medical devices have already been used with a patient, contamination with human pathogenic germs should be assumed (unless there is evidence to the contrary), and

the next patient, user or third party should be protected by appropriate handling and preparation. Therefore, when there is a patient change, people must be protected during

the transport and handling of the device and the device must be fully processed, i.e., cleaned and disinfected, by suitably trained personnel before reuse to protect the next

patient. The complete processing may only be done by the manufacturer or by a qualied DeVilbiss provider/service technician.

NOTE – When the unit is used as per instructions under normal conditions the interior of the unit is protected from exposure to pathogens by the in-line lter on the collection

container, hence no disinfection of internal components is necessary.

NOTE – If the unit is used without an in-line lter then the interior of the unit has been exposed to pathogens and the unit cannot be disinfected.

NOTE – If the following processing of the unit by a qualied DeVilbiss provider/technician is not possible, the unit must not be used by another patient!

DeVilbiss Healthcare recommends that at least the following procedures be carried out by the manufacturer or a qualied third party between uses by different patients.

1. Dispose of all accessory components that are not suitable for reuse, i.e., collection container, lter, tubing and carrying case.

2. With the power switch in the “Off” position, disconnect the DeVilbiss Suction Unit from all external power sources.

3. Visually inspect unit for any damage, missing parts, etc.

4. Wipe the housing with a clean cloth and a commercial (bacterial-germicidal) disinfectant that meets the requirements listed in the NOTE below and is used as per the

disinfectant manufacturer’s recommended dilution rates and instructions.

CAUTION – Do not submerge in water as this will result in damage to the vacuum pump.

NOTE – Do not use any cleaners or disinfectants that contain ammonia, benzene and/or acetone to clean the unit.

Suction Unit (single-patient use)

6’ Patient Tubing (single-patient use)

Rinse thoroughly by running

warm tap water through it. Follow by soaking in a solution

of 1 part vinegar (>=5% acetic

acid concentration) to 3 parts

water (131ºF-149ºF/55ºC-

65ºC) for 60 minutes.Rinse

with clean, warm water and air

dry.

Disconnect from lid. Keep outer surface clean by

wiping with clean, damp cloth .

1 2 3 4

AC to DC Adapter

Disconnect AC to DC adapter

from unit and from power

source.

1 2

Wipe AC to DC adapter

housing and cords with a dry

cloth.

CAUTION– Do not submerge in water as this will result in damage to the vacuum pump.

NOTE–Do not use any cleaners or disinfectants that contain ammonia, benzene and/or acetone to clean the unit.

Carrying Case (single-

patient use)

Wipe with clean cloth

dampened with detergent or

disinfectant.

Turn unit “off” and allow

vacuum to drop.

Disconnect from power source. Wipe the housing with a clean

cloth and any commercial

(bacterial-germicidal)

disinfectant.

1 32

For single patient use:

1. Soak in 1 part vinegar (>=5% acetic acid concentration) to 3 parts water (131ºF-149ºF/55ºC-65ºC) solution for 60 minutes. Rinse with clean, warm water and air dry in a

clean environment.

2. Soak with a commercial (bacterial-germicidal) disinfectant. Follow disinfectant manufacturer’s recommended dilution rates and instructions carefully.

For multi patient use:

1. After parts are completely dry, place jar and lid in autoclave with the open end down. Ensure parts are not touching. Run one sterilization steam cycle at 250°F (121°C)

for 15 minutes. NOTE-Jar is guaranteed up to 30 cycles of autoclave sterilization at the indicated conditions.

2. Dispose of and replace lter, tubing and elbow between patients.

EN - 9A-7314

TROUBLESHOOTING

DANGER

Electric shock hazard. Do not attempt to open or remove cabinet, there are no user-serviceable internal components. If service is required, return unit to a qualied

DeVilbiss Healthcare provider or an authorized service center. Opening or tampering with the unit will void warranty.

NOTE– Your DeVilbiss Suction Unit contains no user-serviceable parts. If you believe your unit is not working properly, BEFORE YOU RETURN IT TO YOUR DEVILBISS

HEALTHCARE PROVIDER WHERE YOU PURCHASED IT, PLEASE TAKE A FEW MOMENTS TO CHECK FOR THESE POSSIBLE CAUSES:

PROBLEM ACTION

Unit does not turn on when external power is connected.

Green external power light does not illuminate.

1. Check power sources and connections.

2. Ensure wall outlet is live by plugging in a lamp.

Pump runs, but there is no suction. 1. Check that all tubing is connected properly.

2. Check tubing connections for breaks or leaks.

3. Ensure that oat shut-off in collection container is not activated or lter cartridge occluded.

4. Check for leaks or cracks in collection container assembly.

Low suction. 1. Use vacuum regulator knob to increase suction level.

2. Check system for leaks.

Unit does not turn on (no external power is connected).

7314P Series Only

1. Check that battery is fully charged and/or charge battery.

Battery will not charge (external power and charge

indicator lights should be illuminated during charge

mode) 7314P Series Only

1. Verify that both external power and charge indicator lights illuminate.

2. Check power sources and connections.

3. Ensure wall outlet is live by plugging in a lamp.

PROVIDER’S NOTES

No routine calibration or service is required provided the device is used in accordance with the manufacturer’s directions. In case of a change of patient, the device must be

reconditioned to protect the user. Reconditioning must only be carried out by the manufacturer or service provider. Between patients:

1. Visually inspect unit for any damage, missing parts etc.

2. Ensure that unit and accessories are clean.

3. Use an independent vacuum gauge to verify the unit provides the proper vacuum level as stated in Specications.

4. Discard and replace collection container, lter, and tubing between patients.

5. Wipe the surface using a clean cloth dampened with disinfectant.

SPECIFICATIONS/CLASSIFICATIONS

Size (including container) 8.3 H x 8.0 W x 8.5 D (21.1 cm x 20.3 cm x 21.6 cm) (not including AC to DC adapter)

Weight (including container) 7314P Series - 6.6 lb. (3 kg) (not including AC to DC adapter)

7314D Series - 4.3 lb. (2.0 kg)

Typical Operating Sound Level 55 dBA

Electrical Requirements 100-240V~, 50/60Hz, 1.2A max ; 12V ; 33 W Max

Vacuum Range 50-550 mm Hg +/- 10%*

Air Flow @ Pump Inlet: 27 LPM (free ow) typical (may be less when running from internal battery)*

Disposable Collection Container Capacity 800 ml (cc) with 2 lter options

Reusable Collection Container Capacity 1200 ml (cc)

Warranty Two-years limited, excluding internal battery (7314P series only) and collection container

Internal Battery (7314P Series Only) 90-day

Approvals IEC 60101-1-2; CSA-C22.2 # 601.1; UL 60601-1; EN 60601-1-2; ISO 10079-1; IEC 60601-1; IEC 60529; IP22; IEC 60601-1-6;

CENELEC EN 60601-1

Environmental Conditions

Operating Temperature Range 32°F (0°C) - 104°F (40°C)

Operating Relative Humidity 0-95%

Operating Atmospheric Pressure 10.2 psi (70 kPa) - 15.4 psi (106 kPa)

Storage & Transport Temperature Range -40°F (-40°C) - 158°F (70°C)

Storage & Transport Relative Humidity 0-95%

Storage & Transport Atmospheric Pressure 7.3 psi (50 kPa) - 15.4 psi (106 kPa)

Equipment Classications

With respect to protection from electric shock Class II and internally powered

Degree of protection against electric shock Type BF Applied Parts

Degree of protection against ingress of liquids IP22 and ordinary power supply

Mode of Operation Intermittent Operation: 30 minutes on, 30 minutes off

Equipment not suitable for use in the presence of a ammable anaesthetic mixture with air or with oxygen or nitrous oxide.

ISO Classication

High Flow/High Vacuum

7314 series - Electrically powered medical suction equipment for non-transport use according to EN ISO 10079-1

* Conditions may vary based on altitude above sea level, barometric pressure, and temperature.

EN - 10 A-7314

Manufacturer’s Note

Thank you for choosing a DeVilbiss Suction Unit. We want you to be a satised customer. If you have any questions or comments, please send them to our address on the

back cover.

For Service Call Your Authorized DeVilbiss Healthcare Provider:

Phone Purchase Date Serial #

DEVILBISS GUIDANCE AND MANUFACTURER’S DECLARATION

WARNING

Medical Electrical Equipment needs special precautions regarding Electromagnetic Compatibility (EMC) and needs to be installed and put into service according

to the EMC information provided in the accompanying documents.

Portable and Mobile RF Communications Equipment can affect Medical Electrical Equipment.

The equipment or system should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, the equipment or

system should be observed to verify normal operation in the conguration in which it will be used.

NOTE– The EMC tables and other guidelines provide information to the customer or user that is essential in determining the suitability of the Equipment or System for the

Electromagnetic Environment of use, and in managing the Electromagnetic Environment of use to permit the Equipment or System to perform its intended use without

disturbing other Equipment and Systems or non-medical electrical equipment.

Guidance and Manufacturer’s Declaration – Emissions All Equipment and Systems

This device is intended for use in the electromagnetic environment specied below. The customer or user of this device should assure that it is used in such an environment.

Emissions Test Compliance Electromagnetic Enforcement – Guidance

RF Emissions CISPR 11 Group 1 This device uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not

likely to cause any interference in nearby electronic equipment.

RF Emissions CISPR 11 Class B Radiated and

Conducted Emissions This device is suitable for use in all establishments including domestic, and those directly connected to the

public low-voltage power supply network that supplies buildings used for domestic purposes.Harmonics IEC 61000-3-2 Class A

Flicker IEC 61000-3-3 Complies

Immunity Test IEC 60601 Test Level Compliance Level Electromagnetic Environment - Guidance

Electrostatic Discharge

(ESD) IEC 61000-4-2 ±6kV contact

±8kV air ±6kV contact

±8kV air Floors should be wood, concrete or ceramic tile. If oors are synthetic, the relative

humidity should be at least 30%.

Electrical Fast Transient/

burst IEC 61000-4-4 ±2kV on AC Mains ±2kV on AC Mains Mains power quality should be that of a typical commercial or hospital environment.

Surge

IEC 61000-4-5 ±1kV Differential

±2kV Common ±1kV Differential

±2kV Common Mains power quality should be that of a typical commercial or hospital environment.

Voltage dips, short

interruptions and voltage

variations on power supply

input lines IEC 61000-4-11

>95% Dip for 0.5 Cycle

60% Dip for 5 Cycles

30% Dip for 25 Cycles

>95% Dip for 5 Seconds

>95% Dip for 0.5 Cycle

60% Dip for 5 Cycles

30% Dip for 25 Cycles

>95% Dip for 5 Seconds

Mains power quality should be that of a typical commercial or hospital environment.

If the user of this device requires continued operation during power mains

interruptions, it is recommended that the device be powered from an uninterruptible

power supply or battery.

Power Frequency 50/60Hz

Magnetic Field

IEC 61000-4-8 3A/m 3A/m Power frequency magnetic elds should be that of a typical location in a typical

commercial or hospital environment.

Conducted RF

IEC 61000-4-6 3 Vrms from

150 kHz to 80 MHz 3 Vrms

Portable and mobile RF communications equipment should be separated from the

device by no less than the recommended separation distances calculated/listed

below:

D=(1.2)√

Radiated RF

IEC 61000-4-3 3 V/m

80 MHz to 2.5 GHz 3V/m

D=(1.2)√

P80 to 800 MHz

D=(2.3)√

P800 MHz to 2.5 GHz

Where P is the maximum power rating in watts and D is the recommended

separation distance in meters.

Field strengths from xed transmitters, as determined by an electromagnetic site

survey, should be less than the compliance levels (3 Vrms and 3V/m).

Interference may occur in the vicinity of equipment containing a transmitter.

For transmitters rated at a maximum output power not listed above, the recommended separation distance D in meters (m) can be estimated using the equation applicable

to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

Note 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.

Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reection from structures, objects, and people.
