Laser Information
The DCE089G18 3-Beam 360° Line Laser is a Class
2 laser product. It is a self-leveling laser tool that can
be used for horizontal (level) and vertical (plumb)
alignment projects.
User Safety
Safety Guidelines
The denitions below describe the level of severity for
each signal word. Please read the manual and pay
attention to these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
NOTICE: Indicates a practice not related to personal
injury which, if not avoided, may result in property
damage.
If you have any questions or comments about this
or any DEWALT tool, go to www.2helpU.com.
WARNING:
Never modify the tool or any part of it.
Damage to the laser or personal injury could
result.
WARNING:
Read and understand all instructions.
Failure to follow the warnings and instructions
may result in electric shock, re and/or
serious injury.
SAVE THESE INSTRUCTIONS
WARNING:
Laser Radiation Exposure. Do not
disassemble or modify the laser level.
There are no user serviceable parts inside.
Serious eye injury could result.
WARNING:
Hazardous Radiation. Use of controls or
adjustments or performance of procedures
other than those specied herein may result in
hazardous radiation exposure.
CAUTION: Keep ngers clear of the back
plate and stud when mounting with magnets.
Fingers may become pinched.
CAUTION: Do not stand underneath the laser
when it is mounted with the magnet bracket.
Serious personal injury or damage to the laser
may result if the laser falls.
The label on your laser may include the following
symbols.
Symbol Meaning
V Volts
mW Milliwatts
Laser Warning
nm Wavelength in nanometers
2 Class 2 Laser

12
GB
Warning Labels
For your convenience and safety, the following labels
are on your laser (Fig. C8).
WARNING: To reduce the risk of injury,
user must read instruction manual.
WARNING: LASER RADIATION. DO
NOT STARE INTO BEAM. Class 2 Laser
Product.
WARNING: Keep clear of magnet.
Magnet hazard can disturb pacemaker
operation and result in serious injury or
death.
• If the equipment is used in a manner not
specied by the manufacturer, the protection
provided by the equipment may be impaired.
• Do not operate the laser in explosive
atmospheres, such as in the presence of
ammable liquids, gases, or dust. This tool may
create sparks which may ignite the dust or fumes.
• Store an idle laser out of reach of children and
other untrained persons. Lasers are dangerous in
the hands of untrained users.
• Tool service MUST be performed by qualied
repair personnel. Service or maintenance
performed by unqualied personnel may result
in injury. To locate your nearest DEWALT service
center go to www.2helpU.com.
• Do not use optical tools such as a telescope or
transit to view the laser beam. Serious eye injury
could result.
• Do not place the laser in a position which may
cause anyone to intentionally or unintentionally
stare into the laser beam. Serious eye injury could
result.
• Do not position the laser near a reective
surface which may reect the laser beam toward
anyone’s eyes. Serious eye injury could result.
• Turn the laser off when it is not in use. Leaving
the laser on increases the risk of staring into the
laser beam.
• Do not modify the laser in any way. Modifying
the tool may result in hazardous laser radiation
exposure.
• Do not operate the laser around children or allow
children to operate the laser. Serious eye injury
may result.
• Do not remove or deface warning labels. If labels
are removed, the user or others may inadvertently
expose themselves to radiation.
• Position the laser securely on a level surface. If
the laser falls, damage to the laser or serious injury
could result.
Personal Safety
• Stay alert, watch what you are doing, and use
common sense when operating the laser. Do not use
the laser when you are tired or under the inuence
of drugs, alcohol, or medication. A moment of
inattention while operating the laser may result in
serious personal injury.
• Use personal protective equipment. Always wear
eye protection. Depending on the work conditions,
wearing protective equipment such as a dust
mask, non-skid safety shoes, hard hat, and hearing
protection will reduce personal injury.

GB
13
Tool Use and Care
• Do not use the laser if the Power/Transport Lock
switch does not turn the laser on or off. Any tool that
cannot be controlled with the switch is dangerous
and must be repaired.
• Follow instructions in the Maintenance section of
this manual. Use of unauthorized parts or failure to
follow Maintenance instructions may create a risk of
electric shock or injury.
Battery Safety
WARNING:
Batteries can explode, or leak, and can
cause injury or re. To reduce this risk:
• Carefully follow all instructions and warnings on the
battery label and package, and the accompanying
Battery Safety manual.
• Do not dispose of batteries in re.
• Keep batteries out of reach of children.
• Remove batteries when the device is not in use.
• Use only the charger specied for your rechargeable
battery pack.
• Disconnect the battery pack from the laser before
making any adjustments, changing accessories, or
storing the laser. Such preventative safety measures
reduce the risk of starting the laser accidentally.
• Use the laser only with specically designated
battery packs. Use of other battery packs may create
a risk of injury and re.
• Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
• Do not use a battery pack or laser that is damaged
or modied. Damaged or modied batteries may
exhibit unpredictable behavior resulting in re,
explosion, or risk of injury.
• Do not expose a battery pack or laser to re
or excessive temperature. Exposure to re or
temperature above 265° F (130° C) may cause an
explosion.
• Follow all the charging instructions and do not
charge the battery pack outside of the temperature
range specied in the instructions. Charging
improperly or at temperatures outside of the
specied range may damage the battery and
increase the risk of re.
• Do not store or use the tool and battery pack in
locations where the temperature may fall below 4 ˚C
(39.2 ˚F) (such as outside sheds or metal buildings
in winter), or reach or exceed 40 ˚C (104 ˚F) (such
as outside sheds or metal buildings in summer).
Powering the Laser
This laser can be powered by either a DEWALT 12 V
or 18V Li-ion Battery Pack.
Battery Type Battery Pack
12V
DCB120, DCB121, DCB122,
DCB124, DCB127, DCB123,
DCB125, DCB126
18V
DCB181, DCB182, DCB183,
DCB183B, DCB183G, DCB184,
DCB184B, DCB184G, DCB185,
DCB187, DCB189, DCBP034,
DCBP518
Use of any other batteries may create a risk of re.
Charging the Li-ion Battery
1. If the DEWALT 12V/18V Li-ion battery pack is
attached to the laser, remove it.
• While pressing down on the release button on
the battery pack (Fig. B1), pull the battery pack
up to unlock it from the laser.
• Pull the battery pack the rest of the way up and
out of the laser (Fig. B2).

14
GB
2. Plug the charger cord into an electrical outlet.
3. Slide the battery pack into the charger until it
snaps in place (Fig. A1). On the charger, the left
indicator light will flash to let you know the battery
is being charged.
4. After the battery is fully-charged (the indicator light
on the charger no longer flashes), press and hold
the release button on the battery pack (Fig.
A2) and slide the pack out of the charger
(Fig. A3).
5. Slide the battery pack down in the laser until it
snaps in place (Fig. A4).
Viewing the Battery Meter
When the laser is ON, the battery meter on the keypad
(Fig. C7) indicates how much power remains.
• The bottom LED will illuminate and ash when the
battery level is low (10%). The laser may continue
to operate for a short time while the battery power
continues to drain, but the beam(s) will quickly dim.
• After the 12V/18V Li-ion battery is charged, and
the laser is turned ON again, the laser beam(s) will
return to full brightness and the battery indicator
level will indicate full capacity.
• If all 4 LEDs on the battery meter remain ON, this
indicates that the laser is not fully powered OFF.
When the laser is not in use, make sure the Power/
Transport Lock switch is placed to the LEFT to the
Locked/OFF position (Fig. C2).
Operating Tips
• To extend battery life per charge, turn the laser off
when it is not in use.
• To ensure the accuracy of your work, check the
laser calibration often. Refer to Checking Laser
Accuracy.
• Before attempting to use the laser, make sure it is
positioned securely, on a smooth, at stable surface
that is level in both directions.
• To increase beam visibility, use a Laser Target Card
(Fig. M) and/or wear Laser Enhancement Glasses
(Fig. N) to help find the beam.
CAUTION:
To reduce the risk of serious injury, never
stare directly into the laser beam with or
without these glasses. Refer to Accessories
for important information.
• Always mark the center of the beam created by
the laser.
• Extreme temperature changes can cause movement
or shifting of building structures, metal tripods,
equipment, etc., which can effect accuracy. Check
your accuracy often while working.
• If the laser has been dropped, check to make sure
your laser is still calibrated. Refer to Checking
Laser Accuracy.
Turning the Laser On
Place the laser on a at level surface. Slide the Power/
Transport Lock switch C2to the right to unlock/turn
ON the laser.
Each laser line is powered on by pressing its button on
the keypad (Fig. C3). Pressing the button again
turns the laser line off. The laser lines can be powered
one at a time or all at the same time.
Button Displays
Horizontal laser line (Fig. C4)
Side vertical laser line (Fig. C5)
Front vertical laser line (Fig. C6)
When the laser is not in use, slide the Power/Transport
Lock switch to the left in the OFF/Locked position. If
the Power/Transport Lock switch is not placed in the
lock position, all 4 LEDs will continuously ash on the
Battery Meter.

GB
15
Checking Laser Accuracy
The laser tools are sealed and calibrated at the factory.
It is recommended that you perform an accuracy check
prior to using the laser for the rst time (in case the
laser was exposed to extreme temperatures) and then
regularly to ensure the accuracy of your work. When
performing any of the accuracy checks listed in this
manual, follow these guidelines:
• Use the largest area/distance possible, closest to the
operating distance. The greater the area/distance,
the easier to measure the accuracy of the laser.
• Place the laser on a smooth, at, stable surface that
is level in both directions.
• Mark the center of the laser beam.
Horizontal Beam - Scan Direction
Checking the horizontal scan calibration of the laser
requires two walls 30′ (9m) apart. It is important to
conduct a calibration check using a distance no shorter
than the distance of the applications for which the tool
will be used.
1. Place the laser against the end of the wall on a
smooth, at, stable surface that is level in both
directions (Fig. D1).
2. Move the Power/Transport Lock switch to the right
to turn the laser ON.
3. Press to turn on the horizontal beam.
4. At least 30′ (9m) apart along the laser beam, mark
aand b.
5. Turn the laser 180º.
6. Adjust the height of the laser so the center of the
beam is aligned with a(Fig. D2).
7. Directly above or below b, mark calong the
laser beam (Fig. D3).
8. Measure the vertical distance between band c.
9. If your measurement is greater than the
Allowable Distance Between band cfor the
corresponding Distance Between Walls in the
following table, the laser must be serviced at an
authorized service center.
Distance
Between Walls
Allowable Distance
Between band c
10.0 m 6.0 mm
12.0 m 7.2 mm
15.0 m 9.0 mm
Horizontal Beam - Pitch Direction
Checking the horizontal pitch calibration of the
laser requires a single wall at least 30′(9m) long.
It is important to conduct a calibration check using
a distance no shorter than the distance of the
applications for which the tool will be used.
1. Place the laser against the end of the wall on a
smooth, at, stable surface that is level in both
directions (Fig. E1).
2. Move the Power/Transport Lock switch to the right
to turn the laser ON.
3. Press to turn on the horizontal beam.
4. At least 30′ (9m) apart along the laser beam, mark
aand b.
5. Move the laser to the opposite end of the wall (Fig.
E2).
6. Position the laser toward the rst end of the same
wall and parallel to the adjacent wall.
7. Adjust the height of the laser so the center of the
beam is aligned with b.
8. Directly above or below a, mark calong the
laser beam (Fig. E3).
9. Measure the distance between aand c.
10. If your measurement is greater than the
Allowable Distance Between aand cfor the
corresponding Distance Between Walls in the
following table, the laser must be serviced at an
authorized service center.

16
GB
Ceiling Height
Allowable Distance
Between Marks
2.5 m 1.7 mm
3.0 m 2.1 mm
4.0 m 2.8 mm
6.0 m 4.1 mm
9.0 m 6.2 mm
90º Accuracy Between Vertical Beams
Checking 90º accuracy requires an open oor area
at least 33’ x 18’ (10m x 5m). Refer to Fig.e Afor the
position of the laser at each step and for the location of
the marks made at each step. Always mark the center
of the beam’s thickness.
1. Place the laser on a smooth, at, stable surface
that is level in both directions.
2. Move the Power/Transport Lock switch to the right
to turn the laser ON.
3. Press to turn on the side vertical beam.
4. Mark the center of the beam at three locations
(a, b, c) on the oor along the side laser line.
Mark bshould be at the midpoint of the laser line
(Fig. G1).
5. Pick up and move the laser to b.
6. Press to turn on the front vertical beam too
(Fig. G2).
7. Position the front vertical beam so it crosses
precisely at b, with the side beam aligned with c
(Fig. G2).
8. Mark a location ealong the front vertical beam at
least 14’ (4m) away from the unit (Fig. G2).
9. Rotate the laser 90ºso the side vertical beam now
passes through band e(Fig. G3).
10. Directly above or below a, mark falong the
front vertical beam.
Distance
Between Walls
Allowable Distance
Between aand c
10.0 m 6.0 mm
12.0 m 7.2 mm
15.0 m 9.0 mm
Vertical Beam
Checking the vertical (plumb) calibration of the
laser can be most accurately done when there is a
substantial amount of vertical height available, ideally
30’ (9m), with one person on the oor positioning
the laser and another person near a ceiling to mark
the position of the beam. It is important to conduct
a calibration check using a distance no shorter than
the distance of the applications for which the tool will
be used.
1. Place the laser on a smooth, at, stable surface
that is level in both directions (Fig. F1).
2. Move the Power/Transport Lock switch to the right
to turn the laser ON.
3. Press and to turn on both vertical beams.
4. Mark two short lines where the beams cross
a, band also on the ceiling c, d. Always mark
the center of the beam’s thickness (Fig. F2).
5. Pick up and rotate the laser 180º, and position it
so the beams line up with the marked lines on the
level surface ( e, f) (Fig. F3).
6. Mark two short lines where the beams cross on
the ceiling g, h.
7. Measure the distance between each set of marked
lines on the ceiling ( c, gand d, h). If the
measurement is greater than the values shown
below, the laser must be serviced at an authorized
service center.

17
GB
damage to the laser may result if the laser
falls.

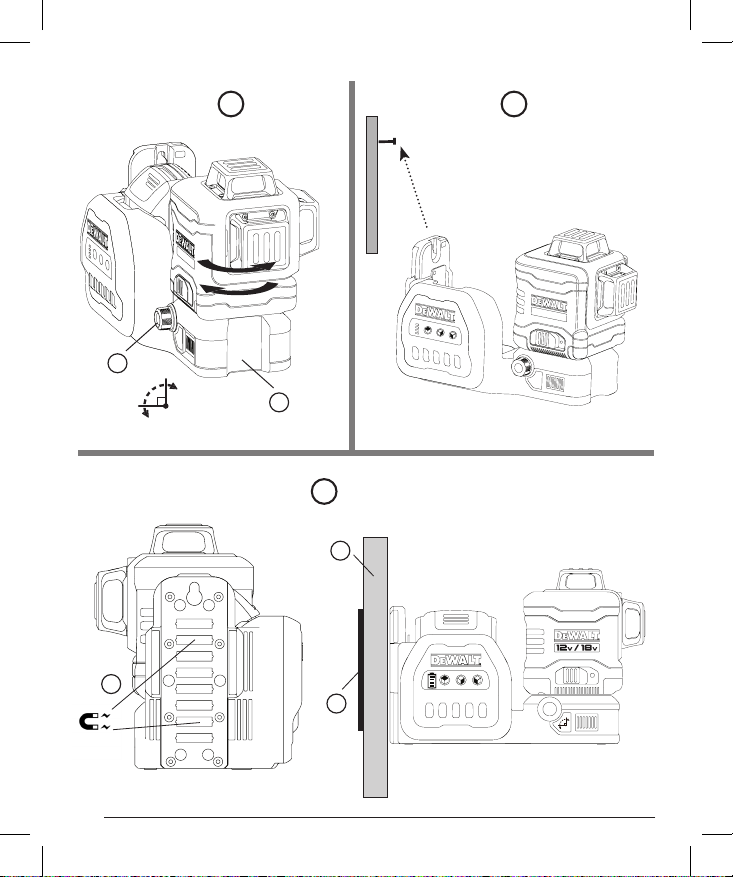

• The bracket has a ne adjustment knob
(Fig. H2) to help you line up the laser beams.
Place the unit on a at level surface and turn the
knob to the right to move the beams to the right,
or turn the knob to the left to move the beams to
the left.
• The bracket has a keyhole slot (Fig. I) so it can be
hung from a nail or screw on any kind of surface.
• The bracket has magnets (Fig. J1) which allow
the unit to be mounted to most upright surfaces
made of steel or iron. Common examples of suitable
surfaces include steel framing studs, steel door
frames, and structural steel beams. Before attaching
the pivot bracket against a stud (Fig. J2), place
the Metal Enhancement Plate (Fig. J3) on the
opposite side of the stud.
Maintenance
• To maintain the accuracy of your work, check the
laser often to make sure it is properly calibrated.
See Field Calibration Check.
• Calibration checks and other maintenance repairs
may be performed by DEWALT service centers.
• When not in use, store the laser in the kit box
provided. Do not store your laser at temperatures
below -5˚F (-20˚C ) or above 140˚F (60˚C).
• Do not store your laser in the kit box if the laser is
wet. The laser should be dried rst with a soft dry
cloth prior to storage.
Cleaning
Exterior plastic parts may be cleaned with a damp
cloth. Although these parts are solvent resistant,
NEVER use solvents. Use a soft, dry cloth to remove
moisture from the tool before storage.
11. Measure the distance between aand f. If the
measurement is greater than the values shown
below, the laser must be serviced at an authorized
service center.
Distance from
ato b
Allowable Distance
Between aand f
4.0 m 3.5 mm
5.0 m 4.4 mm
6.0 m 5.3 mm
7.0 m 6.2 mm
Using the Laser
Leveling the Laser
As long as the laser is properly calibrated, the laser is
self-leveling. Each laser is calibrated at the factory to
nd level as long as it is positioned on a at surface
within average ± 4° of level. No manual adjustments
are required.
If the laser has been tilted so much that it cannot
self-level (> 4°), the laser beam will ash. There are
two ashing sequences associated with the out of level
condition.
• Between 4° and 10° the beams ash with a constant
blink cycle
• At angles greater than 10° the beams ash with a
three blink cycle.
When the beams ash THE LASER IS NOT LEVEL
(OR PLUMB) AND SHOULD NOT BE USED FOR
DETERMINING OR MARKING LEVEL OR PLUMB.
Try repositioning the laser on a more level surface.
Using the Pivot Bracket
The laser has a magnetic pivot bracket (Fig. H1)
permanently attached to the unit.
WARNING:
Position the laser and/or wall mount on
a stable surface. Serious personal injury or

18
GB
Troubleshooting
The Laser Does Not Turn On
• Fully-charge the battery pack and then reinstall it in
the laser unit.
• If the laser unit is heated above 120˚F (50˚C), the
unit will not turn on. If the laser has been stored in
extremely hot temperatures, allow it to cool. The
laser level will not be damaged by pressing the on/
off button before cooling to its proper operating
temperature.
The Laser Beams Flash
The lasers are designed to self-level up to an average
of 4° in all directions If the laser is tilted so much that
the internal mechanism cannot level itself, the laser
beams will ash indicating that the tilt range has been
exceeded. THE FLASHING BEAMS CREATED BY
THE LASER ARE NOT LEVEL OR PLUMB AND
SHOULD NOT BE USED FOR DETERMINING OR
MARKING LEVEL OR PLUMB. Try repositioning the
laser on a more level surface.
The Laser Beams Will Not Stop Moving
The laser is a precision instrument. Therefore, if it is
not positioned on a stable (and motionless) surface,
the laser will continue to try to nd level. If the beam
will not stop moving, try placing the laser on a more
stable surface. Also, try to make sure that the surface
is relatively at, so that the laser is stable.
The Battery Meter LEDs Flash
When all 4 LEDs continuously ash on the Battery
Meter this indicates that the unit has not been fully
powered off using the Power/Transport Lock switch
(Fig. C2). The Power/Transport Lock switch should
always be placed in the LOCKED/OFF position when
the laser is not in use.
Accessories
The laser is equipped with both 1/4 - 20 and 5/8 - 11
female threads on the bottom of the unit (Fig. K).
This thread is to accommodate current or future
DEWalt accessories. Only use DEWalt accessories
specied for use with this product. Follow the
directions included with the accessory.
WARNING:
Since accessories, other than those offered
by DEWalt, have not been tested with this
product, use of such accessories with this
tool could be hazardous. To reduce the risk of
injury, only DEWalt recommended accessories
should be used with this product.
If you need any assistance in locating any accessory,
please contact your nearest DEWALT service center or
go to www.2helpU.com.
Target Card
Some laser kits include a Laser Target Card (Fig. M
) to aid in locating and marking the laser beam. The
target card enhances the visibility of the laser beam as
the beam crosses over the card. The card is marked
with standard and metric scales. The laser beam
passes through the red plastic and reflects off of the
reflective tape on the reverse side. The magnet at the
top of the card is designed to hold the target card to
ceiling track or steel studs to determine plumb and
level positions. For best performance when using the
Target Card, the
DeWALT
logo should be facing you.
Laser Enhancement Glasses
Some laser kits include Laser Enhancement Glasses
(Fig. N). These glasses improve the visibility of
the laser beam under bright light conditions or over
long distances when the laser is used for interior
applications. These glasses are not required to operate
the laser.

19
GB
CAUTION:
These glasses are not ANSI approved
safety glasses and should not be used while
operating other tools. These glasses do not
keep the laser beam from entering your eyes.
CAUTION:
To reduce the risk of serious injury, never
stare directly into the laser beam with or
without these glasses.
Ceiling Mount
The laser ceiling mount (Fig. L1), if included, offers
more mounting options for the laser. The ceiling mount
has a clamp (Fig. L2) at one end which can be xed
to a wall angle for acoustic ceiling installation (Fig. L
3). At each end of the ceiling mount is a screw hole
(Fig. L4and L5), allowing the ceiling mount to be
attached to any surface with a nail or screw.
Once the ceiling mount is secured, its steel plate
provides a surface to which the magnetic pivot bracket
(Fig. L6) can be attached. The position of the laser
can then be ne-tuned by sliding the magnetic pivot
bracket up or down on the wall mount.
Service and Repairs
NOTE: Disassembling the laser level(s) will void
all warranties on the product.
To assure product SAFETY and RELIABILITY, repairs,
maintenance and adjustment should be performed by
authorized service centers. Service or maintenance
performed by unqualied personnel may result in a risk
of injury. To locate your nearest DEWalt service center
go to www.2helpU.com.
Warranty
Go to www.2helpU.com for the latest warranty
information.

GB
20
Specications
DCE089G18
Light Source Laser diodes
Laser Wavelength 510–530nm visible
Laser Power ≤1.50mW (each beam) CLASS 2 LASER PRODUCT
Working Range 70 m (230')
100 m (330') with detector (sold separately)
Accuracy (Plumb) ±3.1mm @ 9m
Accuracy (Level) ±3mm per 10m
Battery Low 1 LED Flashing on Battery meter
Unit Not Powered Off With
Pendulum Lock Switch
4 LEDs Flashing on Battery meter
Flashing Laser Beams Tilt range exceeded/unit is not level
Power Source DEWALT 12V or 18V Battery Pack
Operating Temperature 4 °C–40 °C (39.2 °F–104 °F)
Storage Temperature 4 °C–40 °C (39.2 °F–104 °F)
Humidity Maximum relative humidity 80% for temperatures up to 31 °C (88 °F),
decreasing linearly to 50% relative humidity at 40 °C (104 °F)
Environmental Water & Dust Resistant to IP54
