DFI TGH960 User manual

TGH960
COM Express Basic Module
User’s Manual
© May 11, 2023 DFI Inc.

2User's Manual | TGH960
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation with-
out the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no rep-
resentations or warranties with respect to the contents or use of this manual and specifically
disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The web-
site will always provide the most updated information.
© 2023. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
COM Express Specification Reference
PICMG® COM Express® Module Base Specification.
http://www.picmg.org/
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
• The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• Shielded interface cables must be used in order to comply with the emission limits.

3User's Manual | TGH960
Table of Contents
Chapter 1 - Introduction................................................................................................................6
Specification...........................................................................................................................6
Block Diagram ........................................................................................................................8
Chapter 2 - Concept......................................................................................................................9
COM Express Module Standards .........................................................................................9
Chapter 3 - Hardware Installation..............................................................................................10
Board Layout .......................................................................................................................10
Connector..............................................................................................................................10
COM Express Connector......................................................................................................11
COM Express Connector Signal Description .....................................................................15
COM Express Connector Signal Description .....................................................................16
COM Express Connector Signal Description .....................................................................17
COM Express Connector Signal Description .....................................................................18
COM Express Connector Signal Description .....................................................................19
COM Express Connector Signal Description .....................................................................20
COM Express Connector Signal Description .....................................................................21
COM Express Connector Signal Description .....................................................................22
COM Express Connector Signal Description .....................................................................23
Cooling Option......................................................................................................................24
Heat Sink........................................................................................................................24
Installing the COM Express Debug Card ...........................................................................25
COMe-DEBUG.................................................................................................................26
Chapter 4 - BIOS Setup...............................................................................................................28
Main.......................................................................................................................................29
Advanced .............................................................................................................................29
CPU Configuration.........................................................................................................30
Power & Performance...................................................................................................30
Power & Performance ►CPU- Power Management Control ..............................31
Power & Performance ►GT- Power Management Control.................................31
PCH-FW Configuration..................................................................................................32
Trusted Computing........................................................................................................32
PTN3460 Configuration ................................................................................................33
IT8528 Super IO Configuration.....................................................................................34
IT8528 Super IO Configuration ►Serial Port 1, 2 Configuration ........................34
Serial Port Console Redirection ...................................................................................35
Serial Port Console Redirection ►Console Redirection Settings........................36
ACPI Settings.................................................................................................................37
USB Configuration ........................................................................................................37
Network Stack Configuration........................................................................................38
NVMe Configuration......................................................................................................39
DFI EC HW Monitor .......................................................................................................39
DFI EC HW Monitor ►Smart Fan Function ........................................................40
DFI WDT Configuration..................................................................................................40
Tls Auth Configuration..................................................................................................41
Chipset..................................................................................................................................42
System Agnet (SA) Configuration................................................................................42
System Agnet (SA) Configuration►VMD Setup Menu.........................................43
Intel®Rapid Storage Technology .................................................................................43
System Agnet (SA) Configuration►Memory Configuration.................................44
System Agnet (SA) Configuration►Graphics Configuration................................44
PCH-IO Configuration....................................................................................................45
PCH-IO Configuration►PCI Express Configuration.............................................45
PCH-IO Configuration►SATA And RST Configuration.........................................46
PCH-IO Configuration►HD Audio Configuration.................................................46
Security .................................................................................................................................47
Boot.......................................................................................................................................48
Save & Exit............................................................................................................................48

4User's Manual | TGH960
About this Manual
This manual can be downloaded from the website.
The manual is subject to change and update without notice, and may be based on editions
that do not resemble your actual products. Please visit our website or contact our sales repre-
sentatives for the latest editions.
Warranty
• Warranty does not cover damages or failures that occur from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components
and product specifications.
• The warranty is void if the product has been subjected to physical abuse, improper
installation, modification, accidents or unauthorized repair of the product.
• Unless otherwise instructed in this user’s manual, the user may not, under any cir-
cumstances, attempt to perform service, adjustments or repairs on the product,
whether in or out of warranty. It must be returned to the purchase point, factory or
authorized service agency for all such work.
• We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
• To prevent electrostatic build-up, leave the system board in its anti-static bag until
you are ready to install it.
• Wear an antistatic wrist strap.
• Do all preparation work on a static-free surface.
• Hold the device only by its edges. Be careful not to touch any of the components,
contacts or connections.
• Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Safety Measures
• To avoid damage to the system, use the correct AC input voltage range.
• To reduce the risk of electric shock, unplug the power cord before removing the sys-
tem chassis cover for installation or servicing. After installation or servicing, cover
the system chassis before plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a metal part of
the system chassis. If a wrist strap is unavailable, establish and maintain contact
with the system chassis throughout any procedures requiring ESD protection.

5User's Manual | TGH960
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
The accessories in the package may not come similar to the information listed below. This may
differ in accordance with the sales region or models in which it was sold. For more information
about the standard package in your region, please contact your dealer or sales representative.
• One TGH960-RM590E/QM580E/HM570E board
Optional Items
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Storage devices such as hard disk drive, etc.
You will also need external system peripherals you intend to use which will normally include
at least a keyboard, a mouse and a video display monitor.

6
Chapter 1
INTRODUCTION
User's Manual | TGH960
Chapter 1 - Introduction
X Specification
SYSTEM Processor 11th Gen Intel®Core™ Processors, BGA 1787
Intel®Xeon®W-11865MRE, 8 Cores, 24M Cache, 2.6GHz (4.7GHz), 45W (RM590E) Intel® Xeon® W-11865MLE, 8 Cores, 24M Cache, 1.5GHz (4.5GHz), 25W (RM590E)
Intel®Core™ i7-11850HE, 8 Cores, 24M Cache, 2.6GHz (4.7GHz), 45W (RM590E/QM580E) Intel® Xeon® W-11555MRE, 6 Cores, 12M Cache, 2.6GHz (4.5GHz), 45W (RM590E)
Intel®Xeon®W-11555MLE, 6 Cores, 12M Cache, 1.9GHz (4.4Hz), 25W (RM590E)
Intel®Core™ i5-11500HE, 6 Cores, 12M Cache, 2.6GHz (4.5GHz), 45W (RM590E/QM580E)
Intel®Xeon®W-11155MRE, 4 Cores, 8M Cache, 2.4GHz (4.4GHz), 45W (RM590E) Intel® Xeon® W-11155MLE, 4 Cores, 8M Cache, 1.8GHz (3.1GHz), 25W (RM590E)
Intel®Core™ i3-1100HE, 4 Cores, 8M Cache, 2.4GHz (4.4GHz), 45W (RM590E/QM580E/HM570E)
Intel®Celeron®6600HE, 2 Cores, 8M Cache, 2.6GHz, 35W (RM590E/QM580E/HM570E)
Chipset Intel®RM590E/QM580E/HM570E Chipset
Memory 3pcs DDR4 3200MHz SO-DIMM up to 96GB,
4th DIMM by request.
Dual Channel DDR4 3200MHz
ECC support
BIOS AMI SPI 256Mbit
GRAPHICS Controller Intel®Iris®Xe Graphics
Feature OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: MPEG2, WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
Display 1 x VGA
1 x LVDS/eDP (eDP available upon request)
3 x DDI (DP/DP++)
Multi-displays VGA + LVDS + 2 DDI or
VGA + 3 DDI or
LVDS + 3 DDI
EXPANSION Interface 1 x PCIe x16 (Gen 4)
8 x PCIe x1 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
AUDIO Interface HD Audio
ETHERNET Phy 1 x Intel® I225 series (10/100/1000Mbps/2.5G)
I/O USB 4 x USB 3.2 Gen2
8 x USB 2.0
SATA 4 x SATA 3.0 (up to 6Gb/s)
Support RAID 0/1
DIO 1 x 8-bit DIO (Default 4 inputs and 4 outputs)

7
Chapter 1
INTRODUCTION
User's Manual | TGH960
WATCHDOG TIMER Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
STORAGE (Optional) NVMe SSD PCIe x4 Gen4, 64GB~1TB
SSD and 2nd DDR4 SO-DIMM(DIMM2) is alternative function
SECURITY TPM TPM2.0 (Available Upon Request)
Power Type 8.5V~20V, 5VSB, VCC_RTC (ATX mode)
8.5V~20V, VCC_RTC (AT mode)
Consumption Typical: 19V @ 2.66A (50.54 Watt)
Max.: 19V @ 6.72A (127.68 Watt)
OS SUPPORT Microsoft Windows 10 IoT Enterprise 64-bit
Linux Ubuntu 20.04
ENVIRONMENT Temperature Operating: 0 to 60°C, -40 to 70°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANICAL Dimensions COM Express®Basic 95mm (3.74") x 125mm (4.9")
Compliance PICMG COM Express® R3.0, Type 6

8
Chapter 1
INTRODUCTION
User's Manual | TGH960
X Block Diagram

9
Chapter 2
CONCEPT
User's Manual | TGH960
Chapter 2 - Concept
106.00
91.00
70.00
51.00
4.00
18.00
6.00
0.00
16.50 4.00 0.00
Extended
BasicCompact
Mini
74.20 80.00 91.00 121.00 151.00
Common for all Form Factors
Extended only
Basic only
Compact only
Compact and Basic only
Mini only
X COM Express Module Standards
The figure below shows the dimensions of the different types of COM Express modules.
EHL9A2 is a COM Express Mini. The dimension is 84mm x 55mm.

10
Chapter 3
HARDWARE INSTALLATION
User's Manual | TGH960 10
Chapter 3 - Hardware Installation

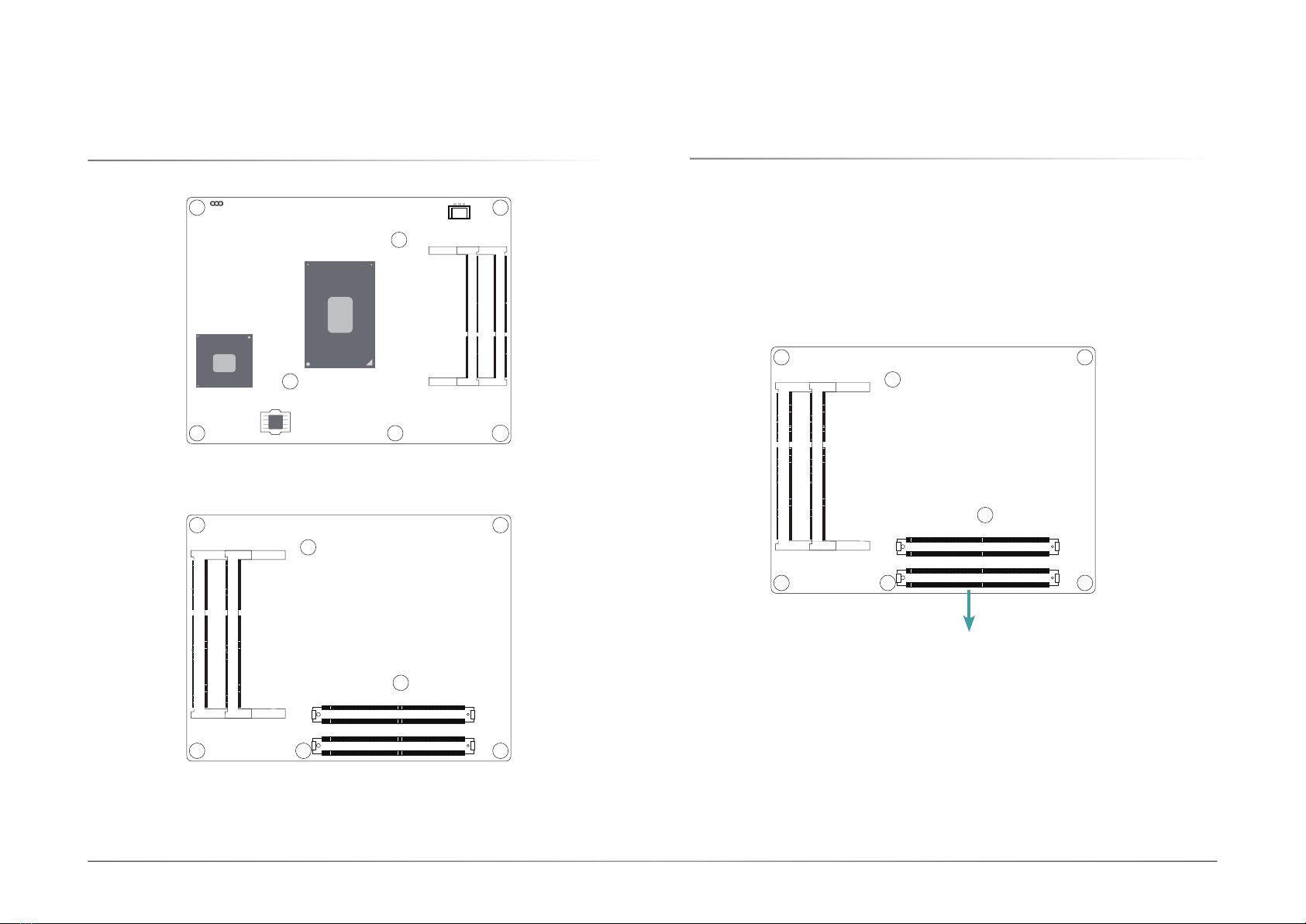

X Board Layout
TOP VIEW
SPI Flash BIOS
Intel
CM246/QM370/HM370
DDR4_1 SODIMM DDR4_3 SODIMM
CPU fan 1
1
JP8000
DDR4_2 SODIMM DDR4_4 SODIMM
D110 D1
C110 C1
B110 B1
A110 A1
COM Express Connector
COM Express Connector
DDR4_2 SODIMM DDR4_4 SODIMM
D110 D1
C110 C1
B110 B1
A110 A1
COM Express Connector
COM Express Connector
BOTTOM VIEW
X Connector
The COM Express connector is used to interface the TGH960 COM Express board to a carrier
board. Connect the COM Express connector (located on the solder side of the board) to the
COM Express connector on the carrier board.Refer to the following pages for the pin functions
of the connector.
COM Express Connector
