Technical Manual
DICTAMAT 50 BK-Z
DICTAMAT 50 BK-Z
Technical Manual
You can find the current version of our manual on our website under «Downloads»:
https://en.dictator.de/products/door-closing-solutions/door-closers/sliding-door-closer-dictamat50/bk/

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708
Page 02.060.02
Technical Manual
DICTAMAT 50 BK-Z

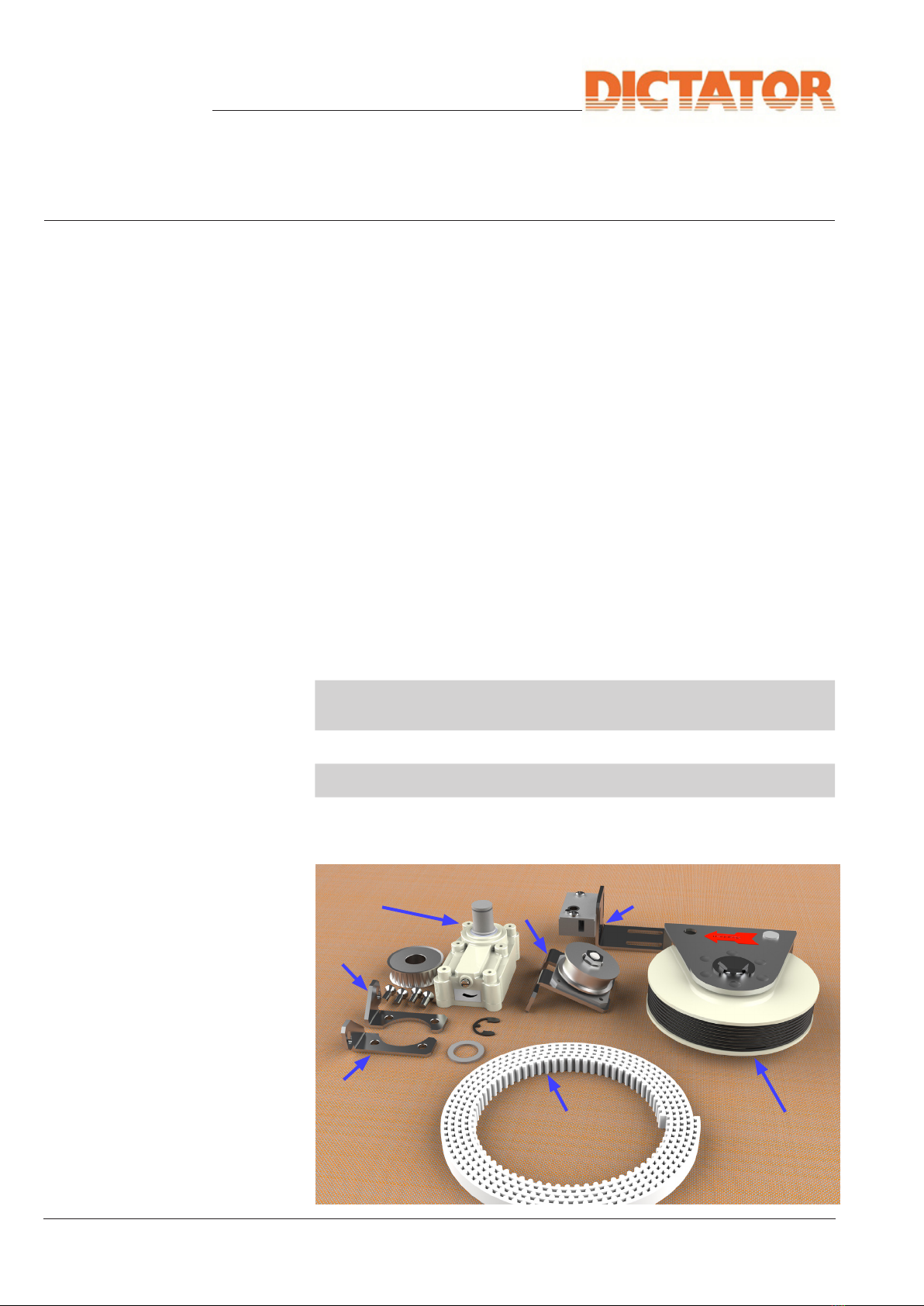

A) Safety Instructions / Components Included
1) Safety Instructions
Ill. 1
2) Components Included
(Ill. 1) Spring rope pulley (closing force 25 N, 50 N or 80 N) with
bracket and 2 m of Kevlar rope
Radial damper with fixing brackets, toothed belt disc and
fixing accessories
Idler pulley with fixing brackets, pre-assembled
Door actuator with fixing bracket and toothed belt tensioner
Toothed belt, length as required
Door actuator with toothed
belt tensioner
When installing and using the DICTAMAT 50 BK-Z with revolving toothed
belt make sure to observe all information and advice of this manual. Du-
ring the installation we recommend to wear protective gloves to prevent
any risk of getting hurt by sheet edges.
The casing of the spring rope pulley may never be opened as the released
spring can cause major injuries. If the spring rope pulley should for some
reason no longer work properly the complete device has to be replaced!
It has also to be assured that the spring rope pulley, the radial damper
and the idler pulley are protected in order to prevent fingers being
trapped (protection cover!).
The closing speed has to be adjusted at the radial damper so that the
door can easily be stopped by hand at every position, making sure
nobody will be endangered.
Revolving toothed
belt
Idler pulley with
fixing brackets
Radial-
damper
LD 50;
fixing
bracket
Mounting
accessories Spring rope pulley
with bracket

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708 Page 02.060.03
Technical Manual
DICTAMAT 50 BK-Z
∅44,0
50,1
56,0
70,0
60,0
52,0
50,0
30,0
93,0
40,0
17
41,0
12 - 30 mm
20
3,0
48
34
129
26
7,5
12
80
70
ø118
100
6,5
12
SW 17
SW 17
70,0
56,0
31,0
25,0
32,5
50,0
60,0
5,5
44,0
55,5
5,0
95,5
7,0
41,0
83,0 6,0
40,0
3,0
22,0
25,0

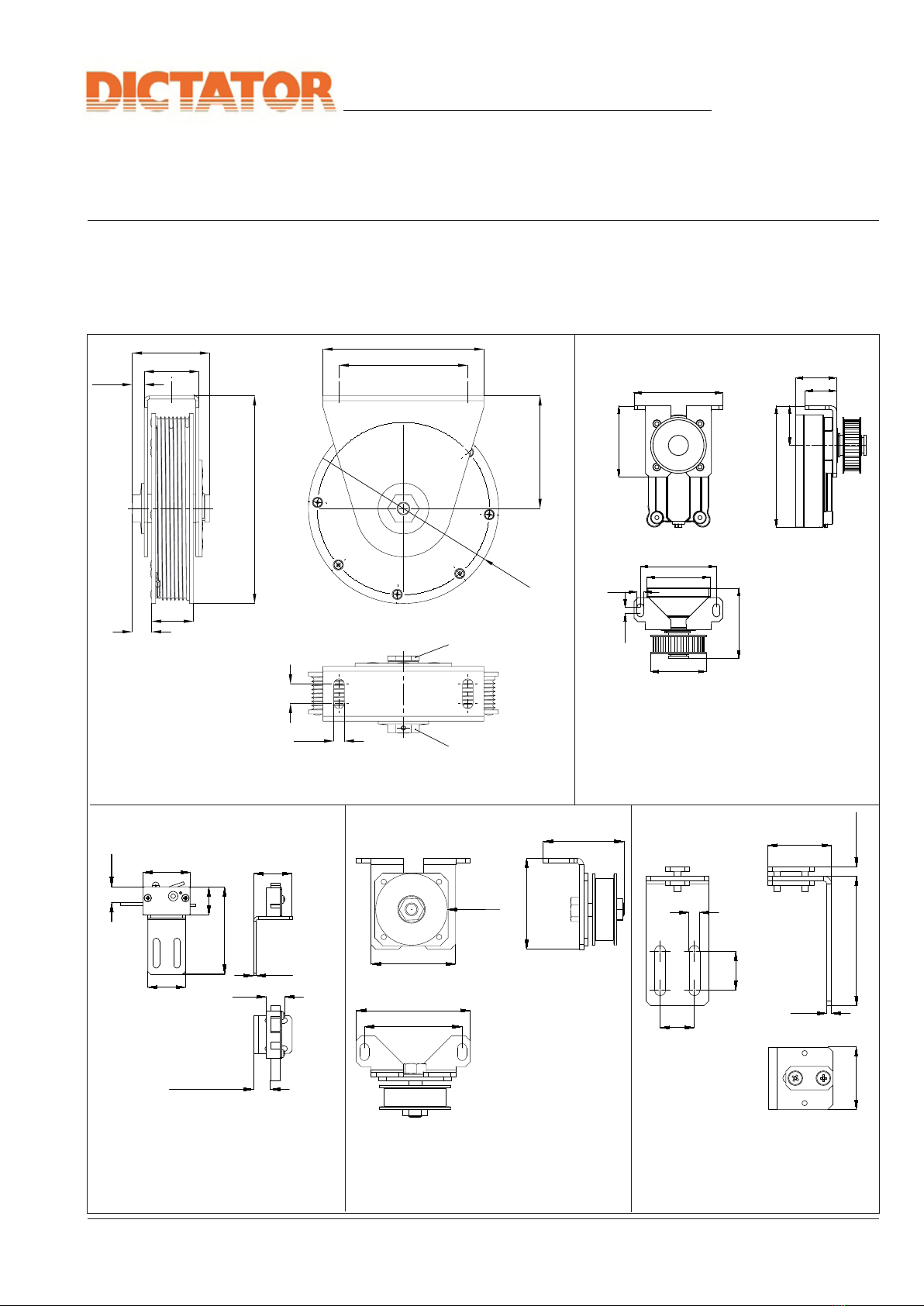

B) Dimensions
Spring rope pulley Radial damper with
mounting brackets
Idler pulley with
mounting brackets
Door actuator for the
second door leaf
The following dimensioned drawings show the most important dimensions.
In case you need further dimensions, we would be happy to provide a
AutoCAD drawing - or you contact our technical customer service.
Ill. 2a Ill. 2b
Ill. 2c Ill. 2d Ill. 2e
Door actuator with
toothed belt tensioner

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708
Page 02.060.04
Technical Manual
DICTAMAT 50 BK-Z

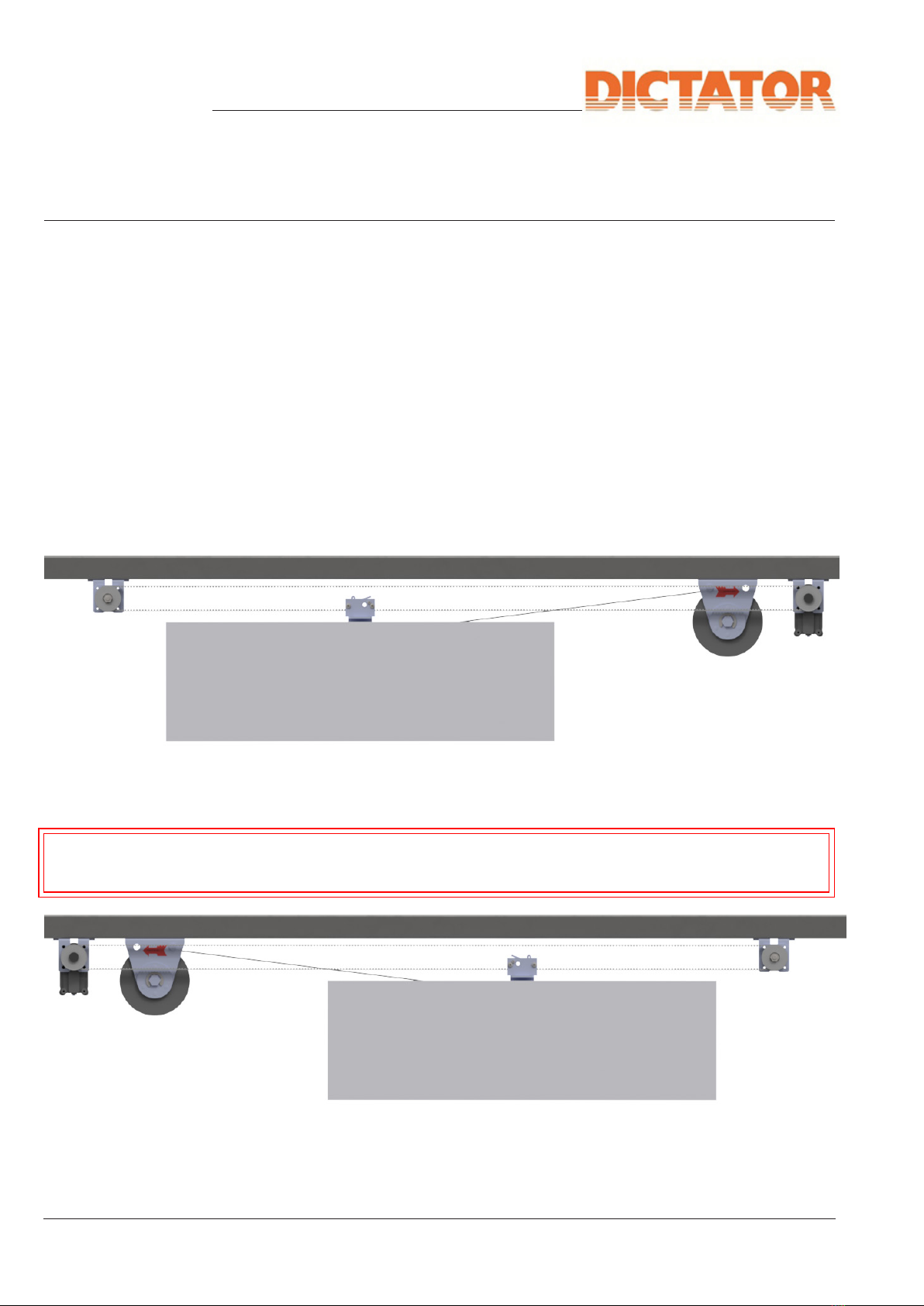

C) Installation of the DICTAMAT 50 BK-Z
1) Determination of the
Installation Position
Ill. 3a
With the DICTAMAT 50 BK-Z the spring rope pulley can be installed
either on the left or right side of the door. Usually the radial damper
LD 50 is installed beside the spring rope pulley (see ill. 3a and 3b). In
case of space problems there can be exchanged e.g. the positions of
the radial damper and the idler pulley.
The closing direction determines the position of the spring rope pulley.
With a DICTAMAT 50 BK-Z the door always closes towards the spring
rope pulley. I.e. when it is mounted on the right, the door closes to the
right. The same applies when the spring rope pulley is mounted on the
left side of the door.
The damping direction shown below has to be observed when in-
stalling the radial damper according to point C2!
Ill. 3b
Door closing to the right
Door closing to the left
IMPORTANT: When choosing the fixing point of the rope of the spring rope pulley, you have to make
sure the working travel of the spring rope pulley allows the complete travel of the door!
Damping anticlockwise
Damping
clockwise

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708 Page 02.060.05
Technical Manual
DICTAMAT 50 BK-Z
C) Installation of the DICTAMAT 50 BK-Z - cont.

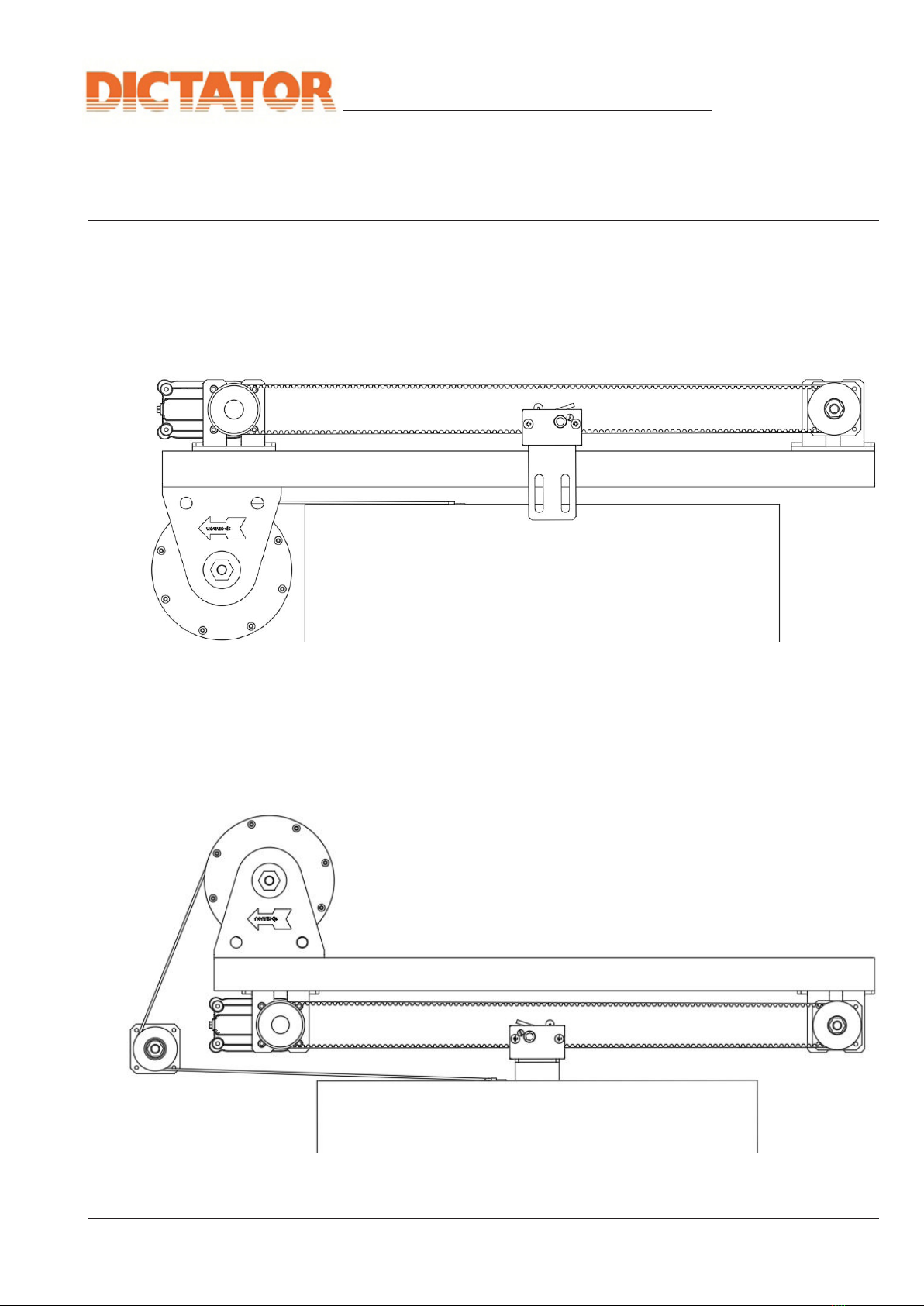

In addition to the installation positions shown on the previous page, it
is also possible to fix the toothed belt above the rail. Depending on the
structural conditions on site also other installation positions are possible.
The only thing you have to pay attention to is that all components of the
DICTAMAT 50 BK-Z are properly arranged to each other.
1) Determination of the
Installation Position -
cont.
Ill. 4
Depending on the mounting situation it is also possible to fix the spring
rope pulley above the revolving system. For this type of installation you
need an extra idler pulley (part no. 701011) for the rope. This is not
included in the standard delivery. Please keep in mind that the shown
installation positions are just examples which may vary accoding to the
structural conditions.
Ill. 5

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708
Page 02.060.06
Technical Manual
DICTAMAT 50 BK-Z

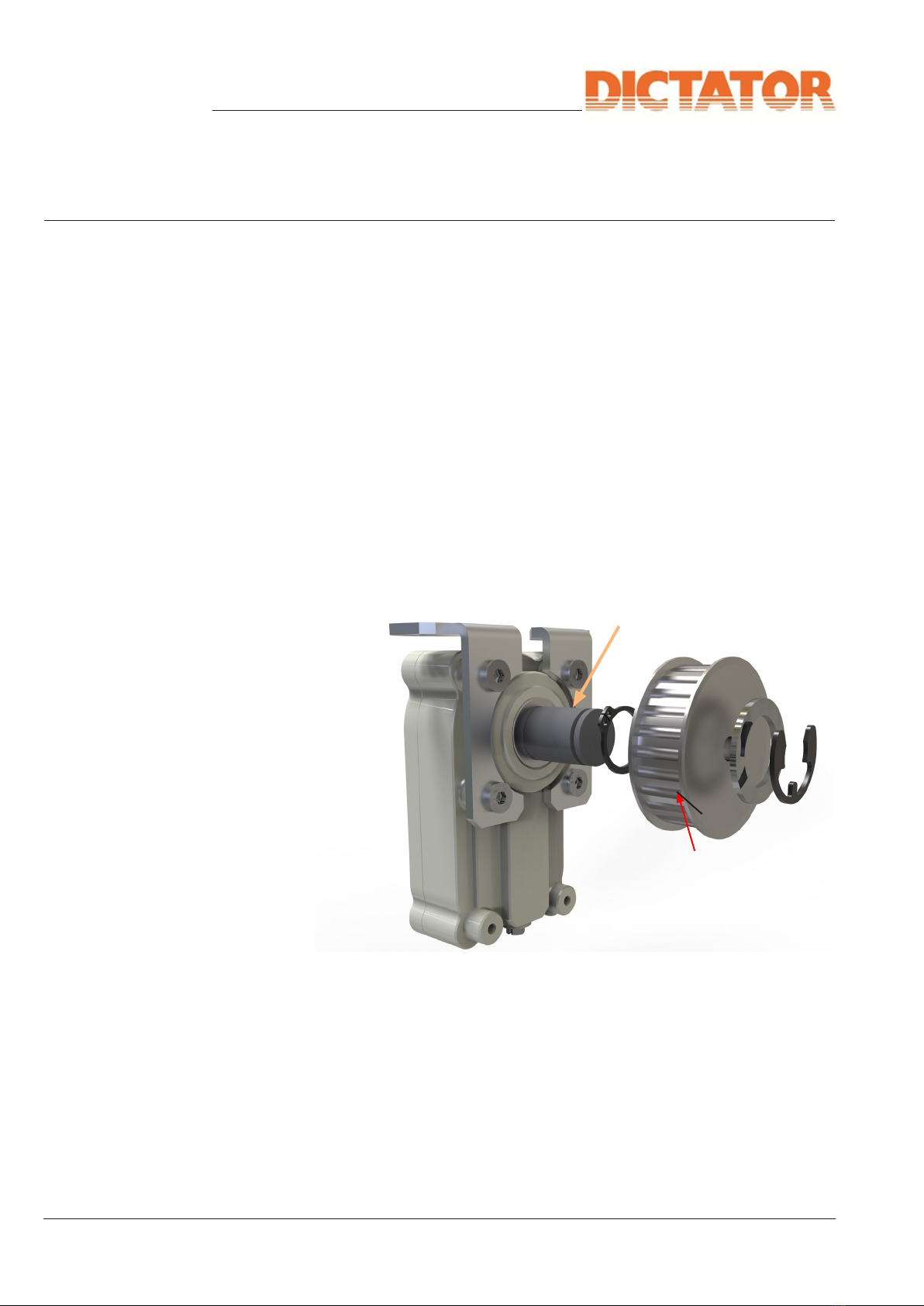

C) Installation of the DICTAMAT 50 BK-Z - cont.
2) Assembling and
Installing the Radial
Damper, Determining
the Damping Direction
The radial damper LD 50 offers many different possibilities of installation,
depending on the available space.
1. Step: Fixing the mounting brackets to the radial damper
- Determine at which position the brackets shall be screwed to the radial
damper.
Possible mounting positions: horizontal or vertical
The adjacent illustrations show some examples.
In case the included brackets should not be enough, there are additional
fixing accessories available.
- Screw the brackets to the radial damper (4 screws TORX T20 are
included, max. tightening torque 2 Nm).
2. Step: Fixing of the toothed belt disc
- Deciding on the damping direction (the default toothed belt disc has a
freewheel in one direction)
- Check in which direction the toothed belt disc damps (just put it on the
axis and test)
- After having decided on the damping direction (= rotating direction of
the damper during closing), fix the toothed belt disc on the axis of the
radial damper according to the illustration 7. Keep also in mind the
illustrations 3a and 3b.
Ill. 6
Ill. 7

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708 Page 02.060.07
Technical Manual
DICTAMAT 50 BK-Z
C) Installation of the DICTAMAT 50 BK-Z - cont.

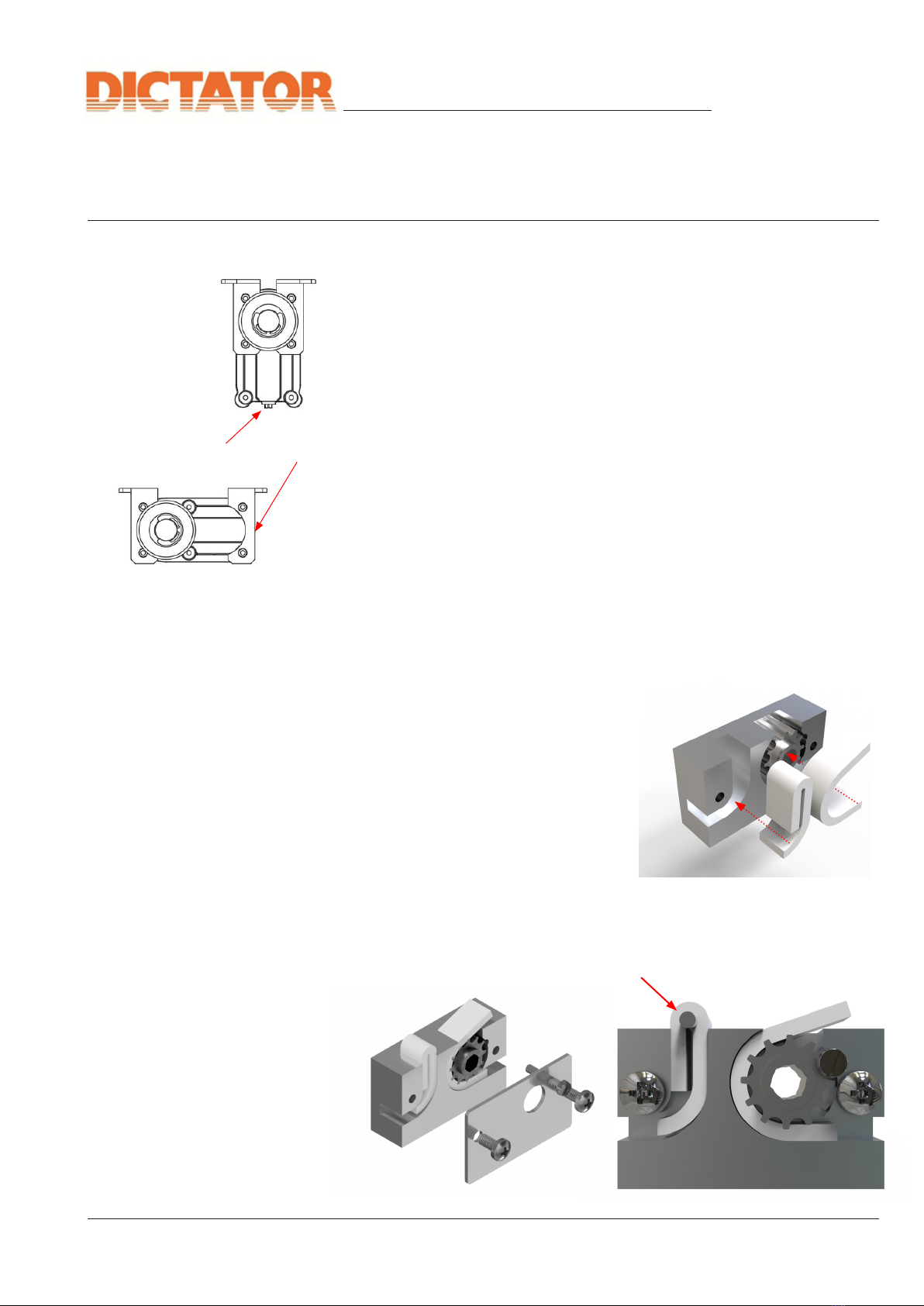

Generally the spring rope pulley and the radial damper are installed
below the rail either on the right or left rail end. Depending on the type
of rail it is sufficient to fix the brackets with M5 screws and nuts. If ne-
cessary you can place some washers in the rail.
Further possibilities are the installation on the wall or ceiling. Usually
spring rope pulley and radial damper are installed beside each other
(see ill. 3a and 3b of point C1).
The idler pulley is then installed on the opposite side of the door. Please
make sure the revolving belt runs exactly parallel to the door. The door
actuator with belt tensioner is fixed more or less at the middle of the door.
If you prefer it, you can exchange the position of the radial damper and
the idler pulley.
IMPORTANT: During installation please make sure that the adjusting
screw of the radial damper stays accessible once mounted (see ill. 8).
Place the ends of the toothed belt in
the casing of the door actuator with
belt tensioner (see adjacent ill. 9a).
For this purpose loosen all screws as
shown in ill. 9b and open the tensioner.
On the left side you can jam the loose
end by means of a Ø 3 mm pin. You
have to fold over the belt and return
the loose end into the tensioner. Now
place the 3 mm pin between both sides
of the toothed belt (see ill. 9c).
3) Installation
4) Placing and Tensioning
the Toothed Belt
Adjusting screw
Ill. 8
Abb. 11a
Ill. 9c
Ill. 9b
Ill. 9a
Ø 3 mm pin

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708
Page 02.060.08
Technical Manual
DICTAMAT 50 BK-Z
O
C) Installation of the DICTAMAT 50 BK-Z - cont.
Before finally tensioning the revolving toothed belt, you have to check
again whether the toothed belt is perfectly aligned. If necessary, once
more align the LD 50 radial damper, the idler pulley and the door actuator
by means of the oblong holes.
For tensioning the toothed belt the belt tensioner may be open or closed.
But you have to make sure that the attachment screw (see ill. 11a) has
been removed before.
The toothed belt is tensioned by means of the internal hexagon SW 5.
Turn it until the toothed belt has the desired tension. The tension shouldn't
be either too soft or too strong. With a too soft tension the toothed belt
still sags. Is it tensioned too much, this causes high friction which will
reduce the closing force. When you have achieved the desired tension,
make sure no tooth is visible in the hole (see ill. 11b). Now screw in the
attachment screw.
6) Tensioning of the
Revolving Toothed Belt
Depending on the installation (ill. 3a and 3b), the Kevlar rope is either
directly fixed to the door or a wheel hanger, as shown in ill.10a or 10b.
To reduce friction on the wheel hanger, please make sure that the rope
of the spring rope pulley always pulls straight and the wheel hangers
don't become wedged. The optimum would be if the rope was aligned
with the X axis of the door.
5) Placing and Fixing the
Kevlar Rope of the
Spring Rope Pulley
Ill. 10a Ill. 10b
Ill. 11a Ill. 11b
Attachment screw Here no tooth may
be visible.
Internal hexagon
SW 5

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708 Page 02.060.09
Technical Manual
DICTAMAT 50 BK-Z


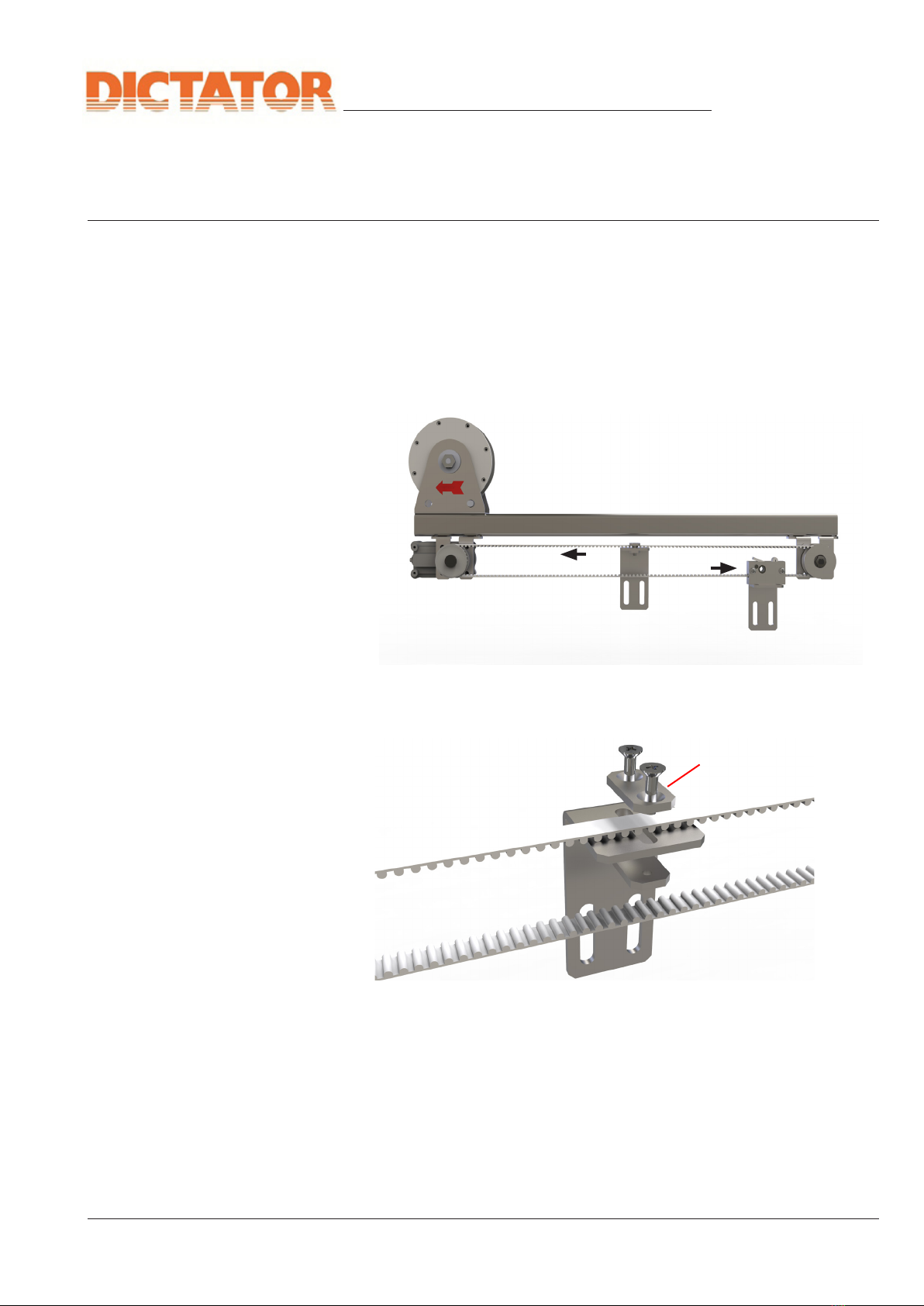

D) Installation of the DICTAMAT 50 BK-Z on Double-
Leaf Doors
Function: The door actuator for the second door leaf is fixed to the
other part (upper or lower, ill.12) of the belt so that the second door leaf
is moved automatically by the revolving belt.
Installation:
Fix the door actuator for the second door leaf (Ill. 13) approximately
in centre of the second door leaf. The position has to be choosen so
that the clamping plate is at the height of the revolving belt it has to be
attached to.
Unscrew the clamping plate and position the toothed belt so that it is
plced between the two screws. Now put back the clamping plate and
tighten it.
IMPORTANT: The door actuator for the second door leaf has to be the
last to be mounted, when the belt is already tensioned.
2) Fixing of the Second
Door Leaf
With a DICTAMAT 50 BK-Z you can also move double-leaf doors.
Requirements:
- Simultaneous opening/closing of both door leafs (central closing!)
- Both leafs have the same dimensions.
- The force according to point E1 is sufficient for the double-leaf door.
1) Requirements
Default door
actuator with
belt fixing
Door actuator for the
second door leaf
Ill. 12
Ill. 13
OPEN
OPEN
For double-leaf doors you need just one additional component: the door
actuator for the second door leaf, part no. 701012 (zinc-plated).

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708
Page 02.060.010
Technical Manual
DICTAMAT 50 BK-Z
80 N
25 N
50 N
100
90
80
70
60
50
40
30
20
10
0
0 0,5 1 2 3 4 5 6 6,,5
1,15 1,00 0,85 0,55 0,25 0
1,65 1,50 1,35 1,05 0,70 0,40 0,10 0
2,00 1,80 1,65 1,35 1,05 0,70 0,40 0,10 0
Closing force N
Ill. 15

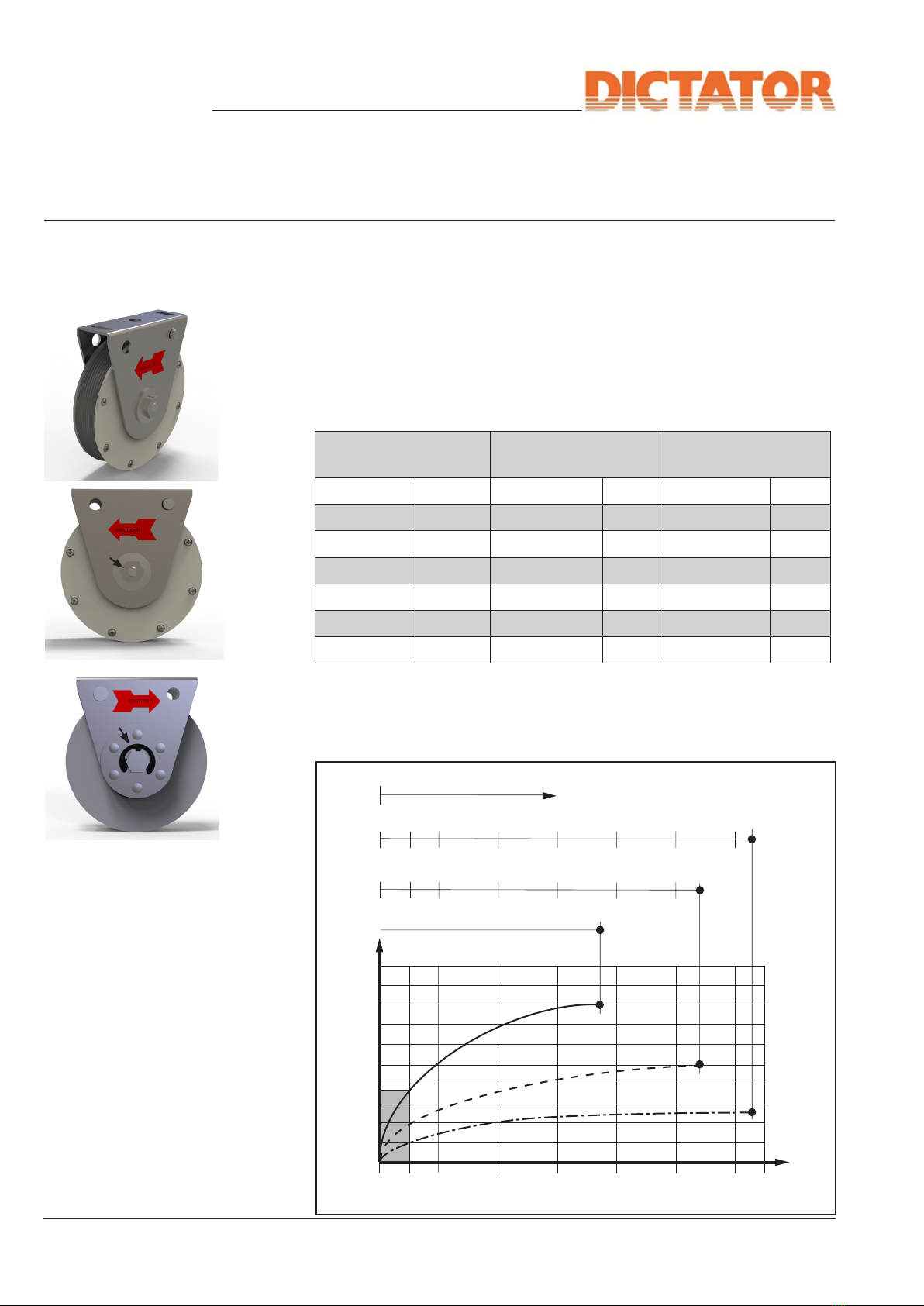

E) Adjustment of the Closing Force and Speed
1) Adjustment of the
Closing Force on the
Spring Rope Pulley
Tensioning
screw
"rearr"
Tensioning
screw
"front"
Ill. 14a
Ill. 14b
Ill. 14c Remaining travel m
Pretension/ Revolutions
DICTAMAT 50 BK,
25 N 50 N 80 N
Travel Rev. Travel Rev. Travel Rev.
1800 mm 0,5 1500 mm 0,5 1000 mm 0,5
1650 mm 1 1350 mm 1 850 mm 1
1350 mm 2 1050 mm 2 550 mm 2
1050 mm 3 730 mm 3
700 mm 4 400 mm 4
400 mm 5
Open the door completely (max. opening 1.5 m). There have to be
left at least 1.5 windings of rope on the spring rope pulley. The spring
is pretensioned by the tensioning screw SW 17 that is accessible from
both sides in the direction of the arrows "spannen" = tensioning (ill. 14a
- 14c). Maximum pretension: 2, 4 respectively 5 revolutions depending
on the used spring rope pulley (see table below)!
Releasing: in case the spring had been tensioned too much, the preten-
sion can again be reduced by turning the tensioning screw against the
direction of the arrow.
The diagram below (ill. 15) indicates the closing force of the spring rope
pulley in relation to the pretension and the door width.

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708 Page 02.060.011
Technical Manual
DICTAMAT 50 BK-Z
0,5
1
1,5
2
0
050100 150 200 U/ min
Nm
LD50-2
LD50
Ill. 17
E) Adjustment of the Closing Force and Speed - cont.
2) Adjustment of the
Closing Speed
In order to adjust the closing speed open the door completely.
Now adjust the closing speed during the closing of the door by turning
the adjustment screw at the radial damper (Allen key 5.5 mm or slotted
screw driver) (see ill. 16).
Turning it clockwise: reduces the closing speed
Turning it anticlockwise: increases the closing speed
Now check whether the spring closes the door out of any open position
independent from how far it had been opened. If necessary increase
the tension of the spring or reduce the damping.
IMPORTANT: Pretension the spring only when the door is completely
open!
Adjustment screw for the
closing speed
Damping Force
Ill. 16
Maximum adjustment LD50
Minimum adjustment LD50-2

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708
Page 02.060.012
Technical Manual
DICTAMAT 50 BK-Z
Annually or at the latest after 30.000 movements:
1. Check the door for damages and its smooth operation.
2. Check the fittings for damages and wearing: rail, wheel hanger, door
handle etc.
3. Check the secure fixing of all door and operator fittings.
4. Toothed belt, toothed belt disc and idler pulley have to be replaced
at the latest after 50.000 movements.
5. Check the complete toothed belt and the toothed belt disc for damages
and wearing.
6. Check the freewheel of the toothed belt disc for smooth operation
and running noises.
7. Lubricate just the running surface of the freewheel of the toothed belt
disc with vaseline (ill. 18). For this purpose reduce the belt tension,
partly pull off the toothed belt disc and put some vaseline on the shaft.
8. Check the tension of the toothed belt.
9. Check the closing speed and force and, if necessary, adjust it. Too
fast doors represent a risk of getting injured.
10.All damaged and worn parts have to be replaced as fast as possible
by original spare parts.
Ill. 18
Lubricate the running surface
Toothed belt disc
F) Maintenance, Servicing

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 20200708 Page 02.060.013
Technical Manual
DICTAMAT 50 BK-Z

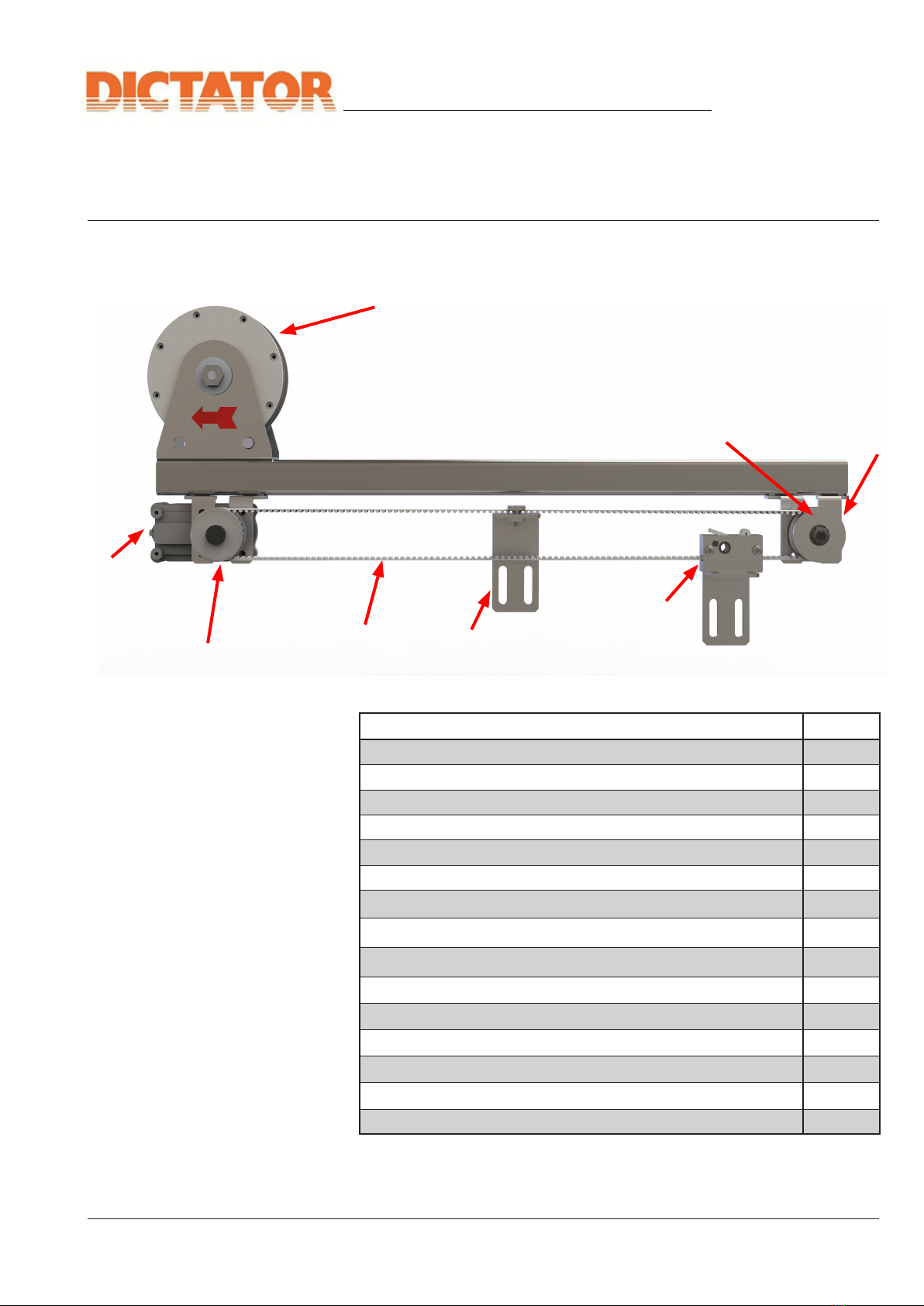

G) List of Spare Parts
Below you will find the individual spare parts and their part numbers.
Part no.
Radial damper LD 50, without bracket, without belt disc 244045
Toothed belt disc Z26-HTD5M 244203
Door actuator with toothed belt tensioner, zinc-plated steel 701010
Door actuator for second door leaf, zinc-plated steel 701012
Idler pulley with fixing brackets, zinc-plated steel 701011
Idler pulley with fixing brackets, AISI 304 701053
Idler pulley without fixing brackets 701051
Toothed belt HDT5, 10 mm wide, per m 710502
Spring rope pulley 25 N with sliding hub, bracket zinc-plated 070102
Spring rope pulley 50 N with sliding hub, bracket zinc-plated 070093
Spring rope pulley 80 N with sliding hub, bracket zinc-plated 070094
Spring rope pulley 25 N with sliding hub, bracket AISI 304 070103
Spring rope pulley 50 N with sliding hub, bracket AISI 304 070098
Spring rope pulley 80 N with sliding hub, bracket AISI 304 070099
Rope for spring rope pulley 700058
Revolving
toothed belt
Toothed belt disc LD 50
Spring rope pulley with bracket
Idler pulley with
fixing brackets
Door actuator
with belt
tensioner
Radial damper
LD 50
Idler pulley,
without fixing brackets
Ill. 19
Door actuator for
second door leaf
