Table of contents
1. General notes
1.1 Target group 3
1.2 Warning 3
1.3 Requirements 3
1.4 General safety instructions 3
1.5 Cables to use 3
2. Components
2.1 Componentes included 710650 4
2.2 Componentes included 710651 4
2.3 Componentes included 710652 4
2.4 Componentes included 710653 5
2.5 Componentes included 710654 5
3. Installation
3.1 Installing the door operator 6
3.2 Preparing the door 7
3.3 Inserting the components into the rail 8
3.4 Fastening the rail 8
3.5 Adjusting the door 9
3.6 Placing and tightening the toothed belt 10
3.7 Installing the controller 11
3.8 Floor guide and final stopping devices 12
4. Technical data 13
5. Electrical connection 13
6. Setting the desired functions
6.1 Control functions 14
6.2 Overview 14
6.3 Adjusting the potentiometer 15
6.4 Setting the DIP switches 15
6.5 Accepting the settings 16
7. Commissioning 17
8. Error indication 18
9. Maintenance 19
10. Inspection book 20

04.3
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
This manual is intended for qualified personnel only. Installation may only be carried out by technically trained and qualified per-
sons. The electrical connection may also only be carried out by a specialist.
1. General notes
1.1 TARGET GROUP
1.2 WARNING
This document contains important information on installation, electrical connection and commissioning of the product.
The document must be read before any work is carried out on the electrical and electronic systems and must be kept accessible at
all times as part of the product.
1.3 REQUIREMENTS
In addition to this document, other documents, directives, standards and laws for products of this type must be observed.
1.4 GENERAL SAFETY INSTRUCTIONS
Attention
Danger to life from electric shock!
Dangerous injuries, death and damage to property can be caused by dan-
gerous electrical voltages!
The operation of all components is only permitted in undamaged condition.
Always disconnect from the power supply before carrying out any work
and secure against being switched on again.
The accident prevention regulations must be observed.
1.5 CABLES TO USE
Cable Type of cable
Between motor and controller up to 20 m:
20 to 50 m:
50 to 100 m
Rotary encoder:
up to 50 m:
2 x 0,50 mm²
2 x 0,75 mm²
2 x 1,50 mm²
4 x 0,25 mm²
Between push button and controller optional
up to 50 m: 4 x 0,25 mm²
Between power pack and controller up to 20 m:
20 bis 50 m:
50 bis 100 m:
2 x 0,50 mm²
2 x 0,75 mm²
2 x 1,50 mm²

04.4
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
2. Components
2.1 COMPONENTS INCLUDED 710650
For single-leaf wooden doors up to 1100 mm width
Door drive with clamping block and counter plate for rail
Power pack 230 VAC / 24 VDC
Controller with push-button OPEN/CLOSE
Cover frame for flush-mounted box provided by customer
Idler pulley
Door actuator
4100 mm of toothed belt
Aluminum rail, length 3000 mm
4 aluminum brackets for wall mounting of the rail including spacer plates
2 wheel hangers with slide bearings
1 floor guide
2 final stopping devices for installation in the rail
2.2 COMPONENTS INCLUDED 710651
For single-leaf wooden doors up to 1100 mm width; AISI 316 wheel hangers
Door drive with clamping block and counter plate for rail
Power pack 230 VAC / 24 VDC
Controller with push-button OPEN/CLOSE
Push-button OPEN/CLOSE
2 cover frames for flush-mounted boxes provided by customer
Idler pulley
Door actuator
4100 mm of toothed belt
Aluminum rail, length 2000 mm
4 aluminum brackets for wall mounting of the rail including spacer plates
2 AISI 316 wheel hangers with ball bearings
1 floor guide
2 final stopping devices for installation in the rail
2.3 COMPONENTS INCLUDED 710652
For single-leaf glass doors up to 1100 mm width
Door drive with clamping block and counter plate for rail
Power pack 230 VAC / 24 VDC
Controller with push-button OPEN/CLOSE
Cover frame for flush-mounted box provided by customer
Idler pulley
Door actuator
4100 mm of toothed belt
Aluminum rail, length 2000 mm
4 aluminum brackets for wall mounting of the rail including spacer plates
2 wheel hangers with slide bearings
1 floor guide
2 final stopping devices for installation in the rail

04.5
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
2.4 COMPONENTS INCLUDED 710653
Für einflügelige Holztüren bis 1.600 mm Breite
Türantrieb mit Klemmblock und Gegenplatte für Schiene
Netztrafo 230 VAC / 24 VDC
Steuerung mit Taster AUF/ZU
Abdeckrahmen für bauseitige Unterputzdose
Umlenkrolle
Türmitnehmer
4.100 mm Zahnriemen
Aluminium-Schiene, Länge 3.000 mm
4 Winkel aus Aluminium zur Wandbefestigung der Schiene einschließlich Distanzplatten
2 Rollapparate mit Gleitlagern
1 Bodenführung
2 Endanschläge zum Einbau in die Schiene
2.5 COMPONENTS INCLUDED 710654
For double-leaf wooden doors up to 1058 mm width per door leaf
Door drive with clamping block and counter plate for rail
Power pack 230 VAC / 24 VDC
Controller with push-button OPEN/CLOSE
Push-button OPEN/CLOSE
2 cover frames for flush-mounted boxes provided by customer
Idler pulley
Door actuator
8100 mm of toothed belt
2 aluminum rails, length 2000 mm
8 aluminum brackets for wall mounting of the rail including spacer plates
4 AISI 316 wheel hangers with ball bearings
2 floor guides
3 final stopping devices for installation in the rail

04.6
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
Fig. 1
3. Installation
3.1 INSTALLING THE DRIVE

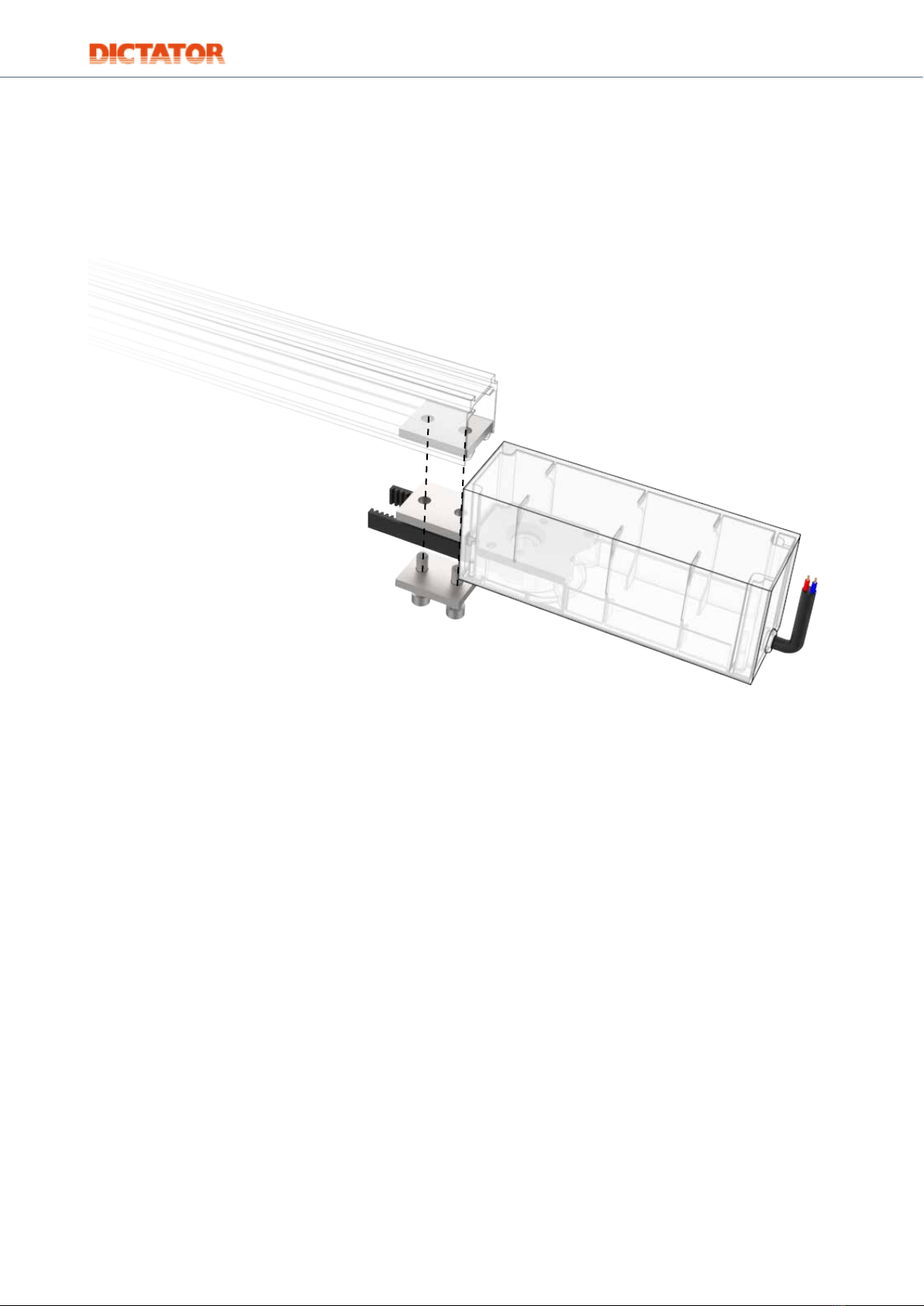

The drive is mounted directly on the supplied rail. To do this, insert the clamping block into the rail, place the lateral mounting plate
and counter plate underneath the rail and screw all components together with the supplied M6 x 25 mm screws.

04.7
125 mm
=
=
125 mm
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
Fig. 2
3.2 PREPARING THE DOOR
Now screw the door actuator and both wheel hangers firmly to the door. The door actuator should always be fixed in the middle
of the door leaf. Make sure that the wheel hangers are fixed at a sufficient distance from the outer edge of the door. This dis-
tance should be kept so that the drive and the idler pulley still have sufficient space in the rail next to the wheel hangers.
Recommended: 125 mm distance to the outer edge on both sides of the door If not already present, an additional slot must be
prepared in the door leaf for the floor guide (Fig. 12).

04.8
max. 600 mm
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
Fig. 3
Fig. 5
Fixing brackets
Rail
Spacer plate
Fig. 4
3.3 INSERTING THE COMPONENTS INTO THE RAIL

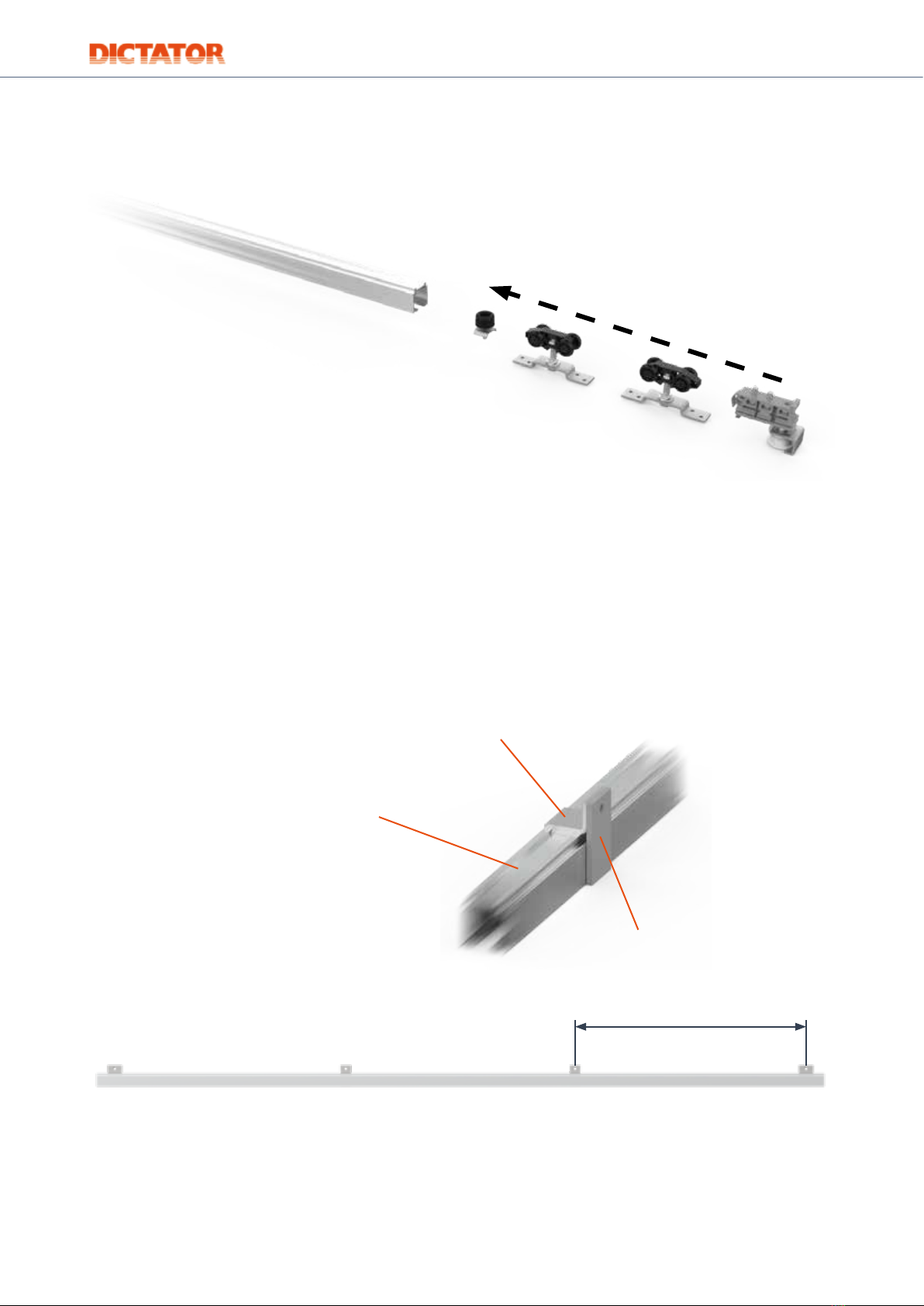

Insert all components into the rail in the following order: Final stopping device, wheel hanger, wheel hanger and idler pulley.
3.4 FASTENING THE RAIL
To fix the rail, the supplied aluminum brackets are inserted into the upper guide of the rail. In addition, the spacer plates can be
used if the bracket cannot be fixed directly to the wall (Fig. 4).
In order to ensure a stable hold of the rail, please ensure a distance of max. 600 mm between the individual brackets during
installation (Fig. 5).

04.9
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
Fig. 6
Fig. 7
Adjust the required height
Lock nut
3.5 ADJUSTING THE DOOR

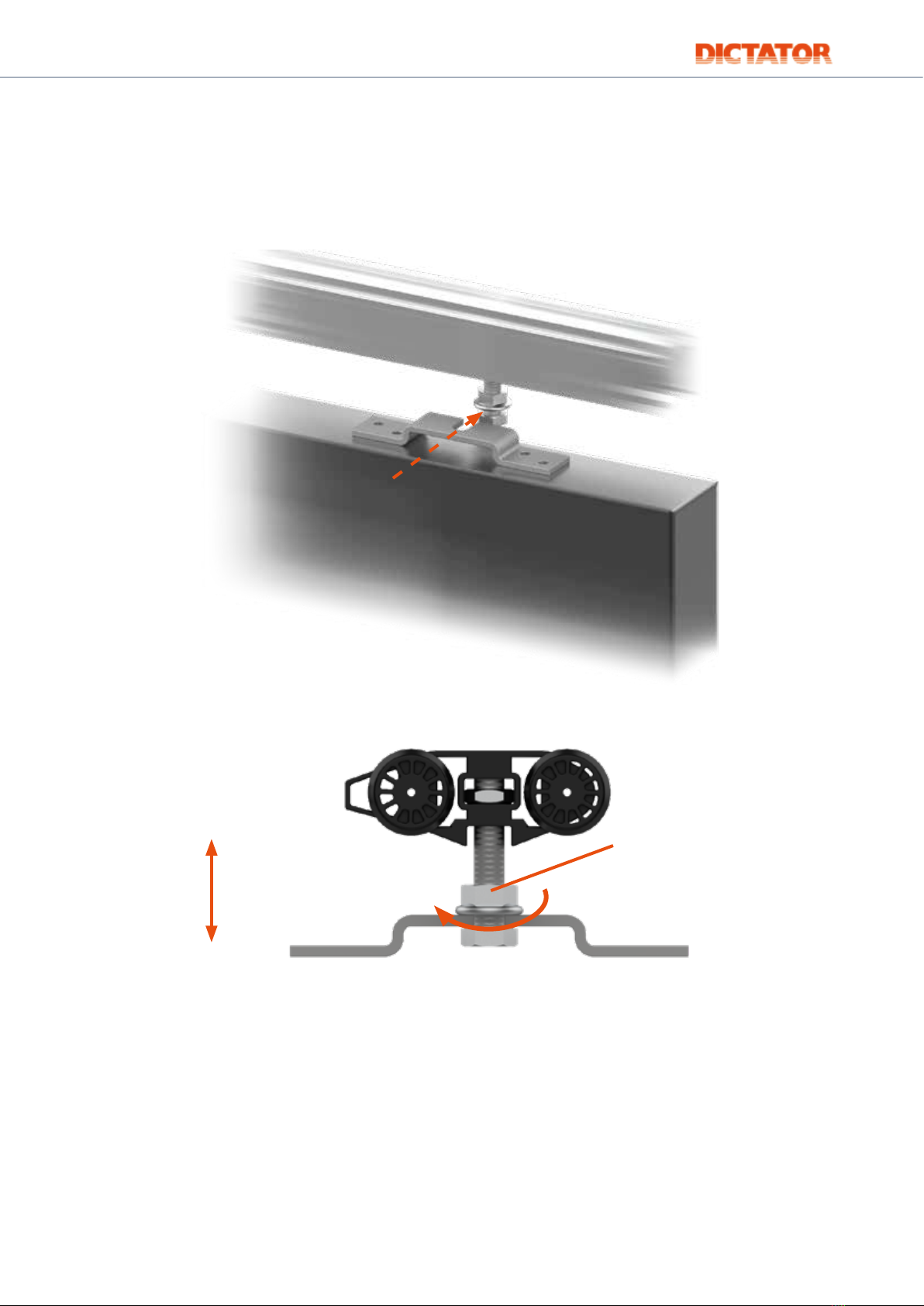

Now the door can be hung up and adjusted to the required height with the screws of the hangers.
Then secure the door with the lock nuts.

04.10
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
Fig. 8
Fig. 9
3.6 PLACING AND TIGHTENING THE TOOTHED BELT

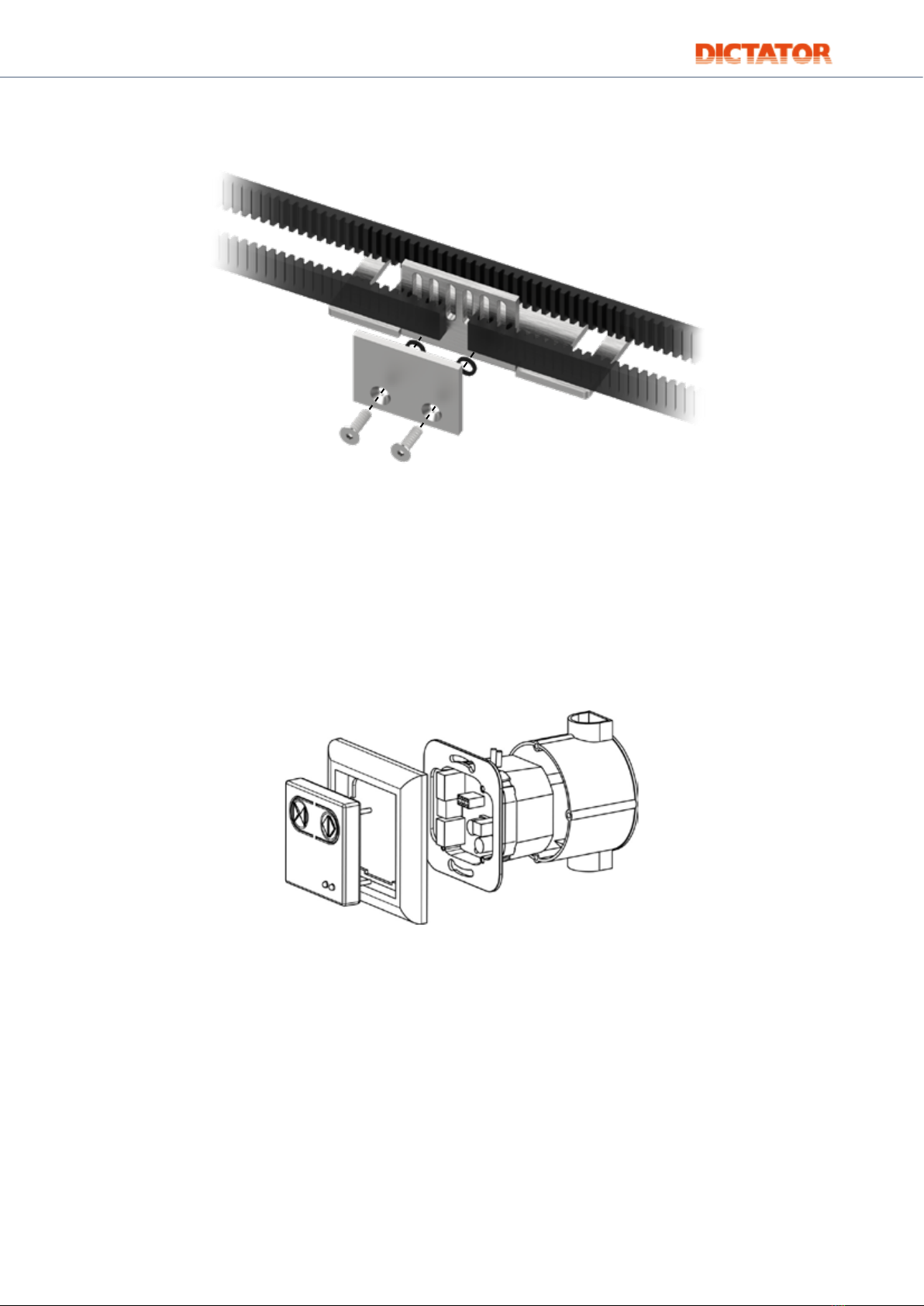

To tighten the toothed belt, first remove the cover cap on the drive (Fig. 8) and loosen the clamping plate on the door actuator.
Now guide the toothed belt around the toothed pulley on the drive and the idler pulley (Fig. 9), shorten to the required length and
secure it again on the door actuator through the clamping plate (Fig. 10, Pg. 11).
To tension the toothed belt, move the idler pulley in the rail until the belt is well tensioned. This must not hang slack in the system.
Then secure the position by tightening the idler pulley.

04.11
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
Fig. 11
Fig. 10
3.7 INSTALLING THE CONTROLLER
The supplied OPEN/CLOSE button, the control unit, the cover frame and the power pack are installed in a single flush-mounted
box (see Fig. 11). This must first be installed by the customer (flush-mounted box according to DIN 49073, rocker dimension 55
mm; installation opening 60 mm).
Information on the electrical connection can be found on page 04.13.

04.12
7 mm
14 mm5 mm
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
3.8 FLOOR GUIDE AND FINAL STOPPING DEVICES
When mounting the floor guide, make sure that it does not jam. It may be necessary to adjust the width or height of the slot for the
floor guide. If necessary, check again that the door hangs vertically (Fig. 13).
The final stopping devices can easily be secured in the desired position using grub screws.
Fig. 12
Fig. 13

04.13
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
4. Technical data
Door width standard version for single-leaf doors: 675 mm to 1600 mm
standard version for double-leaf doors, per leaf: 675 mm to 1058 mm; both door
leaves must have the same dimensions!
Door weight single-leaf doors: max. 80 kg
double-leaf doors: max. 40 kg/leaf
Door thickness wood: 19 - 48 mm, glass 10 or 12 mm
Speed max. 0.25 m/s; adjustable, depends on door weight:
80 kg => max. 0.2 m/s; 60 kg => max. 0.23 m/s;
40 kg => max. 0.25 m/s
Hold-open time adjustable between 5 and 30 s
Rated input voltage 100 to 240 VAC, 50 to 60 Hz
Motor rating 50 W
Safety microprocessor controlled switch-off in case of obstacles
IP rating IP 55
Operating temperature -20° to +50 °C
Operational life min. 400 000 cycles
Max. number of operations up to 50 operations per hour
Fig. 14

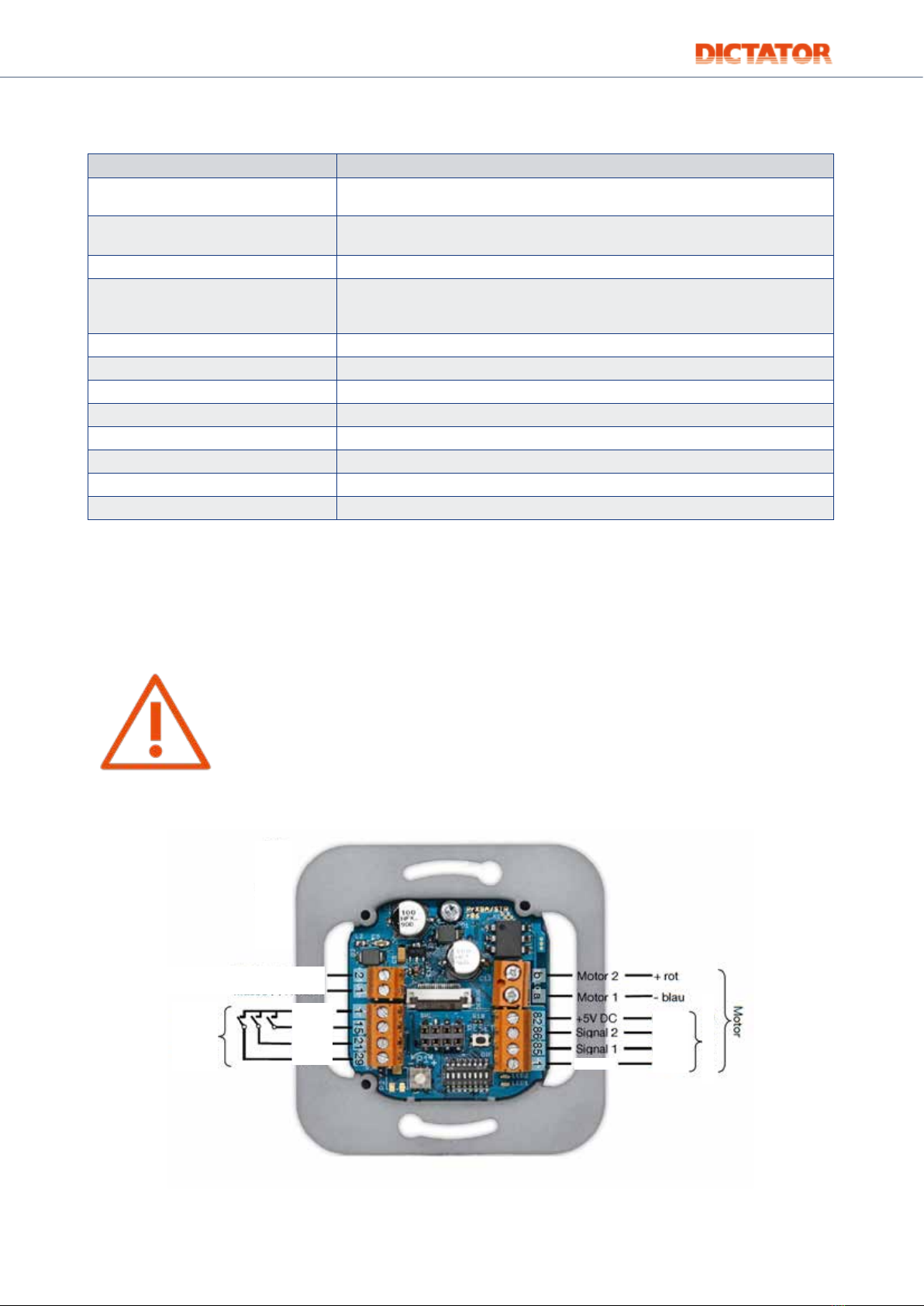

5. Electrical connection
Attention
Damage to the component due to incorrect connection!
When connecting, it is imperative that the correct polarity is observed!
24 VDC (+) power pack
Earth (-) power pack
Earth
Stop
Open
Close
Inputs for
on-site
operation
Rotary encoder
brown
red
yellow
white
Earth

04.14
ON
1 2 3 4 5 6 7 8
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
6. Setting the desired functions
6.1 CONTROL FUNCTIONS
The DICTAMAT OpenDo enables many different functions.
It should be noted that the functions in deadman mode and in impulse mode may differ (see table below).
For opening and closing the door by radio or motion detector, it is absolutely necessary to set the impulse mode.

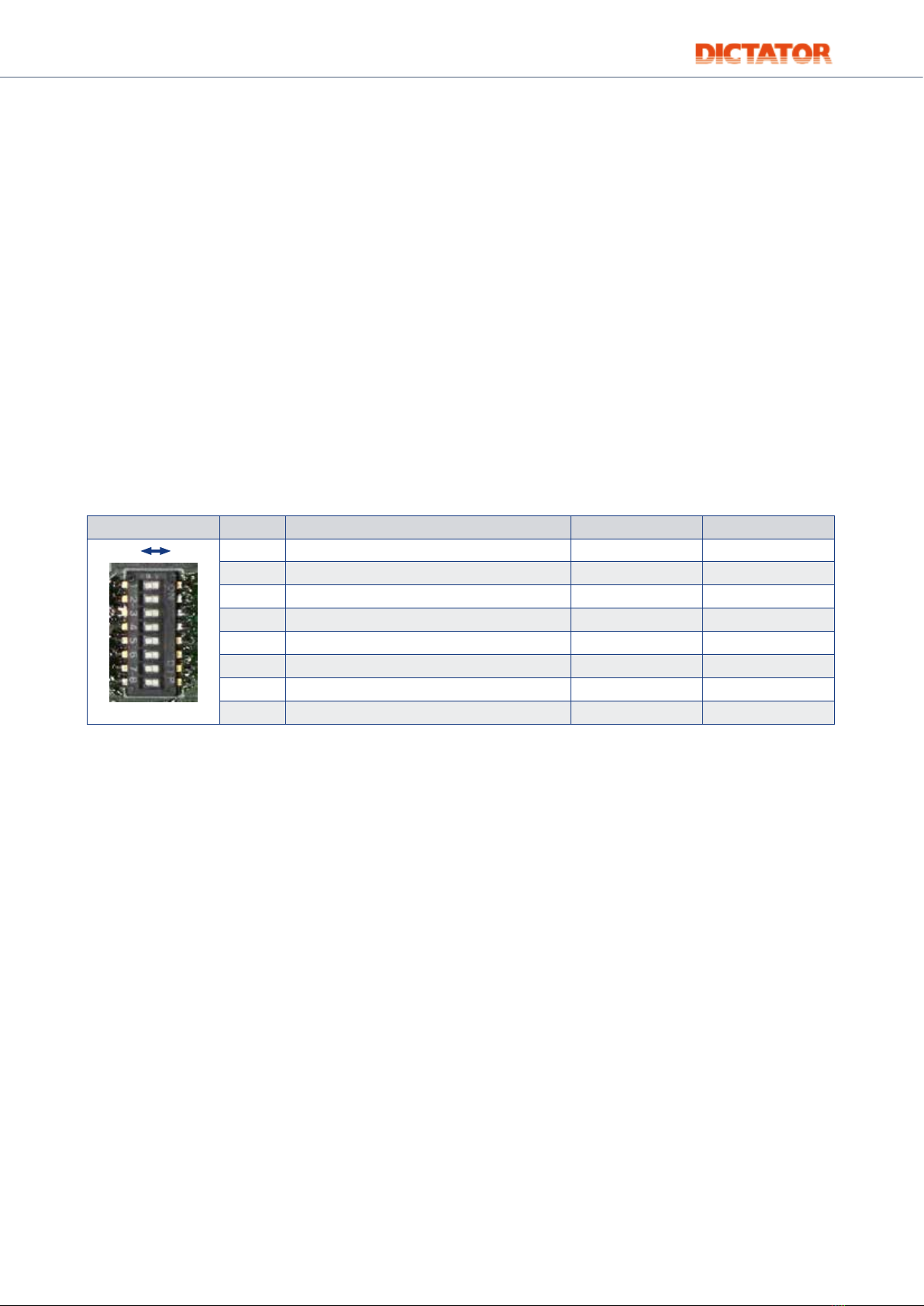

Basic operating mode Deadman operation Impulse operation
OPEN only per button per button (Standard)
Push-and-go (pushing the door shortly by hand activates the door
operator which will automatically open the door)
Radar or radio
CLOSE only per button per button (Standard)
Automatic closing (door closes automatically after an adjustable
time)
Radar oder radio
Safety (detection of obstacles)
in OPEN and CLOSE
stop Reversing (the door stops and then moves in the opposite direction)
Stop: only possible when no automatic closing has been set.
Door permanently open Door remains open until
next CLOSE command
Also possible with automatic closing time set by key combination
(press OPEN and CLOSE simultaneously).
Moving the door in case of
power cut
Can be moved by hand with little effort.
Fig. 15
DIP switchesReset button
LEDs for function
indication
Potentiometer P1
6.2 OVERVIEW
The settings of the OpenDo are made by means of the potentiometer P1, the DIP switches and the RESET button on the control unit.
The following diagram shows where these components are located on the controller.

04.15
OFF ON
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
6.3 ADJUSTING THE POTENTIOMETER
The potentiometer can be used to set the hold-open time of the door operator. The following applies:
Turning clockwise: Hold-open time is extended
Turning counterclockwise: Hold-open time is reduced
IMPORTANT: The potentiometer has a stop in both directions of rotation which must not be overtightened! The potentiometer must
therefore always be turned with extreme caution and suitable tools! Damage can lead to malfunctions.
6.4 SETTING THE DIP SWITCHES
The DIP switches can be used to configure the operating modes listed in 6a, among others. Please always make sure to carry out
changes in the deenergized state!!
Switch Description OFF ON
1 Function Semi-automatic Automatic
2 Deadman Deactivated Activated
3 Push & Go Deactivated Activated
4 Behavior in case of obstacle Reverse Stop
5 Closing speed 50% Full
6 Door leaf max. 80 kg Deactivated Activated
7 Door leaf max. 60 kg Deactivated Activated
8 Door leaf max. 40 kg Deactivated Activated
Fig. 16
1. In semi-automatic mode, the door operator does not close automatically. The hold-open time set at potentiometer P1 is ignored.
In automatic mode, the door operator closes after the hold-open time set at potentiometer P1.
2. In deadman mode the door drive only runs as long as the operator push-button is pressed. If DIP switch 2 is set to ON, the
position of DIP switch 1 is ignored! If DIP switch 2 is set to OFF, the settings of DIP switch 1 apply.
3. When Push & Go is activated, the door drive starts moving automatically as soon as the door is pushed. Only possible in
OPEN direction!
4. If reversing is active, the door drive moves in the opposite direction if an obstacle is detected during the closing movement.
During the opening movement, the drive stops. When reversing, the drive always moves at reduced speed. If DIP switch 4 is
set to ON (STOP), the drive stops when an obstacle is detected, both during opening and closing.
5. This setting refers to the closing speed of the DIP switches 6 - 8. In position OFF the closing speed is only 50 % of the speed
set in 6 - 8.
6. to 8.
The closing speed to be set refers to the weight of the door leaf:
6. Weight of door leaf max. 80 kg: 20 cm/s
7. Weight of door leaf max. 60 kg: 23 cm/s
8. Weight of door leaf max. 40 kg: 25 cm/s

04.16
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
6.5 ACCEPTING THE SETTINGS
After all desired settings have been made via the potentiometer and the DIP switches, they must be accepted via the reset button.
IMPORTANT: If commissioning has not yet been carried out, please jump to point 7 (page 07.021.18). The settings are also
adopted by the commissioning.
To adopt the settings after commissioning and during operation, the following steps must be taken:
Press the reset button for approx. 2 s.
---> LED starts flashing red continuously. The controller is in configuration mode.
If not already done, set the desired configuration. Then press the reset button for less than 0.5 s.
The controller exits the configuration mode.
---> LED starts flashing red twice in quick succession with a pause of 1.5 s.
The control unit is in start state.
Now perform a movement in any direction. The door drive moves in creep speed.
---> The red LED goes out, the configuration has been accepted.

04.17
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
Attention
Danger from moving door!
The door moves automatically during commissioning.
Please keep the danger area clear during commissioning.
To put the DICTAMAT OpenDointo operation a complete reset must be carried out. This reset also takes over previously configured
settings, so step 6e, „Accepting the settings“ is not necessary.
The following steps must be carried out for the reset:
Connect the controller to the power supply
---> LED starts flashing red twice in quick succession with a 1.5 s pause.
Press reset button for approx. 2 s.
---> LED starts flashing red continuously.
Check direction of rotation. Open with OPEN button or close with CLOSE button. If the running direction is wrong:
---> Turn motor cable and check direction of rotation again. For this the power supply must be disconnected beforehand!
Move the door leaf to the middle position with the keys. Now press the reset button again for approx. 2 s.
The red LED is now permanently lit. The yellow LED lights up during motor activity.
The drive moves to the end position Open.
The drive moves to end position Closed.
The drive moves to end position Open.
The LEDs go out, now the desired functions can still be checked. If these functions work, commissioning is now complete.
7. Commissioning

04.18
4 s 20 s
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
*The red and green LEDs indicate the respective detected error. First the red LED flashes quickly, then it is permanently lit for approx.
20 s. The green LED flashes according to the error code. The cycle is repeated until the error is reset.
In case of a defect, please always contact our technical support, if possible with
information about the code.
Error Description Code*
Unknown error There is an unknown cause of error. 1
Self-test - Multiple errors The self-test has detected several errors. 2
Self-test - Oscillator error Defective oscillator 4
Self-test - Relay defective Defective relay 5
Self-test - Driver defective Defective driver 6
Self-test - Current measurement defective Current measurement does not function properly. 7
Self-ttest - Driver error detection defective The performance driver no longer issues an error message. 8
Hardware - Encoder error The encoder is not correctly connected or defective. 9
Hardware - Voltage not permissible The supply voltage is outside the permissible range. 10
Memory - RAM defective A defect in the RAM was detected. 11
Memory - ROM defective The program memory was changed or is defective. 12
Memory - EEPROM defective The data memory is defective. 13
8. Error indication
Example for error code 4

04.19
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
04 Door & gate operators > 01 Sliding doors & gates
9. Maintenance
Device switched off
Clean the moving parts.
Check the toothed belt tension.
Clean the sensors.
Check the stability of the sliding door operator and make sure that all screws are tightly screwed.
Check whether all components are still aligned.
Device switched on
Check that the door is stable and that there is no friction during movement.
Check functions for correctness or check correct operation of all functions.
Check whether the resulting forces comply with the current standards (e.g. in escape routes).
Component Function description Possible wear
characteristics
Maintenance interval Replacement interval
Idler pulley Guides toothed belt in
the system
Cracks; slip; wear 6 months after installation,
then annually.
Every 10 years*
Wheel cover Cover to protect the
toothed wheel
Cracks; slip; wear 6 months after installation,
then annually.
**
Toothed belt Power transmission Cracks/notches;
elongation; discoloration
6 months after installation,
then annually.
Every 2 years*
Motor Force transducer Frequent error messages 6 months after installation,
then annually.
**
Wheel
hangers
Door hanger and
movement
Deposits/dirt on door
or rail
6 months after installation,
then annually.
**
* Depends on type of use
** Only recommended if the function is no longer ensured due to visible wear.

04.20
04 Door & gate operators > 01 Sliding doors & gates
DICTATOR Technik GmbH · [phone] · [e-mail] · en.dictator.de · 21.10.28
10. Inspection book
This inspection book contains technical notes and records for installation, maintenance, repair and modification. It must be acces-
sible to authorized personnel. The book should be kept by the installing company and passed on to the end user.
Installation and door operator specifications:
Customer:
Order number:
Dimensions & weight:
Construction project:
List of the installed components:
Motor/Door operator:
Switch(es):
Remote control:
Motion detector:
Checklist:
Filled in declaration of conformity All documents handed over
to end user
Filled in inspection book Signature on receipt
Warning signs placed in
suitable locations
