Technical Manual
DICTAMAT 50 WS-MFL
DICTAMAT 50 WS-MFL
Technical Manual
You can find the current version of our manual on our website under «Downloads»:
https://en.dictator.de/products/door-closing-solutions/door-closers/sliding-door-closer-dictamat50/ws/

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906
Page D50WS-MFLHB.02
Technical Manual
DICTAMAT 50 WS-MFL

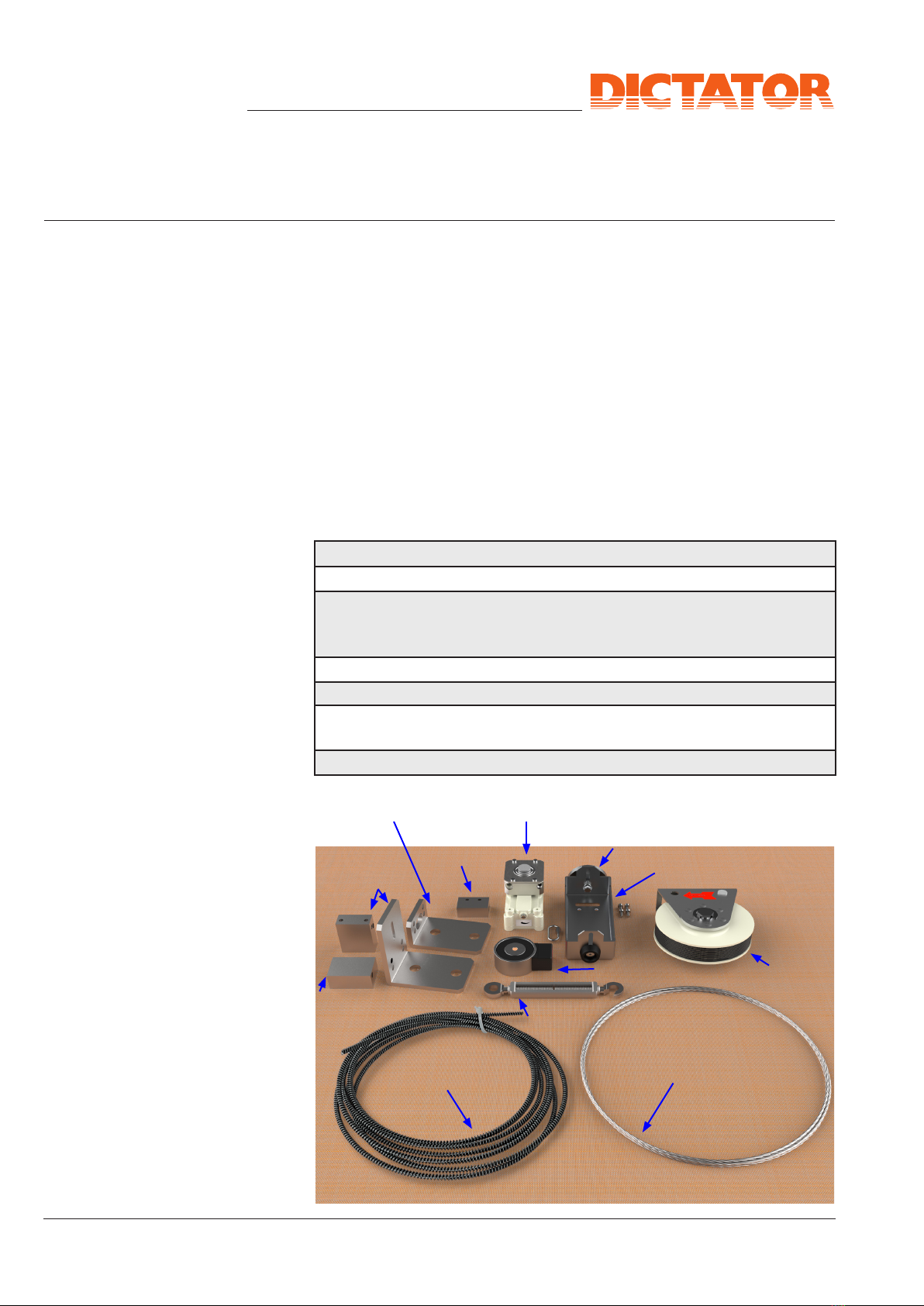

A) Safety Instructions / Components Included
1) Safety Instructions
2) Components Included
(Ill. 1)
When installing and using the DICTAMAT 50 WS-MFL with tensioned
wire rope, hold-open and freewheel function make sure to observe all
information and advice given in this manual. During the installation we
recommend to wear protective gloves to prevent any risk of getting hurt
by sheet edges.
The casing of the spring rope pulley may never be opened as the released
spring can cause major injuries. If the spring should for some reason no
longer work properly, the complete device has to be replaced!
It has also to be made sure that the spring rope pulley and the radial
damper are protected in order to prevent fingers being trapped (protection
cover!).
The closing speed has to be adjusted on the radial damper so that the
door can easily be stopped by hand in every position, making sure
nobody will be endangered.
Ill. 1
Spring rope pulley (25 or 50 N) with bracket and 2 m of plastic rope
Radial damper LD 50 WS with attachment for WS 6 wire rope
Mounting bracket = freewheel carrier for radial damper LD
50 WS with counter plate AP GD 50, buffer and quick chain link for
fixing the rope
Bracket with wire rope tensioner
Electromagnet EM GD 50 Q 23
Bracket with clamp piece for WS 6 wire rope and supporting rope
tensioner
5 m of WS 6 wire rope and 5 m of steel rope Ø 3 mm
Wire rope
Spring rope
pulley
Bracket with
wire rope
tensioner
Clamp piece
for wire rope
Radial damper
LD 50 WS
Mounting bracket
Counter plate
Electromagnet
Rope tensioner for
supporting rope
Bracket Clamp piece
for supporting
rope
Supporting rope

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906 Page D50WS-MFLHB.03
Technical Manual
DICTAMAT 50 WS-MFL
48
34
129
26
7,5
12
80
70
ø118
100
6,5
12
SW 17
SW 17
B) Dimensions
The following dimensioned drawings show the most important dimensions.
In case you need further dimensions, we would be happy to provide a
AutoCAD drawing - or you contact our technical customer service.
Spring rope pulley
Radial damper LD 50WS
for wire rope with mounting
bracket and counter plate
Bracket with
wire rope tensioner
and electromagnet
EM GD 50 Q 30
Bracket with
supporting rope
tensioner and
clamp piece for
WS 6 wire rope
Ill. 3
Ill. 2
Ill. 4
Ill. 5

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906
Page D50WS-MFLHB.04
Technical Manual
DICTAMAT 50 WS-MFL

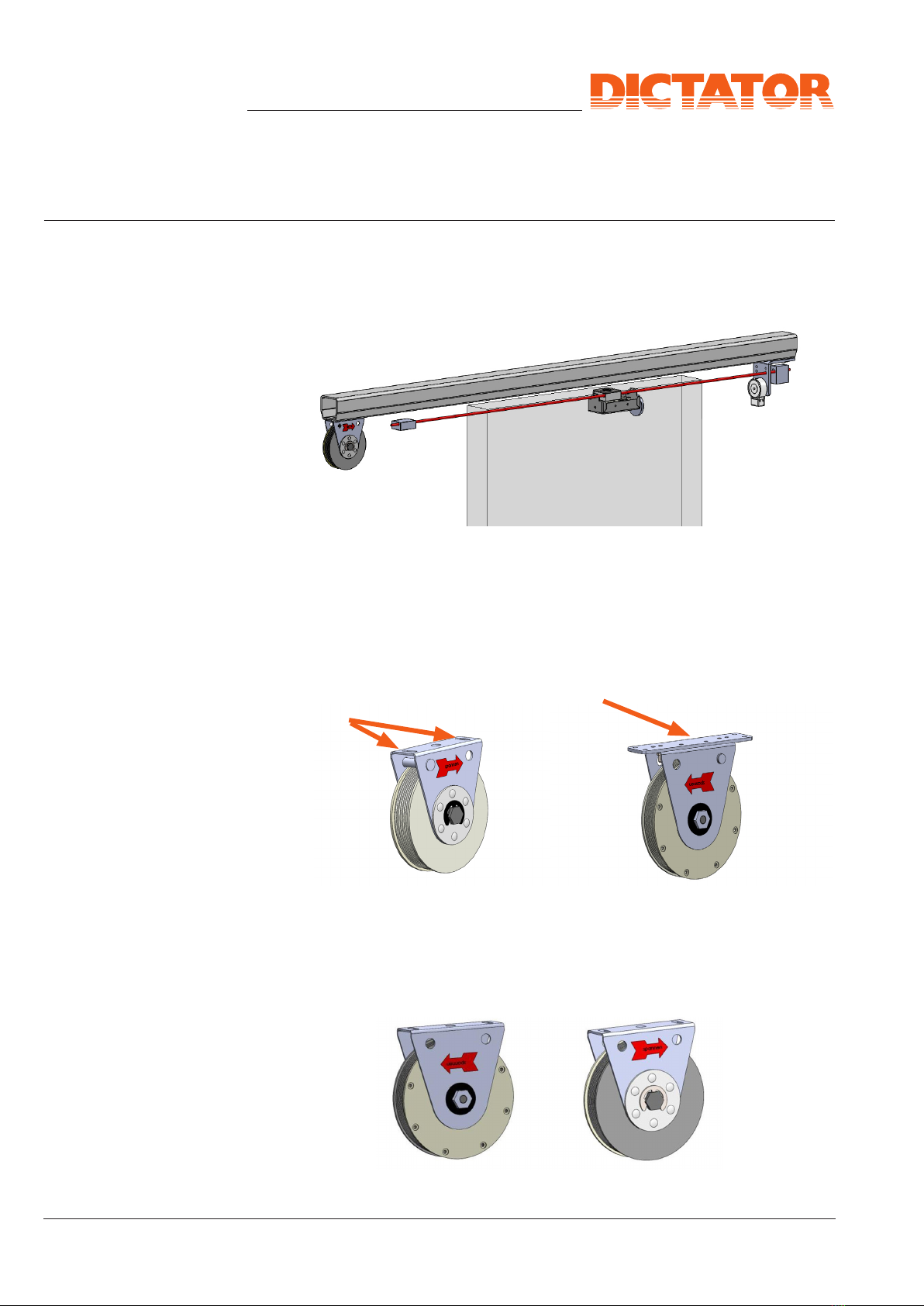

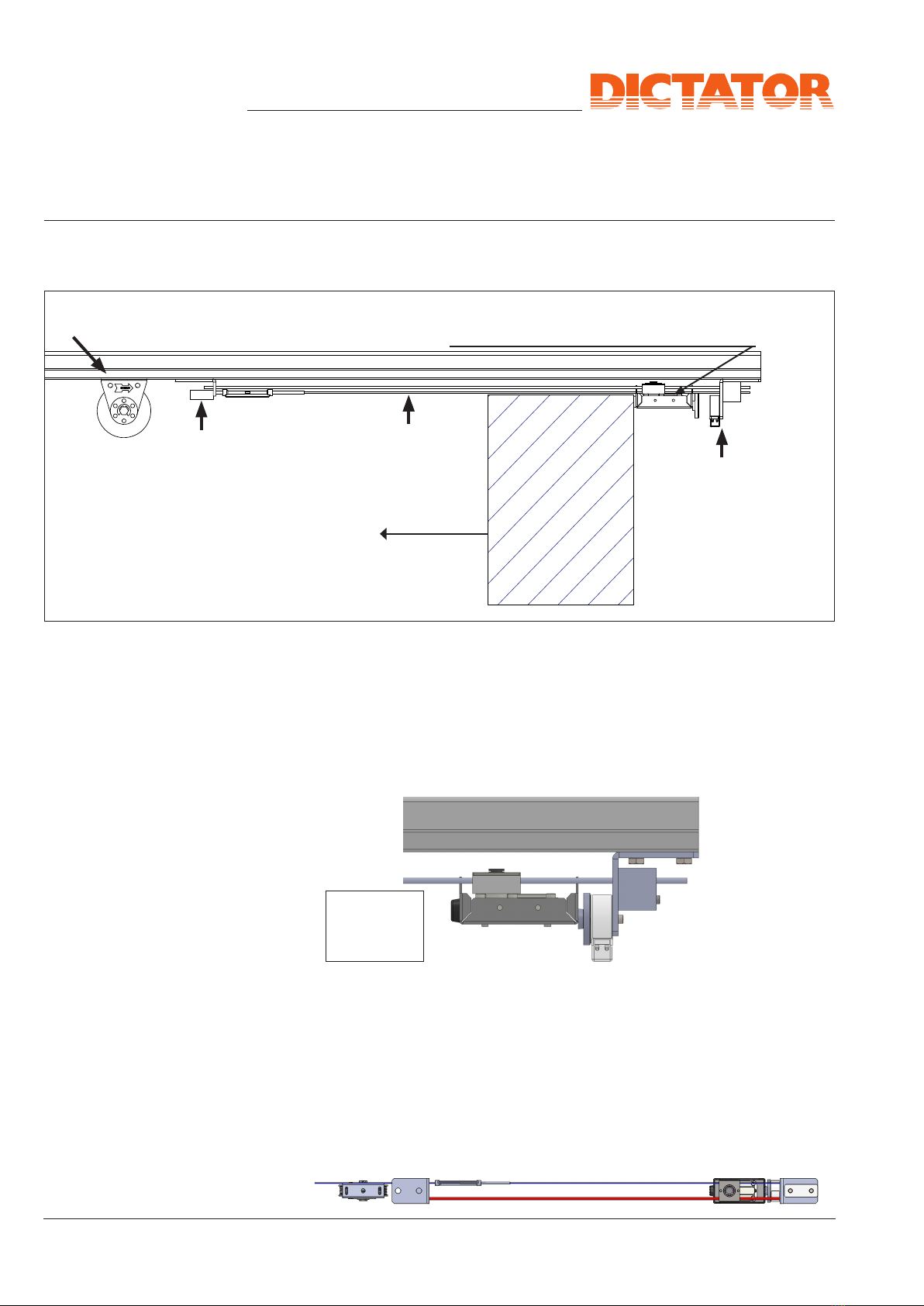

The spring rope pulley of the DICTAMAT 50 WS-MFL is mounted in the
CLOSED position of the sliding door.
C) Installation of the DICTAMAT 50 WS-MFL
1) Determining the
Mounting Positions
Ill. 6
Spring rope pulley
Bracket with
supporting rope
tensioner and
clamp piece for
WS 6 wire rope
Wire rope WS
and
supporting rope Bracket with magnet, wire
rope tensioner and holder
for the supporting rope
Radial damper LD with attachment for wire rope
in freewheel carrier with counter plate
CLOSE
Only the wire rope and the supporting rope hold the radial damper LD
50 WS with freewheel carrier. It is not fixed to the door!
IMPORTANT: The wire rope and the supporting rope have to position
the freewheel carrier in such a way that with one side it can push with
the buffer the door leaf and on the other side, when the door is open,
the complete surface of the magnet adheres to the counter
plate (see ill. 7).
The attachment on the radial damper for guiding the wire rope can be
turned according to the required damping direction (see point C/2d).
IMPORTANT: The bracket with the tensioning device for the supporting
rope and the clamp piece for the wire rope as well as the bracket with
the wire rope tensioner and the holder for the supporting rope have to
be mounted so that the wire rope and the supporting rope run exactly
in a straight line (see ill. 8).
Ill. 7
Ill. 8
Door

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906 Page D50WS-MFLHB.05
Technical Manual
DICTAMAT 50 WS-MFL
2) Installing the Radial
Damper
C) Installation of the DICTAMAT 50 WS-MFL - cont.

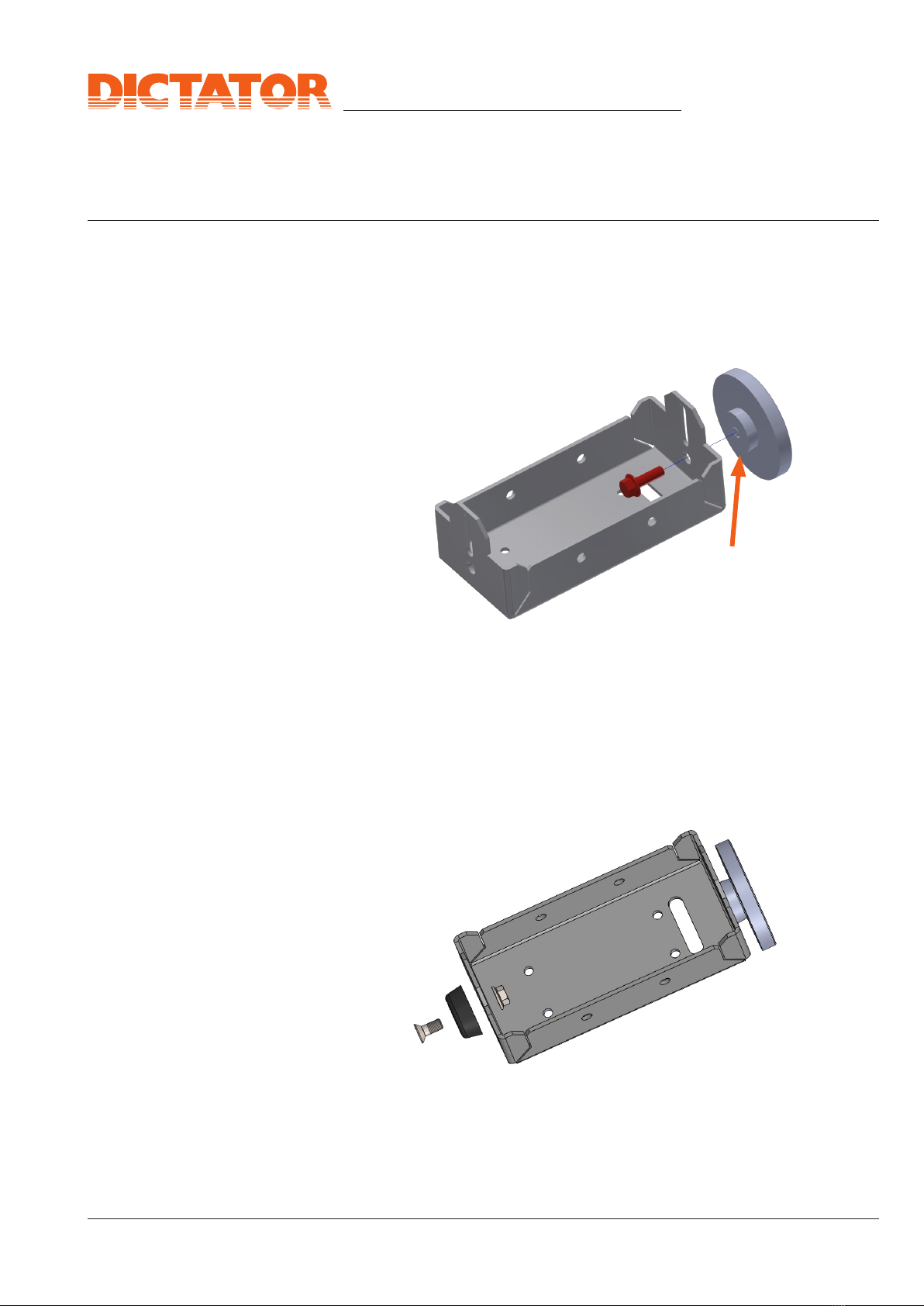

2a) Fixing the counter plate on the freewheel carrier
First you fix the counter plate according to the following illustration
by means of the included hexagon screw on the side of the mounting
bracket. Please make sure that the rubber piece sits between counter
plate and carrier.
This side has then to point in the direction of door OPEN.
Ill. 10
2b) Fixing the rubber buffer and the quick chain link to the
freewheel carrier
On the opposite side of the freewheel carrier is fixed the also included
rubber buffer. This buffer "meets" the door when the pushing freewheel
carrier closes the door.
Ill. 9
Rubber piece - fixed
between the casing and
the counter plate!

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906
Page D50WS-MFLHB.06
Technical Manual
DICTAMAT 50 WS-MFL
Ill. 11
C) Installation of the DICTAMAT 50 WS-MFL - cont.

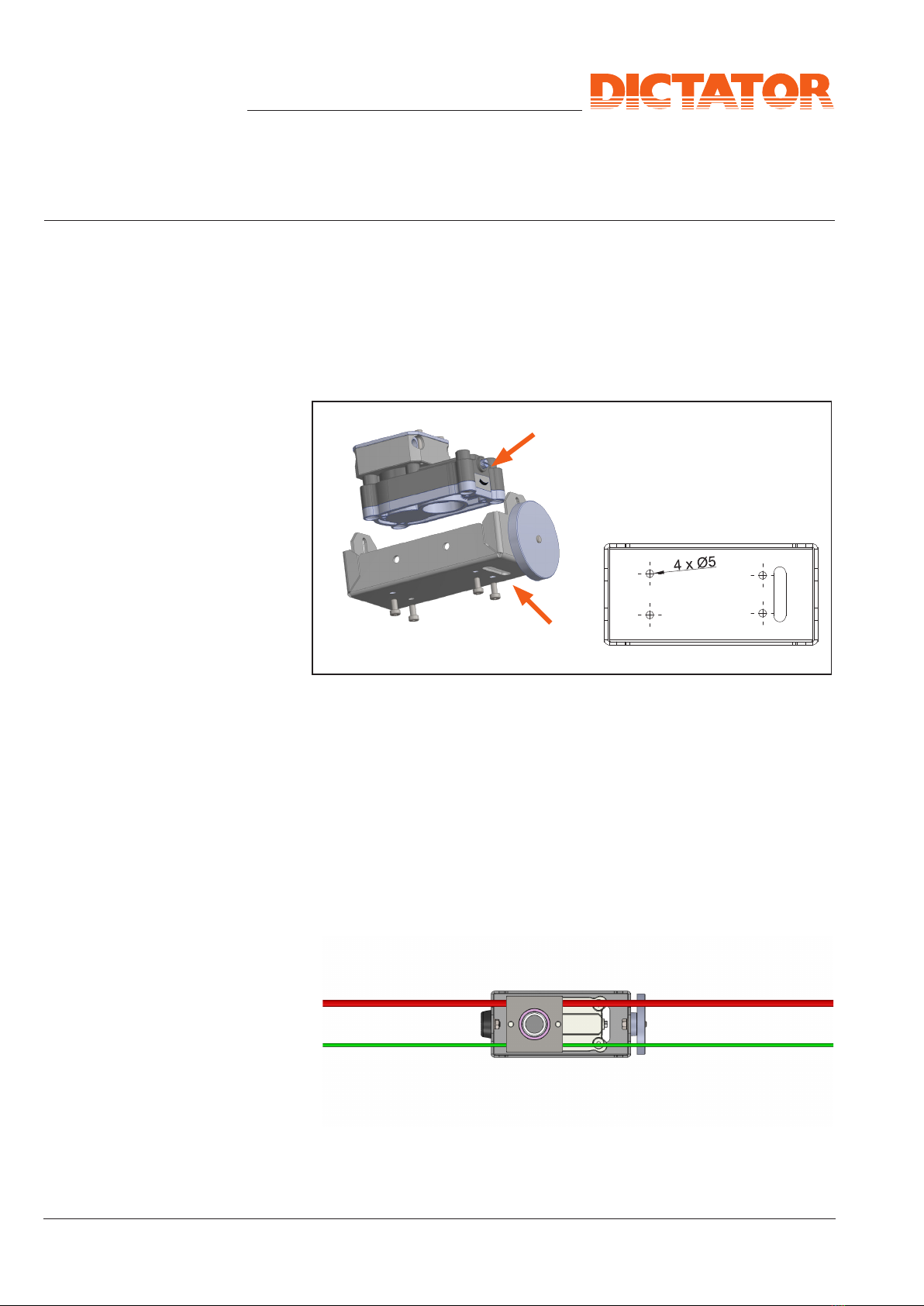

2c) Fixing the radial damper in the freewheel carrier
Now you use the four included plastic screws (Torx T20) to fix the radial
damper in the freewheel carrier.
Max. tightening torque of the screws: 2 Nm
ATTENTION: The adjusting screw has to be on the same side as the
oblong hole in the carrier bottom.
Fixing bores for the
radial damper
2d) Correct positioning of the attachment for the wire rope
In the factory the attachment for the wire rope is fixed in such a way on
the radial damper LD 50 that the wire rope can be guided as shown in
ill. 12 and the damping will be effective anticlockwise.
However, on rare occasions it may be necessary to dismount the attachment
for changing the damping direction and then to fix it again.
Oblong hole
Adjusting screw
Ill. 12
Supporting rope
Wire rope

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906 Page D50WS-MFLHB.07
Technical Manual
DICTAMAT 50 WS-MFL
C) Installation of the DICTAMAT 50 WS-MFL - cont.

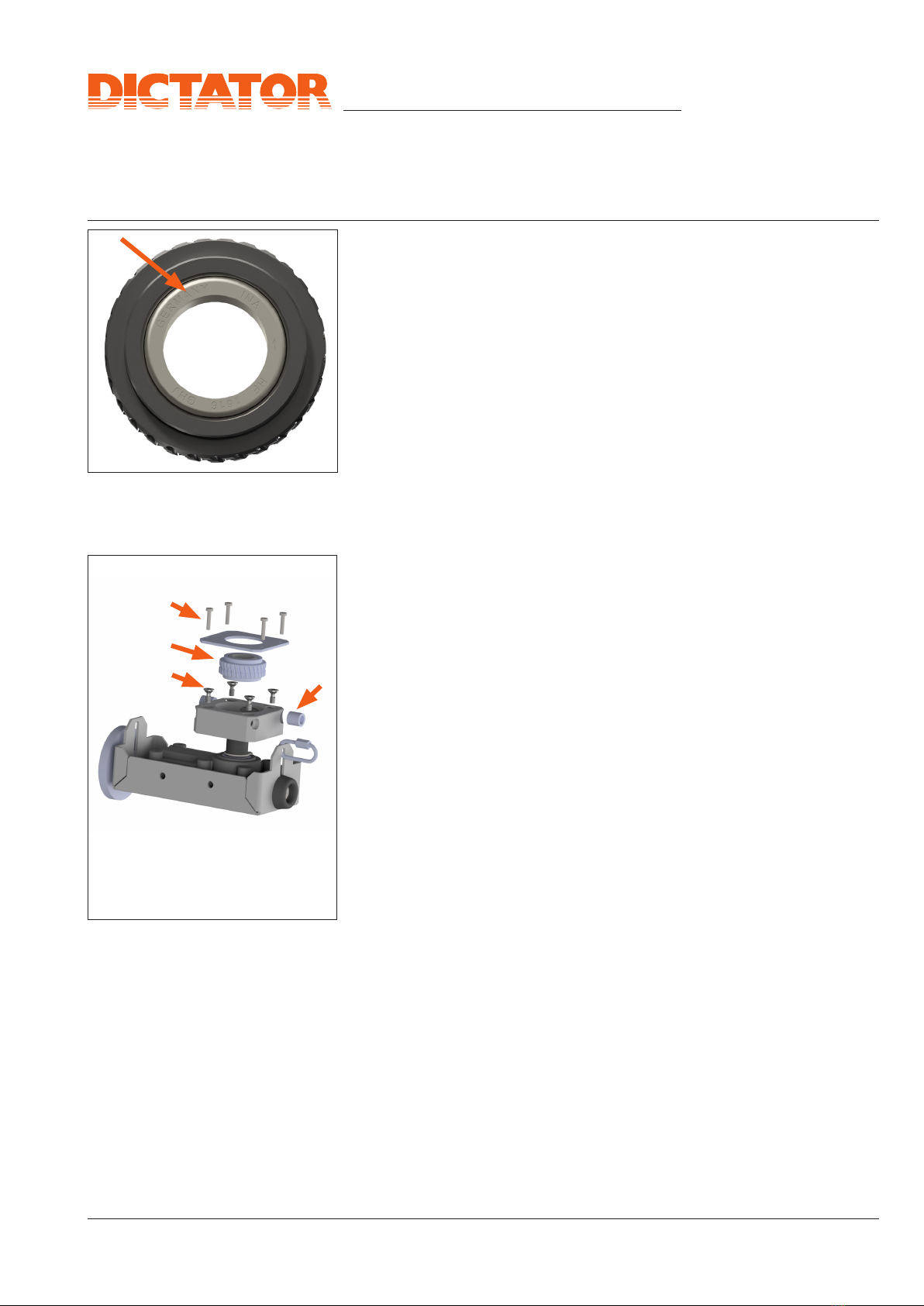

(1) Changing the damping direction
Step 1: Unscrew the four fixing screws of the cover and take off the
cover (see ill. 14).
Step 2: Take out the wire rope wheel and turn it (For taking it out, if
necessary, turn the radial damper upside down and softly hit something
solid. Then the wire rope wheel will fall out!):
Wire rope wheel with the writing pointing upwards (see ill. 13):
damping anticlockwise,
with the writing pointing downwards: damping clockwise
Then put back the cover and fix it again with the screws.
(2) Positioning the attachment for a different guiding of the
rope
Step 1: See "Changing the damping direction"
Step 2: See "Changing the damping direction"
Step 3: Remove the guide bushes (if necessary use a small screw driver
to push the bushes out). Below these are the fixing screws of the wire
rope attachment.
Step 4: Loosen the four screws of the wire rope attachment and pull it
off the axle of the radial damper.
Step 5: Turn the attachment so that the bores for the plastic bushes
show in the direction of the rope and then put it back on the axle of the
radial damper. Then again tighten the wire rope attachment and insert
the guide bushes.
Step 6: Check whether after having turned the attachment, the damping
direction is correct. If not, correct it (see above step 2).
Step 7: Then again tighten the cover.
Step 1
Step 3
Step 2
Ill. 14
Step 4
Ill. 13

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906
Page D50WS-MFLHB.08
Technical Manual
DICTAMAT 50 WS-MFL
3a) Fixing the
electromagnet to the
bracket
First you fix the electromagnet
EM GD 50 Q 23 with the
included cylinder head screw
on the bracket - see adjoining
illustration.
3b) Mounting the
bracket for the wire
rope tensioner
The bracket for the wire rope tensioner and the electromagnet is mounted
at the end of the rail where the door is open. If necessary, use a counter
plate or larger washers for this purpose.
3c) Mounting the bracket with the supporting rope
tensioner and the clamp
piece for the wire rope
On the other end of the rail is fixed
the bracket with the supporting rope
tensioner. If necessary, use for this pur-
pose a counter plate or larger washers.
3) Installation of the
Wire Rope and the
Supporting Rope
C) Installation of the DICTAMAT 50 WS-MFL - cont.
Ill. 16
Ill. 15
IMPORTANT:
The bore in the bracket for guiding through the rope
(optional bores are marked in ill. 16 by arrows) and the
one in the wire rope attachment on the radial damper have
to be exactly aligned, so that the wire rope runs absolutely
straight - see also ill. 8. The other bore is needed for the
supporting rope. Also this one has to be perfectly aligned!
Furthermore it has to be made sure that, when the door is
open, the counter plate on the bracket completely adheres
to the whole surface of the electromagnet.
Ill. 17

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906 Page D50WS-MFLHB.09
Technical Manual
DICTAMAT 50 WS-MFL

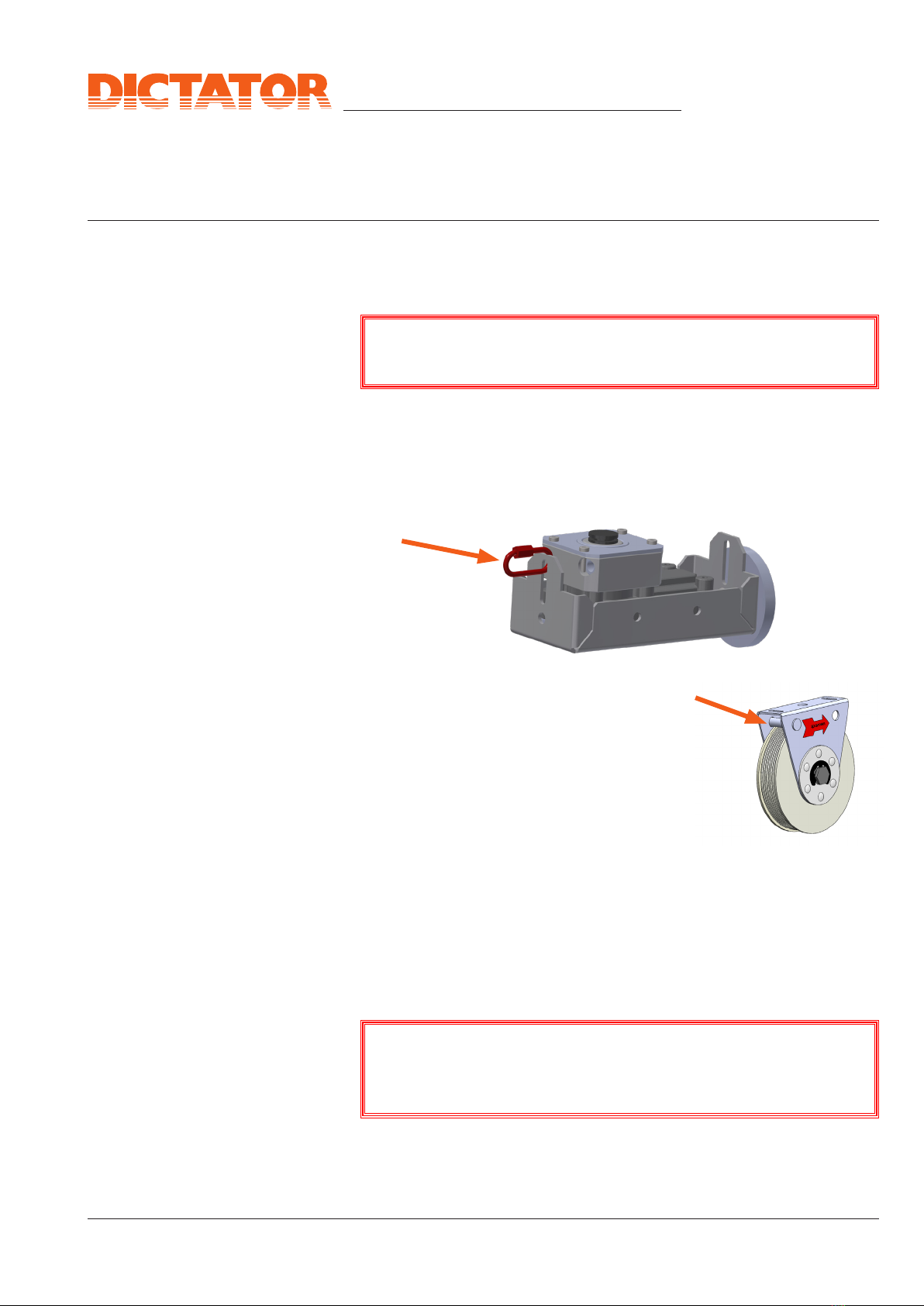

3d) Mounting the wire rope
- Guide the wire rope in the freewheel direction (usually the opening
direction of the door) through the corresponding bore with the plastic
bush in the wire rope attachment of the damper (see also point C/2d).
- Guide the wire rope through the bore in the clamp piece. Then fix it
there from below by means of the headless pins (internal hexagon
wrench size SW 3) (see ill. 19).
- Guide the wire rope through one of the bores of the bracket for the
wire rope tensioner. You have to choose the bore so that the wire rope
will be perfectly aligned. Then insert the wire rope in the bore of the
wire rope tensioner. Doing this turn the worm inside the wire rope
tensioner.
ATTENTION: The wire rope tensioner is NOT fixed to the bracket, but
is held by the tensioned rope once the mounting has been finished.
C) Installation of the DICTAMAT 50 WS-MFL - cont.
Ill. 19
Ill. 18
Ill. 20
Fixing
Clamp
piece

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906
Page D50WS-MFLHB.010
Technical Manual
DICTAMAT 50 WS-MFL
(1)
(3) (2)
C) Installation of the DICTAMAT 50 WS-MFL - cont.
3e) Pretensioning the wire rope
Now pretension the wire rope until it doesn't sag any more.
For tensioning use the Allen screw SW 6 on the wire rope tensioner.
Turning clockwise: more tension
Turning anticlockwise: less tension
3f) Mounting the supporting rope
The only function of the supporting rope is to stabilise the freewheel
carrier so that it always runs in an absolutely horizontal line.
- Radial damper
Guide the supporting rope (green)
through the other still available bore
in the wire rope attachment of the
radial damper.
- Bracket with electromagnet
(1) Guide the supporting rope
(green) through the still free bore
of the bracket.
(2) Guide the supporting rope
(green) through the upper bore in
the clamp piece.
(3) Laterally clamp the supporting
rope by means of the headless pin
M5 (internal hexagon SW 2.5) in
the clamp piece.
Tension
Ill. 21
Ill. 22
Ill. 23

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906 Page D50WS-MFLHB.011
Technical Manual
DICTAMAT 50 WS-MFL

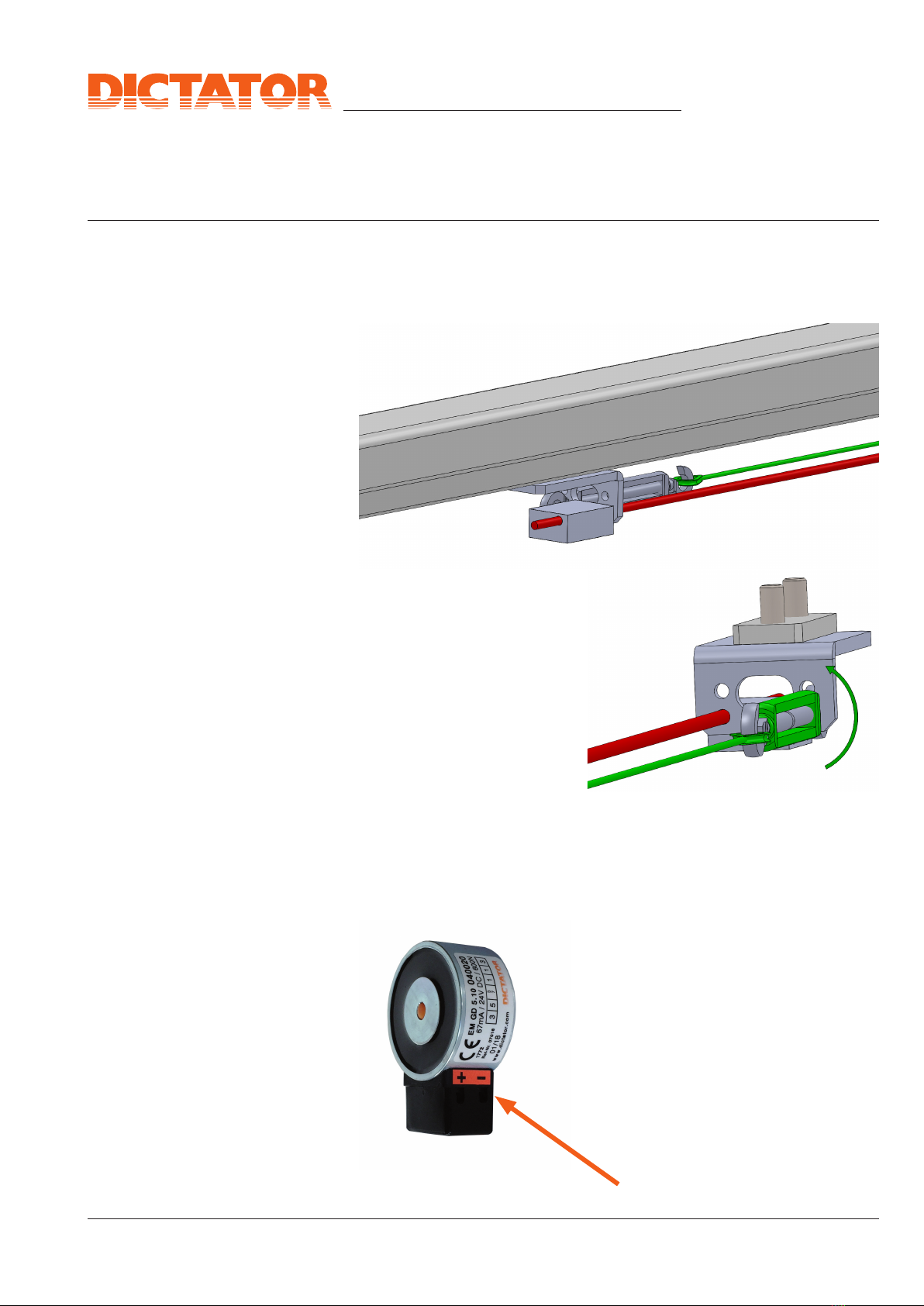

The EM GD 50 Q 23 electromagnet needs
a 24 VDC power supply. The connection is
realized in the lateral terminal box in the
terminals marked "+" and "–".
4) Connection of the
Electromagnet
Connection terminals for
the 24 VDC supply of the
electromagnet
Ill. 26
C) Installation of the DICTAMAT 50 WS-MFL - cont.
3f) Mounting the supporting rope - cont.
- Hook the thimble of the supporting rope (green) in the hook of the rope
tensioner on the bracket on the CLOSED side of the door.
- Then pretension the rope by
turning the rope tensioner anti-
clockwise (seen from the rope!)
until it doesn't sag any more.
Ill. 24
Ill. 25

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906
Page D50WS-MFLHB.012
Technical Manual
DICTAMAT 50 WS-MFL
The spring rope pulley of the DICTAMAT 50 WS-MFL is mounted in the
CLOSED position of the sliding door.
Usually the eyelet of the Kevlar rope of the spring rope pulley is fixed to
the mounting bracket with the radial damper (see point C/5b).
5a) Fixing the spring rope pulley
The bracket of the spring rope pulley features two oblong holes on its top
which allow to screw the spring rope pulley from below to the ceiling/rail.
In case the two oblong holes cannot easily be accessed in the choosen
mounting position, an additional mounting plate, part no. 070114, is
available (see ill. 28, right illustration).
During installation you have to make sure that the spring rope
pulley is fixed so that its rope always points in the direction of the door
leaf. You simply turn the spring rope pulley accordingly. As you can
tension the spring from both sides, nothing else has to be changed.
C) Installation of the DICTAMAT 50 WS-MFL - cont.
5) Mounting the Spring
Rope Pulley
Ill. 29
Ill. 28
Ill. 27

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906 Page D50WS-MFLHB.013
Technical Manual
DICTAMAT 50 WS-MFL
5b) Fixing the Kevlar rope of the spring rope pulley on the
door leaf
The Kevlar rope has to run straight from the spring rope pulley, i.e. exactly
horizontally and in-line, without any lateral deviation.
IMPORTANT: When choosing the fixing point for the rope of
the spring rope pulley, you have to make sure that the travel of
the spring rope pulley allows the complete travel of the door!
Usually the pressed on eyelet of the Kevlar rope of the spring rope pulley
is fixed by means of the quick chain link (marked red in ill. 30) to the
oblong hole in the bracket with the radial damper.
When fixing the rope you have to make sure
the rope runs absolutely straight. If necessary,
you can remove the safety pin - but only when
the rope has been securely fastened. The safety
pin shall prevent the rope from uncoiling when
accidentally being released during mounting.
Before starting the adjusting work, the wire rope as well as the supporting
rope are finally tensioned. For the proceeding see points C/3e and 3f).
C) Installation of the DICTAMAT 50 WS-MFL - cont.
6) Tensioning the
Wire Rope and the
Supporting Rope
IMPORTANT:
Don't tension the wire rope too much, as otherwise moving the
door will require too much effort. The correct tension is achieved
when the rope doesn't rest or touch anywhere.
Ill. 31
Ill. 30
After having completed the adjusting work according to the following
pages, you should operate the door about ten times and then again
control the tension of the ropes.

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906
Page D50WS-MFLHB.014
Technical Manual
DICTAMAT 50 WS-MFL
80 N
25 N
50 N
100
90
80
70
60
50
40
30
20
10
0
0 0,5 1 2 3 4 5 6 6,,5
1,15 1,00 0,85 0,55 0,25 0
1,65 1,50 1,35 1,05 0,70 0,40 0,10 0
2,00 1,80 1,65 1,35 1,05 0,70 0,40 0,10 0

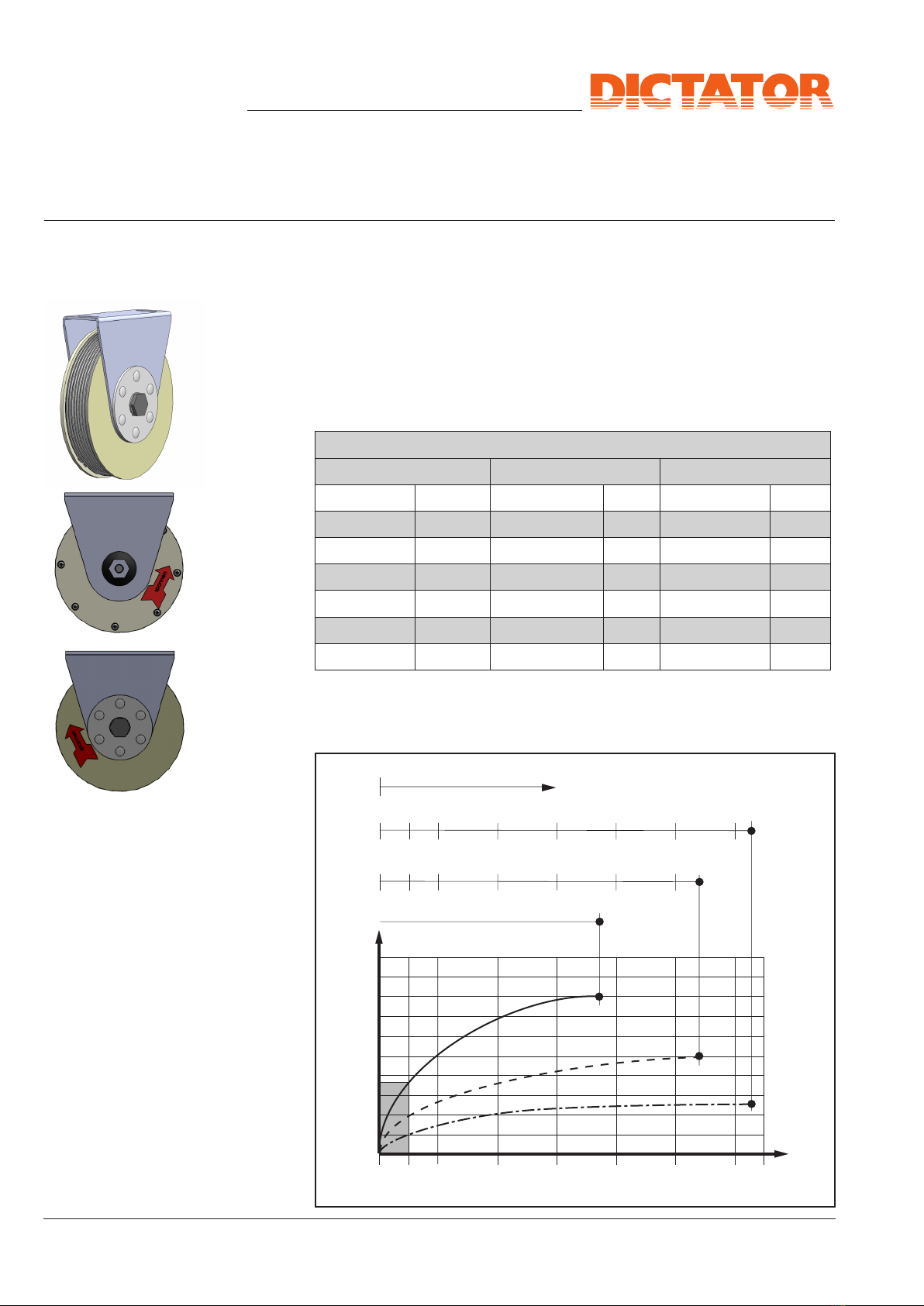

Open the door completely (max. opening 1.5 m). There have to be
left at least 1.5 windings of rope on the spring rope pulley.
The spring is pretensioned by the tensioning screw SW 17 being
accessible from both sides in the direction of the arrows "spannen"
= tension (ill. 32a - 32c). Maximum pretension: 2, 4 respectively 5
revolutions depending on the used spring rope pulley (see table below)!
Releasing: In case the spring had been tensioned too much, the pretension
can again be reduced by turning the tensioning screw against the
direction of the arrow.
The diagram below (ill. 33) indicates the closing force of the spring rope
pulley in relation to the pretension and the door width.
D) Adjusting the Closing Force and Speed
1) Adjusting the Closing
Force on the Spring
Rope Pulley
Ill. 33
Closing force N
Tensioning
screw
"back"
Tensioning
screw
"front"
Ill. 32a
Ill. 32b
Ill. 32c Remaining travel m
Pretension/ Revolutions
DICTAMAT 50 WS-MFL
25 N 50 N 80 N
Travel Rev. Travel Rev. Travel Rev.
1800 mm 0.5 1500 mm 0.5 1000 mm 0.5
1650 mm 1 1350 mm 1 850 mm 1
1350 mm 2 1050 mm 2 550 mm 2
1050 mm 3 730 mm 3
700 mm 4 400 mm 4
400 mm 5

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906 Page D50WS-MFLHB.015
Technical Manual
DICTAMAT 50 WS-MFL

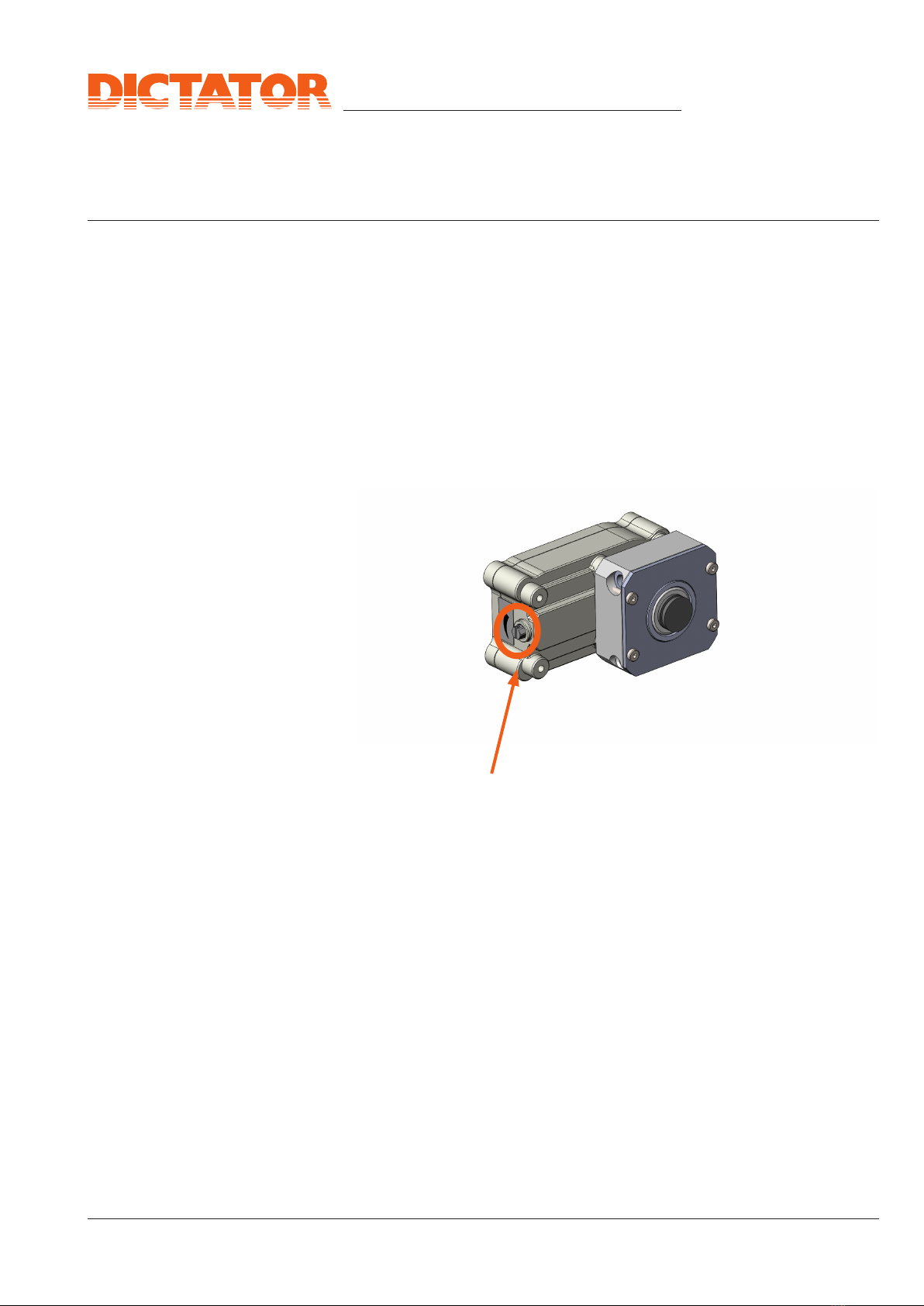

In order to adjust the closing speed open the door completely.
Now adjust the closing speed during the closing of the door by turning the
adjustment screw on the radial damper (Allen key 5.5 mm) (see ill. 34).
Turning clockwise: reduces the closing speed
Turning anticlockwise: increases the closing speed
In total 15 revolutions are possible between the minimum and the maximum
damping. In the factory the damper is set to a medium damping.
D) Adjusting the Closing Force and Speed - cont.
2) Adjusting the Closing
Speed
Adjustment screw
for the closing speed
Ill. 34
Now check whether the spring closes the door out of any open position,
independent from how far the door had been opened. If necessary,
increase the tension of the spring or reduce the damping.
IMPORTANT: Tension the spring only when the door is completely open!

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906
Page D50WS-MFLHB.016
Technical Manual
DICTAMAT 50 WS-MFL

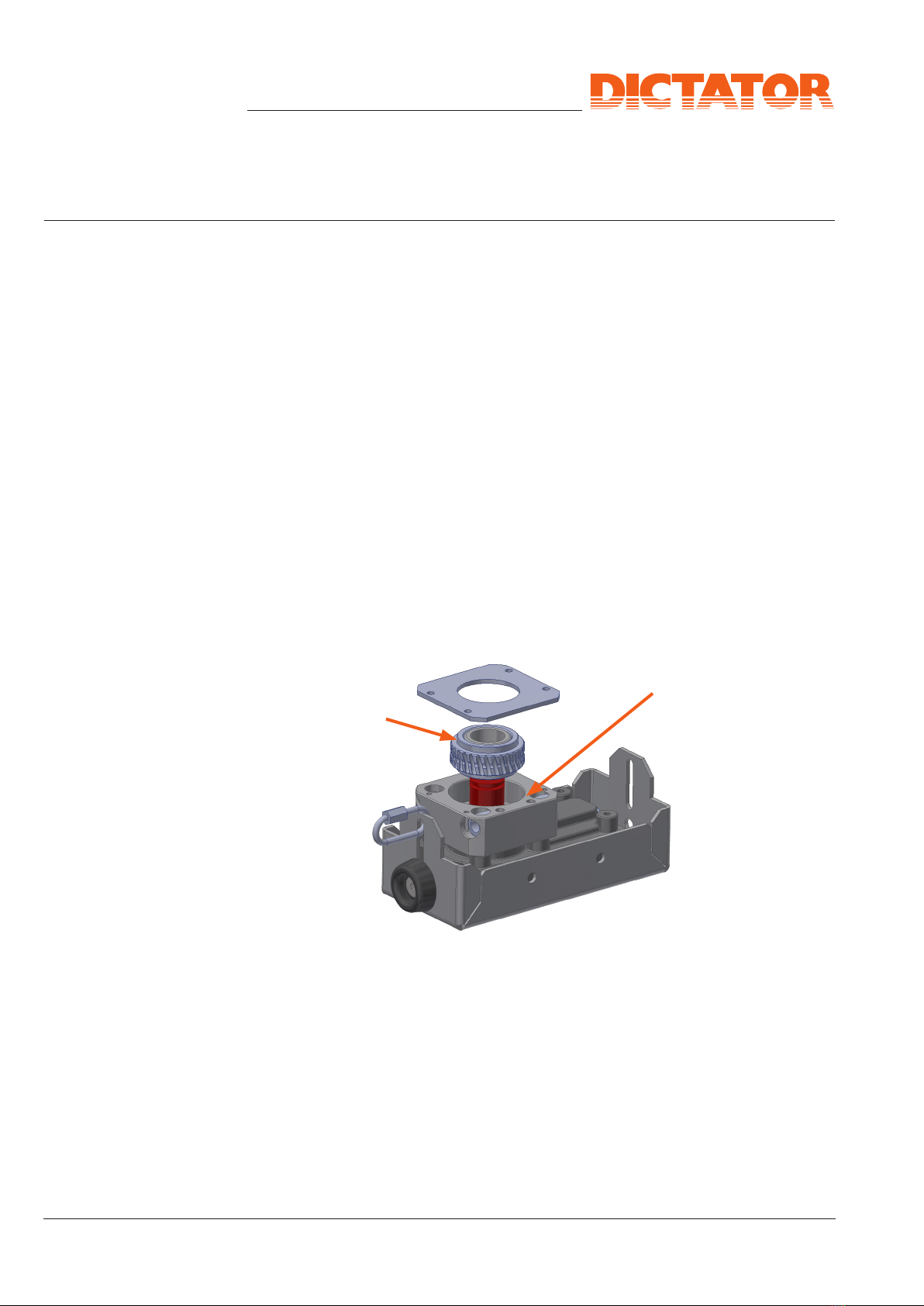

Annually:
1. Check the door for damages and its smooth operation.
2. Check the fittings for damages and wearing: rail, wheel hanger, door
handle etc.
3. Check the secure fixing of all door and operator fittings.
4. Wire rope and wire rope wheel have to be replaced at the latest after
100,000 operations.
5. Check the complete wire rope, the toothing of the wire rope wheel, the
supporting rope and the rope of the spring rope pulley for damages
and wearing.
6. Check the freewheel of the wire rope wheel for smooth operation and
running noises.
7. Lubricate just the running surface of the freewheel in the wire rope
wheel insert with Vaseline (ill. 35). For this purpose slightly reduce
the rope tension, unscrew the cover, take out the wire rope wheel
and apply some Vaseline to the shaft.
8. Check the tension of the ropes - see points C/3e, 3f and 6.
9. Check the closing speed and force and, if necessary, adjust it. Too
fast doors represent a risk of injuries.
10.All damaged and worn parts have to be replaced as soon as possible
by original spare parts.
E) Maintenance, Servicing
Ill. 35
Lubricate the running surface
Wire rope
wheel

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. [phone] • Fax [phone] • E-mail [e-mail] • 201906 Page D50WS-MFLHB.017
Technical Manual
DICTAMAT 50 WS-MFL

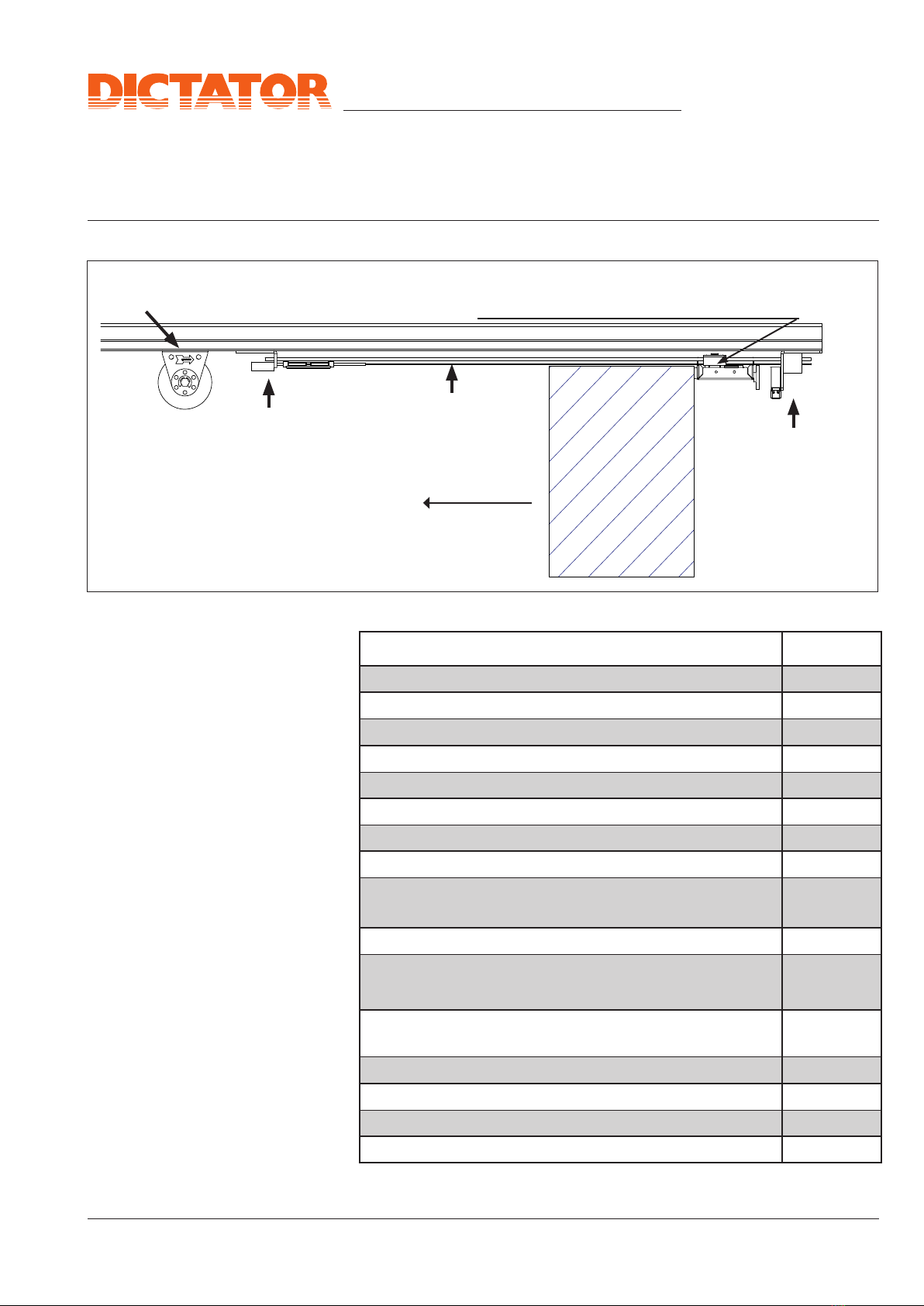

F) List of Spare Parts
Part no.
Radial damper LD 50 WS, without mounting bracket 244080
Mounting bracket for radial damper LD 50 WS 701040
Wire rope WS 6, per meter 244147
Wire rope tensioner, without bracket 701042
Supporting steel rope Ø 3 mm, with clamp piece, 5 m 701046
Supporting rope tensioner 700133
Bracket with wire rope tensioner and electromagnet 701044
Clamp piece wire rope, without bracket 701047
Bracket with supporting rope tensioner and clamp
piece for wire rope WS 6
701049
Bracket with counter plate for clamp piece 701050
Spring rope pulley 25 N with sliding hub, bracket zinc-
plated
070102
Spring rope pulley 50 N with sliding hub, bracket zinc-
plated
070093
Mounting plate for spring rope pulley with sliding hub 070114
Spare rope for spring rope pulley 700058
Electromagnet EM GD 50 Q 23 040020
Counter plate AP GD 50 G, without base plate 040057
Ill. 36
Spring rope pulley
with support
Bracket with
supporting rope
tensioner
and clamp piece
for WS 6 wire rope
Wire rope WS
and
supporting rope Bracket with magnet,
wire rope tensioner
and supporting rope
holder
Radial damper LD with attachment for wire rope
in freewheel carrier with counter plate
CLOSE
