Digital Projection TITAN LASER WUXGA Datasheet

Rev A January 2019

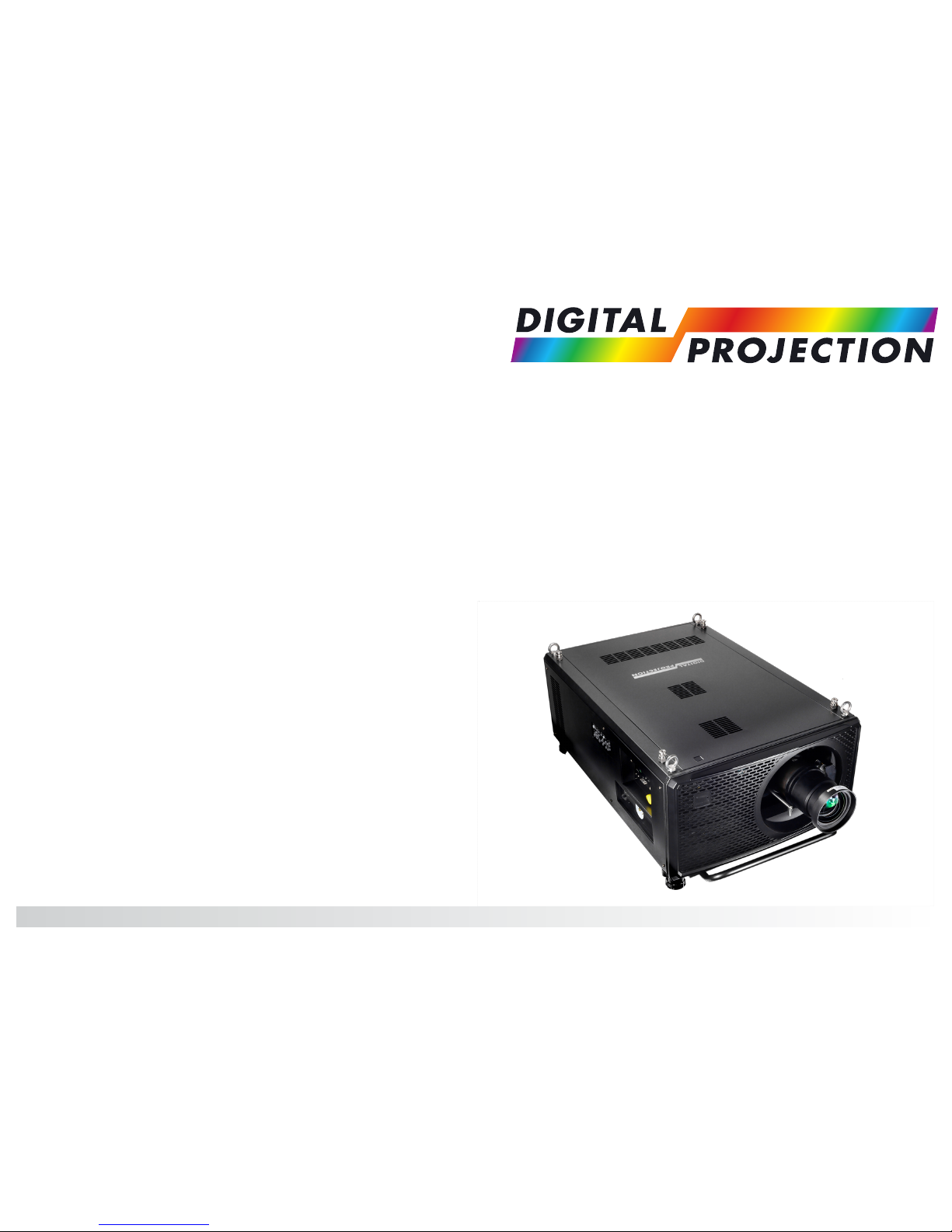

Titan Laser WUXGA
High Brightness Digital Video Projector
INSTALLATION & QUICK START GUIDE
CONNECTION GUIDE
OPERATING GUIDE
REFERENCE GUIDE
119-712

Digital Projection Ltd. Titan Laser WUXGA About this document
About this document
Follow the instructions in this manual carefully to ensure safe and long-lasting use of the projector.
Symbols used in this document
Many pages in this document have a dedicated area for notes. The information in that area is accompanied by the following symbols:
WARNING: this symbol indicates that there is a danger of physical injury to yourself and/or damage to the equipment unless the instructions are
closely followed.
ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely followed.
LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely
followed.
NOTE: this symbol indicates that there is some important information that you should read.
Product revision
Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice.
Updates may be available online - visit the Digital Projection website for all latest documents.
Legal notice
Trademarks and trade names mentioned in this document remain the property of their respective owners. Digital Projection disclaims any proprietary interest in
trademarks and trade names other than its own.
Copyright © 2019 Digital Projection Ltd. All rights reserved.
Rev A January 2019
page 2
Introduction
Notes

Laser information Digital Projection Ltd. Titan Laser WUXGA

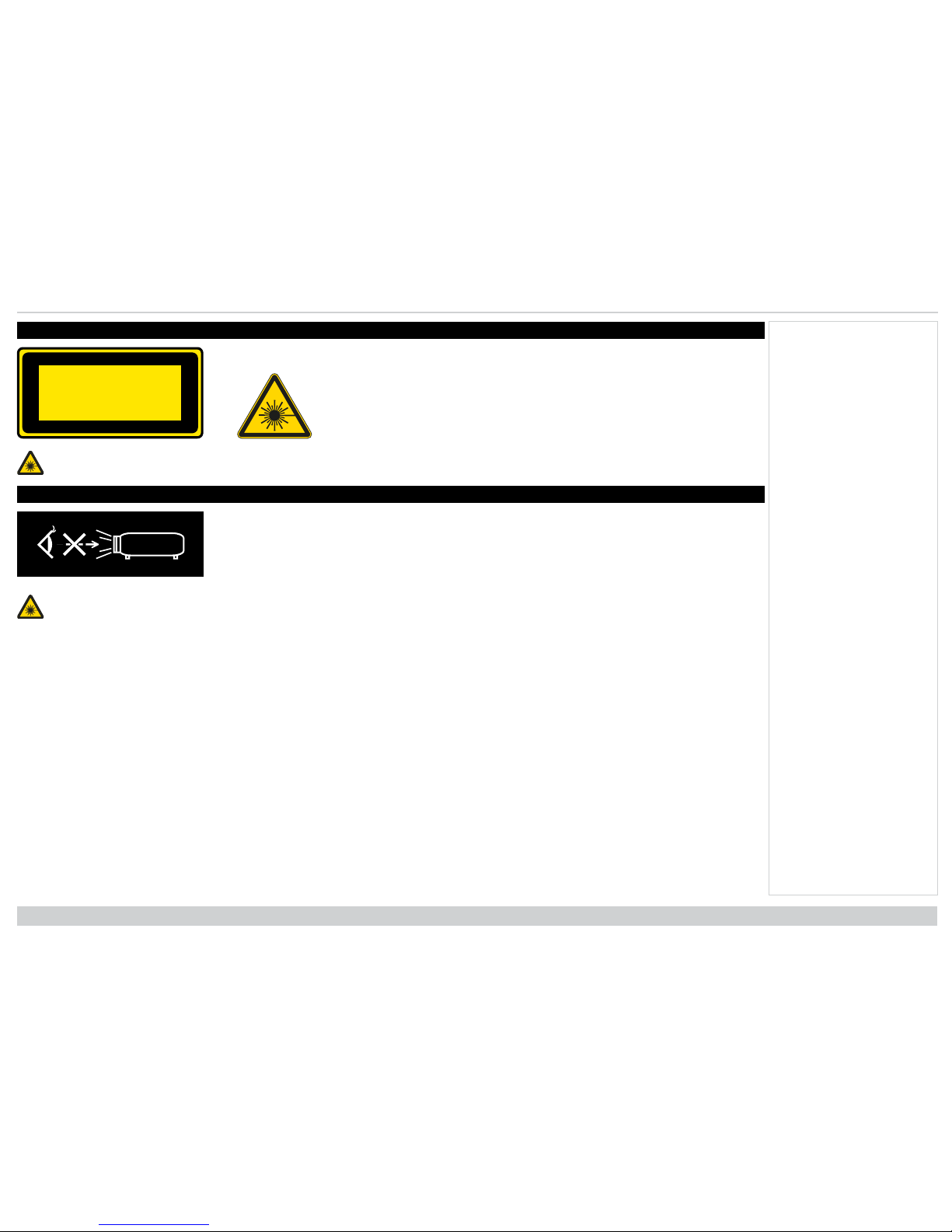

Laser information
LASER LIGHT
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
455-470nm <13Watts
CLASSIFIED EN/IEC 60825-1 2007
Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation
exposure.
Optical radiation
Caution - possibly hazardous optical radiation emitted from this product. Do not stare at operating light source. May be harmful to eyes. This
projector is tested according to IEC/EN62471-5:2015 (Photobiological safety of lamps and lamp systems – Part 5: Image projectors” standard) to be
Risk Group 3 (high risk).
Introduction Rev A January 2019
page 3
Notes

Digital Projection Ltd. Titan Laser WUXGA Light Hazard Warning

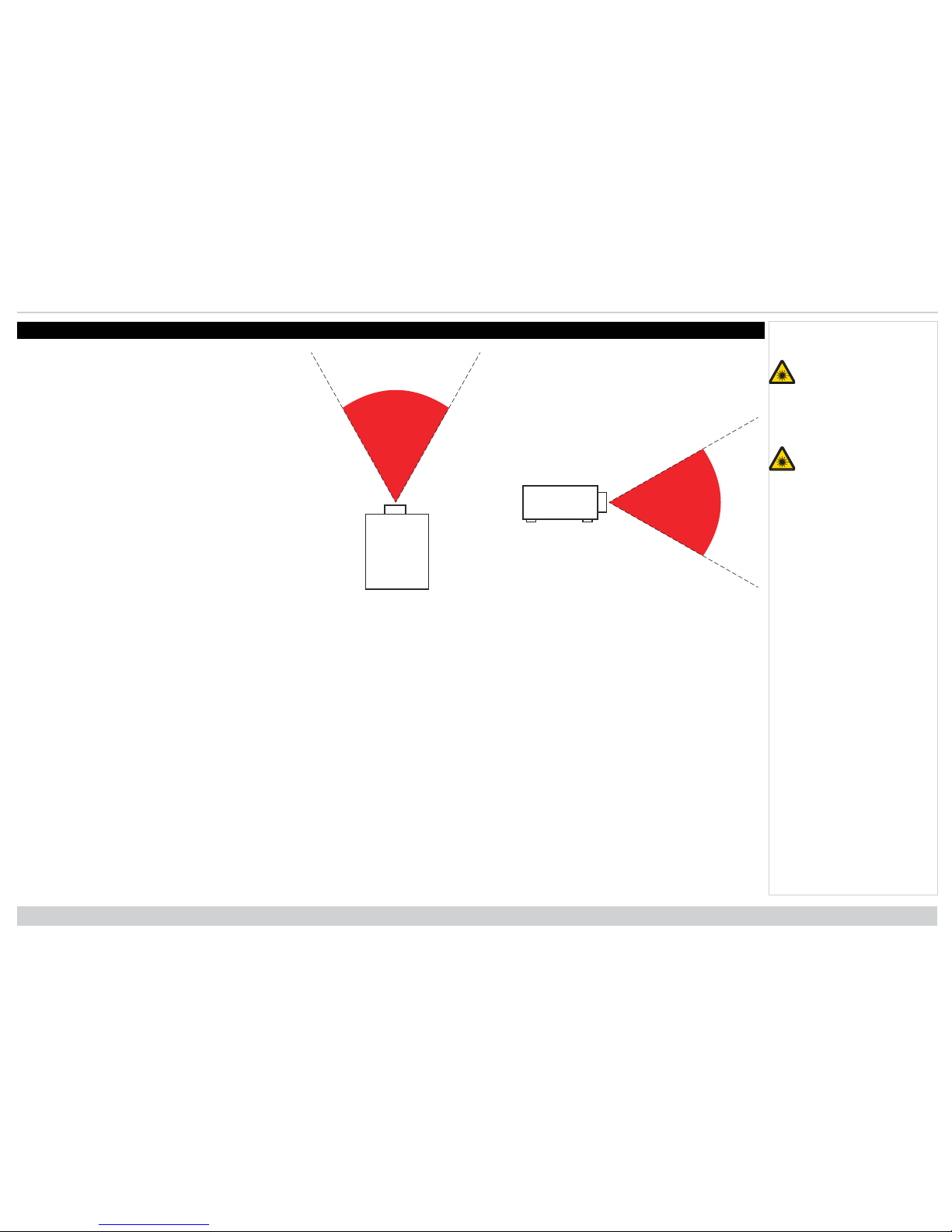

Light Hazard Warning
No direct exposure to the
beam is permitted, RG3
IEC 62471-5:2015.
Operators should control
access to the beam
within the hazard
distance or install the
projector at sufficient
height to prevent
exposures of spectators’
eyes within the hazard
distance.
Hazard Distance
The hazard distance is the distance measured from the
projection lens at which the intensity or energy per unit of
surface is lower than the applicable exposure limit on the
cornea or skin. If the person is within the hazard distance, the
beam is considered unsafe for exposure.
Light Hazard Distances
LENS HAZARD DISTANCE
0.67: 1 Super Wide fixed
1.12 : 1 Wide Fixed
1.16-1.49:1 Super Wide Zoom 5.5m
1.39 - 1.87:1 Wide Zoom 6.5m
1.87 - 2.56:1 Standard Zoom 8.5m
2.56 - 4.16:1 Semi Long Zoom 10.5m
4.16 - 6.96:1 Long Zoom1 14m
6.92 - 10.36:1 Long Zoom2
Rev A January 2019
page 4
Introduction
Notes

Introduction Digital Projection Ltd. Titan Laser WUXGA
Introduction
Congratulations on your purchase of this Digital Projection product. Your projector has the following key features:
lWUXGA projector
lSupport for Frame Sequential and Dual Pipe 3D formats.
lHDBaseT® for transmission of uncompressed High Definition Video up to 100 m from the source.
l3G-SDI with loop-through.
lEdge Blend with black level correction.
lBlanking control for custom input window sizing.
lCornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
lControl via LAN and RS232.
lMotorised lens mount.
lSeparate control of screen and source aspect ratio.
lNon-linear warp for irregular projection surfaces
A serial number is located on the side of the projector. Record it here:
Introduction Rev A January 2019
page 5
Notes

Digital Projection Ltd. Titan Laser WUXGA Contents
About this document 2
Symbols used in this document 2
Product revision 2
Legal notice 2
Laser information 3
Optical radiation 3
Light Hazard Warning 4
Light Hazard Distances 4
Introduction 5
Contents 6
What's in the box? 12
Connecting the power supply 13
Projector overview 14
Control panel 15

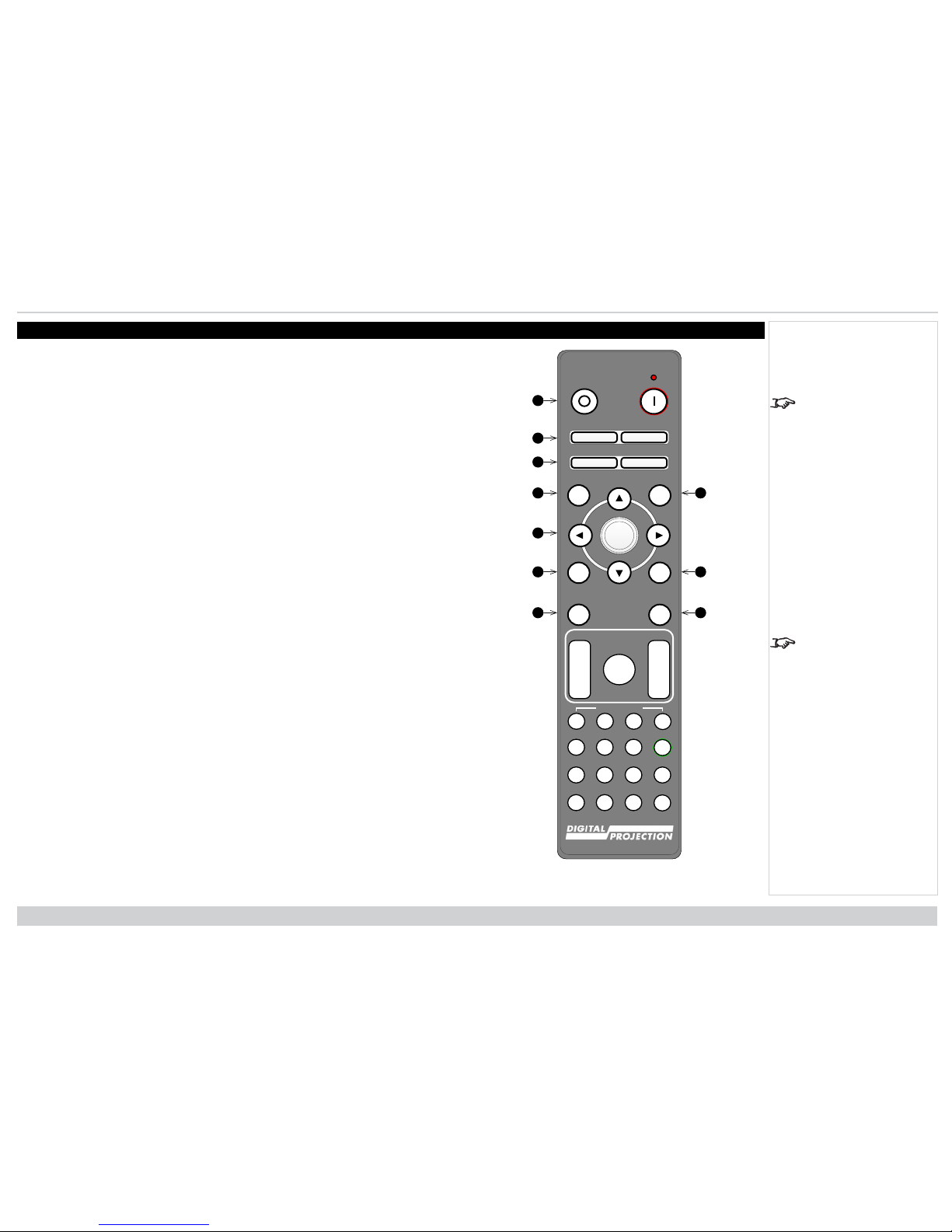

Remote control 17

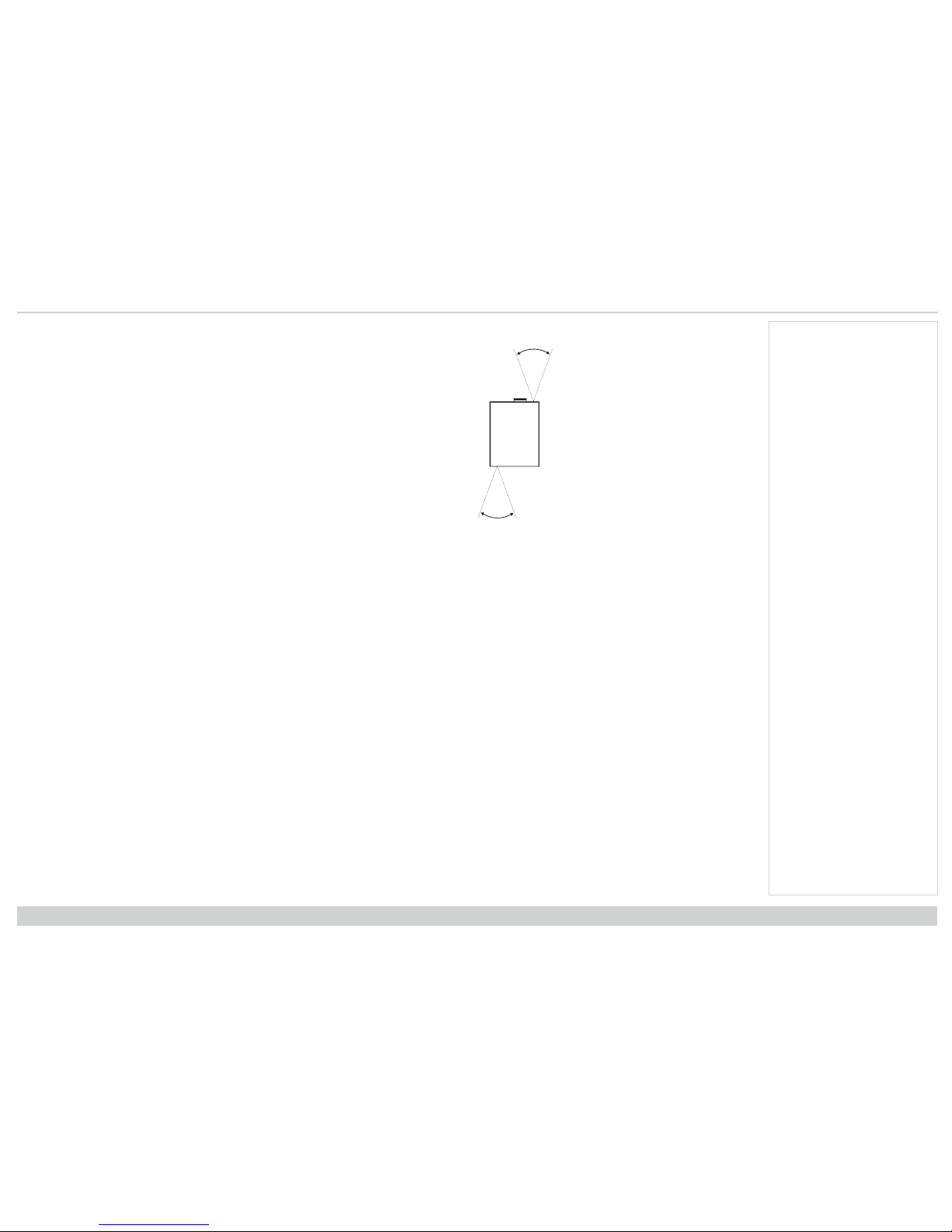

Infrared reception 20
Positioning the screen and projector 21
Roll and pitch 22
Stacking and rigging 23
Pin and cup stacking 23
Using the eye bolts 24
Point-to point connections 24
Threaded suspension cables 25
Changing the lens 26
Inserting a new lens 26
Removing the lens 26
Fitting a lens hood 27
Operating the projector 28
Switching the projector on 28
Switching the projector off 28
Selecting an input signal 28
Selecting a test pattern 28
Adjusting the lens 29
Lens menu 29
Remote control 29
Adjusting the image 29
Orientation 29
Geometry 29
Picture 29
Signal inputs 32
Digital inputs and outputs 32
EDID on the DisplayPort, HDMI, and HDbaseT inputs 33
Using DisplayPort/ HDMI/ HDBaseT switchers with the projector 33
3D connections 34
Frame sequential 1080p 3D up to 120Hz and WUXGA 3D at 100Hz 34
Dual Pipe 1080p and WUXGA 3D sources at up to 100 and 120Hz 34
3D Sync 35
Control connections 36
LAN connection examples 37
RS232 connection example 38
Using the menus 40
Opening the Menu 40
Rev A January 2019
page 6
Introduction
Notes
Contents

Contents Digital Projection Ltd. Titan Laser WUXGA
Opening a submenu 40
Exiting menus and closing the OSD 41
Inside a menu 41
Accessing sub menus 42
Executing commands 42
Editing projector settings 43
Using a slider to set a value 43
Editing numeric values 44
Using the projector 45
Main menu 45
Lens menu 46
Lens control 46
Lens memory 47
Image menu 48
Color menu 50
Color space 50
Color mode 51
ColorMax 51
Manual color matching 52
Color matching parameters explained 53
Color temperature 54
Gains and lifts 54
Geometry menu 55
Aspect ratio 55
Theaterscope setting 56
Digital zoom 57
Overscan 58
Blanking 59
Keystone 60
Keystone example 61
Keystone settings 62
4 corners 63
Top right corner example 64
Rotation 65
Rotation example 66
Pincushion / barrel 67
Pincushion/ Barrel example 67
Arc 68
Custom warp 69
Edge blend menu 70
Blend width 71
Black level uplift 72
3D menu 73
3D types 74
Some 3D settings explained 75
Dark time 75
Eye swap 75
Sync offset 76
Laser menu 77
Setup menu 78
ColorMax 80
Measured data/ target data 81
Power on / off 82
Clock adjust 83
Introduction Rev A January 2019
page 7
Notes

Digital Projection Ltd. Titan Laser WUXGA Contents
PIC mute setting 83
OSDsettings 84
Memory 84
EDID Mode 85
Hotkey setting 85
Network menu 86
Network setup 86
Art-net setup 87
Art-net channel setting 87
PIP menu 88
Information menu 89
Signal format 89
System status 90
Thermal status 90
Factory reset 91
Served web pages 92
Choosing a lens 102
Basic calculation 103
Basic calculation example 104
Full lens calculation 105
Introducing TRC 105
Calculating TRC 106
TRC table 106
Calculating the throw ratio with TRC 106
Full lens calculation example 107
Screen requirements 108
Fitting the image to the display 108
WUXGA images displayed full width 108
WUXGA images displayed with a height of 1200 pixels 108
WUXGA images displayed full height 109
Diagonal screen sizes 109
Positioning the image 110
Aspect ratios explained 112
Aspect ratios examples 112
Source: 4:3 112
Source: 16:9 113
Source: 16:10 (native) 113
Aspect ratio example: TheatreScope 114
Appendix A: lens part numbers 115
Appendix B: supported signal input modes 116
2D formats 116
3D formats 119
SDI formats 119
Appendix C: wiring details 121
Signal inputs and outputs 121
HDMI 1 and 2 121
DisplayPort 122
3G-SDI in, 3G-SDI out 123
HDBaseT input 123
Control connections 124
LAN 124
RS232 124
IR input 124
Appendix D: memory scheme and memory items 125
Rev A January 2019
page 8
Introduction
Notes

Contents Digital Projection Ltd. Titan Laser WUXGA
Appendix E: glossary of terms 128
Introduction Rev A January 2019
page 9
Notes

Digital Projection Ltd. Titan Laser WUXGA
Rev A January 2019
This page is intentionally left blank

Rev A January 2019
Titan LaserWUXGA
High Brightness Digital Video Projector
INSTALLATION & QUICK START GUIDE
119-712

Digital Projection Ltd. Titan Laser WUXGA What's in the box?
What's in the box?
Make sure your box
contains everything listed.
If any pieces are missing,
contact your dealer.
Only one remote is
supplied with the
projector.
Save and store the
original box and packing
materials, in case you
ever need to ship your
projector.
The projector is shipped
without a lens.
Only the appropriate cable
for destination territory is
supplied with the projector
Projector
Pic Mute
OPEN CLOSE
MENU
EXIT INFO
HDMI1
OK
OFF ON
ALT
LENS
FOCUS ZOOM
IN
OUT
IN
OUT
SHIFT
21 3
HDMI2 DVI
DisplayPort1
HD-T 3GSDI
VGA COMP1 COMP2
HDMI3
TEST
HDMI4
DisplayPort2
R G B ALL
3D EYE PIP SWAP
456
7 8 9 0
ALT
ADDR
OSD
OFF ON
DEFAULT
FREEZE RE-SYNC
A B C D
USER PRESET

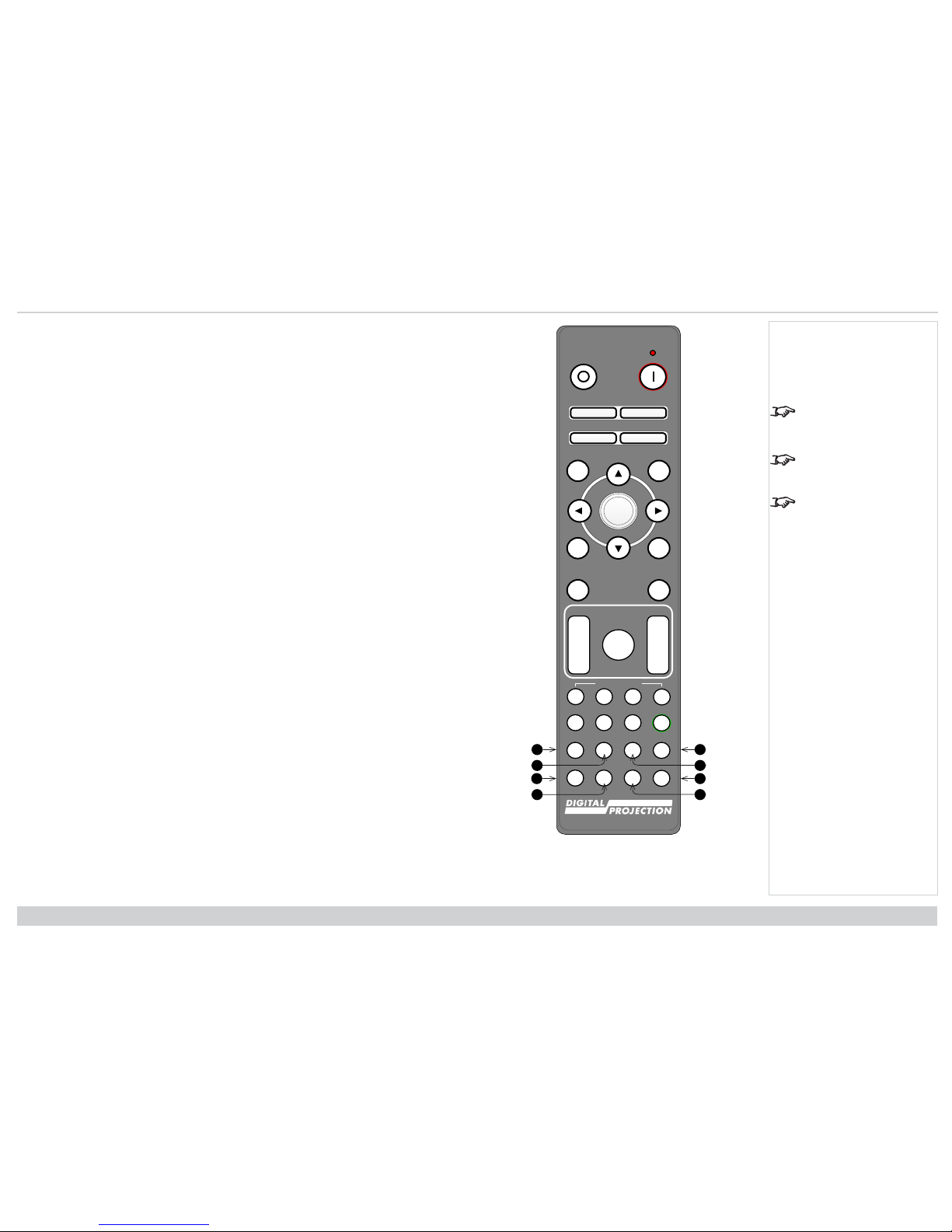

Remote Control Batteries
Important Information Book HDMI Cable Remote Control Cable
Power Cable, UK / RoW Power Cable, USA
Rev A January 2019
page 12
Installation & Quick Start Guide
Notes

Connecting the power supply Digital Projection Ltd. Titan Laser WUXGA
Connecting the power supply
Use only the power cable
provided.
Ensure that the power
outlet includes a ground
connection as this
equipment MUST be
earthed.
Handle the power cable
carefully and avoid sharp
bends. Do not use a
damaged power cable.
Rest of the World:
1
2
1. Firmly push the mains connector into the socket
1
USA Only
1. Firmly push the mains connector into the socket
2
2. Rotate the connector 90° clockwise to lock it in place
Installation & Quick Start Guide Rev A January 2019
page 13
Notes

Digital Projection Ltd. Titan Laser WUXGA Projector overview
Projector overview
6
7
1
3
2
4
5
Front View
1. Eye bolts (x4)
2. Connections panel
3. Stacking pins (x4)
4. Adjustable feet (x4)
5. Stacking cups (x4)
6. Control panel
7. Mains socket and switch
Rev A January 2019
page 14
Installation & Quick Start Guide
Notes

Control panel Digital Projection Ltd. Titan Laser WUXGA

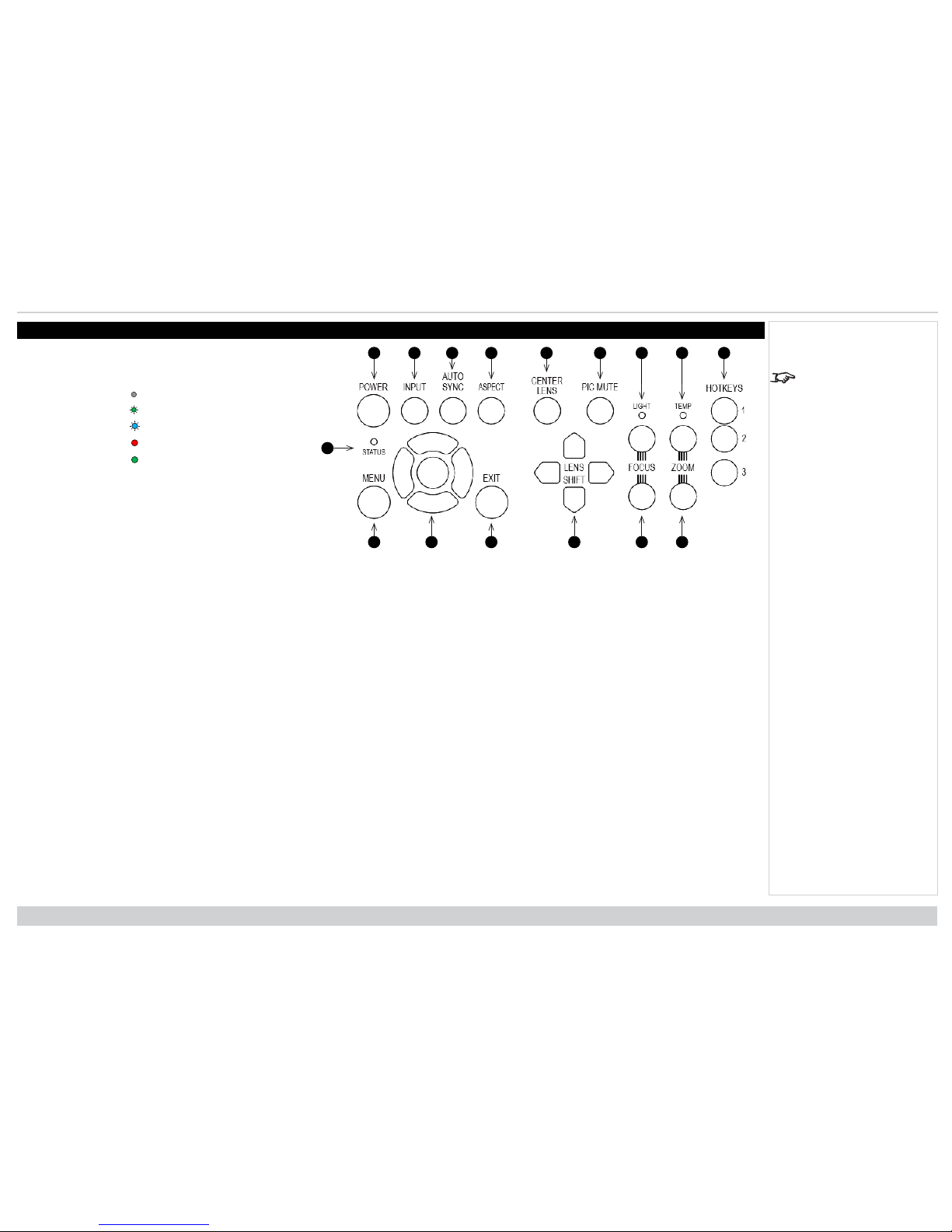

Control panel
1
2
4
6
9
10
3
5
7
8
12
14
15
16
13
11
Control Panel
AUTO SYNC and
ASPECT do not work
when the projector uses
HDMI 3 or 4.
1. POWER
Switches the projector on and off (STANDBY).
Indicator:
Off. The projector is switched off
Flashing green. The projector is warming up
Flashing blue. The projector is cooling down
On, red. Standby mode
On, green. The projector is switched on.
2. INPUT
Switches to the next input source.
3. AUTO SYNC
Re-synchronises with the current input signal.
4. ASPECT
Changes the aspect ratio.
5. CENTER LENS
Centers the lens.
6. PIC MUTE
Switches the laser off/on or blanks the DMD.
Indicator:
Off = the projector is in standby
On, blue = the projector is on, normal projection
On, red = the projector is on, picture mute is activated
7. LIGHT INDICATOR
Off = light is switched off
Flashing red (cycles of single flashes) = failure to light up during power up
Flashing red (cycles of double flashes) = unexpected light off while running
On, green = light is switched on
8. TEMP INDICATOR
Off = no problem
Flashing red = temperature error
Installation & Quick Start Guide Rev A January 2019
page 15
Notes

Digital Projection Ltd. Titan Laser WUXGA Control panel
9. HOTKEYS
User selectable functions.
Pre-set functions:
HOTKEY 1 Information
HOTKEY 2 Test Pattern
HOTKEY 3 Lens Memory Load
Additional options:
Picture Mode
Ambient Brightness Correction
Freeze
PIP Swap
10. STATUS
Off = no problem
Flashing red (continuously) = cover error
Flashing red (cycles of four flashes) = fan error
On, red = system error
11. MENU
Displays and exits the OSD.
12. Arrow buttons & ENTER
Navigation buttons used to highlight menu entries in the OSD.
Press ENTER to open or execute the highlighted menu entry.
13. EXIT
Exits the current OSD page and enters the level above.
14. LENS SHIFT arrow buttons
Each of these buttons moves the lens in the specified direction.
15. FOCUS plus and minus buttons
Used to move the focus in and out.
16. ZOOM plus and minus buttons
Used to zoom in and out.
Rev A January 2019
page 16
Installation & Quick Start Guide
Notes

Remote control Digital Projection Ltd. Titan Laser WUXGA
Remote control
Pic Mute
OPEN CLOSE
MENU
EXIT INFO
HDMI1
OK
OFF ON
ALT
LENS
FOCUS ZOOM
IN
OUT
IN
OUT
SHIFT
21 3
HDMI2 DVI
DisplayPort1 HD-T 3GSDI
VGA COMP1 COMP2
HDMI3
TEST
HDMI4
DisplayPort2
R G B ALL
3D EYE PIP SWAP
456
7 8 9 0
ALT
ADDR
OSD
OFF ON
DEFAULT
FREEZE RE-SYNC
A B C D
USER PRESET
8
6
5
4
3
2
1
7
9
10
Remote Control
1. Power ON / OFF
Turns power on and off.
The PIC Mute setting is
defined in the setup menu.
See Setup menu on
page78
2. Pic Mute OPEN / CLOSE
Shows and hides the projected image.
There are two PIC Mute settings:
lLaser. When off, the laser is switched off and no image is projected
lDMD Blanking. When off, the laser remains on and a black image is projected
3. OSD ON / OFF
Enable and disable screen timeout messages and control whether to show the OSD during
projection.
4. MENU
Access the OSD. If the OSD is open, press this button to go back to the previous menu.
5. Navigation (arrows and OK)
Navigate through the menus with the arrows, confirm your choice with OK.
In lens adjustment modes, the arrows are used to move, zoom or focus the lens.
See 11 below. In lens adjustment modes, or when the OSD is not showing, the OK button
switches between modes: Shift Adjustment and Zoom / Focus Adjustment.
6. EXIT
Go up one level in the OSD. When the top level is reached, press to close the OSD.
FREEZE and RE-SYNC
are not available when the
projector uses input HDMI
3 or 4.
7. FREEZE
Freeze the current frame.
8. DEFAULT
When editing a parameter, press this button to restore the default value.
9. INFO
Access information about the projector.
10. RE-SYNC
Re-synchronise with the current input signal
Installation & Quick Start Guide Rev A January 2019
page 17
Notes

Digital Projection Ltd. Titan Laser WUXGA Remote control
Pic Mute
OPEN CLOSE
MENU
EXIT INFO
HDMI1
OK
OFF ON
ALT
LENS
FOCUS ZOOM
IN
OUT
IN
OUT
SHIFT
21 3
HDMI2 DVI
DisplayPort1 HD-T 3GSDI
VGA COMP1 COMP2
HDMI3
TEST
HDMI4
DisplayPort2
R G B ALL
3D EYE PIP SWAP
456
7 8 9 0
ALT
ADDR
OSD
OFF ON
DEFAULT
FREEZE RE-SYNC
A B C D
USER PRESET
11
13
12
14
15
16
Remote Control
11. LENS adjustment
lFOCUS IN / OUT: adjust focus.
lSHIFT: press and hold this button, then use the Navigation arrow buttons to move the
lens.
lZOOM IN / OUT: adjust zoom.
12. USER PRESET A, B, C, D
Load user presets.
13. ALT
Press and hold this button to access alternative functions for all buttons with a green label.
This projector does not
use the following options
on the remote: DVI, VGA,
COMP 1 and COMP 2.
3D is only available on the
HDMI 3 and 4 inputs.
14. DVI / DisplayPort2 / numeric input 3
There is no DVI input on this projector.
Use with ALT to select the DisplayPort 2 input.
15. HDMI 2 / HDMI 4 / numeric input 2
Select the HDMI 1 input.
Use with ALT to select the HDMI 4 input.
16. HDMI 1 / HDMI 3 / numeric input 1
Select the HDMI 1 input.
Use with ALT to select the HDMI 3 input.
Rev A January 2019
page 18
Installation & Quick Start Guide
Notes

Remote control Digital Projection Ltd. Titan Laser WUXGA
Pic Mute
OPEN CLOSE
MENU
EXIT INFO
HDMI1
OK
OFF ON
ALT
LENS
FOCUS ZOOM
IN
OUT
IN
OUT
SHIFT
21 3
HDMI2 DVI
DisplayPort1 HD-T 3GSDI
VGA COMP1 COMP2
HDMI3
TEST
HDMI4
DisplayPort2
R G B ALL
3D EYE PIP SWAP
456
7 8 9 0
ALT
ADDR
OSD
OFF ON
DEFAULT
FREEZE RE-SYNC
A B C D
USER PRESET
17
23
19
21
22
24
18
20
Remote Control
17. DISPLAYPORT 1 / R / numeric input 4
Select DisplayPort 1 input.
18. HD-T / G / numeric input 5
Select the HDBaseT input.
This projector does not
use the following options
on the remote: DVI, VGA,
COMP 1 and COMP 2.
3D is only available on the
HDMI 3 and 4 inputs.
PIP is not available when
the projector uses input
HDMI 3 or 4.
19. VGA / 3D / numeric input 7
There is no VGA input on this projector.
Use with ALT to toggle the 3D Format setting between Off and Auto.
20. COMP1 / EYE / numeric input 8
There is no Component 1 input on this projector.
Use with ALT to switch between left and right eye 3D dominance.
21. ADDR / ALL (with red indicator at the top)
Assign and unassign an IR remote address.
lTo assign an IR remote address:
1. Press and hold this button until the red indicator starts flashing.
2. Release this button and while the red indicator is still flashing, enter a two-
digit address using the numeric input buttons. The indicator will flash three
times quickly to confirm the change.
lTo unassign an address and return to the default address 00:
1. Press and hold ALT and this button simultaneously until the red indicator
flashes to confirm the change.
22. 3GSDI / B / numeric input 6
Select the 3G-SDI input.
23. COMP2 / PIP / numeric input 9
There is no Component 2 input on this projector.
Use with ALT to switch on Picture In Picture (PIP) mode.
24. TEST / SWAP / numeric input 0
Show a test pattern. Press again to show the next test pattern: ...Off, White, Black, Red,
Green, Blue, CheckerBoard, CrossHatch, V Burst, H Burst, ColourBar, Screen layout.
When PIP mode is on, use this button with ALT to swap the main and sub images.
Installation & Quick Start Guide Rev A January 2019
page 19
Notes

Digital Projection Ltd. Titan Laser WUXGA Remote control
Infrared reception
40˚
40˚
The projector has infrared sensors at the front and back.
The angle of acceptance is 40°. Make sure that the remote control is within the angle of acceptance
when trying to control the projector.
Rev A January 2019
page 20
Installation & Quick Start Guide
Notes
