Directed Directechs DB3 User manual

Designed by Installers for Installers
INSTALLATION GUIDE
DB3
2014 Acura RLX (Smart Key). 403.HONDA9 2.03
© 2022 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle’s
electrical system and components.

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Installation 6
Wiring diagram with vehicle takeover 6
Vehicle takeover - additional connections 7
Wiring diagram without vehicle takeover 8
Locating components in the vehicle 9
Vehicle connections 10
Module programming 13
Connecting the module 14
LED diagnostics and troubleshooting 15
Soft reset 17
Hard reset 17
Feature programming 18
Feature and option list 19
Limited one year consumer warranty 20
Quick Reference Guide 21
Contents

3403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Trunk / Hatch Release
Control of aftermarket alarm with OEM remote
Key2GO
Immobilizer Bypass-Data No Key Req'd
RAP Shut Down (Retained ACC Power)
Remote Start Takeover
SmartStart
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status

5403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Pre-installation and application warnings
Firmware notes: This section highlights important information for this specific firmware and will assist in pricing
accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
Keys
required for
programming
1Keys required
for operation 0
IMPORTANT: DO NOT turn vehicle Ignition ON with ANY vehicle connectors disconnected, including during module programming.
Failure to do so may result with errors in the instrument cluster or hidden error messages.
Key2GO may be required if the interface does not program using the traditional method. Refer to "Module programming" for more
information.
All connectors are displayed from the wire side (unless specified otherwise).
Power liftgate and sliding door controls are ONLY available when the engine is OFF (where applicable).
It is possible to get a "Keyless Starting Error" message when remote started. It will disappear when it will be started with the key.
Refer to "Vehicle connections" following the wiring diagram.
General notes: This section highlights important information for this specific firmware.
[1] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin or if NOT
supported in data.
[2] Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[3] The steering lock connection is ONLY required if the connector is present in the vehicle.
[4] The PTS wire is mandatory in vehicles equipped with a manual transmission; otherwise it is ONLY required for PitStop/Idle mode
shutdown.
[5] When using an external relay, use a 1N4002 diode or larger. Directed Part No. 8616 Mini Relays must be used for this connection. Refer
to the "8616 wire and color reference" on the installation diagram.

6403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Refer to the "Pre-installation and application warnings" for important information and the description of each special note referenced in the diagram ( ).
Headlight Switch
(blue or white connector)
123456
789101112
12
1412
10 42
Wiring diagram with vehicle takeover
XKD2D65
HS CAN High 2: Tan/Black: 3
HS CAN Low 2: Tan: 4
HS CAN High 1: Orange/Green: 5
HS CAN Low 1: Orange/Brown: 6
Ignition Interr. (veh. side): Yellow: 8
Ignition Interr.(conn. side): Orange/Yellow: 9
Ignition Inter.(conn. side): Orange/Red: 10
Ignition Interr. (veh. side): Yellow/Red: 11
(+) 12V: Brown/Red: 12
Immobilizer Data: Yellow/Black: 10
(-) PTS Output: Red/Black: 4
(AC) Tach Output: Violet/White: 5
Cut
(-) Takeover Output: Green/Black: 2
Steering Lock Module
(gray connector
under steering column)
Ignition
Interrupt 5:
Pin 12
(-) PTS: Pin 8
Immo. Data: Pin 21
12
20 19
3
2 1
4
22
56
24 23
78
26 25
9
27
10
28
11 12 13 14
15161718
B-CAN Low: Blue, pin 7
(+) 12V:
White or Red,
pin 14
B-CAN High: Pink, pin 6
(+) Starter Output
(+) Accessory Output
Keyless Access
Control Unit
(gray connector)
F-CAN High: White or Green, pin 4
111 212 3
13
4
14
56
15161718
789
19
10
2021222324
F-CAN Low: pin 5
(+) Ignition:
White or
Blue, pin 11
(+) Starter: Pin 18
Cut
(+) Accessory 1:
Pin 24
Cut
1A Diode (1N4002+)
87a87
85 86
30
8616
Mini
Relay
(+) Ignition Input
(+) 12V Input
(-) Ground
(-) Parking Lights Output
1A Diode
Refer to Vehicle
takeover additional
connections for the
mandatory relay
connection details for
vehicle takeover.
(-) Parking Lights:
Pin 8
(-) Parking Lights:
Pin 11 OR
Keyless Access
Control Unit
(tan or gray connector)
(AC) Tach Input
(-) Hood Input Hood Pin
D2D Port
12
1
2
Keyless Acces Control Unit
(Refer to the Vehicle connections section
for the location of this unit.)

7403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Refer to the "Pre-installation and application warnings" for important information and the description of each special note referenced in the diagram ( ).
Keyless Access Control Unit
(Gray connector)
111 212 3
13
4
14
56
15161718
789
19
10
2021222324
Keyless Access Control Unit
(tan or gray connector)
12
20 19
3
2 1
4
22
56
24 23
78
26 25
9
27
10
28
11 12 1314
15161718
D2D Port
1412
10 42
(+) 12V
Input
(-) Ground (-) Takeover Output: Green/Black: 2
(+) 12V:
White
or Red,
pin 14 Ignition Interrupt 1:
Yellow or Blue, pin 28
(+) Ignition Interrupt 3:
Red or Lt.Green, pin 10
(+) Ignition Interrupt 4:
Red or Black, pin 22
(+) Ignition Interrupt 2: Yellow or Green, pin 8
87a87
85 86
30
Cut
1A Diode (1N4002+)
87a87
85 86
30
Cut
1A Diode (1N4002+)
87a87
85 86
30
Cut
1A Diode (1N4002+)
87a87
85 86
30
Cut
1A Diode (1N4002+)
8616
Mini
Relay
87a87
Orange
8616 wire and color reference
Brown
Yellow
Black Red
85 86
30
8616
Mini
Relay
8616
Mini
Relay
8616
Mini
Relay
8616
Mini
Relay
5A Fuse

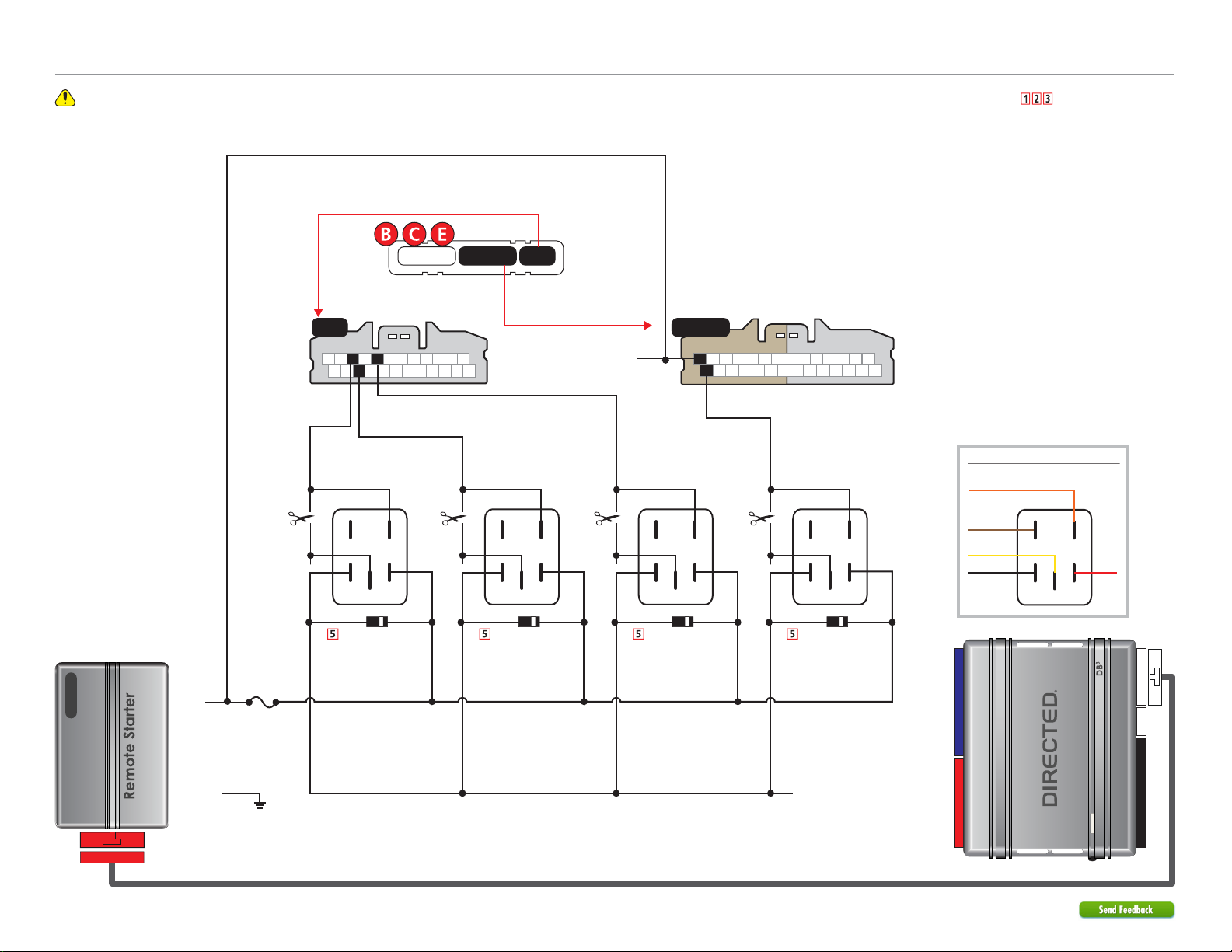

Vehicle takeover addtional connections
1
1
2
2
Keyless Acces Control Unit
(Refer to the Vehicle connections section
for the location of this unit.)

8403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Refer to the "Pre-installation and application warnings" for important information and the description of each special note referenced in the diagram ( ).
D2D Port
1412
10 42
Wiring diagram without vehicle takeover
XKD2D65
HS CAN High 2: Tan/Black: 3
HS CAN Low 2: Tan: 4
HS CAN High 1: Orange/Green: 5
HS CAN Low 1: Orange/Brown: 6
Ignition Interr. (conn. side): Orange/Yellow: 9
Immobilizer Data: Yellow/Black: 10
(-) PTS Output: Red/Black: 4
(AC) Tach Output: Violet/White: 5
Cut
Ignition Interr. (veh. side): Yellow: 8
Immo. Data: Pin 21
12
20 19
3
2 1
4
22
56
24 23
78
26 25
9
27
10
28
11 12 13 14
15161718
(+) 12V: White
or Red, pin 14
(+) Starter Output
(+) Accessory Output
F-CAN High: White or Green, pin 4
111 212 3
13
4
14
56
15161718
789
19
10
2021222324
F-CAN Low: Pin 5
(+) Ignition: White or Blue, pin 11
(+) Starter: Pin 18
(+) Accessory 1:
Pin 24
(+) Ignition Input
(+) 12V Input
(-) Ground
(-) Parking Lights Output
(-) PTS: Pin 8
Ignition Interrupt:
Yellow or Blue, pin 28
Keyless Access
Control Unit
(gray connector ) Keyless Access
Control Unit
(tan or gray connector)
B-CAN Low: Pin 7
B-CAN High: Pin 6
(AC) Tach Input
(-) Hood Input Hood Pin
123456
789101112
Headlight Switch
(blue or white connector)
(-) Parking Lights:
Pin 8
(-) Parking Lights:
Pin 11 OR
1
1
2
2
Keyless Acces
Control Unit
(Refer to the Vehicle
connections section for the
location of this unit.)

9403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.

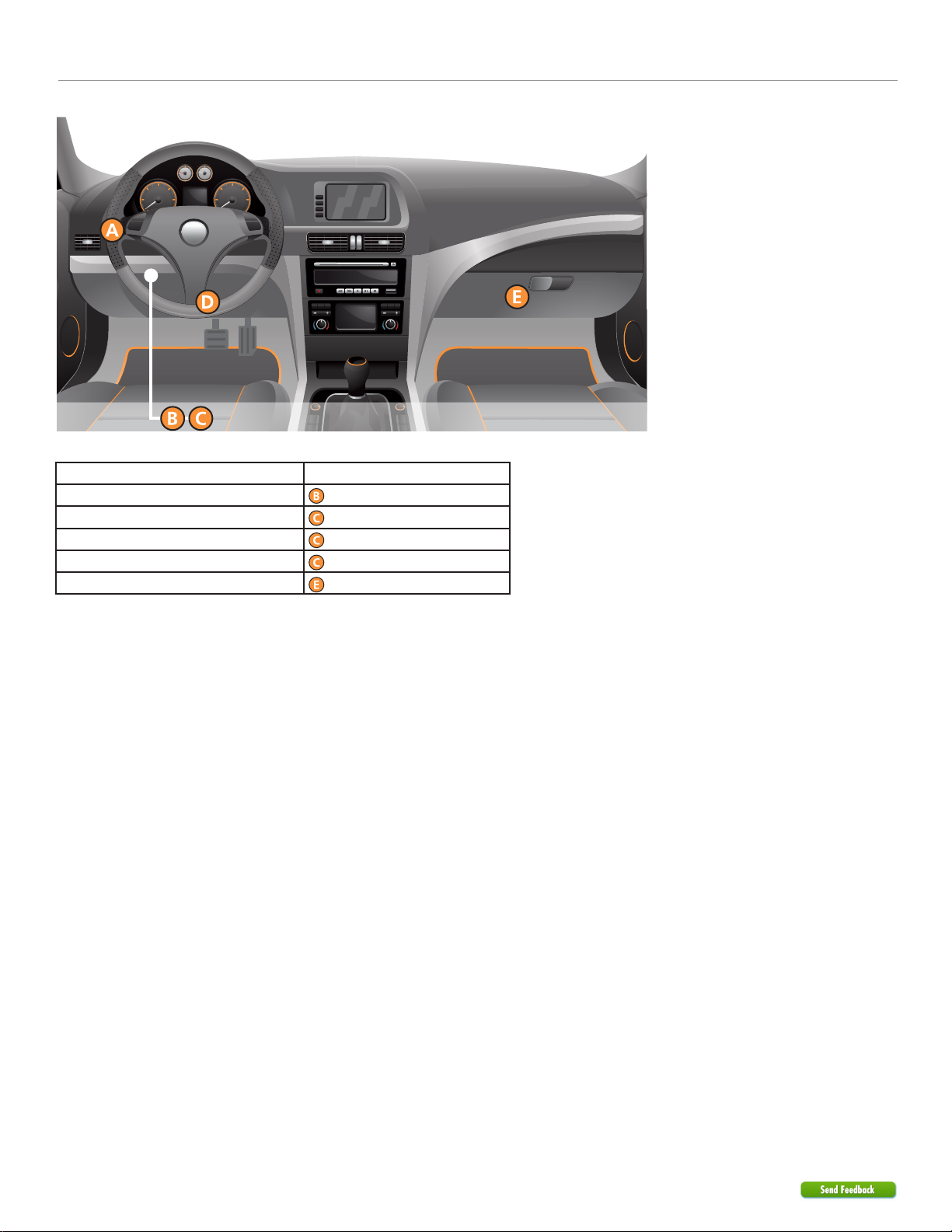

Locating components in the vehicle
Acura RLX (Smart key) 2014-2015 above dash fuse box
above glove box
left of steering column
left of steering column
left of steering column
Honda Accord (Smart key) 2013-2017
Honda Accord Hybrid (Smart key) 2014-2017
Honda Accord Crosstour (Smart key) 2013-2015
Honda CR-V (Smart key) 2015-2016
Vehicle Keyless Access Control Unit Location

10 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2014 Acura RLX (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High 2 Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 6 Data Red (B-CAN)
H1/4 Tan (DATA) HS CAN Low 2 Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 7 Data White (B-CAN)
H1/5 Orange/Green (DATA) HS CAN High 1 Keyless Access Control Unit above dash fuse box, gray 24 pin plug, pin 4 Data Lt. Blue (F-CAN)
H1/6 Orange/Brown (DATA) HS CAN Low 1 Keyless Access Control Unit above dash fuse box, gray 24 pin plug, pin 5 Data Gray (F-CAN)
H1/7 Brown Relay N.O. No Connection No Connection
H1/8 Yellow Relay COM Ignition Interrupt 2 (vehicle side) - Required
for installations with vehicle takeover ONLY. [3]
Steering Lock Module under steering column, gray 12 pin plug, pin 12 Cut Orange
H1/9 Orange/Yellow Relay N.C. Ignition Interrupt 2 (conn. side) - Required for
installations with vehicle takeover ONLY. [3]
Steering Lock Module under steering column, gray 12 pin plug, pin 12 Cut Orange
H1/10 Orange/Red Relay N.C. Ignition Interrupt 1 (conn. side) Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 28 Cut Yellow
H1/11 Yellow/Red Relay COM Ignition Interrupt 1 (vehicle side) Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 28
Remote Starter
Must use a diode.
Cut Yellow
H1/12 Brown/Red Relay N.O. (+) 12 Volt Input Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 14 + Pink (10A)
H1/13 Red (+) W2W Only - 12 Volt Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 14 + Pink (10A)
H1/14 Black (-) W2W Only - Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) W2W Only - E-Brake Output Remote Starter
H2/2 Green/Black (-) Takeover Output - Required for installations with
vehicle takeover ONLY.
5A fuse to 12V.
Must use (4) relays.
Must use (4) 1N4002 diode or larger.
Keyless Access Control Unit above dash fuse box, gray 24 pin plug, pin 8
Keyless Access Control Unit above dash fuse box, gray 24 pin plug, pin 10
Keyless Access Control Unit above dash fuse box, gray 24 pin plug, pin 22
Cut
Cut
Cut
Green
Lt. Green
Red
H2/3 Green/White (-) W2W Only - Door / Trunk Output Remote Starter
H2/4 Red/Black (-) PTS Output Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 8 - Blue
H2/5 Violet/White (AC) W2W Only - Tach Output [2] Remote Starter
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black No Connection No Connection
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection

11 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/10 Yellow/Black (DATA) Immo. Data Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 21 Data Red (S-NET)
H2/11 Orange/Black No Connection No Connection
H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
H3/4 White/Violet (-) W2W Only - Left Slidding Door Remote Starter
H3/5 Violet/Black (-) W2W Only - Right Slidding Door Remote Starter
H3/6 White/Black No Connection No Connection
H3/7 Pink/White No Connection No Connection
H3/8 Violet (+) W2W Only - Starter Input Remote Starter
H3/9 Pink (+) W2W Only - Ignition Input Remote Starter
H3/10 Blue/White (-) W2W Only - GWR Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue (Data) TX
H4/2 Black (-) Ground
H4/3 Green (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection

12 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
12 Volts Keyless Access Control Unit above dash fuse box, tan 28 pin plug,
pin 14
+ Pink (10A)
Accessory Keyless Access Control Unit above dash fuse box, gray 24 pin plug,
pin 24
+ Orange
Ground (chassis ground)
Hood Pin Hood Switch, 2 pin plug, pin 1 - Lt. Blue
Ignition - Must use a diode Keyless Access Control Unit above dash fuse box, gray 24 pin plug,
pin 11
+ Blue
Parking Lights - Headlight Switch, 12 pin plug, pin 8 - Pink
Starter - Must use a relay Keyless Access Control Unit above dash fuse box, gray 24 pin plug,
pin 18
+ Lt. Blue
Tachometer Camshaft Position Sensor, engine driver side front, 3 pin plug, pin 3 ac Gray

13 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
1IMPORTANT! The vehicle battery must be in good condition and fully charged for successful
programming. A battery charger may be connected during programming if necessary.
2
The harnesses must be connected in this exact order:
 a) Connect the 14-pin.
 b) Connect the 12-pin.
 c) Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times. When the LED turns ON solid orange, proceed to step 2.
3
Press on the Push-to-Start (PTS) button twice (2) to turn the ignition ON. The LED flashes
orange quickly for approximately 5 seconds, then flashes green. It may flash green for 25
seconds.
Note: If the LED flashes red 3 or 4 times after the initial 25 seconds, wait an extra 30
seconds.
If the transponder programming was skipped, the LED turns ON solid orange for 3 seconds
then shuts OFF once the module is successfully programmed without transponder.
4
If the LED starts flashing orange slowly, follow the Key2GO programming below.
Key2GO programming:
Press the PTS button once (1) more to turn ignition OFF, remove the module from the
vehicle, and reconnect it to your computer. The web site will automatically recognize
that you are moving onto the second phase of the programming sequence. Proceed to
step 7.
-
If the LED turns ON solid green for 3 seconds then shuts OFF, follow the Standard
programmingbelow.
Standard programming:
Press the PTS button once (1) more to turn the ignition OFF. Proceed to step 9.
-
5Click on Submit Key2GO Request.
6
Once the configuration is completed, reconnect the module. The LED turns ON solid green for
3 seconds, then shuts OFF.
If however, the LED returns to flashing orange slowly, perform a soft reset on the module.
When the LED turns solid red, start the vehicle. The LED will turn ON solid green for 3
seconds then shuts off.
You have successfully completed the module programming sequence.

14 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Connecting the module
Important!
Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior
to moving onto programming.
Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application.
Flashing a module using your computer:
1. Connect the interface module to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and select the Flash Module button.
3. Follow the instructions to select your vehicle, installation type, and configure your options.
4. Once you have configured the firmware options, click on the FLASH button.
Flashing a module using your smartphone or tablet:
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the on screen instructions.
When the flashing operation is successful, you can proceed with the instructions below.
D2D installation
Recommended: Connect the 10-pin, 12-pin and 14-pin harnesses to the module, then
connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
4th
(D2D)
2nd
(12-pin)
OR
W2W installation
If required: Connect the 10-pin and 12-pin harnesses to the module, then connect the 14-pin
harness to the module. 3rd
(14-pin)
1st
(10-pin)
2nd
(12-pin)

15 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module Programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If
12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes green & red Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact Technical
Support.
Solid orange Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features are needed, please reset the and
reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in “Module programming” to complete the Key2GO programming.
Solid green x 3 secs
Module was successfully programmed with
all functions. Normal operation.
Solid orange x 3 secs
Module was successfully programmed
without transponder functions. Normal operation.
Module Programming - Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus by
turning the ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the ignition on
and try again. If your installation does not require this connection, skip this step by pressing the
programming button 5 times.
Flashes red x 3 Bypass data not detected. Check the bypass line connection. If more than one wire is used, make sure they are not inverted. Ensure
the vehicle still operates correctly using the factory key.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please contact
Technical Support.
Flashes red x 5 ISO 1 not detected. The Yellow/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams &
vehicle wiring reference charts)” to check the connections.
Flashes red x 7 MUX not detected. The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to “Installation
(wiring diagrams & vehicle wiring reference charts)” to check the connections.
External Module Synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.

16 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.

Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red & orange Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green quickly Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 2 UNLOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 3 TRUNK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 4 AUX1 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 5 AUX2 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Flashes orange x 6 AUX3 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or D2D.
Shutdown Codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired in
takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.

17 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Soft reset
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
Solid SolidRelease
A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module
will not be affected.
Hard reset
Warning Against Executing a Hard Reset!
1
D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness. 3rd
(14-pin)
1st
(10-pin)
5th
(D2D)
2nd
(12-pin)
4th
(Button)
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module. 4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the
LED starts to flash orange and red. Solid Flashes
&
3Release the programming button. The LED turns ON solid red. &
Release Solid
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. Refer to “Feature and option list”.

18 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Feature programming
To enter feature programming routine:
1. Turn the ignition ON, then OFF.
2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds).
3. Release the Programming button.
4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to
indicate the current option of feature 1 (e.g. 1 x green followed by 1 x red indicates feature 1 is set to option 1). The flashing
sequence will repeat until a new command is entered.
Changing feature options:
1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature.
2. The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green
slowly the number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature:
1. Press and release the programming button a number of times to advance from the current feature to the next desired feature.
2. The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly
to indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Exiting feature programming:
To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface
for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence.

19 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Feature and option list
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at
www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this
page.
* Default option
Feat
.Operation Flashes / Option Description
1 RFTD Output Type 1. No RF Output* Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
2 Unlock Driver Priority 1. Driver priority* Unlocks only the driver door when the button is first pressed, and unlocks all doors when it is pressed a second
time within 5 seconds.
2. All Unlocks all doors when the button is first pressed.
3 Heated Seats 1. Disabled* No operation.
2. Enabled When the feature is enabled, it will activate the Heated Seats and heated steering wheel.
4 Heated
Seats/Defroster
Temperature Control
1. 32 °F (0 °C)* When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 32 °F (0 °C).
2. 23 °F (-5 °C) When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 23 °F (-5 °C).
3. 41 °F (5 °C) When Heated Seats or Defroster feature is enabled, it will activate the feature upon remote start when
temperature is below 41 °F (5 °C).
4. Always ON When Heated Seats or Defroster feature is enabled, it will activate the feature at any temperature.
5 Heated Seats
Temperature Level
1. High* When Heated Seats are activated, they will be set to HIGH.
2. Low When Heated Seats are activated, they will be set to LOW.
6 Smart OEM Alarm
Control
1. Disabled The OEM alarm will not be controlled by the interface upon remote start. No disarm or arm command will be
executed at the beginning or end of the sequence; it must be controlled by the Remote Starter.
2. Safelock Smart OEM Alarm Control will behave like a standard Safelock feature on a remote starter. It will unlock at the
beginning of the sequence, and relock after start and shutdown.
3. Enabled*
Smart OEM Alarm Control will synchronize with the OEM alarm so that it will disarm and rearm the vehicle in the
remote start sequence, only when required. Smart OEM Alarm Control will monitor the alarm and door lock
status to detect if the disarm or rearm is required. If the vehicle is unlocked or is not equipped with factory alarm,
the disarm/rearm will not be executed.
7
8 Takeover Option

20 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
Limited 12 Months Consumer Warranty
VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part
thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date
of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s
option) without charge for parts or repair labor. A transmitter for a vehicle security or remote start system is warranted for
12 months from he date of original purchase.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty
coverage (e.g. dated bill of sale), authorization number, specication of defect(s), transportation prepaid, to an approved
warranty station. This warranty is not transferable.
This Warranty does not cover damage to the vehicle’s electrical system or costs incurred for the installation, removal or
reinstallation of the product. This Warranty does not cover batteries, broken LCD transmitter display screens, nor apply
to any product or part thereof which, in the opinion of the Company, has su󰀨ered or been damaged through alteration,
improper installation, mishandling, misuse, abuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person or representative is
authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
The company does not warrant that this product cannot be compromised or circumvented. THE EXTENT OF THE
COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT WITHOUT INSTALLATION LABOR.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specic legal
rights and you may also have other rights which vary from state to state.
VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824
