Directed Directechs DB3 User manual

Functions compatible with the 2016 Nissan Pathfinder (Smart Key)
*Telematics features: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart Pro.
* Odometer
Arm Factory Security
Brake Status (foot brake)
Control of aftermarket alarm with OEM remote
Disarm Factory Security
Door Lock Control
Door Locks Status
Door Unlock
Driver Priority Unlock
E-Brake Status
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Fuel level/EV battery level
Ignition Status
Immobilizer Bypass-Data No Key Req'd
RAP Shut Down (Retained ACC Power)
Remote Start Ready
Remote Start Takeover
SmartStart
Tach / RPM Output
Trunk / Hatch Release
403.NISS08
v1.27
2016 Nissan Pathfinder (Smart Key)

Introduction 3
Pre-installation and application warnings 4
Wiring diagram 5
Locating components in the vehicle 6
Start 1 & Ignition 2 connections 7
Vehicle connections 8
Module programming 10
For Convenience-Only programming, see next section. 10
Module programming for convenience only (skip transponder) 11
Connecting the module 11
LED diagnostics and troubleshooting 13
Soft reset 15
Hard reset 15
Feature programming 16
Feature and option list 17
Limited one year consumer warranty 18
Quick Reference Guide (customer copy) 19
Contents

3403.NISS08 1.27 2016 Nissan Pathfinder (Smart Key)
©2023 Directed. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.NISS08 1.27 2016 Nissan Pathfinder (Smart Key)
©2023 Directed. All rights reserved.
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible T-Harness is not compatible.
AUX
Keys required for
programming 1Keys required for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
Security light: Will flash during runtime and turn on solid, then off during takeover procedure.
Power door locks: Will not operate properly if doors are open.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
Refer to the Vehicle connections following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin, or if
not supported in data.
[2] Tach: Optional connection required on some remote starters, which do not support a tach signal in D2D.
[3] Security Light Interrupt: Only required if Security Light Off does not operate in data.

5403.NISS08 1.27 2016 Nissan Pathfinder (Smart Key)
©2023 Directed. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

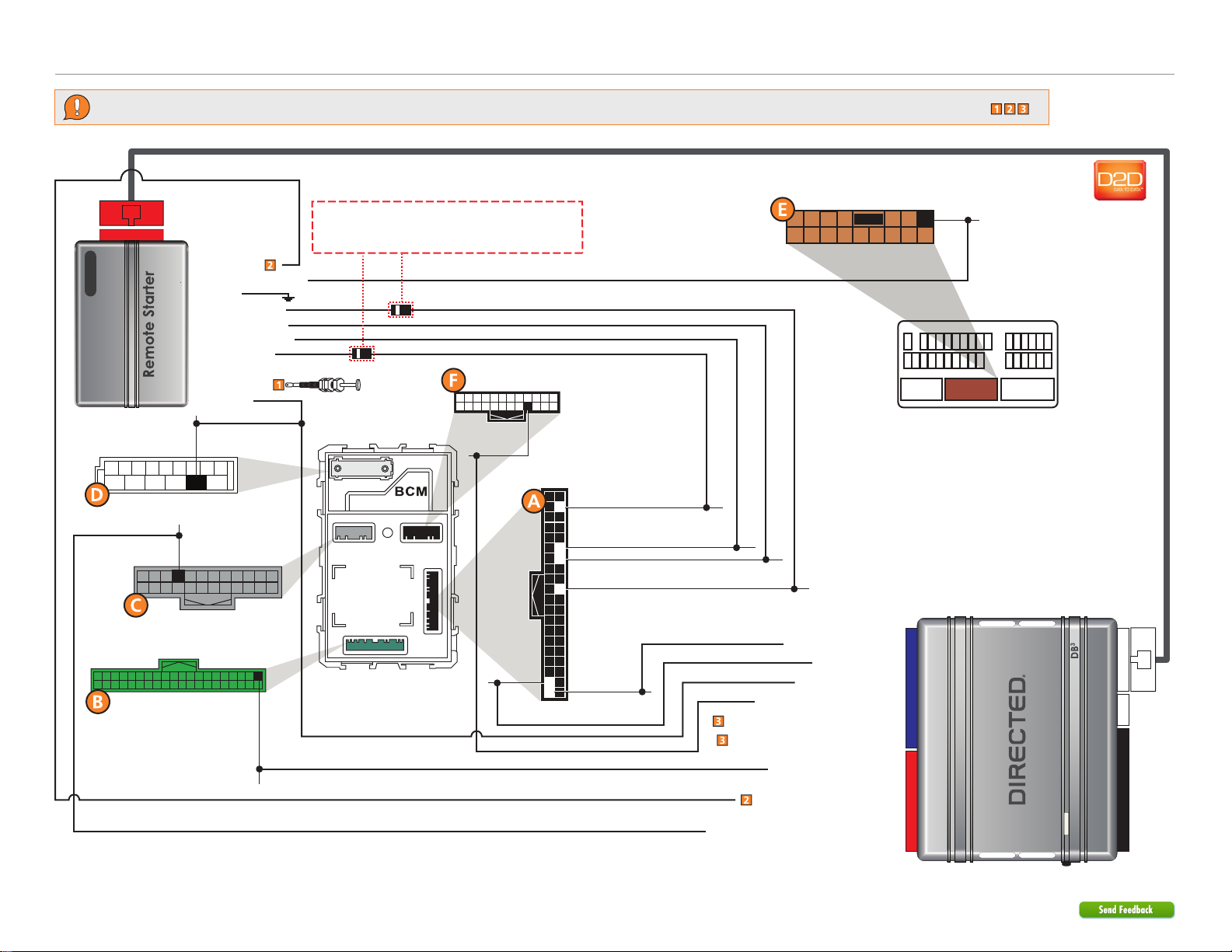

Wiring diagram
D2D Port
1412
10
42
XKD2D65
(-) Ground
HS CAN High:
Blue, pin 20
(+) Ignition 1 Output
(+) Accessory 1 Output
(-) Starter Output
(+) 12V Input
(-) PTS Output: Green/Black: 2
(-) Auto Headlamp Shutoff: Violet/Brown: 9
(+) Parking Lights Output
Brown 16-pin conn.
1234567
8910111213141516
38
16
36
11
31
15
35
10
30
14
34
9
29
5
25
7
27
3
23
13
33
8
28
46
26
2
22 21
17
37
12
32
20
40 39 24
19
1 18
Green 40-pin conn.
19
15 10
11
2345678
14 13 12
White 15-pin conn
(-) Ignition 2 Output
(+) 12V:
White or Blue, pin 11
(-) Driver Door Trigger:
pin 16
(-) PTS:
Red or Green, pin 1
(-) Starter: pin 22
(+) Ignition 1: White or Green, pin 27
(+) Accessory 1: White or Red, pin 26
(-) Ignition 2: Pink or Green, pin 30
Gray 24-pin conn.
16
13 15 1718 19 20 2122 23 2414
1 2 3 4 5 6 7 8 9 10 1112
HS CAN Low: Pink, pin 19
(+) Parking Lights:
Red, pin 1
Dash Fusebox
22
26
27
30
19
20
Black
40-pin conn.
(AC) Tach Input
(AC) Tach Output: Violet/White: 5
HS CAN High: Tan/Black: 3
HS CAN Low: Tan : 4
Black 40-pin
The mayBCM
look different on
your vehicle, but
the connections
remain the same.
Security Light Interrupt: Orange/Red: 10
Security Light Interrupt: Yellow/Red: 11
112
13 24
9
Black
24-pin conn.
(+) Accessory 2 Output: Yellow: 8
(+) 12V Input: Brown: 7
(+) Accessory 2:
pin 9
(behind the cluster)
A 1A diode is required if the Remote Starter
has (-) negative outputs. External relays are
required if it has (+) outputs.
(-) Hood Pin Input
Hood Pin

6403.NISS08 1.27 2016 Nissan Pathfinder (Smart Key)
©2023 Directed. All rights reserved.
Locating components in the vehicle

7403.NISS08 1.27 2016 Nissan Pathfinder (Smart Key)
©2023 Directed. All rights reserved.
BCM

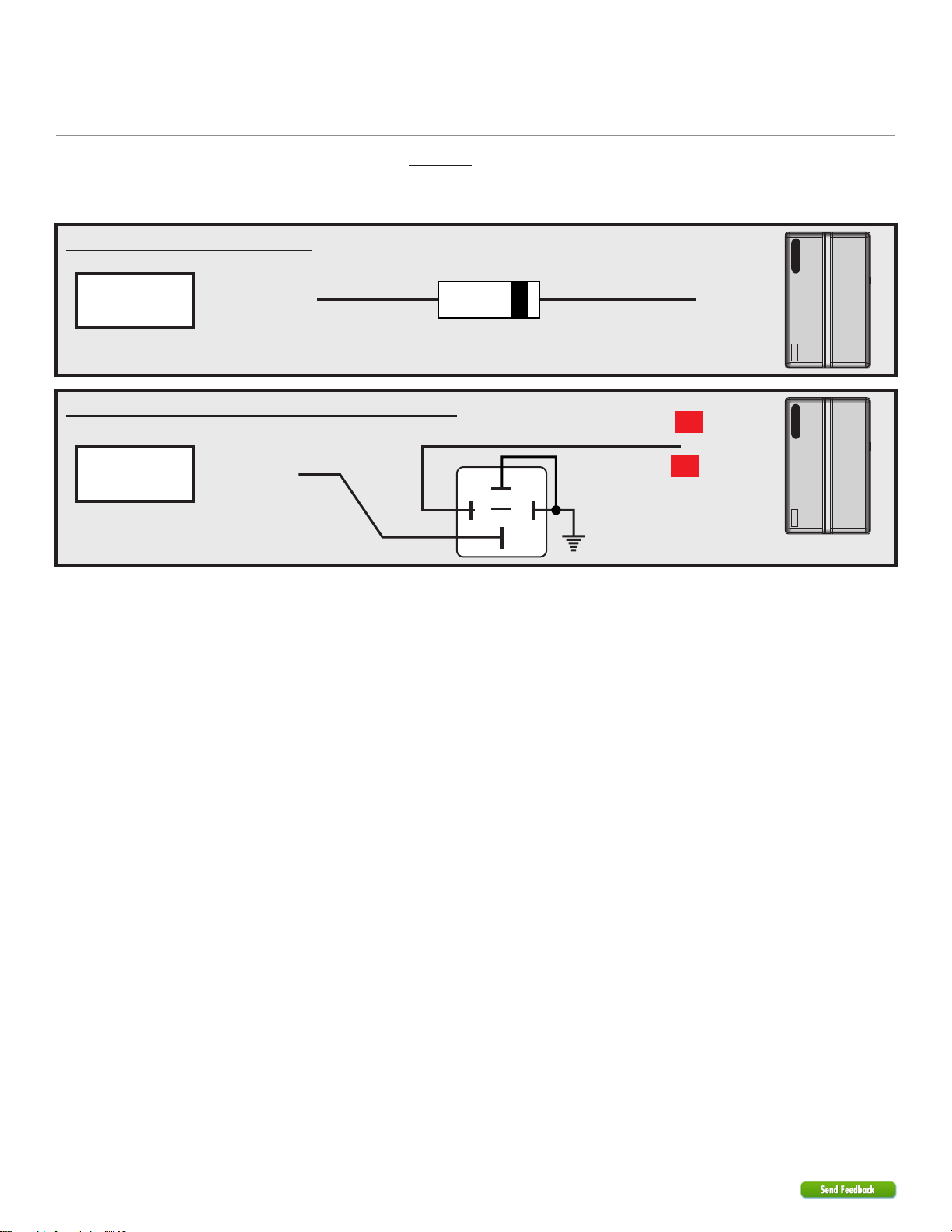

Option 2: Change polarity with a relay
Option 1: Install a diode
Start 1 and Ignition 2 wires from the vehicle are negative trigger:
- Add a diode as shown (Option 1) if your remote starter has negative Start or Ignition output available.
- Add a relay as shown (Option 2) if your remote starter only has positive Start or Ignition output available.
30
86 85
87
87a
(-) Start 1
or
(-) Ignition 2
(-) Start 1
or
(-) Ignition 2
(-) Start 1
or
(-) Ignition 2
(+) Starter 1
or
(+) Ignition 2
Remote Starter
Main System
Remote Starter
Main System
BCM Diode
1Amp
Start 1 & Ignition 2 connections

8403.NISS08 1.27 2016 Nissan Pathfinder (Smart Key)
©2023 Directed. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2016 Nissan Pathfinder (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High BCM behind instrument cluster, black 40 pin plug, pin 20 data blue
H1/4 Tan (DATA) HS CAN Low BCM behind instrument cluster, black 40 pin plug, pin 19 data pink
H1/5 Orange/Green No Connection No Connection
H1/6 Orange/Brown No Connection No Connection
H1/7 Brown Relay N.O. (+) 12V Input BCM behind instrument cluster, white 15 pin plug, pin 11 + white (40A)
H1/8 Yellow Relay COM. (+) Accessory 2 Output BCM behind instrument cluster, black 24 pin plug, pin 9 + blue
H1/9 Orange/Yellow Relay N.C. No Connection No Connection
H1/10 Orange/Red Relay N.C. Security Light Interrupt [3] BCM behind instrument cluster, green 40 pin plug, pin 18
Only required if Security light Off does not operate in data.
- violet
H1/11 Yellow/Red Relay COM. Security Light Interrupt [3] BCM behind instrument cluster, green 40 pin plug, pin 18
Only required if Security light Off does not operate in data.
- violet
H1/12 Brown/Red Relay N.O. No Connection No Connection
H1/13 Red (+) W2W Only - 12 Volt Input BCM behind instrument cluster, white 15 pin plug, pin 11 + white (40A)
H1/14 Black (-) W2W Only - Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) W2W Only - E-Brake Output Remote Starter
H2/2 Green/Black (-) PTS Output BCM behind instrument cluster, green 40 pin plug, pin 1 - green
H2/3 Green/White (-) W2W Only - Door Output Remote Starter
H2/4 Red/Black (-) W2W Only - Trunk Output Remote Starter
H2/5 Violet/White (AC) W2W Only - Tach Output [2] Remote Starter
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black (+) W2W Only - Ignition Output Remote Starter
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown (-) Auto Headlamp Shutoff Output BCM behind instrument cluster, gray 24 pin plug, pin 16 - beige
H2/10 Yellow/Black No Connection No Connection
H2/11 Orange/Black No Connection No Connection
H2/12 Blue/Red No Connection No Connection

9403.NISS08 1.27 2016 Nissan Pathfinder (Smart Key)
©2023 Directed. All rights reserved.
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input [2] Remote Starter
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection [3] No Connection
H3/6 White/Black No Connection No Connection
H3/7 Pink/White No Connection No Connection
H3/8 Violet (+) W2W Only - Starter Input Remote Starter
H3/9 Pink (+) W2W Only - Ignition Input Remote Starter
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Green (Data) TX
H4/2 Black (-) Ground
H4/3 Blue (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
12 Volts BCM behind instrument cluster, white 15 pin plug, pin 11 + white (40A)
Accessory BCM behind instrument cluster, black 40 pin plug, pin 26 + white
Ground (chassis ground)
Hood Pin [1] underhood fuse box, white 16 pin plug, pin 15 - red
Ignition BCM behind instrument cluster, black 40 pin plug, pin 27 + green
Parking Lights dash fuse box, brown 16 pin plug, pin 1 + red
Second Ignition - Must use a diode BCM behind instrument cluster, black 40 pin plug, pin 30 - pink
Starter - Must use a diode BCM behind instrument cluster, black 40 pin plug, pin 22 - white
Tachometer [2] any fuel injector, gray 2 pin plug, pin 2 ac violet or yellow

10 403.NISS08 1.27 2016 Nissan Pathfinder (Smart Key)
©2023 Directed. All rights reserved.

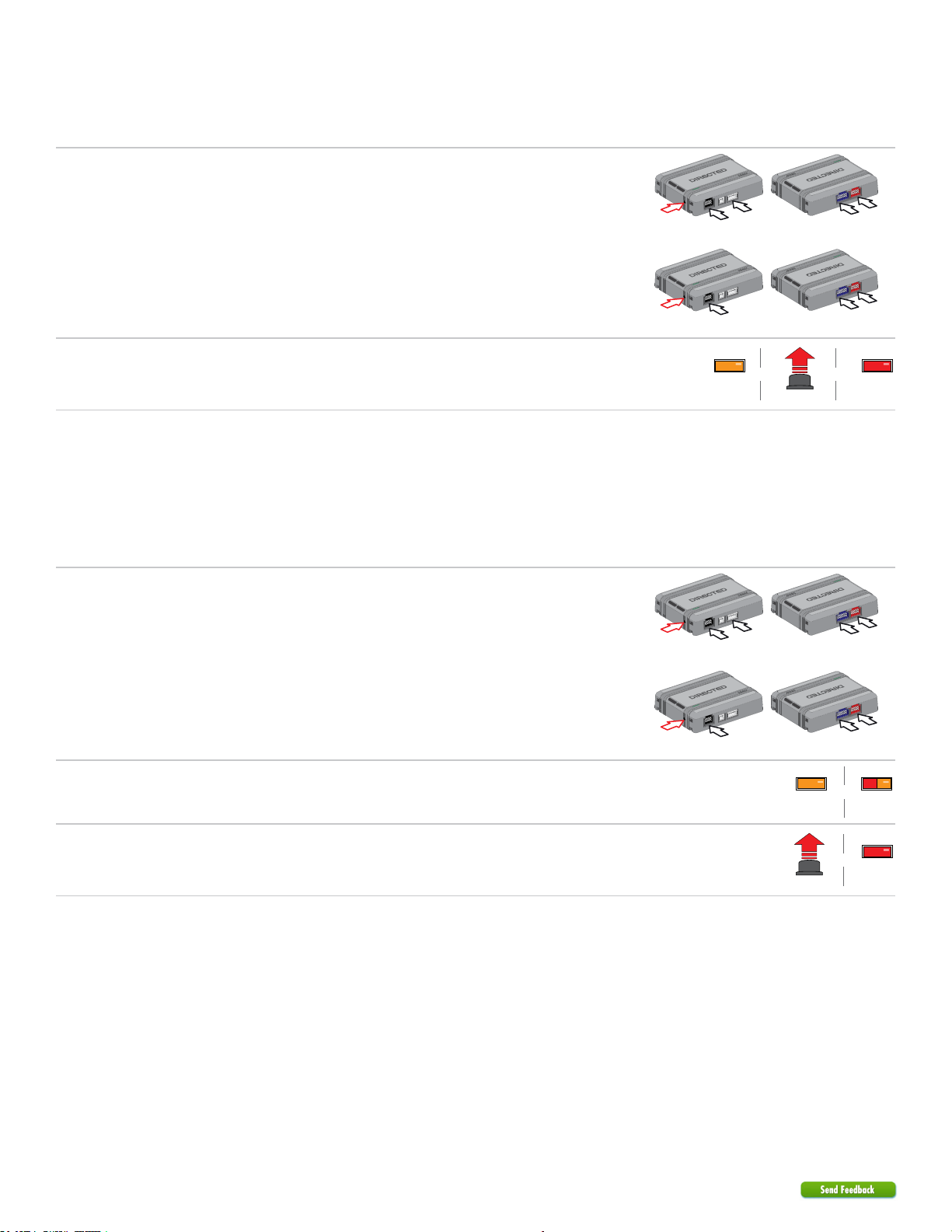

Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
For Convenience-Only programming, see next section.
1Ensure vehicle is in a safe location and cannot move forward during programming. For
vehicles equipped with a manual transmission, make sure the gearshift lever is in the neutral
position.
2
The harnesses must be connected in this exact order:
 1. Connect the 14-pin.
 2. Connect the 12-pin.
 3. Connect the 10-pin.
 4. Connect the 4-pin D2D cable (if being used).
When the LED turns ON solid red, proceed with the next step.
3
Important! Do NOT press the brake pedal.
Press the Push-to-Start (PTS) button twice (2x) to turn the ignition ON.
The LED flashes green throughout the process. This can take up to 15 seconds.
4
The LED turns ON solid green for 3 seconds, then shuts OFF once the module has been
successfully programmed.
Press the PTS button one time (1x)to turn the ignition OFF.
You have successfully completed the module programming sequence.
