Directed FORD12 User manual

FORD12
INSTALLATION GUIDE
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle’s
electrical system and components.
2017- 08-17
© 2017 Directed, Vista CA
Directed Digital
Solutions
Designed by Installers for Installers

Contents
Warning! Safety first ....................................................................................................................... 3
Introduction .................................................................................................................................... 4
Pre-installation and application warnings ..................................................................................... 4
Vehicle application guide........................................................................................................... 5
Wiring connections ......................................................................................................................... 6
Main power harness (H1), 12-pin thick gauge connector ............................................................... 6
Auxiliary output harness (H2), 16-pin black connector ................................................................... 6
Analog harness (H3), 18-pin white connector ............................................................................... 7
MC501 harness (H4), 8 thick-gauge wires (optional)..................................................................... 7
Installation (wiring diagrams & vehicle wiring reference charts) ............................................................ 8
Wiring Diagram - with OEM Remote Start and with T-Harness (THFOC2) ......................................... 8
Wiring Diagram - with OEM Remote Start and without T-Harness .................................................... 9
Wiring Diagram - without OEM Remote Start and with T-Harness (THFOC2) .................................. 10
Wiring Diagram - without OEM Remote Start and without T-Harness.............................................. 11
Connecting the module .................................................................................................................. 19
Important! .............................................................................................................................. 19
Manual or automatic transmission selection ................................................................................ 19
Optional sensors ..................................................................................................................... 20
RF Systems ............................................................................................................................. 20
When used in conjunction with SmartStart.................................................................................. 20
Module programming.............................................................................................................. 21
LED diagnostics and troubleshooting.......................................................................................... 23
Soft reset................................................................................................................................ 25
Hard reset .............................................................................................................................. 25
Learning the Tach (not needed with Virtual Tach) ............................................................................... 26
Initializing Virtual Tach (not needed with hardwired or data tach applications) ..................................... 26
Limited lifetime consumer warranty .................................................................................................. 27
Quick Reference Guide.................................................................................................................. 28

Warning! Safety first
The following safety warnings must be observed at all times:
• Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer.
• When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never
operate the system in an area that does not have adequate ventilation.
The following precautions are the sole responsibility of the user; however, authorized Directed dealers should:
• Never use a test light or logic probe when installing this unit. Always use a multimeter.
• Never operate the system in an enclosed or partially enclosed area without ventilation (such as a garage).
• When parking in an enclosed or partially enclosed area or when having the vehicle serviced, the remote start system must
be disabled using the installed toggle switch. It is the user’s sole responsibility to properly handle and keep out of reach from
children all remote controls to assure that the system does not unintentionally remote start the vehicle.
• USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE.
ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE
STORAGE AREA MUST REMAIN CLOSED AT ALL TIMES.
Use of this product in a manner contrary to its intended mode of operation may result in property damage, personal injury, or
death. Except when performing the Safety Check outlined in this installation guide, (1) Never remotely start the vehicle with
the vehicle in gear, and (2) Never remotely start the vehicle with the keys in the ignition. The user is responsible for having the
neutral safety feature of the vehicle periodically checked, wherein the vehicle must not remotely start while the car is in gear.
This testing should be performed by an authorized Directed dealer in accordance with the Safety Check outlined in this product
installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult with the user to fix the problem
immediately.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN GEAR IS CONTRARY TO ITS INTENDED MODE OF
OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE
OR PERSONAL INJURY. IMMEDIATELY CEASE THE USE OF THE UNIT AND REPAIR OR DISCONNECT THE INSTALLED REMOTE
START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS.
Remote starters for manual transmission pose significant risks if not properly installed and operated. When testing to ensure the
installation is working properly, only remote start the vehicle in neutral gear, on a flat surface and with a functional, fully engaged
parking brake. Do not allow anyone to stand in front of or behind the vehicle.
This product should not be installed in any convertible vehicles, soft or hard top with a manual transmission. Installation in such
vehicles may pose certain risk.
3Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Introduction
The FORD12 firmware for Directed Digital Solutions is compatible with specific Ford and Lincoln vehicles. It
is a complete solution for remote start, security (if applicable), bypass interface, and convenience. This guide
provides information on the installation of the module using FORD12. If you would prefer using this system as a
digital solution, go to www.directechs.com and search for the make, model and year of the vehicle. This will
allow you to find the proper firmware and corresponding installation guide.
Warning! This module can only be programmed via the web tool, which can be found on www.directechs.com or using the
Directechs Mobile application for mobile devices. Features and functions will become accessible when you connect the module
using the XKLoader.
Pre-installation and application warnings
Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible THFOC2 Keys required for programming 1Keys required for operation 0
Compatible with FORD12 v1.29+.
The vehicle pit stop/idle mode feature is not available in this firmware.
It is It is important to note this installation enables the OEM remote starter and the remote start system will not work in the
following conditions:
The ignition is on.
The alarm system is triggered.
The hood is open.
The transmission is not in Park (P).
The vehicle battery voltage is too low.
The service engine light is on.
The following remote start features can be configured via the information display:
Climate control.
Heated seats/steering wheel.
Runtime.
Remote start enable/disable.
For best results, program the remote starter runtime to match the OEM setting.
The vehicle pit stop/idle mode feature is not available in this firmware.
The optional Plug & Play THFOC2 T-Harness is sold separately.
The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
connector.
Refer to the "Vehicle wiring reference chart" following each installation type.
General notes: This section highlights important information for this specific firmware.
[1] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.
[2] The siren is ONLY required when enabling the security features during module flashing.
4Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Vehicle application guide
The following table lists the vehicles and features which are compatible with this product. The number assigned to each year
allows you to determine which installation type should be used for your vehicle.
Vehicles
2017 2016 2015 2014 2013
PK-Immobilizer Bypass-Data No Key Req'd AV-Parking Lights Control DL-Arm Factory Security DL-Disarm Factory Security DL-Door Lock Control DL-Door Unlock FOB-Control of aftermarket alarm with OEM remote RS-3x LOCK START (Start control using OEM Remote) RS-3x LOCK STOP (Stop control using OEM Remote) RS-SmartStart RS-Tach / RPM Output SS-Entry Monitoring ALL Door Pins SS-Entry Monitoring Hood Pin SS-Entry Monitoring Trunk/Hatch Pin SS-Factory Alarm Trigger Monitoring ST-Brake Status (foot brake) ST-Ignition Status
Ford
Edge (Smart Key) ••• •••••••••••••••••
Explorer (Smart Key) •• •••••••••••••••••
F-150 ••• ••••••••••••• •••
F-150 (Smart Key) ••• ••••••••••••• •••
F-250 • ••••••••••••• •••
F-250 (Smart Key) • ••••••••••••• •••
F-350 • ••••••••••••• •••
F-350 (Smart Key) • ••••••••••••• •••
F-450 • ••••••••••••• •••
Fusion •••• •••••••••••••••••
Fusion (Smart Key) •••• •••••••••••••••••
Fusion Hybrid ••• •••••••••••••••••
Fusion Hybrid (Smart Key) •••• •••••••••••••••••
Mustang (Smart Key) ••• •••••••••••••••••
Lincoln
Continental (Smart Key) • •• •••••••••••••
MKC (Smart Key) ••• •••••••••••••••••
MKX (Smart Key) •• •••••••••••••••••
MKZ (Smart Key) ••••••••••••••••••••••
MKZ Hybrid (Smart Key) ••••••••••••••••••••••
Legend:
PK: Transponder & Immobilizer Override
DL: OE Door Lock & Alarm Controls
FOB: Sync CAN Interface w/ FOB Remote
RS: Remote Start & Engine Controls
SS: Integrated Security & Monitoring
ST: Function/Feature Status
5Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wiring connections
The wiring connections listed below are specific to this firmware.
Main power harness (H1), 12-pin thick gauge connector
Conn./Pin Color Description
H1/1 White Relay 3 COM – No Connection 1
H1/2 White/Brown Relay 3 N.O. – No Connection 1
H1/3 Brown/Red Relay 2 N.O. – (-) Parking Light Output
H1/4 Yellow/Red Relay 2 COM – Parking Light Interrupt (vehicle side)
H1/5 Orange/Red Relay 2 N.C. – Parking Light Interrupt (conn. side)
H1/6 Yellow Relay 1 COM – No Connection 1
H1/7 White Relay 3 COM – No Connection1
H1/8 White/Brown Relay 3 N.O. – No Connection1
H1/9 Black (-) Ground
H1/10 Red (+) 12V Input
H1/11 Orange/Yellow Relay 1 N.C. – No Connection 1
H1/12 Brown Relay 1 N.O. – No Connection 1
Auxiliary output harness (H2), 16-pin black connector
Conn./Pin Color Description
H2/1 Violet/Brown No Connection
H2/2 Yellow/Black No Connection
H2/3 Orange/Black No Connection
H2/4 Tan MS CAN Low or HS CAN 1 Low
H2/5 Tan/Black MS CAN High or HS CAN 1 High
H2/6 Light Green No Connection
H2/7 Orange/Green HS CAN 1 High
H2/8 Orange/Brown HS CAN 1 Low
H2/9 Violet/Green No Connection
H2/10 Green/Black No Connection 2
H2/11 White/Violet No Connection 2
H2/12 White/Red No Connection 2
H2/13 Lt. Blue/Black No Connection 2
H2/14 Green/Red No Connection 2
H2/15 N/A No Connection
H2/16 Violet/Yellow No Connection
1. If these outputs are not used by the firmware, they can be configured by the installer when the module is flashed.
2. If these outputs are not used by the firmware, they can be configured by the installer when the module is flashed. Note that they are low current and a relay
may be necessary.
6Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Analog harness (H3), 18-pin white connector
Conn./Pin Color Description
H3/1 Lt. Blue/Red No Connection
H3/2 Black/White (-) Parking Brake Input (Manual Transmission) 2
H3/3 Gray (-) Hood Input 2
H3/4 N/A No Connection
H3/5 Gray/Black (+) Glow Plug Input 2
H3/6 Violet/White (AC) Tach Input 2
H3/7 Dark Blue No Connection 1
H3/8 Brown/Black (-) Horn 1
H3/9 Red/White (-) Trunk Release Output 1
H3/10 White/Green (-) Door Input 2
H3/11 Yellow/Green (+) Door Input 2
H3/12 Blue/Red No Connection
H3/13 Light Blue (-) Trunk Trigger Input 2
H3/14 Pink/Yellow (-) Activation (Start Trigger) Input
H3/15 Dark Green No Connection 1
H3/16 Brown/White (+) Brake Input 2
H3/17 Brown (+) Siren Output 1
H3/18 Blue/White (-) Ground When Running (Status) Output 1
MC501 harness (H4), 8 thick-gauge wires (optional)
Conn./Pin Color Description
H4/1 Pink/White (+) Ignition 2/Flex Relay Output 3
H4/2 Red/White (+) Fused (30A) Ignition 2/Flex Relay Input
H4/3 Pink (+) Ignition Output (also input to Yellow in ribbon cable)
H4/4 Red (+) 12 Volt (battery) Input
H4/5 Orange (+) Accessory Output
H4/6 Red (+) 12 Volt (battery) Input
H4/7 Green Starter Input (from key switch) 4
H4/8 Violet (+) Starter Output (to starter)
1. If these outputs are not used by the firmware, they can be configured by the installer when the module is flashed. Note that they are low current and a relay
may be necessary.
2. These connections are only required if the corresponding statuses are not supported by the firmware. See "Vehicle application guide" on page 5 for a
list of compatible features.
7Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Installation (wiring diagrams & vehicle wiring reference charts)

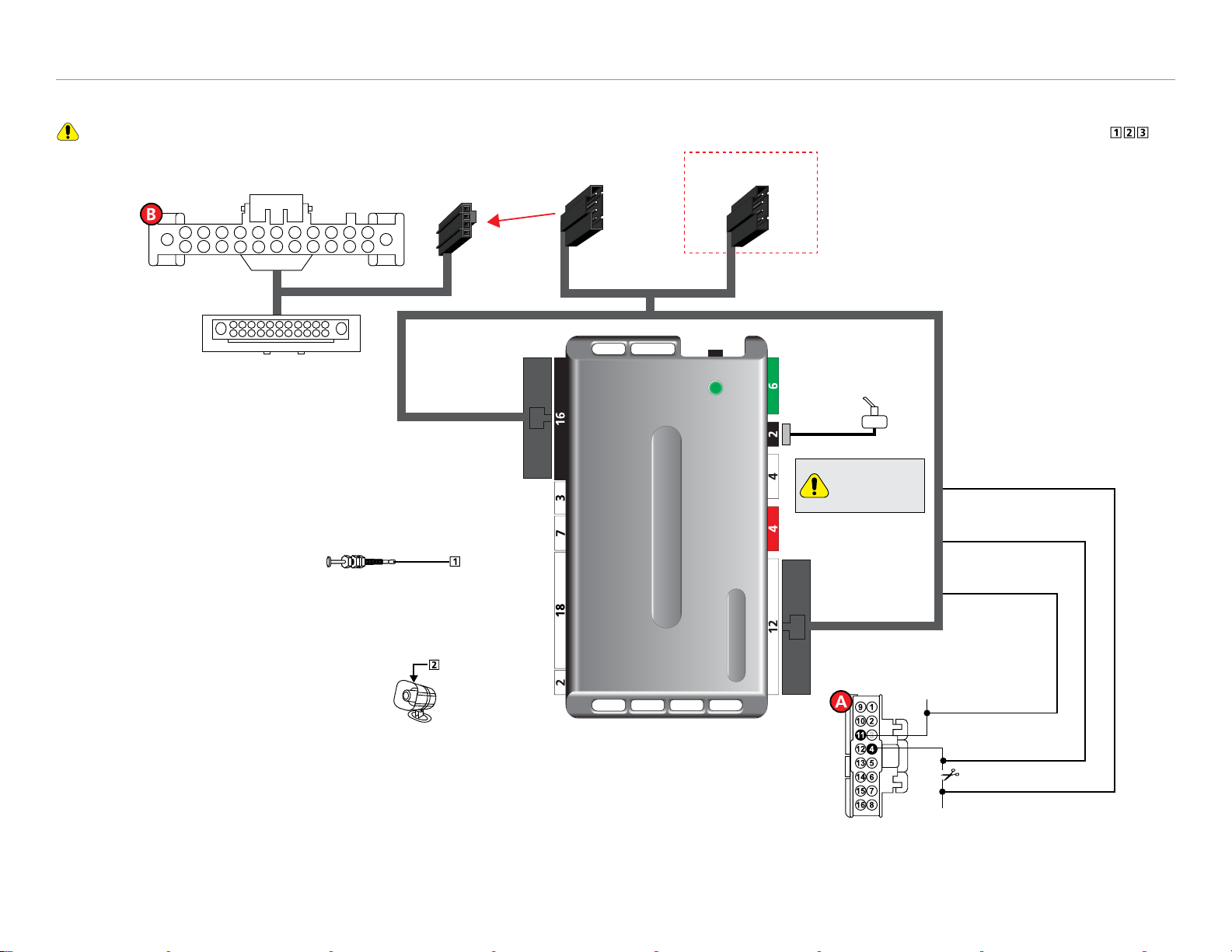

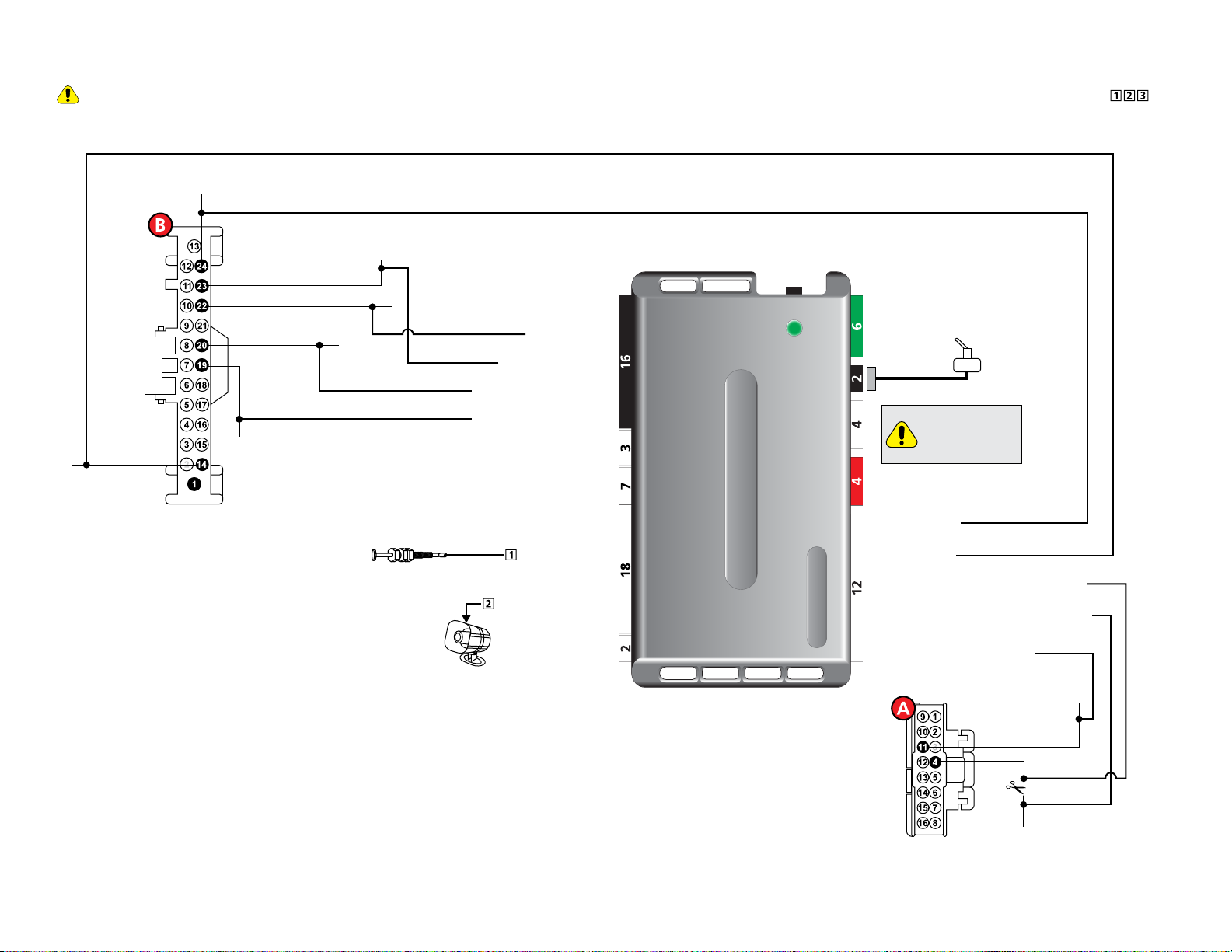

Wiring Diagram - with OEM Remote Start and with T-Harness (THFOC2)
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram ( ).
Parking Light Interrupt: Pin 4
Parking Lights Interrupt
(vehicle side): Yellow/Red
(-) Parking Lights Output:
Brown/Red
Parking Lights Interrupt
(conn. side): Orange/Red
THFOC2
(optional T-Harness)
Type 2
4-pin
connectors
Type 1
NOT USED
Headlight Switch
Siren
The Remote Start
Safety Override
Switch MUST be in
the ON position.
Remote Start Safety
Override Switch
(-) Hood Input: Gray: 3
(+) Siren Output: Brown: 17
Cut
Hood PinHood Pin
Gateway Module
(on OBDII connector or
right of steering column)
(-) Parking Lights:
Gray or Yellow, pin 11
8Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wiring Diagram - with OEM Remote Start and without T-Harness
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram ( ).
9: Black: (-) Ground
10: Red: (+) 12V Input
Headlight Switch
3: Brown/Red: (-) Parking Light Output
MS CAN Low: Tan: 4
MS CAN High: Tan/Black: 5
HS CAN 2 High: Orange/Green: 7
HS CAN 2 Low: Orange/Brown: 8
Siren
The Remote Start
Safety Override
Switch MUST be in
the ON position.
Remote Start Safety
Override Switch
(-) Hood Input: Gray: 3
(+) Siren Output: Brown: 17
4: Yellow/Red: Parking Light Interrupt (vehicle side)
5: Orange/Red: Parking Light Interrupt (conn. side)
Cut
Hood PinHood Pin
MS CAN Low:
Violet/Orange or Violet, pin 22
MS CAN High:
Gray/Orange or Orange, pin 23
HS CAN 2 Low: White, pin 19
HS CAN 2 High:
White/Blue or Blue, pin 20
Parking Light Interrupt: Pin 4
(+)12V: Pin 24
(-) Ground: Pin 14
Gateway Module
(on OBDII connector or
right of steering column)
(-) Parking Lights:
Gray or Yellow, pin 11
9Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

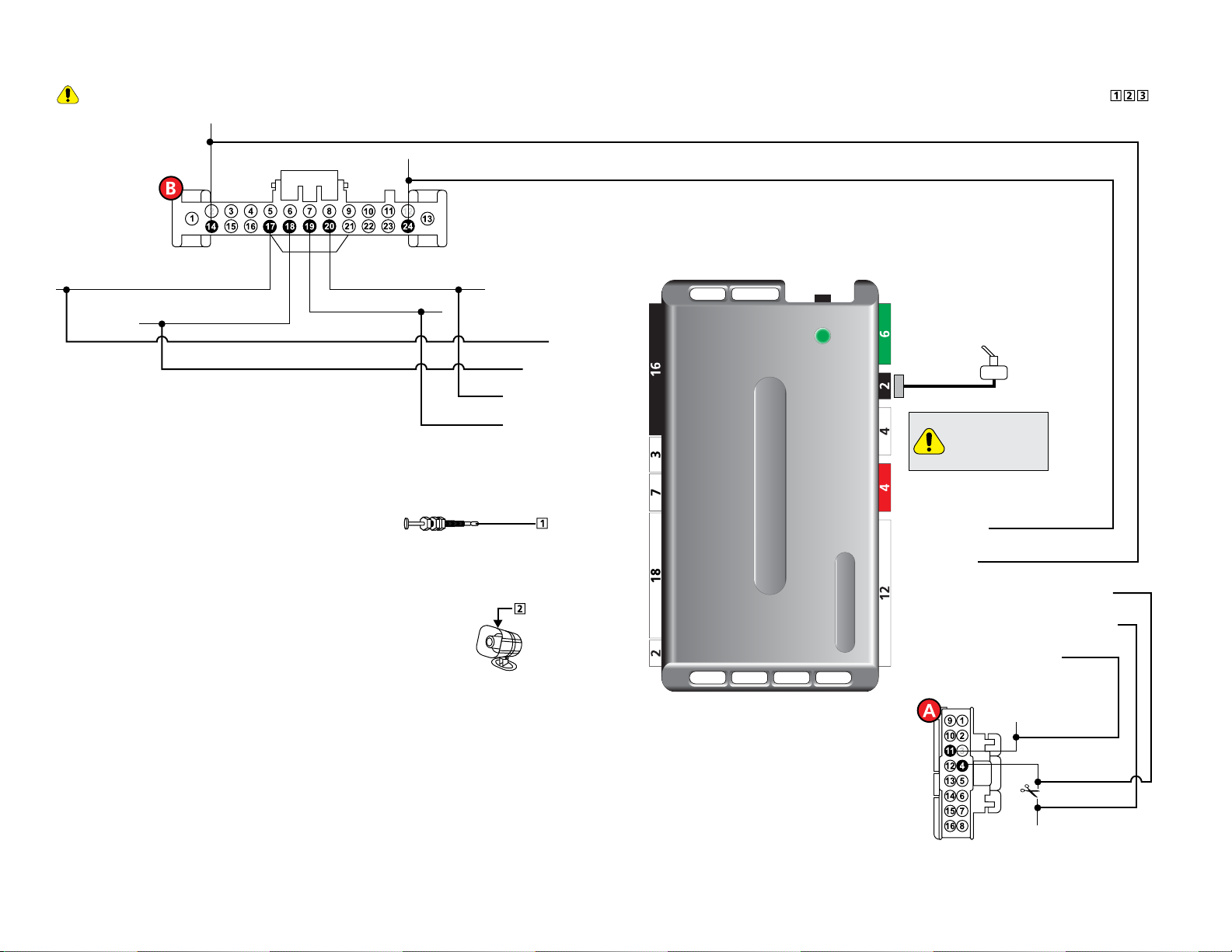

Wiring Diagram - without OEM Remote Start and with T-Harness (THFOC2)
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram ( ).
Parking Lights Interrupt
(vehicle side): Yellow/Red
(-) Parking Lights Output:
Brown/Red
Parking Lights Interrupt
(conn. side): Orange/Red
THFOC2
(optional T-Harness)
Type 2
4-pin
connectors
Type 1
NOT USED
Headlight Switch
Siren
The Remote Start
Safety Override
Switch MUST be in
the ON position.
Remote Start Safety
Override Switch
Parking Light Interrupt: Pin 4
(-) Hood Input: Gray: 3
(+) Siren Output: Brown: 17
Cut
Hood PinHood Pin
Gateway Module
(on OBDII connector or
right of steering column)
(-) Parking Lights:
Gray or Yellow, pin 11
10 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wiring Diagram - without OEM Remote Start and without T-Harness
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram ( ).
9: Black: (-) Ground
10: Red: (+) 12V Input
Headlight Switch
3: Brown/Red: (-) Parking Light Output
HS CAN 1 Low: Tan: 4
HS CAN 1 High: Tan/Black: 5
HS CAN 2 High: Orange/Green: 7
HS CAN 2 Low: Orange/Brown: 8
Siren
HS CAN 2 Low: White, pin 19
HS CAN 2 High:
White/Blue or Blue, pin 20
The Remote Start
Safety Override
Switch MUST be in
the ON position.
Remote Start Safety
Override Switch
Parking Light Interrupt: Pin 4
(-) Hood Input: Gray: 3
(+) Siren Output: Brown: 17
4: Yellow/Red: Parking Light Interrupt (vehicle side)
5: Orange/Red: Parking Light Interrupt (conn. side)
Cut
Hood PinHood Pin
HS CAN 1 Low: Gray/Blue or Gray, pin 17
HS CAN 1 High: Green/Orange or Green, pin 18
(+)12V: Pin 24
(-) Ground: Pin 14
Gateway Module
(on OBDII connector or
right of steering column)
(-) Parking Lights:
Gray or Yellow, pin 11
11 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Edge (Smart Key) 2015-2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module, right of steering column. Black 24 B
Ground Black/Blue 14 (-) Gateway module, right of steering column. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module, right of steering column. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module, right of steering column. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module, right of steering column. Black 24 B
HS CAN 2 Low White 19 Data Gateway module, right of steering column. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange or Orange 23 Data Gateway module, right of steering column. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange or Violet 22 Data Gateway module, right of steering column. Black 24 B
Ford Explorer (Smart Key) 2016-2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/White 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/White 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
12 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford F-150 (Key) 2015-2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Violet 4 Cut Headlight switch. Black 16 A
12V Green/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Violet 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start)" Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Ford F-150 (Smart Key) 2015-2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Violet 4 Cut Headlight switch. Black 16 A
12V Green/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Violet 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Ford F-250 (Key) 2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Violet 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Violet 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
13 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford F-250 (Smart Key) 2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Violet 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Violet 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Ford F-350 (Key) 2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Violet 4 Cut Headlight switch. Black 16 A
12V White/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Violet 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Ford F-350 (Smart Key) 2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Violet 4 Cut Headlight switch. Black 16 A
12V White/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Violet 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
14 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford F-450 (Key) 2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Violet 4 Cut Headlight switch. Black 16 A
12V White/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Violet 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Ford Fusion (Key) 2014-2017
Parking Lights Gray or Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Blue 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Ford Fusion (Smart Key) 2014-2017
Parking Lights Gray or Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Blue 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
15 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Fusion Hybrid (Key) 2014-2016
Parking Lights Gray or Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Blue 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start)
Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Ford Fusion Hybrid (Smart Key) 2014-2017
Parking Lights Gray or Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Blue 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Ford Mustang (Smart Key) 2015-2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Blue 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Lt. Green 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) White 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet 22 Data Gateway module on OBDII connector. Black 24 B
16 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Lincoln Continental (Smart Key) 2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Blue 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Lincoln MKC (Smart Key) 2015-2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Violet 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Lincoln MKX (Smart Key) 2016-2017
Parking Lights Gray 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module, right of steering column. Black 24 B
Ground Black/Blue 14 (-) Gateway module, right of steering column. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green/Orange 18 Data Gateway module, right of steering column. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray/Blue 17 Data Gateway module, right of steering column. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module, right of steering column. Black 24 B
HS CAN 2 Low White 19 Data Gateway module, right of steering column. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module, right of steering column. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module, right of steering column. Black 24 B
Lincoln MKZ (Smart Key) 2013-2017
Parking Lights Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Blue 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green 18 Data Gateway module on OBDII connector. Black 24 B
17 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
HS CAN 1 Low (w/o
OEM Remote Start) Gray 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
Lincoln MKZ Hybrid (Smart Key) 2013-2017
Parking Lights Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module on OBDII connector. Black 24 B
Ground Black/Blue 14 (-) Gateway module on OBDII connector. Black 24 B
HS CAN 1 High (w/o
OEM Remote Start) Green 18 Data Gateway module on OBDII connector. Black 24 B
HS CAN 1 Low (w/o
OEM Remote Start) Gray 17 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module on OBDII connector. Black 24 B
HS CAN 2 Low White 19 Data Gateway module on OBDII connector. Black 24 B
MS CAN High (w/
OEM Remote Start) Gray/Orange 23 Data Gateway module on OBDII connector. Black 24 B
MS CAN Low (w/
OEM Remote Start) Violet/Orange 22 Data Gateway module on OBDII connector. Black 24 B
18 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Connecting the module
Important!
Before connecting the Directed Digital Solutions, it is important to ensure that the proper feature and function programming is
selected using the configuration wizard. Visit www.directechs.com to use the latest version of the online tool.
Flashing a module using your computer:
1. Disconnect the main module from any (+) 12V power source, then connect it to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer; the configuration wizard will be displayed automatically.
3. Follow the instructions in the pop up window that will be displayed when the module is detected.
Flashing a module using your smartphone or tablet:
1. Disconnect the main module from any (+) 12V power source, then connect it to the XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the on-screen instructions.
When the flashing operation is successful, you can proceed with the instructions below.
Manual or automatic transmission selection
The yellow loop on the Directed Digital Solutions controls which transmission type the unit is configured for. The state of the loop
(uncut or cut) when the main module is powered up will determine which type is selected.
• Uncut (default): Manual transmission.
• Cut: Automatic transmission.
For safety reasons, all Directed Digital Solutions are shipped ready to use with a manual transmission (the yellow loop is
untouched). If the loop is cut after power has been applied, it is necessary to cycle power to the main module (via the white 12-
pin main power harness) so the unit will see the state change on the loop and appropriately configure the transmission type.
Ready mode
To successfully remote start a vehicle equipped with a manual transmission, the Ready Mode feature must be enabled before
exiting the vehicle. Please refer to the Owner’s Guide for more details on this required process.
Additional connections required for vehicles equipped with a manual transmission (if not supported by firmware)
Connection Description
(-) E-Brake Status Input
(Black/White, pin 2)
Must be connected to a working emergency brake in the vehicle. Although most vehicles have simple
(-) trigger emergency brake circuits note some vehicles do not and may require unique integration
methodologies.
(-) Door Trigger Input
(White/Green, pin 10)
OR (+) Door Input (Yellow/
Green, pin 11)
Must be connected to a working door trigger in the vehicle, which monitors all doors. The unit must monitor
the door pins to allow the Ready Mode process to be enabled.
Note: Some vehicles may require unique integration methodologies for this circuit. For more information, refer
to www.directechs.com.
(AC) Tachometer Input
(Violet/White, pin 6)
Must be connected to a working tachometer signal in the vehicle (fuel injector, ignition coil, true tach, etc.)
and learned successfully to the Directed Digital Solutions.
19 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.

Optional sensors
Note: The sensor port is only active on hybrid systems.
The 4-pin sensor port is compatible with a number of different Directed sensors including, but not limited to:
• Shock Sensor – 504D
• Field Disturbance Sensor – 508D
• Ultrasonic Sensor – 509U
Note: In the case of 508D, power and ground must be hardwired to the vehicle – power and ground should NOT be obtained
from the 4-pin sensor port.
Each sensor will have its own instructions, which must be followed for installation and adjustment.
RF Systems
An RF System consists of one or multiple remotes, a Control Center (antenna), and an antenna cable – various combinations exist.
An RF System allows the vehicle owner to control the system with enhanced range. Two-way models are available. Please follow
the instructions included with the kit for appropriate installation and programming information.
When flashing the Directed Digital Solutions, make sure to pick the remote you will be using. This way the main module will have
the necessary firmware to interact with the remote and Control Center (antenna) combination.
When used in conjunction with SmartStart
Disconnect power from the Directed Digital Solutions before connecting the SmartStart module. Failing to do so could damage
main module. To enable D2D communication between the Directed Digital Solutions and the SmartStart one of the following
actions must be executed:
• SmartStart with Loops – The brown loop must be cut.
• SmartStart with Pigtails – The gray wire must be connected to a ground source.

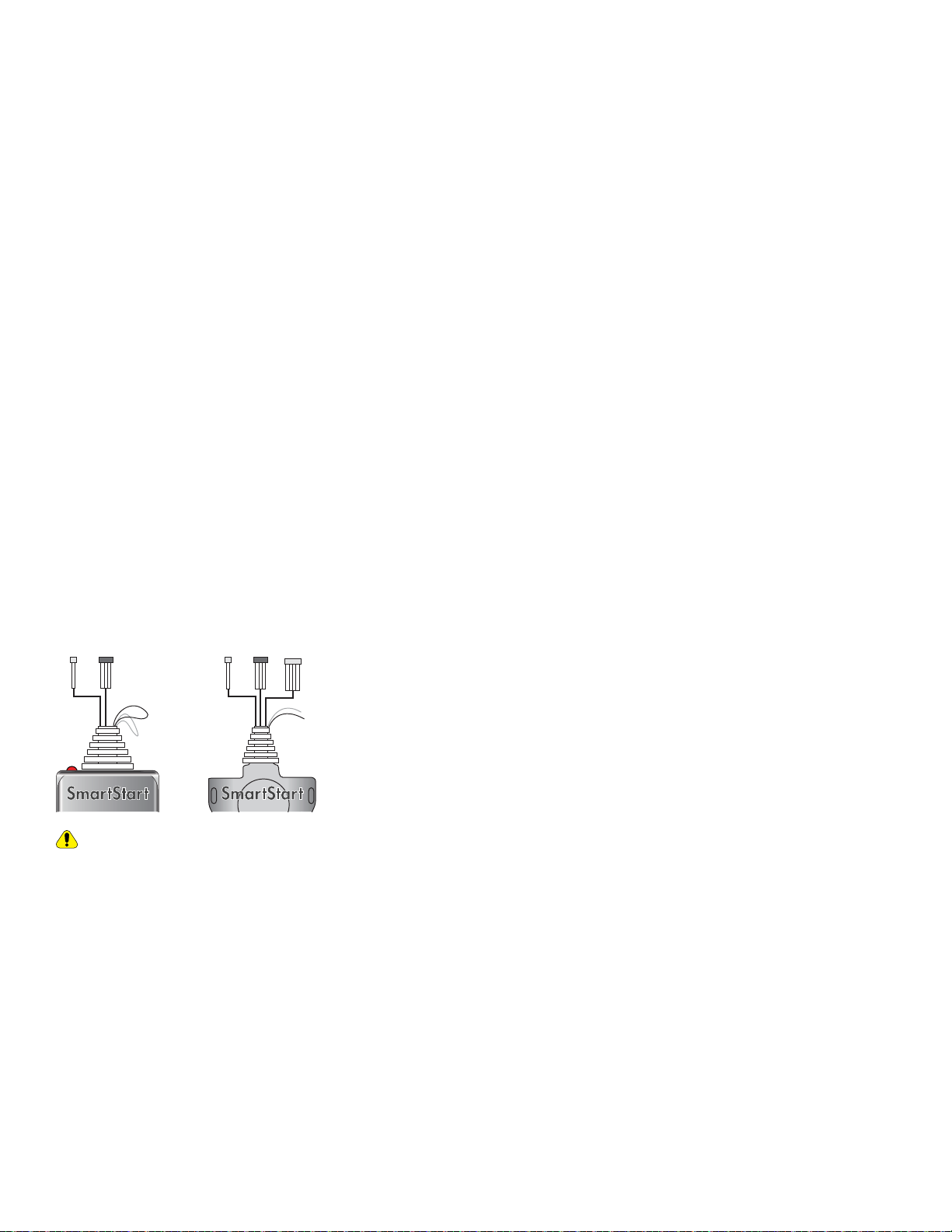

Loops Pigtails
DO NOT connect the SmartStart 2-pin power harness when using the Directed Digital Solutions. Power and ground will be
provided by the D2D connector on main module. Refer to the SmartStart documentation for further details.
20 Directed Digital Solutions FORD12
© 2017-08-17 Directed. All rights reserved.
