Directed Directechs DB3 User manual

Designed by Installers for Installers
INSTALLATION GUIDE
DB3
2020 Hyundai Santa Fe (Smart Key). 403.HYUNDAI10 2.10 RSR
© 2021 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle’s
electrical system and components.

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Wiring diagram 6
Locating components in the vehicle 7
Vehicle connections 8
Module programming 11
SmartStart/XL202 installation notes 12
Connecting the module 12
LED diagnostics and troubleshooting 14
Parking light error codes 16
Soft reset 16
Hard reset 16
Feature programming 17
Feature and option list 18
Limited one year consumer warranty 19
Quick Reference Guide 20
Contents

3403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module. This guide supports the installation of a DB3 in Remote
Start Ready (RSR) mode. This solution may offer up to three (3) configuration options to control your system: 3x
OEM Lock Remote Start Activation (if applicable, refer to the “Vehicle function compatibilities” below), RF System
or SmartStart (all sold separately).
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Parking Lights Control
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
Trunk / Hatch Release
Control of aftermarket alarm with OEM remote
Immobilizer Bypass-Data No Key Req'd
3x LOCK START (Start control using OEM Remote)
3x LOCK STOP (Stop control using OEM Remote)
RAP Shut Down (Retained ACC Power)
Remote Start Ready
Remote Start Takeover
SmartStart
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status

5403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Pre-installation and application warnings
Firmware notes: This section highlights important information for this specific firmware and will assist in pricing
accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
Keys
required for
programming
1Keys required
for operation 0
Important! Firmware Version 2.00 and higher use different input/output configurations and are NOT compatible with the wiring
instructions of previous versions. Updating an older version to version 2.00 or higher will require wiring modifications.
Note: Damage to the vehicle may occur if the appropriate wiring modifications are not done.
Important! RSR installations are NOT compatible with vehicles equipped with a manual transmission.
Remote Start Ready (RSR) is a function that enables the interface module to remote start the vehicle completely on its own. Consequently,
there is no need for an aftermarket or an OEM remote starter in order to start the vehicle from a distance.
SmartStart Compatible: SmartStart is equipped with D2D, which means it can be connected to an interface module and used in
Remote Start Ready (RSR) mode without the use of a remote starter. See "Module programming" for more information.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
Refer to the "Vehicle connections" following the installation diagram.
General notes: This section highlights important information for this specific firmware.
[1] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin or if NOT
supported in data.
[2] The resistor value is approximately 4.2K.
[3] Connection is optional. Connecting the PTS wires will result in a "Get it and Go" takeover procedure for the client. If NOT connected, the
client needs to push the PTS button for Takeover and Pit Stop mode. IMPORTANT: In the "Quick Reference Guide" section, you MUST
check off the box that corresponds with the installation.
[4] Connection required if power lift gate is desired during runtime.

6403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram
1 2 3 4 5 67 8 9 10 11 12 13 14
17 18 19 20 21 24 25 26 27 28 29 30
22 23 31 32
P-CAN Low:
Gray, pin 23
P-CAN High:
White, pin 22
B-CAN Low: Blue, pin 31
B-CAN High: Red, pin 32
ICU Junction Block-Dash Fuse Box
(black 32-pin conn., plug F)
15
14
13
1211
109
87654321
16
(MUX) Parking Light:
Blue, pin 14
4.2K Ω Resistor
ICU Junction Block
Dash Fuse Box
(white 47-pin conn., plug G)
Ignition
Interrupt
Gray/Orange,
pin 1
Cut
12 3 4 5 6 7
17
26
31
8
910 11 1213 14
33 34 3536 37
43
32
42 443446 47
18 19
22 23
29 30
38 39 40 41
24 25
15 16
EM11
(red 54-pin conn. in driver’s kick panel)
EMS COM:
White/Orange
or Black,
pin 40
(+) Starter:
Red, pin 34
(+) Accessory:
Yellow, pin 35
Headlight Wiper Switch
(black 16-pin conn.)
(+) 12V:
Red, pin 4
31
12
34
45
22
34 5
13 14 15
23 24
32 33
35 36 37
46 47 48
16 17 18 19 20 21
38 39 41 42 43
44 45 47 48 49
40
Power Liftgate switch
(black 16-pin connector)
15 14 13 12 11 10 9
8 7 6 54 3 2 1
16
(-) Power Liftgate:
Green, pin 5
Immo. Data (conn. side): Orange/Black: 11
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
(MUX) Parking Light Output: Violet/Brown: 9
HS CAN 3 High: Tan/Black: 3
HS CAN 3 Low: Tan: 4
Immo. Data Interrupt (conn. side): Yellow: 8
Immo. Data Interrupt (veh. side): Orange/Yellow: 9
Ignition Interrupt (veh. side): Orange/Red: 10
Ignition Interrupt (conn. side): Yellow/Red: 11
(+) 12V Input: Brown: 7
(+) Takeover Output: Gray: 6
(+) Starter Output: Gray/Black: 7

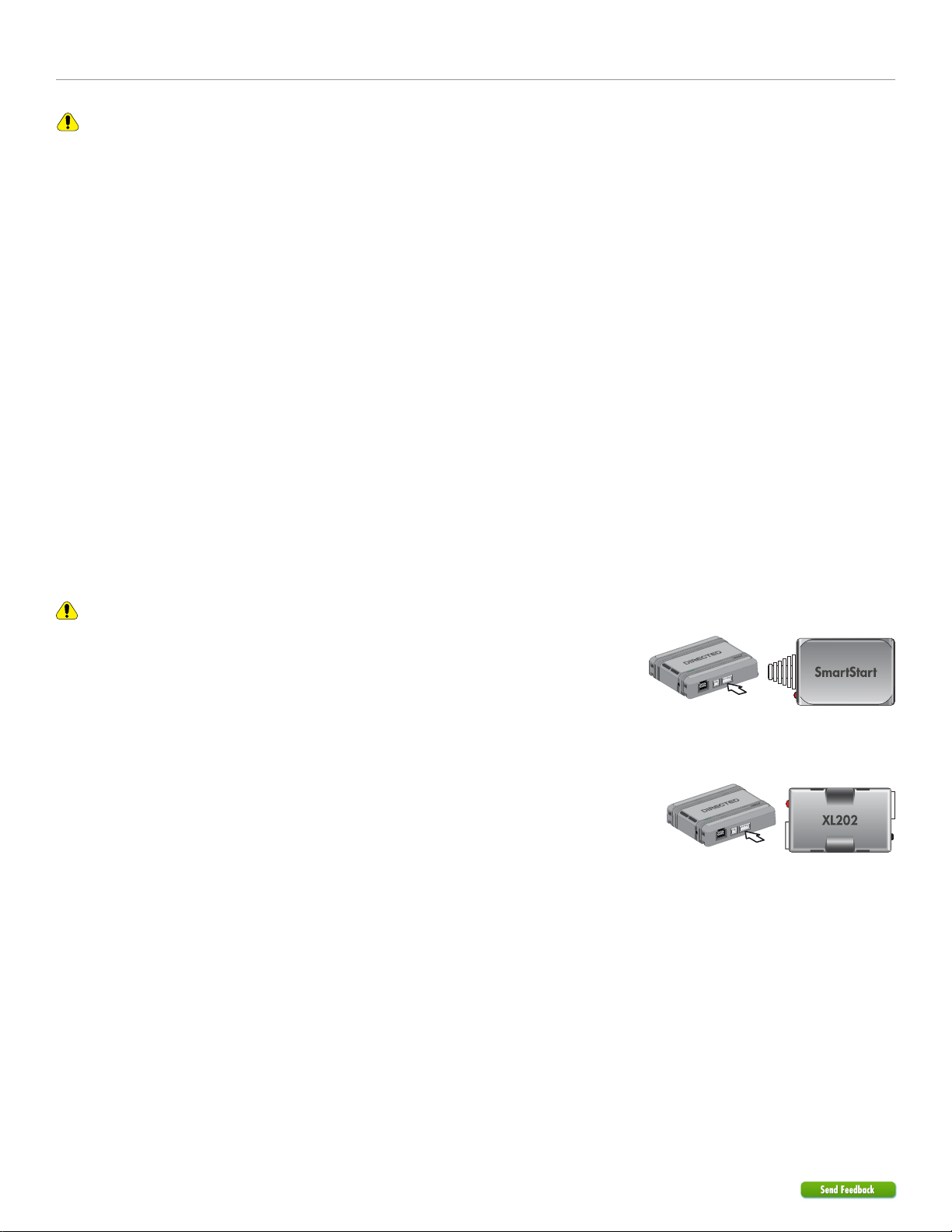

You can connect to either a
XL202 RFTD OR a SmartStart
module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
6: White/Black:
(-) Hood Input
Remote Start Safety
Override Switch
Hood Pin
(+) 12V Input: Red: 13
(+) 12V Input: Brown/Red: 12
(-) Ground: Black: 14
(-) Accessory Output: Black/White: 1
1412
10 42
(-) PTS 1:
Gray/Black,
pin 1
(-) PTS 2:
Yellow,
pin 7
Start/Stop Switch
(white 12-pin conn.)
8
123 4 5
678 9 10
86
85
30
87a
87
Cut
Fuse 15A
(Optional)
(-) Trunk Release Output: Red/Black: 4
(-) PTS 1 Output: Green/Black: 2
(-) PTS 2 Output: Yellow/Black: 10
ICU Junction
(white 4-pin connector
in dash fuse box, plug B)
4321

7403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Locating components in the vehicle

8403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2020 Hyundai Santa Fe (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green Single Wire CAN No Connection
H1/2 Violet/Yellow J1850 No Connection
H1/3 Tan/Black HS CAN 3 High ICU Junction Block-Dash Fuse Box, rear, black 32 pin plug (F), pin
22
Data White (P-CAN)
H1/4 Tan HS CAN 3 Low ICU Junction Block-Dash Fuse Box, rear, black 32 pin plug (F), pin
23
Data Gray (P-CAN)
H1/5 Orange/Green HS CAN 2 High ICU Junction Block-Dash Fuse Box, rear, black 32 pin plug (F), pin
32
Data Red (B-CAN)
H1/6 Orange/Brown HS CAN 2 Low ICU Junction Block-Dash Fuse Box, rear, black 32 pin plug (F), pin
31
Data Blue (B-CAN)
H1/7 Brown Relay 1 N.O. - (+) 12V Input [2] 4.2K ohm resistor connect to (+) 12 Volts.
ICU Junction Block-Dash Fuse Box, white 4 pin plug (B), pin 4
+ Red (50A)
H1/8 Yellow Relay 1 COM - Immo. Data Interrupt (conn. side) Driver Kick, red 54 pin plug (EM11), pin 40 Data White/Orange or Black
H1/9 Orange/Yellow Relay 1 N.C. - Immo. Data Interrupt (vehicle side) Driver Kick, red 54 pin plug (EM11), pin 40 Data White/Orange or Black
H1/10 Orange/Red Relay 2 N.C. - Ignition Interrupt (veh. side) ICU Junction Block-Dash Fuse Box, rear, white 47 pin plug (G), pin 1 Cut Gray/Orange
H1/11 Yellow/Red Relay 2 COM - Ignition Interrupt (conn. side) ICU Junction Block-Dash Fuse Box, rear, white 47 pin plug (G), pin 1 Cut Gray/Orange
H1/12 Brown/Red (+) 12V Input ICU Junction Block-Dash Fuse Box, white 4 pin plug (B), pin 4 + Red (50A)
H1/13 Red (+) 12V Input ICU Junction Block-Dash Fuse Box, white 4 pin plug (B), pin 4 + Red (50A)
H1/14 Black (-) Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) Accessory Output Must use a relay.
15A fuse to 12V.
Driver Kick, red 54 pin plug (EM11), pin 35
+ Yellow
H2/2 Green/Black (-) PTS 1 Output: [3] Start Stop Button Switch, white 10 pin plug, pin 1 - Gray/Black
H2/3 Green/White No Connection No Connection
H2/4 Red/Black (-) Trunk Release Output [4] Power Liftgate Switch, black 16 pin plug, pin 5 --or-- Driver Kick,
white 74 pin plug (MF11), pin 30
- Green
H2/5 Violet/White No Connection No Connection
H2/6 Gray (+) Takeover Output ICU Junction Block-Dash Fuse Box, rear, white 47 pin plug (G), pin 1 Cut Gray/Orange
H2/7 Gray/Black (+) Starter Output Driver Kick, red 54 pin plug (EM11), pin 34 + Red
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown (MUX) Parking Light Output Headlight-Wiper Switch, black 16 pin plug, pin 14 MUX Yellow
H2/10 Yellow/Black (-) PTS 2 Output: [3] Start Stop Button switch, white 10 pin plug, pin 7 - Yellow
H2/11 Orange/Black Immo. Data (conn. side) Driver Kick, red 54 pin plug (EM11), pin 40 Data White/Orange or Black

9403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/12 Blue/Red No Connection No Connection
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green No Connection No Connection
H3/2 Blue No Connection No Connection
H3/3 Red/White No Connection No Connection
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black (-) Hood Input [1]
H3/7 Pink/White No Connection No Connection
H3/8 Violet No Connection No Connection
H3/9 Pink No Connection No Connection
H3/10 Blue/White No Connection No Connection
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue (Data) TX
H4/2 Black (-) Ground
H4/3 Green (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A RF Loop
H5/2 N/A RF Loop

10 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
Accessory Driver Kick, red 54 pin plug (EM11), pin 35 + Yellow
Ground (chassis ground)
Ignition ICU Junction Block-Dash Fuse Box, white 47 pin plug
(A), pin 31
+ Yellow
Second 12 Volts Not Applicable
Starter Driver Kick, red 54 pin plug (EM11), pin 34 + Red
Tachometer Driver Kick, red 54 pin plug (EM11), pin 3 AC Yellow/Orange

11 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
1Ensure vehicle is in a safe location and cannot move forward during programming.
For vehicles equipped with a manual transmission, make sure the gearshift is in the
neutral position.
2Connect the 10-pin, 12-pin and 14-pin to the module.
Waituntil the LED turns on solid red then proceed to the next step.
3Press twice on the Push-to-Start (PTS) button to turn the ignition ON. The LED will flash
orange quickly.
4The LED turns ON solid green for 3 seconds, then turns OFF.
5Press the PTS button once more to turn the ignition OFF.
You have successfully completed the module programming sequence.

12 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
SmartStart/XL202 installation notes
The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote
Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and
XL202.
SmartStart revision A
SmartStart is optional and not included. It MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
SmartStart revision B
SmartStart is optional and not included. It MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
RF System
The optional XL202 and antenna are not included and MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10 42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10 42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10 42
RF System & PKE combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
RF System, PKE & SmartStart BT combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
The modules must be connected in a specific order. Refer to “Module programming” for more information.
The modules must be connected in a specific order. Refer to “Module programming” for more information.
1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DB3 package.
2. The modules must be connected in a specific order. Refer to “Module programming” for more information.

13 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Connecting the module
Important!
Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior
to moving onto programming.
Note: Before connecting either the XL202 or SmartStart module to DB3, it is important to ensure that the proper feature and
function programming is selected using DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version
of the application.
Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application.
Flashing a module using your computer:
1. Connect the interface module to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and select the Flash Module button.
3. Follow the instructions to select your vehicle, installation type, and configure your options.
4. Once you have configured the firmware options, click on the FLASH button.
Flashing a module using your smartphone or tablet:
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the on screen instructions.
When the flashing operation is successful, you can proceed with the instructions below.
SmartStart installation
The DB3 module must be disconnected from any power source before SmartStart can
be connected to it. Failing to do so could damage DB3.
1. To ensure that the D2D communication between SmartStart and DB3 works properly,
connect the Gray wire to a ground source (Rev B SmartStart), and cut the Brown or
Blue loop (Rev A SmartStart).
2. Do NOT connect the 2-pin harness (on SmartStart). Power and ground will be
provided by the DB3 D2D connector.
3. Connect SmartStart to DB3 using the D2D port.
D2D
D2D
OR
XL202 installation
Connect XL202 to DB3 using the D2D port.
D2D
D2D

14 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module Programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black
wires. If 12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes green &
red
Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact
Technical Support.
Solid orange Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features are needed, please reset
the and reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in “Module programming” to complete the Key2GO
programming.
Solid green x 3
secs
Module was successfully programmed
with all functions. Normal operation.
Solid orange x 3
secs
Module was successfully programmed
without transponder functions. Normal operation.
Module Programming - Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus
by turning the ignition on and try again. If your installation does not require this connection, skip
this step by pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try
again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the
ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 3 Bypass data not detected. Check the bypass line connection. If more than one wire is used, make sure they are not inverted.
Ensure the vehicle still operates correctly using the factory key.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please
contact Technical Support.
Flashes red x 5 ISO 1 not detected.
The Yellow/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams
& vehicle wiring reference charts)” on page “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to “Installation (wiring diagrams
& vehicle wiring reference charts)” to check the connections.
Flashes red x 7 MUX not detected. The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to
“Installation (wiring diagrams & vehicle wiring reference charts)” to check the connections.
External Module Synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.

15 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red &
orange
Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green
quickly
Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to “Installation (wiring diagrams & vehicle wiring
reference charts)” to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 2 UNLOCK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 3 TRUNK command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 4 AUX1 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 5 AUX2 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Flashes orange x 6 AUX3 command received. If the bypass module fails to flash, it did not receive the signal. Commands can come from RF or
D2D.
Shutdown Codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired
in takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.
RSR Error Codes
LED Description Troubleshooting
Flashes red x 7 RFTD disabled. 3x OEM Lock Remote Start Activation was attempted when the RFTD feature is disabled. Make
sure 3x Lock Start is selected from the web in the flashing process.
Flashes red x 9 Feature error. An RSR feature file mismatch was detected. Please contact Technical Support.

16 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Parking light error codes
The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each
flashing pattern is described below.
Flashes Diagnostic
1 Runtime expired.
2 Over-rev shutdown.
3 Low or no RPM.
4 Shutdown without remote.
5 Brake shutdown.
6 Hood shutdown/Remote start safety override switch is ON.*
7 Remote start safety override switch is ON.*
* If the vehicle hood status is supported through data, the safety override switch input will report 7 flashes.
Soft reset
1Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module.
4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
Solid SolidRelease
A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module
will not be affected.
Hard reset
Warning Against Executing a Hard Reset!
1Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module.
4th
(14-pin)
3rd
(Button)
1st
(10-pin)
2nd
(12-pin)
2Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the
LED starts to flash orange and red. Solid Flashes
&
3Release the programming button. The LED turns ON solid red. &
Release Solid
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. Refer to “Feature and option list”.

17 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Feature programming
To enter feature programming routine:
1. Turn the ignition ON, then OFF.
2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds).
3. Release the Programming button.
4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to
indicate the current option of feature 1 (e.g. 1 x green followed by 1 x red indicates feature 1 is set to option 1). The flashing
sequence will repeat until a new command is entered.
Changing feature options:
1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature. When
installing the DB3 in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press
lock/unlock to change the options of the selected feature. Tapping the green or blue lock/unlock wires on the black 10-pin
harness to ground will change the option for the selected feature.
2. The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green
slowly the number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature:
1. Press and release the programming button a number of times to advance from the current feature to the next desired feature.
2. The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly
to indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Exiting feature programming:
To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface
for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence.

18 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Feature and option list
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing
page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the
information on this page.
* Default option
Feat. Operation Flashes / Option Description
1 RFTD Output
Type
1. No RF Output* Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
2 Unlock Driver
Priority
1. Driver priority* Unlocks only the driver door when the button is first pressed, and unlocks all doors
when it is pressed a second time within 5 seconds.
2. All Unlocks all doors when the button is first pressed.
3 Smart OEM
Alarm Control 1. Disabled
The OEM alarm will not be controlled by the interface upon remote start. No disarm
or arm command will be executed at the beginning or end of the sequence; it must
be controlled by the Remote Starter.
2. Safelock
Smart OEM Alarm Control will behave like a standard Safelock feature on a remote
starter. It will unlock at the beginning of the sequence, and relock after start and
shutdown.
4
5

19 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Limited 12 Months Consumer Warranty
VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part
thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date
of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s
option) without charge for parts or repair labor. A transmitter for a vehicle security or remote start system is warranted for
12 months from he date of original purchase.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty
coverage (e.g. dated bill of sale), authorization number, specication of defect(s), transportation prepaid, to an approved
warranty station. This warranty is not transferable.
This Warranty does not cover damage to the vehicle’s electrical system or costs incurred for the installation, removal or
reinstallation of the product. This Warranty does not cover batteries, broken LCD transmitter display screens, nor apply
to any product or part thereof which, in the opinion of the Company, has su󰀨ered or been damaged through alteration,
improper installation, mishandling, misuse, abuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person or representative is
authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
The company does not warrant that this product cannot be compromised or circumvented. THE EXTENT OF THE
COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT WITHOUT INSTALLATION LABOR.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specic legal
rights and you may also have other rights which vary from state to state.
VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824

20 403.HYUNDAI10 2.10 2020 Hyundai Santa Fe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Quick Reference Guide (customer copy) Get In and Go
Get In and Go is designed to provide users with easy takeover when entering their Push-to-Start
(PTS) equipped vehicle, once it has been remote started.
Typically, users would have to remote start their vehicle, then get inside and press the PTS button
to perform a takeover. There is therefore a physical action required to drive away. With Get In
and Go, you simply remote start the vehicle, unlock the doors, get in and go... All that's left to
do is put the gear in drive and drive off.
Pit stop/idle mode
Important! For the 2021-22 Hyundai Elantra Hybrid (Smart Key), you must follow the second option at Step 2.
1Stop the vehicle in a safe parking spot and put the gear in
Park (P).
Put
gear in
Park
2
Important: Follow the option that has been checked off
by your technician:
Press the Remote Start button on the transmitter.*
The parking lights will flash once to indicate the vehicle is
now in Pit Stop Mode.
OR
Press the Remote Start button on the transmitter and
then press the PTS button once.*
The parking lights will flash once to indicate the vehicle is
now in Pit Stop Mode.
Parking lights flash x1
14:36
Press Remote
Start button*
&
OR
&
Parking lights flash x1
14:36
Press Remote
Start button*
&
3
Exit the vehicle with the factory remote in hand (it is safe to
leave the engine running).
Notes:
• We recommend that you always lock the doors
of your vehicle when leaving it unattended.
Important! 2021-22 Hyundai Elantra Hybrid (Smart Key):
when returning to the vehicle, the engine will shut down as
soon as a door is opened.
14:36
Exit vehicle
with remote
* Icon and remote appearance may differ depending on the model purchased.
Sending commands to your vehicle
Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, there are
3 possible ways you can send commands to your vehicle, using the:
• Factory remote.
• Aftermarket remote.
• Directed SmartStart application via your smartphone.
If applicable, you can also start the engine remotely by pressing the Lock button 3 times quickly
on your factory remote.
Vehicle takeover with Get In and Go
Important! Vehicle takeover is not available for the 2021-22 Hyundai Elantra Hybrid (Smart Key) and the
2022 Hyundai Sonata Hybrid (Smart Key).
1Close the vehicle doors, hood and trunk, then press the
Remote Start button on the transmitter to start the vehicle.*
14:36
Press Remote
Start button*
2Press the Unlock button on the factory or aftermarket
remote.*
14:36
Press Unlock on
either remote*
Complete the following steps within 45 seconds or the vehicle will shut down.
3Enter the vehicle, while making sure the factory remote is
inside with you.
14:36
Enter vehicle
with remote
4
Important: Depending on your vehicle's trim level, you
are required to do one of the following steps:
Depress the brake pedal for a minimum of 3 seconds
then put the car in gear and drive off.
OR
Press the PTS button twice. Depress the brake pedal
for a minimum of 3 seconds then put the car in gear and
drive off.
Ready to
drive off
OR
Ready to
drive off
* Icon and remote appearance may differ depending on the model purchased.
