Directed VOXX DEI DS3+ User manual

Functions compatible with the 2022 Honda HR-V (Smart Key)
*Telematics features: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart Pro.
* Odometer
3x LOCK START (Start control using OEM Remote)
3x LOCK STOP (Stop control using OEM Remote)
Accessory Activation
Arm Factory Security
Brake Status (foot brake)
Control of aftermarket alarm with OEM remote
Disarm Factory Security
Door Lock Control
Door Locks Status
Door Unlock
Driver Priority Unlock
E-Brake Status
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Fuel level/EV battery level
Ignition Activation
Ignition Status
Immobilizer Bypass-Data No Key Req'd
Key2GO
RAP Shut Down (Retained ACC Power)
Remote Start Takeover
SmartStart
Start (Crank) Activation
Tach / RPM Output
Trunk / Hatch Release
933.HONDA9
v2.10.198.12
2022 Honda HR-V (Smart Key)
THHON11, THHON1-NO-TAKEOVER, THHON9-
TAKEOVER Compatible
(Sold Separately)

Introduction 3
Pre-installation and application warnings 4
Installation 5
Wiring diagram with T-Harness (THHON11) with Vehicle Takeover
5
Optional starter disable connection with T-Harness (THHON11) with Vehicle Takeover 6
Wiring diagram with T-Harness (THHON9) with Vehicle Takeover
7
Optional starter disable connection with T-Harness (THHON9) with Vehicle Takeover 8
THHON9 T-Harness modifications
9
Wiring diagram with Vehicle Takeover
14
Vehicle takeover additional connections
15
Wiring diagram with T-Harness (THHON1 Rev. 1 & 2) without Vehicle Takeover
16
Wiring diagram without Vehicle Takeover
17
Locating components in the vehicle 18
Vehicle connections 19
Module programming 23
Alternate module programming 23
Module programming for convenience features only (skip transponder) 26
Module programming for security-only installations 27
Pairing remotes 28
Connecting the module 28
8556T Temperature Sensor 28
8504D Combo Sensor 28
RF Systems 28
When used in conjunction with SmartStart 29
D2D port configuration 29
Manual transmission 30
LED diagnostics and troubleshooting 31
Soft reset 33
Hard reset 33
Tach learning procedure (not needed with Virtual Tach) 34
Initializing Virtual Tach (not needed with hardwired or data tach applications) 34
Limited lifetime consumer warranty 35
Quick Reference Guide (customer copy) 36
Contents

3933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Introduction
This guide provides information on the installation of the DS3/DS3+ and DS4/DS4+ modules as a digital solution. Using these modules in a
digital configuration requires the module to be flashed with vehicle-specific firmware. Refer to our website (www.directechs.com) and click
on the DIRECTLINK text in the header for additional information.
DS3/DS3+ and DS4/DS4+ modules provide an all-in-one solution for most modern vehicles, and include remote start, keyless entry, security,
and immobilizer bypass capabilities. T-harnesses may also be used in many applications for easy installation.
The following methods are available to configure modules:
• Web: www.directechs.com (DS3/DS3+ and DS4/DS4+)
• Desktop application: Directlink DT (DS3/DS3+ and DS4/DS4+)
• Mobile device: Directlink App (DS4/DS4+ only)
When flashing via Directlink DT (desktop app) or via the Web, an XKloader2 will be required.
To configure via Web or DirectLink DT (desktop app):
1. Disconnect the main module from any (+) 12V power source.
2. Connect the module to your computer using the XKLoader2.
3. Follow the steps in the pop-up window that will be displayed when the module is detected.
Notes:
•Flashing via web is only possible using Internet Explorer on Windows 8, 8.1, and 10.
•This method is not compatible with any other browser (Edge, Chrome, Firefox, etc.).
•When using Windows 11 or newer, Directlink DT is mandatory.
The DS4/DS4+ module is designed to be configured using the DirectLink application through mobile devices.
To download the DirectLink mobile application, visit the Google Play or Apple store. They can also be
configured via Web and DirectLink DT. The DS4/DS4+ features are built in Bluetooth® 4.0, allowing you to
configure and control your system. The DS3/DS3+ module is not equipped with Bluetooth®, therefore is not
compatible with the DirectLink app for mobile devices.
To configure via DirectLink mobile app (Android/iOS):
1. Follow and complete the wiring diagram(s) related to your installation through the app.
2. When installation is complete, select Configure DS4/DS4+.
3. Follow the on-screen instructions.
FLASH REQUIRED!
FLASH REQUIRED!
4 White

4933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible
THHON11 or THHON9 -
with vehicle takeover
OR
THHON1 - without vehicle takeover
AUX
Keys
required for
programming 1Keys required
for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
IMPORTANT: Do NOT turn vehicle ignition ON with ANY vehicle connectors disconnected, including during module
programming. Failure to do so may result with errors in the instrument cluster or hidden error messages.
IMPORTANT: Modifications to the THHON9 are required regardless of using with or without vehicle takeover. Refer to the THHON9
T-Harness modification section for proper use of the THHON9 T-Harness for steps and connection details.
The optional Plug & Play THHON11, THHON9, & THHON1 T-Harnesses are sold separately.
Note: some features wont be available, such as VIN Request, Odometer, Fuel Level and more.
T-Harness: All T-Harness wires not listed in the diagram are not required for the installation. Loose wires such as Siren Output and
Hood Input may need to be pulled from the tapped section of the T-harness. Refer to the "wiring diagram with T-Harness" for more
information on connections and installation instructions.
Key2GO may be required if the interface does not program using the traditional method. Refer to the "Module programming" section
for more information.
Fuse positioning: It is important to check that the fuses are positioned correctly in the module. Proper fuse positioning is displayed on
each wiring diagram.
All connectors are displayed from the wire side (unless specified otherwise).
Refer to the "Vehicle connections" following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or
not supported in data.
[2] Siren: The siren is only required when enabling the security features during module flashing.
[3] Steering Lock: The steering lock connection is required with Takeover installations. If a Steering Lock is not present, Takeover is not
an available feature; therefore, you must follow the without Vehicle Takeover wiring diagram.
Note: If remote start results in a "Keyless System Malfunction" or error, ensure you have made the Steering Lock connection.
[4] Starter disable: For Security only installations, refer to the "Optional starter disable connection" section.
[5] Relay: When using an external relay, use a 1N4002 diode or larger. Directed Part No. 8616 Mini Relays must be used for this
connection. Refer to the "8616 wire and color reference" on the installation diagram.
[6] PTS: The PTS wire is mandatory in vehicles equipped with a manual transmission; otherwise it is only required for Pit Stop/Idle
mode shutdown.

5933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Violet/Black
Starter Disable loop.

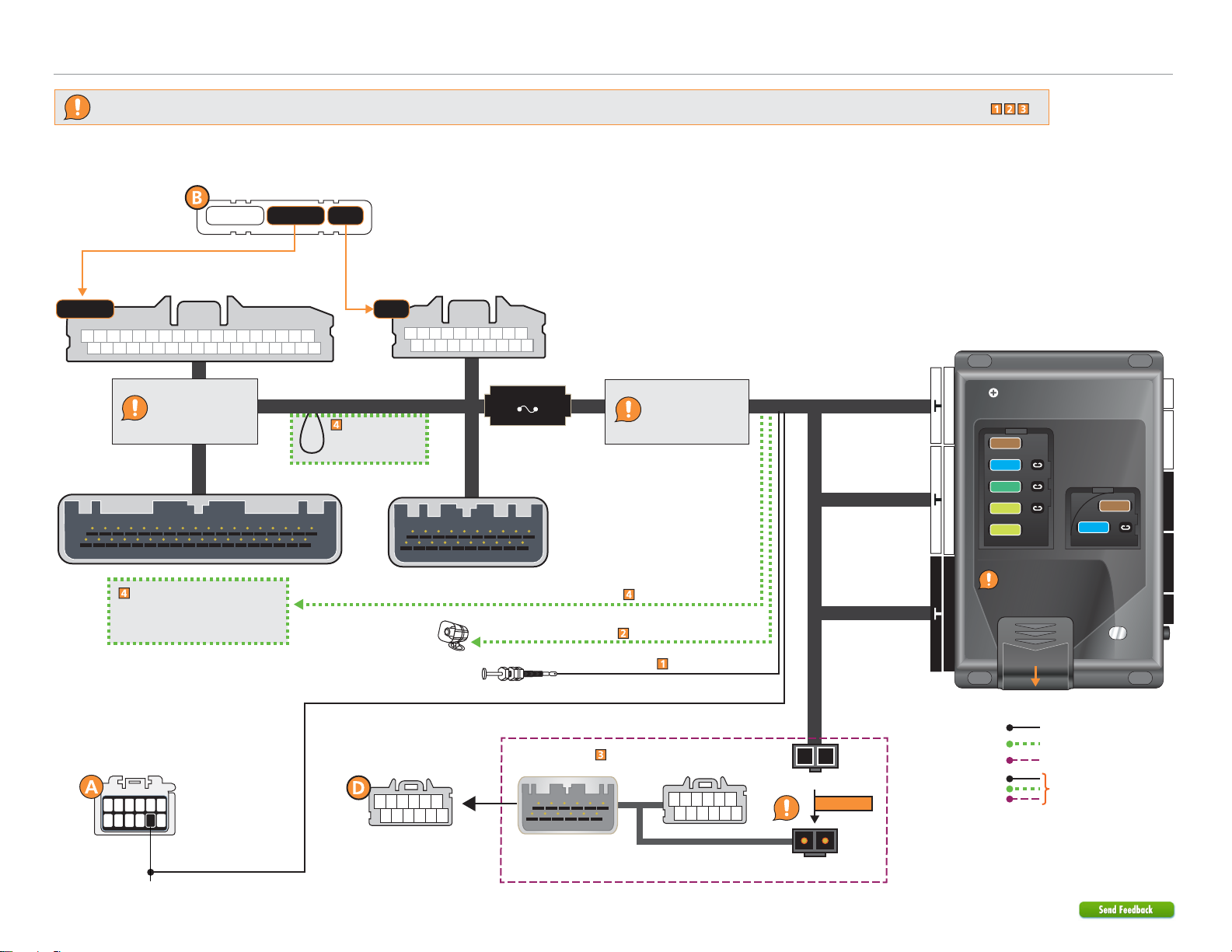

Wiring diagram with T-Harness (THHON11) with Vehicle Takeover
Keyless Access Control Unit
(gray 20-pin connector)
Keyless Access Control Unit
(gray 36-pin connector)
8-pin White Connector
22-pin White Connector
12-pin Black Connector
Relay Pack
5A Fuse Inside
(black, 2-pin connector)
(black, 2-pin connector)
Steering Lock Module
(12-pin gray connector
under steering column)
(-) Parking Lights Output: Lt. Blue/Black
(-) GWA Output: Red/White
Siren
Hood Pin
Refer to the
Optional Starter Disable
Connection section for relay
and connection details.
(-) Parking Lights:
Gray, pin 8
Headlight Switch
(white connector)
123456
7
8
9101112
12
12
Keyless Acces Control Unit
(behind instrument cluster)
(+) Siren Output: Brown/Red
(-) Hood Input: Gray
Connect
Steering Lock
THHON11
(optional t-harness)
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15

6933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
86 85
30
87a
87
1A Diode (1N4002+)
For the Optional Starter Disable connection ONLY:
Cut the Violet/Black loop.
Optional starter disable connection with T-Harness (THHON11) with Vehicle Takeover
THHON11
(optional t-harness)
8-pin White Connector
22-pin White Connector
12-pin Black Connector
(-) GWA Output: Red/White
For Starter Disable
connect to the vehicle’s
true ignition.
(+) Ignition
Keyless Access Control Unit
(gray 20-pin connector)
Keyless Access Control Unit
(gray 36-pin connector)
Relay Pack
5A Fuse Inside
Siren
Hood Pin
Not used for Security Only installations.
1
1
2
2
(+) Siren Output: Brown/Red
(-) Hood Input: Gray
Keyless Acces Control Unit
(behind instrument cluster)
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
(-) Parking Lights Output: Lt. Blue/Black
(-) Parking Lights:
Gray, pin 8
Headlight Switch
(white connector)
123456
7
8
9101112

7933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Violet/Black
Starter Disable loop.

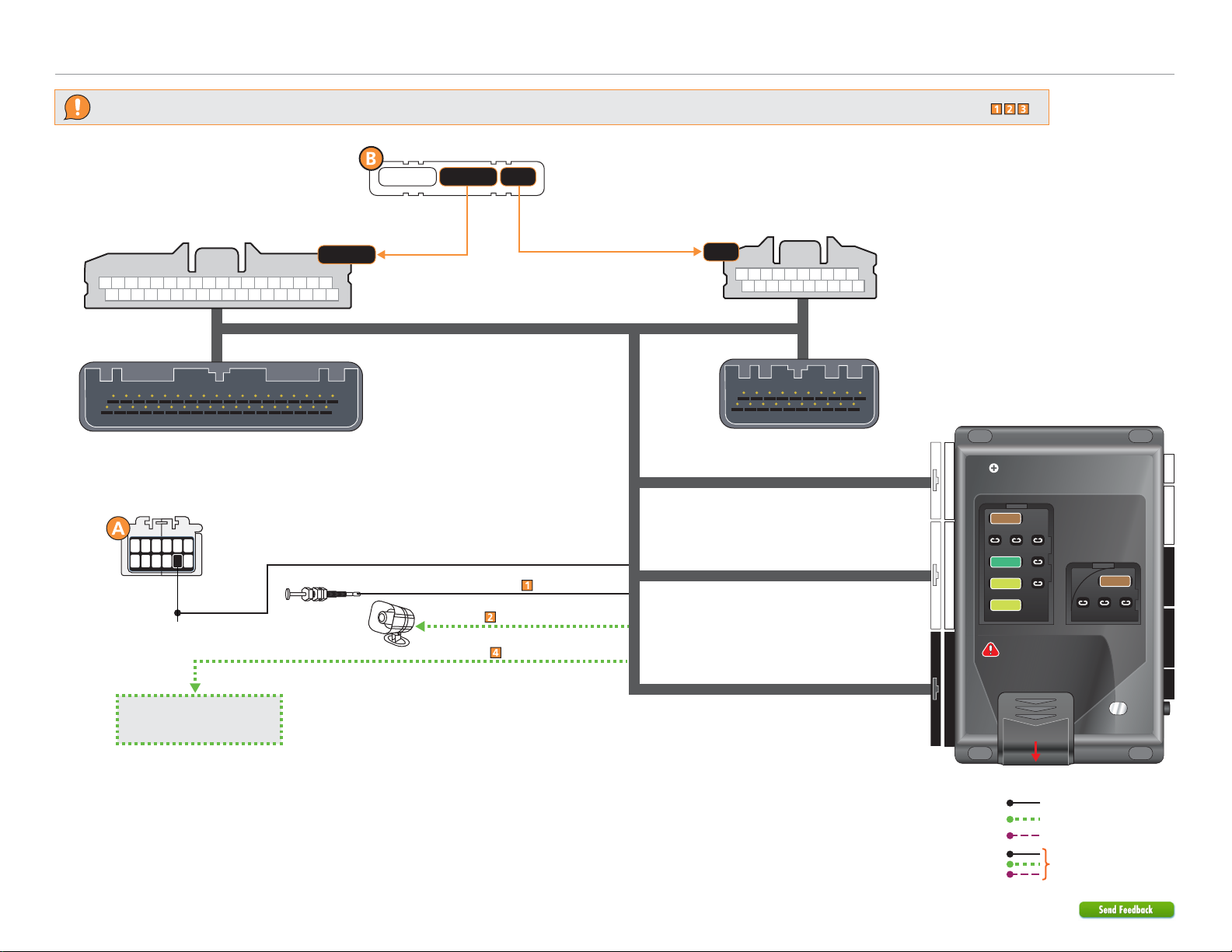

Wiring diagram with T-Harness (THHON9) with Vehicle Takeover
THHON9
(optional t-harness)
Keyless Access Control Unit
(gray 20-pin connector)
Keyless Access Control Unit
(gray 36-pin connector)
8-pin White Connector
22-pin White Connector
12-pin Black Connector
Relay Pack
5A Fuse Inside
(black, 2-pin connector)
(black, 2-pin connector)
Steering Lock Module
(12-pin gray connector
under steering column)
(-) Parking Lights Output: Lt. Blue/Black
(-) GWA Output: Red/White
Siren
Hood Pin
Refer to the
Optional Starter Disable
Connection section for relay
and connection details.
(-) Parking Lights:
Gray, pin 8
Headlight Switch
(white connector)
123456
7
8
9101112
12
12
Keyless Acces Control Unit
(behind instrument cluster)
(+) Siren Output: Brown/Red
(-) Hood Input: Gray
Connect
Steering Lock
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15

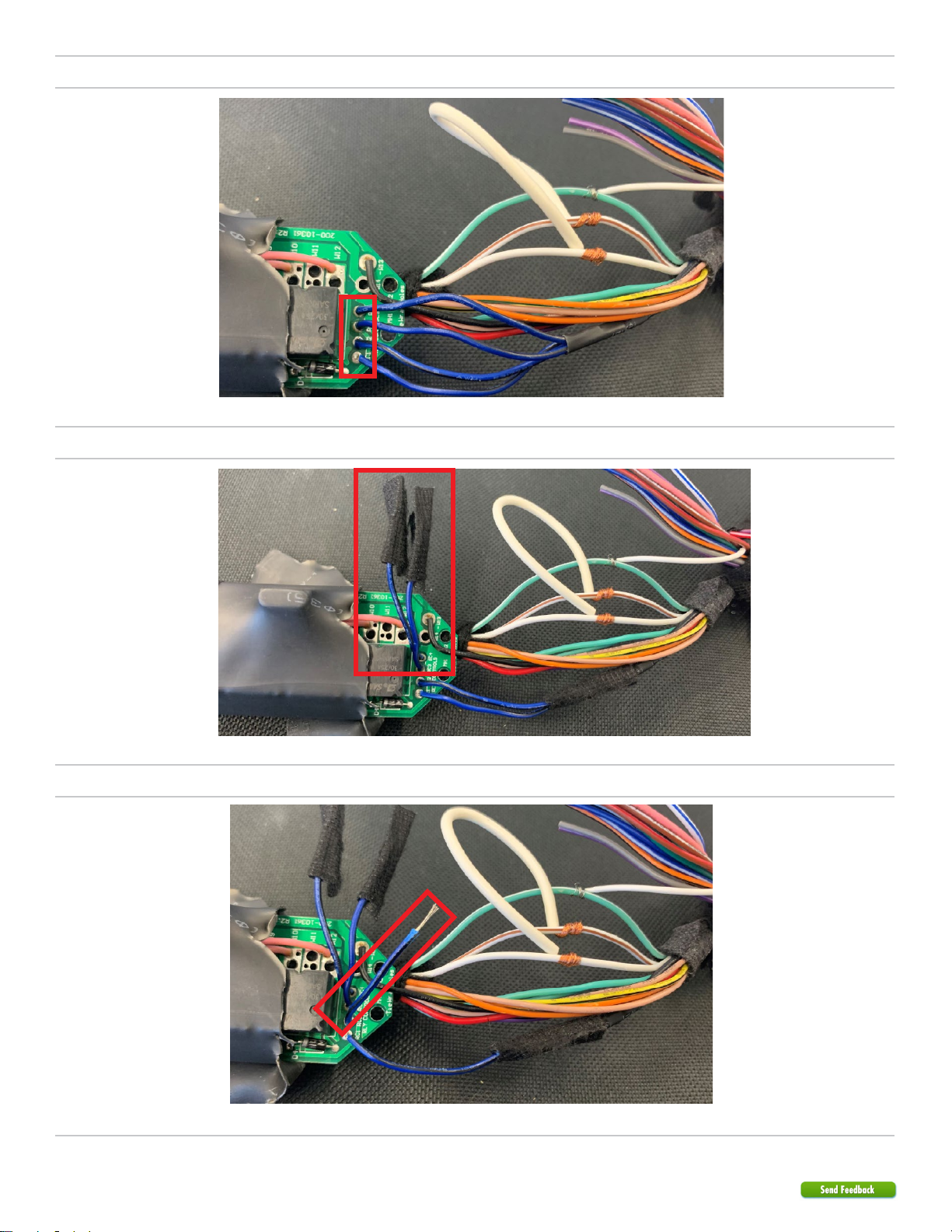

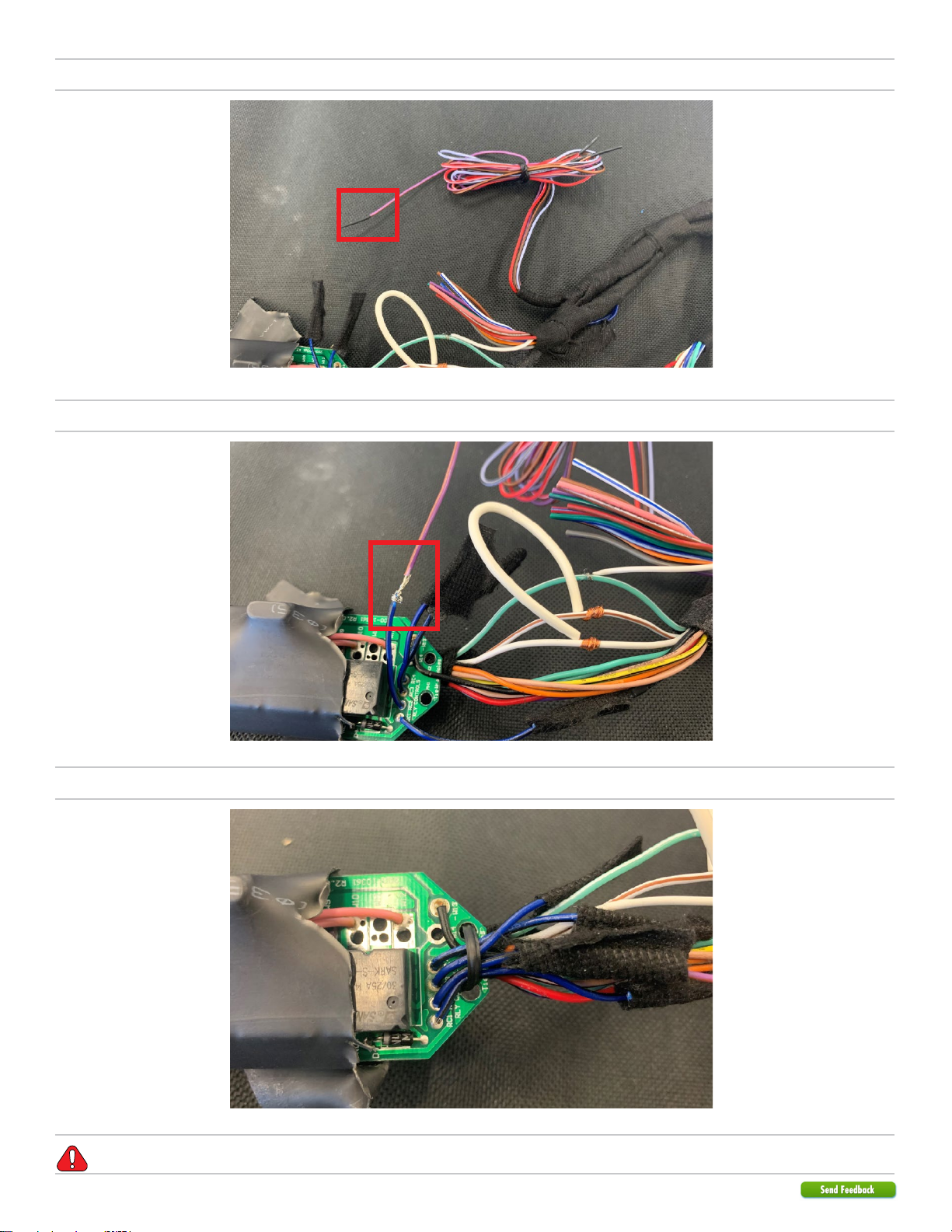

Modifications are
required in this
section of the
THHON9 T-Harness.
Modifications are
required in this
section of the
THHON9 T-Harness.

8933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
86 85
30
87a
87
1A Diode (1N4002+)
For the Optional Starter Disable connection ONLY:
Cut the Violet/Black loop.
Optional starter disable connection with T-Harness (THHON9) with Vehicle Takeover
THHON9
(optional t-harness)
8-pin White Connector
22-pin White Connector
12-pin Black Connector
(-) GWA Output: Red/White
For Starter Disable
connect to the vehicle’s
true ignition.
(+) Ignition
Keyless Access Control Unit
(gray 20-pin connector)
Keyless Access Control Unit
(gray 36-pin connector)
Relay Pack
5A Fuse Inside
Siren
Hood Pin
Not used for Security Only installations.
1
1
2
2
(+) Siren Output: Brown/Red
(-) Hood Input: Gray
Keyless Acces Control Unit
(behind instrument cluster)
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
(-) Parking Lights Output: Lt. Blue/Black
(-) Parking Lights:
Gray, pin 8
Headlight Switch
(white connector)
123456
7
8
9101112

9933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
THHON9 T-Harness modifications
The following modifications to the THHON9 are required regardless of using with or without vehicle takeover and must be done before
connecting it to the vehicle.
Note: The small gray connector shown highlighted in redred does not require any modifications.
Step 1 Remove the cloth tape near the relay pack to expose additional wiring.

10 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Step 2 Identify the White wire in the exposed wire section of the THHON9 T-Harness shown below and pull out the White wire.
Step 3 Remove the cloth tape on the relay pack.
White wireWhite wire

11 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Step 4 Remove part of the shrink wrap on the relay pack, as well as the tie wrap and cloth tape to expose additional wiring.
Step 5 Pinpoint the Lt. Green/White wire in the exposed section. Connect the loose White wire to the loose Lt. Green/White wire.
Step 6 Identify the exposed White and White/Brown wires and connect them together as shown.

12 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Step 7 Identify the four (4) Dk. Blue/Black wires on the PCB labeled RC1, RC2, RC3 and RC4.
Step 8 Cut the Dk. Blue/Black wires labeled RC3 & RC4, then isolate them as they are no longer needed.
Step 9 Identify and cut the Dk. Blue/Black wire on the PCB labeled RC2.
RC4RC4
RC3RC3
RC2RC2
RC1RC1

13 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Step 10 Pinpoint the loose Violet/Brown MUX wire of the THHON9 T-Harness.
Step 11 Connect the Violet/Brown MUX wire to the Dk. Blue/Black wire labeled RC2 as shown.
Step 12 Place a new tie wrap and ensure all connections are well taped and secure.
IMPORTANT! Ensure that all connections are done properly and taped.

14 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
DAG-CAN Low:
Lt. Blue, pin 14
DIAG-CAN High:
Gray, pin 6
Wiring diagram with Vehicle Takeover
Siren
Hood Pin
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Immobilizer Data: Yellow/Black: 8
(-) Takeover 1 Output: Dk. Blue/Black: 9
Takeover Output: Violet/Brown: 6
HS CAN Low 2: Tan: 1
HS CAN High 2: Tan/Black: 2
HS CAN High 1: Orange/Green: 4
HS CAN Low 1: Orange/Brown: 3
(-) Parking Lights Output: Lt. Blue/Black: 10
(+) 12V Input : Red: 6 & 12
(-) Ground: Black: 10
(-) Push-to-Start Output: Lt. Green/Black: 1
(+) Starter Output: Violet/Black: 8
(+) Takeover Ignition Output (conn. side): White: 7
(+) 12V Input: Lt. Green/Red: 7
10
20
1
11
2
12
3
13
4
14
56
15161718
789
19
Immo. Data:
Blue, pin 5
B-CAN
Low: Blue,
pin 11
B-CAN
High: Pink,
pin 1
12
20 19
3
21
4
22
56
24 23
78
26 25
9
27
10
2829
11
12
30
13
31
14
32
15
33
16
34
17
35
18
36
(+) Ignition: Pink, pin 17
(+) 12V:
Pin 18
(-) PTS: Lt. Blue, pin 11
(+) Accessory:
Gray, pin 16
Ignition Interrupt (vehicle side): Blue/White: 1
Ignition Interrupt (connector side): Blue: 3
Keyless Access Control Unit
(gray connector)
Keyless Access Control Unit
(gray connector)
(-) GWA Output: Red/White: 4
12
Cut
Steering Lock Module
(gray connector under steering column)
Ignition Interrupt 5:
White, Pin 12
Refer to the Optional starter
disable connection section for
relay and connection details.
(+) Ignition Output/Interrupt (vehicle side): Lt. Green: 8
(+) Ignition Interrupt (connector side): Lt. Green/White: 9
Cut
(+) Starter:
Green, pin 32
(+) Accessory Output: White: 5 & 11
Refer to the next page for the
mandatory relay connections
for Vehicle takeover.
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
Headlight Switch
(white connector)
(-) Parking Lights:
Gray, pin 8
123456
711 8 91012
OBDII
Diagnostic
Connector 16
8
9
1
1
1
2
2
Keyless Acces Control Unit
(behind instrument cluster)

15 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Vehicle takeover additional connections
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
(+) 12V Input : Red: 6 & 12
(-) Ground: Black: 10
12
20 19
3
21
4
22
56
24 23
78
26 25
9
27
10
2829
1112
30
13
31
14
32
15
33
16
34
17
35
18
36
(+) 12V:
Red, pin 18
(-) Takeover 2 Output: Violet/Brown: 6
(-) Takeover 1 Output: Dk. Blue/Black: 9
(+) Ignition Interrupt 4:
White, pin 30
(+) Ignition Interrupt 1:
White, pin 34
87a87
85 86
30
Cut
1A Diode (1N4002+)
87a87
85 86
30
Cut
1A Diode (1N4002+)
8616
Mini
Relay
8616
Mini
Relay
Keyless Access Control Unit
(gray connector)
87a87
Orange
8616 wire and color reference
Brown
Yellow
Black Red
85 86
30
8616
Mini
Relay
5A Fuse
•Hardwire installations - required for takeover. For T-Harness installations, DO NOT make connections on this diagram, they have relays built-in.
•Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
2
2
Keyless Acces Control Unit
(behind instrument cluster)

16 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram with T-Harness (THHON1 Rev. 1 & 2) without Vehicle Takeover
THHON1 Rev. 1 & 2 (Optional T-Harness)
(-) Parking Lights: Lt. Blue/Black
Siren
Hood Pin
(-) Hood Input: Gray
(+) Siren Output: Brown/Red
Refer to the Optional starter
disable connection section for
relay and connection details.
(-) GWA Output: Red/White
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22-pin White Connector
12-pin Black Connector
8-pin White Connector
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
Keyless Access Control Unit
(gray 20-pin connector)
Keyless Access Control Unit
(gray 36-pin connector)
(-) Parking Lights:
Gray, pin 8
Headlight Switch
(white connector)
123456
711 8 91012
1
1
2
2
Keyless Acces Control Unit
(behind instrument cluster)

17 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram without Vehicle Takeover
Siren
Hood Pin (-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Immobilizer Data: Yellow/Black: 8
(-) Parking Lights Output: Lt. Blue/Black: 10
(+) 12V Input : Red: 6 & 12
(-) Ground: Black: 10
(+) Starter Output: Violet/Black: 8
(+) Ignition Output: Lt. Green: 8
(+) 12V Input: Lt. Green/Red: 7
10
20
1
11
2
12
3
13
4
14
56
15161718
789
19
Immo. Data:
Blue, pin 5
B-CAN
Low: Blue,
pin 11
B-CAN
High: Pink,
pin 1
12
20 19
3
21
4
22
56
24 23
78
26 25
9
27
10
2829
11
12
30
13
31
14
32
15
33
16
34
17
35
18
36
(+) Ignition: Pink, pin 17
(+) 12V:
Red, pin 18
(-) PTS: Lt. Blue, pin 11
(+) Starter: Green, pin 32
(+) Accessory 1:
Gray, Pin 16
Ignition Interrupt (vehicle side): Blue/White: 1
Ignition Interrupt (connector side): Blue: 3
(+) Accessory 1 Output: White: 5 & 11
Ignition Interrupt:
White, pin 34
Keyless Access Control Unit
(gray connector)
Keyless Access Control Unit
(gray connector)
Cut
Refer to the
Optional starter
disable connection
section for relay and
connection details.
HS CAN Low 2: Tan: 1
HS CAN High 2: Tan/Black: 2
HS CAN High 1: Orange/Green: 4
HS CAN Low 1: Orange/Brown: 3
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT (15A) (+)
5
5
30
20
20
15
15
(-) Parking Lights:
Gray, pin 8
Headlight Switch
(white connector)
123456
711 8 91012
DIAG-CAN High:
Gray, pin 6
DIAG-CAN Low:
Lt. Blue, pin 14
OBDII
Diagnostic
Connector
16
8
9
1
(-) GWA Output: Red/White: 4
(-) Push-to-Start Output: Lt. Green/Black: 1
1
1
2
2
Keyless Acces Control Unit
(behind instrument cluster)

18 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Locating components in the vehicle
22 812
4 2442
86 85
30
87a
87
Refer to the
Vehicle connections
section for wire
and connector
details.
(-) Ground When Armed (GWA) Output: Red/White: 4
Starter (vehicle side)
Starter (connector side)
(+) Ignition
Ignition
(vehicle side)
Cut
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
Optional starter disable connection
1A Diode (1N4002+)
When using an external relay, use a 1N4002 diode or larger.

19 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Vehicle connections
The connection information listed below is specific to the 2022 Honda HR-V (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data harness, 8-pin white connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H1/1 Tan (Data) HS CAN Low 2 Keyless Access Control Unit behind instrument cluster, gray 20 pin plug,
pin 11
Data Blue (B-CAN) Mandatory
H1/2 Tan/Black (Data) HS CAN High 2 Keyless Access Control Unit behind instrument cluster, gray 20 pin plug,
pin 1
Data Pink (B-CAN) Mandatory
H1/3 Orange/Brown (Data) HS CAN Low 1 OBD-Data Link Connector, gray 16 pin plug, pin 14 Data Lt. Blue (DIAG-CAN) Mandatory
H1/4 Orange/Green (Data) HS CAN High 1 OBD-Data Link Connector, gray 16 pin plug, pin 6 Data Gray (DIAG-CAN) Mandatory
H1/5 Lt. Green No Connection No Connection
H1/6 Violet/Brown (-) Takeover 2 Output - Required for installations
WITH vehicle takeover ONLY.
Must use (2) 8616 mini relays.
Must use (2) 1N4002 diode or larger.
5A fuse to 12V.
Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 30
Cut White Remote Start
Only
H1/7 Orange/Black No Connection No Connection
H1/8 Yellow/Black (Data) Immo. Data Keyless Access Control Unit behind instrument cluster, gray 20 pin plug,
pin 5
Data Blue (S-NET) Remote Start
Only
Analog input/output harness, 22-pin white connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H2/1 Lt. Green/Black (-) PTS Output [6] Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 11
- Lt. Blue Remote Start
Only
H2/2 Blue/White (-) Clutch Activation Output No Connection
H2/3 Dk. Green/Black (-) Lock Output No Connection
H2/4 Red/White (-) Ground When Armed (GWA) Output [4] Starter:
Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 32
Ignition:
Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 17
Must use a relay.
Must use a 1N4002 diode or larger.
+
+
Green
Pink
Security Only
H2/5 Brown/Black (-) Horn Output Horn Switch-Clock Spring, 20 pin plug, pin 2 - Violet Optional
H2/6 Brown/White (-) AUX 1 Output No Connection
H2/7 White (+) Takeover Ignition Output- Required for
installations WITH vehicle takeover ONLY.
- Required for installations WITH vehicle takeover ONLY.
Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 17
+ Pink Remote Start
Only
H2/8 Violet/Black (+) Starter Output Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 32
+ Green Remote Start
Only

20 933.HONDA9 2.10.198.12 2022 Honda HR-V (Smart Key)
©2023 Directed. All rights
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H2/9 Dk. Blue/Black (MUX) Takeover 2 Output - Required for installations
WITH vehicle takeover ONLY.
Must use (2) 8616 mini relays.
Must use (2) 1N4002 diode or larger.
5A fuse to 12V.
Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 34
Cut White Remote Start
Only
H2/10 Lt. Blue/Black (-) Parking Light Output Headlight Switch, white 12 pin plug, pin 8 - Gray Mandatory
H2/11 Brown/Red (+) Siren Output [2] Security Only
H2/12 Pink (+) Ignition Sense Input No Connection
H2/13 Violet (+) Door Trigger Input No Connection
H2/14 Brown (+) Brake Input No Connection
H2/15 White/Blue (-) Activation Input No Connection
H2/16 Red/Blue (-) Headlight Detection Input No Connection
H2/17 Black/White (-) E-Brake Input No Connection
H2/18 Orange/Black (+) Instant Trigger Input No Connection
H2/19 Blue (-) Trunk Trigger Input No Connection
H2/20 Green (-) Door Trigger Input No Connection
H2/21 Gray (-) Hood Switch Input [1]
H2/22 Violet/White (AC) Tach Input No Connection
Main harness, 12-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H3/1 Blue/White Relay N.C. - Ignition Interrupt (vehicle side) [3] Required for installations WITH vehicle takeover ONLY.
Steering Lock Module under steering column, gray 12 pin plug, pin 12
Required for installations WITHOUT vehicle takeover ONLY.
Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 34
Cut
Cut
White (if equipped)
White
Remote Start
Only
H3/2 Blue/Red Relay N.O. - No Connection No Connection
H3/3 Blue Relay COM - Ignition Interrupt (conn. side) [3] Required for installations WITH vehicle takeover ONLY.
Steering Lock Module under steering column, gray 12 pin plug, pin 12
Required for installations WITHOUT vehicle takeover ONLY.
Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 34
Cut
Cut
White (if equipped)
White
Remote Start
Only
H3/4 White/Brown Relay N.C. - (+) Accessory Interrupt 1 (connector
side)
No Connection
H3/5 White Relay COM - (+) Accessory Output Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 16
+ Gray Mandatory
H3/6 Red (+) 12 Volt Input Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 18
+ Red (10A) Mandatory
H3/7 Lt. Green/Red Relay N.O. - (+) 12 Volt Input Keyless Access Control Unit behind instrument cluster, gray 36 pin plug,
pin 18
+ Red (10A) Remote Start
Only
