The DJI ActionTM 2 Remote Control Extension Rod expands users shooting capabilities with an
extension rod and a tripod. Users can control the camera remotely and capture seles with the DJI
Remote Control Pad.

©2021 DJI All Rights Reserved.
3
DJI Action 2 Remote Control Extension Rod User Guide
Overview

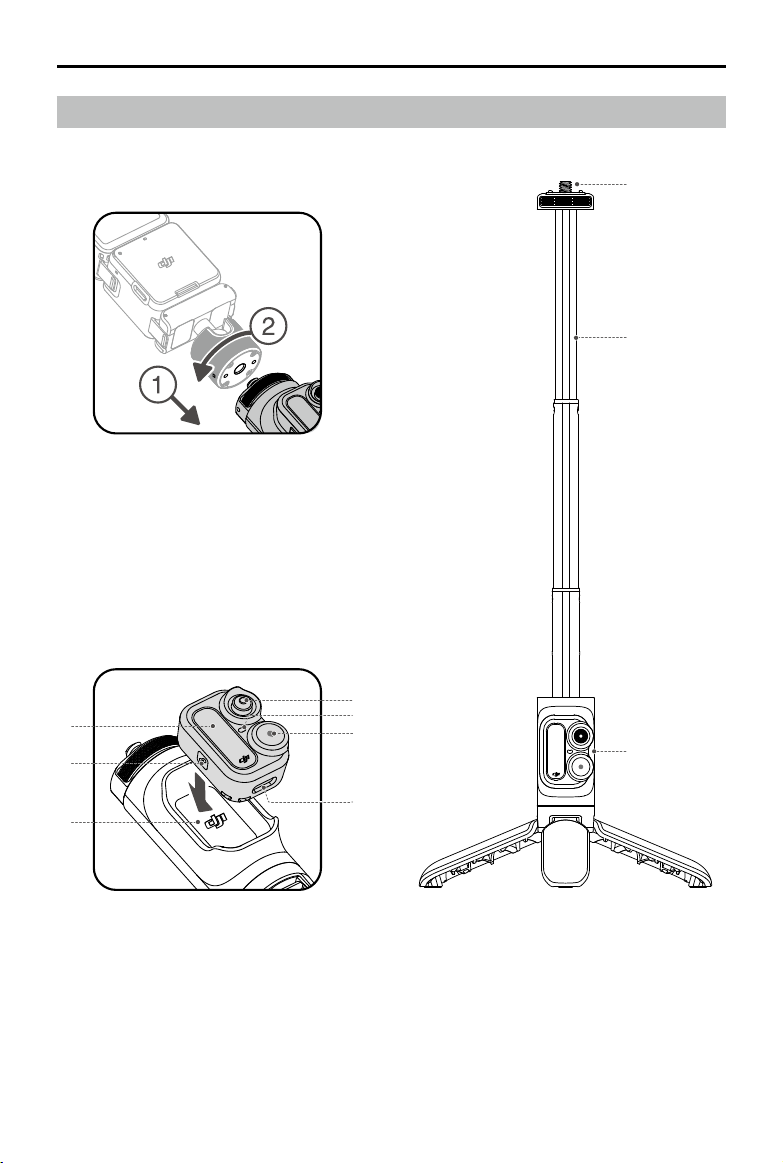

A1
2
3
A
B
B
4
5
6
7
8
9
10
1. 1/4” Screw
Compatible with adapters with 1/4" threaded holes.
2. Extension Rod
The length of the extension rod is 16.5 cm when stored and can be extended to up to 37.8 cm.
There is also a tripod that can be unfolded for greater stability.

DJI Action 2 Remote Control Extension Rod User Guide
4
©2021 DJI All Rights Reserved.
3. DJI Remote Control Pad
Connected to the camera via Bluetooth, the remote control pad supports single-camera control and
also multi-camera control mode so that users can shoot with up to eight cameras simultaneously.
4. DJI Remote Control Pad Slot
Used to attach the remote control pad.
5. Link Button
Press and hold the link button for one second to link the remote control pad and the camera.
Press and hold the link button and the 5D button for four seconds to forget the Bluetooth connection
and start linking. Press and hold the link button and the shutter/record button for four seconds to
switch between single-camera control mode and multi-camera control mode and start linking.
In multi-camera control mode, press the link button to display the number of cameras connected.
6. Screen
When controlling a single camera, the screen displays the status and battery level of the connected
camera. When controlling multiple cameras, the screen displays the number of cameras connected.
The display on the screen varies depending on the camera mode. The screen will not enter sleep
mode while recording or charging.
The screen will enter sleep mode if there no operation after 3 minutes and the remote control pad
will power off if there is still no operation after a further 10 minutes if there is no camera connected
and the remote control pad is not charging. When the screen is off, press any button to exit sleep
mode and continue using the remote control pad.
7. 5D Button
Press the 5D button to enter the camera mode switch screen, push the joystick left or right to select
a camera mode, and press again to conrm.
8. Status LED
Refer to the Status LED Descriptions section for more information.
9. Shutter/Record Button
Press and hold for one second to power the remote control pad on or off. After powering on, the
remote control pad will automatically search for and connect to any DJI Action 2 cameras.
Press once to take a photo or to start or stop recording.
In multi-camera control mode, press once to take a photo or to start recording and press twice to
stop recording.
10. USB-C Port
Connected to a charger to charge the remote control pad.
Installation is shown in Figure A and B. DJI Action 2 and the adapters are not included.
The description above is for when controlling a single camera unless otherwise specied.
The built-in battery of the remote control pad may run out of power if it is not used for more
than six months and will require charging to use again. Charge or discharge the battery to 40-
60% if it will not be used for 10 days or more.

©2021 DJI All Rights Reserved.
5
Status LED Descriptions
Status Indicator Descriptions
Charging Status
Solid green for 6 seconds and turns off Charging completed
Blinks green four times Charging with battery level between 76-100%
Blinks green three times Charging with battery level between 51-75%
Blinks green twice Charging with battery level between 26-50%
Blinks green Charging with battery level between 0-25%
System Status
Blinks red three times Powering off
Blinks blue Linking
Work Status
Solid green Ready to use
Temporarily off Taking photo
Blinks red Recording video
Specications
General Settings
DJI Remote Control Pad Model BTC01
Weight Extension Rod: 110 g; DJI Remote Control Pad: 11 g
DJI Remote Control Pad Dimensions 36.5×27.5×19 mm
Extension Rod Dimensions 30×34×165 mm (Extended: 378 mm)
Bluetooth
Protocol BLE5.0
Operating Frequency 2.400-2.4835 GHz
Transmission Power (EIRP) ≤8 dbm
Built-in Battery
Battery Type Li-ion (65 mAh @ 3.7 V)
Charging Type Connected to USB-C port (5 V)
Charging Time* 55 mins
Operating Time** 5 hours
Charging Temperature 5 to 45° C (32° to 113° F)
Operating Temperature -10° to 45° C (14° to 113° F)
* Measured using a 5V/2A USB adapter in a laboratory environment. Use as a reference only.
** Measured using single-camera control mode, with the remote control pad screen on. Use as a reference only.

6
