DOD LS500W User manual

LS500W / LS500W+
User Manual

1
Table of Contents
Product Features ...............................................................................................................2
Safety Precautions.............................................................................................................5
Package Contents..............................................................................................................6
Optional Accessories ........................................................................................................7
Camera Controls................................................................................................................8
Getting Started.................................................................................................................13
Installing Your Camera....................................................................................................16
Basic Camera Operation .................................................................................................18
Camera Modes .................................................................................................................19
Camera Settings ..............................................................................................................22
System Settings...............................................................................................................26
Play on DOD Player .........................................................................................................27
Transferring Files ............................................................................................................28
Video Output ....................................................................................................................29
Firmware Update..............................................................................................................29
LS500W Specifications....................................................................................................31
LS500W+ Specifications .................................................................................................31

2
Product Features
New SONY STARVIS Sensor- ISO Sensitivity up to ISO 12800
Features a new SONY STARVIS CMOS sensor with improved sensitivity not only
under normal lighting but also in low light and near infrared light condition.
Dual Channel 1080P FULL HD
The front and rear view of your vehicle are recorded in 1080p FULL HD quality;
moreover, the image captured at a 145oviewing angle at front and 140oin the
rear for optimal coverage and clarity.
Integrated 10 Hz GPS Processor
Integrated is the fastest 10 Hz GPS processor, that updates GPS data 10 times
per second, recording your speed and location accurately. Date and Time
automatically synchronizes with the atomic clock.
Advanced WDR Technology - Stunning Videos in Any Light
WDR technology, well-
balanced exposure for any condition. It makes night shots
brighter and prevents overexposure to create the clearest image.
Traffic Camera Alert
Remind you of approaching fixed speed camera locations and mobile speed
camera “hot-spots” well in advance so you can slow down in time. Stay away
from traps and always stay in control.
*Currently supported: US, CA, UK, NO, PL, NL, BE, AU.
*Traffic Camera Alert act as references and is for reference only, which does not
act as an active radar detector. Please follow all traffic rules and drive safely.
Parking Surveillance
Ensure your peace of mind by recording continually even when you have parked
and left your car. Record and lock a file if unusual shock or motion is detected.
*DOD DP4 hardwiring kit required

3
Support to 128GB Micro SDXC Memory Card
4X storage compatibility compared to predecessor models, supports up to
128GB with more than 18 hours of recording.
DOD GPS Player
The DOD GPS Player generates 1080p video recordings with real-time driving
data such as speed and location clearly at a glance.
145ºWide Angle of View
Wide angle, wide view, without distortion. The brand-new-designed optical lens
captures images with ultra wide fields of view, covering up to 145 degrees,
without pincushion or distortion.
f/1.6 Large Aperture Glass Lens - Super Low-Light Performance
Equipped with f/1.6 large aperture, capturing better night shots than
conventional f/2.0, and records clearly sophisticated details such as the license
plate and others.
6G Sharp Glass Lens
6-Element sharp lens, made of 6 layers of glass, provides stunning clear and
non-deformed images.
G-Sensor Automatic Trigger for File Protection
When an impact or emergency brake occurs, the device will lock the current
video files automatically. Important files will not be overwritten by loop
recording.

4
Loop Recording
When the storage space is full, it can automatically overwrite the unprotected
files.
Path Analysis
Calculate the distance, time and average speed of your journey from location A
to B. It´s a very economical and practical way to save your time and fuel
consumption.
Circular Polarizing Filter
Adjustable CPL filter suppress glare from windshield and manage reflection.
Provides clear images with enhanced contrasts.

5
Safety Precautions
Product
Do not disassemble, repair, modify your camera or power related accessories. For warranty
service, please contact DOD Tech Support.
Do not adjust or operate camera while driving.
Avoid exposing your camera to extended periods of humidity and/or heat.
Prolonged exposure may reduce the product’s lifespan.
Do not spray water or cleaning agents directly onto the camera.
Fluids may cause fire, electric shocks, or malfunctions.
Avoid installing camera where it may obstruct the driver’s view or airbag deployment.
Car Power Adaptor
Use ONLY the DOD power adapter supplied with your unit.
Other power adapters may create a safety hazard or damage the unit.
Do not use damaged power adapters or cords. If damaged, please disconnect the power adapter
and contact DOD Tech Support for assistance.
Do not pull, insert, or bend the power cable using excessive force.
Do not operate or handle the power cable with wet hands.
In specified cars, the power may be constantly supplied to the device even the engine is turned
off. This may drain the vehicle battery. The optional DOD DP4 kit equipped with low-voltage
protection and is designed to prevent battery drain and reserve the minimum voltage required
for cranking.
Battery
Keep the device away from heaters or other hot objects.
Store the camera at lower temperatures to reduce the rate of self-discharge and preserves the
initial energy stored in the battery. The battery in the device self-discharges naturally over time
whether the battery is used or not.
Charge the dash camera for 5 minutes with the supplied DOD power cord if you are unable to
turn on the camera.

6
Package Contents
Dash Cam
User Guide
Rear Dash Cam
Rear Cam Connection Cable
Bracket Car Power Adaptor
CPL
(LS500W+)
Note: Supplied accessories may vary by region.

7

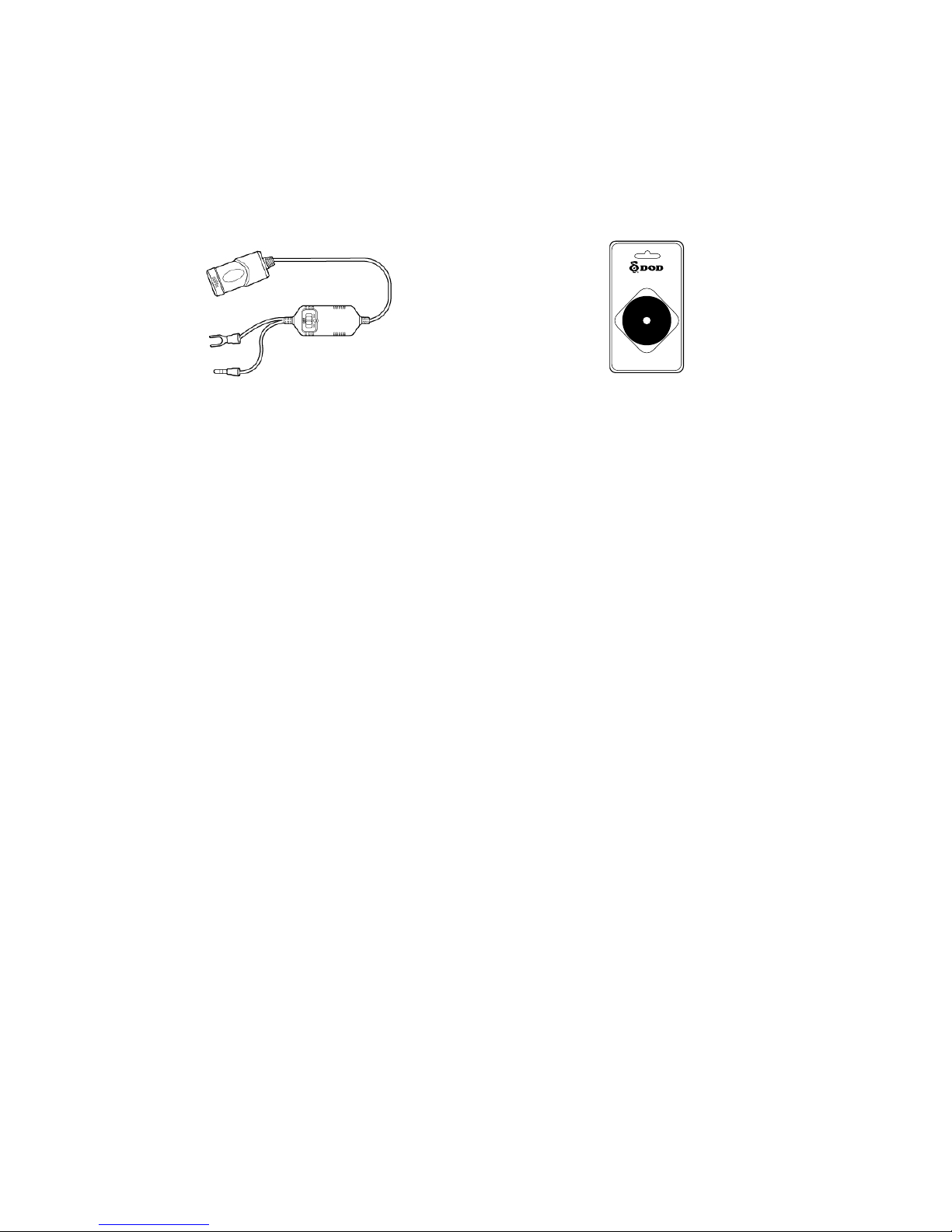

Optional Accessories
DP4
DP4 hardwiring kit offers constant
source and prevent battery drain with
low-voltage protection.
DA2S
DA2S Suction Savior provides a long
lasting adhesion to suction cups.

8

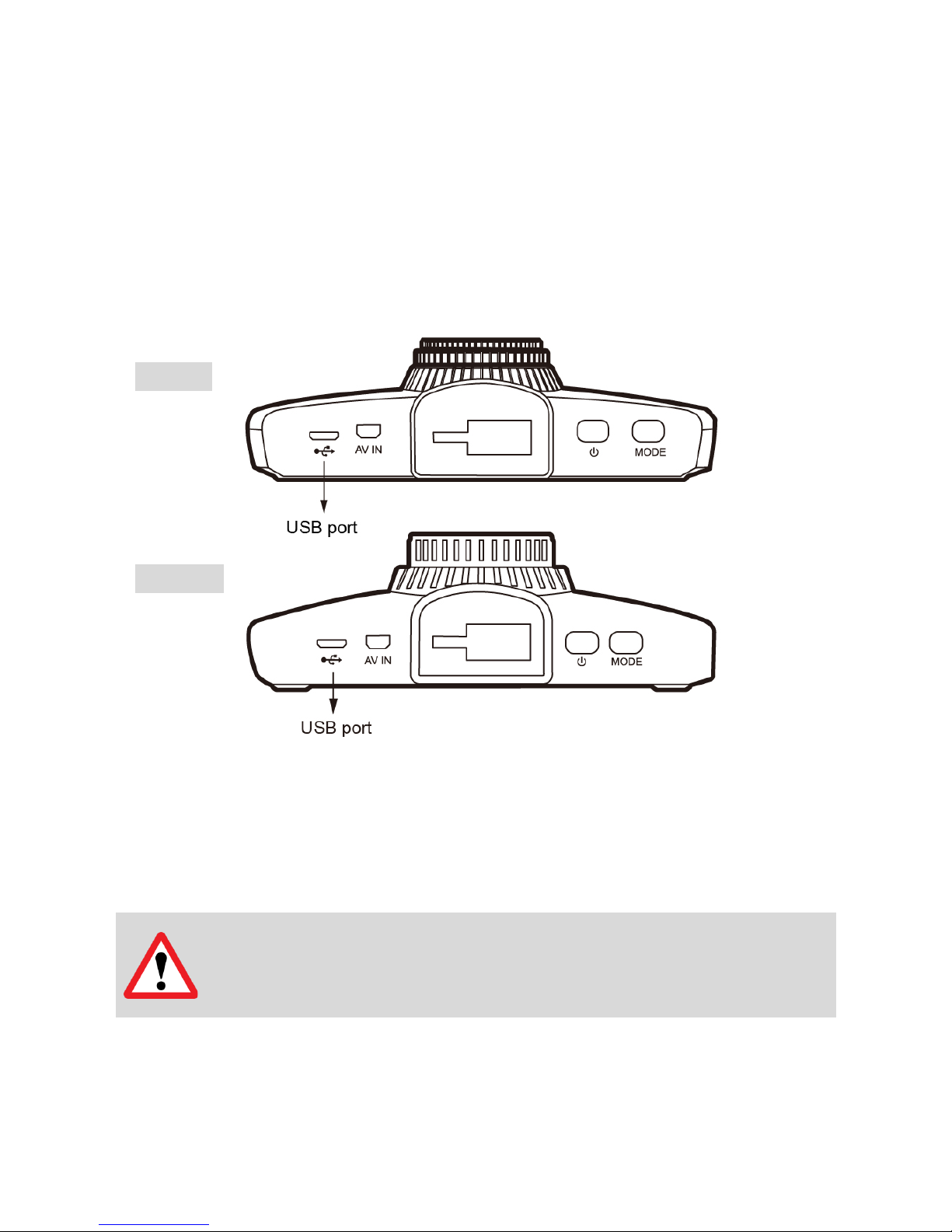

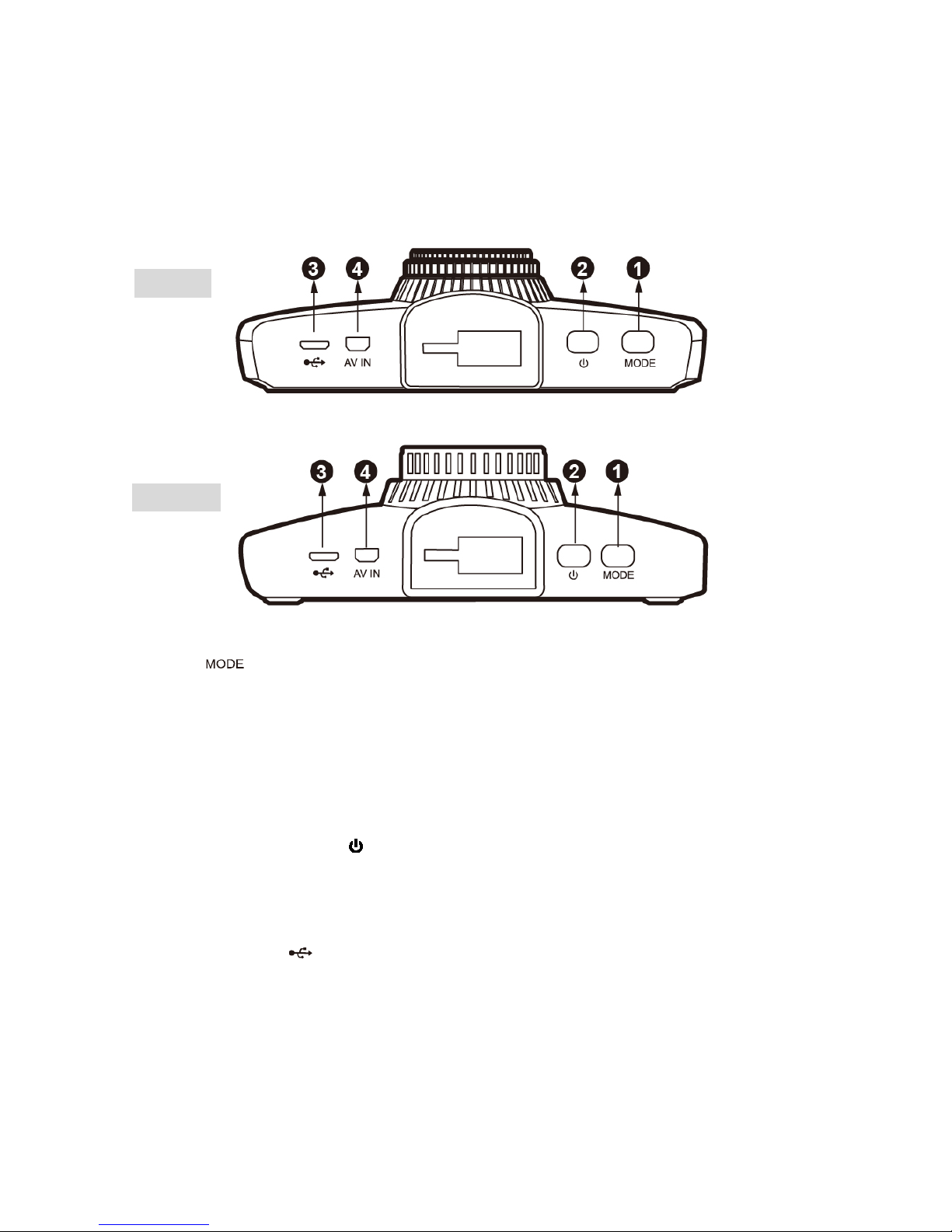

Camera Controls
●1Mode【 】
When in stand by (not recording): Press to switch between recording and playback mode.
While Recording:
Press to switch between live viewing modes. Screen can show front view only, rear view
only, large front with small rear, large rear with small front.
●2Power Button ON/OFF【 】
Turns unit on/off
●3Micro USB Port【 】
For use with the supplied DOD Car Power Adaptor or USB data cable.
●4Rear Cam Connection Port【AV IN】
LS500W
LS500W+

9

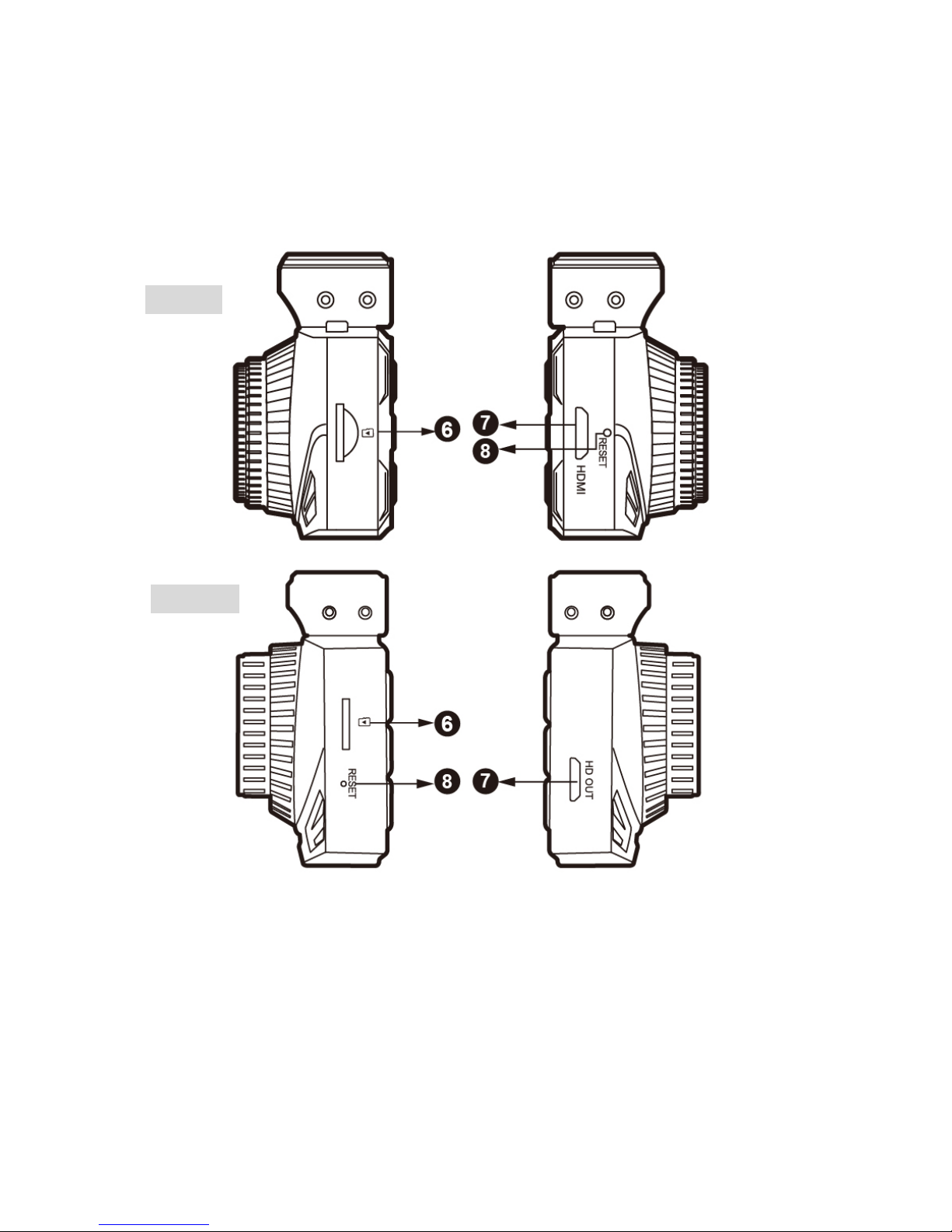

Camera Controls
●5Speaker
