Dogtra 2300NCP EXPANDABLE User manual

1
2300NCP EXPANDABLE
EXPANDABLE UP TO 2-DOG SYSTEM:
2300NCP ADDITIONAL RECEIVER
Owner's Manual
Please read this manual thoroughly before operating
the 2300NCP EXPANDABLE training e-collar.

2
WARNING
Please read all safety and product information below
before using your Dogtra product. Failure to follow these
safety instructions could result in injury to you, your dog
and others, or it could result in damage to your Dogtra
product or other property.
PRODUCT SAFETY
Training Methods
Dogtra products may be used with a variety of training
methods. However, each dog may have a different reaction
to training methods and to Dogtra products. Closely
observe your dog when determining the right training
method to use with your Dogtra product.
Aggressive Dogs
Do not use Dogtra products with aggressive dogs as such
dogs may react adversely and cause injury to people or
other dogs. Seek the assistance of a dog-training specialist
or veterinarian when dealing with aggressive dogs.
Children
Dogtra products are not toys. Adult supervision and close
attention are necessary when Dogtra products are used by
or near children.
PRODUCT DAMAGE
Electrical Product
Your Dogtra product contains electrical components and
batteries. Do not use or keep your product near heat or
flammable sources. Such use or storage may damage your
IMPORTANT SAFETY AND PRODUCT
INFORMATION

3
product and/or cause fire, explosion, injury, or property
damage.
Medical Device Interference
Dogtra products contain electrical and magnetic
components that emit low level electromagnetic waves and
radio frequencies. These electromagnetic waves or radio
frequencies may interfere with pacemakers, defibrillators,
or other medical devices. Consult your physician or medical
device maker before using your medical device with a
Dogtra product. If you think that your Dogtra product is
interfering with your pacemaker, defibrillator, or other
medical device, stop using the Dogtra product.
INADVERTENT ACTIVATION
The digital microprocessor offers thousands of unique
codes to eliminate frequency match-up with other Dogtra
e-collars. The Constant button will automatically shut down
after being held down for 12 seconds or more as a safety
feature.
UNAUTHORIZED USE
Your Dogtra product should be used only in a humane
manner to train and educate your dog. Dogtra products
are not intended for use in any other manner nor are they
intended for use with other animals or with humans.
BATTERY
Your Dogtra product contains batteries. Take care when
removing and installing batteries as your fingers may get
caught. Dispose of batteries as provided by your local
regulations. Do not disassemble, crush, heat, or otherwise
alter the battery as it may cause fire, injury or property
damage.

4
CONTENTS
MAIN FEATURES ............................................................
PACKAGE CONTENTS ...................................................
DESCRIPTION OF TRANSMITTER PARTS ...............
TRANSMITTER BUTTON FUNCTION ........................
DESCRIPTION OF RECEIVER PARTS ........................
CHARGING THE BATTERY ..........................................
USING THE TEST LIGHT ...............................................
RECEIVER FITTING ........................................................
FINDING THE RIGHT STIMULATION .........................
MAXIMIZING THE DISTANCE ......................................
ACCESSORIES .................................................................
MAINTENANCE ...............................................................
TROUBLESHOOTING GUIDE .......................................
WARRANTY AND REPAIR INFORMATION ..............
5
6
7
13
15
18
20
22
24
25
26
27
28
30

5
• Easy-to-use, ergonomically fitted transmitter
• Rheostat Dial allows for gradual adjustments in
stimulation intensity with no jumps between levels
(0-127)
• Expandable to a 2-dog system
• 3/4-mile range
• High output
• Two different stimulation types - Nick & Constant
• Pager vibration
• 2-hour rapid charge lithium polymer batteries
• IPX9K waterproof certified - the highest heat and
water pressure test
• No external antenna on the receiver
• One-charger system allows the transmitter and
receiver(s) to be charged at the same time
• Over 8000 different identity codes to prevent signal
match-up with other e-collars
• Easily visible blue LCD screen displays exact level of
stimulation and can be seen in the dark or low light
conditions
• Three bar battery life indicator and LED colored
indicator to show remaining battery life
• For dogs as small as 35 pounds
MAIN FEATURES

6
PACKAGE CONTENTS
• Transmitter
• Receiver
• Battery charger and splitter cable
• Test light
• Owner’s manual
• Carrying case

7
DESCRIPTION OF
TRANSMITTER PARTS
Antenna
Rheostat Dial
LED
Indicator
Light
Constant
Pager
LCD
Screen
On/Off
Button
On/Off
Magnetic
Red Dot
Battery Charging
Receptacle &
Rubber Plug
2300NCP EXPANDABLE
Transmitter
Nick
1-Dog/2-Dog
Toggle
Switch

8

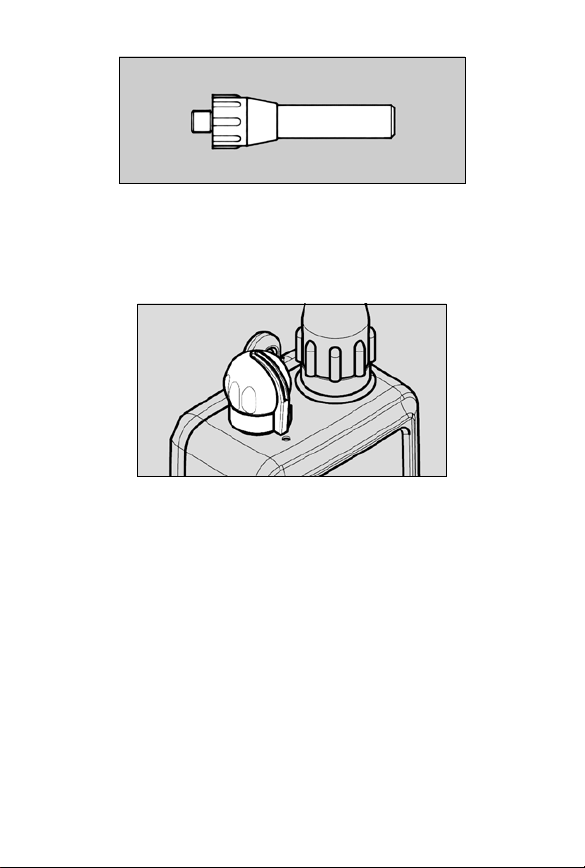

Transmitter Antenna
A 2” antenna is supplied with the 2300NCP
EXPANDABLE transmitter. The antenna must be fastened
to the transmitter before using the unit.
Rheostat Dial
The Rheostat Dial is located on the top of the transmitter:
(0) being the lowest level and (127) being the highest.
The LCD screen shows the intensity level during
operation.

9
LCD Screen
The LCD screen indicates the stimulation level (0-127) on
the screen. The battery life indicator shows:
3 bars = full charge
2 bars = medium charge
1 bar = needs charge
The battery life indicator only shows the remaining
charge of your transmitter. To find the remaining charge
for your receiver, observe the LED indicator light
on the receiver.

10
Care for LCD Transmitters in Cold Temperature
In cold temperatures (10°F or below), the Liquid Crystal
Display (LCD) on your transmitter may be dim or slow to
respond. Wait until the display becomes visible before
selecting any training level.
Even though the LCD screen might be dim or slow to
respond, when you push the Nick or Constant button,
the transmitter will still function properly. In the
occurrence of extremely cold weather, the LCD screen
might take a moment to respond causing the intensity
level to freeze at that current level.
If you turn the Rheostat Dial, the level on the screen may
not change but the actual intensity from the receiver will
change in agreement with the dial.
In this situation, it is ideal to either wait until your
transmitter is back to working order before emitting a
correction or while holding the Constant button down,
slowly turn the Rheostat Dial while watching your dog’s
reaction.
Do not turn the Rheostat Dial rapidly because the receiver
will emit a static correction based on the level of the
Rheostat Dial, which might not be correctly reflected on
the LCD screen.
Attention!
When using the unit in cold temperatures, it is
recommended that the transmitter is placed under
your jacket next to your body. The warmth of your
body will greatly improve the battery life and usage.

11

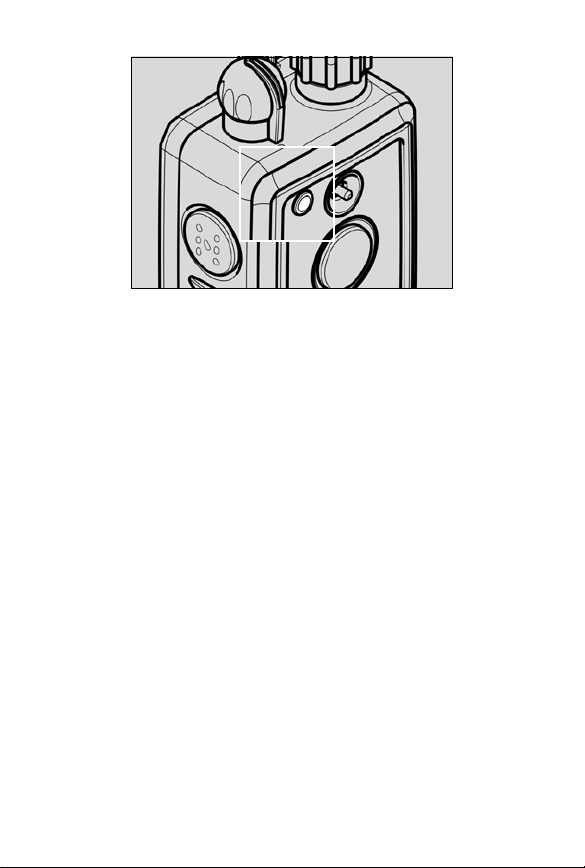

Transmitter Indicator Light
The transmitter LED indicator light is located near the
Rheostat Dial. It will flash every 5 seconds when the
transmitter has been turned on.
The LED indicator color indicates the battery life level.
Green = Full charge
Amber = Medium charge
Red = Needs charge
If the unit is used while the LED indicator is red, it may
shut down automatically.

12

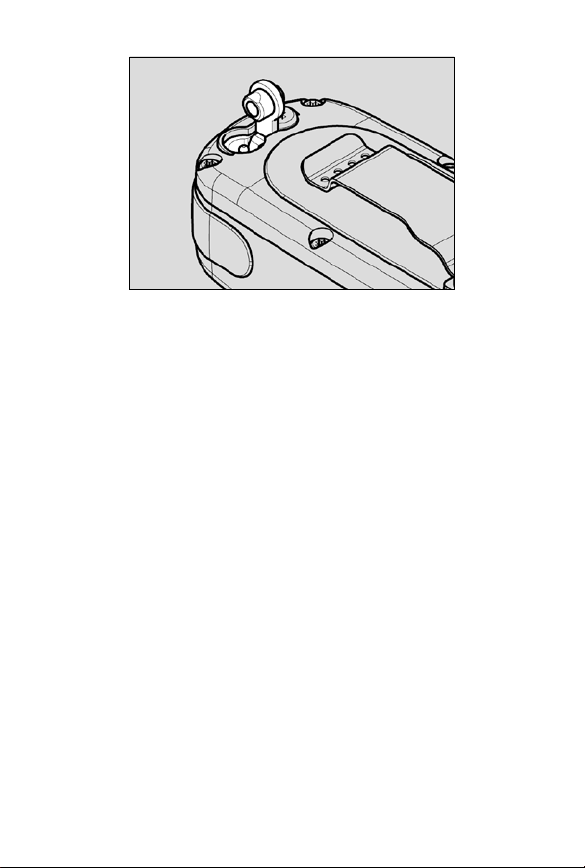

Transmitter Battery Charging Receptacle &
Rubber Plug
Located on the backside of the transmitter, the charging
receptacle is covered by a rubber plug. Insert one end
of the battery charging cable into the receptacle to
charge the battery. After charging is complete, close the
receptacle with its rubber plug to make sure dirt or water
does not get inside.

13
TRANSMITTER BUTTON FUNCTION
The transmitter for the 2300NCP EXPANDABLE
unit has four buttons and a toggle switch on the
transmitter (one on the face of the transmitter, two on
the left side, and one on the right side).
Nick
Constant
Pager
1-Dog/
2-Dog
Toggle
Switch
On/Off
Button
2300NCP EXPANDABLE
1-Dog/2-Dog Toggle Switch
The 1-Dog/2-Dog Toggle Switch is located on the front
of the transmitter. Use the toggle switch to control up
to 2 dogs when 2 receivers are coded to the handheld

14
transmitter. When the toggle switch is set to the up
position, the transmitter will control the black receiver.
When the toggle switch is set to the down position, the
transmitter will control the orange receiver.
Nick Button
The Nick button is located on the top left side of the
handheld transmitter. When the Nick button is pressed,
the receiver emits a single rapid pulse of electrical
stimulation.
Constant Button
The Constant button is located on the bottom of the left
side of the handheld transmitter. Pressing the Constant
button gives continuous stimulation as long as the
button is pressed, for up to 12 seconds. If the button
is not released after 12 seconds, the stimulation will
automatically turn off as a safety feature. The receiver
will be ready to be reactivated once the button has been
released.
Pager Button
The Pager button is located on the face of the transmitter.
Pressing it will give a vibration as long as the button is
pressed, for up to 12 seconds.
On/Off Button
The on/off button is located on the right side of the
transmitter.

15

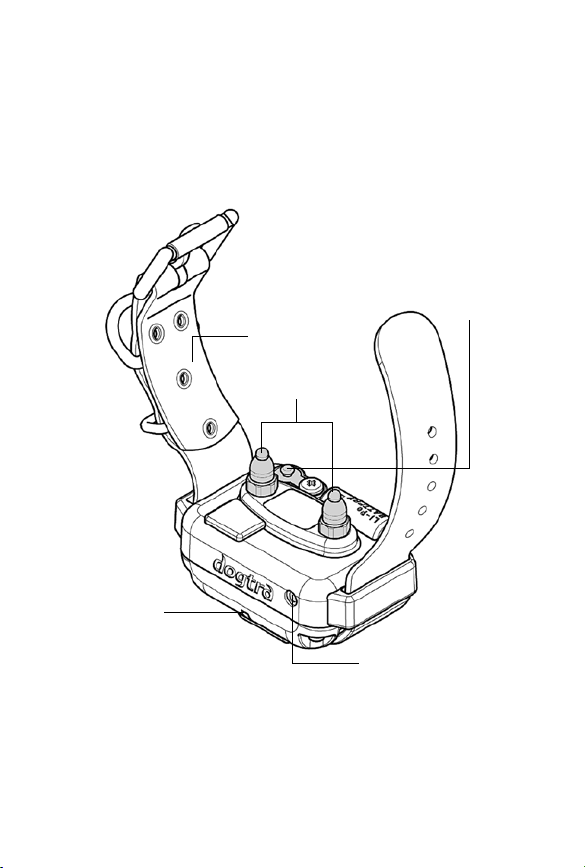

DESCRIPTION OF
RECEIVER PARTS
Collar
Strap
Contact
Points
Battery
Charging
Receptacle
and Cover
LED Indicator
Light
On/Off Magnetic
Red Dot
2300NCP EXPANDABLE
Receiver

16

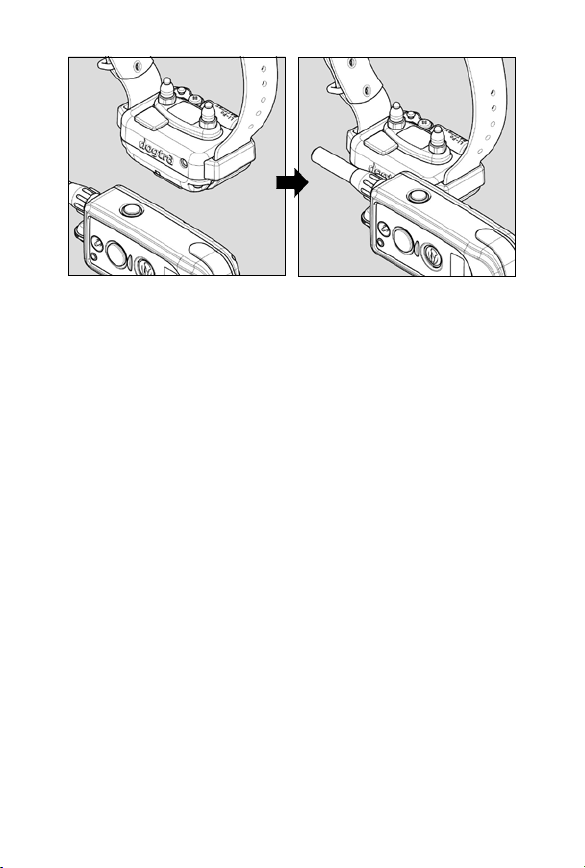

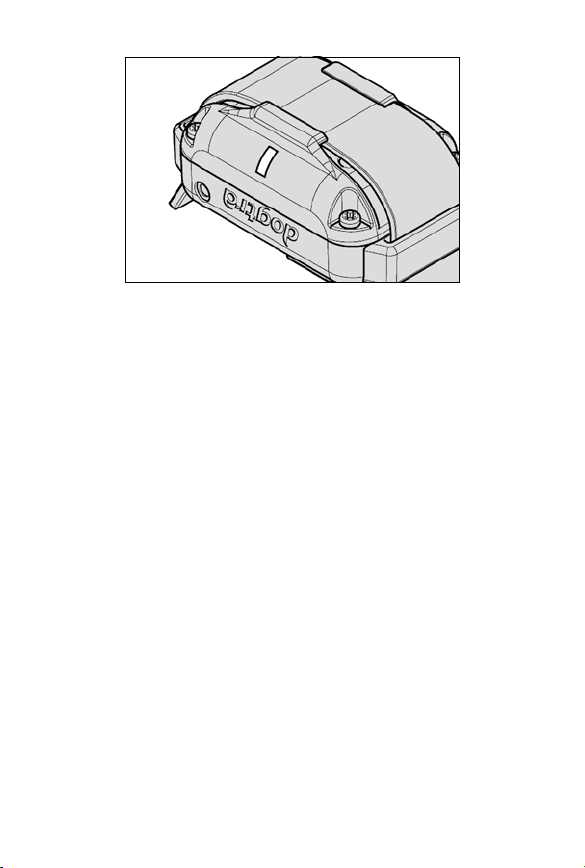

Receiver On/Off Magnetic Red Dot
To turn on the receiver, place the magnetic
red dot on the back of the transmitter to the red dot on
the receiver. Hold the two red dots together for a
moment until the LED light on the receiver comes on.
To turn off the unit, repeat the same procedure holding
the two red dots together momentarily. The LED light will
turn red for a brief moment indicating that the receiver
has now shut off.

17
Receiver Indicator Light
Located on the front of the receiver, the indicator
light comes on and blinks once every 4 seconds after
the receiver has been turned on. The color of the LED
indicates the battery life of the receiver.
Green = Full charge
Amber = Medium charge
Red = Needs charge
When the Constant button on the transmitter is pressed,
the receiver indicator light will glow steadily (either
green, amber, or red based on the remaining battery
life), as long as you hold the button down, for up to 12
seconds.
When the Nick button is pressed, the light comes on for a
fraction of a second.

18
CHARGING THE BATTERY
Charging Cable
Two-dog unit only
120 volt
Charger
Wall
Outlet
The Dogtra 2300NCP uses a lithium polymer battery.
Recharge the unit if the indicator light is red or does not
come on, the transmitter LCD shows only 1 bar on the
indicator, or the system will not stay on when any button
is pressed.
Note 1: Only use Dogtra-approved batteries, chargers,
and accessories for your Dogtra e-collars. This will
prevent any damage that can be incurred from
attempting to use a different charger.
Note 2: The unit has a partial charge when it leaves the
Dogtra facility. Upon receipt of the system, be sure to
give it a full 2-hour initial charge before the first use away
from any flammable substances.
Note 3: When a charger is not in use, disconnect it from
the power source. Fully charge the batteries if the unit
is to be stored without use for a period of 3 months or
more.

19
Follow the steps below to charge your system:
1. Open the rubber plugs on the battery charging
receptacles and plug in the charging cable.
2. Plug the charger into a 120-volt wall outlet or, if using
the auto charger, plug into a cigarette lighter only for
lithium polymer batteries (use a 220 volt European
charger for Europe). All indicator lights should glow
red when properly plugged in and the unit will
automatically shut off during the charging process. You
will need to turn the unit on again before use once the
unit is fully charged and unplugged from the battery
cable.
3. The lithium polymer battery is fully charged within
2 hours. The lights will stay red during the charging
process and turn green once the unit is fully charged.
4. After charging, cover the battery charging receptacles
with the rubber plugs.

20
USING THE TEST LIGHT
1. Turn on the receiver by placing the magnetic red dot
on the back of the transmitter to the red dot on the
receiver. The indicator light will come on for a moment
then blink once every 4 seconds, showing that the
receiver is ready to use (the receiver needs to be
charged if the indicator light is red).
2. Turn the transmitter on by holding down the on/off
button on the right side of the transmitter. The LED will
blink every 4 seconds and the LCD screen will show
the remaining battery life (the transmitter needs to be
charged if there is only 1 bar showing on the battery
icon for the LCD transmitter screen).
3. Place the test light, included in the package contents,
on the contact points as shown in the diagram.
4. Watch the test light as you press the Nick button on
the transmitter. It should light up for just a moment.
The higher the intensity, the brighter the test light will
be.
