Dolomite STEP UP Manual User manual

Operating instructions
UK
Manual Gas Electric

2
Contents Symbols
This symbol means
"Warning"
This symbol means
"Use an Allen key"
This symbol means
"Manual height adjustment"
This symbol means
"Gas spring operated height adjustment"
This symbol means
"Electrical height adjustment"
This symbol means
"Additional information"
Symbols 2
DOLOMITE STEP UP 3
Intended use 3
Guarantee 3
Delivery inspection 3
Preparation 4
Width adjustment 4
Brakes 4
Charging electric motor 4
Product features 4
Adaptation 5
Height adjustment 5
Emergency stop and emergency lowering 5
Adjustment of width between armrests 5
Handle adjustment 5
Product features 6
Accessories 7
Basket 7
Alternative grips 7
Tray 7
Oxygen holder 7
Drip stand 7
Elbow stop 7
Directional lock 8
Wheel 100 mm 8
Hand brake, pair 8
Single hand brake 8
Stand assist 8
Technical data 9
Dimensions and weight 9
Serial number label 9
Electrical data 10
Safety 10
Tests 10
Maintenance and Service 11
Cleaning 11
Maintenance 11
Recycling 11
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP

3
Thank you for choosing DOLOMITE STEP UP.
We have produced a manual for those who are responsible for safe and appropriate adjustment and use of the
aid.
This manual is comprehensive*, with complete instructions regarding the product. Information that is of
particular importance in conjunction with everyday use and safety is reproduced on the product's labels.
Max. user weight is 150 kg
Read carefully through the manual. Ensure that user(s) and persons concerned are familiarised with the
necessary information.
* For information on spare parts refer to the spare parts catalogue on INVACARE'S website or at www.dolomite.biz.
DOLOMITE™®STEP UP
Guarantee
We supply a 2 year guarantee * from the date of delivery. Damage caused by wear to items such as cushions,
wheels, handles and brakes is not covered by the guarantee. Damage that arises due to physical violence or
abnormal use is excluded. Damage caused by users who weigh more than 150 kg is excluded. Maintenance and
operating instructions must be observed for the guarantee to be valid. Expected life cycle is 5 years.
Delivery inspection
Notify the carrier immediately of any transport damage. Remember to keep the packaging until the carrier has
checked the goods and a settlement has been reached.
Intended use
• DOLOMITE STEP UP is a platform support. A platform support is classified as a walking aid that is controlled
using both arms.
• DOLOMITE STEP UP is intended for indoor use.
• DOLOMITE STEP UP Manual and Gas can be used in wet rooms.
• DOLOMITE STEP UP El can be used as an aid in standing up.
• DOLOMITE STEP UP Manual and Gas can be supplemented with the "Stand assist" accessory
(see accessories page 10) and then used as a standing and walking aid.
* Deviations may occur due to local agreements
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP

4

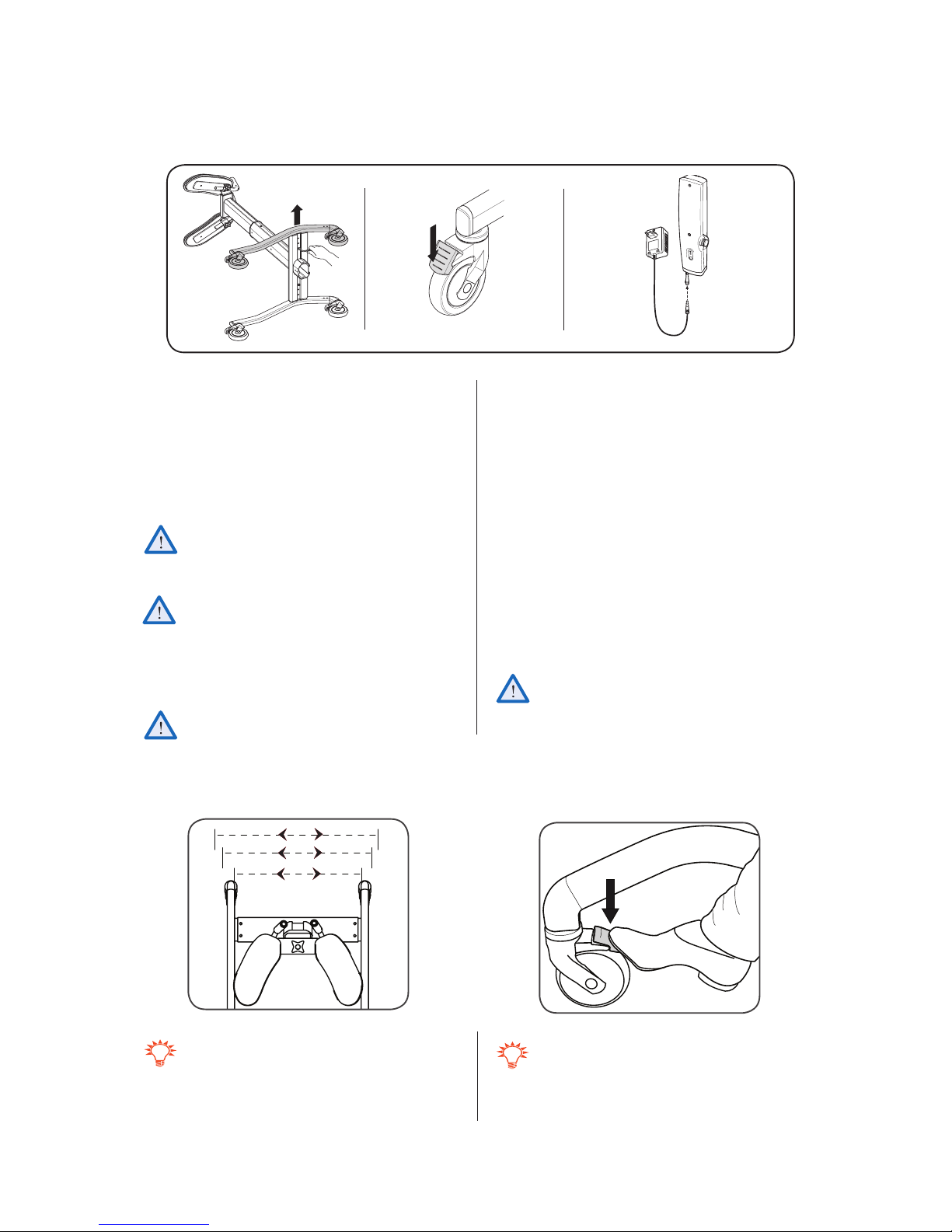

Preparation
1. Width adjustment
Lay the platform support down and then remove the
screw with Allen key no. 6. Adjust the side frame to
the width required and replace the screw, ensure that
it is properly tightened. (10 nM)
Repeat the procedure on the other side.
NB! The right and left side of the frame must
always be adjusted in/out by an equivalent
amount.
NB! Be aware of the risk of getting fingers
pinched when adjusting the side frame!!
2. Brakes
Press down the outer edge of the brake caliper until a
click is heard and the wheel is locked.
NB! Two of the wheels must be locked before
the user is assisted to or from the support
platform.
DOLOMITE STEP UP's leg-room can be varied
in 3 positions.
3. Charging the electric motor
When the battery capacity is low, a warning signal
sounds indicating that it is time to charge the bat-
tery.
We recommend that the battery is fully charged
before the platform support is used for the first
time.
We also recommend that the battery is charged
regularly, e.g. every night, for maximum service life.
Connect the mains cable to the control unit and
the mains socket. When the battery is fully charged,
charging ceases automatically.
NB! Ensure that the emergency stop is
not pushed in when the motor is to be to
charged.
Product features
All brakes are easy to access thanks to the
design of the frame.
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP
1. 2. 3.
1
2
3

5

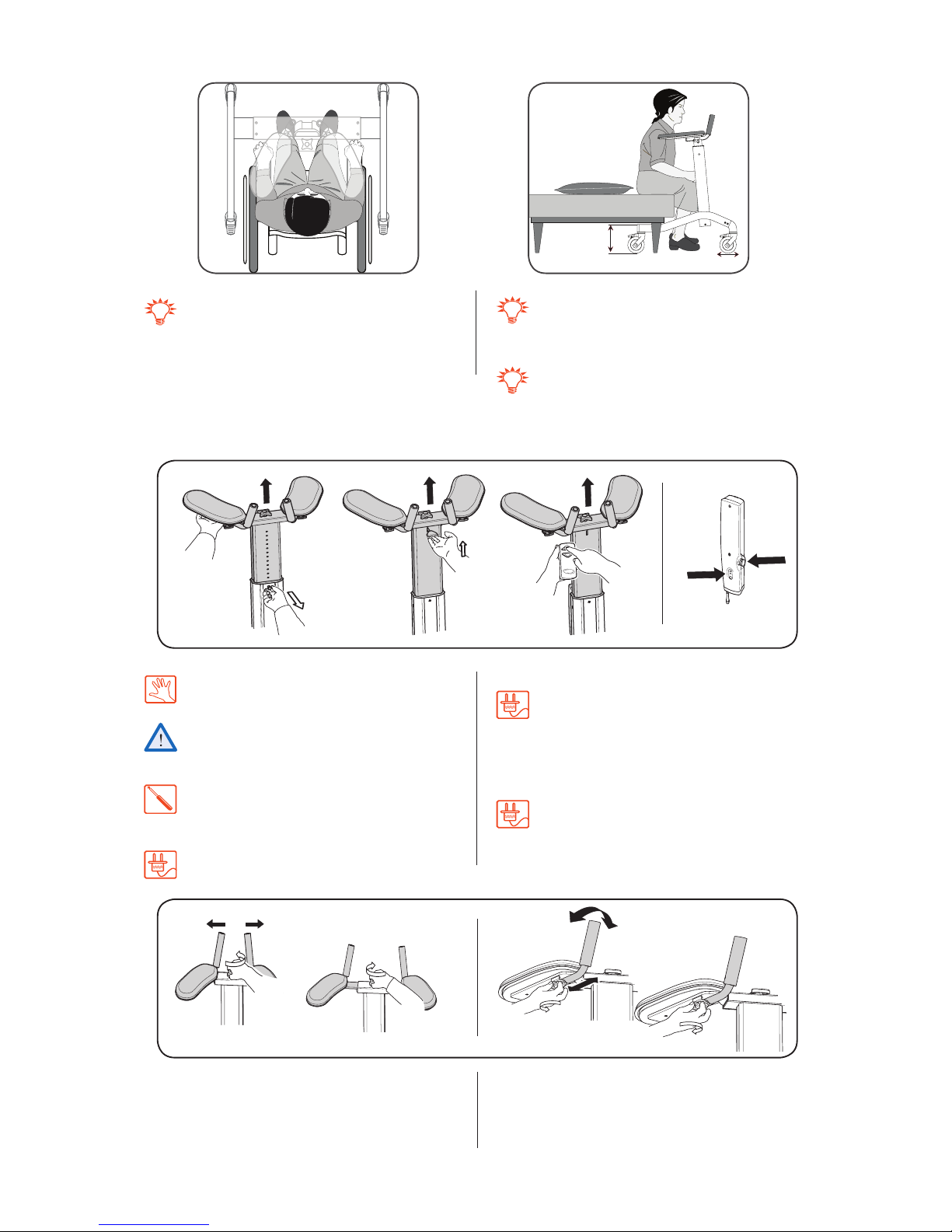

The lower frame has an H shape that provides
an equal amount of space troughout.
Set the external dimensions that are required to
negotiate the most narrow passage in the residence.
The frame is lowered at the rear edge to
facilitate movement to and from bed.
Clearance is 190 mm with the 100 mm
wheel fixture.
Adjustment
1. Height adjustment
Hold the side of the armrest, pull out the pin
and set the required height.
NB! Do not pull out the pin if the user is
putting weight on the support platform
Lift the lever upwards and adjust the support
platform to the required height.
Use the hand control to adjust the support
platform upwards or downwards.
2. Emergency stop and emergency lowering
If it is necessary to make an emergency stop
press the red button (A) on the right of the
control unit. Turn the same button clockwise to
reset.
If emergency lowering is necessary, press the
button on the front of the control unit (B).
3. Adjustment of width between armrests
Loosen the knob that is located between the arm-
rests and adjust sideways to the required width.
Always adjust the armrests symmetrically and lock
them again by doing up the knob.
4. Handle adjustment
Undo the knob that is located under the armrests
and adjust the handles to the required depth and
angle. Lock the handles by retightening the knob
again.
A
B
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP
125 mm
215 mm
1. 2.
3. 4.

6
Regardless of body size, an angle of 25o
between shoulder and wrist position gives
the best conditions to enable the torso to remain
upright. The position is pre-set and is maintained
regardless of width setting.
Set the armrests so that the elbows are
located close to the body. This automatically
produces a stable three point position where the
hands are moved as close to each other as possible
in relation to the user's body size.
Side stops for the elbows are available as
accessories.
The forearm support is inclined 5oin the
horizontal plane in order to produce a
natural and erect position.
The hands are inclined forward 110o from
the forearm support. This produces an
ergonomic positioning of the wrists and the best
conditions for a firm grip.
Alternative grips are available as accessories.
To facilitate height adjustment for the user
we recommend measuring the distance from
elbow to heel while the user is lying on a bed.
DOLOMITE STEP UP has pressure-relieving
material in the cushions and they are made
in order to withstand disinfection. They are securely
attached with microfilm.
For replacement or cleaning remove them by hand.
When refitting ensure they are correctly positioned.
Product features
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP
25º
5º
110º

7

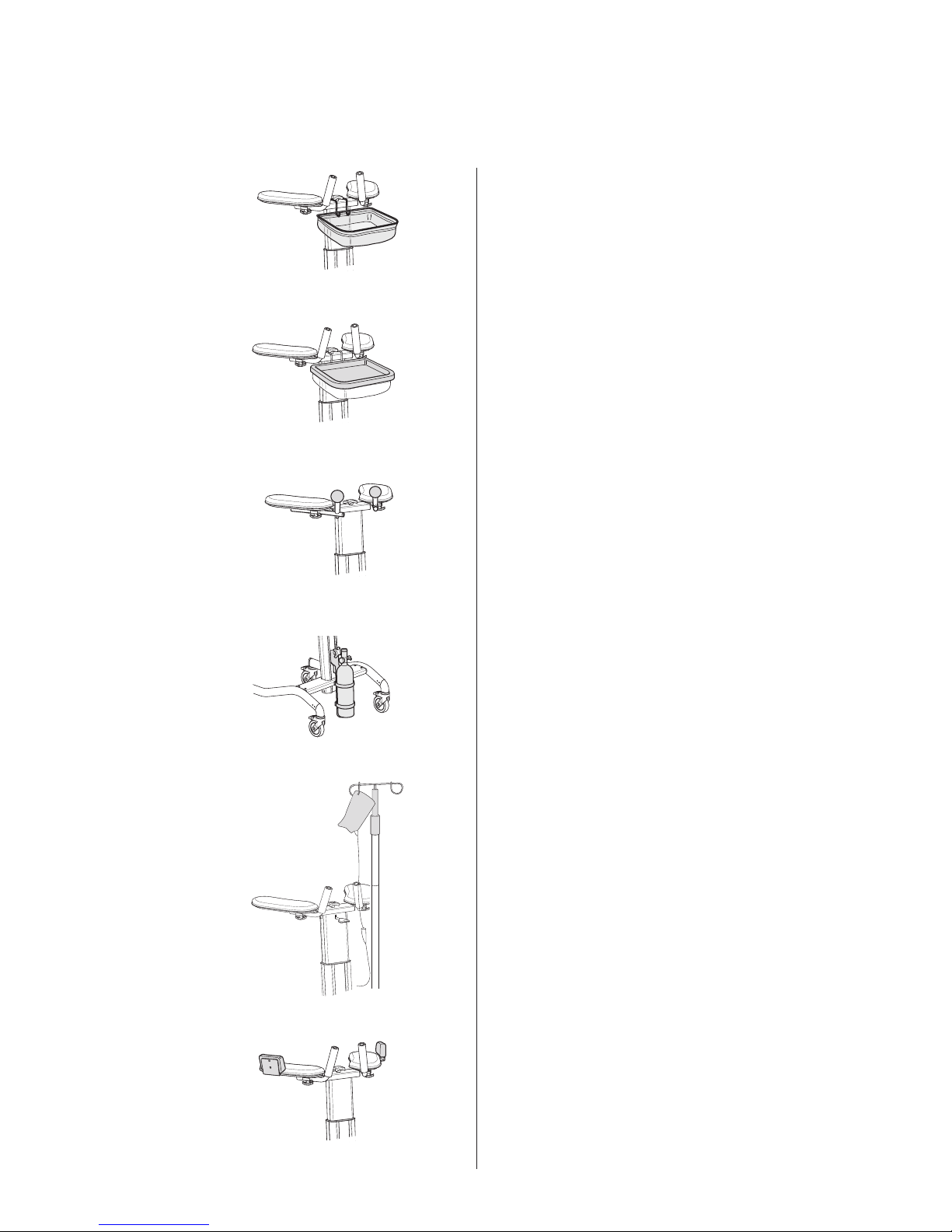

2. Tray
A simple tray that is easy to position at the top of
the basket.
NB! The tray can only be used together with the
basket.
1. Basket
A practical little basket in which to keep belongings.
The basket is simply attached at the top of the
platform support.
3. Alternative grips
Alternative grips are available for those who find it
difficult to close their hand around a round grip.
Accessories
4. Oxygen holder
Makes it possible to secure an oxygen cylinder on
the platform support, fits different types of oxygen
cylinders. Mounted at the front on the column.
5. Drip stand
Makes it possible to suspend a drip bag on
the platform support. Simple to mount on the
column.
6. Elbow stop
Elbow stops for the armrests are available as an
accessories for those who need some extra sup-
port. Elbow stops are sold in pairs and are easily
mounted under the armrest pads.
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP
1.
3.
2.
4.
5.
6.

8
7. Directional lock
The platform support's rear section with a green
latch is only with directional lock. Press down the
latch and swivel the product until a click is heard
and the wheel no longer rotates.
NB! The wheel has no brake when the
directional lock is mounted.
9. Hand brake, pair
The platform support can be fitted with a service-
and parking brake to enable users to activate the
brakes themselves.
12.Stand assist
The Stand Assist accessory is avail-
able for users who need support
to stand. Stand Assist consists of a stand plate,
knee support and harness.
The platform support then acts as a mobility aid
as well.
10.Single hand brake
A single hand brake is also available as an acces-
sory. The single hand brake makes it possible for
the user to activate service- and parking brake with
one hand.
8. Wheel 100 mm
100 mm wheels are available for those who want
to have the frame at a lower height.
11.Stand plate
A stand plate is available as an accessory, the
platform support then also functions as a walking
aid.
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP
7.
9.
12.
10.
8.
11.

9
Technical data
Dimensions and weight
The label for DOLOMITE STEP UP contains all important technical information
1: Article number
2: Product name
3: Serial number
4: Date of manufacture
5: Max. user weight
6: Reference to user's manual
7: Only for indoor use
8: Max. width
9: Manufacturer
1
2 6
4359
8
7
Serial number label
Model
A
1. 580 mm
2. 670 mm
3. 760 mm
B
1. 700 mm
2. 790 mm
3. 880 mm
C
1. 1010 mm
2. 1070 mm
3. 1130 mm
D 870 - 1320 mm
E 340 - 470 mm
F 620 - 750 mm
Wheel
diameter 125 mm
User weight 150 kg
Product
weight 16 kg 18 kg 23 kg
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP
A
E
D
F
B
C
A
E
D
F
B

10
Safety
To be used solely as a platform support.
Standing on the frame is not permitted.
Standing on the armrests is not permitted.
Unevenly distributed weight affects the product's stability
Ensure that all knobs and screws are properly tightened before use.
Widening the frame*
Armrests*
Handle*
Observe caution on sloping ground:
Observe caution on wet surfaces.
The user's max. weight DOLOMITE STEP UP 150 kg.
The "Stand assist" accessory must always be used with the accompanying safety harness.
Platform support with electrical operation must not be used in the shower.
The platform support is equipped with emergency stop and emergency lowering.
Do not use the platform support while charging
No responsibility is taken for changes made to the platform support (adaptations, substandard repairs), outside
INVACARE DOLOMITE's control.
This platform support is tested according to ISO standard SS-EN ISO 11199-3:2006 and fulfils its require-•
ments.
Tests
Electrical data
Voltage out 24 V Operational duration app. 40 cycles without
Voltage in 100-240 V, 50-60 Hz charging
Max. battery capacity 2,9 Ah Tightness class IPX4
Intermittents 10%, max. 2 minutes/ Operative temperature +5°C to +40°C
18 minutes Sound level 48 dB (A)
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP

11
Maintenance and service
Cleaning
•DOLOMITE STEP UP can be cleaned in a washing plant or by means of high pressure water.
•DOLOMITE STEP UP can be cleaned with the most common cleaning agents to be found on the market.
•Never use acids, bases or solvents to clean the product.
•After washing, wipe the platform support dry.
•Remove the motor, control unit and hand control before washing in a washing plant or by means of high
pressure water.
•Wipethemotor,controlunitandhandcontrolwithasoft,drycloth.
To maintain function and safety you should regularly ensure that the the below measures are implemented:
•Checkthatscrews,nutsandboltsaretightenedproperly.
•Ifyourplatformsupportisnotfullyfunctional-contactyourdealerimmediately.
•Defectiveplatformsupportsmustnotbeused.Donotcarryoutanychangesyourself!
•Theplatformmustnotbepermanentlystoredinanenvironmentwithahighatmospherichumidity!
Maintenance
Recycling
This product has been supplied from an environmentally-conscious supplier that fulfils the standards in the Waste
Electrical and Electronic Equipment (WEEE) Directive 2002/96/CE.
This product can contain substances that can damage the environment if they are not recycled in accordance
with national legislation.
The "crossed out dustbin" symbol is placed on this product to encourage recycling where possible.
Please be environmentally responsible and recycle this product through your local recycling station.
All electrical parts must be removed and recycled as electrical components. Steel and aluminium components
are recycled as scrap metal. Plastic parts shall be recycled or incinerated. Recycling of parts must always comply
with local or national laws.
DOLOMITE STEP UP DOLOMITE STEP UP
DOLOMITE STEP UP DOLOMITE STEP UP

Art.no. 1532567-1 100909
Sales company
Manufacturer
Italy:
Invacare Mecc San s.r.l., Via dei Pini 62
I-36016 Thiene (VI)
Tel: [phone]
Fax: [phone]
[email protected]
Holland:
Invacare BV, Celsiusstraat 46
NL-6716 BZ Ede
Tel: (31) (0)318 695 757
Fax: (31) (0)318 695 758
[email protected]
[email protected]
Norway:
Invacare AS, Grensesvingen 9, Postboks 6230, Etterstad
N-0603 Oslo
Tel: (47) (0)22 57 95 00
Fax: (47) (0)22 57 95 01
[email protected]
[email protected]
Austria:
Invacare Austria GmbH, Herzog Odilostrasse 101
A-5310 Mondsee
Tel: [phone]
Fax: [phone]
[email protected]
Portugal:
Invacare Lda, Rua Estrada Velha, 949
P-4465-784 Leça do Balio
Tel: (351) (0)225 1059 46/47
Fax: (351) (0)225 1057 39
[email protected]
Sweden & Finland:
Invacare AB, Fagerstagatan 9
S-163 91 Spånga
Tel: [phone], Fax: (46) (0)8 761 81 08
[email protected]
[email protected]
Switzerland:
Invacare AG, Benkenstrasse 260
CH-4108 Witterswil
Tel: (41) (0)61 487 70 80
Fax: (41) (0)61 487 70 81
[email protected]
UK:
Invacare Ltd, Pencoed Technology Park, Pencoed,
UK-Bridgend CF35 5HZ
Tel: (44) (0)1656 776 200
Fax: (44) (0)1656 776 201
[email protected]
Belgium & Luxembourg:
Invacare nv, Autobaan 22,
B-8210 Loppem
Tel: (32) (0)50 83 10 10
Fax: (32) (0)50 83 10 11
[email protected]
Denmark:
Invacare A/S , Sdr. Ringvej 37
DK-2605 Brøndby
Tel: (45) (0)36 90 00 00
Fax: (45) (0)36 90 00 01
[email protected]
Germany:
Invacare Aquatec GmbH, Alemannenstraße 10
D-88316 Isny
Tel: (49) (0)75 62 7 00 0
Fax: (49) (0)75 62 7 00 66
[email protected]
Ulrich Alber GmbH, Vor dem Weissen Stein 21
D-72461 Albstadt-Tailfingen
Tel: (49) (0)7432 2006 0,
Fax: (49) (0)7432 2006 299
[email protected]
European Distributor Organisation:
Invacare, Kleiststraße 49
D-32457 Porta Westfalica
Tel: (49) (0)57 31 754 540
Fax: (49) (0)57 31 754 541
[email protected]
Spain:
Invacare SA, c/Areny s/n, Polígon Industrial de Celrà
E-17460 Celrà (Girona)
Tel: (34) (0)972 49 32 00,
Fax: (34) (0)972 49 32 20
[email protected]
France:
Invacare Poirier SAS, Route de St Roch
F-37230 Fondettes
Tel: (33) (0)2 47 62 64 66
Fax: (33) (0)2 47 42 12 24
[email protected]
Ireland:
Invacare Ireland Ltd, Unit 5 Seatown Business Campus
Seatown Road, Swords, County Dublin - Ireland
Tel: [phone]
Fax: [phone]
[email protected]
INVACARE DOLOMITE AB, Box 200, 343 75 DIÖ, SWEDEN
TEL [phone], FAX [phone]
