Dometic DM50CF User manual

DM50CD, DM50CF
Drawer Minibar
Installation and Operating Manual. . . . . . . . 3
Cajón minibar
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .23
Minibar à tiroir
Instrucciones de montaje y de uso . . . . . . .44
Minibar de gaveta
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .65
EN
FR
ES
PT
REFRIGERATION
DESIGN
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 1 Montag, 13. Dezember 2021 10:53 10

© 2021 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 2 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Explanation of symbols
3
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and thatyou understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit
documents.dometic.com.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1 Explanation of symbols
D
!
DANGER!
Safety instruction: Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 3 Montag, 13. Dezember 2021 10:53 10

EN
Safety instructions DM50CD, DM50CF
4
!
A
I
2 Safety instructions
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Ensure that the minibar has been installed by a qualified technician in
accordance with the Dometic installation manual.
• Do not operate the minibar if it is visibly damaged.
• If this minibar's power cable is damaged, it must be replaced by the
manufacturer, service agent or a similarly qualified person in order to
prevent safety hazards.
• This minibar may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
• When positioning the minibar, ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable socket-outlets or portable power sup-
plies at the rear of the appliance.
Fire hazard
• The refrigerant in the refrigerant circuit is highly flammable.
In the event of any damage to the refrigerant circuit:
– Switch off the minibar.
– Avoid naked flames and sparks.
– Air the room well.
• Keep ventilation openings, in the minibar enclosure or in the built-in
structure, clear of obstruction.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 4 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Safety instructions
5
• Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.
• Do not open the refrigerant circuit under any circumstances.
• Do not use electrical devices inside the minibar unless they are
recommended by the manufacturer for that purpose.
Explosion hazard
• Do not store any explosive substances, such as spray cans with
propellants, in the minibar.
Health hazard
• This minibar can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the minibar in a safe way and understand
the hazards involved.
• Children shall not play with the minibar.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload the
minibar.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Risk of crushing
• Do not put your fingers into the hinge.
Health hazard
• Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate is the same as
that of the power supply.
• The minibar is not suitable for storing substances which are caustic or
contain solvents.
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
• Keep the drainage outlet clean at all times.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 5 Montag, 13. Dezember 2021 10:53 10

EN
Safety instructions DM50CD, DM50CF
6
• Only carry the minibar upright.
2.2 Operating the minibar safely
DDANGER! Failure to obey these warnings will result in death or
serious injury.
Electrocution hazard
• Do not touch exposed cables with your bare hands.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the minibar, ensure that the power supply line and the
plug are dry.
Health hazard
• Make sure that you only put items in the minibar which may be chilled
at the selected temperature.
• Food may only be stored in its original packaging or in suitable
containers.
• Opening the door for long periods can cause significant increase of
the temperature in the compartments of the minibar.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• If the minibar is left empty for long periods:
– Switch off the minibar.
– Defrost the minibar.
– Clean and dry the minibar.
– Leave the door open to prevent mould developing within the
minibar.
ANOTICE! Damage hazard
• Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.).
• Never immerse the minibar in water.
• Protect the minibar and the cable against heat and moisture.
• Make sure that foodstuffs do not touch the walls of the cooling area.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 6 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Scope of delivery
7
3Scopeofdelivery
The following main alternatives are obtainable:
• Minibar DM50CD with door panel, without lock
• Minibar DM50CD with door panel, with lock
• Minibar DM50CF without door panel, without lock
• Minibar DM50CF without door panel, with lock
4 Intended use
The refrigeration appliance (also referred to as minibar) is intended to be used in
household and similar applications such as:
• Staff kitchens in stores, offices and other work areas
•Farmhouses
• By clients in hotels, motels and other residential type environments
• Bed and breakfast type environments
• Catering and similar non-retail applications
The minibar is not suitable for installation in caravans or mobile homes.
Quantity Description
1 Minibar
1 AC connection cable
4 Screw ø4 x 45 mm (ø0.16 x 1.77 in.,
installation)
4 Plug (Installation)
1 Handle DM50CD only
2 Plug (Handle installation) DM50CD only
2 Plug (Wooden panel) DM50CF wooden version
only
1 Lock decor (Wooden panel) DM50CF wooden version
with lock only
2 Key Lock version only
1 Installation and Operating manual
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 7 Montag, 13. Dezember 2021 10:53 10

EN
Intended use DM50CD, DM50CF
8
The minibar is intended for installation in a piece of cabinetry or an installation niche.
The minibar is designed exclusively for cooling and storing of beverages and foods
in closed containers.
The minibar is not suitable for storing fresh foods and medicine or freezing food-
stuffs.
This minibar is only suitable for the intended purpose and application in accordance
with these instructions.
This manual provides information that is necessary for proper installation and/or
operation of the minibar. Poor installation and/or improper operating or mainte-
nance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 8 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Technical description
9
5 Technical description
The minibar has a main drawer for bottles and cans as well as a mini drawer for
miniatures and snacks. The main drawer has room for 23 bottles with a maximum
height of 27.5 cm (10.8 in.).
The minibar DM50CD comes with a anthracite panel and pull handle.
The minibar DM50CF is delivered without panel and is prepared for fitting the
hotel's own door decor.
A lock is optionally available.
5.1 Description of the device

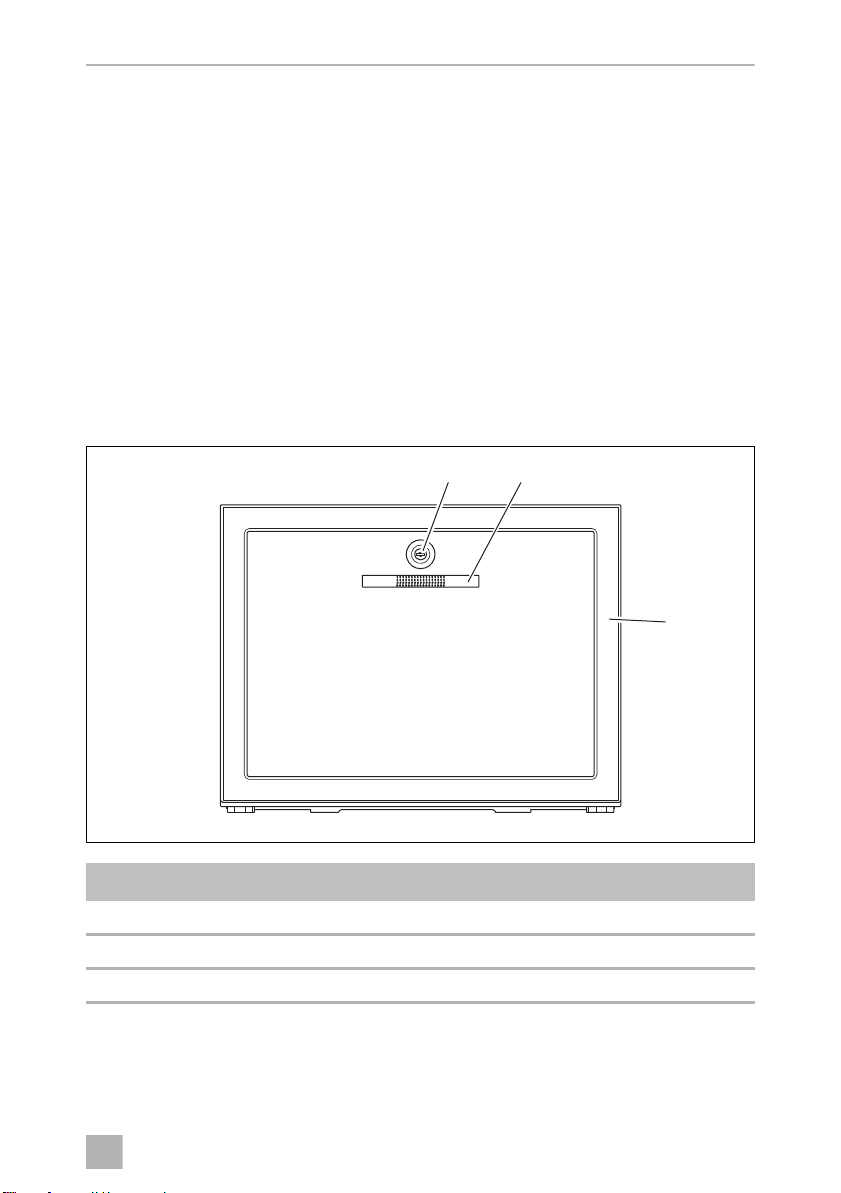

Front panel
Item Description
1 Lock (optional)
2 Handle (DM50CD only)
3 Door panel (DM50CD only)
12
3
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 9 Montag, 13. Dezember 2021 10:53 10

EN
Technical description DM50CD, DM50CF
10

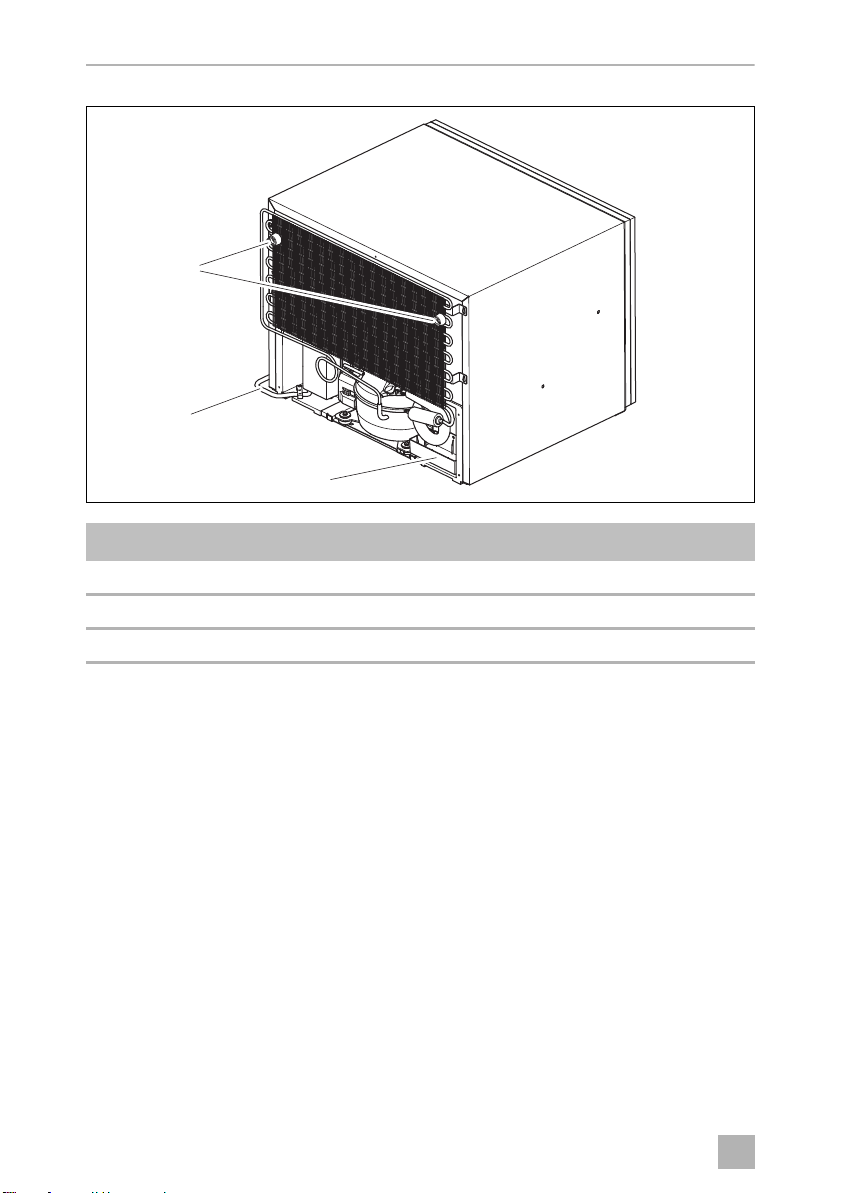

Rear side
Item Description
1 Stopper
2 AC connection cable
3 Drip tray
2
3
1
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 10 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Technical description
11

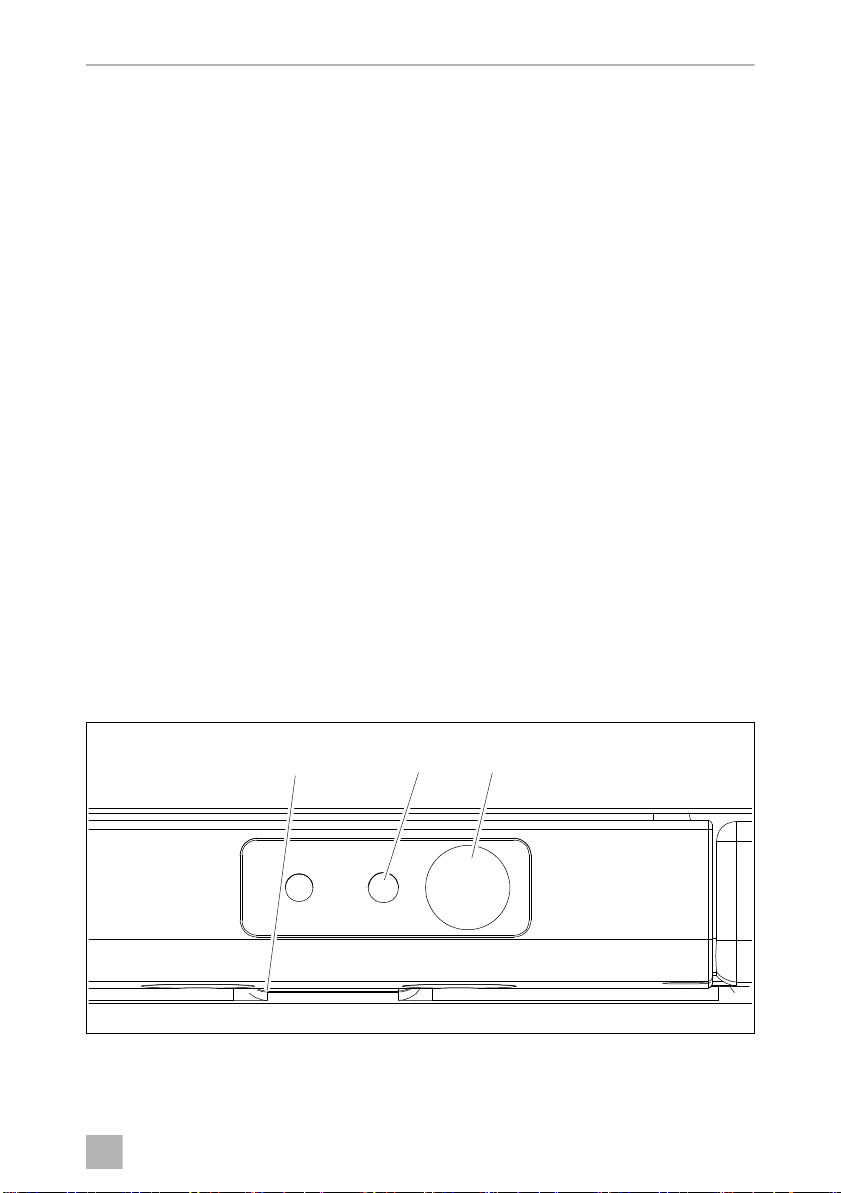

Control panel (inside the device)
Item Description
1 Lamp
2 Error LED
3 Status LED
4 Setting button
SET
EP
Press“SET”to enter SLEEP mode
2 431
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 11 Montag, 13. Dezember 2021 10:53 10

EN
Technical description DM50CD, DM50CF
12

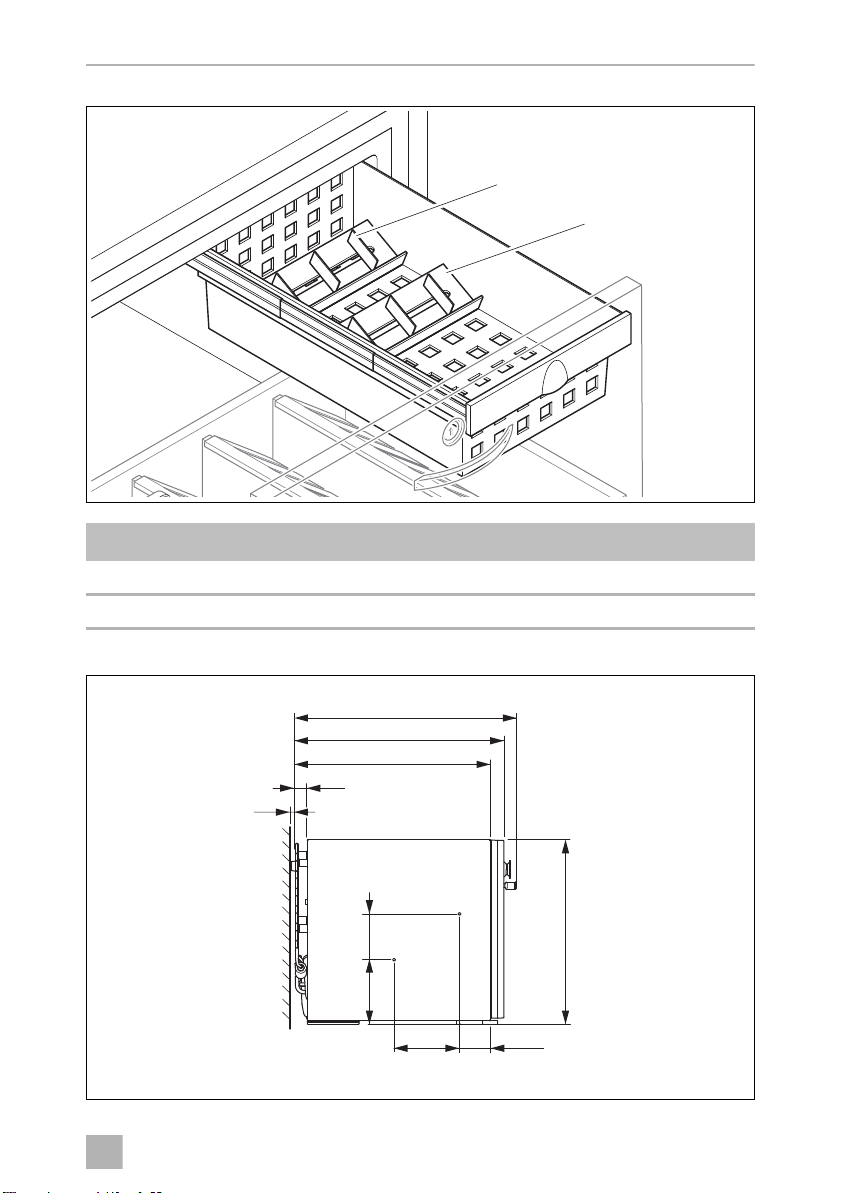

Main drawer
Item Description
1 Small bottle holder
2 Wide divider
3 Separator
4 Bottle finger
5 Small divider
2
1
3
4
5
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 12 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Technical description
13
Mini drawer
Dimensions
Item Description
1 Rotatable divider
2 Miniature bottle holder
1
2
450 (17.7 in.)
30 mm (1.2 in.)
10 mm (0.4 in.)
480 mm (18.9 in.)
508 mm (20 in.)
423 mm (16.7 in.)
71.2 mm (2.8 in.)
150 mm
(5.9 in.)
147.8 mm (5.8 in.)
105 mm (4.1 in.)
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 13 Montag, 13. Dezember 2021 10:53 10

EN
Installation DM50CD, DM50CF
14
6 Installation
!
6.1 Notes on mounting into furniture
You can mount the minibar in four ways into furniture. Choose your favored
alternative according to the following figure (page 15).
Observe the following:
• The cut-out dimensions H x W x D are:
– DM50CD: 443 x 570 x 490 mm (17.4 x 22.4 x 19.3 in.)
– DM50CF: 443 x 570 x (488 + d) mm (17.4 x 22.4 x (19.2 + d) in.)
d is the thickness of the hotel‘s own decor
• The clearance between the minibar‘s back and the furniture wall should be
10 mm (0.4 in.) or more.
• The ventilation openings for the chosen alternative have to be produced as
shown in following figure (page 15).
• Air passing through the inlet air duct must not be heated by any heat sources
(heaters, direct sunlight, gas ovens etc.).
I
WARNING! Fire hazard
• Damage to the refrigerant circuit at the back of the minibar causes a
fire hazard as the cooling agent is highly flammable. To avoid a
damage to the refrigerant circuit due to instability of the minibar,
always fix the minibar in accordance with the instructions.
• When positioning the minibar, ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the minibar.
• The AC plug must remain accessible after installation to allow for
disconnection from the AC power supply.
NOTE
The minibar must be leveled carefully to ensure proper function.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 14 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Installation
15
AB
C
D
200 cm²
(31 in²)
200 cm²
(31 in²)
200 cm²
(31 in²)
200 cm²
(31 in²)
200 cm²
(31 in²)
200 cm²
(31 in²)
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 15 Montag, 13. Dezember 2021 10:53 10

EN
Installation DM50CD, DM50CF
16

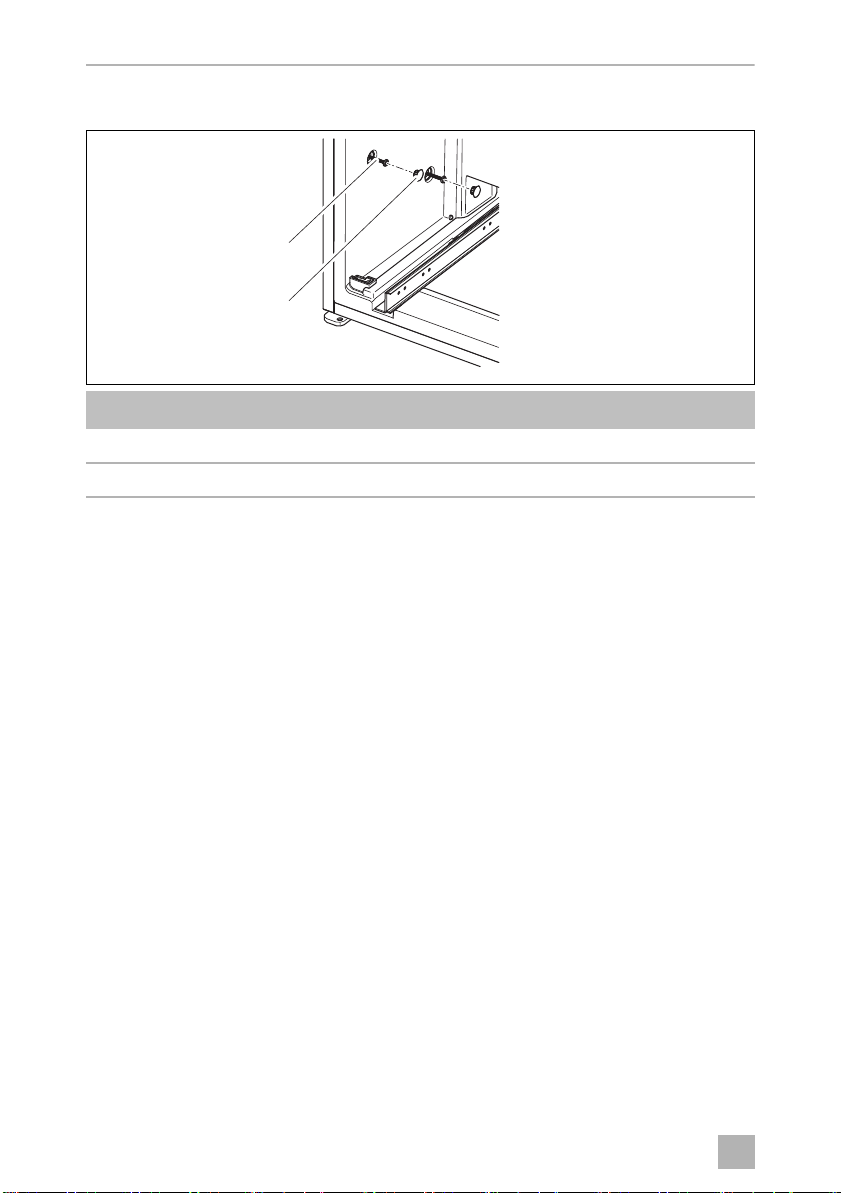

6.2 Mounting the minibar into a piece of furniture
1. Fasten the minibar with the four screws (1).
2. Insert the four plugs (2) into the boring.
6.3 Connecting the minibar electrically
➤Connect the AC connection cable to the AC mains supply.
✔The status LED lights up.
✔The minibar starts cooling the interior.
6.4 Mounting hotel's own door decor (DM50CF only)
The hotel's own door decor has to comply with the following requirements:
• Maximum weight: 4 kg (8.8 lb.)
• Maximum thickness: 18 mm (0.7 in.)
➤Fasten the decor with four screws.
Mounting the lock (lock version only)
1. Drill a hole with a diameter of 35 mm (1.4 in.) into the decor.
2. Mount the lock together with the lock decor.
Item Description
1 Screw ø4 x 45 mm (ø0.16 x 1.77 in.)
2Plug
2
1
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 16 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Operation
17
7Operation
7.1 Saving energy
• Only open the minibar as often and for as long as necessary.
• Avoid unnecessarily low temperature settings.
• For optimal energy consumption, position the shelves and drawers according to
their position on delivery.
• On a regularly basis, make sure the door seal still fits properly.
• Clean dust and dirt from the condenser at regular intervals.
7.2 Using the minibar
The minibar starts cooling when connected to power. During normal operation the
Status LED is glowing. If an error occurs the Error LED is blinking (see chapter “Trou-
bleshooting” on page 20).
SLEEP mode
In “SLEEP” mode the compressor stops running, and the minibar stops cooling.
“SLEEP” mode will only last 10 hours. The minibar will automatically resume normal
cooling mode after 10 hours.
If the power supply is disconnected during the “SLEEP” mode and then resumed,
the status of the “SLEEP” mode will not be affected.
SET
EP
Press“SET”to enter SLEEP mode
12
3
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 17 Montag, 13. Dezember 2021 10:53 10

EN
Operation DM50CD, DM50CF
18

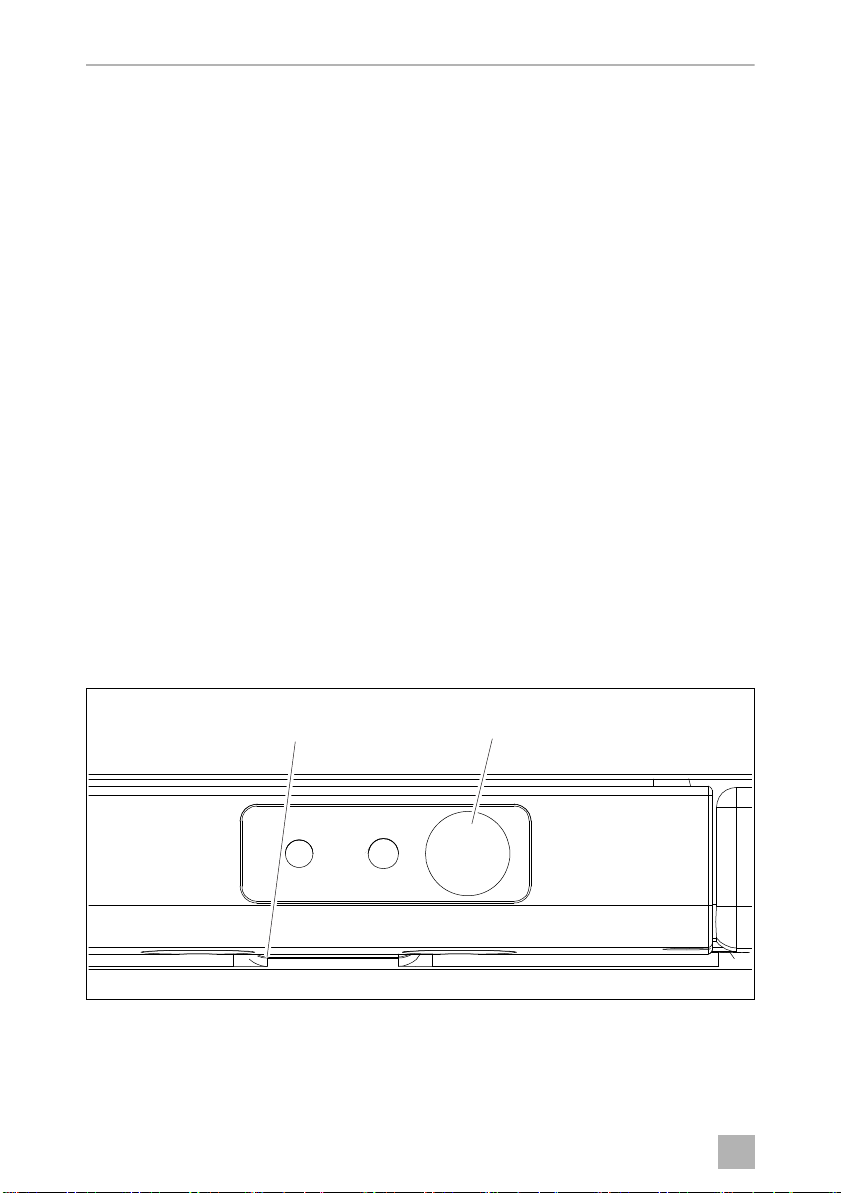

Entering “SLEEP” mode:
➤Press briefly the setting button (1).
✔The internal lamp (3) turns off, the status LED (2) is still on.
The minibar stops cooling.
Leaving “SLEEP” mode:
➤Press briefly the setting button (1).
✔The internal lamp (3) turns on, the status LED (2) is still on.
The minibar resumes cooling.
7.3 Setting the temperature
To avoid food waste, note the following:
• Keep temperature fluctuation as low as possible. Only open the minibar as often
and for as long as necessary. Store the foodstuff in such a way that the air can still
circulate well.
• The minibar is equipped with an automatic temperature regulation function.
Select the average of the possible temperature values.
• Adjust the temperature to the quantity and type of the foodstuff.
The minibar is set by default to a cooling temperature of 7 °C (47 °F) at an ambient
temperature of 25 °C (77 °F).
SET
EP
Press“SET”to enter SLEEP mode
1
2
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 18 Montag, 13. Dezember 2021 10:53 10

EN
DM50CD, DM50CF Cleaning and maintenance
19
You can use the setting button (1) to set the cooling temperature to one of three
values:4°C,7°Cand12°C(39°F,45°Fand54°F).
Thereby the temperature will be changed in the order 4 °C … 7 °C … 12 °C … 4 °C
(39 °F … 45 °F … 54 °F … 39 °F) etc.
1. Press the setting button (1) and keep it pressed for 3 s, until the lamp (2) starts to
blink.
2. Press immediately the setting button (1) again.
✔The lamp (2) indicates the setting temperature:
– 4 °C (39 °F): the lamp flashes five times in three intervals
– 7 °C (45 °F): the lamp flashes three times in three intervals
– 12 °C (54 °F): the lamp flashes once in three intervals
I
8 Cleaning and maintenance
!
A
➤Occasionally clean the device interior and exterior with a damp cloth.
NOTE
The minibar sets the cooling temperature automatically to 7 °C (45 °F),
when it is connected to a power source.
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooler.
• Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 19 Montag, 13. Dezember 2021 10:53 10

EN
Troubleshooting DM50CD, DM50CF
20
9 Troubleshooting
10 Warranty
Refer to the sections below for information about warranty and warranty support in
the US, Canada, and all other regions.
10.1 United States and Canada
LIMITED WARRANTY AVAILABLE AT
DOMETIC.COM/WARRANTY.
IF YOU HAVE QUESTIONS, OR TO OBTAIN A COPY OF THE LIMITED WARRANTY
FREE OF CHARGE, CONTACT:
DOMETIC CORPORATION
CUSTOMER SUPPORT CENTER
2320 INDUSTRIAL PARKWAY
ELKHART, INDIANA 46516
1-800-544-4881
[email protected]
Fault Possible cause Suggested remedy
Device does not
function, Status LED
does not glow.
No voltage present in
the AC socket.
Try using another power socket.
Power circuitry is
defective.
This can only be repaired by an
authorized service agent.
The device does not
cool (plug is inserted,
Status LED glows).
Defective compressor This can only be repaired by an
authorized service agent.
The Error LED flashes
once per second.
Temperature sensor is
defective.
This can only be repaired by an
authorized service agent.
Device does not cool
sufficiently, Status LED
glows, Error LED does
not glow.
Defective compressor This can only be repaired by an
authorized service agent.
Poor ventilation Check the ventilation.
Clean the filter underneath the device.
DometicDM50C_IOM_4445101917_AMER4_xxxx-xx-xx.book Seite 20 Montag, 13. Dezember 2021 10:53 10
