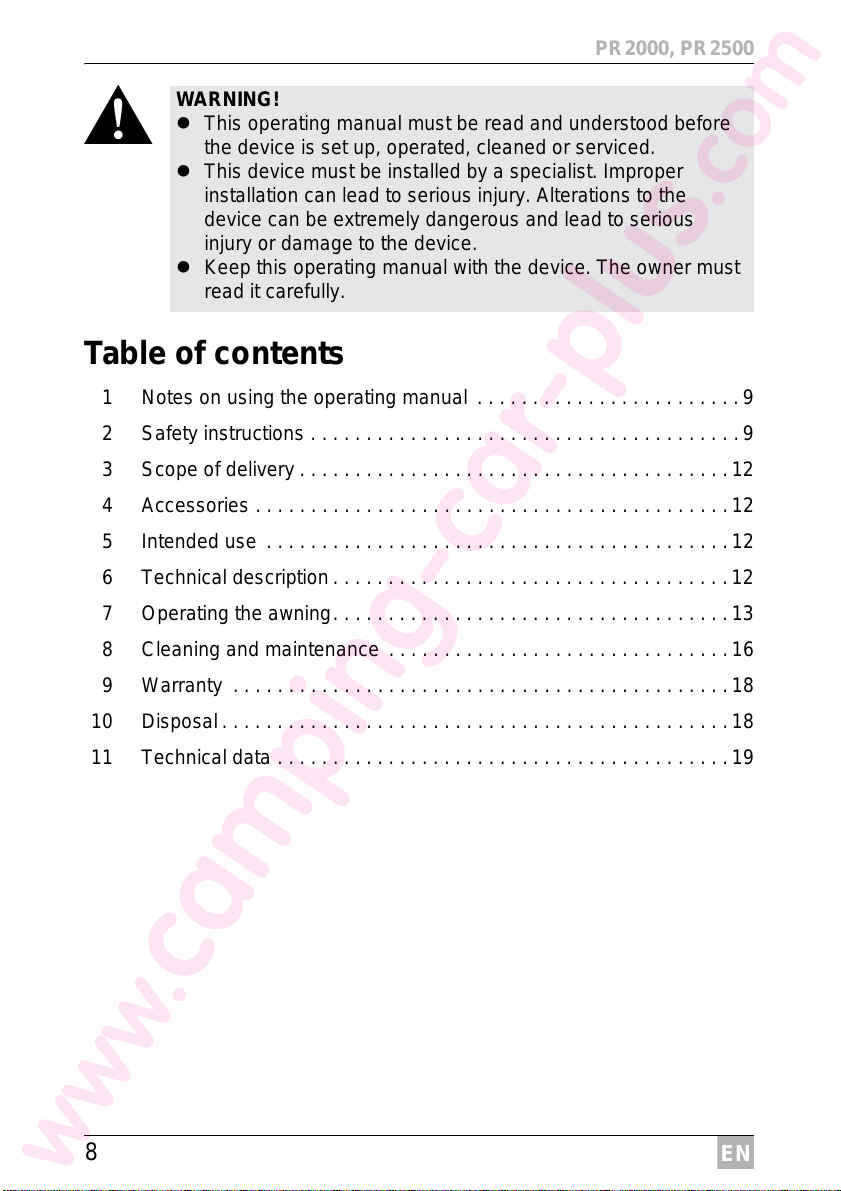

Table of contents
1 Notes on using the operating manual . . . . . . . . . . . . . . . . . . . . . . . .9
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
7 Operating the awning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
8 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
WARNING!
This operating manual must be read and understood before
the device is set up, operated, cleaned or serviced.
This device must be installed by a specialist. Improper
installation can lead to serious injury. Alterations to the
device can be extremely dangerous and lead to serious
injury or damage to the device.
Keep this operating manual with the device. The owner must
read it carefully.
www.
camping-car-plus
.com

EN
PR2000, PR2500 Notes on using the operating manual
9

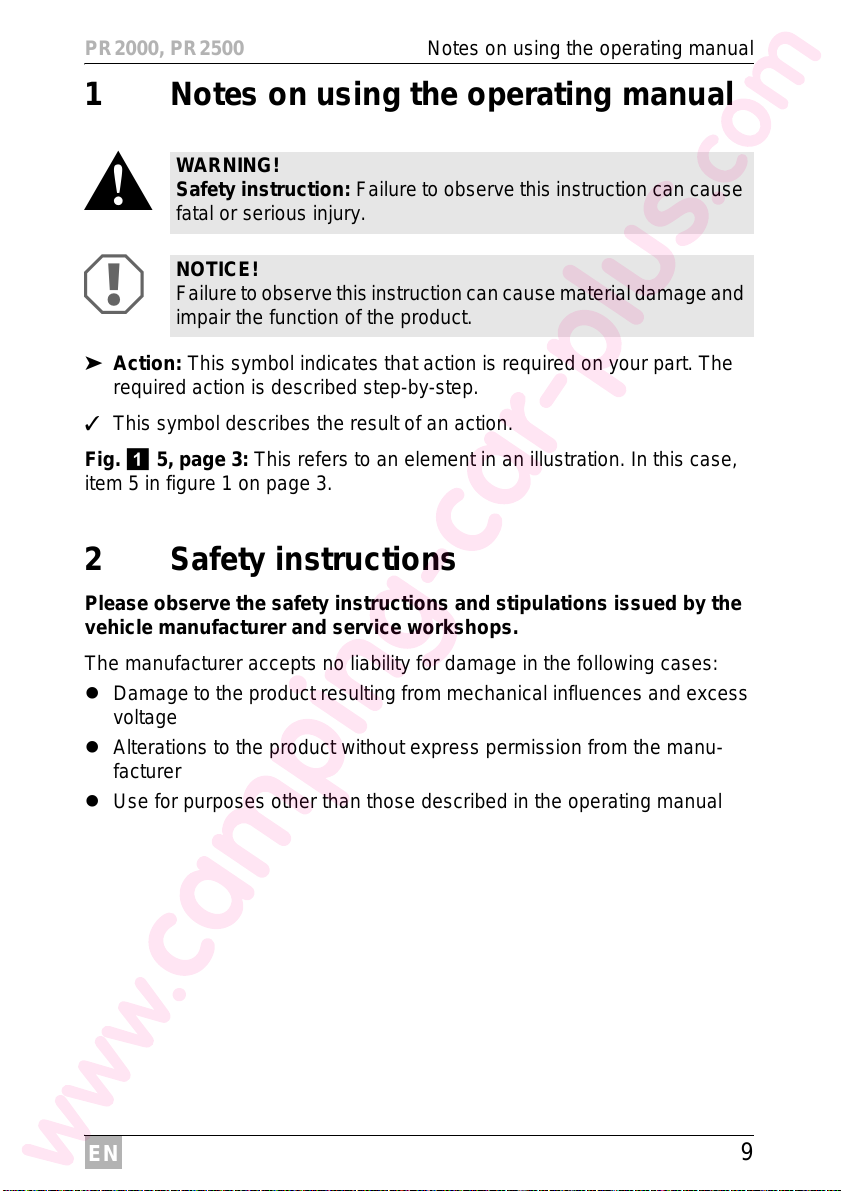

1 Notes on using the operating manual
!
A
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
Fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 Safety instructions
Please observe the safety instructions and stipulations issued by the
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
Damage to the product resulting from mechanical influences and excess
voltage
Alterations to the product without express permission from the manu-
facturer
Use for purposes other than those described in the operating manual
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
NOTICE!
Failuretoobservethisinstructioncancause materialdamageand
impair the function of the product.
www.
camping-car-plus
.com

EN
Safety instructions PR2000, PR2500
10
Please note the following warnings:
!WARNING!
Before starting your journey, check that the awning is fully
retracted. Never move the vehicle when the awning is open.
Never drive with the crank inserted. Remove the crank before
starting your journey.
Do not drive the vehicle if the fabric is damaged or torn, even if
the awning has been properly retracted. The awning arms are
held in place by the fabric. If the fabric rips while driving, the
awning will suddenly shoot out. This can lead to serious injury.
Secure the awning so that it cannot extend suddenly and
unexpectedly while driving.
Do not open the awning while driving.
Do not open the awning in strong winds or snowfall.
Retract the awning if strong winds, heavy rain or snowfall are
imminent.
Make sure that water or snow does not accumulate on the
fabric. Otherwise this could damage the awning or the awning
arms could collapse and cause severe injury or fatality.
Do not approach the awning
– if it was left open during heavy winds
– if pools of water have formed on it
– if snow has accumulated on it
– if any debris is on the awning fabric.
The awning may move unexpectedly, become unstable and
bend or break.
Do not leave the extended awning unattended. Retract the
awning before leaving your location.
Keep a safe distance away from the awning when having
barbecues or open fires. The fabric can be damaged by heat or
catch fire.
This device can be used by children aged 8 years or over, as
well as by persons with diminished physical, sensory or mental
capacities or a lack of experience and knowledge, providing
they are supervised, or have been taught how touse the device
safely and are aware of the resulting risks.
Childrenmust be supervisedtoensurethattheydo not play with
the device.
www.
camping-car-plus
.com

EN
PR2000, PR2500 Safety instructions
11
ANOTICE!
Park the motorhome or caravan so that no debris (branches,
leaves or similar) can get onto the fabric.
The fabric of the awning shouldnot hang down at the edges but
must be taut at all times. If the fabric hangs down, it could rub
on the arms and get damaged.
The fabric should not sag in the middle with long awnings.
Only retract the awning, when the fabric is free of debris
(branches, leaves or similar). Otherwise the awning can be
damaged when it is retracted.
Keep the awning free of dirt to prevent abrasions, stains and
mildew.
Only retract the awning if it is wet for safety reasons. Extend it
againas soonaspossible.Otherwise,mildeworstains canform
or the colour may fade.
Never bend an awning arm or the cover down to drain water off
the awning. This can bend the awning and impair its function.
Donot hang anyobjects onthe awning,on the frontcover or the
awning arms.
Donotuseanysprays(e.g.insectrepellent,hairspray)near the
awning. This will soil the fabric or the water-repellent effect of
the fabric will be lost.
If there is insufficient space above the door after the awning is
mounted, the door must remain closed when retracting or
extending to avoid the door making contact with the arms or the
front panel.
The required space depends on the design of the door (door
width, swing or sliding door) as well as the set awning angle of
inclination.
www.
camping-car-plus
.com

EN
Scope of delivery PR2000, PR2500
12

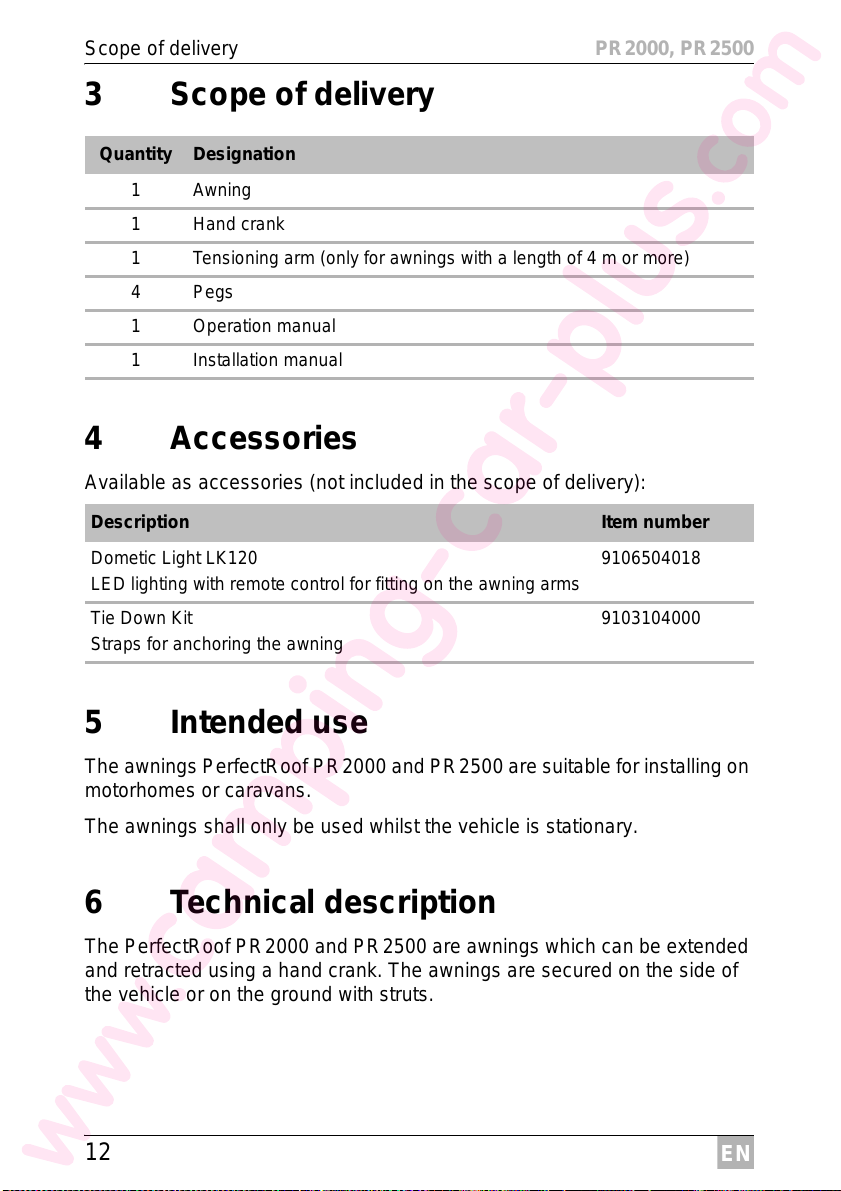

3 Scope of delivery
4 Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The awnings PerfectRoof PR2000 and PR2500 are suitable for installing on
motorhomes or caravans.
The awnings shall only be used whilst the vehicle is stationary.
6 Technical description
The PerfectRoof PR2000 and PR2500 are awnings which can be extended
and retracted using a hand crank. The awnings are secured on the side of
the vehicle or on the ground with struts.
Quantity Designation
1 Awning
1 Hand crank
1 Tensioning arm (only for awnings with a length of 4 m or more)
4 Pegs
1 Operation manual
1 Installation manual
Description Item number
Dometic Light LK120
LED lighting with remote control for fitting on the awning arms 9106504018
Tie Down Kit
Straps for anchoring the awning 9103104000
www.
camping-car-plus
.com

EN
PR2000, PR2500 Operating the awning
13

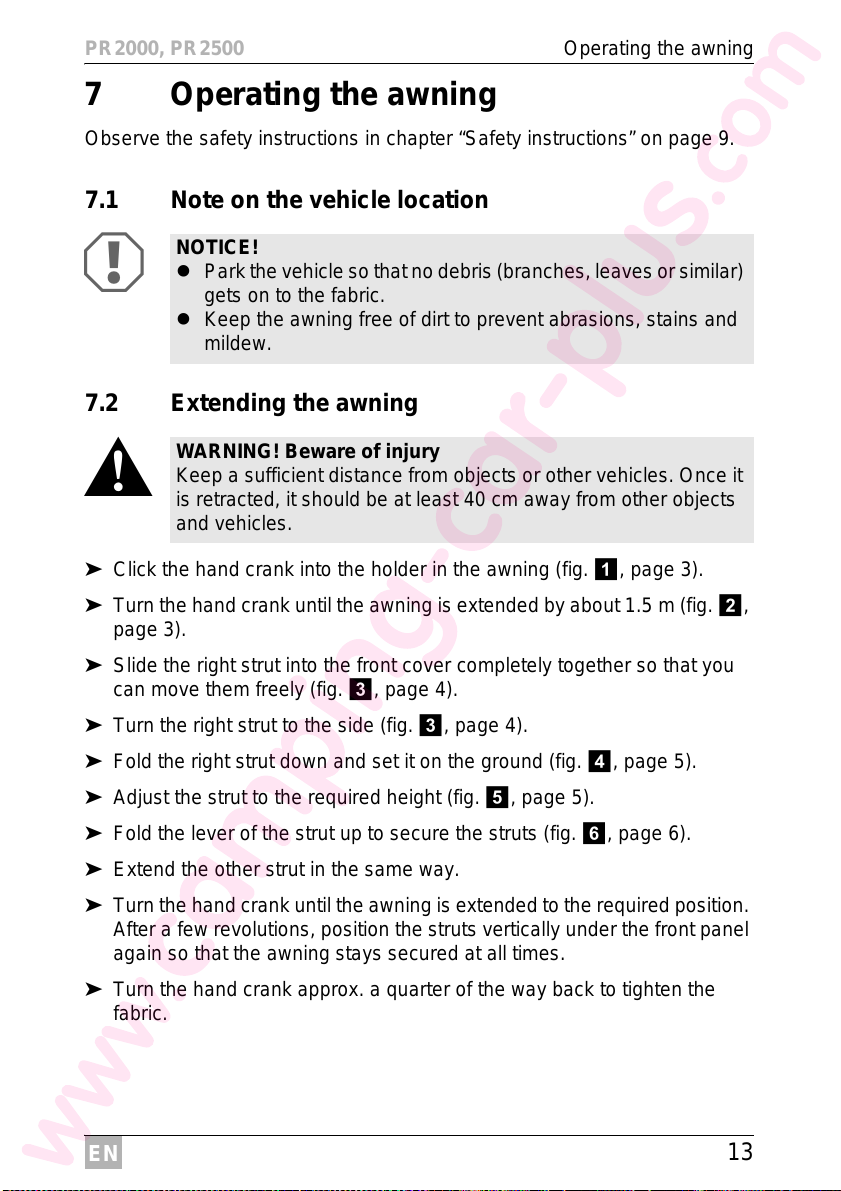

7 Operating the awning
Observe the safety instructions in chapter “Safety instructions” on page 9.
7.1 Note on the vehicle location
A
7.2 Extending the awning
!

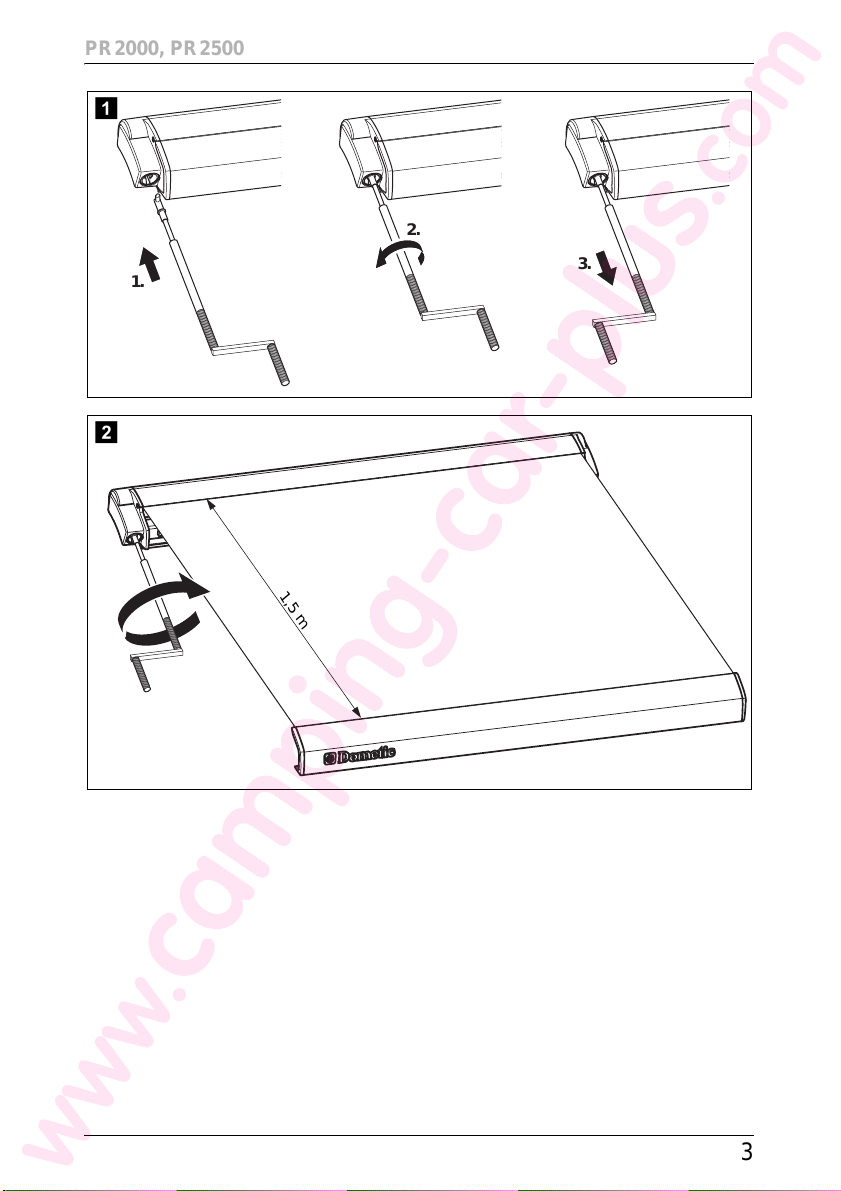

➤Click the hand crank into the holder in the awning (fig. 1, page 3).
➤Turn the hand crank until the awning is extended by about 1.5 m (fig. 2,
page 3).
➤Slide the right strut into the front cover completely together so that you
can move them freely (fig. 3, page 4).
➤Turn the right strut to the side (fig. 3, page 4).
➤Fold the right strut down and set it on the ground (fig. 4, page 5).
➤Adjust the strut to the required height (fig. 5, page 5).
➤Fold the lever of the strut up to secure the struts (fig. 6, page 6).
➤Extend the other strut in the same way.
➤Turn the hand crank until the awning is extended to the required position.
After a few revolutions, position the struts vertically under the front panel
again so that the awning stays secured at all times.
➤Turn the hand crank approx. a quarter of the way back to tighten the
fabric.
NOTICE!
Park the vehicle so that no debris (branches, leaves or similar)
gets on to the fabric.
Keep the awning free of dirt to prevent abrasions, stains and
mildew.
WARNING! Beware of injury
Keep a sufficient distance from objects or other vehicles. Once it
is retracted, it should be at least 40 cm away from other objects
and vehicles.
www.
camping-car-plus
.com

EN
Operating the awning PR2000, PR2500
14
A
➤Remove the hand crank from the holder on the awning.
Positioning the struts on the ground
!
➤Position the struts vertically underneath the front panel.
➤Secure the struts with pegs (fig. 7, page 6).
➤Position one of the struts slightly deeper so that the front panel hangs at
an angle. This allows rain to run off more easily (fig. 8, page 6).
Securing the struts on the vehicle
You can secure the awning on your vehicle directly if you have already
mounted the latches for the struts.
➤Slide the cover of the latch up (fig. 9, page 6).
➤Fit the strut into the latch (fig. 9, page 6).
➤Slide the cover of the latch down (fig. 9, page 6).
➤Position one of the struts slightly deeper so that the front panel hangs at
an angle. This allows rain to run off more easily (fig. 0, page 7).

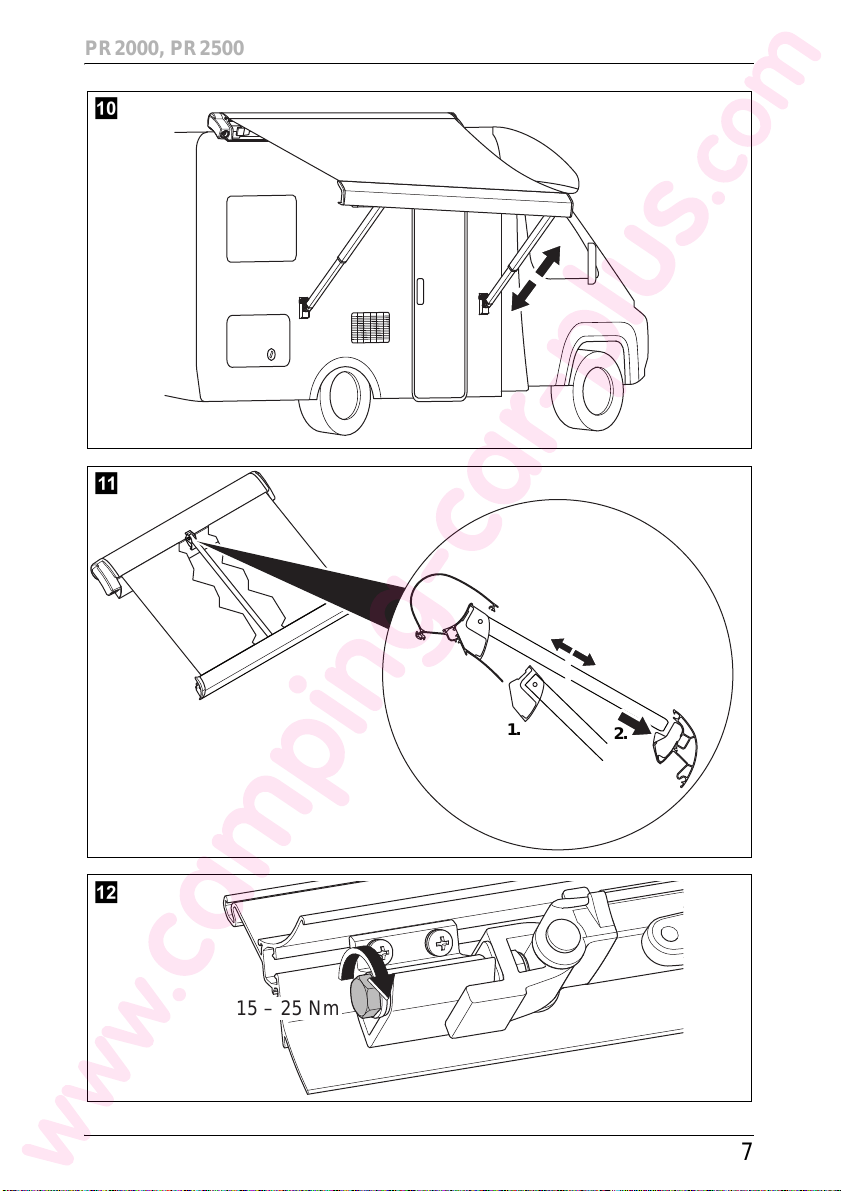

Mounting the tensioning arm (fig. a, page 7)
Awnings with a length of 4 m or more need to have a tensioning arm fitted in
the middle of the awning. This prevents the awning from sagging.
➤Slide in the tensioning rod.
➤Fit the top end of the tensioning arm into the attachment on the housing.
➤Slide the other end of the tensioning arm into the attachment in the front
panel.
NOTICE! Risk of damage!
The fabric of the awning should not hang down at the edges but
must be taut at all times. If the fabric hangs down, it could rub on
the arms and get damaged.
The fabric should not sag in the middle with long awnings.
WARNING! Beware of injury
Only position the struts on solid ground.
Secure the struts from slipping.
www.
camping-car-plus
.com

EN
PR2000, PR2500 Operating the awning
15

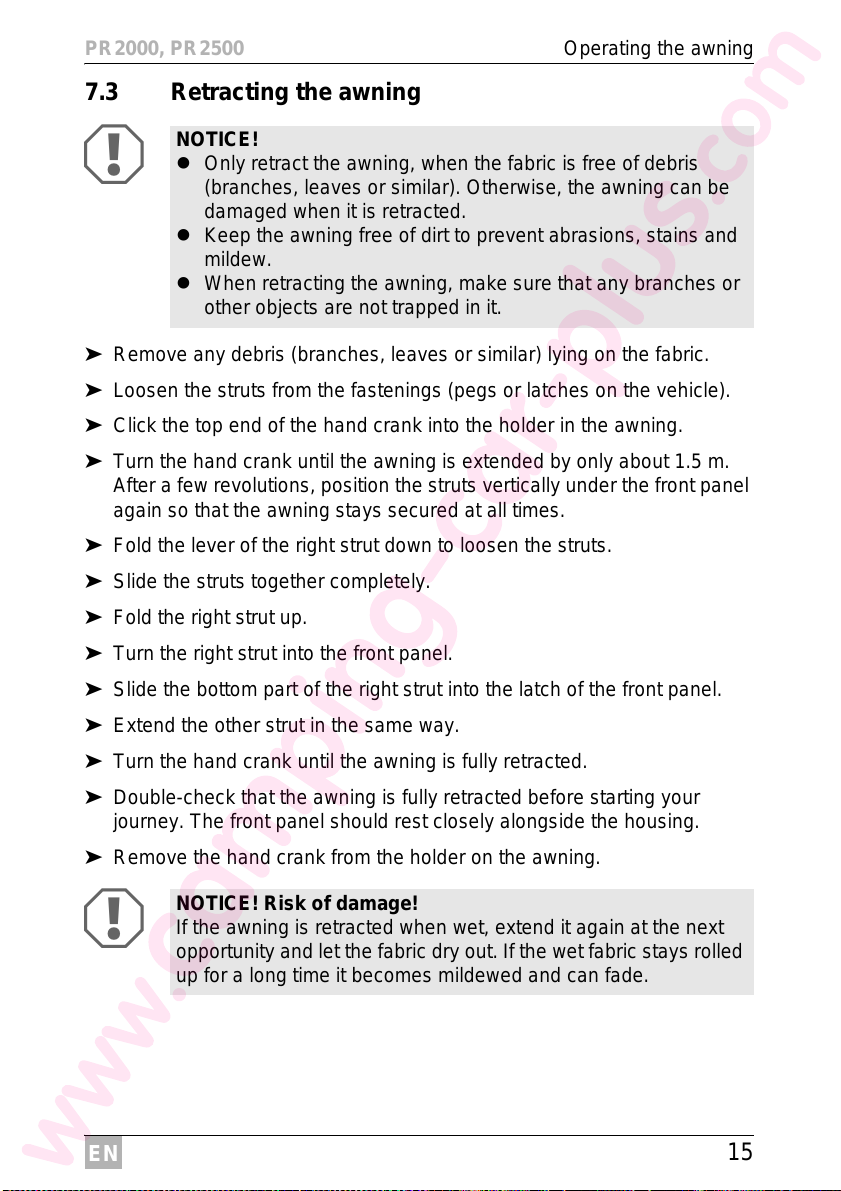

7.3 Retracting the awning
A
➤Remove any debris (branches, leaves or similar) lying on the fabric.
➤Loosen the struts from the fastenings (pegs or latches on the vehicle).
➤Click the top end of the hand crank into the holder in the awning.
➤Turn the hand crank until the awning is extended by only about 1.5 m.
After a few revolutions, position the struts vertically under the front panel
again so that the awning stays secured at all times.
➤Fold the lever of the right strut down to loosen the struts.
➤Slide the struts together completely.
➤Fold the right strut up.
➤Turn the right strut into the front panel.
➤Slide the bottom part of the right strut into the latch of the front panel.
➤Extend the other strut in the same way.
➤Turn the hand crank until the awning is fully retracted.
➤Double-check that the awning is fully retracted before starting your
journey. The front panel should rest closely alongside the housing.
➤Remove the hand crank from the holder on the awning.
A
NOTICE!
Only retract the awning, when the fabric is free of debris
(branches, leaves or similar). Otherwise, the awning can be
damaged when it is retracted.
Keep the awning free of dirt to prevent abrasions, stains and
mildew.
When retracting the awning, make sure that any branches or
other objects are not trapped in it.
NOTICE! Risk of damage!
If the awning is retracted when wet, extend it again at the next
opportunity and let the fabric dry out. If the wet fabric stays rolled
up for a long time it becomes mildewed and can fade.
www.
camping-car-plus
.com

EN
Cleaning and maintenance PR2000, PR2500
16
8 Cleaning and maintenance
8.1 Cleaning
A
➤Remove any debris (twigs, leaves or similar) lying on the awning fabric to
prevent abrasions, stains and mildew. The awning can also get damaged
when it is retracted.
➤Clean the awning fabric regularly to remove any dirt and dust:
– To do this, use water with 30 ml detergent and 30 ml bleach for 10 l of
water.
– Soap down the fabric and leave the liquid to soak in for five minutes.
– Rinse thoroughly with clean water.
Makesurethatthe detergentwith the bleach is completely washedoff.
Otherwise it can damage the fabric.
– Leave the fabric to dry.
I
8.2 Lubricating
➤If required, lubricate the joints of the awning with paraffin wax, teflon oil or
silicone oil.
NOTICE! Risk of damage!
Never clean the awning with a high-pressure cleaner.
Do not use abrasive cleaning agents or hard objects during
cleaning, as these can damage the product.
NOTE
The manufacturer recommends:
To clean the cloth, use the Dometic Clean&Care awning cleaner
(item no. 9103501116, available from your service partner).
www.
camping-car-plus
.com

EN
PR2000, PR2500 Cleaning and maintenance
17
8.3 Checking
!
➤Check the awning regularly for any imbalance and wear, as well as
damage to major parts.
➤Check the awning regularly:
– Is the fabric free of damage?
– Are the arms and front panel free of damage with no signs of wear?
– Does the awning close properly?
8.4 Tightening the screws on the hinges
The screws on the hinges must be tightened up after being used for the first
time:
after the first holiday using the awning
after driving 20000 km or six months after the awning was mounted
(whichever occurs first)
The screws on the hinge also need to be checked during the routine vehicle
inspection.
Contact your service partner to tighten up the screws.
Instructions for servicing (fig. b, page 7)
A
➤Lift up the front panel slightly so that the hinge does not bear any load.
➤Tighten the screws with 15 – 25 Nm.
WARNING!
Do not use the awning if any settings or maintenance work are
required.
If you discover any damage, please contact the service partner in
the respective country (see addresses on the back of themanual).
NOTICE!
The awning arms must not bear any load. This is to prevent the
fastening torque of the screws from being distorted.
www.
camping-car-plus
.com

EN
Warranty PR2000, PR2500
18
8.5 Patching small holes in the fabric
You can patch any small holes in the fabric or parts where the coating has
come off:
➤Use a cotton cloth to rub around the damaged area with a small amount
of liquid vinyl plaster (item no. 9103104018, available from your service
partner).
✓The liquid vinyl plaster dissolves the coating. The coating seals the hole
when it dries.
➤Wait until the area is dry before you retract the awning again.
9Warranty
The statutory warranty period applies. If the product is defective, please
contact your retailer or the manufacturer's branch in your country (see the
back of the instruction manual for the addresses).
For repair and guarantee processing, please include the following docu-
ments when you send in the device:
A copy of the receipt with purchasing date
A reason for the claim or description of the fault
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
MIf you wish to finally dispose of the product, ask yourlocal recycling
centre or specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.
www.
camping-car-plus
.com

EN
PR2000, PR2500 Technical data
19

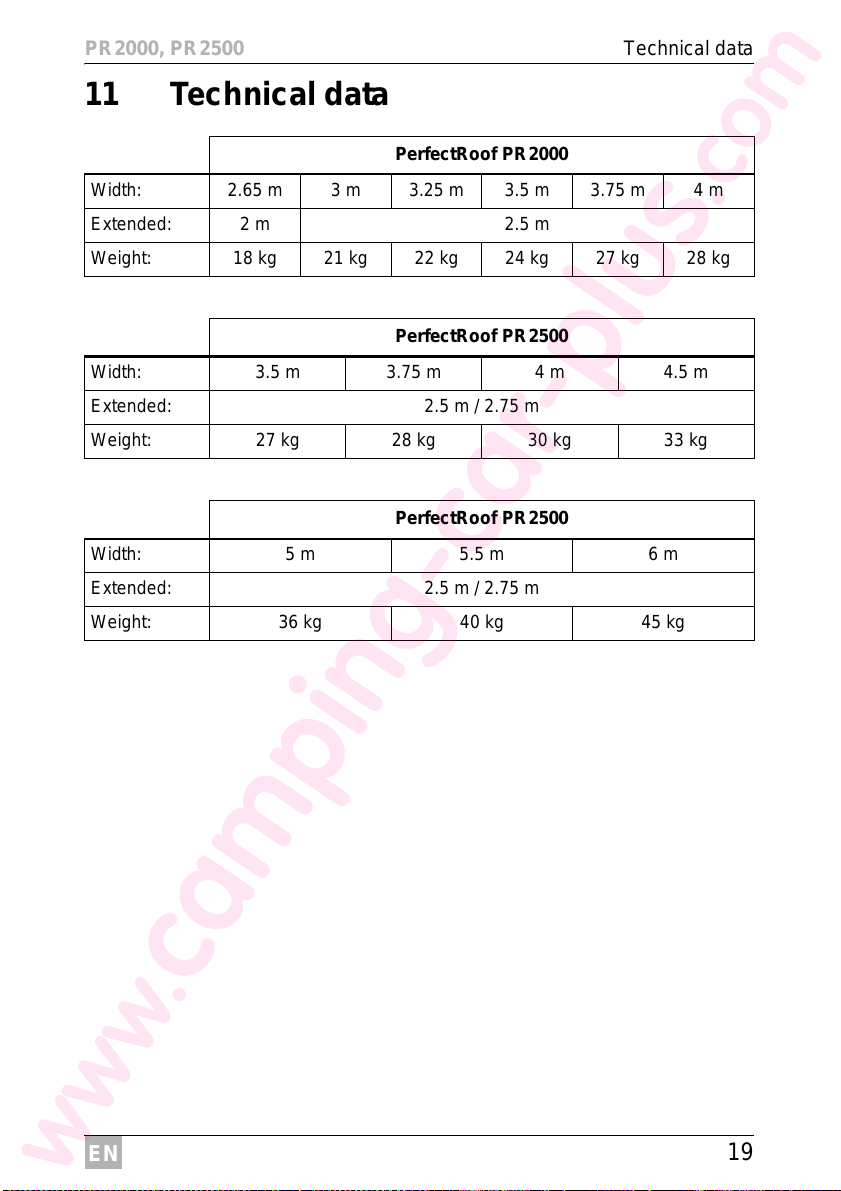

11 Technical data
PerfectRoof PR2000
Width: 2.65 m 3 m 3.25 m 3.5 m 3.75 m 4 m
Extended: 2 m 2.5 m
Weight: 18kg 21kg 22kg 24kg 27kg 28kg
PerfectRoof PR2500
Width: 3.5 m 3.75 m 4 m 4.5 m
Extended: 2.5 m / 2.75 m
Weight: 27kg 28kg 30kg 33kg
PerfectRoof PR2500
Width: 5m 5.5m 6m
Extended: 2.5 m / 2.75 m
Weight: 36kg 40kg 45kg
www.
camping-car-plus
.com

DE
PR2000, PR2500
20
!
Inhaltsverzeichnis
1 Hinweise zur Benutzung der Anleitung . . . . . . . . . . . . . . . . . . . . . . 21
2 Sicherheitshinweise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
4 Zubehör . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
7 Markise bedienen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
8 Reinigung und Pflege. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
9 Gewährleistung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
10 Entsorgung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
11 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
WARNUNG!
Diese Anleitung muss vor der Benutzung, der Reinigung und
Wartung gelesen und verstanden werden.
Dieses Produkt muss von einer Fachkraft montiert werden.
Eine fehlerhafte Montage kann zu schweren Verletzungen
führen. Umbauten am Produkt können äußerst gefährlich
werden und zu schweren Verletzungen oder zu Geräte-
schäden führen.
Diese Anleitung muss beim Produkt verbleiben. Der Besitzer
muss sie aufmerksam lesen.
www.
camping-car-plus
.com
