Dometic IBIS4 Series User manual

IB36H401RI, IB36H401RIY
Air conditioning roof unit
Operating manual
EN
AIR CONDITIONERS
IBIS4
IBIS4--O.book Seite 1 Montag, 5. November 2018 7:56 19

IBIS4--O.book Seite 2 Montag, 5. November 2018 7:56 19

AU
IBIS4
3
Original instructions
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
You find the installation manual online at:
“dometic.com/manuals”.
The instructions in the installation manual are intended for qualified
personnel at workshops who are familiar with the guidelines and
safety precautions to be applied.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.1 General safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.2 Operating the device safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3 Target group for this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5.1 Control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5.2 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5.3 Air conditioning modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5.4 Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 Before initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Operating the roof air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
7.1 Basic notes on operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
7.2 Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7.3 Hints for improved use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7.4 Switching the roof air conditioner on and to stand-by . . . . . . . . . . .14
7.5 Selecting the air conditioning mode . . . . . . . . . . . . . . . . . . . . . . . . .14
7.6 Selecting the fan setting manually . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7.7 Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7.8 Adjusting the air nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7.9 Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
IBIS4--O.book Seite 3 Montag, 5. November 2018 7:56 19

AU
a
Explanation of symbols IBIS4
4
7.10 Activating the sleep function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
7.11 Replacing the remote control batteries . . . . . . . . . . . . . . . . . . . . . . .17
7.12 Setting the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
8 Cleaning the roof air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9 Maintenance of the roof air conditioner . . . . . . . . . . . . . . . . . . . . . . . .21
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and incorrect
connection voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
WARNING!
Safety instruction: Failure to observe this instruction can cause death
or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
IBIS4--O.book Seite 4 Montag, 5. November 2018 7:56 19

AU
IBIS4 Safety instructions
5
In particular, the manufacturer will not be liable for any consequential damage,
especially consequential damage caused by failure of the roof air conditioner.
2.1 General safety
!WARNING!
•Electrical devices are not toys.
The appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they are under supervision or have been given
instruction.
•Children should be supervised to ensure that they do not play with the
appliance.
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they are under supervision or
have been given instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be performed by children
without supervision.
•Only use the device as intended.
•Do not make any alterations or conversions to the device.
•Installation, maintenance and repairs of the roof air conditioner may
only be carried out by qualified personnel who are familiar with the
risks involved when handling refrigerant and air conditioning systems
as well as the relevant regulations. Inadequate repairs may cause
serious hazards. For repair service, please contact the service centre in
your country (addresses on the back page).
•Do not use the device near flammable fluids or in closed rooms.
•Make sure no combustible objects are stored or installed near the air
outlet. A distance of at least 50 cm must be kept.
•Do not reach into air outlets or insert any foreign objects in the roof air
conditioner.
•Do not undo the upper cover of the roof air conditioner in the event of
a fire. Use approved extinguishing agents instead. Do not use water to
extinguish fires.
IBIS4--O.book Seite 5 Montag, 5. November 2018 7:56 19

AU
a
Target group for this manual IBIS4
6
ANOTICE!
•Never drive through automatic car washes when the roof air
conditioner is mounted.
•Please ask your vehicle manufacturer if a technical inspection is
required after fitting an air conditioner and whether the height entered
in your vehicle documents needs to be altered.
•If faults occur in the roof air conditioner's refrigerant circuit, the roof air
conditioner must be checked by a specialist company and properly
repaired. The refrigerant must never be released into the air.
2.2 Operating the device safely
!WARNING!
•Always disconnect the power supply when working on the device.
ANOTICE!
•The roof air conditioner is not suitable for use in agricultural or
construction vehicles.
•Operate the device only if you are certain that the housing and the
cables are undamaged.
3 Target group for this manual
This operating manual is for the user of the roof air conditioner.
4 Intended use
The Harrier Lite roof air conditioner is designed for installation on the roof of a
caravan or recreational vehicle to provide reverse cycle heating and cooling. It is
intended for vehicles with roofs with a thickness of 20 to 100 mm. The roof air
onditioner must be installed so that it is within ±10° of the horizontal plane. It is not
suitable for houses and apartments.
The roof air conditioner is not suitable for installation in construction machines,
agricultural machines or similar equipment. It will not work properly if exposed to
strong vibrations.
The function of the roof air conditioner is guaranteed for temperatures between
–2 °C and 52 °C.
IBIS4--O.book Seite 6 Montag, 5. November 2018 7:56 19

AU
IBIS4 Technical description
7
5 Technical description
The roof air conditioner supplies the interior with cool or warm air which is without
dust and dirt and can be dehumidified.
The roof air conditioner is operated with the remote control or via the control panel
on the air conditioner.
I

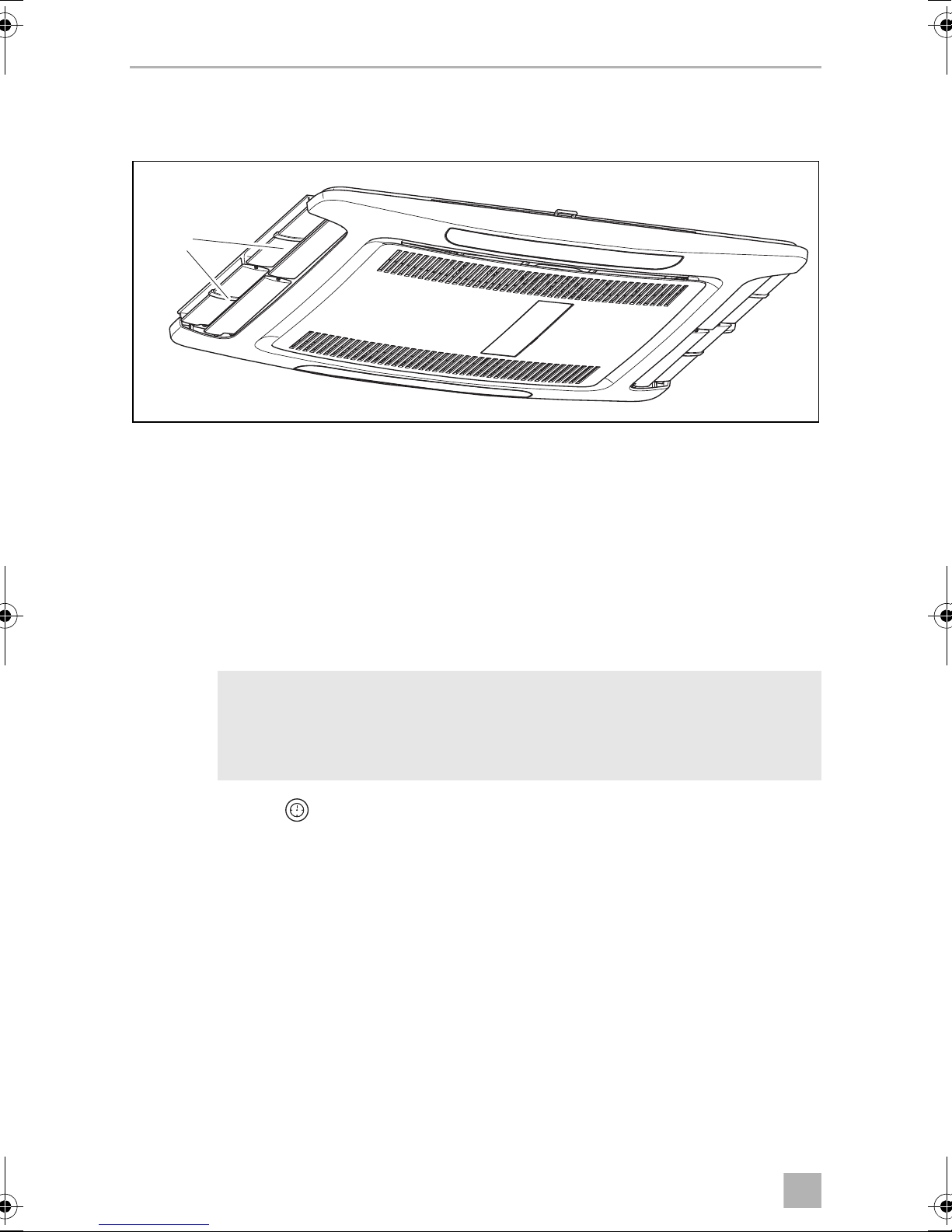

5.1 Control panel
The control panel (1) is at the air outlet unit of the roof air conditioner.
NOTE
The roof air conditioner can lower the temperature within the vehicle to
a certain level. The temperature depends on the type of vehicle, the
ambient temperature and the cooling capacity of your roof air
conditioner.
Below an outer temperature of 16 °C the roof air conditioner doesn’t
cool anymore. In this case only use the air conditioning mode
“Ventilation” ( ).
1
1
IBIS4--O.book Seite 7 Montag, 5. November 2018 7:56 19

AU
a
Technical description IBIS4
8

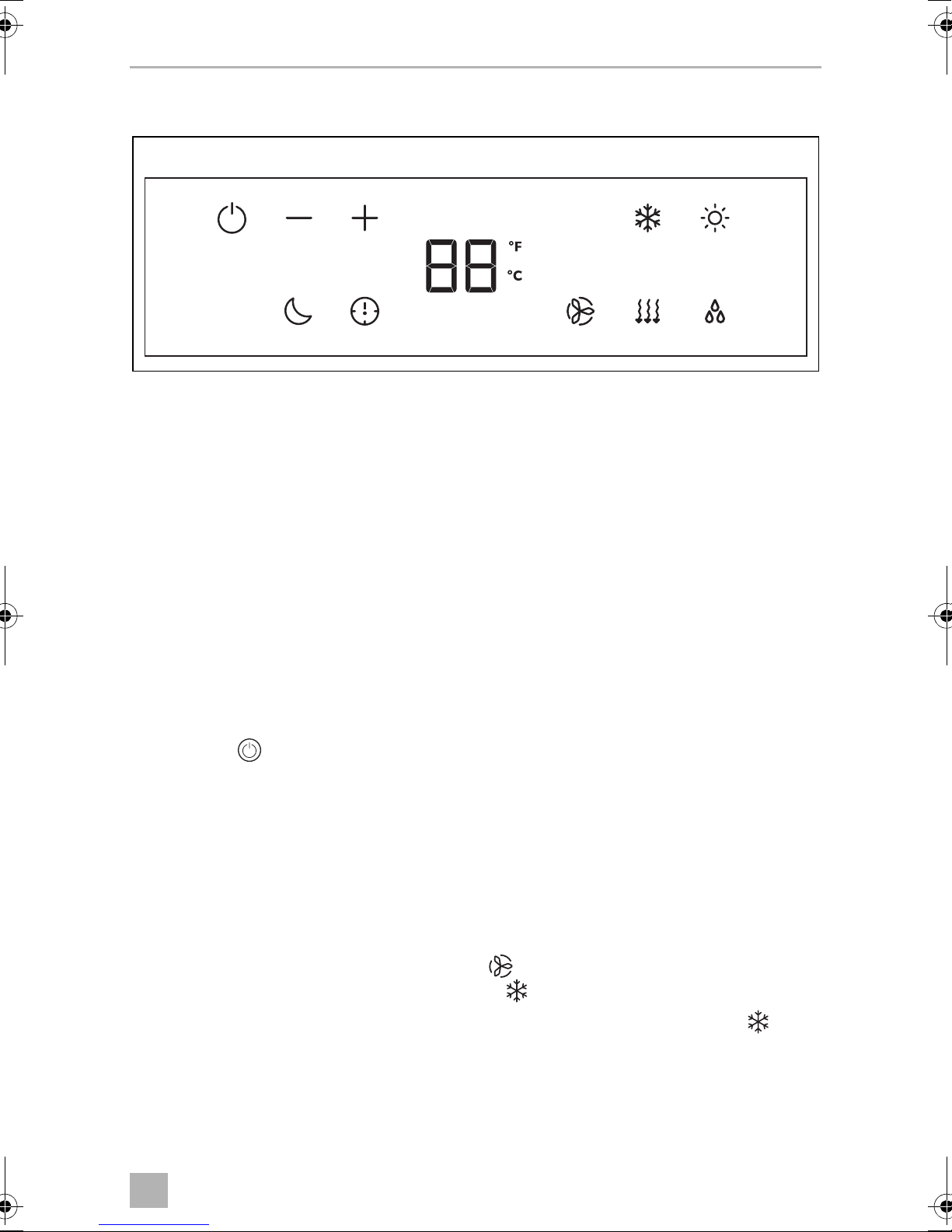

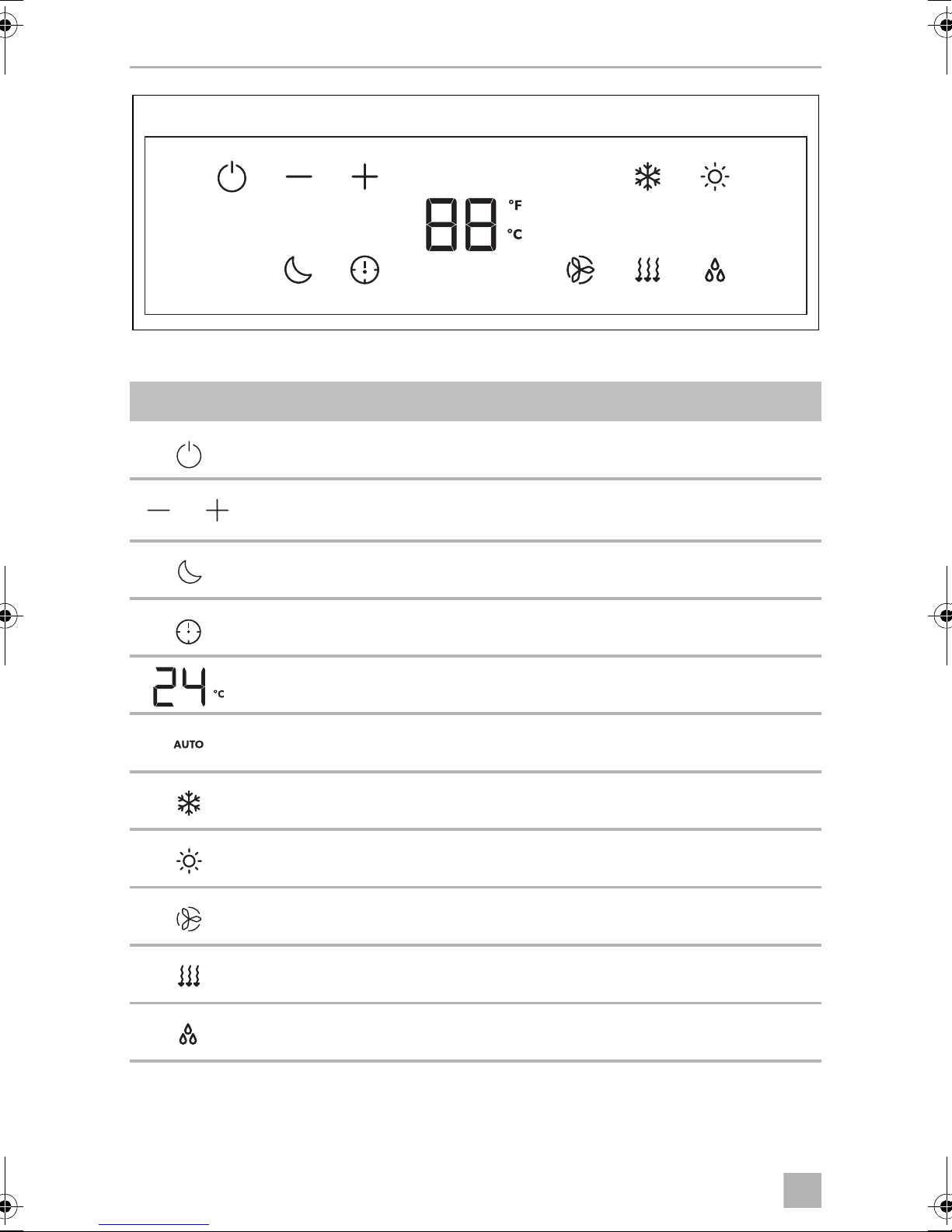

Control and display elements (fig. 2):
Symbol Explanation
Switches the roof air conditioner on or to stand-by mode.
+button: Increases the currently displayed value.
–button: Reduces the currently displayed value.
Activates the sleep function (chapter “Additional functions” on page 11).
Indicates the timer is set.
Displays the set temperature and indicates fan level when fan is adjusted.
Enables/disables automatic mode (chapter “Air conditioning modes” on
page 10).
Enables/disables cooling mode (chapter “Air conditioning modes” on
page 10).
Enables/disables heating mode (chapter “Air conditioning modes” on
page 10).
Adjusts the fan speed between Low, Med or High – showing as 1, 2 or 3 on
the air outlet unit display for a short time when changed.
Enables/disables ventilation mode (chapter “Air conditioning modes” on
page 10). Circulates air without heating or cooling.
Enables/disables dehumidification mode (chapter “Air conditioning
modes” on page 10).
AUTO
2
IBIS4--O.book Seite 8 Montag, 5. November 2018 7:56 19

AU
IBIS4 Technical description
9

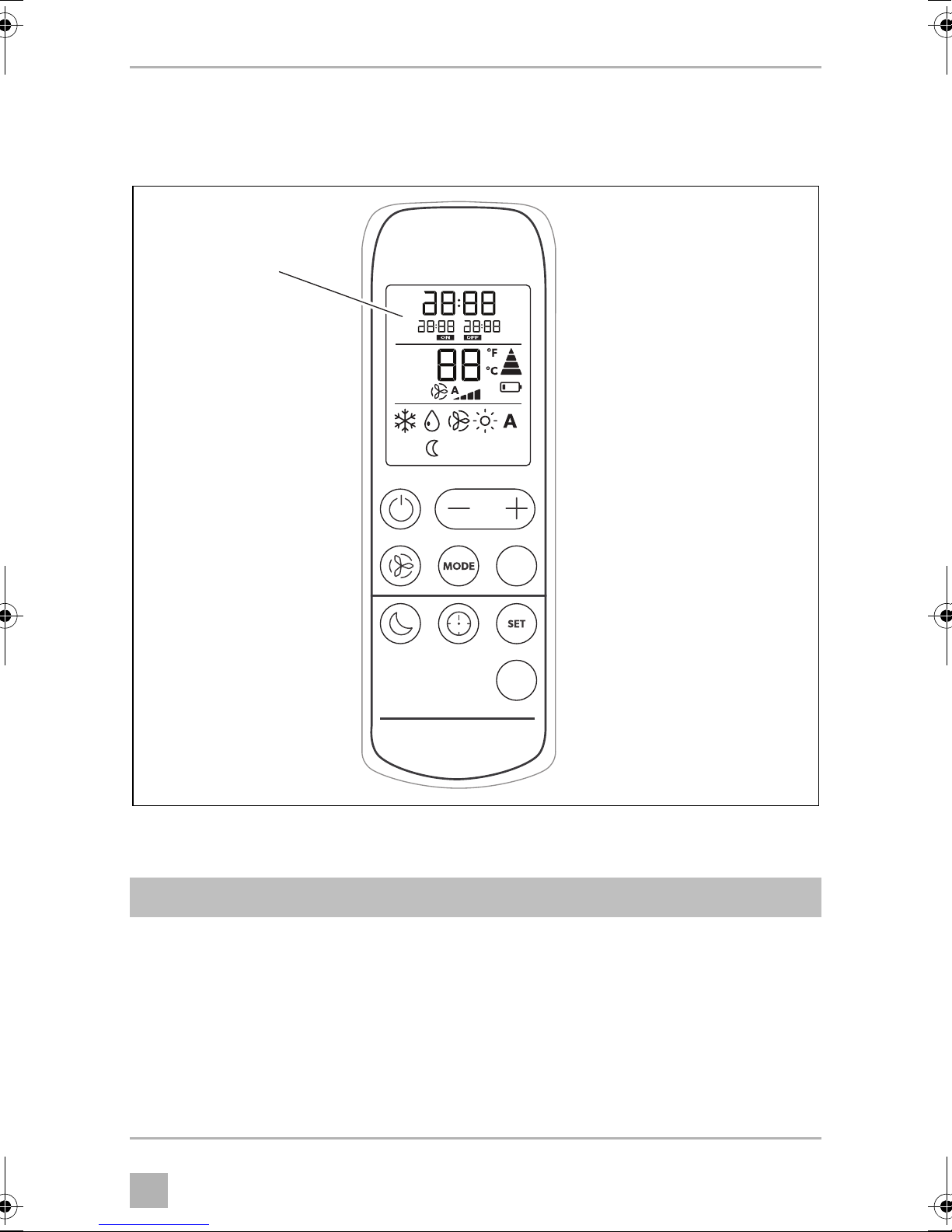

5.2 Remote control
All settings of the device (e. g. temperature settings, timer programming) are
transmitted to the roof air conditioner by remote control.
The following control and display elements are available on the remote control
(fig. 3, page 9) :
No./Button Explanation
1Display
Displays the following:
•Time
•Selected room temperature (target value) in °C or °F
•Actual room temperature
•Air conditioning mode
•Fan level
•Symbols for active additional functions
•Battery status
TURBO
°C/°F
1
3
IBIS4--O.book Seite 9 Montag, 5. November 2018 7:56 19

AU
a
Technical description IBIS4
10

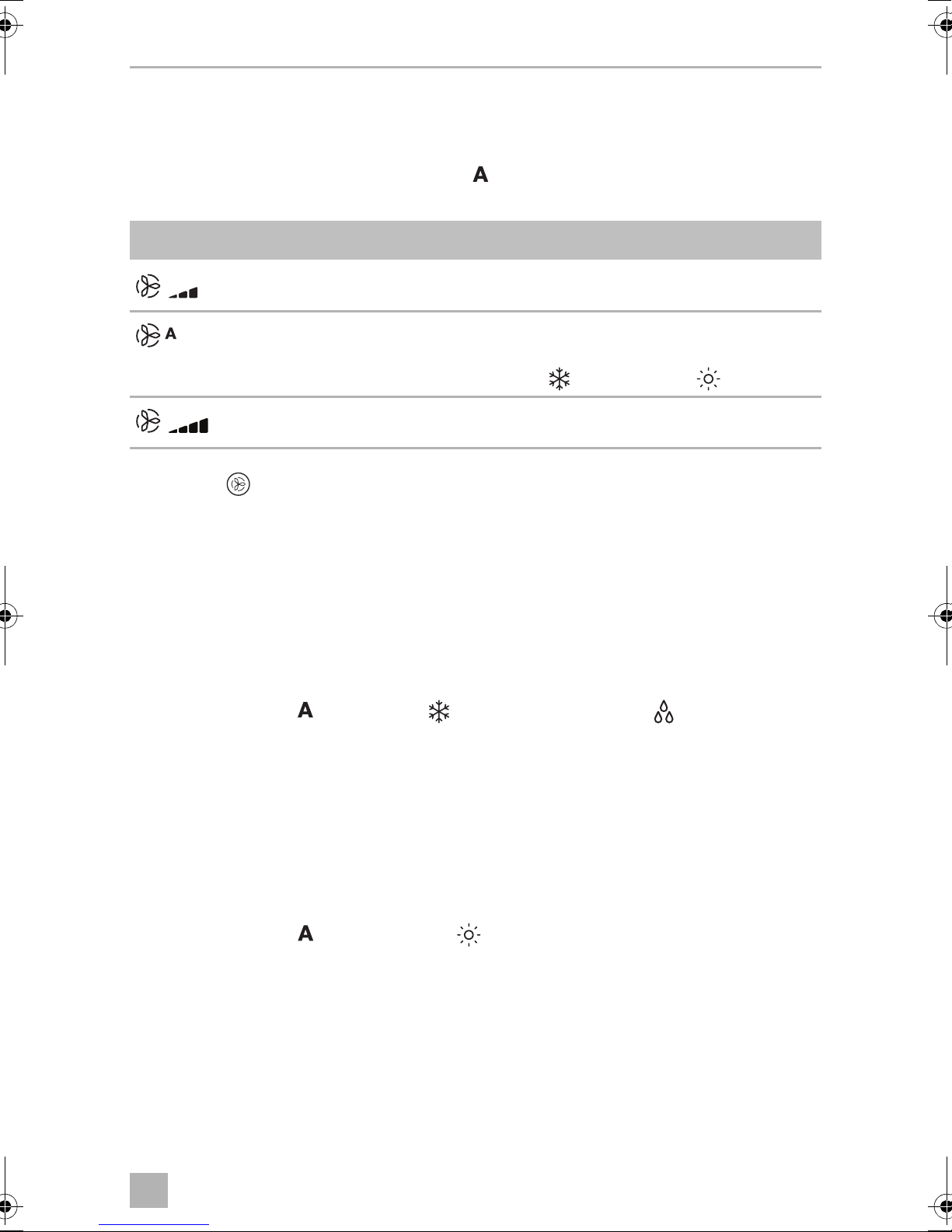

5.3 Air conditioning modes
The roof air conditioner has the following air conditioning modes:
Switches the roof air conditioner on or to stand-by mode.
+button: Increases the currently displayed value.
–button: Reduces the currently displayed value.
Adjusts the fan speed between Low, Med or High – showing as 1, 2 or 3 on
the air outlet unit display for a short time when changed.
Selects the air operation mode (chapter “Air conditioning modes” on
page 10).
Selects the turbo mode.
Sets the fan speed to Turbo speed to rapidly cool or heat the inside of the
vehicle. After it reaches set temperature or is pressed again the fan will
return to the previous setting.
Activates the sleep function (chapter “Additional functions” on page 11).
Sets the timer and the clock.
Finishes timer and clock settings.
Switches between temperature units Celsius (°C) and Fahrenheit (°F).
Air conditioning
mode
Display
message Explanation
Automatic
(on display)
(on remote
control)
You specify the temperature, and the air conditioner
brings the interior to this temperature by heating or
cooling and by controlling the necessary fan speed.
Cooling You specify the temperature and fan settings, and the
air conditioner cools the interior to this temperature.
No./Button Explanation
IBIS4--O.book Seite 10 Montag, 5. November 2018 7:56 19

AU
IBIS4 Before initial use
11
5.4 Additional functions
The roof air conditioner has the following additional functions:
6 Before initial use
Inspection before starting up
Before you switch on the roof air conditioner, observe the following:
➤Check whether the supply voltage and frequency correspond to the values
specified in the technical data (see leaflet).
➤Ensure both the air intake opening and the air nozzles are free. All ventilation
grilles must always be kept free to ensure that the roof air conditioner is able to
operate at maximum capacity.
Heating You specify the temperature and fan settings, and the
air conditioner heats the interior to this temperature.
The fan will only start after 2 min (on Low speed) and
the after around 5 min will got to the set fan speed
(after the evaporator reaches temperature).
Dehumidification Dehumidification removes moisture from the air with-
out heating or cooling the inside. The fan speed is
Low.
Ventilation The fan operates to circulate air without heating or
cooling.
Additional
function
Display
message Explanation
Timer The air conditioner is switched on at the specified time.
The air conditioner is switched off at the specified time.
Sleep The sleep function reduces the fan speed and the
compressor speed to reduce the noise levels for easier
sleeping.
Air conditioning
mode
Display
message Explanation
IBIS4--O.book Seite 11 Montag, 5. November 2018 7:56 19

AU
a
Operating the roof air conditioner IBIS4
12
!
Set the time
➤Set the current time (see chapter “Setting the time” on page 16).
Set the remote control
➤Insert the batteries (see chapter “Replacing the remote control batteries” on
page 17).
✓The display shows all symbols for 5 seconds.
✓The remote control is ready for operation.
7 Operating the roof air conditioner
7.1 Basic notes on operation
The roof air conditioner has three operating modes:
You can use the control panel to
•switch the roof air conditioner to and from stand-by mode
•make the settings
•select additional functions
You can use the remote control to
•switch the roof air conditioner to and from stand-by mode.
•make the settings
•select additional functions
CAUTION! Beware of injury
Do not insert your fingers or objects into the air nozzles or the intake
grille.
Operating mode Features
Off The roof air conditioner is switched off.
The remote control is inactive.
Stand-by The roof air conditioning is ready for operation and can be switched
on with the remote control.
On The roof air conditioner is conditioning the air in the interior.
IBIS4--O.book Seite 12 Montag, 5. November 2018 7:56 19

AU
IBIS4 Operating the roof air conditioner
13
7.2 Using the remote control
The remote control must be pointed at the IR receiver (1) on the control panel during
operation.
➤Press a button.
✓The value is transmitted directly to the roof air conditioner.
✓The roof air conditioner confirms the receipt of data with a high note.
Switching only the remote control to or from stand-by
In stand-by mode, the remote control display shows the time only.
If the remote control is not pointing to the IR receiver on the control panel, you can
activate the remote control or switch it to stand-by independently from the roof air
conditioner:
➤Press the button.
7.3 Hints for improved use
The following hints will optimise the performance of your roof air conditioner:
•Improve the heat insulation of your vehicle by sealing gaps and hanging reflective
blinds or curtains on your windows.
•If the vehicle has been subjected to direct sunlight for a long time: Operate the
roof air conditioner in the “Ventilation” ( ) mode with the windows open for a
while before switching on the “Cooling” ( ) air conditioning mode.
•Avoid opening doors and windows as far as possible in the “Cooling” ( )
mode.
AUTO
4
IBIS4--O.book Seite 13 Montag, 5. November 2018 7:56 19

AU
a
Operating the roof air conditioner IBIS4
14
•Align the air nozzles sensibly.
•Make sure the air nozzles and intake grille are not covered by cloths, paper or
other objects.
7.4 Switching the roof air conditioner on and to stand-by
I
➤Press the button.
✓The roof air conditioner is switched on.
➤Press the button again to switch to stand-by.
7.5 Selecting the air conditioning mode
➤Select the desired air conditioning mode using the MODE button, see chapter
“Air conditioning modes” on page 10.
✓The roof air conditioner confirms the receipt of the values with a high note.
✓The roof air conditioner is switched to the selected air conditioning mode.
NOTE
•When roof air conditioner is switched on, it begins to condition the
air to the values that were set most recently.
•The roof air conditioner can be switched ed off only by cutting mains
power.
•You can use the remote control or the control panel to switch it on or
to stand-by
IBIS4--O.book Seite 14 Montag, 5. November 2018 7:56 19

AU
IBIS4 Operating the roof air conditioner
15
7.6 Selecting the fan setting manually
The fan controls the strength of the air supply.
In all modes, except for the “Automatic”( ) mode, the fan speed can be selected
manually.
➤Use the button to select the desired fan speed.
✓The roof air conditioner confirms the receipt of the values with a high note.
✓The new fan speed is set.
7.7 Setting the temperature
Cooling Mode
In the “Automatic” ( ), “Cooling” ( ), and “Dehumidifying” ( ) modes, you can
specify a temperature between 16 °C and 30 °C via the remote control.
➤Use the +or – button to select the desired temperature.
✓The roof air conditioner confirms the receipt of the values with a high note.
✓The temperature is set on the roof air conditioner.
Heating Mode
In the “Automatic” ( ) and “Heating” ( ) modes, you can specify a temperature
between 16 °C and 30 °C via the remote control.
➤Use the +or – button to select the desired temperature.
✓The roof air conditioner confirms the receipt of the values with a high note.
✓The temperature is set on the roof air conditioner.
Display message Explanation
Three fan speeds
Auto fan (changes the fan speed based on the temperature setting
and actual room temperature)
only available in the “Cooling” ( ) and “Heating” ( ) modes.
Turbo fan speed, only when TURBO button is pressed.
IBIS4--O.book Seite 15 Montag, 5. November 2018 7:56 19

AU
a
Operating the roof air conditioner IBIS4
16
7.8 Adjusting the air nozzles
The air supply within the vehicle can be regulated by setting the air nozzles.
➤Turn the slats (1) in the air nozzles independently in the required directions. The
air flow can be adjusted along the ceiling or towards the floor.
7.9 Setting the time
The remote control needs the current time in order to program the timer. The time is
indicated on the display of the remote control in 24 hour format.
Perform the following steps to set the time:
I
➤Press and hold the button for 2 s.
✓The time flashes on the display of the remote control.
➤Use the +or –button to set the current time.
Press the longer than 2 s to increase or decrease the time quicker.
➤Press the SET button to confirm the time.
NOTE
The remote control returns to its initial mode and saves the current
setting, if no key is pressed on the remote control for 15 seconds while
setting the time.
1
5
IBIS4--O.book Seite 16 Montag, 5. November 2018 7:56 19

AU
IBIS4 Operating the roof air conditioner
17
7.10 Activating the sleep function
I
When the sleep function is activated, the compressor speed and the fan speed is
limited to a lower level to reduce the noise levels for easier sleeping.
➤Set the required temperature (see chapter “Setting the temperature” on
page 15).
➤Press the button.
✓The symbol appears in the display.
The sleep function is activated.
➤To deactivate the sleep function press the button again.
I
7.11 Replacing the remote control batteries
Replace the batteries if you see the symbol on the display.
The battery compartment is on the back of the remote control.
➤Gently push down the lid of the battery compartment and slide it open in the
direction of the arrow.
➤Insert the new batteries (2x type AAA) in the remote control as indicated in the
battery compartment.
➤Close the cover of the battery compartment.
BProtect the environment!
Do not dispose of batteries with general household waste.
Return any used batteries to your retailer or take them to a collection
point.
NOTE
The sleep function is only availabe in “Cooling” and “Heating” mode.
NOTE
The sleep function is deactivated if the MODE button is pressed.
IBIS4--O.book Seite 17 Montag, 5. November 2018 7:56 19

AU
a
Operating the roof air conditioner IBIS4
18
7.12 Setting the timer
The timer function allows you to set a specific time period for air conditioning. You
can specify the switch-on time, the switch-off time or both values.
I
➤Before programming the timer, select the air conditioning mode and all required
values (e.g. temperature).

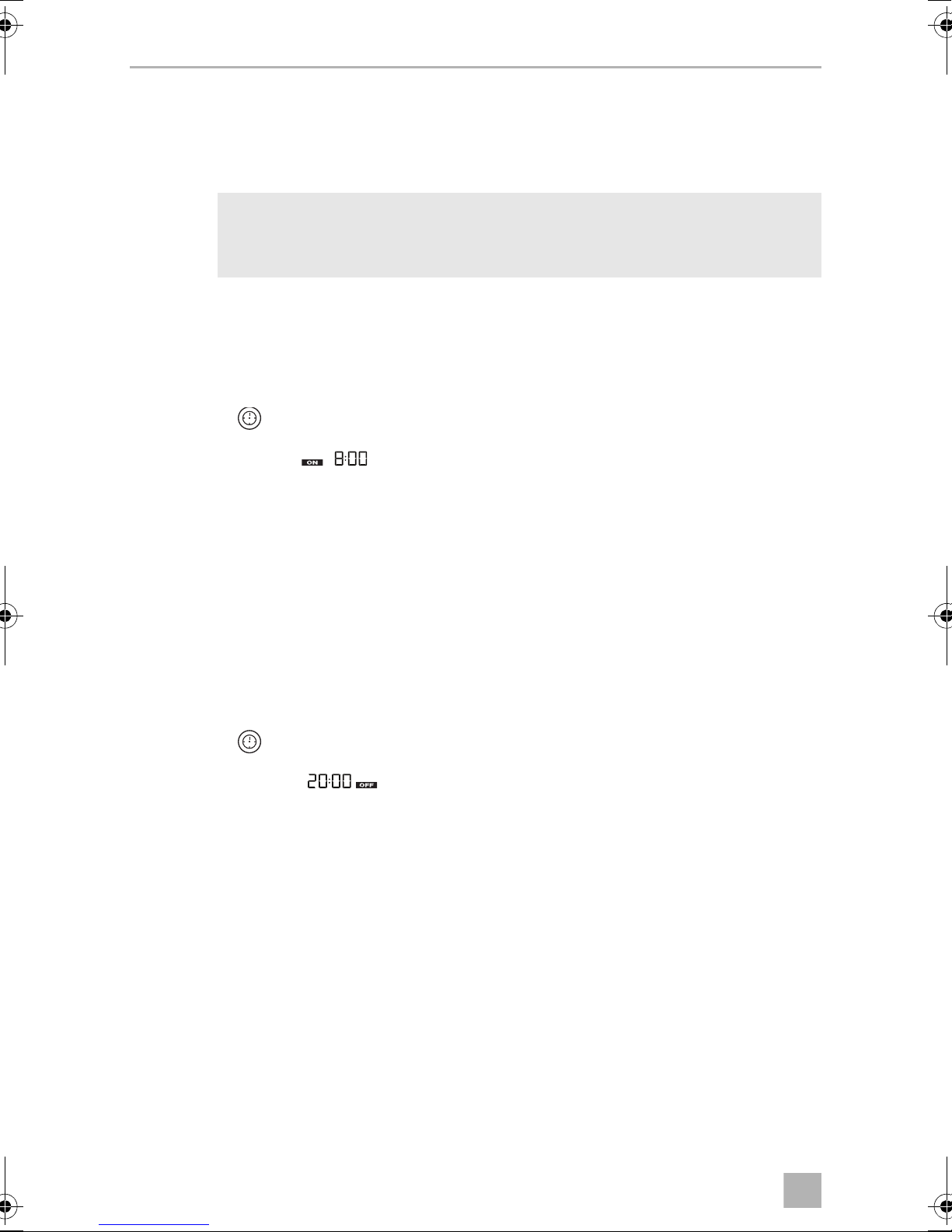

Setting the switch-on time
➤Press the button once.
✓The ON symbol ( ) flashes on the display of the remote control.
➤Use the +or –button to set the time when the air conditioner will be switched on.
➤Press the SET button to transmit the value to the roof air conditioner.
✓The switch-on time is set on the roof air conditioner.
The roof air conditioner is switched on with the selected air conditioning mode
at the specified time.
➤Switch the roof air conditioner to stand-by.
Setting the switch-off time
➤Press the button twice.
✓The OFF symbol ( ) flashes on the display of the remote control.
➤Use the +or –button to set the time when the air conditioner will be switched off.
➤Press the SET button to transmit the value to the roof air conditioner.
✓The switch-off time is set on the roof air conditioner.
The roof air conditioner runs in the selected air conditioning mode until the
specified time.
NOTE
The remote control returns to its initial mode if no button is pressed on
the remote control for 15 seconds while programming the timer.
IBIS4--O.book Seite 18 Montag, 5. November 2018 7:56 19

AU
IBIS4 Cleaning the roof air conditioner
19

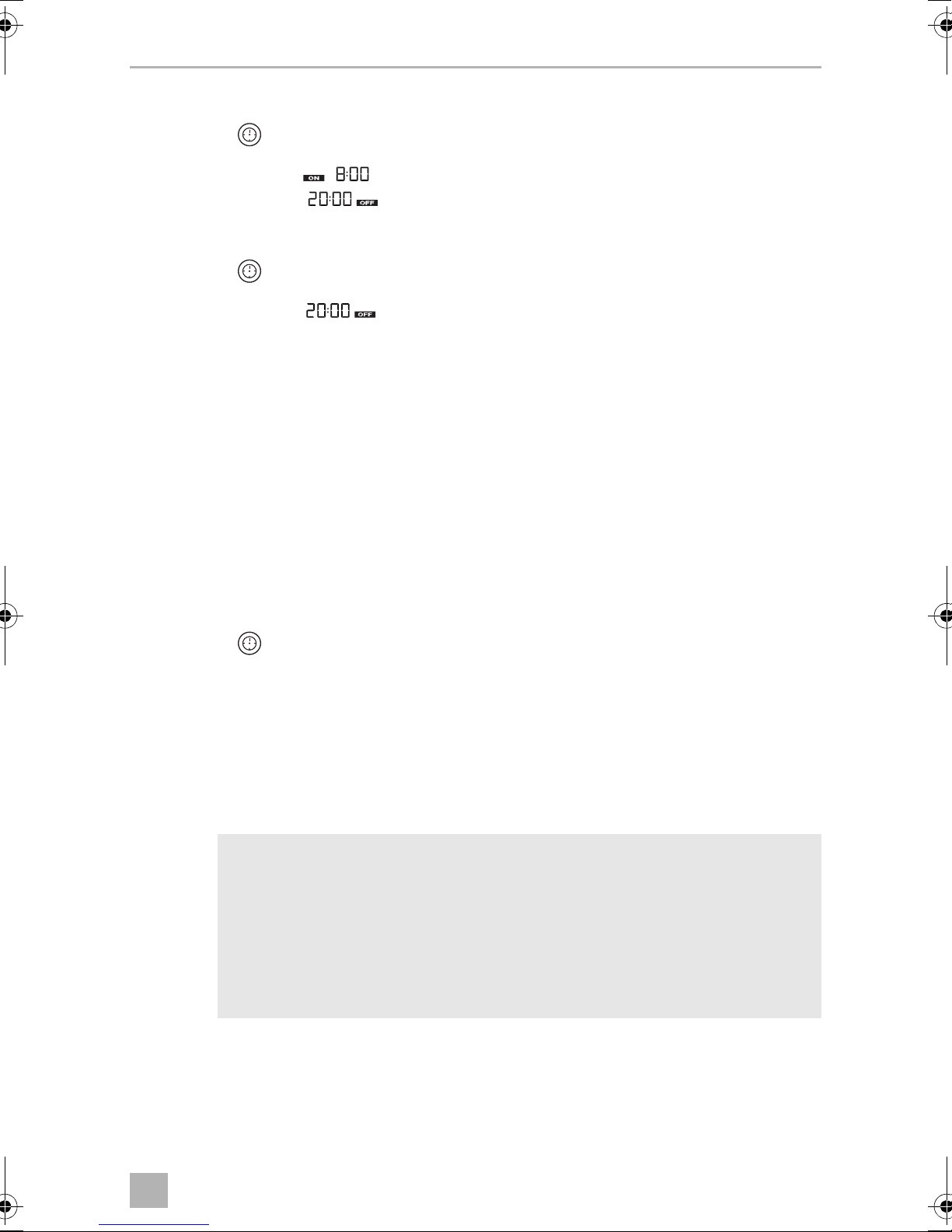

Setting the switch-on and switch-off times
➤Press the button three times.
✓The ON symbol ( ) flashes on the display of the remote control.
The OFF symbol ( ) is displayed.
✓Use the +or –button to set the time when the roof air conditioner is to switch on.
➤Press the button again.
✓The OFF symbol ( ) flashes on the display of the remote control.
➤Use the +or –button to set the time when the roof air conditioner is to switch off.
➤Press the SET button to transmit the value to the roof air conditioner.
✓The switch-on and switch-off times are set on the roof air conditioner.
✓The roof air conditioner starts in the selected air conditioning mode at the
specified time and runs until the second specified time.
➤Switch the roof air conditioner to stand-by.
Cancelling timer settings
If you have set the timer, you can cancel these settings as follows:
➤Press the button four times.
✓The timer symbol disappears.
✓The setting has been cancelled.
8 Cleaning the roof air conditioner
ANOTICE! Beware of damage
•Do not clean the roof air conditioner with a high-pressure cleaner.
Exposure to water can damage the air conditioner.
•Do not use sharp or hard objects or cleaning agents for cleaning as
these may damage the roof air conditioner.
•To clean the roof air conditioner, use water with a gentle cleaning
agent. Never use petrol, diesel or solvents.
IBIS4--O.book Seite 19 Montag, 5. November 2018 7:56 19

AU
a
Cleaning the roof air conditioner IBIS4
20
A

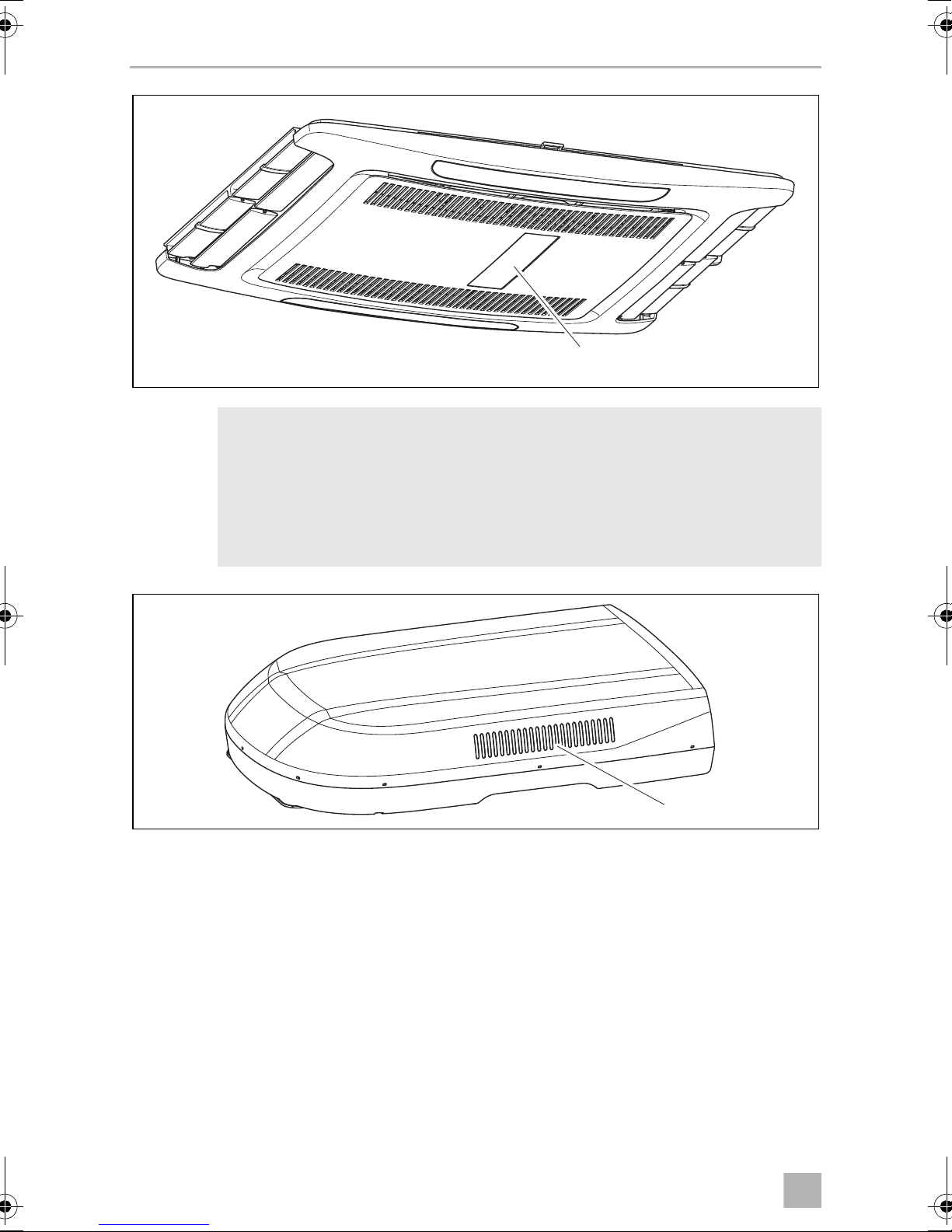

➤Regularly remove leaves and other dirt from the ventilation grilles (1) of the roof
air conditioner. Make sure you do not damage the grilles in the process.
➤Clean the housing of the roof air conditioner and the air outlet unit occasionally
with a damp cloth.
➤Clean the remote control with a slightly damp cloth from time to time. We
recommend using a cleaning cloth for glasses to clean the display.
NOTICE! Beware of damage
The air outlet unit display screen (1) is acrylic and can be damaged by
some common household chemicals.
Only use a mild solution of warm soapy water to clean it.
Chemical cleaners, window cleaners, alcohol, certain tensides, organic
solvents, softeners and similar can damage the display.
1
6
1
7
IBIS4--O.book Seite 20 Montag, 5. November 2018 7:56 19
